Positional Flat or Fixed Length Payloads Support
B2B for Oracle Integration can consume positional flat or fixed length payloads (also called data files in native format) for inbound and outbound message translations. These files can be of fixed length for various fields, CSV, delimited, and other formats. B2B for Oracle Integration enables you to define a B2B schema and document from these various formats and include the document in a trading partner agreement.
The following example describes how B2B for Oracle Integration handles a positional flat payload.

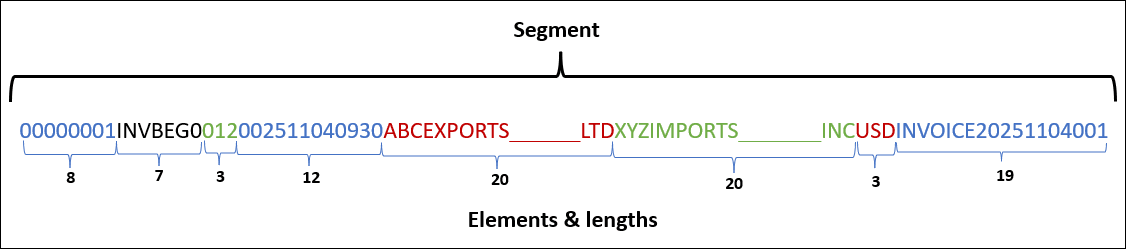

A positional flat payload includes segments (for this example,
BGM
and NAS
). Each segment includes a row that
consists of multiple elements. Each element is defined by its length. For example, the
BGM
segment includes the element 04366170969
that
can be a length of up to 35 characters, the element ZZ
that can be a
length of up to 4 characters, and so on.

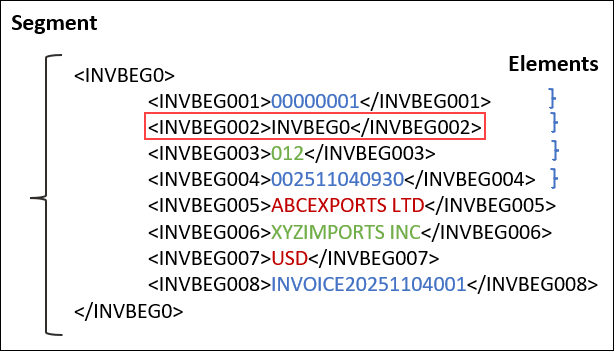

After translation by the B2B action in an integration, the XML format looks as follows. Each segment consists of child elements corresponding to a unique row in the payload.
Let's look at another example. Assume your positional flat payload file consists of the following segments and rows.
BGM94366179969 ZZ 006836700988 ZZ ORDERS51631
NAB568 92 Ritorazione e XXXXXXX Per XXXXXXX Srl presso Scuola XXXXXXX XXXXXXP.zza Vittorio Veneto 1 XXXXXXXX MI,
NAJ568 92 Ritorazione e XXXXXXX Per XXXXXXX Srl presso Scuola XXXXXXX XXXXXXP.zza Vittorio Veneto 1 XXXXXXXX MI,
NAI04366170969 VA Ritorazione e XXXXXXX Per XXXXXXX Srl Via Roma, 19

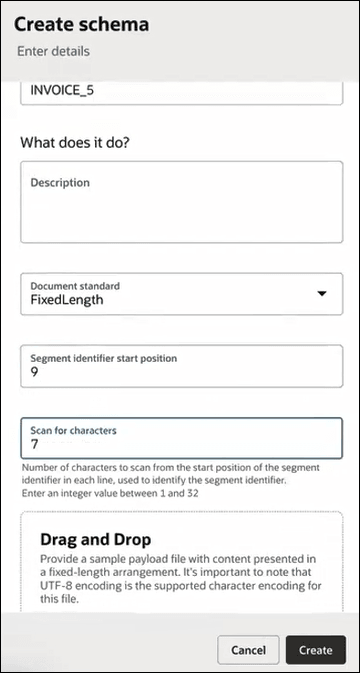

You drag the positional flat payload file into the user interface when
creating a B2B schema and specify the number of characters to scan to identify the
segments. For this example, 3
is specified to create the schema
segments from the first three characters in each row.

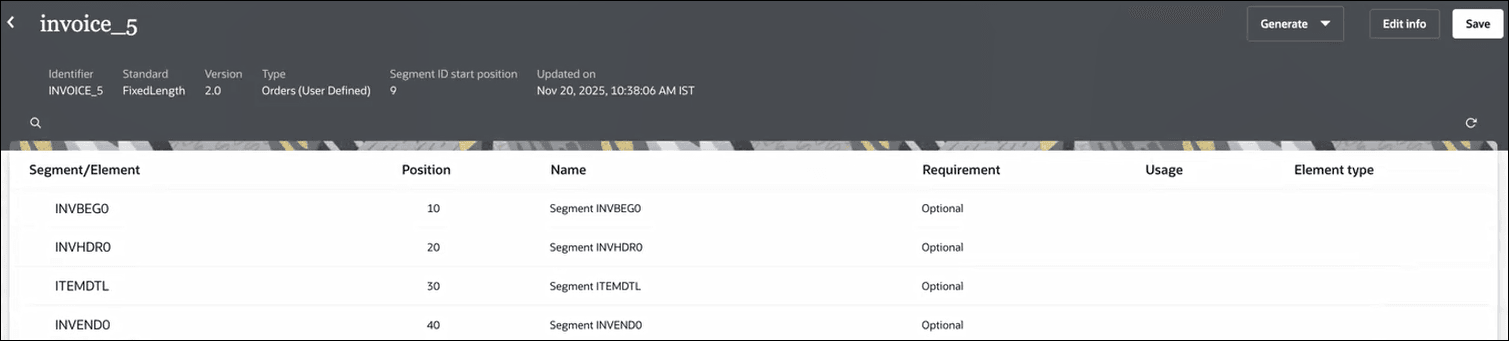

From this payload, four segments are created with default position and requirement options.
You can select Actions to add child elements, new child elements, additional segments, and loops.
