Import Transactional Data Using the Bulk Data Import Operation

This use case describes how to import transactional records in chunks from an application (for example, Salesforce) into the SAP ASE (Sybase) database. In this use case, the Salesforce application is used. Similarly, you can import data files from other applications into the SAP ASE (Sybase) database using the SAP ASE (Sybase) Adapter.

To perform this operation, you create the Salesforce Adapter and SAP ASE (Sybase) Adapter connections in Oracle Integration. The SAP ASE (Sybase) Adapter first validates an input file header with the target table header (columns), places file data into the mount location (local to the database), and then inserts mount location data into the target table if the data is in the expected format.

1. Create an application integration.
2. Drag a REST Adapter into the integration as a trigger connection.
   1. On the Basic Info page, provide a name.
   2. On the Resource Configuration page, select a GET action, and select the Configure this endpoint to receive the response check box.
   3. On the Response page, select JSON Sample in the Select the response payload format field.
   4. Select JSON in the What is the media-type of Response Body? (Accept Header) field.
   5. Review your selections on the Summary page.
3. Drag a Salesforce Adapter into the integration canvas.
4. Configure the Salesforce Adapter endpoint:
   1. On the Basic Info page, provide a name.
   2. On the Action page, select Query Information.
   3. On the Operations page, select Query as an operation and select the Exclude option for the deleted and achieved records.
   4. Enter a valid SOQL query statement and select the Use Default Header check box.
   5. Review your selections on the Summary page.
5. Drag a stage file action into the integration canvas after the Salesforce Adapter and configure it to write (insert) transactional records in a file.
   1. On the Basic Info page, provide a name.
   2. On the Configure Operation page, select Write File from the Choose Stage File Operation field.
   3. Specify the XPath expression for the file name in the Specify the File Name field.
   4. Enter the file name with an extension (for example, Accounts.csv).
   5. Specify the directory name in the Specify the Output Directory field.
   6. On the Scheme Options page, select Yes in the Do you want to specify the structure for the contents of the file field.
   7. Select Sample delimited document (e.g. CSV) in the Which one of the following choices would be used to describe the structure of the file contents field.
   8. On the Format Definition page, click Choose File and upload the sample CSV file in the Select a New Delimited Data File field.
   9. Review your selections on the Summary page.
6. In the mapper, map headers as an input for the stage (1) file.







7. Drag a second stage file action into the integration canvas. The stage file action helps to add the header to a file and then append the data to the same file.
   1. On the Basic Info page, provide a name.
   2. On the Configure Operation page, select Write File from the Choose Stage File Operation field.
   3. Specify the XPath expression for the file name in the Specify the File Name field.
   4. Enter the same file name and extension that you provided for stage 1.
   5. Specify the directory name in the Specify the Output Directory field.
   6. Enter the same output directory that you provided for stage 1.
   7. Select the Append to Existing File check box.
   8. On the Scheme Options page, select Yes in the Do you want to specify the structure for the contents of the file field.
   9. Select Sample delimited document (e.g. CSV) in the Which one of the following choices would be used to describe the structure of the file contents field.
   10. On the Format Definition page, click Choose File and upload the sample CSV file in the Select a New Delimited Data File field.
   11. Review your selections on the Summary page.

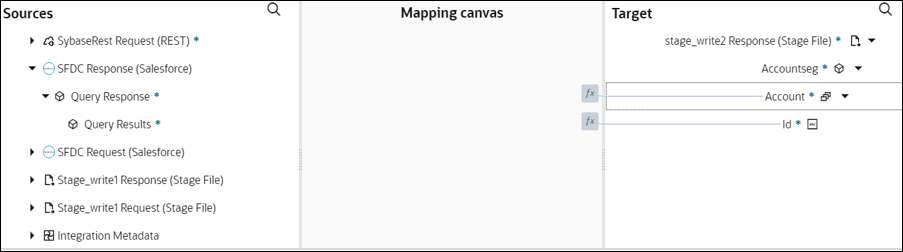

8. In the mapper, map the Salesforce response to the stage 2 request.







9. Drag an SAP ASE (Sybase) Adapter into the integration canvas.
10. Configure the SAP ASE (Sybase) Adapter endpoint:
    1. On the Basic info page, provide an endpoint name, select Perform Bulk Data Import Operation, and click Next.
    2. On the Bulk load from File to table page, enter the mount location, and select the delimiter (for example, comma), schema, table, and table columns.
    3. On the Summary page, review your selections, and click Done.

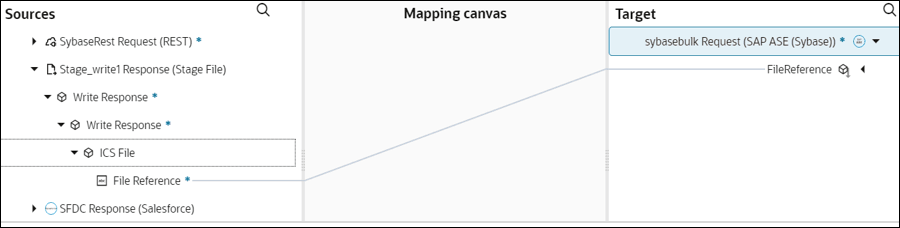

11. In the mapper, map the file reference from the ICS file response to pass the data to the target table.

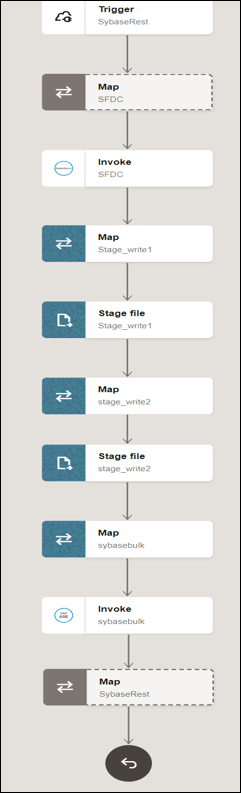

12. Click Validate, and then click Close. The completed integration looks as follows.







13. When complete, save and activate the integration. As a result, the SAP ASE (Sybase) Adapter inserts mount location data into the target table if the data is in the expected format.
