Activate a Decision Snapshot

To use a decision model, you must create a snapshot of it and activate the snapshot on the DMN server.

  1. In the decision model editor toolbar, click Activate.

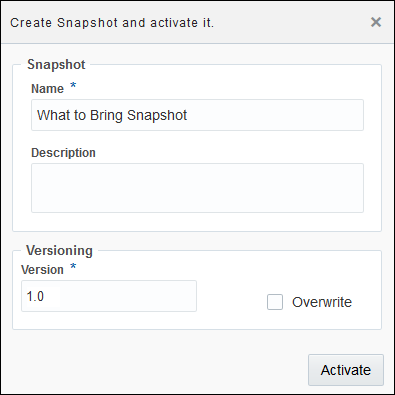

  2. In the Create Snapshot and activate it dialog box, enter a name (What to Bring Snapshot) and click Activate.
  3. In the decision model editor toolbar, click Snapshots.

    Notice that the snapshot you just activated is listed, along with any other activated snapshots. Here you can:

    • Activate or deactivate a selected snapshot.

    • Delete a snapshot. You must deactivate a snapshot before you can delete it.

    • View a read-only version of the snapshot.

    • Export a snapshot, which you can later import into a new decision model and edit its contents.

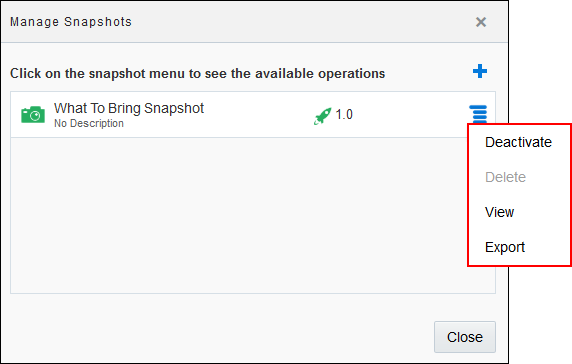

    Description of manage-snapshots-dmn.png follows
    Description of the illustration manage-snapshots-dmn.png

  4. Click Close.
