Learn about Oracle WebCenter Content’s Redwood UI (user interface) and Redwood UI Viewer (available on Marketplace).
Introduction
The Redwood UI and Viewer introduce a modern interface for WebCenter Content, created with the Oracle Redwood design system. This general-purpose interface is available as an optional standalone client application, enabling users to upload, search, browse, and manage documents within the repository. Additionally, the Redwood UI Viewer allows users to view documents, interact with document properties, and annotate documents.
There are two main entry points to access the Redwood UI features:
- The Redwood UI serves as the main application, offering a wide range of commonly used WebCenter Content features. Within this application, documents are viewed in a drawer.
- The Redwood UI Viewer is a standalone, embeddable version of the document viewer, providing direct URL access for viewing documents. This viewer occupies the entire browser window.
Installation
Both the Redwood UI and the Redwood UI Viewer are included in a WebCenter Content component named RedwoodUI. This component is enabled by default in WebCenter Content on Marketplace, but an administrator can enable or disable it using the Component Manager tool found under AdminServer. To verify that the Redwood UI is properly installed, open the Component Manager and ensure that RedwoodUI is enabled.
Thumbnails
The Redwood UI leverages WebCenter Content thumbnail renditions, and these are especially prominent when documents are presented in the card layout. By default, WebCenter Content thumbnails are too small for the card presentation and will appear blurry on the screen. To correct this, it is recommended that you configure WebCenter content to generate larger thumbnail renditions. Optimally, the card view thumbnails need a minimum width of 220px and a minimum height of 113px.
WebCenter Content can either be configured to generate the thumbnails directly on the Content server, or thumbnail generation can be delegated to the Inbound Refinery Service Digital Asset Manager feature.
- Content Server Thumbnail Renditions - When Inbound Refinery is not in use, thumbnails can be generated by the WebCenter Content server itself. For this to occur, an administrator must select the Enable this server to create thumbnail images option on the Configuration Thumbnail Options page under Administration. To have the server generate larger thumbnails, set the following in the server config.cfg file.
ThumbnailWidth=220
ThumbnailHeight=133
- Digital Asset Manager - When Inbound Refinery is enabled and the Digital Media Graphics conversion is configured for the documents file type, the thumbnails generated are defined by the renditions set chosen for the document. The default renditions sets for the Digital Media Graphics conversion are ThumbnailOnly, BasicRenditions, and MultipleFormats. Custom rendition sets can also be defined. For clear thumbnails in the Redwood UI, the thumbnails for rendition set should be configured for a minimum width of 220px. This is done by defining the thumbnail rendition type for the set with values.
graphicwidthlimit=220, graphicheightlimit=0
See Setting Up and Managing Image Conversions in the WebCenter Content documentation for full details on how to configure Digital Asset Manager rendition sets.
Note: Inbound Refinery thumbnail generation is an asynchronous process and may take several seconds to complete.
The Redwood UI will display a file icon as the thumbnail immediately after a file is uploaded and until the thumbnail generation process is complete.
The Redwood UI
The Redwood UI is a general-purpose user interface providing access to a broad range of WebCenter Content features. It requires minimal training because it is intuitive and simple. With it, you can easily store, secure, retrieve, and share any type of document.
The Redwood UI is accessed using IdcService=REDWOODUI.
.../cs/idcplg?IdcService=REDWOODUI
Navigation
The Redwood UI is divided into five separate functional areas, or views, each accessible from the navigation menu at the bottom of the screen.
Common User Interface Elements
While each view in the Redwood UI has a unique purpose, there are some user interface elements that are common across all views.
Item | Description | |
---|---|---|
1 | In the branding header located at the top of the screen, you will find the Oracle logo on the left and the user menu on the right. | |
2 | Use the search bar to filter the results shown in the content area. You can choose from predefined facets (which vary based on view) listed below the search bar, or you can manually enter keywords. The results in the content area will be filtered automatically as filter terms are added and removed. | |
3 |
The items available to you based on the current view, permissions, and filter criteria are listed in this area of the screen. The results may include libraries, search results, child documents and folders, favorited items, or items in the trash, depending on the selected view. You can filter the results using the options in the search bar at the top of the screen. Depending on the chosen layout option, your results can be displayed as cards, list item rows, or a table. You can select items in the content area by clicking directly on the item (anywhere other than the title text) or by selecting the item’s check box. Multi-selection is possible by selecting multiple item check boxes or using shift/alt/command to select items. Perform actions on the selected items using the action toolbar above the content area. Clicking the title of an item will open or view it. |
|
4 | The navigation menu at the bottom of the screen is where you can switch to different areas of the Redwood UI. The currently opened view is highlighted, and you can navigate to any other view by selecting Libraries, Browse, Search, Favorites, or Trash. | |
5 |
The user avatar displays the logged in user initials. Clicking this item will display the user menu, containing the following items:
| |
6 |
The action menu displays the actions available for items in the current view. Actions that create new content in the view (such as Create Library, Upload, or Create Folder) are always present in the menu. Other actions that apply to items in the view will only appear when one or more items are selected. The actions available depend on several factors, including whether a single item or multiple items are selected, your permissions for the selected item(s), and the values of various fields on the items. If the browser window is too narrow to display all available actions for the selected items, any actions that do not fit will be “collapsed” into a More option. Clicking the More option will open a drop-down menu that provides access to all the actions that couldn’t be displayed in the main action menu area. |
|
7 | Choose the sort order for results in the content area. Generally, you can Sort by Name, Created Date, or Last Updated date and choose whether to sort Ascending or Descending. | |
8 | Select the layout for displayed results in the content area. Choose from Card (), List (), and Table (). See Layouts. | |
9 | Configure the columns that will be presented in the table results. This control is only enabled when the Table () layout is active. |
The Libraries View
The Libraries view is the default view presented by the WebCenter Redwood UI. You can access it at any time by selecting Libraries in the navigation menu at the bottom of the screen. In the Libraries view, you are presented with all the top-level Enterprise Libraries available to you as well as the predefined System Libraries.
Item | Description | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
1 |
Enter filter criteria to narrow down the results shown in the content area. In the Libraries view, the term “Libraries” is always included in this control, restricting the results to only Libraries. (If the “Libraries” term is removed, the user interface will automatically switch to the Search view.) You can enter keywords and/or select from predefined facets. In the Libraries view, keywords search only the names of documents in the library or folder you are browsing, not any other metadata or full-text. Results will return matching any of the keywords entered. |
|||||||||
2 |
Select from the set of predefined facets to further filter the available results. When you select a facet, it will be added as a capsule in the filter input control. You can then click on the facet capsule to choose specific facet values. Some facets allow for multiple values. In the Libraries view, the available facets are:
|
|||||||||
3 |
The libraries available to you are listed in this area of the screen. The libraries presented may be filtered by options selected in the search bar at the top of the screen. Depending on the layout option chosen, your results may be presented as cards, list item rows, or as a table. Items in the content area can be selected either by clicking directly on the item (anywhere other than the name text) or by selecting the item’s check box. Multi-selection is possible either by selecting multiple item check boxes or shift/alt/command to select items. Perform actions on the selected item(s) in the action toolbar above the content area. Clicking the title of the item will perform the open/view action. |
|||||||||
4 | Create a new library. Only available if you have permissions to create new libraries. When creating a new library, a dialog opens where you must provide a Name, optional Description, and Security Group for the new library. | |||||||||
5 | Select a library and then perform an action such as open, rename, and delete. The actions available in the menu will depend on the permissions you have to the selected library or libraries. When more than one library is selected, only actions that can be performed on all libraries in the selection are presented. |
Libraries Viewer vs Enterprise Libraries Folder
The Libraries View displays both top level user-defined Enterprise Libraries as well as System Libraries. System Libraries are system-defined virtual libraries that return results based on a query. Checkout-Out Content, Content In Workflow, Expired Content, and Work In Progress are examples of System Libraries.
There is also an Enterprise Libraries folder that is the parent folder of all user-defined Enterprise Libraries. It is possible to browse into this folder in the Browse View. While they look similar, the browsing into the Enterprise Libraries folder is different from the Libraries View in that System Libraries will not appear when browsing.
Library View Actions
The following table describes all of the actions that are available in the Library View action menu.
Container Actions
Container actions are not dependent on the selection and are always present (for users with appropriate permissions).
- Create Library
Selection Actions
- Open
- Delete
- Rename
- Create Shortcut
- Follow
- Propagate
- Properties
The Browse View
The Browse view provides access to documents filed in FrameworkFolder folders. You can access it at any time by selecting Browse in the navigation menu at the bottom of the screen.
Item | Description | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
1 |
Enter filter criteria to limit the results presented in the content area. In the Browse view, the currently opened folder is the first term and is always present, scoping the displayed results to this folder. (If the scope folder term is removed, the user interface will automatically navigate to the Search view.) You can enter keywords and/or select from predefined facets. In the Browse view, keywords search only the names of documents in the library or folder you are browsing, not any other metadata or full-text. Results will return matching any of the keywords entered. |
|||||||||
2 |
Select from the set of predefined facets to further filter the available results. When you select a facet, it will be added as a capsule in the filter input control. You can then click on the facet capsule to choose specific facet values. Some facets allow for multiple values. For Browse view, the available facets are:
|
|||||||||
3 |
Expand items in the folder tree to see the full folder hierarchy within the current library. Clicking on any folder in the tree will navigate the Browse view to that folder, but the folder tree will continue to display the hierarchy for the current library. In this way, you can quickly browse around the full hierarchy of the library. If you browse to a folder higher in the hierarchy than a library folder (either to the Enterprise Libraries folder or to the Root folder), then the root node of the tree will reset to that folder, reflecting the folder hierarchy at that level. If you re-enter a library folder at any time, the root node of the tree will change again to the library folder and remain as long as you are browsing within the library. |
|||||||||
4 | Select this button to expand or collapse to folder tree panel. | |||||||||
5 | Use the breadcrumb to navigate through the hierarchical path from the top-level library to the currently open folder. Click on any folder in the path to navigate directly to it. To access folders above the top-level library (Enterprise Libraries and Root), use the folder drop-down menu to the left of the path. If the browser window is too narrow to display the full path, some items in the path will be truncated and collapsed into a drop-down menu for easy access. | |||||||||
6 | Select this button to navigate to the current folder’s parent. | |||||||||
7 | The documents and folders contained within the open folder and available to you based on permissions are listed in this area of the screen. The items presented may be filtered by criteria selected in the search bar at the top of the screen. Depending on the layout option chosen, your results may be presented as cards, list item rows, or as a table. | |||||||||
8 | Select this action to upload new documents into the current folder. This option is always available in the menu, even when no items are selected. Note that this action uploads new content into the currently open folder only, making the new folder a sibling of the items displayed in the content area. It does not upload content into a selected subfolder. To upload content into a subfolder, first select and open the subfolder, then perform the upload action from within it. | |||||||||
9 | Select this action to create a new subfolder within the current folder. This option is always available in the menu, even when no items are selected. Note that this action creates a subfolder only in the currently open folder, making it a sibling of the items displayed in the content area. It does not create a folder as a child of a selected subfolder. To create a folder inside a subfolder, first select and open the subfolder, then perform the create folder action from within it. | |||||||||
10 | The action menu displays the actions available for documents and folders selected in the current view. The actions available depend on several factors, including whether a single item or multiple items are selected, your permissions for the selected item(s), and the values of various fields on the items. |
Browse View Actions
The following table describes all of the actions that are available in the Browse View action menu.
Container Actions (always present)
- Upload
- Create Folder
Document Selection Actions
- View
- Move
- Copy
- Delete
- Get Link
- Rename
- Check In
- Check Out
- Download
- Unfile Document
- Create Shortcut
- Follow
- Properties
Folder Selection Actions
- Open
- Move
- Copy
- Delete
- Create Shortcut
- Follow / Unfollow
- Propagate
- Properties
The Search View
The Search view allows you to search for documents, folders, and libraries across the repository. You can access it at any time by selecting Search in the navigation menu at the bottom of the screen.
Item | Description | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 |
Enter search criteria to find content in the repository. Results are presented in the content area. You can enter keywords and/or select from predefined facets. Keyword search behavior is unique in the Search view in that results will return matching all terms. |
|||||||||||||||
2 |
Select from the set of predefined facets to further filter the available results. When you select a facet, it will be added as a capsule in the filter input control. You can then click on the facet capsule to choose specific facet values. Some facets allow for multiple values. For Browse, the available facets are:
|
|||||||||||||||
3 | Select from this drop-down menu to set the scope of the items to be searched. Select one of Files (the default), Folders, or Libraries. | |||||||||||||||
4 | Search results are displayed in this area. Depending on the layout option chosen, your results may be presented as cards, list item rows, or as a table. | |||||||||||||||
5 | Select this action to upload new documents into the repository. This option is always available in the menu, even when no items are selected. Items uploaded in the Search screen are unfiled and not contained in a folder. | |||||||||||||||
6 | Select this action to create a query folder based on the current search criteria. You will be prompted to enter a name for the new query folder and choose its location. | |||||||||||||||
7 | The action menu displays the actions available for documents and folders selected in the current search results. The actions available depend on several factors, including whether a single item or multiple items are selected, your permissions for the selected item(s), and the values of various fields on the items. | |||||||||||||||
8 | Select this button to open the Advanced Search drawer. See Advanced Search. |
Search View Actions
The following table describes all of the actions that are available in the Search View action menu.
Container Actions (always present)
- Upload
- Create Query Folder
Document Selection Actions
- View
- Move
- Copy
- Delete
- Get Link
- Rename
- Check In
- Check Out / Cancel Check Out
- Download
- File Document / Unfile Document
- Create Shortcut
- Follow / Unfollow
- Properties
Folder Selection Actions
- Open
- Move
- Copy
- Delete
- Create Shortcut
- Follow / Unfollow
- Properties
Library Selection Actions
- Open
- Move
- Copy
- Delete
- Rename
- Create Shortcut
- Follow / Unfollow
- Properties
Advanced Search
Advanced search forms provide more flexibility for entering search criteria. To use an advanced search form, you select the Open Advanced Search Drawer button next to the search criteria field in the general header area. Advanced search forms are only available when searching in Search view. They include the standard form listing all metadata fields, or profile forms listing only those metadata fields used in a specific profile set up by your system administrator. Using an advanced search form, you can search for metadata, full-text if it is configured, or a combination of both on all available fields.
What is a metadata search?
With the advanced search form, you can search for document properties such as security group, author, title, or other defining criteria.
Note:
Searches built using an advanced search form separate the metadata fields with the <AND> operator, meaning that each value entered into each field must be met in order to find a document. For example, if you enter January into the Title field and presentation into the Type field, then a search finds content only if it has a presentation type and has January in the title.
How do I use an advanced search form?
To search using an advanced search form:
When searching, select a form from the Search Forms section of the search box menu.
Enter values in the fields you want to search and click Search. For example, you can search for a document title, security group, or if configured for full-text search, then for text in a document. For information on using wildcards to help search, see Supported wildcards. For information on how to use search operators, see Search Operators.
After clicking search, an “Advanced Search” capsule will appear in the search criteria control and results for the search will be displayed in the listing area. You can click on the “Advanced Search” capsule to re-open the advanced search form and edit the entered search criteria. Clicking the X on the capsule will remove the advanced search.
Additional facets and keywords can be added along with the Advanced Search capsule to further filter the results displayed in the listing area.
Supported Wildcards
The following wildcard behavior is supported in the search box and Advanced Search form:
Wildcard | Behavior |
---|---|
* | Enter to represent an infinite number of unknown characters. |
? | Enter to represent a single unknown character. Enter multiple times to represent a specific number of unknown characters. |
Search operators
If you use an advanced search form rather than the search box, you can use search operators to refine the search criteria. These operators are listed as options in lists to the left of each field.
Operator | Description | Example |
---|---|---|
Contains |
Finds content items with the specified whole word or phrase in the metadata field. This operator is available only for Oracle Text Search, or for Oracle Database and Microsoft SQL Server database with the optional DBSearchContainsOpSupport component enabled. For more information, contact your system administrator. |
If you enter form in the Title field, the search returns items with the whole word form in their title, but does not return items with the word performance , reform , or format .
|
Matches | Finds items with the exact specified value in the metadata field. |
When you enter address change form in the Title field, the search returns items with the exact title of address change form. A query that uses the Matches operator on a non-optimized field behaves the same as a query that uses the Contains operator.
For example, if the |
Has Word Prefix | Finds all content items with the specified prefix at the beginning of at least one word in the metadata field. |
If you enter |
The Favorites View
The Favorites view provides access to favorited documents, folders, and libraries. You can access it at any time by selecting Favorites in the navigation menu at the bottom of the screen.
Item | Description |
---|---|
1 |
Enter filter criteria to narrow down the results shown in the content area. In the Favorites view, the term “Favorites” is always included in this control, restricting the results to only Favorites Items. (If the “Favorites” term is removed, the user interface will automatically switch to the Search view.) You can enter keywords to further filter results. In the Favorites view, keywords search only the names of documents in the library or folder you are browsing, not any other metadata or full-text. Results will return matching any of the keywords entered. |
2 | The documents, folders, and libraries you have favorited are displayed in this area of the screen. The items presented may be filtered by criteria selected in the search bar at the top of the screen. Depending on the layout option chosen, your results may be presented as cards, list item rows, or as a table. |
3 |
The action menu will display actions that can be performed on the selected items in the current view. The Favorites view has a limited set of actions that may be performed. The actions are:
|
Favorites View Actions
The following table describes all of the actions that are available in the Search View action menu.
Folder and Library Selection Actions
- Open
- Properties
Document Selection Actions
- View
- Download
- Properties
The Trash View
The Trash view provides access to documents, folders, and libraries that have been deleted. You can access it at any time by selecting Trash in the navigation menu at the bottom of the screen.
Item | Description | ||||||
---|---|---|---|---|---|---|---|
1 |
Enter filter criteria to narrow down the results shown in the content area. In the Trash view, the term “Trash” is always included in this control, restricting the results to only item in the Trash. (If the “Trash” term is removed, the user interface will automatically switch to the Search view.) You can enter keywords and/or select from predefined facets. In the Trash view, keywords search only the names of documents in the library or folder you are browsing, not any other metadata or full-text. Results will return matching any of the keywords entered. |
||||||
2 |
Select from the set of predefined facets to further filter the available results. When you select a facet, it will be added as a capsule in the filter input control. You can then click on the facet capsule to choose specific facet values. For Trash, the available facets are:
|
||||||
3 |
The documents, folders, and libraries in your trash are displayed in this area of the screen. Depending on the layout option chosen, your results may be presented as cards, list item rows, or as a table. Documents and folders in the Trash view cannot be opened or viewed. The title of the item is presented as read-only text field and clicking on the title will not perform any action. Items must be restored to their original location to be opened or viewed. |
||||||
4 |
The action menu will display actions that can be performed on the selected items in the current view. The trash view has a restricted set of actions that are not based on the items type or attributes. Rather the actions are exclusive to the item being in Trash. The actions are:
|
Trash View Actions
The following table describes all of the actions that are available in the Trash View action menu.
Container Actions (always present)
- Empty
Selection Actions
- Permanently Delete
- Restore
Layouts
Card Layout
In the Card layout, result items in the content area are presented as cards arranged in a grid. This view prioritizes the visual representation of each item by displaying a large icon, making it easier to visually distinguish one item from another.
The card for each result displays the following elements.
- Thumbnail - The Document Thumbnail when a thumbnail is available or an icon based on the item type (a folder icon for a folder item).
- Name - The name of the item. Click this element to view or open the item (if permissions allow).
- File Size - Displayed for document items only.
- Download Action Icon - An instant action displayed for document items only. This performs the same operation as the Download action menu action, but it does not require that the item be selected first.
- Favorite Action Icon - An instant action that both indicates whether the item is favorited and allows you to mark or unmark the item as a favorite.
- Properties Action Icon - An instant action that displays the properties drawer for the item. This performs the same operation as the Properties menu action, but it does not require that the item be selected first.
List Layout
In the List layout, result items in the content area are presented as rows in a list. The icons are smaller than in card view, but more detail is presented for each item.
The list view row for each result displays the following elements.
- Thumbnail - The Document Thumbnail when a thumbnail is available or an icon based on the item type (a folder icon for a folder item).
- Name - The name of the item. Click this element to view or open the item (if permissions allow).
- Updated By - The username or ID of the user who last modified the item.
- Last Updated - The date that the item was last updated.
- File Size - Displayed for document items only.
- Revision - Displayed for document items only.
- Download Action Icon - An instant action displayed for document items only. This performs the same operation as the Download menu action, but it does not require that the item be selected first.
- Favorite Action Icon - An instant action that both indicates whether the item is favorited and allows you to mark or unmark the item as a favorite.
- Properties Action Icon - An instant action that displays the properties drawer for the item. This performs the same operation as the Properties menu action, but it does not require that the item be selected first.

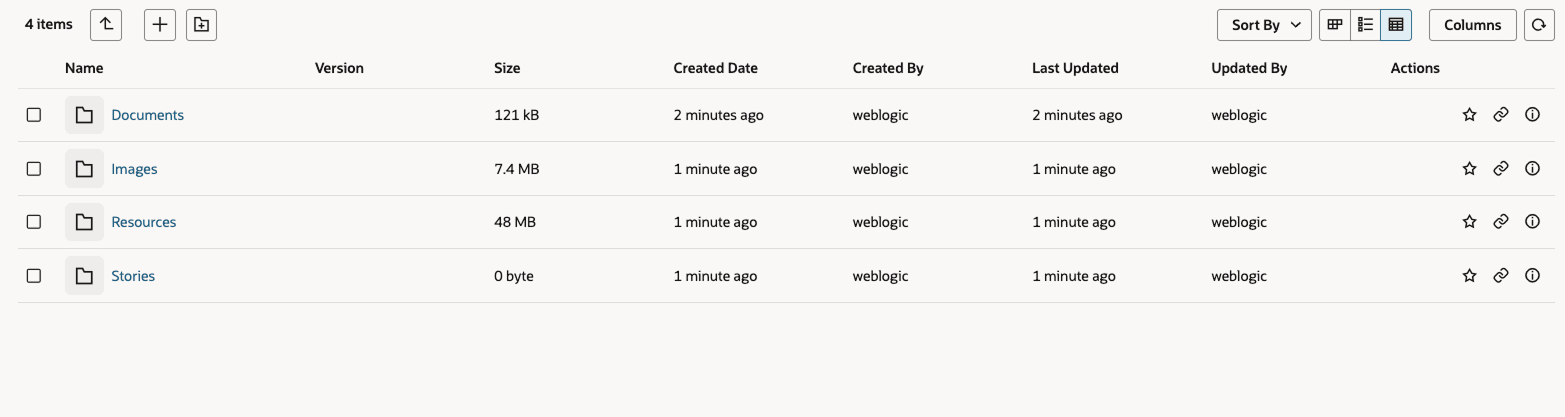

Table Layout
The Table layout displays result items in a table format, offering more detail.
By default, the table view presents items with the following columns, in order from left to right:
- Name - Displays both a small icon and the name. Click the name to view or open the item (if permissions allow).
- Version - Populated only for documents.
- Size - Populated only for documents.
- Created Date - The date that the item was created.
- Created By - The username or ID of the user who created the item.
- Last Update - The date that the item was last updated.
- Updated By - The username or ID of the user who last updated the item.
- Actions - Action icons for performing instant actions without selecting the item.
The action column contains up to three action icons:
- Download Action Icon - An instant action displayed for document items only. This performs the same operation as the Download menu action, but it does not require that the item be selected first.
- Favorite Action Icon - An instant action that both indicates whether the item is favorited and allows you to mark or unmark the item as a favorite.
- Properties Action Icon - An instant action that displays the properties drawer for the item. This performs the same operation as the Properties menu action, but it does not require that the item be selected first.
Table Configuration
In the table view layout, columns can be reordered at any time by dragging the column headers left or right. Additionally, you can use the columns button next to the layout controls to open the Columns configuration dialog, where you can show or hide columns in the table (but note that the only exception is the Name column, which cannot be hidden and must always remain in the first position.) Column configuration changes are stored locally in your browser and will not be available if you log in from a different browser.
Properties Panel
The properties drawer displays comprehensive details about a selected library, folder, or file, and allows you to edit metadata, security settings, and other attributes. Properties is present in the results listing views (Libraries, Browse, Search, etc.) as a drawer that can be accessed from either the Properties action menu action or from the Properties instant action icon on the card, list row, or table row actions column. Properties is also available in the document viewer as a collapsible sidebar on the right.
Summary Tab |
|
The Summary tab displays general details about a document, folder, or library. The panel is divided into multiple sections.
|
|
Metadata Tab |
The metadata tab displays the metadata fields for a document, folder, or library. For documents, the metadata is shown according to the assigned profile, with the profile name labelled at the top of the panel. You can switch to viewing all standard fields using the Switch to Standard Fields link and return to the profile view with the Switch to {Profile Name} link. If you have permission to edit the metadata, click the Edit button at the bottom of the panel to enter edit mode. In edit mode, you can modify metadata values. To save your changes, click Save at the bottom of the screen, or click Cancel to exit edit mode without saving. Smart ContentWhen Smart Content is enabled on the WebCenter Content Server (with both SmartContent and DocumentTagging components enabled), an xDocumentTags metadata field is added to the document. If this field is included in the displayed profile, it appears on the Metadata tab with a specialized tag control. In this control, Smart Tags are identified by a “#” prefix, distinguishing them from user-added tags. In metadata edit mode, you can remove tags (including smart tags) by clicking the “x” on the tag. New tags can be added by typing directly into the tag control and pressing Enter to create a new tag entry. |
|
Security Tab |
The Security tabs display security-related attributes for documents, folders, and libraries. The specific fields displayed may be limited by the profile assigned to the document, but the Security tab will display the following information when the corresponding fields are present in the profile:
If you have permission to edit the metadata, click the Edit button at the bottom of the panel to enter edit mode. In edit mode, you can modify security attribute values. To save your changes, click Save at the bottom of the screen, or click Cancel to exit edit mode without saving. |
Revisions Tab |
The Revisions tab lists revisions for a document. The per-item action menus allow you to:
|
Annotations Tab |
The Annotations Tab lists annotations for a document. When accessed in the sidebar of the document viewer, if annotations are currently being displayed on the document, selecting an annotation from the list will highlight that rendition in the document. |
Links Tab |
The Links tab provides access to various links associated with a document. The System Links section offers Preview and Download links for the latest version of the document. You can click these links to navigate directly to the content or use the Copy to Clipboard button to copy the URL for use in another application. The action menu to the right of the System Links section allows you to expand and view additional links. Here, you’ll find Preview and Download links for the specific revision currently being viewed in the document viewer (when accessing the Links tab from the document viewer sidebar). You can also create one or more public links, granting adhoc access to files and folders to users who do not otherwise have access to the content. See Public Links. |
Workflow Tab |
The Workflow tab provides access to workflow actions for items currently active in a workflow. It displays detailed information about the current workflow status including the steps and outcomes for steps through which the item has progressed. You can also see the history of past work flows the item has already completed. See Workflow for more details on working with items in workflow. |
Chat Tab |
The chat tab provides access to the Generative AI Chat with Document feature. This feature allows you to chat about the currently selected document with the virtual Chat Assistant. This tab is only available in the Redwood UI Viewer. See Chat with Document. |
Document Upload Drawer
The document upload drawer is where you will upload new content to the repository and where you will check in new revisions of existing documents. You access this drawer by clicking the Upload action from Browse and Search Views or by clicking the Check In action for a selected document.
With the drawer open, you can select documents to upload from your computer by clicking the Add () button at the top or clicking the “Document Upload” prompt in the center of the drawer. Alternatively, you can drag files from your desktop in to the drop area.
After files are selected, you will see them listed in the drawer. You can repeat the above step by clicking the Add () button again to add more files, or you can click the “X” icon to the right of any item to remove it.
The list displays details about the items to be uploaded, including a small thumbnail (or a generic icon for non-image file types) and the file name. If there are required metadata fields that need to be provided before uploading, the Status column will show “Not Ready,” and the Upload button at the bottom will be disabled.
While entering metadata, you can select the profile that will be used when checking in the documents. All documents in the upload will use the same profile.
Once all upload requirements are met, the Status column will change to “Ready” and the Upload button at the bottom will become enabled, allowing you to start the upload process. As each file uploads, a progress bar will appear in the row for that item, and the Status will change to “Active”. Once the upload is complete, the Status will update to “Finished”. When all items in the list have a “Finished” status, the Cancel button will change to Close, which you can click to close the drawer.
Public Links
With the public links feature, you can create a link to share individual files, or an entire folder, with users who do not otherwise have access to the content. You can email these links, share them in an instant message or paste them in a document. Sending a link is useful if you need to give access to people on an as-needed basis and when you want tight control over how and when that access is made available.
Links are configured to expire on a particular date and can optionally require a passcode for access. You have the ability to manage the link even after it has been sent out. You can adjust the expiration date, change the passcode requirement, or delete the link all together making it no longer accessible.
Accessing Public Links
To access public links for a document or folder, select the item from either the Browse View or Search View, and click the Get Links toolbar action to open the properties side panel Links tab. Alternatively, you can select the Properties action and manually navigate the Properties panel to the Links tab.
You can also access the Public Links feature from the document viewer by clicking the Link action () in the viewer header area.
Properties Links Tab
On the properties panel Links tab, you will find, in addition to the system defined Preview and Download link, the Public Links section listing all existing public links for the document or folder. Each entry lists the Name of the link, its description, the expiration date, and optionally the “key” icon () indicating that the link requires a passcode.
For each link, you can see both the Preview and Download link. (Note: for document links these are links to the latest version of that document.) You can click the copy to clipboard action button to copy a link for pasting in another application. Click select the more actions menu (…) to edit the link attributes.
Creating a Public Link
Click the Add Public Link button at the bottom of the Public Links list to create a new public link. The Public link edit form is opened where you can enter the link Name and Description, set Permissions the link provides to the content, optionally enter a Passcode for the link, and set the Expiration Date for the link.
Note:
If provided, the Passcode must be at least 8 characters in length and can contain only alpha-numeric characters.
An Expiration Date is required and will default to a date of 30 days from the date the link is created if not provided. The Expiration Date is limited to a maximum of 180 days.
In the initial release of the Public Links feature, only Read permission is supported. Support for Write and Delete permissions will be added in a future release.
Workflow
About Workflows
A workflow specifies how to route content for review and approval before it is released to the system. The workflow notifies users by e-mail when they have a file to review, and by displaying a workflow notification icon in the banner next to their user name.
Workflow Types
From a workflow participant’s point of view, there are two types of workflows:
A basic workflow defines the review process for specific content items, and must be initiated manually.
In a criteria workflow, a file enters the workflow automatically upon check‐in when its metadata matches predefined criteria.
Entering a File to a Workflow
If you have been assigned as a contributor to a basic workflow, it notifies you that you have an item in workflow via e-mail. To start the workflow, you must check in the designated files as the first step.
To check in a file to begin a basic workflow, open the Redwood UI to the Libraries view and open the Content In Workflow system library. The resulting list displays all the content items assigned to you. Items requiring contribution will appear in the list with generic icons and opening the properties for the item will reveal a message banner indicating the item is waiting for you to check in a new document.
To complete the checkin, select the workflow item and click the Check In toolbar action. Select a document to be uploaded, choose a profile, and enter appropriate metadata before clicking the Upload button at the bottom.
Note:
The initial release of workflow features in the Redwood UI does not yet support filing the document to a folder at the time the item is checked in. You will need to search for it and file it manually. Functionality to select a folder for the document during the contribution step will be added in a future release.
Reviewing Workflow Items Assigned to You
When you are assigned to the current step in a workflow, you receive an e-mail message. When the required number of reviewers approve the revision, the content item goes to the next step in the workflow.
To review a file in a workflow, open the Redwood UI to the Libraries view and open the Content In Workflow system library. The resulting list displays all the content items assigned to you.
Select an item requiring approval and the toolbar will present actions to Approve or Reject the item. Actionally, if you open the Summary tab in the properties panel for the item, you will see a message banner with similar actions to Approve or Reject.
Actions For Workflow Items
Approve : Approves the item in a review step. There are three types of review steps: review, review/edit revision, and review/new revision. Once the required number of reviewers approve the item, it moves to the next step in the workflow. The option to approve is not available for an item in a contribution step.
Reject : Rejects the item in a review step and returns it to the most recent review step that allows editing. If there is no previous review step that allows editing, then it returns to the original contribution step.
Check In : Uploads a revised document for an item in a review or contribution step. If you check in a document in a review/new revision step, the revision number increments with each check in. This allows you to manage changed revisions to a document throughout the workflow process. If you check in a document in a review/edit revision step, then the revision number stays the same throughout the step. If it is the final step in the workflow, it stays at that revision even when the document is released at the end of the workflow. This allows you or others to change the document several times and only manage approved and released revisions.
Remove From Your Assignments: Removes the document from the Content in Workflow list results when the Assigned to you filter is applied. Selecting this option does not change the document’s workflow status or the operations you can perform on the document. If a subsequent workflow step assigns the document to you, it will again appear in the list generated by the Assigned to you filter. This option is available only if the Assigned to you filter is applied.
Workflow Details
To obtain details of the current workflow as well as the workflow history for a document, click the Details button in the workflow message banner on the Summary tab to open the Workflow sidebar panel. Alternatively, you can open the properties sidebar panel and manually select the Workflow sidebar panel tab.
Chat with Document
The Chat with Document feature is available via integration of Generative AI technology with WebCenter Content. This feature allows you to ask natural language questions about the content of textual documents stored in a WebCenter Content repository. For example, you might ask whether a specific expense is covered based on the requirement details in a company’s expense policy document. Or, you might ask if a particular RFP term is compliant with a corporate sale proposal guideline document.
Note:
The Chat with Document feature will only appear if WebCenter Content is configured by an administrator to support it. Refer to the appropriate WebCenter Content documentation.
You can access the Chat with Document feature from a text document (Word Document, PDF, etc.) by selecting the Chat toolbar action or by selecting the Chat () quick action icon on the item row or card. Using either of these options will open the document in the Redwood UI Viewer with the properties Chat panel open.
If you are already viewing a document with the Redwood UI Viewer already open, you can access the Chat feature by clicking the Chat action icon in the viewer header. Or you can simply select the Chat tab in the properties sidebar.
Once the Chat properties panel is open, the Chat assistant will introduce itself, and ask you if it can summarize the selected document. Or, you can ask the assistant questions about the document in the “Enter Message” text field at the bottom.
The Redwood UI Viewer
Features of the Redwood UI Viewer
The Redwood UI viewer user interface supports the following key features:
The main document view is presented in the center panel.
A floating toolbar provides controls to adjust the sizing of the document presented in the center panel. This toolbar will appear initially when the document is displayed but will automatically hide after a few seconds. Display of the toolbar can be restored by either moving the mouse to the bottom of the viewer window or by using the hotkey "Shift+c". Use of the hotkey disables the auto-hide behaviour and the toolbar. The "Shift+c" hotkey must be used to toggle it on and off.
The hot key "z" cycles through the Fit width, Fit page, Actual Size, and Full Width options.
Use hotkey "f" to display in full screen. Using the Escape key while in full screen will restore the normal view.
Use the hotkeys "-" and "+" for manual zoom slider.
Use the hotkey "shift-r" to rotate the selected page Left or hotkey "r" to rotate it Right. Note: Rotation is provided to assist in previewing content that may be stored with incorrect rotation. It is a viewer operation only and does not persist with the document.
The page thumbnails panel is displayed on the left side. Selecting a page will navigate the center panel to the selected page.
The properties panel is displayed on the right side, containing tabs for Summary, Metadata, Security, and Revisions.
The Metadata properties tab presents the documents metadata using the profile associated with the document by default, but users can choose to switch to presenting standard fields instead.
The Metadata properties tab also provides an Edit button to allow users (with appropriate permissions) to edit the metadata. Again, editing is by default done through the profile form, but the display can be switched to editing of standard fields.
The Security properties tab displays security-specific metadata fields and provides an Edit button to allow users (with appropriate permissions) to edit the security-related properties of the document.
The Revisions properties tab displays revisions of the documents and supports download, deleting, and viewing specific revisions of the document.
Both the Thumbnails and Properties sidebar panels can be collapsed and expanded using the bar control in the space between the panel and the center area. Note that the Thumbnails panel is displayed and initially open for multi-page documents and initially closed for single page documents.
Redwood UI Viewer URL
In addition to being accessed through links from the native WebCenter Content UI, the Redwood UI Viewer can be accessed directly using the viewer service URL. The service for the viewer is displayed on the Content Information form in the UI as shown above.
.../cs/idcplg?IdcService=REDWOODUI_VIEWER&dID=123
URL Configuration Reference
This URL will present the viewer with all functionalities enabled. However, individual elements of the viewer can be disabled and/or enabled using the parameters on the URL.
Parameter | Type | Comments |
---|---|---|
embed | Boolean |
If false, all options are presumed to be on unless explicitly turned off. If true, all options are presumed to be off unless explicitly turned on. When not provided, this option defaults to false. |
dID | String | The dID of the document to display. |
thumbnails | ‘on’ | ‘off’ |
Determines whether the thumbnail panel is displayed. When not provided, the default is determined by the value of the embed option. It is ‘off’ if embed is true. |
topbarControls | ‘on’ | ‘off’ | ‘custom’ |
Sets the behavior of top bar control configuration.
|
topbarControlsConfig | object |
Required when topbarControls=custom. Default value for each property is ‘off’.
|
properties | ‘on’ | ‘off’ | ‘custom’ |
Sets the behavior of properties configuration.
|
propertiesConfig | object |
Required when properties=custom. Default value for each property is ‘off’.
|
imageControls | ‘on’ | ‘off’ | ‘custom’ |
Sets the behavior of image controls configuration.
|
imageControlsConfig | object |
Required when imageControls=custom. Default value for each property is ‘off’.
|
videoControls | ‘on’ | ‘off’ | ‘custom’ |
Sets the behavior of video controls configuration.
|
videoControlsConfig | object |
Required when videoControls=custom. Default value for each property is ‘off’.
|
Object properties can either be provided using a full JSON syntax or in simplified JavaScript literal syntax.
Examples
Example 1
Hide all features (only the center area is displayed):
.../cs/idcplg?IdcService=WCC_VIEWER&dID=123&embed=true
Example 2
Hide all features and then show the thumbnails panel:
.../cs/idcplg?IdcService=WCC_VIEWER&dID=123&embed=true&thumbnails=on
Example 3
Show all features (embed=false is implied), but hide the properties panel:
.../cs/idcplg?IdcService=WCC_VIEWER&dID=123&properties=off
Example 4
Hide all features, but show the top bar with only the revision link button, show the thumbnails panel, and show the properties panel with only the Revisions tab:
.../cs/idcplg?IdcService=REDWOODUI_VIEWER&dID=123&embed=true&topbarControls=custom&topbarControlsConfig={"revisionLink":"on"}&thumbnails=on&properties=custom&propertiesConfig={"revisions":"on"}
Annotating Documents
If you have the necessary permissions, you can add or modify annotations to documents. Among other options, documents can be stamped Approved, have a particular text highlighted, or have a note addressing a specific issue added.
About Annotation Security
In some cases, not all annotations should be seen or allowed to be modified by all people. For example, upper management may annotate a request for proposal with pertinent information regarding an upcoming merger. Legally they may not be able to share that information with others in an organization who need access to that proposal, so the annotation permission is set to hide the annotation from those without proper permissions. Or perhaps a manager annotates a raise request denying the raise. The annotation can be restricted so the person who made the request cannot approve it by modifying the annotation. Or a document may contain personal information such as Social Security numbers or health issues that need to be redacted and protected. Redaction annotation can be set to restricted to prevent others from hiding or modifying them to see the information.
When you create an annotation, you can set permissions for the annotation using the annotation toolbar. The permissions you can set, and the annotations you can modify or see, are determined by the permissions you have been given by the system administrator. Generally, the following options are available in the toolbar:
Standard (S): Annotations appear on the document page for all users. They may be applied and changed only by users granted Standard annotation security permissions.
Restricted (T): Annotations are visible to all users but can be modified only by a user granted the restricted permission. If you do not have the restricted permission (permission to change restricted documents), you can view the annotation but cannot alter it or change the permissions.
Hidden (H): Annotations are visible only to users that have been granted the hidden permission. Only users having the hidden permission can mark an annotation as hidden or modify existing hidden annotations.
Note:
If no annotation security is assigned to a person, they cannot create new or modify existing annotations. However, they still can view all Standard and Restricted annotations. This ensures that redaction annotations are applied for all people with rights to view a document. Users must be granted the security level they assign to an annotation. For example, users assigned only the restricted security level can grant only the restricted security level to any annotation they create. Users that have been assigned the standard and restricted security levels by an administrator can specify a security level of standard or restricted, but not hidden.
Note:
Redaction annotations cannot be marked hidden.
Show and Hide Annotations
In some cases when viewing a document, annotations may get in the way of seeing information on the document you need to see. Click the Show Annotations tool (hotkey “a”) in the image viewer toolbar to toggle the display of annotations on the document.
Create Annotations
Before creating annotations, you need to first select the page on which the new annotations are to be placed. Click on the page anywhere other than on an existing annotation. Alternatively, you can select the page from the thumbnails panel to the left of the screen. Once selected, the outer border of the page will change to a highlighted state.
Next, select the type of annotation you want to create from the “Create Annotations” tool drop-down menu on the image viewer toolbar. Choose from one of the following annotation types: Box, Highlight, Line, Redaction, Stamp, or Sticky Note.
Upon selection, a new instance of the annotation type will appear in the center of the selected page, and it will be displayed in its selected state. You can move it by dragging it around the page, resize it by adjusting one of the eight grab handles that appear around its perimeter, or adjust its properties by first selecting the pencil icon in the upper left hand corner of the annotation and then editing its attributes in the Annotations sidebar panel.
Edit Annotations
To edit an existing annotation, you first need to select it, either by clicking it directly on the page or by selecting it from the list in the Annotation sidebar. When selecting from the list in the properties panel, the document page will be scrolled so that the selected annotation is visible in the view port.
Once selected, you can move it by dragging the annotation around the page, resize it by adjusting one of the eight grab handles that appear around its perimeter, or edit its attributes in the Annotations sidebar panel.
To access the annotation’s attributes in the Attributes properties panel, you can either click the pencil icon directly on the annotation, or click the arrow on the right hand side of the item in the annotation lists in the properties panel. The attribute details panel for that annotation will slide in to the Attributes properties, revealing all of its available attributes. The specific attributes presented will vary based on the annotation type. To edit the attributes, click the Edit button at the bottom to enter edit mode, make changes and save or cancel as necessary. At anytime, you can return to the annotation list by click the Back button at the top of the Annotations properties panel.
Delete Annotations
To delete an annotation, you first need to select it and access its attribute details view, as described above. From the details view, select the Edit button at the bottom to enter edit mode. Select the Delete icon at the bottom to delete the annotation. Since this operation cannot be undone, a dialog will appear asking you to confirm your intention to delete the selected annotation.
Filter Annotations
Use the filter tool on the image viewer toolbar to filter the displayed annotations by users. You can filter out or show annotations for all users or filter out or show annotations for specific users, including the annotations created by the current users. If annotations created by the current user (you) are filtered out and you try to create a new annotation, the filter for the current user will be cleared so that the newly created annotation can be displayed.
Accessing the Redwood UI Viewer from the Native WebCenter Content UI
The View in Redwood Viewer option that will allow you to open a document in the Redwood UI Viewer is available as a new Actions menu item in the search results. The Redwood Viewer option is also available in the Content Information page for a document in the links section. Note that these options are only present for logged-in users. The new document viewer is not yet supported for viewing publicly accessible documents anonymously.
If using Trays Layout preference (configurable from the user's profile page), the new UI appears embedded within the UI as shown here. In Top Menus Layout, the viewer will appear full page within the same tab window as the client. In either case, the browser's Back button will return to the page used to launch the viewer.
Using the Redwood User Interface of Oracle WebCenter Content
G12894-03
Last updated: October 2024
Copyright © 2024, Oracle and/or its affiliates.
Primary Author: Oracle Corporation
