Step 1: Register your Data Relationship Management Application

  1. From Applications, click Register.
    Register your application
  2. Select the Universal application type.
    New Application screen where you can select the Universal option.

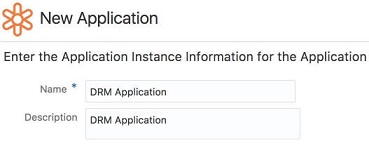

  3. Provide a name and description for the application.
    New Application screen where you can enter a name and description.

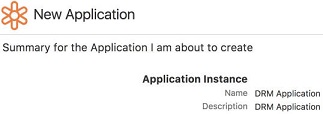

  4. Create your Oracle Data Relationship Management application.
    New Application screen where you can a name and description for your application instance
  5. Click Add to define the dimensions you want to import from your Data Relationship Management application.

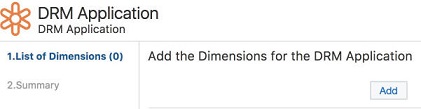

    DRM application metadata 1

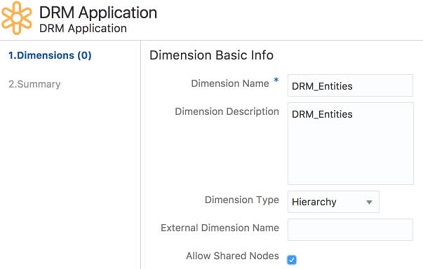

  6. Enter dimension information. For each dimension, determine if it will be a hierarchy or flat list, note the external dimension name in Data Relationship Management, and whether to allow shared nodes.


    DRM application metadata 2
  7. For each dimension, click Add and define a node type list.
    Screen where you can define the node type for a dimension

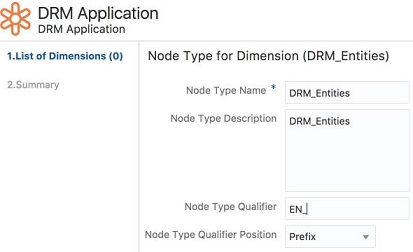

  8. Enter a name for each node type and a qualifier if needed.
    Screen where you can enter the Node Type Name, Node Type Description, Node Type Qualifier, and Node Type Qualifier Position
  9. For each dimension, create properties for each node type.
    Screen where you can enter properties for dimensions and node types.

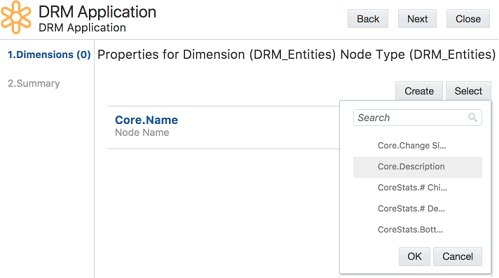

  10. Define which properties should be available to nodes of that node type. Either create new properties or select existing properties. Click Next.available props

  11. Update property information and then click Next.

    Note:

    Column header is required.
    define props

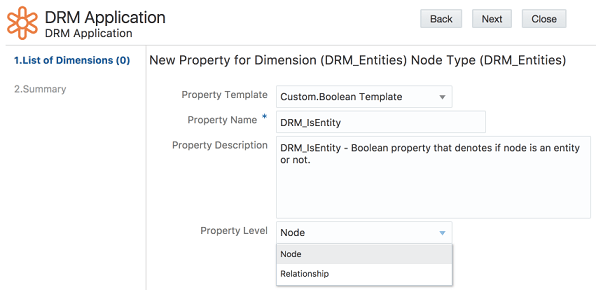

  12. Define the property name, description, valid values, and whether the property is at the node level or relationship level. Click Next.

    define property info

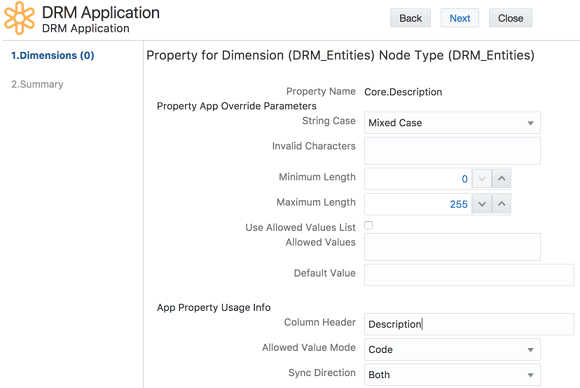

  13. Define property override parameters and property usage information.

    define more property info

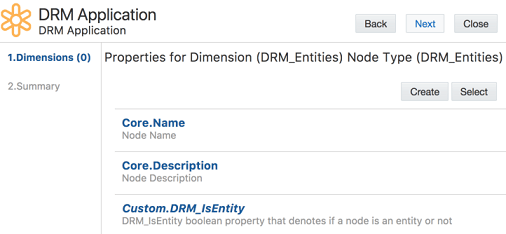

  14. Review the summary of properties for the dimension.

    summary of properties for dimension

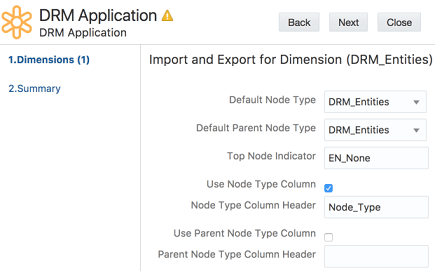

  15. Include top nodes for each dimension and column headers for Node Type fields that will be in import and export file.

    top nodes

  16. Repeat steps 5-15 to add any other dimensions to the registration, then click Next.

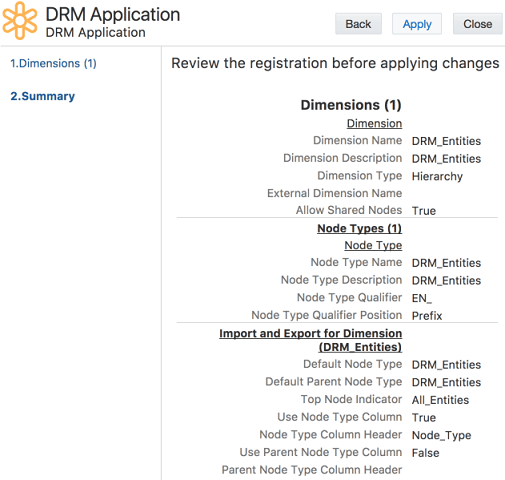

  17. Review all the registration information and click Apply to register your Data Relationship Management application.

    apply changes
