Simple Grids

Data source types: Oracle Analytics Cloud - Essbase, Oracle Planning and Budgeting Cloud

Simple Grids in Essbase

In Oracle Analytics Cloud - Essbase and Oracle Smart View for Office, free-form behavior is such that the POV members are placed on the first row of an Excel sheet. Column and row dimension members are placed on the grid starting after the POV row rows. This means that all the POV members become part of the grid.

Figure 22-1 shows a valid simple grid in Essbase, where Year is the row dimension, and Measures is the column dimension, beginning in row 1.

Figure 22-1 Simple Grid in Essbase with Only Column and Row Dimensions

Figure 22-2 shows what happens after clicking Refresh in a connected sheet. As described previously, row 1 is populated with the POV dimensions of Product, Market and Scenario. The row and column dimensions begin on row 2.

Figure 22-2 Result of Ad Hoc Analysis Command on Simple Grid in Essbase

Figure 22-3 shows a valid simple grid in Essbase, where Product is the page dimension in row 1. Year is the row dimension and Measures is the column dimension, beginning on row 2.

Figure 22-3 Simple Grid in Essbase with Dimension in Row 1

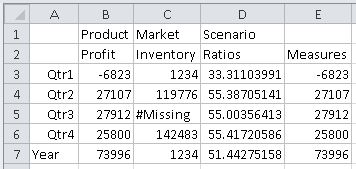

Figure 22-4 shows what happens after clicking Refresh in a connected sheet. In this case, because the Product dimension was already placed on the sheet, it is moved to row 2. The POV dimensions are placed on row 1. The row and column dimensions begin on row 3.

Figure 22-4 Result of Ad Hoc Analysis Command on Simple Grid in Essbase with Dimension in Row 1

Simple Grid in Planning

Figure 22-5 shows a valid simple grid in Oracle Hyperion Planning, where Year is the row dimension and Account is the column dimension.

Figure 22-5 Simple Grid in Planning

Two Column By Two Row Layout

Figure 22-6 is a basic two columns by two rows layout showing the Product and Market dimensions in the first row and column, and members of Sales and Year in the second row and column.

Figure 22-6 Two Columns by Two Rows Layout
