User Request to Create Rules

The following is an example of a user request to create 10 rules and add them to a model called "Alternative SVC Allocations" and a rule set called "IT Service Chargeout". The "Sequence" for the rules is set on one line, and "Enabled" is specified once.

Create rules in Model 'Alternative SVC Allocations' Ruleset 'IT Service Chargeout'
'End User Services'
'Infrastructure Services'
'Network Services'
'Cloud Services'
'Application Support and Maintenance'
'IT Security Services'
'Telephony and Unified Communications'
'IT Project Services'
'Data and Analytics Services'
'IT Governance and Compliance'
Sequence 10,20,30,40,50,60,70,80,90,100
Enabled 'Yes'

After you enter the user request and click Send button (Send), the PCM Agent page is updated with the request information.

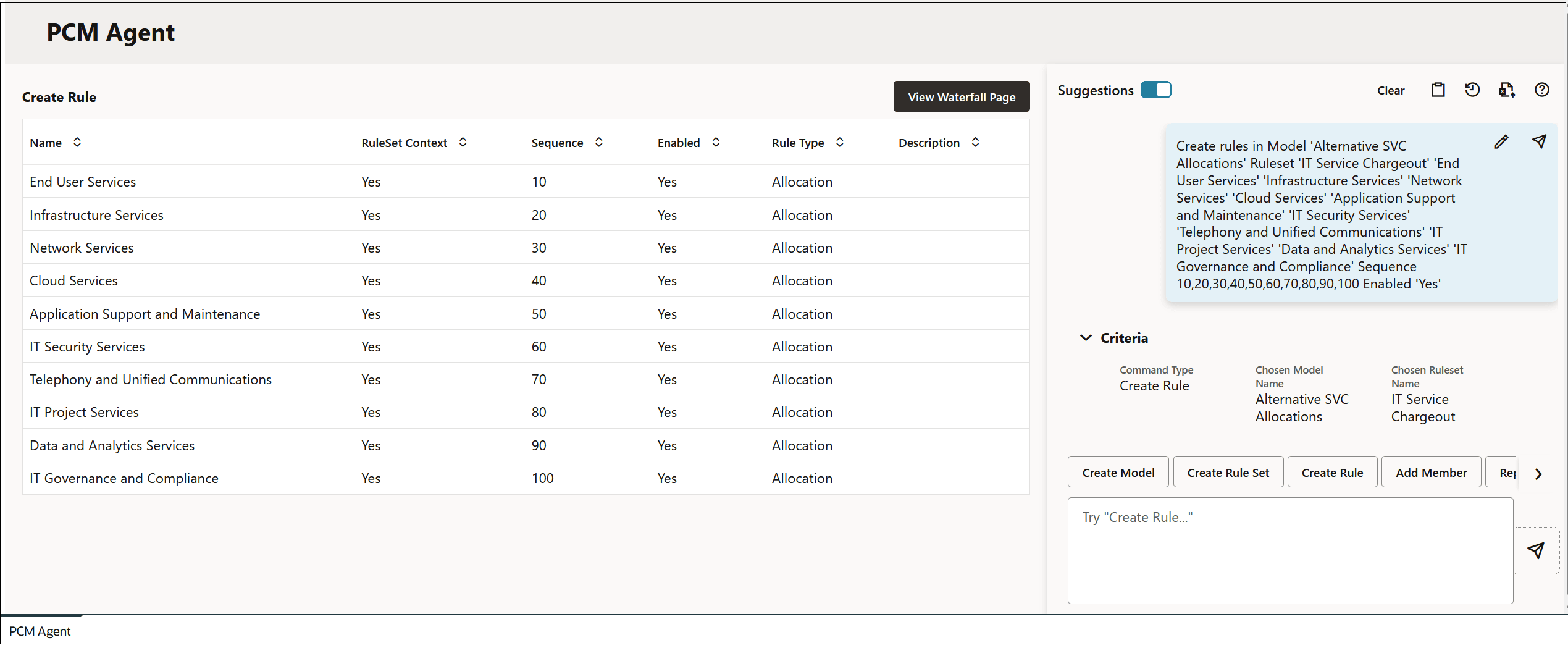

Figure 14-8 Rules Preview

PCM Agent page showing the user request to add rules

Click Run Command, and then click View Waterfall Page to see the new rules,

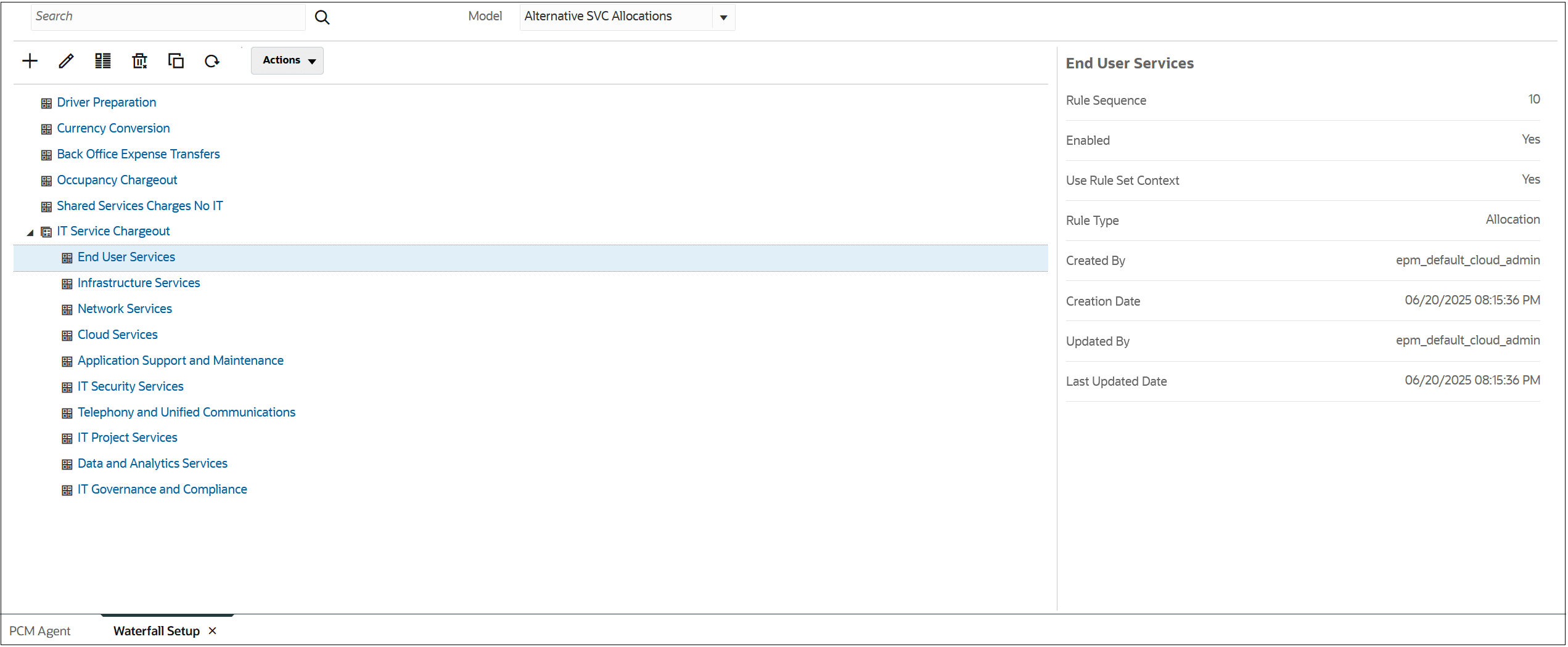

Figure 14-9 Rules Result

Waterfall Setup tab showing the six new rules
