Oracle Fusion Field Service Application Configuration for OAuth Client Credentials Flow

This topic outlines the steps to create and configure a Oracle Fusion Field Service application using the OAuth Client Credentials flow to obtain an access token. This flow is suitable for scenarios where a user context is not required, but keep in mind that all users of the same plugin will share the same application and thus use the same access token.

To create an Oracle Fusion Field Service application:

  1. Navigate to Configuration → Applications.
  2. Click Add Application. The Add Application page appears.

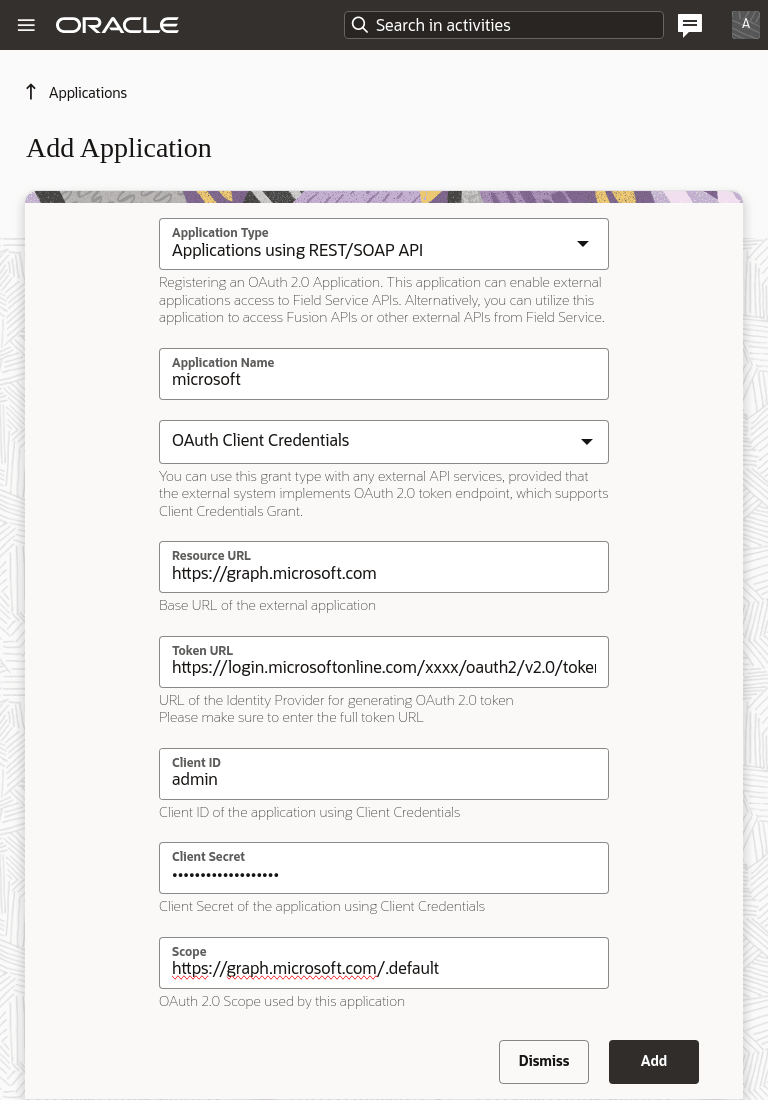

    This screenshot shows the rest api application creation.
  3. Select Applications using REST/SOAP API as the application type. You will be prompted to enter a name for this application; provide a descriptive name.
  4. From the available application security types, select OAuth Client Credentials. This indicates that this application will use its own credentials (Client ID and Client Secret) to obtain an access token from the Identity Provider without involving a specific user's context.
  5. In the Resource URL (Optional) field, specify the URL that represents the OAuth 2.0 Resource Server (the server that provides REST data). It will be included in the "applications" section during the "init" method to avoid hardcoding the URL in the plugin.
  6. In the Token URL field, enter the URL of the OAuth 2.0 Authorization Server (Identity Provider) that issues access tokens. For example, https://{idcsUrl}/oauth2/v1/token.
    Note: In some cases, the OAuth 2.0 Resource Server and Authorization Server might share the same domain.
  7. Enter Client ID Obtained from the Identity Provider configuration while creating the application in the Authorization Server.
  8. Enter Client Secret Also retrieved from the Identity Provider configuration.
  9. Specify Scope . This is a string (usually space-separated) that defines the permissions the Field Service application will request when obtaining an access token. The value is provided by the Identity Provider's configuration. For example: urn:opc:resource:fusion:xxxxxxxx:field-service
  10. Click Add.
    Examples of credentials:
    • Resource Server URL: https://graph.microsoft.com/v1.0/users
    • Auth Server URL:https://login.microsoftonline.com/{tenant}/oauth2/v2.0/token
    • Client ID: "{clientId}"
    • Client Secret: "{clientSecret}"
    • Scope: https://graph.microsoft.com/.default
