Redwood: Succession Plan Readiness Categories Color Customization

Use these page properties in Visual Builder Studio to configure the colors for specific readiness categories of succession plan candidates. You need to specify the readiness codes configured in the HRM_READINESS_CATEGORY lookup and the hexadecimal color code as a {key: value} pair.

Page Properties to Configure Colors for Readiness Categories of Plan Candidates

Page

Page Property

Example

Succession Overview

Set Color Codes for Readiness Categories of Candidates

{"NO_READINESS": "#D63B25",

“READY_3-4_YEARS": "#3399FF",

“READY_1-2_YEARS": "#FFFF66",

"READY_NOW": "#508223"}

Worker Succession Info

Set Color Codes for Readiness Categories of Candidates

{"NO_READINESS": "#D63B25",

“READY_3-4_YEARS": "#3399FF",

“READY_1-2_YEARS": "#FFFF66",

"READY_NOW": "#508223"}

Succession Organization Chart

Set Color Codes for Readiness Categories on Succession Organization Chart

{"NO_READINESS": "#FFD9D3",

“READY_3-4_YEARS": "#FF4E33",

“READY_1-2_YEARS": "#B3B300",

"READY_NOW": "#D0EAC1"}

If you don’t specify a color code, then these default colors are used for the indicated readiness levels.

Default Color Codes for Readiness Categories of Plan Candidates

Readiness Category

Default Color Code for the Plan Strength Bar

Default Color Code for the Succession Organization Chart

READY_NOW

#699E61

#DBE6D6

Readiness Category 2

#31A09C

#CAE8E7

Readiness Category 3

#5999B5

#D6E6EE

Readiness Category 4

#B47282

#ECDBDF

Readiness Category 5

#A88E00

#EAE2C0

Readiness Category 6

#CF7C00

#F9DDBC

NO_READINESS

#D63825

#FFD9D3

Note: If you have defined more than 7 readiness levels, then the colors are repeated cyclically

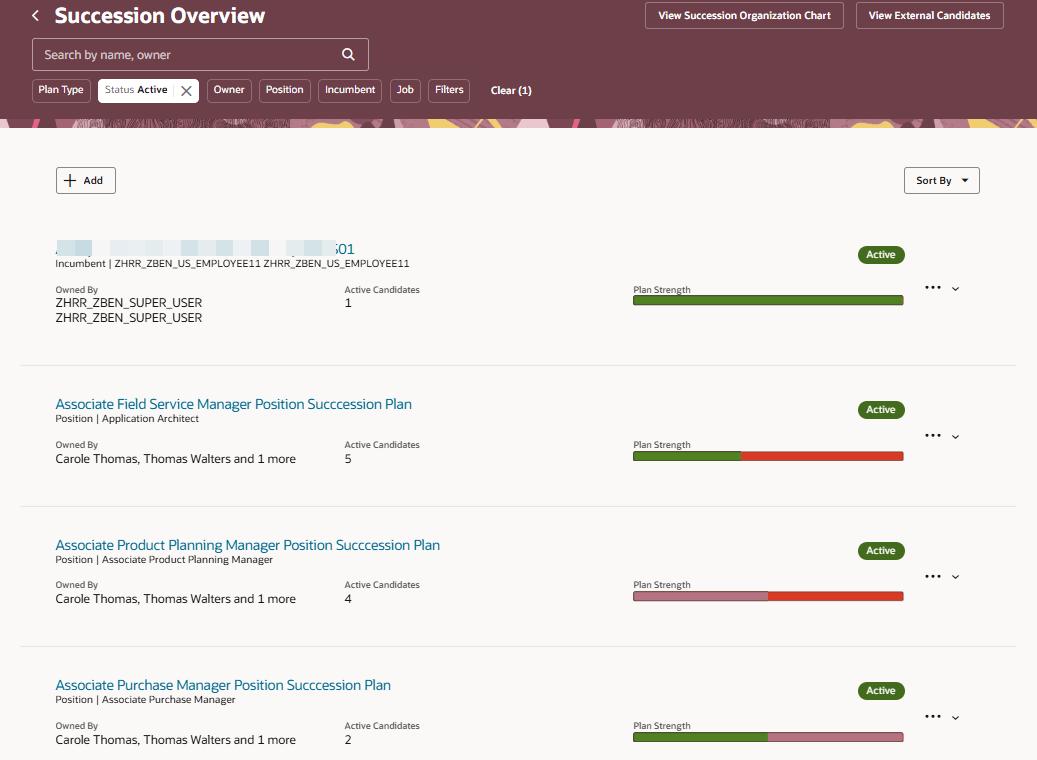

Screenshot showing the plan strength indicators on the Succession Overview page

Plan Strength Indicator Before Color Configuration

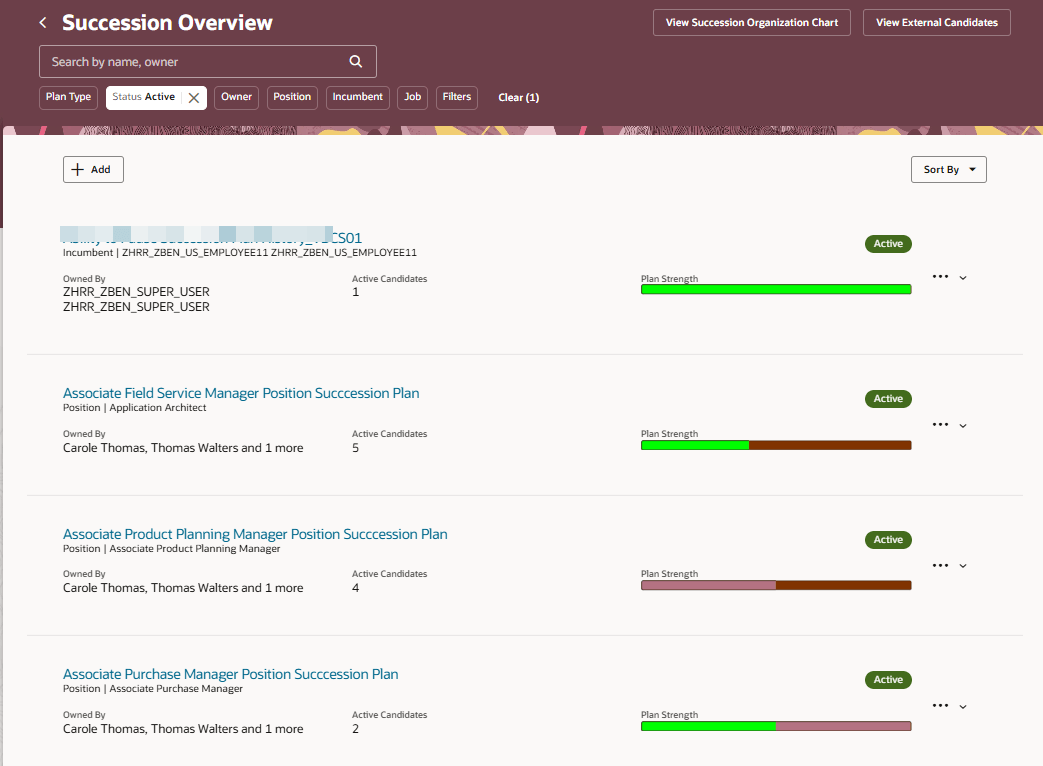

Screenshot showing the changed plan strength indicators after color configuration on the Succession Overview page

Plan Strength Indicator After Color Configuration

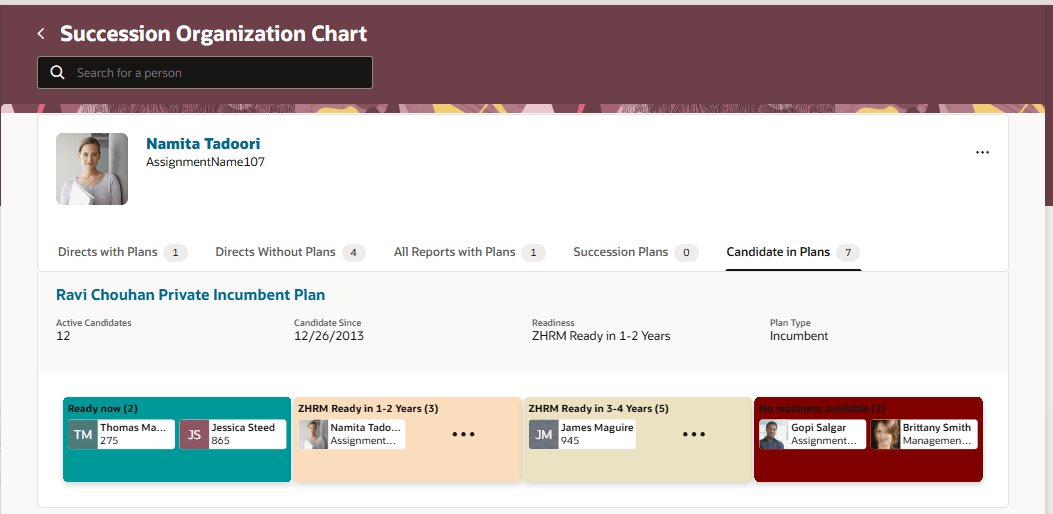

Screenshot of the Candidate in Plans tab of a Succession Organization Chart showing the readiness levels of candidates

Readiness Levels of Candidates in Succession Organization Chart Before Color Configuration

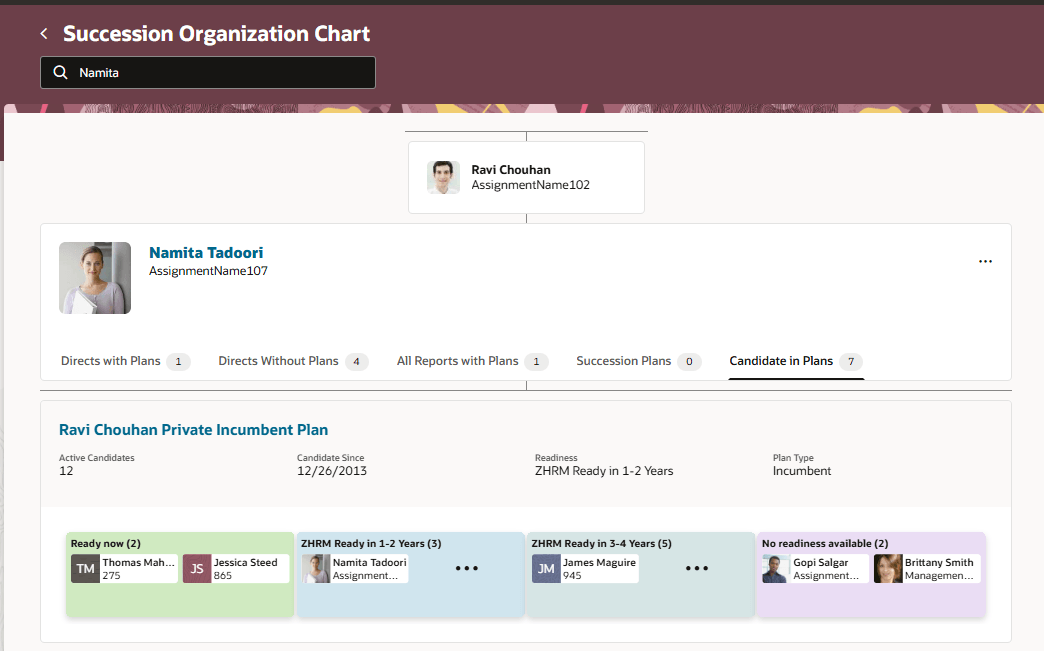

Screenshot of the Candidate in Plans tab of a Succession Organization Chart showing the readiness levels of candidates. The colors depicting the candidate readiness has changed.

Readiness Levels of Candidates in Succession Organization Chart After Color Configuration

Enhance user experience by configuring readiness color codes according to your organization’s requirements.

Steps to Enable

To view the Redwood redesigned succession planning pages, you need to enable the profile options indicated in the table.

Profile Option Code

Profile Option Display Name

 Value

ORA_HCM_VBCS_PWA_ENABLED

Enable VBCS Progressive Web Application User Interface

Y

ORA_HRM_SUCC_PLANS_REDWOOD_ENABLED

Redwood Succession Plans Enabled

 Yes

To view succession organization charts, you need to enable this profile option.

Profile Option Code

Profile Option Display Name

 Value

ORA_HRM_ENABLE_SUCCESSION_ORG_CHART

Succession Organization Chart Enabled

Y

For more information about setting profile option values, see the Set Profile Option Values topic in the Implementing Applications guide on Oracle Help Center.

Key Resources

For more information on extending Redwood pages in HCM, refer to this guide on the Oracle Help Center:

Access Requirements

To view succession organization charts, you need to have a role that inherits the Use REST Service – Succession Org Charts REST aggregate privilege.
