Graphical Movement of 3-D items from One Shipment to Another Shipment

Prior to this enhancement, OTM only had the capability to move a packing item within a 3-D shipment with the action.  Items could not be removed from the shipment or added to the shipment.

A new concept was added to the Enhanced Workbench to allow the transfer of the packing item from the source shipment to a target shipment.

More than two shipments are able to be displayed on a workbench and packing items can be moved between any of them.

The shipments may be persisted with the new packing items.

Business Benefit

Business Benefit is that 3-D shipments can be modified graphically to assure item placement feasibility.  The addition of new packing items can require rearrangement of the existing items and this can all be done graphically.

Steps to Enable

The feature assumes that a workbench has been setup to facilitate the work.  This is a workbench with multiple Load Config Components

Workbench Layout

Mouse Action required to select the packing item to be moved.

Source Load Configuration Component

Select the target shipment and the packing item will be moved to the parking lot for that shipment.

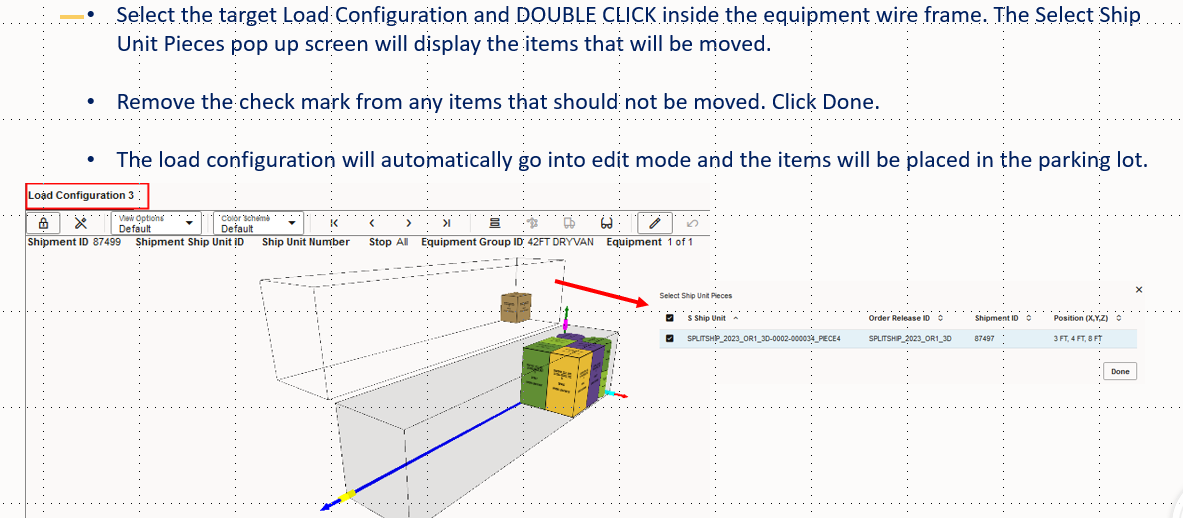

Target Load Configuration

Drag the newly added item to the desired position on the target shipment.

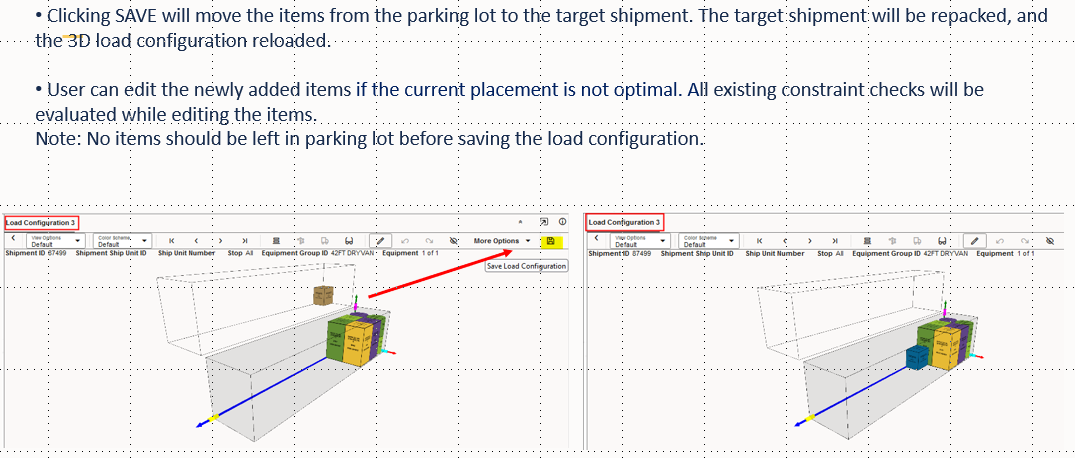

Target Load Configuration Placement
