Commerce Process Stage Badge

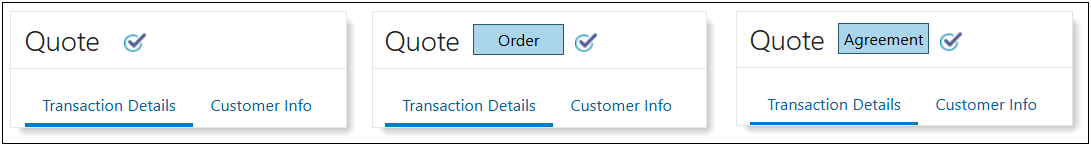

Oracle CPQ 24D introduced Quotes, Agreements, and Orders stage functionality to identify where a transaction is within the Commerce process flow. Beginning in Oracle CPQ 25A a stage badge is displayed on the transaction UI for transactions in the Quote and Agreement stages. When stages are enabled, the stage badge is displayed for both legacy and standard processes. A badge is not displayed for transactions in the "Quote" stage. The following image shows the badge display for Quote, Order, and Agreement stages.

Status Badge

Oracle CPQ 25A introduces a new transaction Badge Attribute Layout Editor setting for JET and Legacy Transaction UIs.

Status Badge Jet Layout Setting

The new stage badge quickly identifies subsets of transactions that are in the agreement or ordering phase of the transaction lifecycle.

Steps to Enable

Complete the following steps to enable the Stage badge for a JET or legacy Transaction UI.

  1. Navigate to the Commerce Layout Editor for the applicable JET Transaction UI.
    (Admin > Process Definition > Documents > JET Responsive Layout)

  2. Open the side panel Settings section.

  3. Select Stage from the Badge Attribute drop-down.

  4. Click Save.

  5. Deploy the Commerce process.

Tips And Considerations

Oracle CPQ 25A only supports the Status Badge for JET and legacy Transaction UIs. The Status Badge is not supported for the Redwood Transaction UI in Oracle CPQ 25A.
