Support Linked Quantity Attributes

Oracle CPQ 25C provides support for linked quantity attributes. Administrators can identify quantity attributes they want to associate with menu-type attributes. If the new Include Linked Quantity option is true, we automatically create Integer attributes that get linked to the menu.

  • Single Select Menus are linked at the attribute level

  • Multi-Select Menus are linked at the item value level

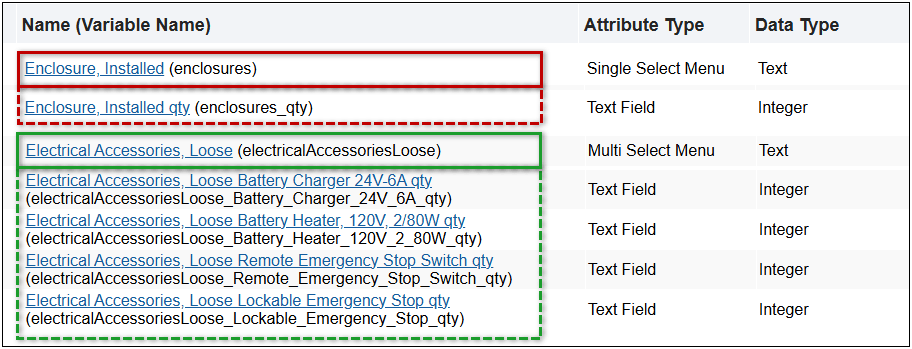

The following example shows two menu type attributes and their automatically created integer type attributes.

  • When the Include Linked Quantity setting is selected for the (enclosures) Single Select Menu attribute, the (enclosures _qty) attribute is automatically created.

  • When the Include Linked Quantity setting is selected for the (electricalAccessoriesLoose) Multi-Select Menu attribute the follow attributes are automatically created for the multi-select menu options:

    • (electricalAccessoriesLoose_Battery_Charger_24V_6A_qty)

    • (electricalAccessoriesLoose_Battery_Heater_120V_2_80W_qty)

    • (electricalAccessoriesLoose_Remote_Emergency_Stop_Switch_qty)

    • (electricalAccessoriesLoose_Emergency_Stop_Switch_qty)

Linked Quantity Attributes

Automatically create linked configurable attributes to capture the quantities of selections in Menu Attributes simply by switching a property on. These quantity attributes are linked to the selections made in the Menus.

Steps to Enable

You don't need to do anything to enable this feature.
