Redwood: View Production Transaction History Using a New User Experience

Historical production transaction records include detailed transactions and data gathered through the manufacturing execution lifecycle of an item. These records include material consumption, labour and equipment usage, operation and inventory completion, lot traceability, serialization, quality inspections, and machine operating conditions. This history supports managing manufacturing deviations and rework, conducting quality investigations, and meeting compliance audit requirements.

In a prior release, you could view the transaction history for a specific work order using the Redwood work order history page. Now, with the enhanced Redwood user experience, you can search for and view the production transaction history for work orders, flow schedules, and orderless executions. Users benefit from faster and more intuitive transaction retrieval, customizable and reusable search preferences, improved navigation through categorized tabs, and enhanced access to supplementary production and inspection data.

Transaction Categories by Work Method

  • Production transactions are now organized into distinct categories: discrete and process manufacturing work orders, flow schedules, and orderless executions.
  • Each category appears in a separate tab, allowing users to quickly navigate and focus on their specific area of interest.

Search and Filtering Capabilities

  • The updated experience includes a robust search and filtering engine, optimized for performance and usability.
  • You can quickly locate transactions using search criteria such as Work Order Number, Item Serial Number, or Lot Number.
  • A comprehensive set of filters, such as Transaction Type, Item Number, Work Center, Workstation, and Production Line for flow schedules, enables you to narrow down results and streamline the review process.
  • To ensure timely retrieval of data, at least one date filter is required when conducting searches. Users must provide one or more date range filters to support efficient queries, especially when dealing with large transaction histories.

Saved Search Functionality

Frequently used search configurations can be saved for future use, enabling users to quickly reapply their preferred search criteria.

View Production Transaction Details

Monitor historical transactions in a table with sortable columns, allowing sorting in both ascending and descending order. The production transaction history now displays additional details, such as:

  • Work order type
  • Production line for flow schedules
  • Output type and primary output
  • Traceability information including lot, serial, license plate number, supply subinventory, supply locator, completion subinventory, and completion locator
  • Created by and creation date information

Configure Column Display for the Transaction History Table

Select columns to show, hide, and reorder in the production transaction history table.

Transaction Action Set

Use actions related to viewing inspection results, additional information using descriptive flexfields, and operational data collected from connected equipment.

Export Production Transactions

You can export work orders, flow schedules, and orderless production transactions to an Excel file, allowing you to review and analyze the transaction data offline.

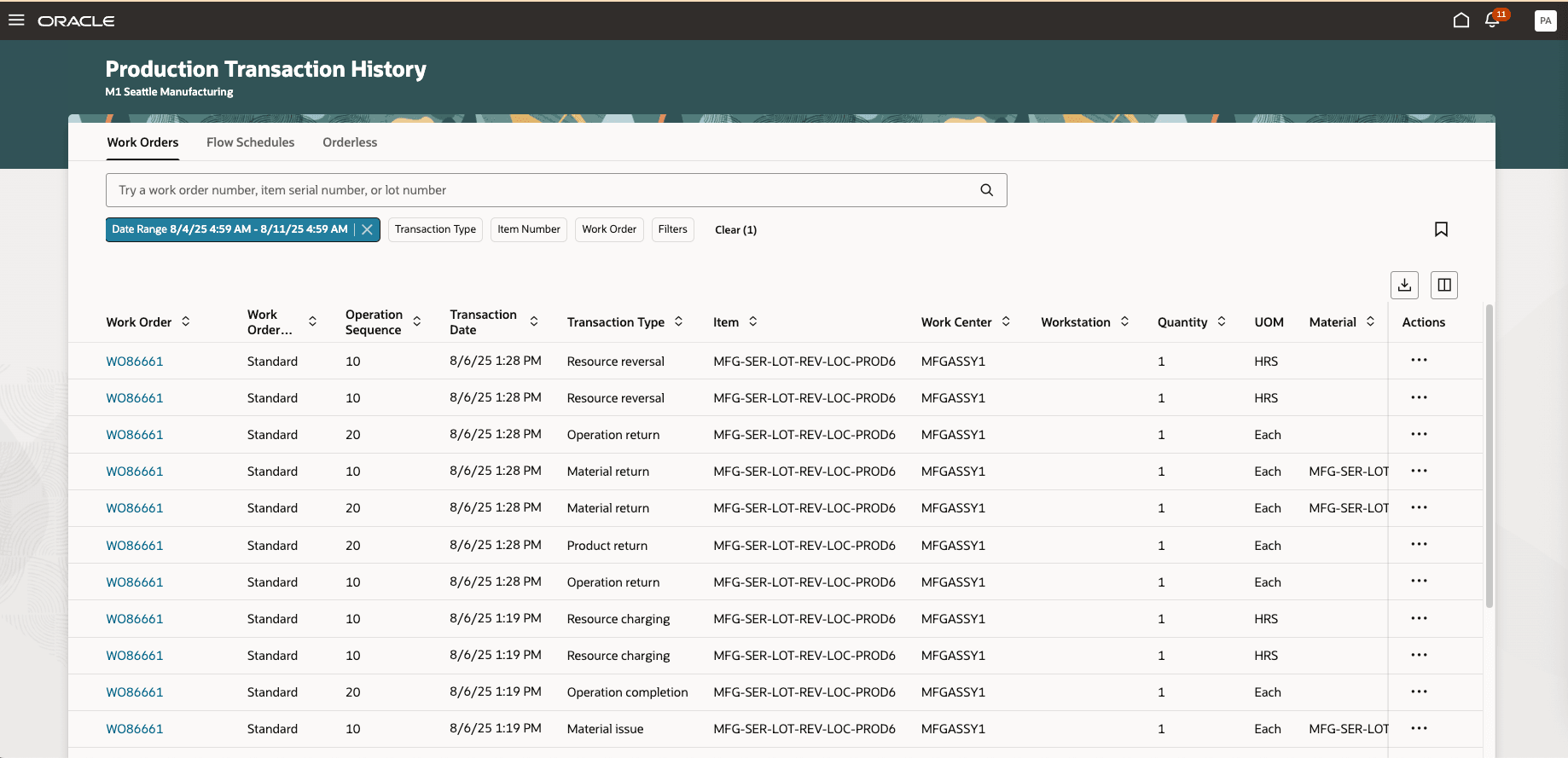

The following screenshot shows the Production Transaction History - Work Orders page:

Production Transaction History Work Orders page

Production Transaction History Work Orders Page

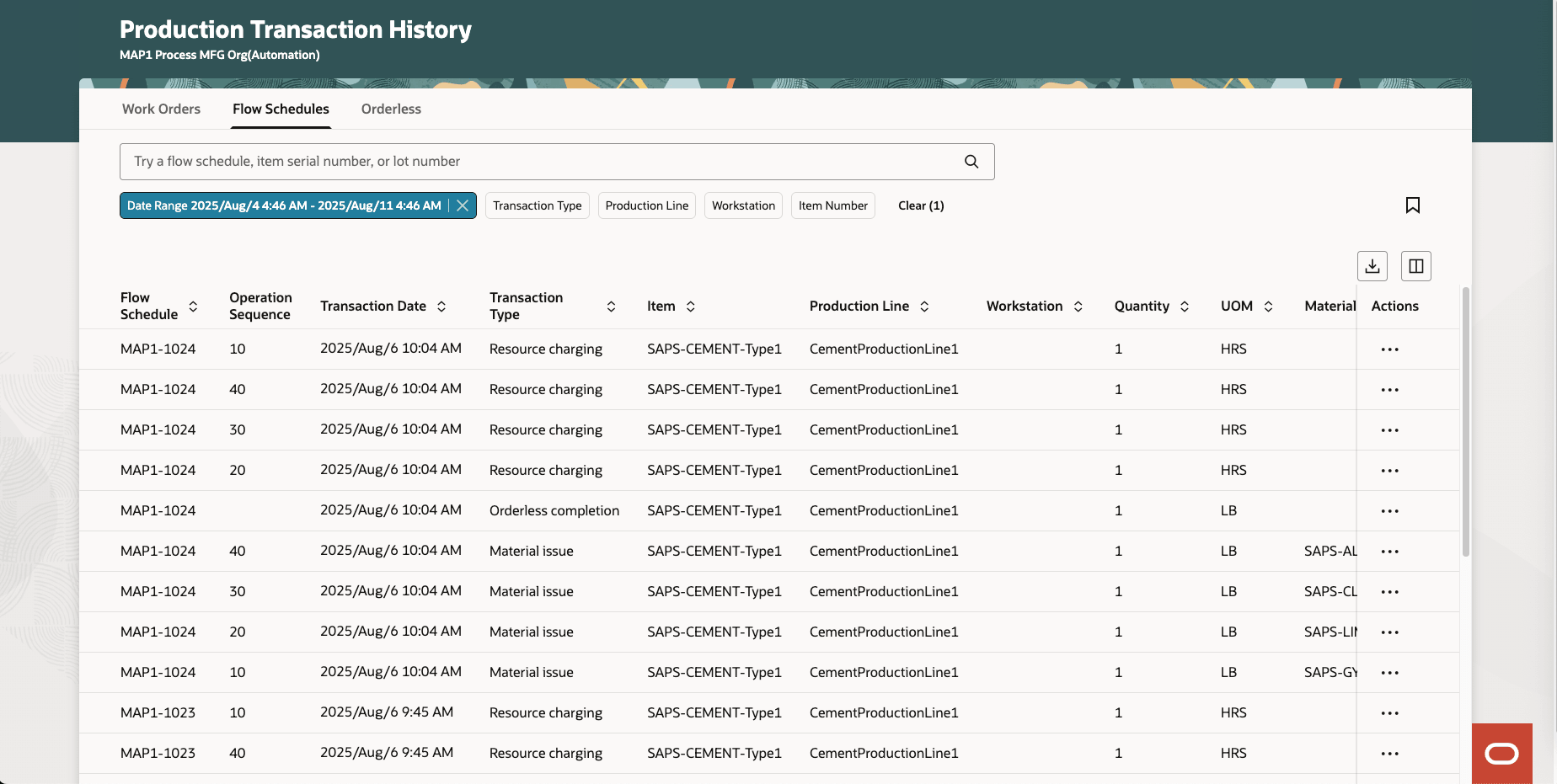

The following screenshot shows the Production Transaction History - Flow Schedules page:

Production Transaction History Flow Schedules page

Production Transaction History Flow Schedules Page

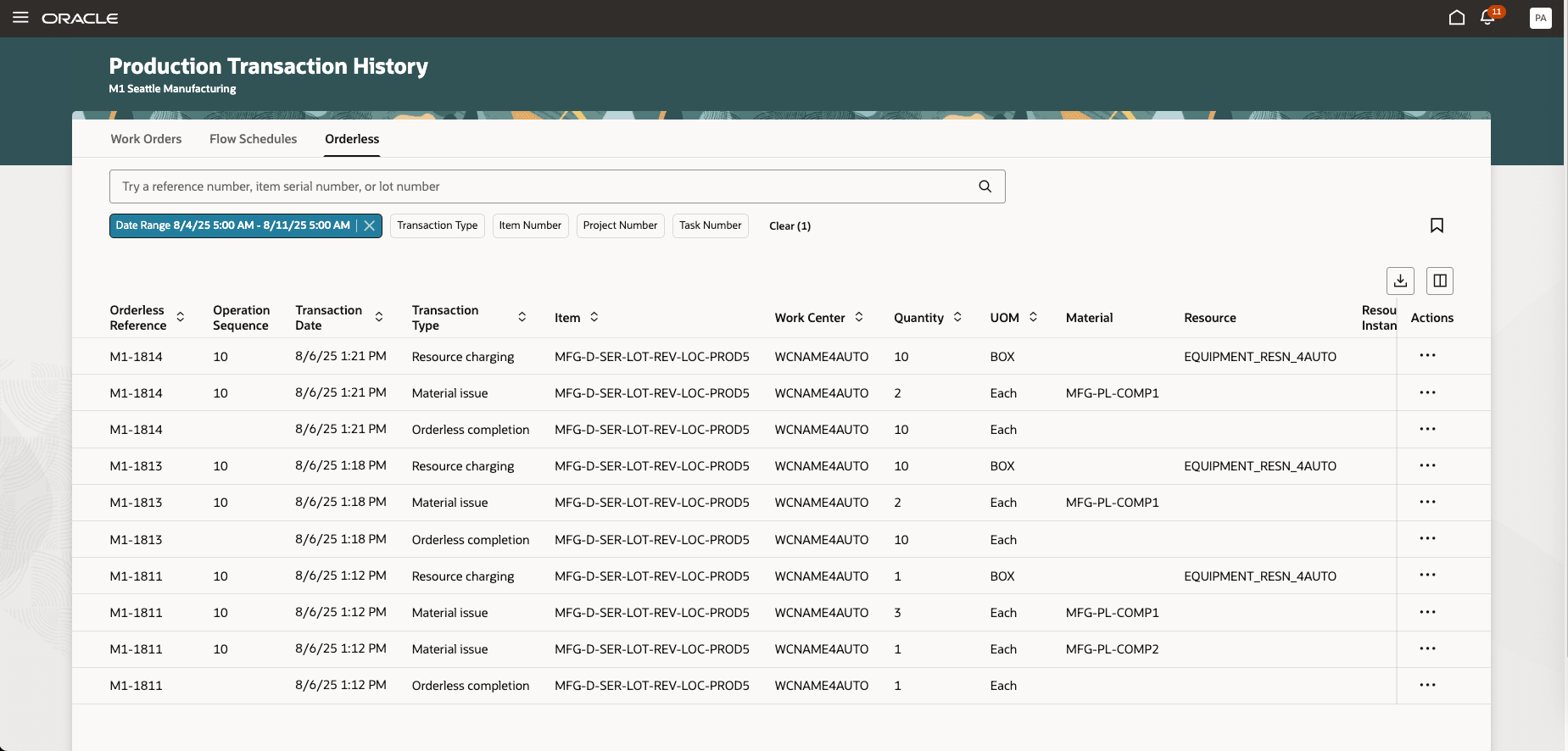

The following screenshot shows the Production Transaction History - Orderless page:

Production Transaction History Orderless Page.

Production Transaction History Orderless Page

The production transaction history in Redwood pages ensures complete traceability of production data with greater ease and efficiency in search and analysis.

Steps to Enable

Follow these steps to use this feature:

Set up the Profile to enable the Redwood experience for work definitions, as follows:

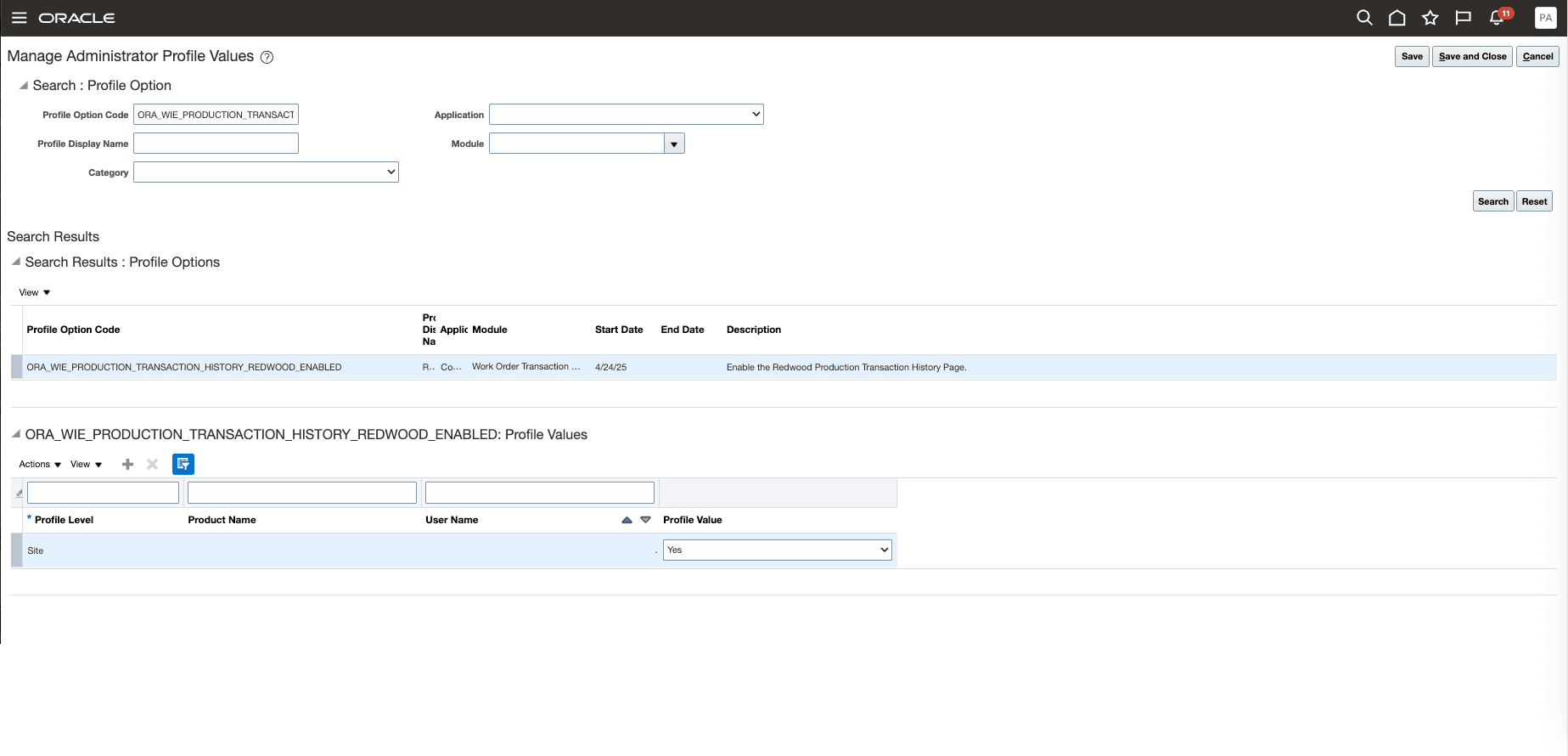

  1. In the Setup and Maintenance work area, search for and select the Manage Administrator Profile Values task.
  2. On the Manage Administrator Profile Values page, search for and select the ORA_WIE_PRODUCTION_TRANSACTION_HISTORY_REDWOOD_ENABLED profile option code.

Manage Administrator Profile Values

  1. In the Profile Values section, set the Site level to Yes or No The default value of the profile option is N. Yes will enable the feature, and No will disable it.
  2. Click Save and Close. Changes in the profile value will affect users the next time they sign in.

Tips And Considerations

  • You can view production transactions submitted using the Classic or the Redwood user experience, using workstations or without the workstation context, using industrial handheld devices, File-Based Data Import (FBDI), or REST APIs.
  • You can't view this improved production transaction history page in the Redwood pages for work order history and the Production Supervision dashboard at this time.

Key Resources

  • Watch the View Production Transaction History Using a New User Experience demo.
  • Refer to the Oracle Fusion Cloud SCM: Using Manufacturing guide, available on the Oracle Help Center.
  • Refer to the Oracle Fusion Cloud SCM: Implementing Manufacturing and Supply Chain Materials Management guide, available on the Oracle Help Center.

Access Requirements

Users who are assigned a configured job role that contains these privileges can access this feature:

  • WIE_VIEW_MANUFACTURING_TRANSACTION_HISTORY_PRIV

This privilege was available prior to this update.
