Include User-Defined Shipment Attributes in Outbound Shipment Notification Messages Using a REST Resource

You can now access and include any attributes available in the Shipments REST resource in your outbound advance ship notice message.

The following predefined message definitions for advance ship notice have been updated with a mapping file that contains all the attributes available in the Shipments REST resource and is used to generate the original XML payload.

  • OAGIS_10.1_PROCESS_SHIPMENT_OUT_V2
  • OAGIS_10.1_PROCESS_SHIPMENT_COLLAB_MSG_OUT_V2

You can include any data that’s available in the REST resource in your outbound advance shipment notice to meet specific business requirements.

Steps to Enable

Use the Opt In UI to enable this feature. For instructions, refer to the Optional Uptake of New Features section of this document.

Offering: Manufacturing and Supply Chain Materials Management

After you opt in, perform these steps to include additional attributes in your outbound advance ship notice message:

  1. Select Manage Collaboration Message Definitions from the task panel.
  2. Select the predefined shipment message definition that you're using and select Export Transformation Package. The transformation package has four folders: mappingFile, payloadTemplate, xsd, and xsl.

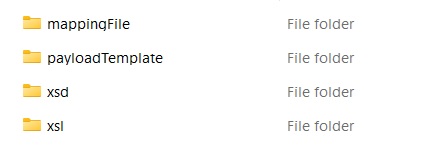

Transformation Package

Transformation Package

  1. In the mappingFile folder, open the mapping file and find the name of the attribute you want to add to your message.
  2. Edit the XSL file to include the additional attributes.
  3. In Manage Collaboration Message Definitions, duplicate the predefined advance ship notice message, enter a name, and upload your modified XSL file and mapping file.
  4. Replace your existing shipment message definition with the newly duplicated one for your trading partners or service providers.

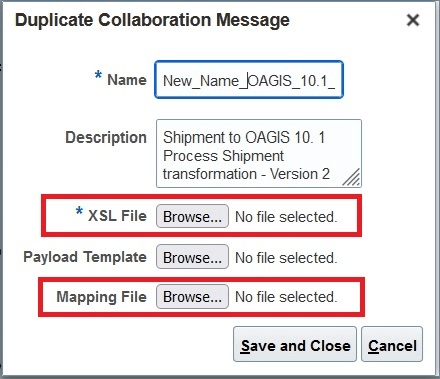

Duplicate Advance Shipment Notice

Duplicate Advance Shipment Notice

Key Resources

  • Refer to the Configuring and Managing B2B Messaging for Oracle Fusion Cloud SCM guide on the Oracle Help Center.

Access Requirements

Users who are assigned a configured job role that contains this privilege can access this feature:

  • Manage Collaboration Messages (CMK_MANAGE_COLLAB_MESSAGE_PRIV)

This privilege was available prior to this update.
