Redwood: Manage Measure Groups Using a New User Experience

You can use the new Measure Groups page for centralized administration of planning measure groups. Using the page, you can search for a measure group by name, description, and the user who last updated the measure group, and you can quickly create, duplicate, edit, or delete measure groups. This update replaces the classic UI page named Manage Planning Measures with a standalone, consistent Redwood UI designed for faster configuration and better productivity across planning teams.

In the Supply Chain Planning work area, you can open the Measure Groups page from a demand, demand and supply, replenishment, sales and operations, or supply plan or the Plan Inputs.

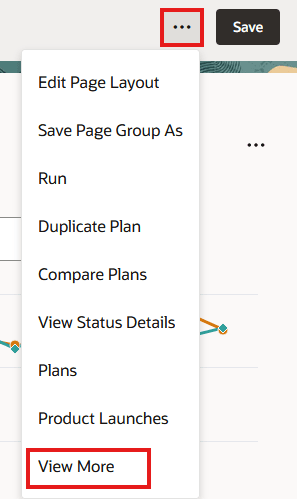

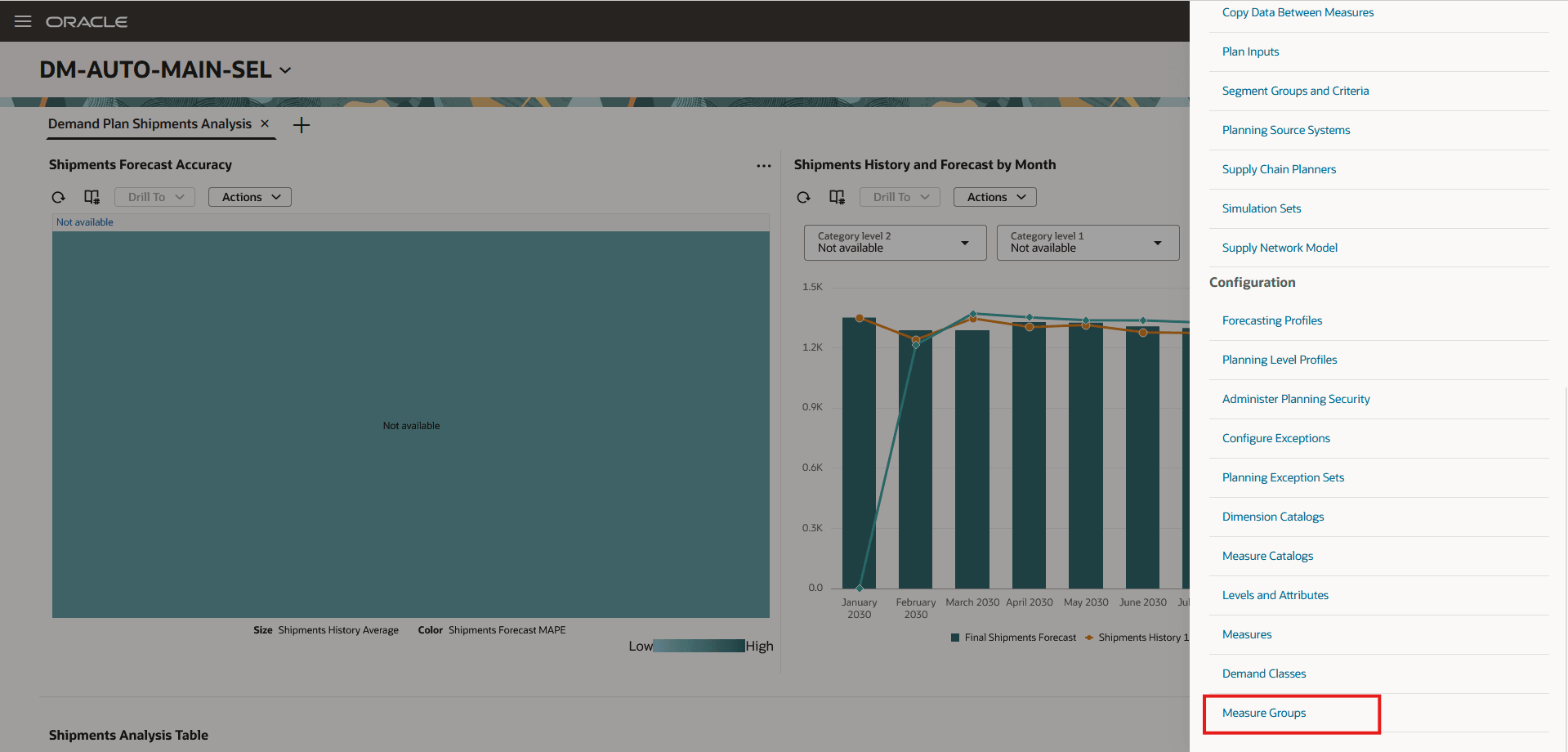

Select More Actions > View More, and, in Configuration in the Actions drawer, select Measure Groups. The Measure Groups page will open on a new tab.

More Actions Menu

Actions Drawer

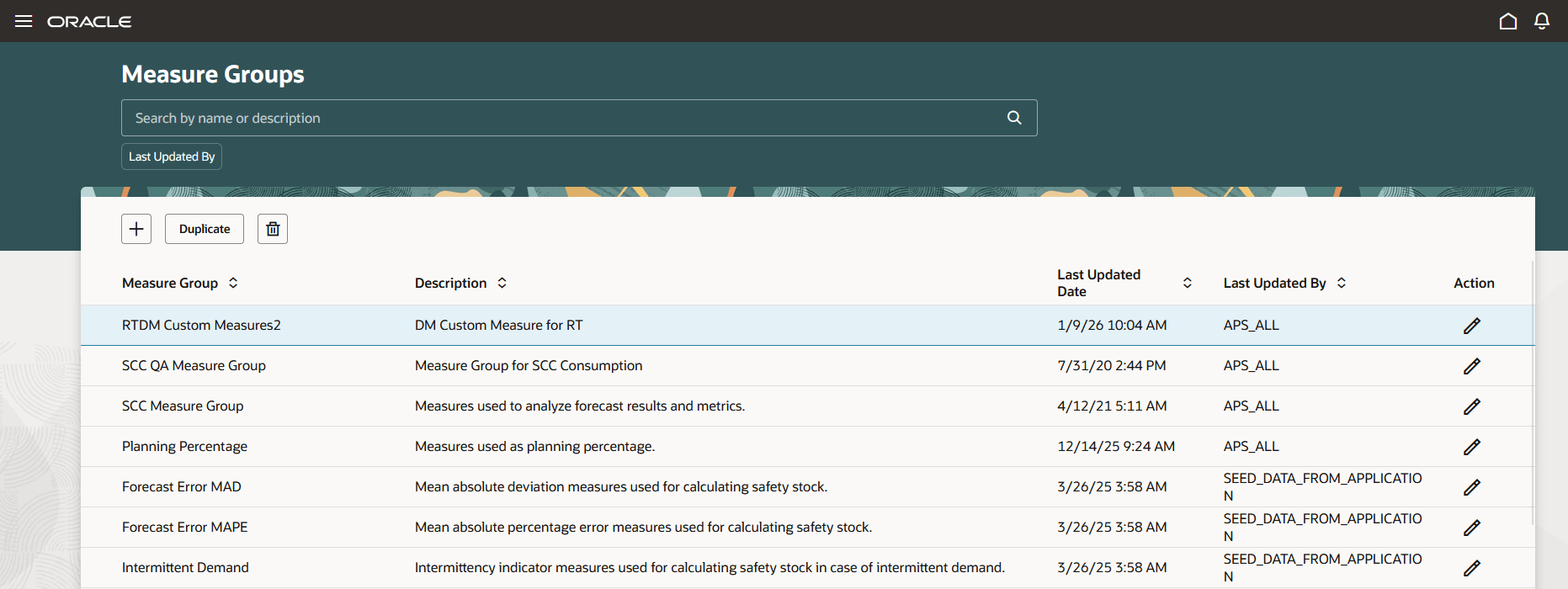

Measure Groups Page

Create a Measure Group

You can open a guided process to create a measure group by selecting the Add icon on the Measure Groups page.

Step: Enter general information

• Name: Enter a unique name for the measure group.
• Description: Enter a description for the measure group (optional).

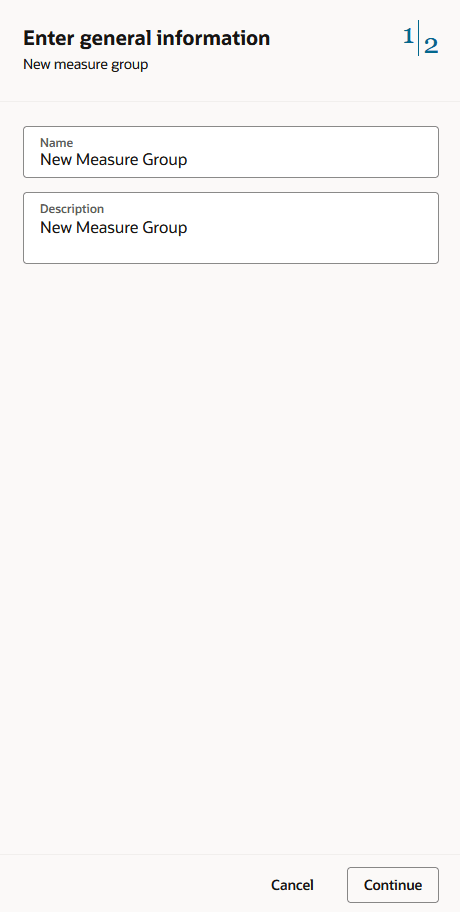

Enter General Information Step in Guided Process

You can go to the Select measures step either by selecting the Continue button at the bottom or by selecting Select measures after selecting the numbers at the top.

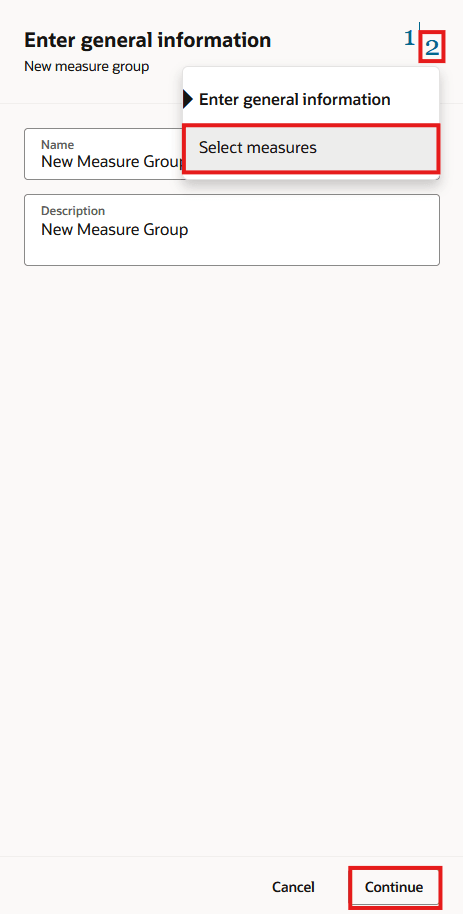

Navigation Options in Enter General Information Step

Step: Select measures

• You can optionally select one or more measures.

You can also create the measure group without selecting measures and add them later after creating, editing, or duplicating a measure on the Measures page.

• Use the search field to filter the measures list by measure name.
• Use the single-select Plan Type suggested filter to filter the measures by plan type.

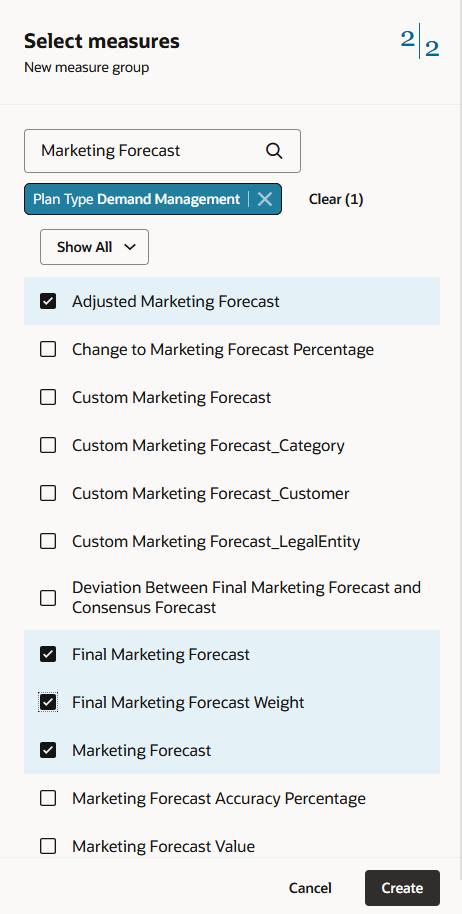

Select Measures Step in Guided Process

When you select Create, the measure group will be created, and a message will be displayed at the bottom of the page.

Message After Creation of Measure Group

Duplicate a Measure Group

You can open a guided process to duplicate a measure group by selecting it and selecting the Duplicate button on the Measure Groups page.

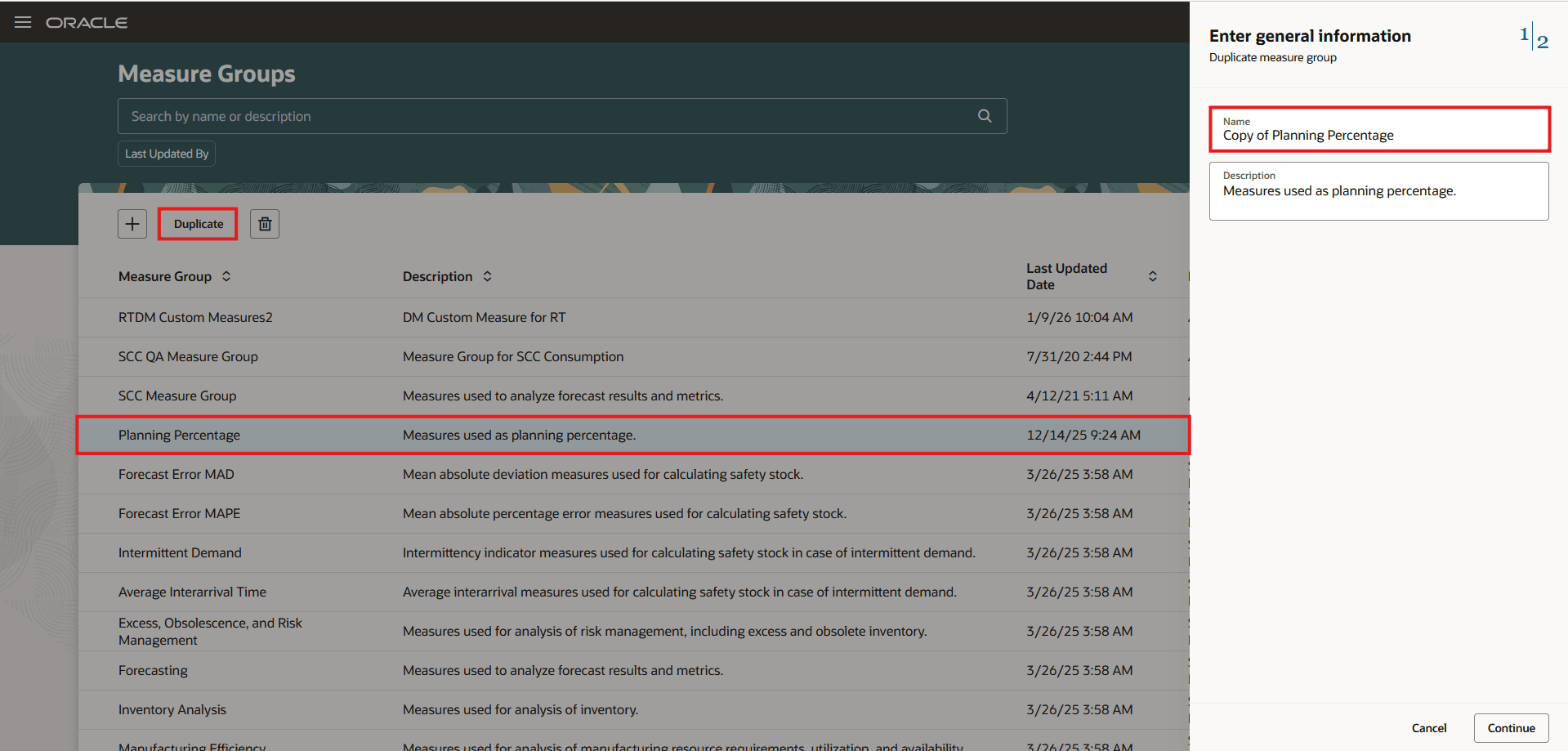

Guided Process for Duplicating Measure Group

In the Enter general information step, the Name field is automatically set to “Copy of <name of original measure group>,” and the Description field is populated with the original measure group’s description.

In the Select measures step, the measures from the original group are selected.

You can modify the name and description as well as add or remove measures.

Edit a Measure Group

You can open a guided process to edit a measure group by selecting the Edit icon for the measure group.

The drawer subtitle will default to the name of the measure group being edited. You can modify the name and description, as well as add or remove measures. When you select the Submit button in the Select measures step, the measure group will be updated with your changes, and a message will be displayed at the bottom of the page.

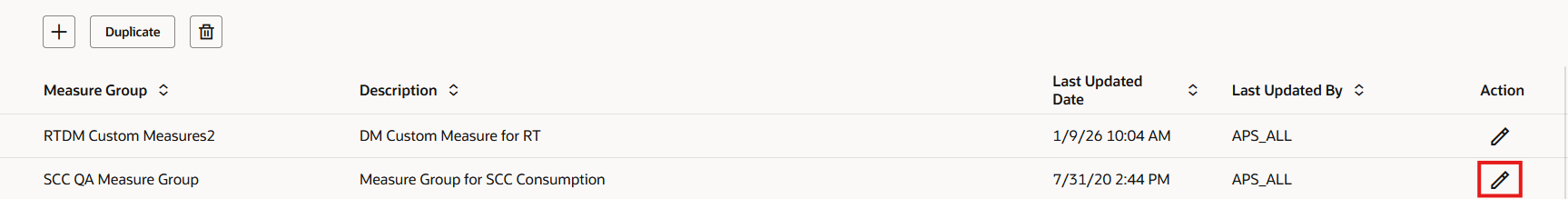

Edit Icon for Measure Group

Select Measures Step in Guided Process for Editing Measure Group

Delete a Measure Group

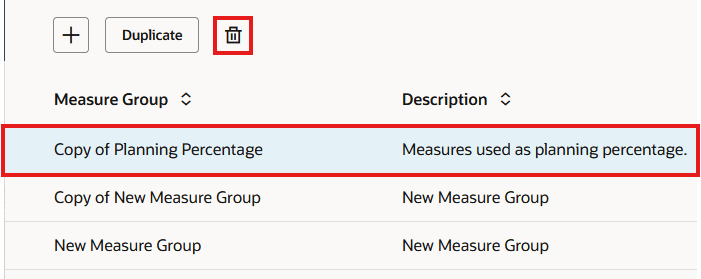

To delete a measure group, select it, and select the Delete icon.

Delete Icon for Measure Group

In the dialog box that appears, select Delete.

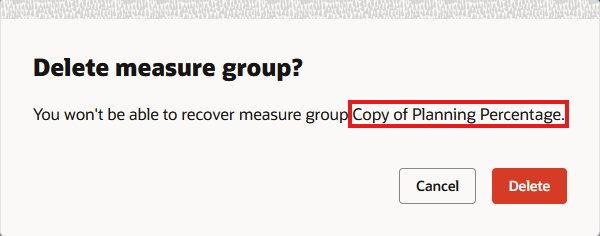

Dialog Box for Deleting Measure Group

Steps to enable and configure

Use the Opt In UI to enable this feature. For instructions, refer to the Optional Uptake of New Features section of this document.

Offering: Supply Chain Planning

Tips and considerations

If you want to use the Redwood: Manage Measure Groups Using New User Experience feature, then you must opt in to its parent feature: Replenishment Planning. If you’ve already opted in to this parent feature, then you don’t have to opt in again

• You can edit a predefined measure group, but you can’t delete it.
• In the drawer for creating, duplicating, or editing a measure group, to return to the Enter general information step from the Select measures step, select Enter general information after selecting the numbers at the top.

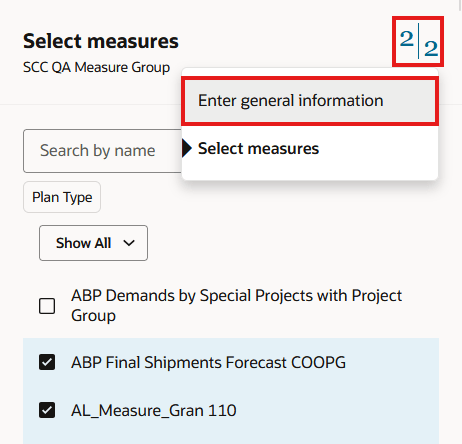

Navigation Option in Select Measures Step

Key resources

Visit https://redwood.oracle.com/ for more information about the Redwood experience.

Access requirements

Users who are assigned a configured job role that contains these privileges can access this feature:

• Maintain Measure Definition (MSC_MAINTAIN_MEASURE_DEFINITION_PRIV): Allows the user to create, edit, or duplicate a measure group.
• Delete Measure Definition (MSC_DELETE_MEASURE_DEFINITION_PRIV): Allows the user to delete a user-defined measure group.
• View Measure Definition (MSC_VIEW_MEASURE_DEFINITION_PRIV): Allows the user to view the Measure Groups page.

These privileges were available prior to this update.
