Redwood: Enable Deep Links to Source Data from Supplies and Demands Page

You can use the Redwood user experience to create deep links from orders on the Supplies and Demands page to their source data, such as purchase orders in Oracle Supply Chain Execution modules, to facilitate better plan analysis. You can drill down to purchase orders in Oracle Procurement, work orders in Oracle Manufacturing, sales orders in Oracle Order Management, and transfer orders and on-hand in Oracle Inventory.

This capability provides access to additional information, including real time status at order level for various order types such as on-hand quantities, purchase orders, transfer orders, work orders, and sales orders.

From the Supplies and Demands page, you can navigate to Actions menu > Source Details > source application after choosing one of the five supported order types. This functionality is available for both unconstrained and constrained supply plans, helping you quickly trace supply and demand information back to the originating order.

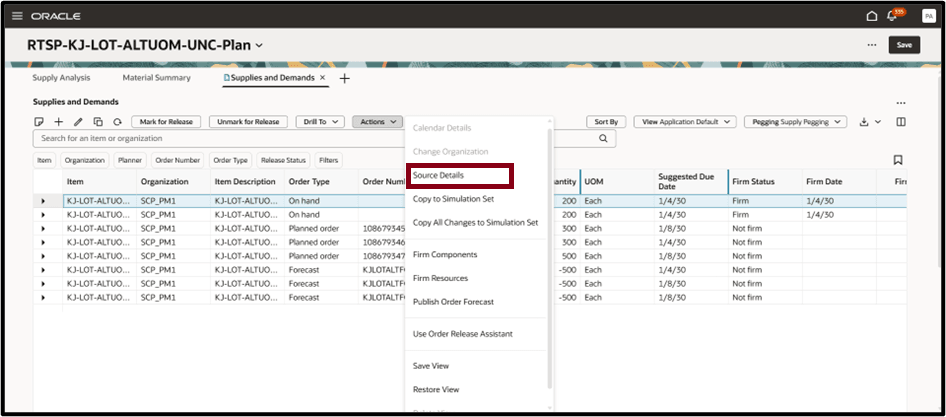

Source Details Option

Source Details Option

When you select Source Details, the appropriate Oracle Inventory, Procurement, Manufacturing, Logistics, or Order Management page opens in a new browser tab (or as configured) to display details for the selected order.

The details page includes a deep link URL, which consists of two parts for the following order types:

  • Base URL: Provides the host information.
  • Parameters: Filter the data based on the context passed for each order type:
    • On Hand - Organization, Item, and Lot Number
    • Purchase Orders - Purchase Order Header ID
    • Work Orders - Work Order ID and Organization
    • Transfer Orders - Transfer Order Number
    • Sales Orders - Sales Order Header ID

For example:

On Hand (Inventory)

https://< hostname>/fscmUI/redwood/inventory-availability/item-quantities/manage-lots?organizationId=207&inventoryItemId=663914&lotNumber=D-L001

Purchase Orders (Procurement)
https://< hostname>/fscmUI/redwood/purchase-orders/view?intent=NonAgentUser&poHeaderId=300100661515343


Work Orders (Manufacturing)
https://< hostname>/fscmUI/redwood/manufacturing-work-orders/work-orders/edit-work-orders?workOrderId=445701&organizationId=207


Transfer Orders (Logistics)
https://< hostname>/fscmUI/redwood/inventory-transfer-orders/view-transfer-order/landing?transferOrderNumber=101001


Sales Orders (Order Management)
https://< hostname>/fscmUI/redwood/order-management-orders/manage/order?headerId=300100679694439&mode=view

Steps to enable and configure

You don't need to do anything to enable this feature.

Tips and considerations

  • This feature is applicable only for Oracle Fusion Source Systems.
  • You must have the needed data security access for each of the following entities:
    • Item Quantities
    • Work Orders
    • Purchase Orders
    • Transfer Orders
    • Sales Orders
  • Multiple row selection is not valid to drill to the source page for a particular order type.

Key resources

See Redwood: Analyze Supply Plans Using a Configurable Redwood Page feature.

Access requirements

Users who are assigned a configured job role that contains these privileges can access this feature:

On Hand

  • Item-quantities (INV_VIEW_ONHAND_QUANTITY_USING_RESPONSIVE_INVENTORY_PWA_PRIV)

Work Order

  • View Work Order (WIP_VIEW_WORK_ORDERS_PRIV)
  • Edit Work Order (WIP_MANAGE_WORK_ORDER_HEADERS_PRIV)

Purchase Order

  • View Purchase Order (PO_VIEW_PURCHASE_ORDER_PRIV)

Transfer Order

  • View Transfer Order (INV_VIEW_INVENTORY_TRANSFER_ORDER_PRIV)

Sales Order

  • View Sales Order (FOM_VIEW_ORDERS_PRIV)
