Metadata API: Support Button of Map Layer Asset

Map Layers API methods 'Create a custom map layer', 'Get a custom map layer', 'Populate a custom map layer' and 'Replace a custom map layer' are improved to support:

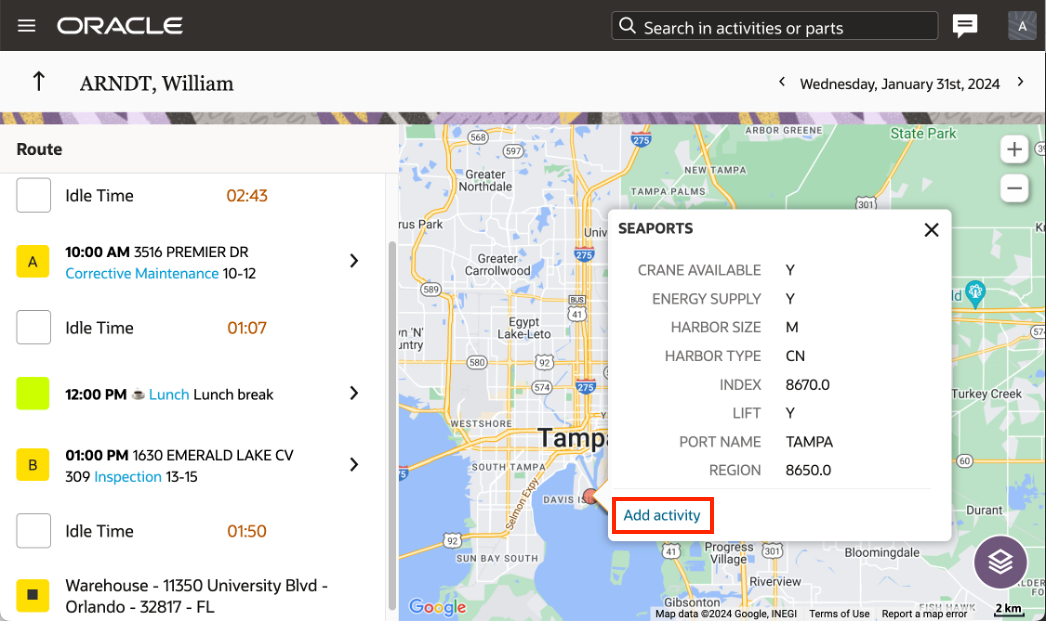

  1. Button of Map Layer hint
  2. Column 'Plugin/Form Field'.  The value of this property is passed to an opened Plugin/Form.

Map Layer

Map Layer

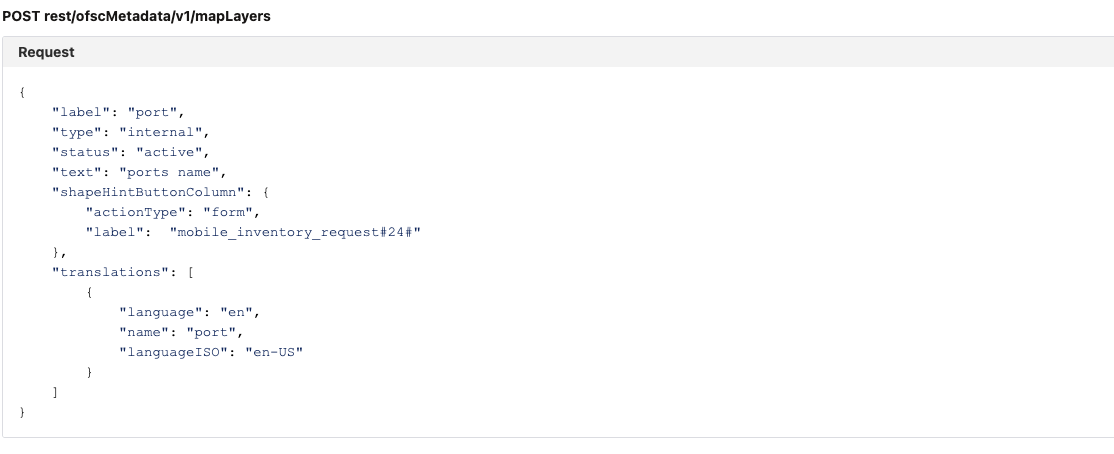

Example of requests:

GET /rest/ofscMetadata/v1/mapLayers/{label}

Example for response with added fields:

Response Collapse source

{

"label": "port",

"type": "internal",

 "status": "active",

"text": "port name",

"translations":       [

{            "language": "en",

 "name": "port",

"languageISO": "en-US"

}

],

"shapeHintColumns": [

{

"sourceColumn": "CARGOWHARF",

"defaultName": "cargo",

"pluginFormField": "cargofields"

}

],

"shapeHintButtonColumn":   {

"actionType": "form",

 "label": "mobile_inventory_request#24#"

},

"tableColumns"  [

"ANCH_DEPTH",

"CARBCHMOOR",

 "CARGMDMOOR",

"CARGODEPTH",

"CARGOWHARF",

 "CARGO_ANCH",

 "CARICEMOOR",

"CHAN_DEPTH",

"WATER"

],

"links": [

{

"rel": "canonical",

"href": "https://frontend.ofsc.team/rest/ofscMetadata/v1/mapLayers/port"

},

{

"rel": "describedby",

"href": "https://frontend.ofsc.team/rest/ofscMetadata/v1/metadata-catalog/mapLayers"

}

]

}

json

json

Support full integration with map layers via API.

Steps to Enable

You don't need to do anything to enable this feature.
