Pre-built data visualization reports for Oracle Analytics

This Oracle Fusion Field Service 25A functionality enables you to quickly access and analyze critical operational metrics through pre-built data visualization reports integrated into Oracle Analytics Cloud. These reports are designed to streamline analytics setup, deliver actionable insights, and reduce the time required for decision-making.

For example, a field service manager overseeing a large team of mobile workers, can use the pre-built reports to immediately identify key trends, such as a high percentage of late arrivals for certain tasks or inefficiencies in routing assignments. By analyzing these insights, the manager can adjust schedules, optimize routes, and align resources more effectively with demand, ultimately improving customer satisfaction and operational efficiency.

Detailed Functionality

• Pre-Built Reports:
  • Download .dva files containing pre-configured data visualizations.
  • Upload to Oracle Analytics Cloud to render dashboards instantly.
• Automated Database Schema Configuration:
  • Upon creating a new Oracle Autonomous Database application, the system automatically generates tables, along with their respective columns for:
    • ORA_FS_ACTIVITIES: Captures data on activity fields.
    • ORA_FS_TIME_SLOT: Tracks time slot field data.
• Integrated Data Flow:
  • Data synchronized from Oracle Fusion Field Service to the Oracle Autonomous Database populates the pre-built reports, ensuring up-to-date insights.
• User-Friendly Guidance:
  • Prompts and banners within the application guide users to download and configure the reports. These guides disappear once the reports are downloaded.

Available Pre-Built Reports

The following pre-built data visualizations are available in the .dva file.

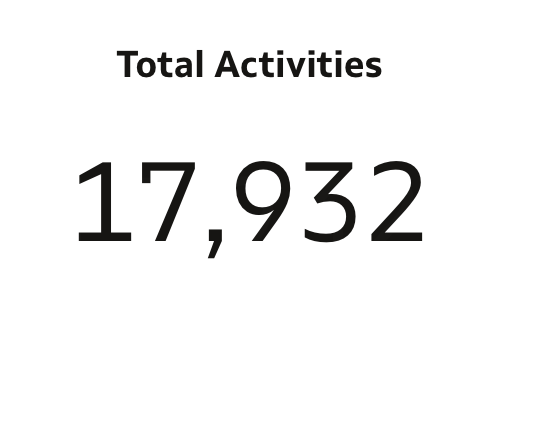

• Total activities created for the organization in a selected range

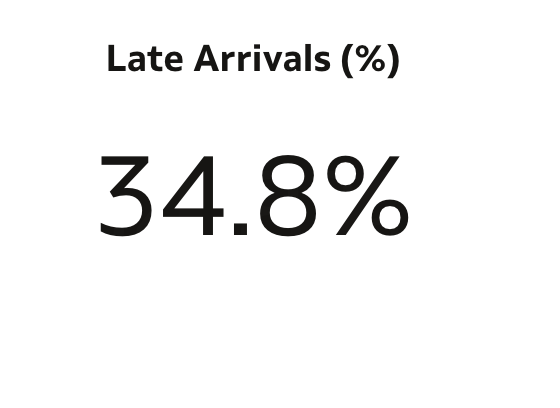

• Percentage of activities started late for a selected date range

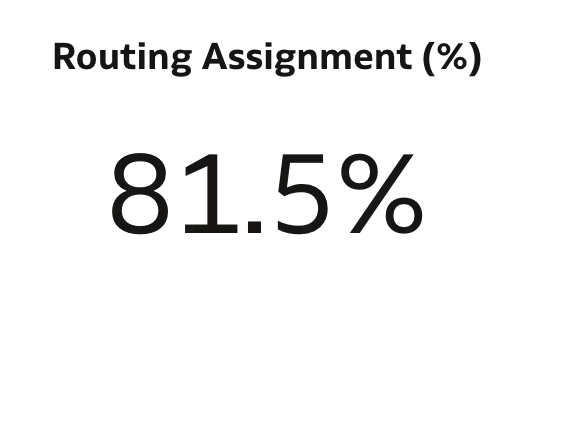

• Percentage of activities assigned through routing

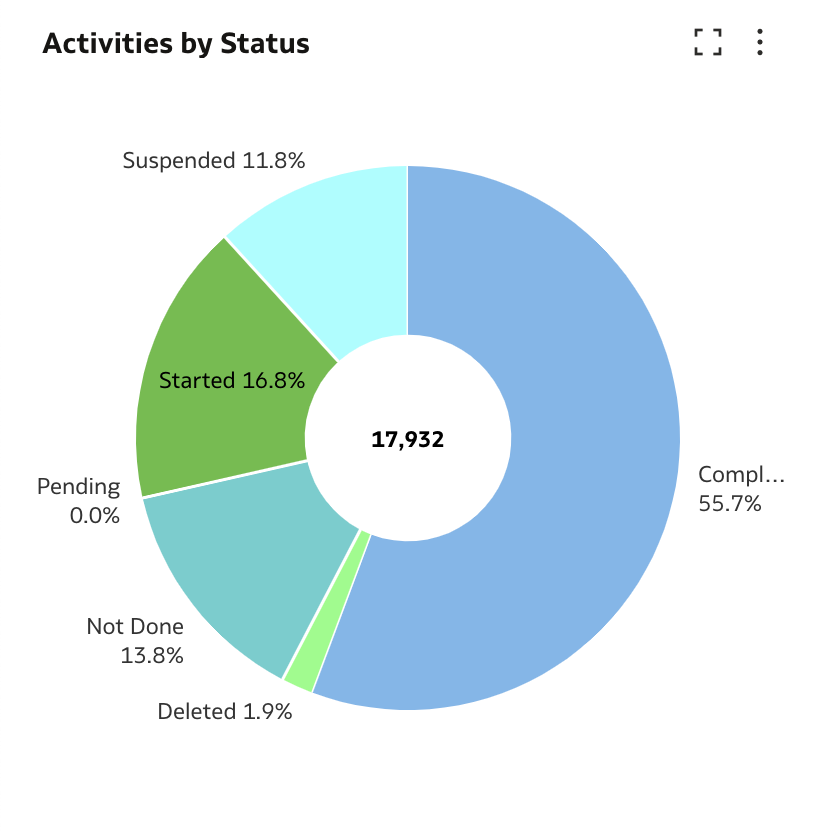

• Count of activities based on the activity status

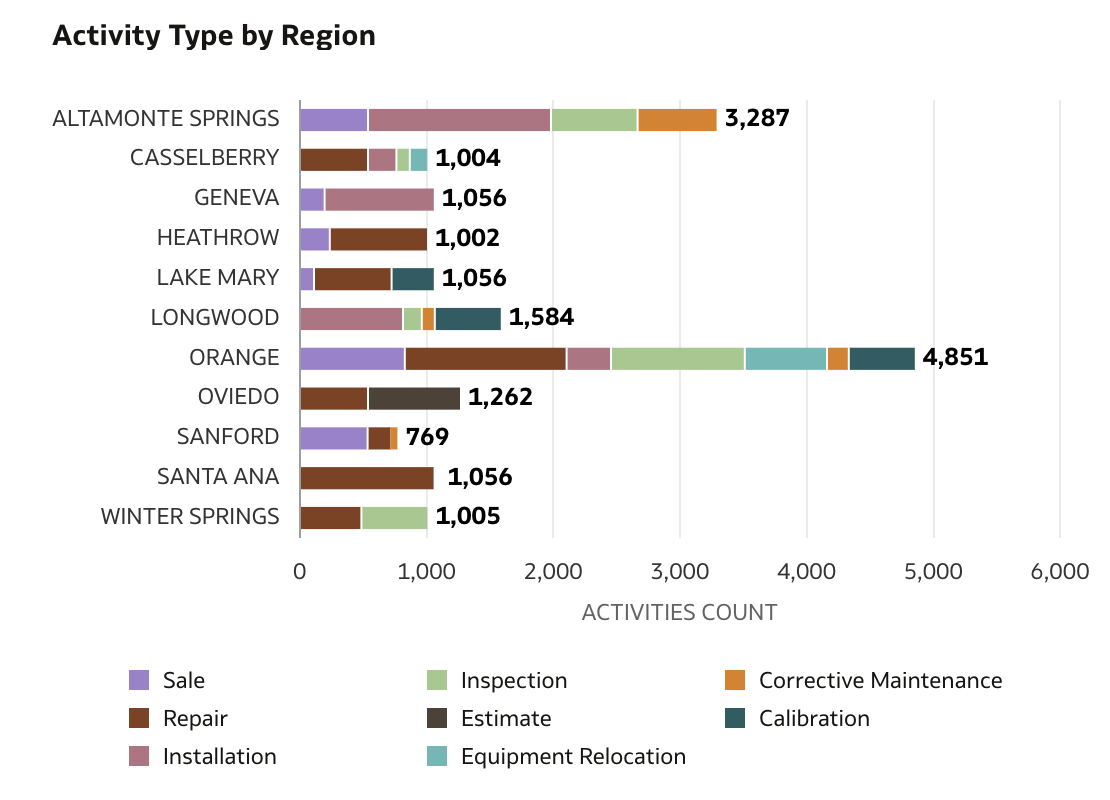

• Count of activities based on the activity region (work zone)

• Average activity duration for different activity types

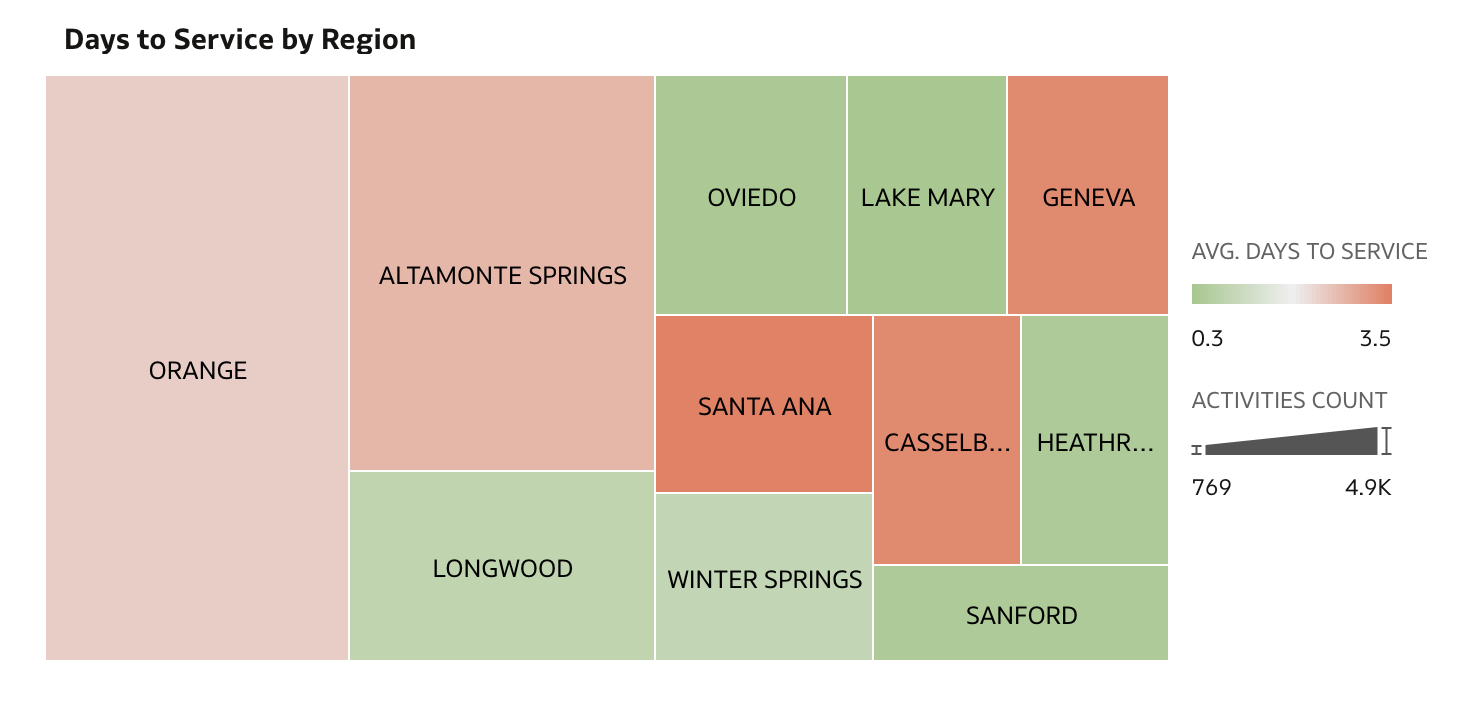

• Activity duration (in days) based on activity region

• Average travel time based on activity region

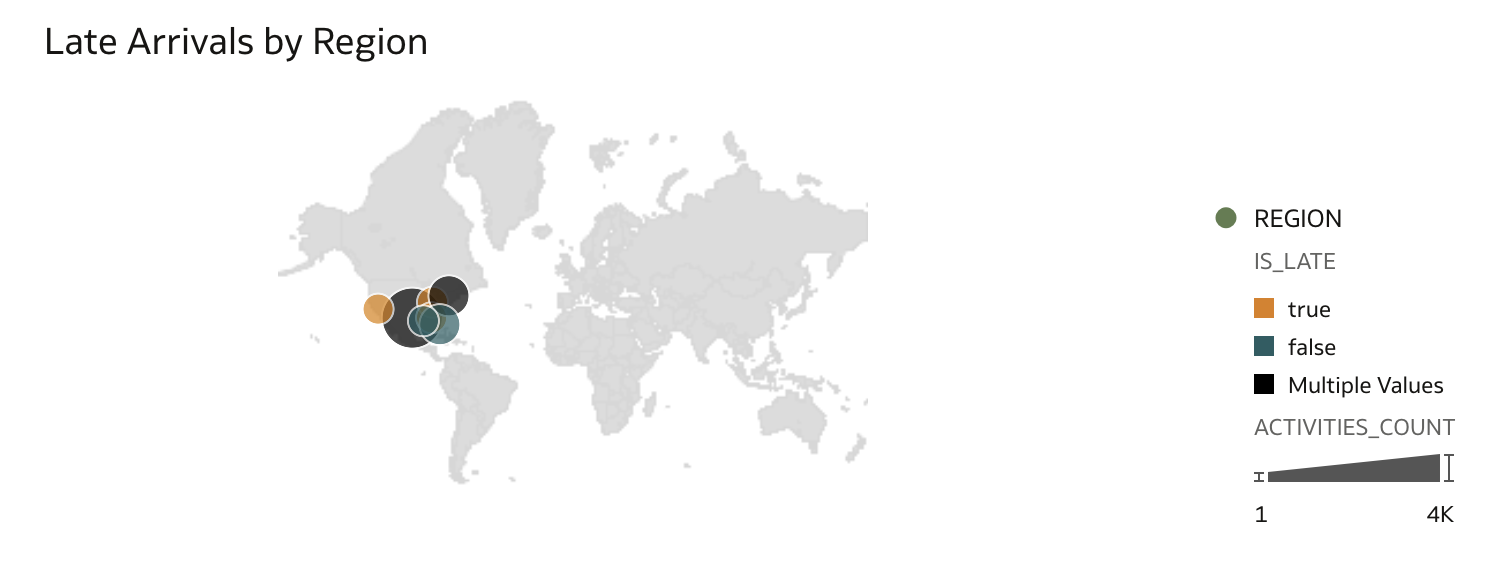

• Activities started late across different regions

Business Benefit

• Provides pre-built, ready-to-use visualizations, eliminating the need for manual report creation.
• Serves as a foundation for configurations, allowing businesses to tailor analytics to their specific needs using the pre-built report templates.
• Delivers actionable insights to support proactive management of field service tasks, optimize resource allocation, and enhance time slot efficiencies.

Steps to Enable

Configure the Oracle Autonomous Database:

1. Log in to the Oracle Fusion Field Service application and create a new Oracle Autonomous Database application.
2. Navigate to the Configuration Page and select the option to modify the application.
3. Locate the option to download pre-built data visualization reports.

Alternatively, when you directly access the details screens of the application an info message will be displayed as shown below . You can download the reports and configure the table ORA_FS_ACTIVITIES and ORA_FS_TIME_SLOT in the application details page. The Banner will not be visible once you have already downloaded the reports.

Download and Upload Reports

1. Download the .dva file from the application details screen.
2. Open Oracle Analytics Cloud and upload the .dva file to the dashboard.

Synchronize Oracle Fusion Field Service Data

1. Ensure Oracle Fusion Field Servcie data is synchronized with the Oracle Autonomous Database.
2. Access the uploaded reports in OAC to view insights.

Tips And Considerations

• Verify that your organization has an active Oracle Analytics Cloud subscription to access and use the .dva reports.
• Familiarize yourself with the pre-built reports (e.g., Total Activities, Late Arrival) to ensure they meet your operational needs.
• Confirm that the required tables (ORA_FS_ACTIVITIES and ORA_FS_TIME_SLOT) are created and populated correctly before using the reports.
• Ensure you understand the schema structure (ORA_FS_ACTIVITIES and ORA_FS_TIME_SLOT) before customizing reports.
