Guidelines for Setting Up Extensible Flexfields in Order Management

Use these guidelines to help you set up an extensible flexfield in Oracle Order Management.

• Unlike a descriptive flexfield, you can add as many segments as you need.
• Use the context to organize your business data into a concise area of the user interface element, such as a dialog.
• Organize your attributes into logical groups according to your display and usage requirements.
• Consider where an extensible flexfield might be useful in the order capture and order fulfillment lifecycle.
• Integrate with another Oracle application. See Use Extensible Flexfields to Integrate Order Management with Oracle Applications.
• An extensible flexfield that you add on the sales order header is independent of an extensible flexfield that you add on a fulfillment line. Order Management doesn't communicate or transfer values between them even if you use the same name for each extensible flexfield. If you need dependence between them, then create an order management extension, and then specify dependence logic in the extension.

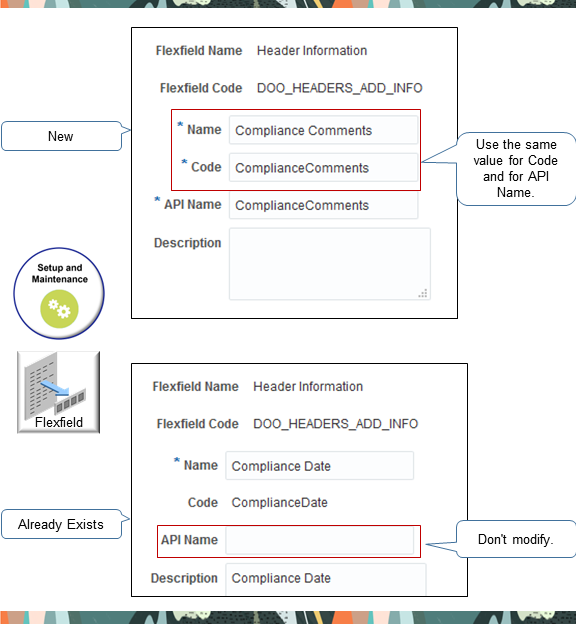

Create Segments and Contexts

If you:

Create or Modify	Then
Create a new segment.	Use the same value for the Code attribute and the API Name attribute. This will simplify setup and maintenance. You use API Name throughout the setup, such as when you integrate with web services, business rules, business intelligence, and so on. You can't modify Code or API Name after you create the segment.
Modify a segment that already exists.	Don't modify API Name. Extensible flexfield logic examines API Name. If it's empty, then the logic uses the value in Code, so it isn't necessary to specify a value in API Name. If you do modify API Name, then your flexfield might fail with unexpected results at run time.

Note

• Enter a unique code, name, and description for each segment. The Order Management work area doesn't display these values, so use whatever nomenclature is most helpful to you during setup and maintenance.

• You must not enable the Translatable option on the context. For details, see Set Up Extensible Flexfields in Order Management.

Nomenclature

Make sure the Display Name attribute and the Code attribute for each context that you create begins with a letter and contains only letters, numbers, and these special characters:

Character	Description
	Single space
.	Period
,	Comma
-	Hyphen Don't use an em dash or en dash.
_	Underscore
"	Double quotation mark
:	Colon
/	Forward slash

Note

• Don't include more than one consecutive space character.
• Don't end the attribute's value with a space character.

If you encounter an incorrect alias error when you run the Publish Extensible Flexfield Attributes scheduled process, then make sure your contexts use the correct nomenclature.

Number of Attributes and Segments

The number of attributes and segments that you can add to the context depends on the data type that you set for the context:

Data Type	Number of Attributes That You Can Add	Number of Segments That You Can Add
Varchar	20	20
Number	10	5
Date	5	10
Time	5	10

You can add a maximum of 40 segments to each context.

Order Management doesn't limit how many contexts that you can add, but you must add only the minimum number of contexts that you need because each context can affect performance.

Identify Your Flexfield

You need to correctly identify your flexfield's attribute and context code in your payload whether you use REST API, file-based data import, or an order management extension. Assume you need to add an extensible flexfield that you use to store a status on the order line.

1. Add the SourceLineInfo context and Status segment to the Fulfillment Line Information extensible flexfield.

   For details, see Set Up Extensible Flexfields in Order Management.

2. On the Manage Order Extensible Flexfields page, search for the value.

   Attribute	Value
   Name	Fulfillment Line Information

3. In the search results, click the row that contains Fulfillment Line Information in the Name column, then click Actions > Download Flexfield Archive.

4. In the Confirmation dialog, click Download, then save the zip file to any folder.

   The file manager for your operating system opens. For example, if you're using Microsoft Windows, then

   Windows Explorer opens.

5. In your file manager, double-click 10008_DOO_FULFILL_LINES_ADD_INFO.zip, then expand it to the view folder.

   For example:

   C:\downloads\10008_DOO_FULFILL_LINES_ADD_INFO.zip\oracle\apps\scm\doo\processOrder\flex\fulfillLineContextsB\view

   The FulfillLineEffBSourceLineInfoprivateVO.xml file contains the extensible flexfield segment that you must reference.

6. Use an xml editor to open FulfillLineEffBSourceLineInfoprivateVO.xml.

7. Identify the values that you will need in your web service payload.

   • Search for the attribute name.

     <ViewAttribute Name="status" EntityUsage="FulfillLineEffEO" EntityAttrName="status" AliasName="status">

   • Search for the context code.

     <Property Name="FND_ACFF_EFF_CONTEXT_CODE" Value="SourceLineInfo"/>

Use Order Management Extensions

Note

• Include an If statement to make sure each context and segment that your extension references exists and contains a value. If you don't check for missing objects and empty values, then your extension might fail with unpredictable results.

• Use the getOrCreateContextRow method to create or update a value in an extensible flexfield. If the object doesn't exist, then getOrCreateContextRow creates it, so it isn't necessary to determine whether the object exists before you use this method to do an update. Use getContextRow to only get a row.

• Use Context Code when you reference an extensible flexfield context.

• Use API Name when you reference an extensible flexfield segment. If you don't specify API Name when you set up the extensible flexfield, then use Segment Code but with underscores ( _ ) instead of spaces ( ).

• Your Groovy code must traverse the context and the segment to get all data from the extensible flexfield.

  Here's an example that uses a while statement to traverse all data.

  def complianceDetails = header.getOrCreateContextRow("ComplianceDetails");
  complianceDetails.setAttribute("_ComplianceReason", "This has been set by pre submit extension.");

  def lines = header.getAttribute("Lines");
  while( lines.hasNext() ) {
    def line = lines.next();
    def inventoryItemId = line.getAttribute("ProductIdentifier");
    def orgId = line.getAttribute("InventoryOrganizationIdentifier");
    def item = getItem(inventoryItemId, orgId);

    String hazardous = item.getAttribute("HazardousMaterialFlag");
    def packShipInstruction = line.getOrCreateContextRow("PackShipInstruction");

    if( "Y".equals(hazardous) ) {
        // get details for fulfill line context PackShipInstruction

        packShipInstruction.setAttribute("_ShippingInstruction", "Hazardous Handling Required.");
    }

  }

Use Business Rules

If your fulfillment system needs data that the predefined attributes in a sales order don't provide, then use a value from an extensible flexfield as the criteria for setting the default value in some other sales order attribute.

Assume you set up an extensible flexfield named Sample Requested. Assume it can contain these values:

• Complimentary

• Charge

• No Sample

You can create a transformation rule:

If the value is Complimentary or Charge, then add a fulfillment line for the sample item.

You can then set up a rule that populates price details for the sample lines according to whether the value is Complimentary or Charge.

You can't set an attribute's default value in an extensible flexfield, so make sure you run the defaulting rule during one of these types of transformations when you process the transformation rule:

Type of Transformation	Description
Pretransformation	Use an extensible flexfield when some other transformation logic needs the attribute's default value. For example, if you must use the defaulted attribute value to determine whether to add a free sample item during transformation, then create a pretransformation rule that sets the default value.
Posttransformation	Use Posttransformation when transformation must happen before you run your defaulting rule. For example, when you plan to add an item during transformation, and you also plan to use an extensible flexfield attribute on the order header to determine the defaulted value to set for the new fulfillment line.

Use an extensible flexfield in a business rule. For details, see Identify Flexfield Contexts and Category Codes for Your Business Rules.

Import and Integrate

You can update an extensible flexfield on a closed fulfillment line or closed sales order only in the Order Management work area. You can't do this through import, such as through file based data import, a web service, REST API, or Oracle Application Development Framework (ADF).

Use REST API

Go to REST API for Oracle Supply Chain Management Cloud > Order Management > Sales Orders for Order Hub > Create Sales Orders, then scroll down to examine the examples. They all describe how to import extensible flexfields.

Example	Description
19	Create and submit a sales order that has a flexfield on the order header. Use Oracle Pricing to price it.
20	Same as 19 but the flexfield is on the order line.
21	Same as 19 but there's a flexfield on the header and another one on the line.
41	Add a new flexfield on the header of a sales order that already exists.
42	Same as 41, but update that flexfield.
43	Same as 41, but also add a new flexfield at the same time.
44	Add a new flexfield on the line of a sales order that already exists.
45	Same as 44, but update that flexfield.
46	Same as 45, but also add a new flexfield at the same time.
47	Same as 44, but also add a flexfield on the header.

Use File Based Data Import

Use these guidelines when you use the order import template to import data for an extensible flexfield:

• Assign each segment's Table Column attribute so it references the correct column in the order import template.

• Use the DOO_ORDER_HDRS_ALL_EFF_B_INT worksheet to capture details for order headers.

• Use the DOO_ORDER_LINES_ALL_EFF_B_INT worksheet to capture details for fulfillment lines.

• Use columns, such as ATTRIBUTE_CHAR1, to capture details for each attribute.

• Don't modify worksheet names or column names. Instead, add a comment.

• Add a comment in Excel to document your set up.

You can use with an extensible flexfield only with these entities:

• Header

• Fulfillment line

• Fulfillment line detail

You can't add an extensible flexfield on the order line entity. You can add one only on the order header entity or the fulfillment line entity. The template uses the phrase DOO_ORDER_LINES, but it uses details that you add on the DOO_ORDER_LINES_ALL_EFF_B_INT worksheet to interact with extensible flexfields on the fulfillment line, not on the order line. See Import Orders Into Order Management.

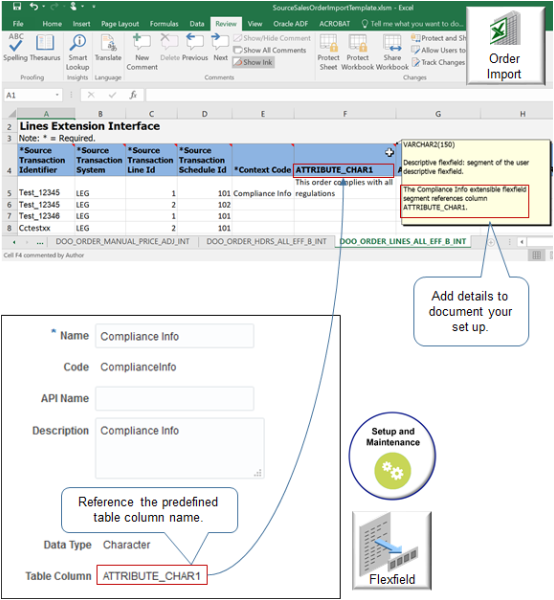

This example illustrates how to set up the Compliance Info segment that references the ATTRIBUTE_CHAR1 column:

Use Web Services

Add extensible flexfield details to the payload that Order Management uses to communicate with the web service:

• Use the web service named Receive Fulfillment Task Response Service with all task types. Use the DooTaskFulfillOrderResponseInterfaceComposite.

• Run the Publish Extensible Flexfield Attributes scheduled process.

• Copy extensible flexfield data from the log file that the scheduled process creates into the XSD file that contains your payload. Copy this data onto each object that needs extensible flexfield data. This approach helps to keep your channel system synchronized with your set up in Oracle Order Management.

• Use the import service from Application Development Framework (ADF). Don't use the SOA (Service Oriented Architecture) import service.

Here's an example payload that copies one section of code from the log file into the XSD file:

See Guidelines for Using Web Services to Integrate Order Management.

Manage Change

Identify your requirements for change management. For example, figure out whether the orchestration process must compensate when you change the value in an extensible flexfield and the action to take when you compensate, such as schedule, call Oracle Receivables, and so on.

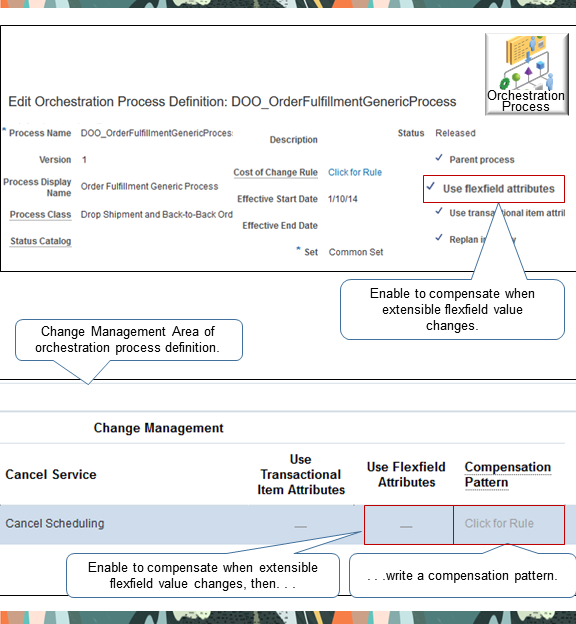

Set up the orchestration process differently depending on whether the value that it references changes any flexfield or a specific one:

Compensate Value For	Enable the Use Flexfield Attributes option
Any extensible flexfield	On the header of the orchestration process definition.
A specific extensible flexfield	In the Change Management section of the orchestration process definition. Add it to the orchestration process step that references the extensible flexfield. Also set up a compensation pattern on this step. Use the compensation pattern to specify the action to do, such as Cancel, Create, Update, and so on, depending on the value that changes. Your set up can send an update when a single value changes and skip sending an update when other values change. This approach provides more detailed control regarding the compensation that you do.

Here's an example compensation pattern:

pseudocode:
If segment3 changes, then cancel task x, and then recreate task x.
If segment4 changes, then do nothing.
If segment5 changes, then call an update service.

For a detailed example, see Compensate Sales Orders That Change.

To ignore changes to all extensible flexfield values, make sure Use Flexfield Attributes for each step in the Change Management section isn't enabled.

Change management ignores each change that you make to an extensible flexfield's value at run time when it's on order header.

Use the Order Management Work Area

Assume you need to search an extensible flexfield on the 56794 sales order:

1. Go to the Order Management work area.
2. On the Overview page, Tasks > Manage Fulfillment Lines.
3. Click Add Fields > Extensible Flexfield Category.
4. Set the values:

   Attribute	Value
   Order	56794
   Extensible Flexfield Category	Equals Additional Fulfillment Line Information

5. Click Search.
6. In the search results, scroll all the way to the right, then examine the extensible flexfield attributes. They will have the names that you set up for the flexfield, such as the context and category.

   As an option, click View > Columns, then add or remove individual attributes from the search results.

7. Click Save to save your search. This way, you can access your saved search the next time you need to see flexfield details.

Here's another way to search for flexfields on a sales order:

1. Go to the Order Management work area.
2. On the Overview page, click Tasks > Manage Orders.
3. On the Manage Orders page, click Add Fields > Extensible Flexfield Category.
4. Set the attributes:

   Attribute	Value
   Order	56794
   Extensible Flexfield Category	Equals Additional Header Information

Use Reports and Analytics

Modify Reports

You can use the Sales Order report when you create or view a sales order.

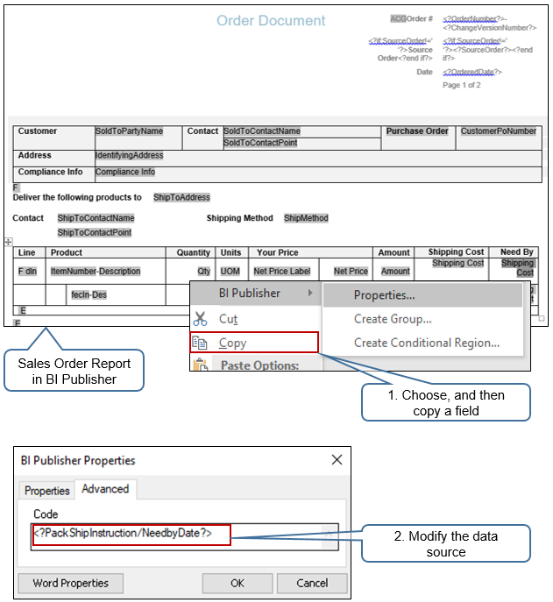

Add extensible flexfield data to the report:

1. Install Oracle Analytics Publisher Desktop,

2. Use the Edit Sales Order Report action in Oracle Analytics Publisher. This action displays Sales Order Report in rich text format so you can modify it.

3. Right-click a field, then click Copy.

4. Use Oracle Analytics Publisher Properties to specify the source that the report uses to display data for the field. Use this format:

   <?context/segment?>

   where

   • context. Name of the extensible flexfield context.

   • / (forward slash). You must use the forward slash between context and segment.

   • segment. Name of the extensible flexfield segment.

   • You must use a set of question marks ( ?? ) to enclose context/segment.

   • You must use a set of angle brackets ( < > ) to enclose the question marks.

   For example, assume you set up an extensible flexfield that uses Context1 to store details about trade compliance, and SegmentA to store the compliance description. Use this code:

   <?Context1/SegmentA?>

Modify Analytics

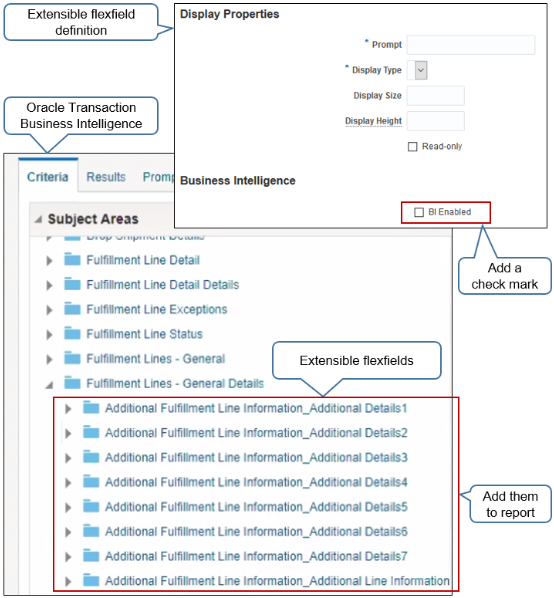

Oracle Transaction Business Intelligence (OTBI) provides analytic reporting. You can display extensible flexfield data in OTBI.

Note

• Enable the BI Enabled option when you set up your extensible flexfield.

• Run the Import Oracle Fusion Data Extensions for Transactional Business Intelligence scheduled process. This process updates OTBI so it displays your extensible flexfields in area Subject Areas in OTBI. For details, see Overview of Flexfield Change Import.

• Add your extensible flexfields from Subject Areas into a report in OTBI.

• Here's the format that OTBI uses.

  Category_Context

  For example:

  Additional Fulfillment Line Information_Additional Details1

  where

  • Additional Fulfillment Line Information is the category.

  • Additional Details1 is the context.

And Yet More Guidelines

An extensible flexfield supports a one-to-many relationship between one entity and one or more attributes. You can use it to add more than one context sensitive segment.

You can set up an extensible flexfield for a fulfillment line or on some other object that supports an extensible flexfield.

If you add an extensible flexfield to a fulfillment line, and if you use the Update or Close Sales Orders scheduled process to close the order line that the fulfillment line references at run time, then at run time you:

• Can't update the value in the extensible flexfield on the fulfillment line.

• Can revise the sales order and update the value in the extensible flexfield on the fulfillment line, but Order Management won't use the revised value when it processes the revision.

• Can update an extensible flexfield on the order header regardless of the sales order's or the order line's status.
