5.7.5 Enhancing Event Display

To further customize calendar event display, you can use a custom formatting notation, paired with an event content formatter function.

The SQL below updates the existing query to use the FORMAT function in the APEX_STRING package to inject two values into a string template: [[%s]]|with %s. You supply the PURPOSE column value for the first %s placeholder. To conditionally return either the CALENDAR_FOR_ENAME or the MEET_WITH_ENAME depending on the value of the P19_CALENDAR_FOR select list you use a CASE statement.

select id,
       apex_string.format('[[%s]]|with %s',
          purpose,
          case to_number(:P19_CALENDAR_FOR)
             when calendar_for_empno then meet_with_ename
             else calendar_for_ename
          end) as formatted_title,
       starts_at,
       ends_at
  from emp_meetings_v
where calendar_for_empno = :P19_CALENDAR_FOR
   or meet_with_empno    = :P19_CALENDAR_FOR

The string template value ends up looking like the following for one example EMP_MEETINGS row:

[[Hiring Review]]|with ADAMS

You further customize the calendar event behavior and display by using a JavaScript Initialization Function like the one below. This function configures calendar settings on the pOptions object it is passed as an argument, then returns the modified pOptions object as its result. The function can use any of the features of the open-source FullCalendar library to tailor how the calendar looks and behaves.

The custom event rendering function below replaces the [[, ]], and | with appropriate HTML tags to bold the title and add a line break before the additional detail text. You can't directly use HTML tags in the original string because for security reasons the APEX engine would escape them and it wouldn't have the desired effect. It also sets the calendar locale to en-gb for a UK date format. Notice it configures an eventContent function that returns custom html formatting for the event display. It references the event title using arg.event.title and uses the JavaScript replace() function to replace | by <br>, [[ by <b>, and ]] by </b>. It also wraps the event title content with in an HTML <center> tag.

function (pOptions) {
    pOptions.locale       = "en-gb"; // UK date format
    pOptions.eventContent = function(arg) {
      return {
        html: '<center>' +
              arg.event.title.replace(/\|/g, '<br>')
                             .replace(/\[\[/g,'<b>')
                             .replace(/\]\]/g,'</b>') +
              '</center>'
      }
    };
    return pOptions;
}

This combination of using the EMP_MEETINGS_V view to join in employee names and custom event title formatting produces the updated calendar you see below. Each event's text is centered, and shows the purpose of each meeting on its own line in a bold font, and the person the meeting is with on a second line. You can customize the calendar further using CSS styling. Consider installing the Sample Calendar app from the gallery to explore additional examples of what the calendar region can do. For more information, see Creating Calendars in Oracle APEX App Builder User’s Guide.

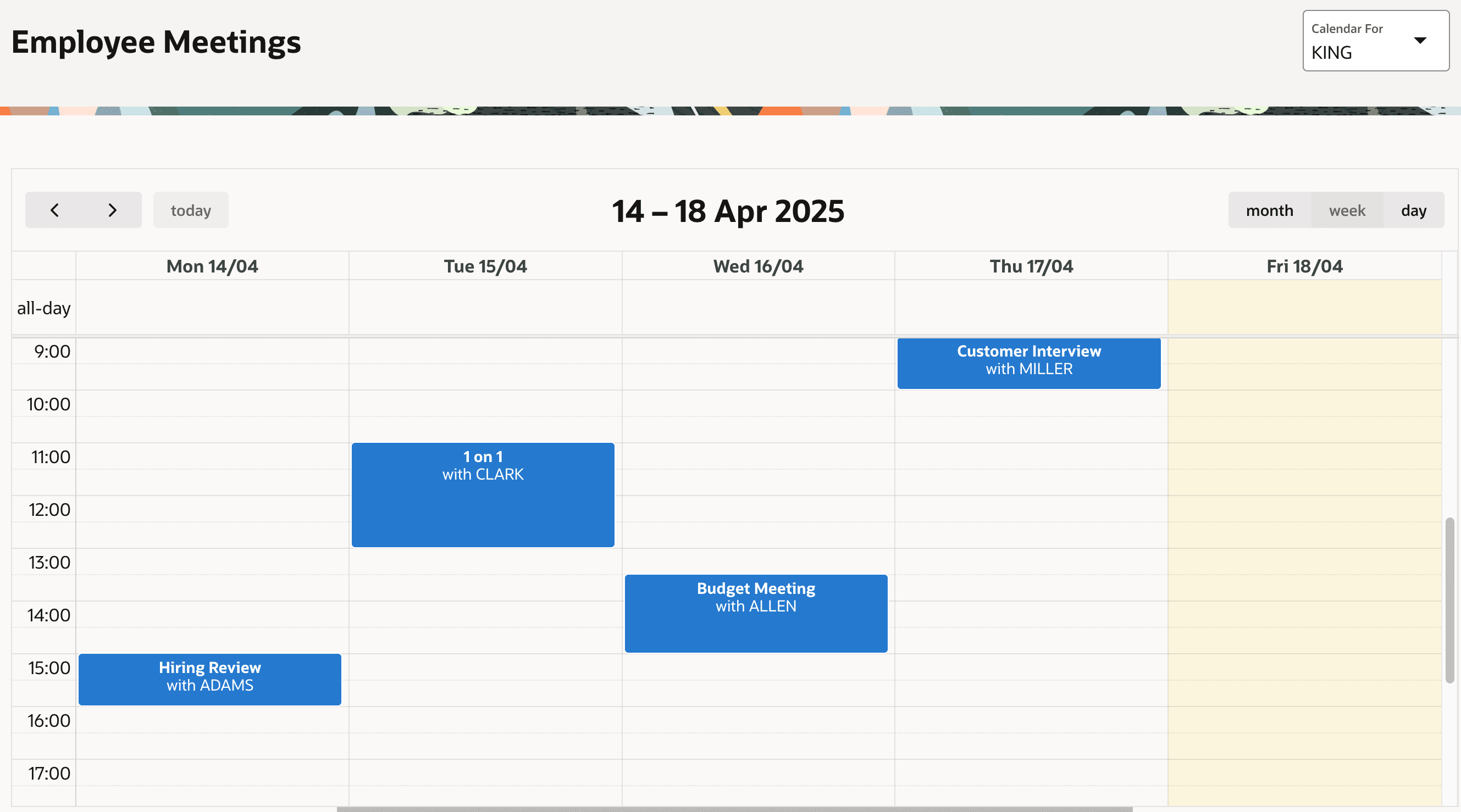

Figure 5-19 Employee KING's Week of Meetings

Description of "Figure 5-19 Employee KING's Week of Meetings"
