25.3.5.5.3 Formatting the Invoice in a Layout

Create a Word report layout that includes invoice data using special tags.

Your Invoice Report Layout shared component shown below defines a Static ID you use when generating the invoice. It includes the Microsoft Word document template that details how the invoice looks and where it includes data.

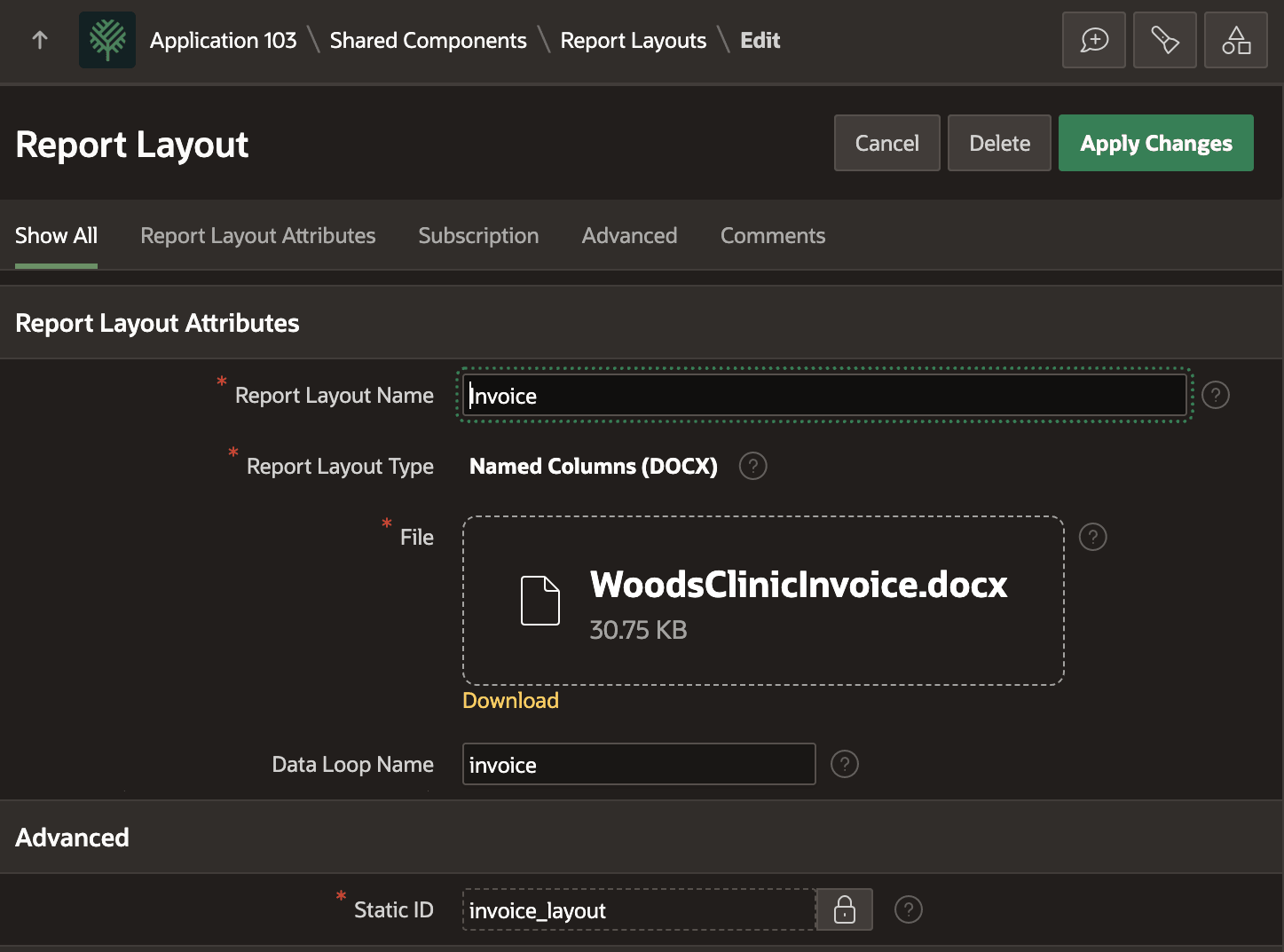

Figure 25-131 Report Layout Provides Word Document Template for Invoice

Description of "Figure 25-131 Report Layout Provides Word Document Template for Invoice"

Your Microsoft Word document for the invoice uses the tag syntax the Oracle Document Generator cloud service defines to loop over JSON data arrays and include values of data object properties. Notice the {#invoice} tag opens the data loop and the matching {/invoice} closes the loop. The invoice name in these tags is the Data Loop Name you defined in your Report Query, which used it as the JSON array name for the query result rows. Inside this loop, tags like {patient_name} and {balance_due} among others reference the relative names of JSON properties in the row of invoice data.

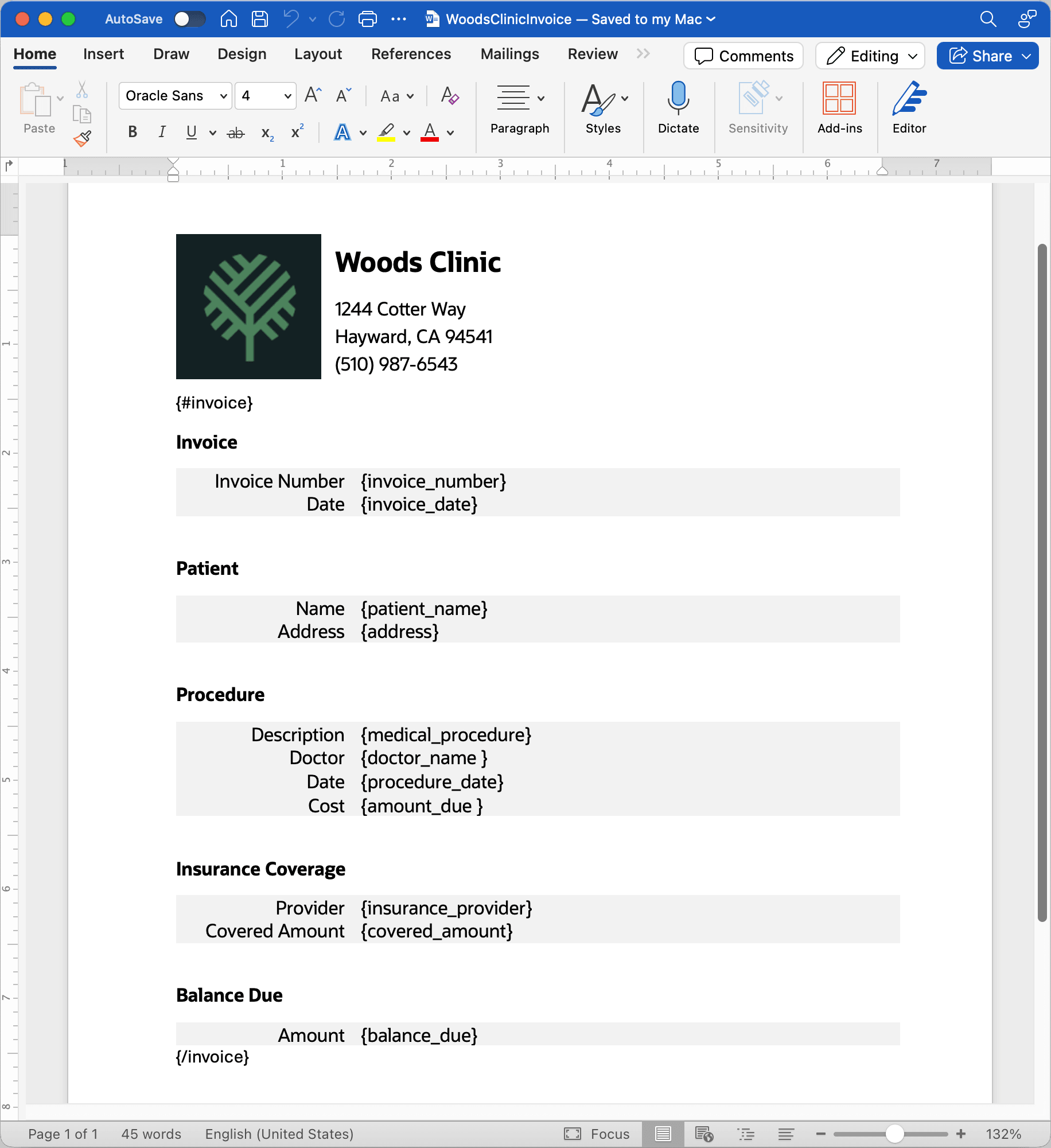

Figure 25-132 Microsoft Word Document Defines Pixel-Perfect PDF Layout

Description of "Figure 25-132 Microsoft Word Document Defines Pixel-Perfect PDF Layout"
