MCP Server Build Project

This topic explains the components generated as a result of an MCP Server build.

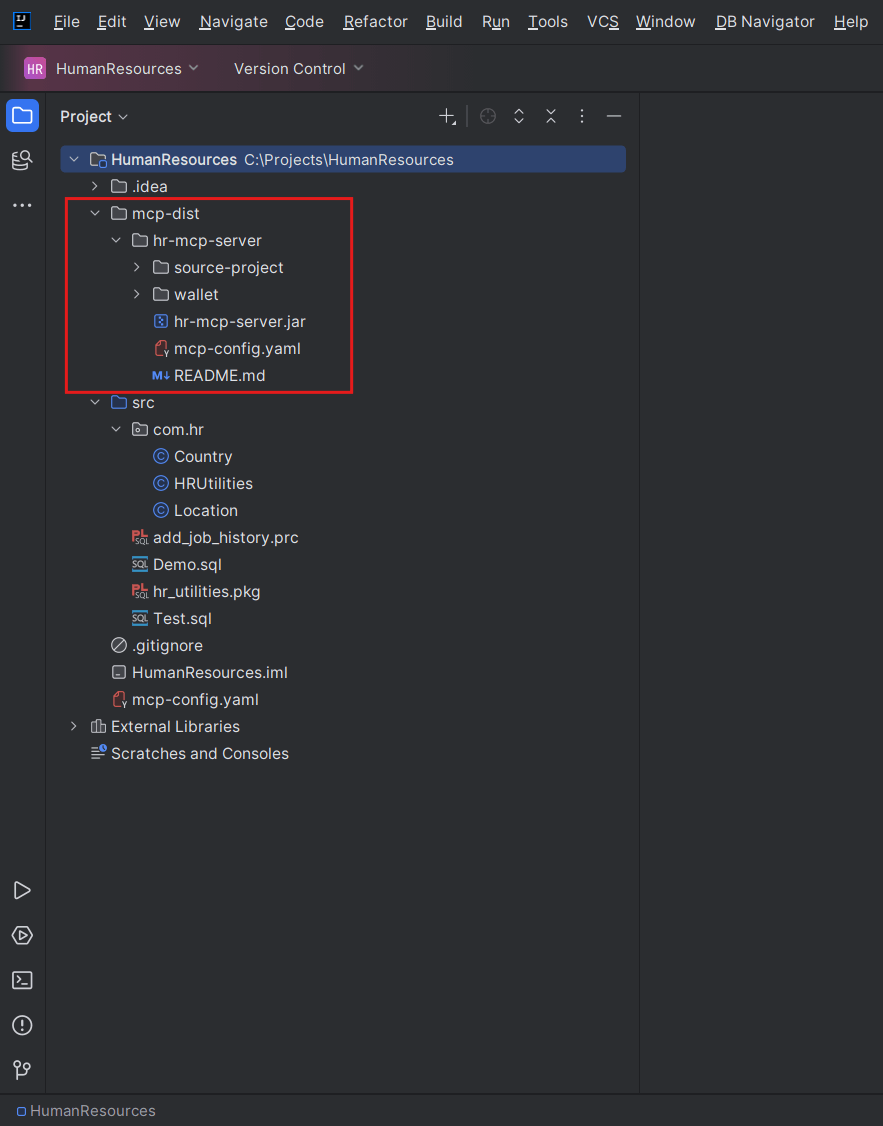

Upon successful completion of the MCP Server build process, the builder generates a deployable MCP server project. The generated artifacts are stored in the output directory you specified during saving the MCP Server configurations. You can access the MCP server project folder under the Project directory of Database Navigator.

Following are the components the MCP server build that are generated:

MCP Build Output Component	Purpose	Location
Runnable JAR	Starts the generated MCP server.	<project>/mcp-dist/<server-name>/<server-name>.jar
Runtime Configuration	Contains transport, database URL, and tool definitions.	<project>/mcp-dist/<server-name>/mcp-config.yaml
Oracle wallet	Stores generated Oracle wallet credentials for the server runtime.	<project>/mcp-dist/<server-name>/wallet/
Source project	Contains Maven project files and generated Java source for customization.	<project>/mcp-dist/<server-name>/source-project/
README file	Documents run commands, client snippets, credential behavior, and customization.	<project>/mcp-dist/<server-name>/README.md

Note:

By default, generated credentials are stored in wallet/. If direct credentials are added to mcp-config.yaml, treat the file as sensitive. During build-time mcp-config.yaml is written in the project base path before copying it into the generated server output folder.

Consumer and Client Integration

MCP Server Builder is designed for consumers outside the builder itself. The generated server is a standalone Java process and can connect to and Oracle database. It does not require Database Navigator to be open at runtime, but it uses the connection URL, wallet, and tool definitions produced by Database Navigator.

• Consumer products - Integrate the generated server as a local or service-side MCP process that exposes only the SQL-backed tools you packaged.
• Internal platforms - Provide approved lookup, reporting, metadata, or diagnostic queries to internal agents without rebuilding database connectivity from scratch.
• Third-party AI clients - Use generated snippets for clients such as Claude Desktop or Cline, or adapt the STDIO command and HTTP endpoint to another MCP-capable client.
• Agent frameworks - Register the generated server wherever the framework accepts MCP servers and tool schemas.
• DBN Generic Assistant - Optionally consume the generated server after registering it as an HTTP or STDIO MCP server and approving its tools.

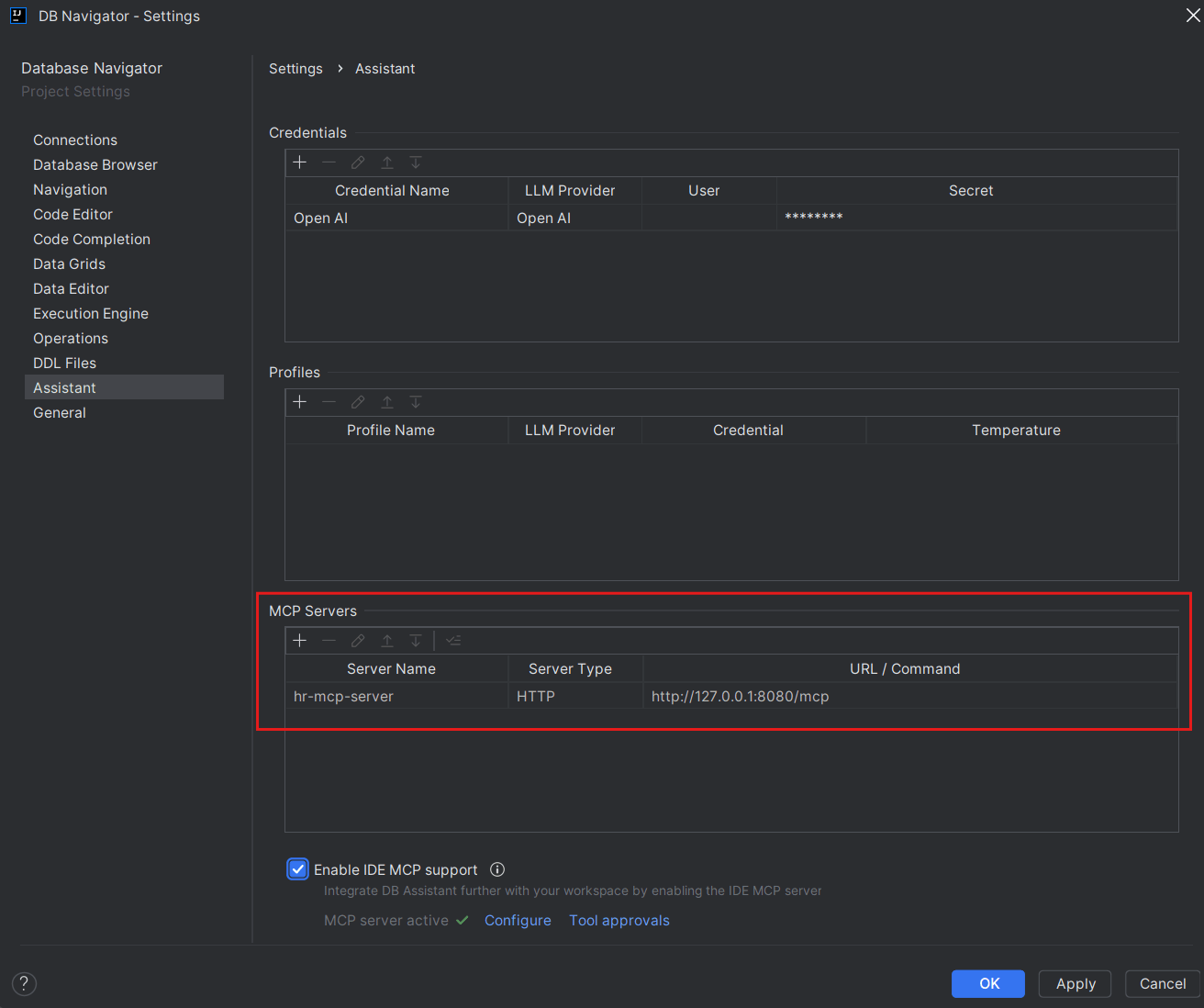

For using the MCP server with the DB Assistant module of Database Navigator tool, register the generated server through the Main menu > DB Navigator > Settings > Assistant > MCP Servers settings.

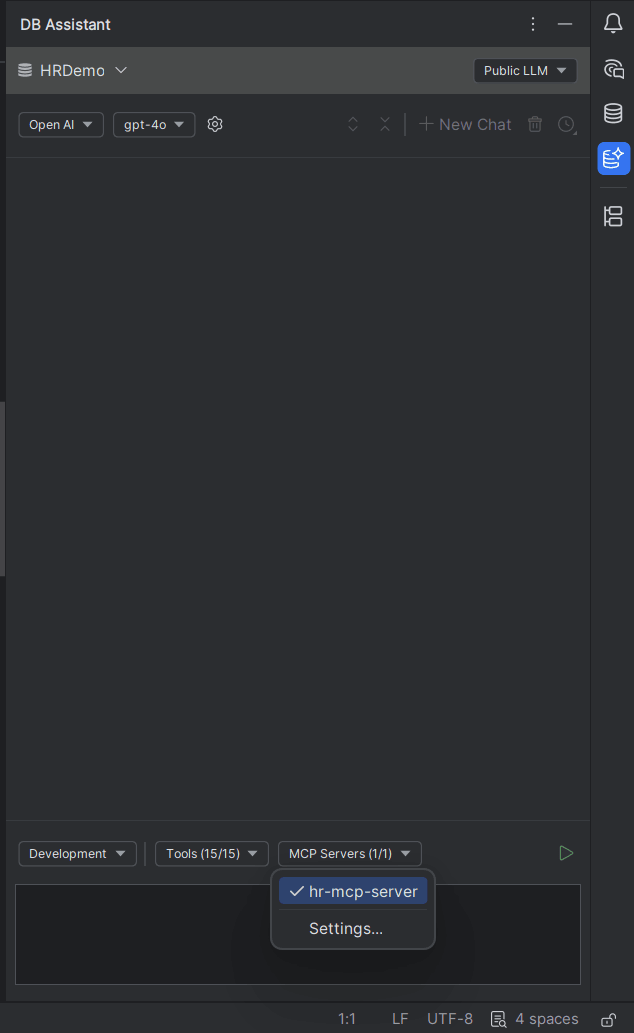

You can then select it from the DB Assistant chat window in Development or Analytics mode.

Note:

Oracle Select AI does not use MCP Server Builder. Select AI runs through Oracle database-native DBMS_CLOUD_AI profiles.

Customizing the Generated MCP Server

Customization of the generated MCP server is possible to change the Tool SQL framework, transport configuration, MCP client configuration or credentials.

• Open the generated README.md file available under <project>/mcp-dist/<server-name>/ folder.
• Adjust mcp-config.yaml for SQL, descriptions, parameters, transport, or direct credentials.
• Use source-project/ if Java or build customization is needed.
• Reconnect the MCP client after changing runtime configuration.
