Analytic View Expressions

You can use analytic view expressions to create calculated measures within the definition of an analytic view or in a query that selects from an analytic view.

Analytic view expressions differ from other types of expressions in that they reference elements of hierarchies and analytic views rather than tables and columns.

An analytic view expression is one of the following:

• An av_meas_expression, which is based on a measure in an analytic view

• An av_hier_expression, which returns an attribute value of the related member

You use an analytic view expression as the calc_meas_expression parameter in a calc_measure_clause in a CREATE ANALYTIC VIEW statement and in the WITH or FROM clauses of a SELECT statement.

In defining a calculated measure, you may also use the following types of expression:

• Simple

• Case

• Compound

• Datetime

• Interval

Syntax

av_expression::=

Description of the illustration av_expression.eps

av_meas_expression::=

Description of the illustration av_meas_expression.eps

lead_lag_expression::=

Description of the illustration lead_lag_expression.eps

lead_lag_function_name::=

Description of the illustration lead_lag_function_name.eps

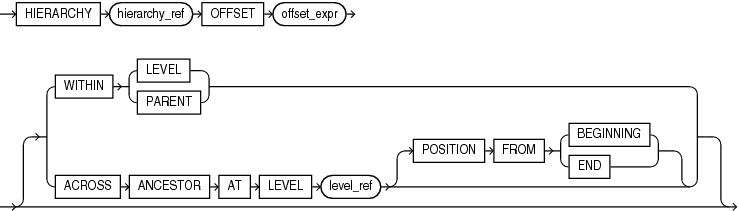

lead_lag_clause::=

Description of the illustration lead_lag_clause.eps

hierarchy_ref::=

Description of the illustration hierarchy_ref.eps

av_window_expression::=

Description of the illustration av_window_expression-gif.eps

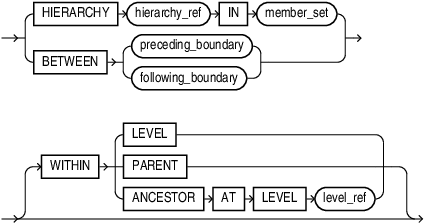

av_window_clause::=

Description of the illustration av_window_clause-gif.eps

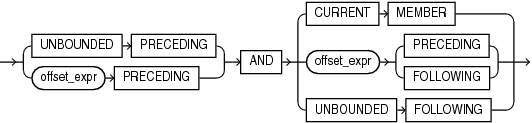

preceding_boundary ::=

Description of the illustration preceding_boundary.eps

following_boundary::=

Description of the illustration following_boundary.eps

rank_expression::=

Description of the illustration rank_expression.eps

rank_function_name::=

Description of the illustration rank_function_name.eps

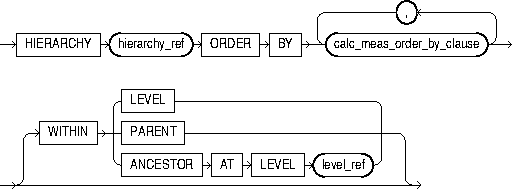

rank_clause::=

Description of the illustration rank_clause.eps

calc_meas_order_by_clause::=

Description of the illustration calc_meas_order_by_clause.eps

share_of_expression::=

Description of the illustration share_of_expression.eps

share_clause::=

Description of the illustration share_clause.eps

member_expression::=

Description of the illustration member_expression.eps

level_member_literal::=

Description of the illustration level_member_literal.eps

pos_member_keys::=

Description of the illustration pos_member_keys.eps

named_member_keys::=

Description of the illustration named_member_keys.eps

hier_navigation_expression::=

Description of the illustration hier_navigation_expression.eps

hier_ancestor_expression::=

Description of the illustration hier_ancestor_expression.eps

hier_parent_expression::=

Description of the illustration hier_parent_expression.eps

hier_lead_lag_expression::=

Description of the illustration hier_lead_lag_expression.eps

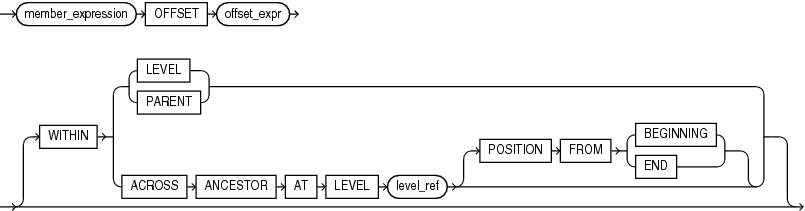

hier_lead_lag_clause::=

Description of the illustration hier_lead_lag_clause.eps

hier_first_expression::=

Description of the illustration hier_first_expression.eps

hier_last_expression::=

Description of the illustration hier_last_expression.eps

hier_member_at_expression::=

Description of the illustration hier_member_at_expression.eps

qdr_expression::=

Description of the illustration qdr_expression.eps

qualifier::=

Description of the illustration qualifier.eps

av_hier_expression::=

Description of the illustration av_hier_expression.eps

hier_function_name::=

Description of the illustration hier_function_name.eps

member_set::=

Description of the illustration member_set.eps

member_to_set_func::=

Description of the illustration member_to_set_func.eps

hier_ancestors::=

Description of the illustration hier_ancestors.eps

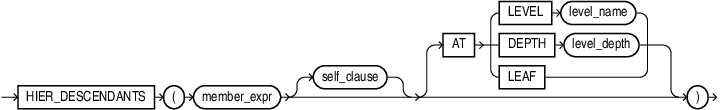

hier_descendants::=

Description of the illustration hier_descendants.eps

hier_siblings::=

Description of the illustration hier_siblings.eps

self_clause ::=

Description of the illustration self_clause.eps

hier_children::=

Description of the illustration hier_children.eps

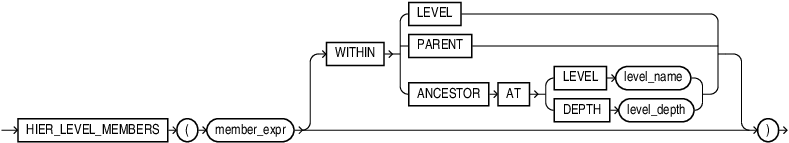

hier_level_members::=

Description of the illustration hier_level_members.eps

set_to_set_func::=

Description of the illustration set_to_set_func.eps

hier_union::=

Description of the illustration hier_union.eps

hier_union_all::=

Description of the illustration hier_union_all.eps

hier_intersect::=

Description of the illustration hier_intersect.eps

hier_minus::=

Description of the illustration hier_minus.eps

hier_distinct::=

Description of the illustration hier_distinct.eps

hier_range::=

Description of the illustration hier_range.eps

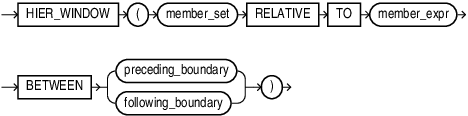

hier_window::=

Description of the illustration hier_window.eps

hier_expand::=

Description of the illustration hier_expand.eps

hier_member_set::=

Description of the illustration hier_member_set.eps

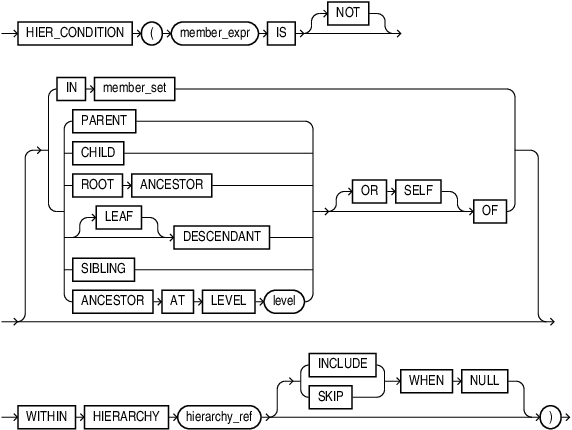

hier_cond::=

Description of the illustration hier_cond.eps

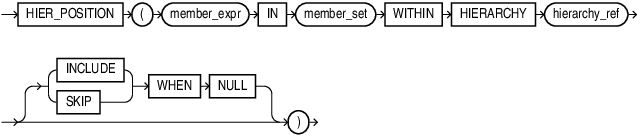

hier_position::=

Description of the illustration hier_position.eps

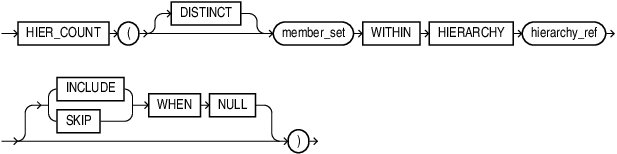

hier_count::=

Description of the illustration hier_count.eps

Semantics

av_meas_expression

An expression that performs hierarchical navigation to locate related measure values.

lead_lag_expression

An expression that specifies a lead or lag operation that locates a related measure value by navigating forward or backward by some number of members within a hierarchy.

The calc_meas_expression parameter is evaluated in the new context created by the lead_lag_expression. This context has the same members as the outer context, except that the member of the specified hierarchy is changed to the related member specified by the lead or lag operation. The lead or lag function is run over the hierarchy members specified by the lead_lag_clause parameter.

lead_lag_function_name

The lead or lag function may be one of the following:

• LAG returns the measure value of an earlier member.

• LAG_DIFF returns the difference between the measure value of the current member and the measure value of an earlier member.

• LAG_DIFF_PERCENT returns the percent difference between the measure value of the current member and the measure value of an earlier member.

• LEAD returns the measure value of a later member.

• LEAD_DIFF returns the difference between the measure value of the current member and the measure value of a later member.

• LEAD_DIFF_PERCENT returns the percent difference between the measure value of the current member and the measure value of a later member.

lead_lag_clause

Specifies the hierarchy to evaluate and an offset value. The parameters of the lead_lag_clause are the following:

• HIERARCHY hierarchy_ref specifies the alias of a hierarchy as defined in the analytic view.

• OFFSET offset_expr specifies a calc_meas_expression that resolves to a number. The number specifies how many members to move either forward or backward from the current member. The ordering of members within a level is determined by the definition of the attribute dimension used by the hierarchy.

• WITHIN LEVEL specifies locating the related member by moving forward or backward by the offset number of members within the members that have the same level depth as the current member. The ordering of members within the level is determined by the definition of the attribute dimension used by the hierarchy.

  The WITHIN LEVEL operation is the default if neither the WITHIN LEVEL nor the ACROSS ANCESTOR AT LEVEL keywords are specified.

• WITHIN PARENT specifies locating the related member by moving forward or backward by the offset number of members within the members that have the same parent as the current member.

• ACROSS ANCESTOR AT LEVEL level_ref specifies locating the related member by navigating up to the ancestor (or to the member itself if no ancestor exists) of the current member at the level specified by level_ref, and noting the position of each ancestor member (including the member itself) within its parent. The level_ref parameter is the name of a level in the specified hierarchy.

  Once the ancestor member is found, navigation moves either forward or backward the offset number of members within the members that have the same depth as the ancestor member. After locating the related ancestor, navigation proceeds back down the hierarchy from this member, matching the position within the parent as recorded on the way up (in reverse order). The position within the parent is either an offset from the first child or the last child depending on whether POSITION FROM BEGINNING or POSITION FROM END is specified. The default value is POSITION FROM BEGINNING. The ordering of members within the level is determined by the definition of the attribute dimension used by the hierarchy.

av_window_expression

An av_window_expression selects the set of members that are in the specified range starting from the current member and that are at the same depth as the current member. You can further restrict the selection of members by specifying a hierarchical relationship using a WITHIN phrase. Aggregation is then performed over the selected measure values to produce a single result for the expression.

The parameters for an av_window_expression are the following:

• aggregate_function is any existing SQL aggregate function except COLLECT, GROUP_ID, GROUPING, GROUPING_ID, SYS_XMLAGG, XMLAGG, and any multi-argument function. A user defined aggregate function is also allowed. The arguments to the aggregate function are calc_meas_expression expressions. These expressions are evaluated using the outer context, with the member of the specified hierarchy changed to each member in the related range. Therefore, each expression argument is evaluated once per related member. The results are then aggregated using the aggregate_function.

• OVER (av_window_clause) specifies the hierarchy to use and the boundaries of the window to consider.

See Also:

Aggregate Functions

av_window_clause

The av_window_clause parameter selects a range of members related to the current member. The range is between the members specified by the preceding_boundary or following_boundary parameters. The range is always computed over members at the same level as the current member.

Use IN member_set to specify an arbitrary member set to be used as the window for the window expression.

The parameters for a av_window_clause are the following:

• HIERARCHY hierarchy_ref specifies the alias of the hierarchy as defined in the analytic view.

• BETWEEN preceding_boundary or following_boundary defines the set of members to relate to the current member.

• WITHIN LEVEL selects the related members by applying the boundary clause to all members of the current level. This is the default when the WITHIN keyword is not specified.

• WITHIN PARENT selects the related members by applying the boundary clause to all members that share a parent with the current member.

• WITHIN ANCESTOR AT LEVEL selects the related members by applying the boundary clause to all members at the current depth that share an ancestor (or is the member itself) at the specified level with the current member. The value of the window expression is NULL if the current member is above the specified level. If the level is not in the specified hierarchy, then an error occurs.

preceding_boundary

The preceding_boundary parameter defines a range of members from the specified number of members backward in the level from the current member and forward to the specified end of the boundary. The following parameters specify the range:

• UNBOUNDED PRECEDING begins the range at the first member in the level.

• offset_expr PRECEDING begins the range at the offset_expr number of members backward from the current member. The offset_expr expression is a calc_meas_expression that resolves to a number. If the offset number is greater than the number of members from the current member to the first member in the level, than the first member is used as the start of the range.

• CURRENT MEMBER ends the range at the current member.

• offset_expr PRECEDING ends the range at the member that is offset_expr backward from the current member.

• offset_expr FOLLOWING ends the range at the member that is offset_expr forward from the current member.

• UNBOUNDED FOLLOWING ends the range at the last member in the level.

following_boundary

The following_boundary parameter defines a range of members from the specified number of members from the current member forward to the specified end of the range. The following parameters specify the range:

• CURRENT MEMBER begins the range at the current member.

• offset_expr FOLLOWING begins the range at the member that is offset_expr forward from the current member.

• offset_expr FOLLOWING ends the range at the member that is offset_expr forward from the current member.

• UNBOUNDED FOLLOWING ends the range at the last member in the level.

hierarchy_ref

A reference to a hierarchy of an analytic view. The hier_alias parameter specifies the alias of a hierarchy in the definition of the analytic view. You may use double quotes to escape special characters or preserve case, or both.

The optional attr_dim_alias parameter specifies the alias of an attribute dimension in the definition of the analytic view. You may use the attr_dim_alias parameter to resolve the ambiguity if the specified hierarchy alias conflicts with another hierarchy alias in the analytic view or if an attribute dimension is used more than once in the analytic view definition. You may use the attr_dim_alias parameter even when a name conflict does not exist.

rank_expression

Hierarchical rank calculations rank the related members of the specified hierarchy based on the order of the specified measure values and return the rank of the current member within those results.

Hierarchical rank calculations locate a set of related members in the specified hierarchy, rank all the related members based on the order of the specified measure values, and then return the rank of the current member within those results. The related members are a set of members at the same level as the current member. You may optionally restrict the set by some hierarchical relationship, but the set always includes the current member. The ordering of the measure values is determined by the calc_meas_order_by_clause of the rank_clause.

rank_function_name

Each hierarchical ranking function assigns an order number to each related member based on the calc_meas_order_by_clause, starting at 1. The functions differ in the way they treat measure values that are the same.

The functions and the differences between them are the following:

• RANK, which assigns the same rank to identical measure values. The rank after a set of tied values is the number of tied values plus the tied order value; therefore, the ordering may not be consecutive numbers.

• DENSE_RANK, which assigns the same minimum rank to identical measure values. The rank after a set of tied values is always one more than the tied value; therefore, the ordering always has consecutive numbers.

• AVERAGE_RANK, assigns the same average rank to identical values. The next value after the average rank value is the number of identical values plus 1, that sum divided by 2, plus the average rank value. For example, for the series of five values 4, 5, 10, 5, 7, AVERAGE_RANK returns 1, 1.5, 1.5, 3, 4. For the series 2, 12, 10, 12, 17, 12, the returned ranks are 1, 2, 3, 3, 3, 5.

• ROW_NUMBER, which assigns values that are unique and consecutive across the hierarchy members. If the calc_meas_order_by_clause results in equal values then the results are non-deterministic.

rank_clause

The rank_clause locates a range of hierarchy members related to the current member. The range is some subset of the members in the same level as the current member. The subset is determined from the WITHIN clause.

Valid values for the WITHIN clause are:

• WITHIN LEVEL, which specifies that the related members are all the members of the current level. This is the default subset if the WITHIN keyword is not specified.

• WITHIN PARENT, which specifies that the related members all share a parent with the current member

• WITHIN ANCESTOR AT LEVEL, which specifies that the related members are all of the members of the current level that share an ancestor (or self) at the specified level with the current member.

share_of_expression

A share_of_expression expression calculates the ratio of an expression's value for the current context over the expression's value at a related context. The expression is a calc_meas_expression that is evaluated at the current context and the related context. The share_clause specification determines the related context to use.

share_clause

A share_clause modifies the outer context by setting the member for the specified hierarchy to a related member.

The parameters of the share clause are the following:

• HIERARCHY hierarchy_ref specifies the name of the hierarchy that is the outer context for the share_of_expression calculations.

• PARENT specifies that the related member is the parent of the current member.

• LEVEL level_ref specifies that the related member is the ancestor (or is the member itself) of the current member at the specified level in the hierarchy. If the current member is above the specified level, then NULL is returned for the share expression. If the level is not in the hierarchy, then an error occurs.

• MEMBER member_expression specifies that the related member is the member returned after evaluating the member_expression in the current context. If the value of the specified member is NULL, then NULL is returned for the share expression.

member_expression

A member_expression a member expression is an expression that returns a single member in a hierarchy. A member set contains multiple members (possibly including duplicates), and may be empty. A multiple member expression is an expression that returns a member set.

The hierarchy can be determined from the outer expression (enforced by the syntax).

A member_expression can be one of the following:

• level_member_literal expression specifies a particular member contained within a particular level. The member is identified by specifying a key value.

• hier_navigation_expr is an expression that relates one member of the hierarchy to another member.

• CURRENT MEMBER indicates that the function should operate on the current member of the hierarchy, typically the starting point of a function, used in the innermost function when nesting. For example, HIER_PARENT(HIER_PARENT(CURRENT MEMBER)) returns the grandparent of the current member.

  When used within a hierarchical window expression, for example, the current member is the one in which the window is currently operating. The current member can also be provided by some member set functions as well as in QUALIFY.

• The NULL keyword is simply a placeholder for a member that is not in the hierarchy, called an empty member. This can be specified explicitly, but can also be the result of a function. For example, HIER_PARENT on the ALL member of a hierarchy will result in the empty member. The empty member should not be confused with NULL members that are true hierarchy members of SKIP WHEN NULL levels.

• The ALL keyword specifies the ALL member, the ultimate ancestor of every other member in the hierarchy. Every hierarchy has an implicit ALL member contained within an implicit ALL level.

level_member_literal

A level member expression specifies a particular member contained within a particular level. The member is identified by specifying a key value. If the attribute name is not specified, it is assumed to be the primary key attribute. Typically, just a single attribute needs qualification.

In the case of a level with either a multi-column key or a SKIP WHEN NULL level, multiple attributes need to be qualified in order to uniquely identify a member. If the key attribute is specified, ordering is not important. If not specified, the ordering is assumed to be the ordering as defined in the xxx_HIER_LEVEL_ID_ATTRS data dictionary view.

pos_member_keys

The member_key_expr expression resolves to the key value for the member. When specified by position, all components of the key must be given in the order found in the ALL_HIER_LEVEL_ID_ATTRS dictionary view. For a hierarchy in which the specified level is not determined by the child level, then all member key values of all such child levels must be provided preceding the current level's member key or keys. Duplicate key components are only specified the first time they appear.

The primary key is used when level_member_literal is specified using the pos_member_keys phrase. You can reference an alternate key by using the named_member_keys phrase.

named_member_keys

The member_key_expr expression resolves to the key value for the member. The attr_name parameter is an identifier for the name of the attribute. If all of the attribute names do not make up a key or alternate key of the specified level, then an error occurs.

When specified by name, all components of the key must be given and all must use the attribute name = value form, in any order. For a hierarchy in which the specified level is not determined by the child level, then all member key values of all such child levels must be provided, also using the named form. Duplicate key components are only specified once.

hier_navigation_expression

A hier_navigation_expression expression navigates from the specified member to a different member in the hierarchy.

hier_ancestor_expression

Returns the ancestor of the specified member at the given level. The level can either be specified by name or depth. If the member has no ancestor at the specified level, the empty member is returned.

The depth is specified as an expression that must resolve to a number. If the member is at a level or depth above the specified member, or the member is NULL, then NULL is returned for the expression value. If the specified level is not in the context hierarchy, then an error occurs.

hier_parent_expression

Returns the parent of the specified member, or the empty member if it has no parent (i.e. is the ALL member).

hier_first_expression

Returns the first element in the specified member set. If the member set is empty, the empty member is returned.

hier_last_expression

Returns the last element in the specified member set. If the member set is empty, the empty member is returned.

hier_member_at_expression

Returns the member in the specified member set at the position identified by the given expression representing the position, where positions are 1-based. If the specified position is greater than the number of elements in the member set, the empty member is returned. The expression must be coercible to a numeric type, and will be rounded to the nearest integer. If the expression resolves to an integer less than 1, the empty member is returned.

hier_lead_lag_expression

Navigates from the specified member to a related member by moving forward or backward some number of members within the context hierarchy. The HIER_LEAD keyword returns a later member. The HIER_LAG keyword returns an earlier member.

hier_lead_lag_clause

Navigates the offset_expr number of members forward or backward from the specified member. The ordering of members within a level is specified in the definition of the attribute dimension.

The optional parameters of hier_lead_lag_clause are the following:

• WITHIN LEVEL locates the related member by moving forward or backward offset_expr members within the members that have the same depth as the current member. The ordering of members within the level is determined by the definition of the attribute dimension. The WITHIN LEVEL operation is the default if neither the WITHIN nor the ACROSS keywords are used.

• WITHIN PARENT locates the related member by moving forward or backward offset_expr members within the members that have the same depth as the current member, but only considers members that share a parent with the current member. The ordering of members within the level is determined by the definition of the attribute dimension.

• WITHIN ACROSS ANCESTOR AT LEVEL locates the related member by navigating up to the ancestor of the current member (or to the member itself) at the specified level, noting the position of each ancestor member (including the member itself) within its parent. Once the ancestor member is found, navigation moves forward or backward offset_expr members within the members that have the same depth as the ancestor member.

  After locating the related ancestor, navigation moves back down the hierarchy from that member, matching the position within the parent as recorded on the way up (in reverse order). The position within the parent is either an offset from the first child or the last child depending on whether POSITION FROM BEGINNING or POSITION FROM END is specified, defaulting to POSITION FROM BEGINNING. The ordering of members within the level is determined by the definition of the attribute dimension.

qdr_expression

A qdr_expression is a qualified data reference that evaluates the specified calc_meas_expression in a new context and sets the hierarchy member to the new value.

qualifier

A qualifier modifies the outer context by setting the member for the specified hierarchy to the member resulting from evaluating member_expression. If member_expression is NULL, then the result of the qdr_expression selection is NULL.

av_hier_expression

An av_hier_expression performs hierarchy navigation to locate an attribute value of the related member. An av_hier_expression may be a top-level expression, whereas a hier_navigation_expression may only be used as a member_expression argument.

For example, in the following query HIER_MEMBER__NAME is an av_hier_expression and HIER_PARENT is a hier_navigation_expression.

HIER_MEMBER_NAME(HIER_PARENT(CURRENT MEMBER) WITHIN HIERARCHY product_hier))

hier_function_name

The hier_function_name values are the following:

• HIER_CAPTION, which returns the caption of the related member in the hierarchy.

• HIER_DEPTH, which returns one less than the number of ancestors between the related member and the ALL member in the hierarchy. The depth of the ALL member is 0.

• HIER_DESCRIPTION, which returns the description of the related member in the hierarchy.

• HIER_LEVEL, which returns as a string value the name of the level to which the related member belongs in the hierarchy.

• HIER_MEMBER_NAME, which returns the member name of the related member in the hierarchy.

• HIER_MEMBER_UNIQUE_NAME, which returns the member unique name of the related member in the hierarchy.

member_set

The primary purpose of member sets is to allow them to be used within hierarchical functions. A member set is the result of either a member to set function or a set to set function.

member_to_set_func

All member to set functions take a member expression as input and produce a member set in hierarchy order. The variants that have a self_clause can specify whether or not the member specified in the given member expression itself should be included in the resulting member set, with the default being that it is excluded. If the given member is the empty member, all functions return an empty set even when INCLUDE SELF is specified.

hier_ancestors

Returns a member set consisting of all ancestors of the specified member, optionally including the member itself. If the member has no ancestors (i.e. is the ALL member) and self is excluded, an empty set is returned.

hier_descendants

Returns a member set consisting of all descendants of the specified member, optionally including the member itself. If the AT clause is specified, the set of descendants are filtered to only include members at the specified level or depth. If the member has no descendants (i.e. is a leaf) optionally filtered to the given level and self is excluded, an empty set is returned.

hier_siblings

Returns a member set consisting of all siblings of the specified member, optionally including the member itself. A sibling is defined as any member whose parent is equal to the parent of the given member. If the member has no siblings and self is excluded, an empty set is returned.

hier_children

Returns a member set consisting of all children of the specified member. If the member has no children, an empty set is returned.

hier_level_members

Returns a member set consisting of members at the same level as the given member that have a common ancestor as defined by the WITHIN clause. This function always includes self. WITHIN PARENT returns all members that are children of the given member’s parent. WITHIN ANCESTOR AT returns all members at the same level as the given member that have the same ancestor at the specified level. WITHIN LEVEL returns all members at the same level as the given member. If the WITHIN clause is omitted, the default is WITHIN LEVEL.

hier_member_set

Returns a member set consisting of explicitly specified members, in the order specified. This function is in its own category as it is not really performing a navigation, but simply building a set from some number of given members. Duplicate members are allowed. Any empty members in the given set are ignored, as a member set will never include the empty member.

set_to_set_func

The functions in this section all operate on a member set. They perform standard set operations and further hierarchical navigation.

hier_union

Returns the distinct union of members among the two given sets by taking all distinct members of the first set followed by all members in the second set that are not in the first set.

hier_union_all

Returns all members in the first set followed by all members in the second set, retaining duplicates.

hier_intersect

Returns all distinct members in order from the first set that also appear in the second set.

hier_minus

Returns all distinct members in order from the first set that do not appear in the second set.

hier_distinct

Returns the distinct members in order from the given set.

hier_range

Returns members in order from the set that fall within the specified range. In all cases, number is an expression that is coercible to a number. When PERCENT is not specified, the expression must evaluate to a positive integer. FIRST will return the first Nmembers in the set. If N is greater than the number of elements in the set, all elements are returned. LAST will return the last N members in the set. If N is greater than the number of elements in the set, all elements are returned. BETWEEN will return all elements whose position in the set is >= the start position and <= the given end position, with positions being 1-based. If the PERCENT keyword is specified, the number arguments all represent percentages and must evaluate to a number between 0 and 100.

hier_window

Returns all members in order from the given set which fall within the specified boundary relative to the given member. If the given member is not in the given set, an empty set is returned.

hier_expand

For each member in the given set, applies the specified member to set function. References to CURRENT MEMBER in the member to set function refer to the current member in the set to which it is being applied. The member sets produced for the members are combined using the semantics of HIER_UNION_ALL (i.e. retaining duplicates).

hier_cond

Use IN member_set to specify an arbitrary member set to use for the comparison.

hier_position

Returns the numeric 1-based position of the first occurrence of the member identified by mbr_expr in the specified member set, with references to CURRENT MEMBER referring to the current member in the set to which it is being applied. If the member does not appear in the set, NULL is returned. This could be useful if a user wanted to order the output of a query based on the set order.

hier_count

Returns the number of members in the member set. If the DISTINCT keyword is included, returns the number of distinct members in the member set.

Examples of Analytic View Expressions

This topic contains examples that show calculated measures defined in the MEASURES clause of an analytic view and in the ADD MEASURES clause of a SELECT statement.

The examples are the following:

• Examples of LAG Expressions

• Example of a Window Expression

• Examples of SHARE OF Expressions

• Examples of QDR Expressions

• Example of an Added Measure Using the RANK Function

For more examples, see the tutorials on analytic views at the SQL Live website at https://livesql.oracle.com/apex/livesql/file/index.html.

Examples of LAG Expressions

These calculated measures different LAG operations.

-- These calculated measures are from the measures_clause of the
-- sales_av analytic view.
MEASURES
 (sales FACT sales,                      -- A base measure
  units FACT units,                      -- A base measure
  sales_prior_period AS                  -- Calculated measures
    (LAG(sales) OVER (HIERARCHY time_hier OFFSET 1)),
  sales_year_ago AS
    (LAG(sales) OVER (HIERARCHY time_hier OFFSET 1
     ACROSS ANCESTOR AT LEVEL year)),
  chg_sales_year_ago AS
    (LAG_DIFF(sales) OVER (HIERARCHY time_hier OFFSET 1
     ACROSS ANCESTOR AT LEVEL year)),
  pct_chg_sales_year_ago AS
    (LAG_DIFF_PERCENT(sales) OVER (HIERARCHY time_hier OFFSET 1
     ACROSS ANCESTOR AT LEVEL year)),
  sales_qtr_ago AS
    (LAG(sales) OVER (HIERARCHY time_hier OFFSET 1
     ACROSS ANCESTOR AT LEVEL quarter)),
  chg_sales_qtr_ago AS
    (LAG_DIFF(sales) OVER (HIERARCHY time_hier OFFSET 1
     ACROSS ANCESTOR AT LEVEL quarter)),
  pct_chg_sales_qtr_ago AS
    (LAG_DIFF_PERCENT(sales) OVER (HIERARCHY time_hier OFFSET 1
     ACROSS ANCESTOR AT LEVEL quarter))
 )

Example of a Window Expression

This calculated measure uses a window operation.

MEASURES
 (sales FACT sales,
  units FACT units,
  sales_qtd AS
    (SUM(sales) OVER (HIERARCHY time_hier
     BETWEEN UNBOUNDED PRECEDING AND CURRENT MEMBER
     WITHIN ANCESTOR AT LEVEL QUARTER)),
  sales_ytd AS
    (SUM(sales) OVER (HIERARCHY time_hier
     BETWEEN UNBOUNDED PRECEDING AND CURRENT MEMBER
     WITHIN ANCESTOR AT LEVEL YEAR))
 )

Examples of SHARE OF Expressions

These calculated measures use SHARE OF expressions.

MEASURES
 (sales FACT sales,
  units FACT units,
 sales_shr_parent_prod AS
   (SHARE_OF(sales HIERARCHY product_hier PARENT)),
 sales_shr_parent_geog AS
   (SHARE_OF(sales HIERARCHY geography_hier PARENT)),
 sales_shr_region AS
   (SHARE_OF(sales HIERARCHY geography_hier LEVEL REGION))
 )

Examples of QDR Expressions

These calculated measures use the QUALIFY keyword to specify qualified data reference expressions.

MEASURES
 (sales FACT sales,
  units FACT units,
  sales_2011 AS
    (QUALIFY (sales, time_hier = year['11'])),
  sales_pct_chg_2011 AS
    ((sales - (QUALIFY (sales, time_hier = year['11']))) /
    (QUALIFY (sales, time_hier = year['11'])))
 )

Example of an Added Measure Using the RANK Function

In this example, the units_geog_rank_level measure uses the RANK function to rank geography hierarchy members within a level based on units.

SELECT geography_hier.member_name AS "Region",
       units AS "Units",
       units_geog_rank_level AS "Rank"
  FROM ANALYTIC VIEW (
    USING sales_av HIERARCHIES (geography_hier)
    ADD MEASURES (
      units_geog_rank_level AS (
        RANK() OVER (
          HIERARCHY geography_hier
          ORDER BY units desc nulls last
          WITHIN LEVEL))
    )
  )
  WHERE geography_hier.level_name IN ('REGION')
  ORDER BY units_geog_rank_level;

The following is the result of the query.

Regions            Units  Rank
-------------  ---------  ----
Asia            56017849     1
South America   23904155     2
North America   20523698     3
Africa          12608308     4
Europe           8666520     5
Oceania           427664     6
