4.8 Captions

The legend panel displays caption over a legend item when the rule based style of the legend item has label.text specified.

The following shows a sample rule based style to display a caption.

{
  _id: 1683557130420,
  component: 'vertex',
  stylingEnabled: true,
  target: 'vertex',
  visibilityEnabled: true,
  conditions:{
    operator: 'and',
    conditions: []
  },
  aggregation: [],
  style: {
    label: {
      text: '${properties.name}',
      color: 'brown'
    }
  },
  legendTitle: 'Legend with caption'
}

As shown in the preceding code, the property name gets extracted and is shown as caption if the label.text is specified as an expression using dot notation (${properties.name}) or bracket notation ( ${properties["name"]}. The following figure shows the caption displayed over the legend item:

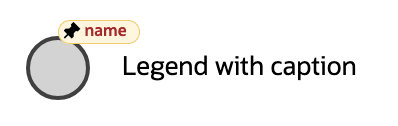

Figure 4-13 Legend With Caption

Description of "Figure 4-13 Legend With Caption"

The default pin icon shown inside the caption can be changed using the rule based style's overlayIndicator property as shown:

{
  ....
  overlayIndicator: 'bookmark',
  style: {
    label: {
      text: '${properties.name}',
      color: 'brown'
    }
  },
  legendTitle: 'Legend with caption'
}
