Schema View

The Graph Visualization library allows you to visualize a graph’s schema in the form of a property graph.

In order to enable schema view, you must configure the properties described in Schema View Configuration Parameters.

Once the schema view is enabled, it will appear along side the graph in the graph visualization panel as shown:

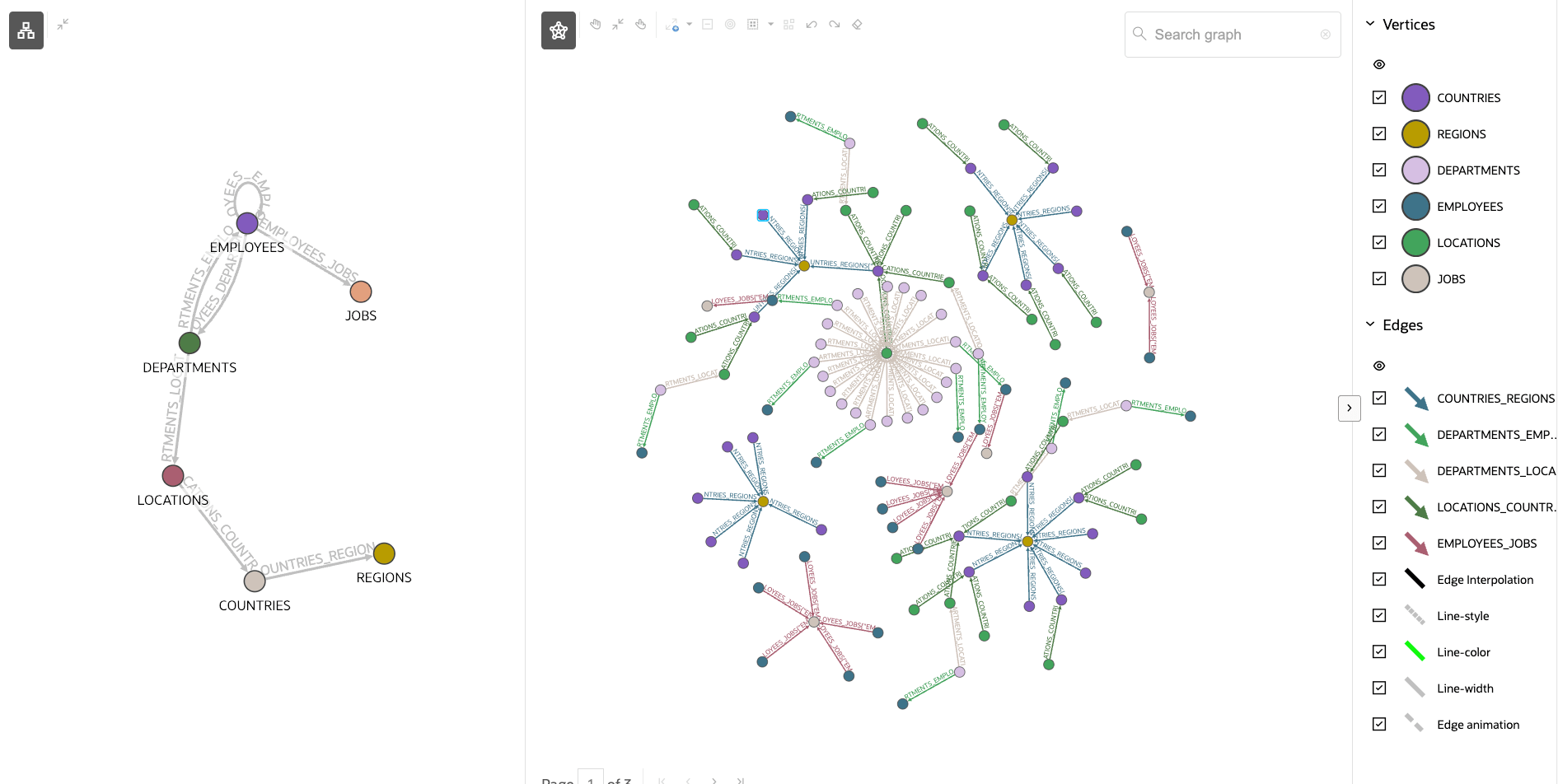

Figure: Visualizing Schema and Graph Views

Description of image follows

Description of the illustration schema_and_graph_view_viz.png

Schema View Modes You can switch between Schema view, Graph view, or use both in the graph visualization panel using the toggle buttons in the toolbar.
Schema Validation In addition to rendering the schema of a graph, the Graph Visualization library automatically validates the provided graph data against the schema if one is available.
Schema View Configuration Parameters In order to enable Schema View in your visualization, you must configure a few related properties.
Validation Rules The graph data must conform to the schema based on the certain validation rules.

Schema View Modes

You can switch between Schema view, Graph view, or use both in the graph visualization panel using the toggle buttons in the toolbar.

Figure: Schema View Modes

Description of image follows

Description of the illustration schema_view_toggle.png

Depending on which toggle button is active the corresponding view will be displayed. The following describes more about the supported modes:

Schema: In this mode, the schema view is displayed spanning the entire visualization.
Graph (default): In this mode, the graph is displayed spanning the entire visualization.
Schema and Graph: In this mode, when both the toggle buttons are active, the schema and graph regions will appear side-by-side with a separator in between, as shown in Figure: Visualizing Schema and Graph Views. The separator can be dragged to resize the regions.

It is important to note that depending on your data and settings configurations, either the Schema or Graph view will be always enabled in the toolbar. If both the toggle buttons are manually turned off, then it automatically defaults to Graph view.

Schema Validation

In addition to rendering the schema of a graph, the Graph Visualization library automatically validates the provided graph data against the schema if one is available.

If the graph data conforms to the schema based on the defined validation rules (see Validation Rules), then the Graph Visualization library initializes without any problems. Also, in the absence of a schema, the Schema view will not be displayed, and the schema validations will not be executed.

If the schema validation fails, then the errors will be displayed in the following JSON format:

[{
    errorType : string              // Used by consuming application to summarize or detail the error
    entityType: 'vertex' | 'edge'   // Can be used to format the error message to specify the context
    entityId?: string               // Used to identify the entity in the message
    entityDescriptor?: string[]     // Used to represent name or labels of the entity in the message
    property?: string               // Name of the property that failed validation
    expectedType?: string           // Expected type of the property
    actualType?: string             // Actual type of the property
    message?: string                // Ready to use message if no further customization is needed at the consuming side
}]

The consuming applications can then use the message property to obtain the complete message for display on its interface. They can also derive their own custom message, summarize errors, or categorize errors using errorType and other properties provided in the error message.

Schema View Configuration Parameters

In order to enable Schema View in your visualization, you must configure a few related properties.

The following properties control the behavior of Schema View:

schema (optional): This provides the data that is shown in a Schema View. This property takes data in the GraphSchema format that is described in settings. Schema View will not be supported if this property is not configured.
schemaSettings (optional): This defines various settings (for example, styling) to control the rendering of Schema View. This property follows the Settings format that is described in settings. schemaSettings.baseStyles and schemaSettings.ruleBasedStyles allow custom styling of the Schema View. This is similar to settings.baseStyles and settings.ruleBasedStyles that customize styling for the existing graph view.

If styling is not specified through schemaSettings, then the Graph Visualization library will use a default styling to render vertices and edges in Schema View. Also, certain features like pagination, legends, and so on will not apply to Schema View. Therefore, such attributes will not have any effect even if configured in Settings.
The Settings interface supports the following additional properties to customize Schema and Graph views display in the graph visualization panel. See settings for more information on each of the following properties.
- viewMode (optional): This controls the Schema View and Graph View display. It can also be used to switch between views at runtime. Supported values are expanded and collapsed. Schema View mode will be determined by schemaSettings.viewMode and Graph View mode will be determined by settings.viewMode.
- viewLabel (optional): This specifies a label that is displayed in Schema View or Graph View. If configured, the value will appear as a label on the top center of the corresponding view. It will also be used in the tooltip for the Schema View and Graph View toggle buttons.
- legendState (optional): This specifies whether the legend region in the Graph View is in expanded or collapsed state. Supported values are expanded and collapsed. This property will not have any effect when specified in schemaSettings for Schema View as there is no legend region for this view.
The following shows an example schemaSettings for Schema View.
```
{"viewMode": "expanded", "viewLabel": "Schema View", "baseStyles": { "vertex": { "caption": "${properties.labelName}", "color": "blue" }}}
```
The following shows an example settings for Graph View.
```
{"viewMode": "collapsed", "viewLabel": "Graph View", "legendState": "collapsed", "baseStyles": { "vertex": { "caption": "${properties.labelName}", "color": "red"}}}
```

Validation Rules

The graph data must conform to the schema based on the certain validation rules.

The graph data is validated against the schema by verifying the following rules:

MANDATORY_PROPS_IN_SCHEMA_MISSING_IN_GRAPH: This rule verifies that all the properties that are marked as mandatory in the schema have values in the graph data.

The following shows a sample error if this validation fails:

{
    errorType: "MANDATORY_PROPS_IN_SCHEMA_MISSING_IN_GRAPH",
    entityType: "vertex",
    entityId: "0",
    entityDescriptor: ["Hermione"],
    property: "id",
    message: "Vertex 'Hermione' with id '0' doesn't have a property 'id' while it is marked as mandatory in the schema"
}

ENTITY_IN_SCHEMA_MISSING_IN_GRAPH: This rule verifies that when entities (vertices or edges) are defined in the schema, the provided graph data also has those entities in it.

The following shows a sample error if this validation fails:
```
{
    errorType: "ENTITY_IN_SCHEMA_MISSING_IN_GRAPH",
    entityType: "edge",
    message: "The graph's data doesn't have Edges in it, but is specified in the schema"
}
```

ITEMS_IN_GRAPH_NOT_DEFINED_IN_SCHEMA: This rule verifies that entities (vertices or edges, labels, or properties) that are present in the graph, have definitions in the schema.

The following shows a sample error if this validation fails due to edges being present in the graph data without having edges defined in the schema:

{
    errorType: "ITEMS_IN_GRAPH_NOT_DEFINED_IN_SCHEMA",
    entityType: "edge",
    message: "Edge that is present in the graph is not defined in the schema."
}

The following shows a sample error if this validation fails due to a label being present in the graph data without having that label defined in the schema:

{
    errorType: "ITEMS_IN_GRAPH_NOT_DEFINED_IN_SCHEMA",
    entityType: "vertex",
    entityDescriptor: ["misc"],
    message: "Vertex with label 'misc' that is present in the graph is not defined in the schema."
}

The following shows a sample error if this validation fails due to a property being present in the graph data without having that property defined in the schema:

{
    errorType: "ITEMS_IN_GRAPH_NOT_DEFINED_IN_SCHEMA",
    entityType: "vertex",
    entityId: "0",
    entityDescriptor: ["Tom Jones"],
    property: "date",
    message: "Property 'date' of vertex 'Tom Jones' with id '0' that is present in the graph is not defined in the schema."
}

TYPE_MISMATCH_BETWEEN_SCHEMA_AND_GRAPH: This rule verifies that the data type of properties in the graph data conforms with its definition in the schema.

The following shows a sample error if this validation fails:

{
    errorType: "TYPE_MISMATCH_BETWEEN_SCHEMA_AND_GRAPH",
    entityType: "vertex",
    entityDescriptor: ["Mary"],
    property: "id",
    expectedType: "string",
    actualType: "number",
    message: "Vertex 'Mary' has an attribute 'id' of type 'number' while it is specified to be of type 'string' in the schema"
}

MISMATCH_BETWEEN_LABELS_IN_SCHEMA: This rule verifies that all properties defined in the schema across multiple labels do not contradict, when those labels are used in a vertex or edge of the graph data.

The following shows a sample error if this validation fails:

{
    errorType: "MISMATCH_BETWEEN_LABELS_IN_SCHEMA",
    entityType: "edge",
    entityId: "0",
    entityDescriptor: ["default", "Label 1", "Label 2", "Label 3"],
    property: "id",
    message: "Edge 'default' with id '0' has mismatch in the schema definition of 'id' property among its labels 'Label 1', 'Label 2', and 'Label 3'"
}
