3.3 Working with Tables

This section provides comprehensive guidance on creating, editing, and managing database tables efficiently.

It covers the following topics:

  • Using Table Editor

    Learn how to use the Table Editor to create new tables or modify existing ones. This topic walks you through specifying columns and constraints, managing keys and indexes, setting storage options, and applying table-level settings, all within an intuitive visual interface.

  • Managing Data Import

    Learn how to seamlessly import data into your tables. This topic explains the steps for bringing external data into your database, including mapping columns, handling data formats, and validating imported records to ensure data integrity.

3.3.1 Using Table Editor

The Table Editor provides users with an intuitive interface to create and modify database tables efficiently.

Users can define table structures by adding, editing, or deleting columns, specifying data types, and setting constraints such as primary keys and unique keys. Additional options, such as defining indexes, foreign keys, and storage parameters, allow for comprehensive table customization. With straightforward navigation, this feature streamlines the table management process, supporting both new table creation and the modification of existing tables to fit evolving data requirements.

To create a new table, right-click Tables in the Connections panel and select Create Table. The Table Editor: New window appears. From the drop-down list, select a Schema and enter the table name in the Name field. By default, the new table will be named NEW_TABLE.

To edit an existing table, right-click the table name in the Connections panel and select Edit.

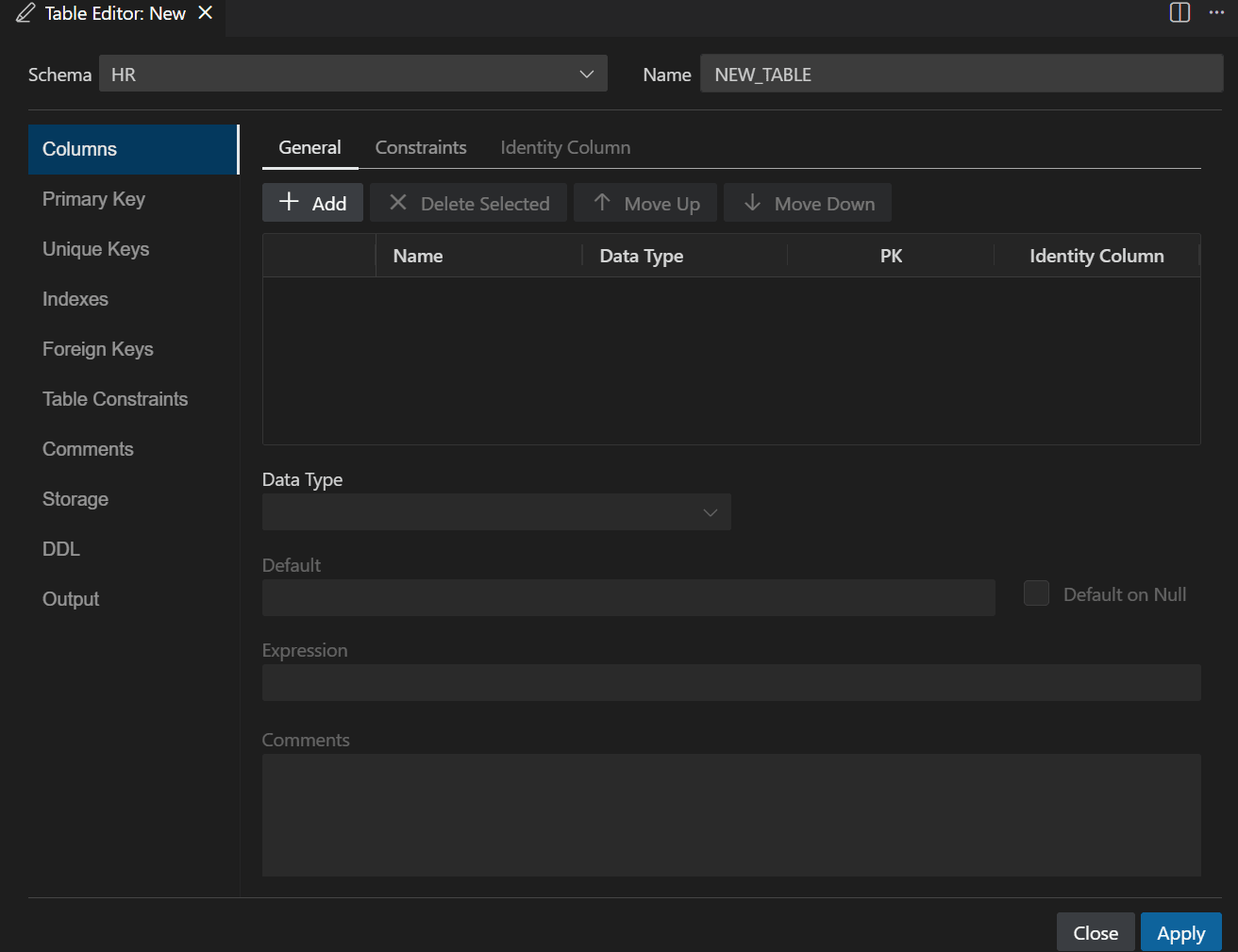

Description of table_editor_new.png follows
Description of the illustration table_editor_new.png

You can add or edit the table information in the following sections:

3.3.1.1 Columns

In this window, you can specify properties for each column in the table.

By default, the General tab is displayed.

General Tab

In this tab, you can add or delete a column. Click + Add to add a new column or click X Delete Selected to delete the selected column. You can also designate a column as a Primary Key by selecting the corresponding PK checkbox, or set it as an identity column by selecting the Identity Column checkbox. When you select a column from the list, you can customize its properties, such as data type, default value, expression, and comments, using the fields that appear below the column list.

  • Name: The name of the column. By default, the new column is named as COLUMN_1. You can double-click the column cell to edit its value.
  • Data Type: Data type of the column. Most of the remaining information depends on the specific type.
  • Size: For character data, the maximum size of the column data. This field is displayed when VARCHAR2 data type is selected.
  • Units: For character data, the units represented by the Size: BYTE for bytes or CHAR for characters. This attribute is important if the database contains data in Unicode format, with multiple bytes for each character. This field is displayed when VARCHAR2 data type is selected.
  • Precision: For numeric data, the precision (total number of significant digits that can be represented) of the column data. This field is displayed when NUMBER data type is selected.
  • Scale: For numeric data, the scale (number of digits after the decimal point) of the column data. This field is displayed when NUMBER data type is selected.
  • Default: For relevant types, the default value inserted into the column if no value is specified when a row is inserted.
  • Default on Null: If this option is selected, then the default value is inserted when no value is provided in the column.
  • Expression: When an expression is specified, the column value is automatically generated according to the logic you provide, rather than being directly entered or modified by users.
  • Comments: Optional descriptive comment about the column.

Click Apply to save your changes.

Constraints Tab

Select the Constraints tab to view and edit constraints for your table columns.

  • Not Null Constraint

    For each column, select the Not Null checkbox if the column should not allow NULL values. You can also provide a custom name for the NOT NULL constraint in the Not Null Name field.

  • Check Constraint

    To add additional validation rules, select a column and use the Check Constraint section to define custom constraints, such as specifying allowed value ranges or patterns. You can enter a constraint name and logic in the provided fields.

  • Additional Constraint Options

    At the bottom of the tab, you can further configure constraint behavior by enabling or disabling the constraint, setting it as deferrable, determining if it should be enforced immediately, and enabling validation. These options help you control how and when the constraints are applied to your table data.

Click Apply to save your changes.

Identity Column Tab

In this tab, you can configure automatic value generation for a specific column, typically used for unique identifiers like primary keys. In this tab, you can specify how the identity values should be generated, including options for the starting value, increment step, minimum and maximum values, caching behavior, cycling, and ordering.

  • Generate: Options to set whether the value should be provided BY DEFAULT or ALWAYS.
  • Start With: Initial value for the column.
  • Increment By: Step size between generated values.
  • Min Value -Max Value: Allowable range for generated numbers.
  • Cache and Cache Size: Cache causes sequence values are preallocated in cache, which can improve application performance. Cache size indicates the number of sequence values preallocated in cache. No Cache causes sequence values not to be preallocated in cache.
  • Cycle: Indicates whether the sequence wraps around to reuse numbers after reaching its maximum value or its minimum value. If cycling of values is not enabled, the sequence cannot generate more values after reaching its maximum or minimum value.
  • Order: Indicates whether sequence numbers are generated in the order in which they are requested. If No Order is specified, sequence numbers are not guaranteed to be in the order in which they were requested.

Click Apply to save your changes.

3.3.1.2 Primary Key

In this window, you can define the primary key constraint for your table, ensuring that each row is uniquely identifiable.

You can configure the following for a primary key:
  • Name: The name of your primary key constraint.
  • Enabled: If this option is selected, then the primary key constraint will be enabled.
  • Rely: If this option is selected, then the constraint can be relied upon.
  • Deferrable: If this option is selected, then the constraint check can be deferred until the transaction is committed.
  • Initially Immediate: If this option is selected, then the constraint is enforced immediately.
  • Validate: If this option is selected, then data in the table must comply with the primary key constraint.
  • Index: This drop-down list allows you to select an existing index to associate with the primary key constraint.
  • Tablespace: This drop-down list allows you to select a tablespace for storing the index.
  • Available Columns and Selected Columns: These lists allow you to select one or more columns to be included in the primary key. Select columns from the Available Columns list and use the arrow buttons to move them to the Selected Columns list.

Once your primary key configuration is complete, click Apply to save your changes.

3.3.1.3 Unique Keys

In this window, you can define unique key constraints for your table, ensuring that the combination of values in the selected columns is always unique for every row. You can add or delete unique key constraints using the + Add and X Delete Selected buttons.

You can configure the following for a unique key:
  • Name: The name of the unique key. You can edit the name by double-clicking the cell.
  • Enabled: If this option is selected, then the unique key constraint will be enabled.
  • Rely: If this option is selected, then the constraint can be relied upon.
  • Deferrable: If this option is selected, then the constraint check can be deferred until the transaction is committed.
  • Initially Immediate: If this option is selected, then the constraint is enforced immediately.
  • Validate: If this option is selected, then data in the table must comply with the unique key constraint.
  • Index: This drop-down list allows you to select an existing index to associate with the unique key constraint.
  • Tablespace: This drop-down list allows you to select a tablespace for storing the index.
  • Available Columns and Selected Columns: These lists allow you to select one or more columns to be included in the unique key. Select columns from the Available Columns list and use the arrow buttons to move them to the Selected Columns list.

Once your unique key configuration is complete, click Apply to save your changes.

3.3.1.4 Indexes

In this section, you can manage indexes for your table to improve query performance. You can add new indexes or delete existing ones using the + Add and X Delete Selected buttons.

You can configure the following for an index:
  • Schema: The name of the schema under which the index is created.
  • Name: The name of the index. You can edit the name by double-clicking the cell.
  • Type: The type of index, such as UNIQUE, NON-UNIQUE, or BITMAP.
  • Tablespace: Specifies the tablespace where the index is stored.
  • Available Columns and Selected Columns: Select one or more columns to be included in the index. Use the Available Columns list and arrow buttons to move columns to the Selected Columns list and organize their order.
  • Expression: Allows you to specify the expression that defines the index logic.

Once your index configuration is complete, click Apply to save your changes.

3.3.1.5 Foreign Keys

In this window, you can define foreign key constraints for your table, allowing you to establish relationships between columns in your table and columns in another table. You can add or delete foreign key constraints using the + Add and X Delete Selected buttons.

You can configure the following for a foreign key:
  • Name: The name of the foreign key constraint. You can edit the name by double-clicking the cell.
  • Enabled: If this option is selected, then the foreign key constraint will be enabled.
  • Rely: If this option is selected, then the constraint can be relied upon.
  • Deferrable: If this option is selected, then the constraint check can be deferred until the transaction is committed.
  • Initially Immediate: If this option is selected, then the constraint is enforced immediately.
  • Validate: If this option is selected, then data in the table must comply with the foreign key constraint.
  • Referenced Constraint: Allows you to select the Schema, Table, and Constraint that you want to reference. You can also specify the On Delete action to define the behavior when referenced data is deleted, such as NO ACTION, CASCADE, or SET NULL.
  • Associations: Allows you to map the Local Column(s) in your table to the corresponding Referenced Column(s) in the related table.

Once your foreign key configuration is complete, click Apply to save your changes.

3.3.1.6 Table Constraints

In this window, you can define table-level constraints, such as check constraints, to enforce complex rules and conditions on your data beyond what can be achieved with column-level constraints. You can add or delete table constraints using the + Add and X Delete Selected buttons.

You can configure the following for a table constraint:
  • Name: The name of the table constraint key. You can edit the name by double-clicking the cell.
  • Enabled: If this option is selected, then the table constraint will be enabled.
  • Rely: If this option is selected, then the constraint can be relied upon.
  • Deferrable: If this option is selected, then the constraint check can be deferred until the transaction is committed.
  • Initially Immediate: If this option is selected, then the constraint is enforced immediately .
  • Validate: If this option is selected, then data in the table must comply with the table constraint.
  • Check Condition: Specify an expression or condition that must be met for all rows in the table. For example, to indicate that the value in a numeric column named RATING must be from 1 to 10, you can specify: rating >=1 and rating <= 10.

Once your table constraint configuration is complete, click Apply to save your changes.

3.3.1.7 Comments

In this window, you can provide additional descriptive comments about the table.

3.3.1.8 Storage

In this window, you can configure storage-related options for your table to optimize data management and performance.

You can configure the following storage options:
  • Organization: The organization type of the table, such as, Heap, Index, or External.
  • Tablespace: Allows you to select the tablespace for the table.
  • Logging: Enables or disables logging for the table, which determines whether changes to the table are recorded in the redo log for recovery purposes.
  • Row Archival: Indicates whether row-level archival is enabled for the table.

Once your storage configuration is complete, click Apply to save your changes.

3.3.1.9 DDL

In this window, you can view and manage the Data Definition Language (DDL) statements associated with your table.

The DDL tab displays the SQL code required to create or modify the table structure, including all constraints and relationships. You can switch between the Create and Update tabs to see scripts for creating the table from scratch or updating it based on the current changes.

Any errors or missing definitions, such as those highlighted in the output, should be addressed before applying changes. Once you have reviewed the DDL statements and ensured they are correct, click Apply to implement the changes to your database.

3.3.1.10 Output

In this window, you can view the results of executed operations, including messages, errors, and logs generated when applying changes to the table.

The Output tab displays detailed error reports and Oracle error codes if an operation fails, along with references to relevant documentation links for troubleshooting. Any issues or syntax errors encountered during execution are shown here, making it easier to diagnose problems, understand the cause of errors, and take corrective action. Review these messages to resolve any issues before reapplying your changes. Once you have addressed any errors, click Apply to save your changes.

3.3.2 Configuring and Managing Data Import

This feature enables importing data from delimited files, such as Comma Separated Values (CSV), Tab Separated Values (TSV), or other similar formats into your database. You have the flexibility to either create new tables or populate existing ones, with a range of configuration options to suit your data import needs.

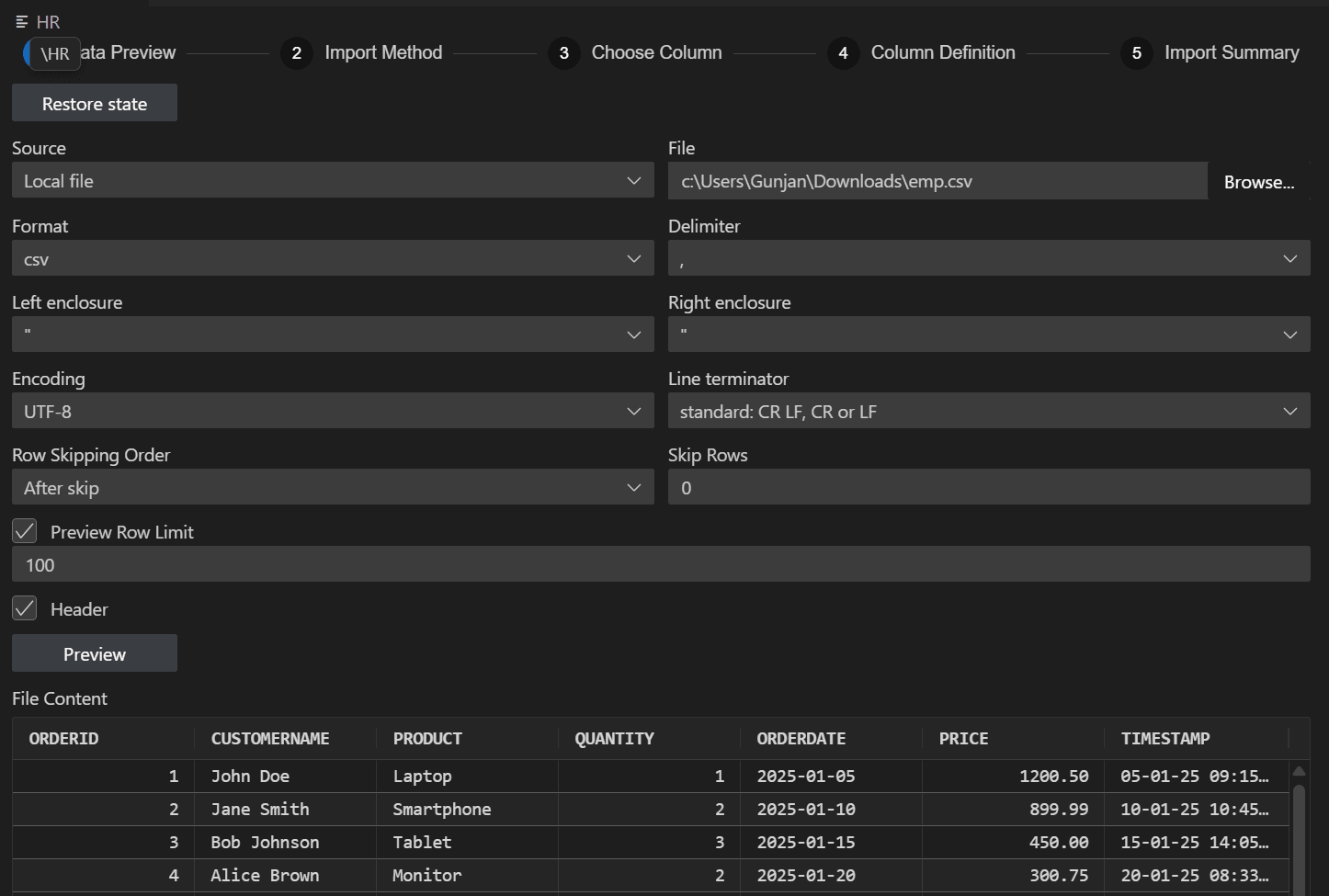

Description of data_import_landing.png follows
Description of the illustration data_import_landing.png

The data import workflow includes the following steps:
  1. Previewing Data: Review and validate the data from your source file before importing.
  2. Choosing Import Method: Select how the data will be imported.
  3. Choosing Columns: Select which columns from the source data should be imported.
  4. Defining Column Metadata: Specify or adjust column definitions, data types, and other attributes.
  5. Summarizing the Import: Review a summary of your selections and confirm the import configuration before proceeding.

3.3.2.1 Importing Data into Tables

Perform the following steps to import data into a table:
  1. In the Connections panel, right-click Tables under your database connection and choose Import to add data to a new table.
    To import data into an existing table, right-click the corresponding table and select Import.

Previewing Data

The Data Preview page enables you to specify preferences that affect the preview display of data to be imported.

  1. Select your data source. Choose Local file to upload from your computer.
  2. Click Browse and select the file you want to import. For example, .csv, .tsv, or delimited.
  3. Modify the following configurations, if required:
    • Format: Select the format of the file containing data to be imported. For example, csv (comma separated value), delimited (delimiter separated value), or text (tab separated value).
    • Delimiter: Select the character that separates columns. For example, , (comma), | (pipe), ; (semicolon), and so on.
    • Left Enclosure: Select the character that encloses field values. For example, double quote ("), single quote ('), opening parenthesis ((), opening brace ({), and opening bracket ([).
    • Right Enclosure: Select the character that encloses field values. For example, double quote ("), single quote ('), closing parenthesis ()), closing brace (}), and closing bracket (]).
    • Encoding: Select the character set used for encoding data to be imported. For example, UTF-8, UTF-16, UTF-16LE, and so on.
    • Line Terminator: Select the character used for line breaks.
    • Row Skipping Order: Select whether to skip rows preceding the import or following a certain point.
    • Skip Rows: Enter the number of initial rows to skip.
    • Preview Row Limit: Enter the number of rows to preview.
    • Header: Select this checkbox to display headers in the preview.

    Note:

    The Restore State button allows you to restore a previously saved import state, reapplying all saved configurations and settings. This feature helps streamline the import process by making it easy to resume or repeat imports with the same parameters.
  4. Click Preview.
    The content of the uploaded file is displayed in the File Content section.
  5. Click Next.

Choosing Import Method

The Import Method page specifies methods for importing data from local files.

  1. In the Import Method list, select Insert.
  2. Enter a table name in the Table Name field if you are importing data into a new table.
    For import into an existing table, the table name is auto-populated in this field.
  3. To restrict the number of rows for import, select the Import row limit checkbox and enter the desired value in the accompanying field.
  4. Click Next.

Choosing Columns

The Choose Column page lets you select the specific column from the data set and arrange them in the order you want.

  1. If you want to import specific columns only, select the columns from the Available Columns list and use the arrow button to move them to the Selected Columns list.
    To change the order of a selected column in the list for the import operation, select it and use the up and down arrow buttons.
  2. Click Next.

Defining Column Metadata

The Column Definition page enables you to specify information about the columns in the database table for data import. If you are deriving the table definition from an external file, you can modify the attributes of any column in the destination table that will be created during the data import process. When importing data into an existing table, the Column Definition step is different from the process used for a new table. Each source column from the imported file must be mapped to a target column that already exists in the table.

  1. For each of the columns in Source Data Columns, you can modify its attribute as needed.
    These include properties such as name, data type, size/precision, scale, default value, comments, and whether the column should allow null values. The available attribute fields for each column may vary depending on the column data type.
  2. Click Next.

Summarizing the Import

The Import Summary page provides a final overview of your import configuration before you execute the import process.

  1. Review all selections and settings to confirm they are correct.

    This summary includes details about your destination connection, the table being loaded, file properties, fields selected for import, and import method options.

    You can use the Save State button to save your current import setup. This will capture all your configuration settings, Data Preview options, Import Method selections, Column Selection, and Column Definition options.

  2. Click Finish to start the import based on the summary settings.
    When importing a file, errors may occur if the data does not match the expected format. For example, if a column defined as NUMBER contains a string value. In such cases, the system will notify you and allow you to choose how to proceed. You will be presented with the following options:
    • Continue: Skip the row containing the error and proceed with importing the remaining data.
    • Ignore All: Ignore all subsequent errors of this type for the rest of the import operation, skipping any problematic rows automatically.
    • Cancel: Abort the import process immediately, and no further data will be imported.

    Use Back to return and make changes to previous steps. Click Cancel to abort the import process.
