3.12.18 Exadata Storage Server with Sun Fire X4275 Images

The following figure shows the front view of Sun Fire X4275 Servers.

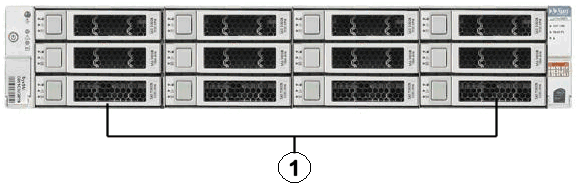

Figure 3-35 Front View of Sun Fire X4275 Server

Description of Figure 3-35 follows
Description of "Figure 3-35 Front View of Sun Fire X4275 Server"

  1. Hard disk drives. The top drives are, from left to right, HDD2, HDD5, HDD8, and HDD11. The middle drives are, from left to right, HDD1, HDD4, HDD7, and HDD10. The bottom drives are, from left to right, HDD0, HDD3, HDD6, and HDD9.

The following figure shows the rear view of Sun Fire X4275 servers.

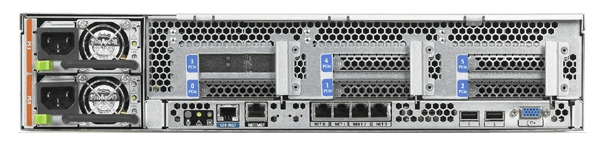

Figure 3-36 Rear View of Sun Fire X4275 Server

Description of Figure 3-36 follows
Description of "Figure 3-36 Rear View of Sun Fire X4275 Server"
