3.12.17 Exadata Storage Server with Sun Fire X4270 M2 Images

The following image shows the front view of Exadata Storage Server with Sun Fire X4270 M2 Servers.

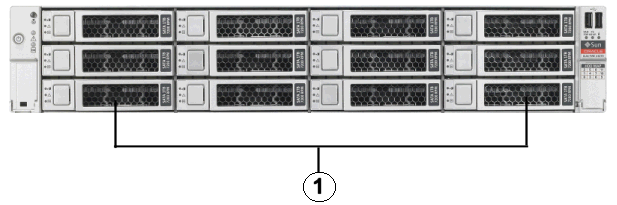

Figure 3-33 Front View of Exadata Storage Server with Sun Fire X4270 M2 Servers

Description of Figure 3-33 follows
Description of "Figure 3-33 Front View of Exadata Storage Server with Sun Fire X4270 M2 Servers"

  1. Hard disk drives. The top drives are, from left to right, HDD2, HDD5, HDD8, and HDD11. The middle drives are, from left to right, HDD1, HDD4, HDD7, and HDD10. The bottom drives are, from left to right, HDD0, HDD3, HDD6, and HDD9.

The following image shows the rear view of Exadata Storage Server with Sun Fire X4270 M2 Servers.

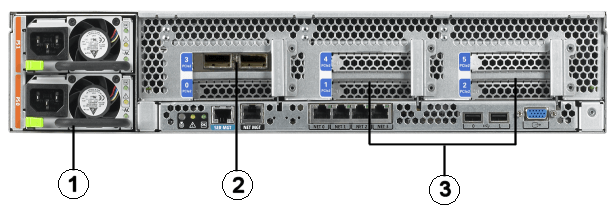

Figure 3-34 Rear View of Exadata Storage Server with Sun Fire X4270 M2 Servers

Description of Figure 3-34 follows
Description of "Figure 3-34 Rear View of Exadata Storage Server with Sun Fire X4270 M2 Servers"

  1. Power supplies.

  2. InfiniBand host channel adapter PCI Express module.

  3. Sun Flash Accelerator F20 PCIe Cards.
