3.12.16 Exadata Storage Server X3-2L Images

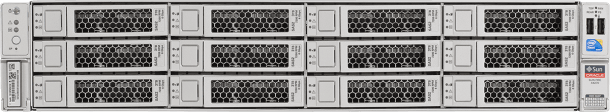

The following image shows the front view of Exadata Storage Server X3-2L Servers. The hard drives are numbered from left to right, starting in the lower left. The drives in the bottom row are numbers 0, 1, 2, and 3. The drives in the middle row are numbers 4, 5, 6, and 7. The drives in the top row are numbers 8, 9, 10, and 11.

Figure 3-31 Front View of Exadata Storage Server X3-2L Servers

Description of "Figure 3-31 Front View of Exadata Storage Server X3-2L Servers"

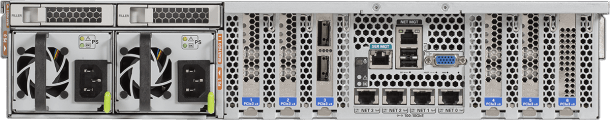

The following image shows the rear view of Exadata Storage Server X3-2L Servers.

Figure 3-32 Rear View of Exadata Storage Server X3-2L Servers

Description of "Figure 3-32 Rear View of Exadata Storage Server X3-2L Servers"
