3.12.10 Oracle Exadata Storage Server X7-2 Extreme Flash Server Images

The following figure shows the front view of the Oracle Exadata Storage Server X7-2 Extreme Flash server.

Figure 3-19 Front View of Oracle Exadata Storage Server X7-2 Extreme Flash Server

Description of Figure 3-19 follows
Description of "Figure 3-19 Front View of Oracle Exadata Storage Server X7-2 Extreme Flash Server"

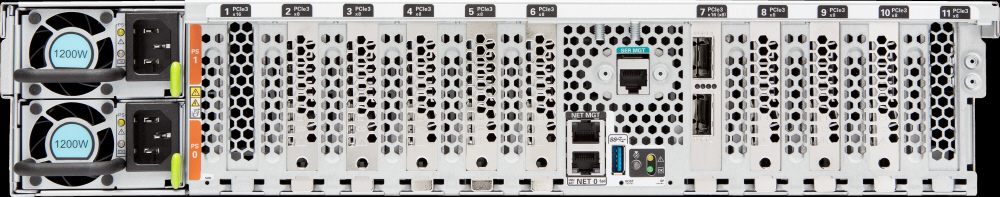

The following figure shows the rear view of the Oracle Exadata Storage Server X7-2 Extreme Flash server.

Figure 3-20 Rear View of Oracle Exadata Storage Server X7-2 Extreme Flash Server

Description of Figure 3-20 follows
Description of "Figure 3-20 Rear View of Oracle Exadata Storage Server X7-2 Extreme Flash Server"
