3.12.9 Oracle Exadata Storage Server X7-2 High Capacity Server Images

The following figure shows the front view of the Oracle Exadata Storage Server X7-2 High Capacity Server.

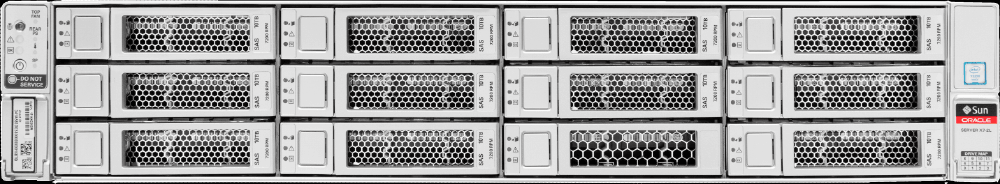

Figure 3-17 Front View of Oracle Exadata Storage Server X7-2 High Capacity Server

Description of Figure 3-17 follows
Description of "Figure 3-17 Front View of Oracle Exadata Storage Server X7-2 High Capacity Server "

The following figure shows the rear view of the Oracle Exadata Storage Server X7-2 High Capacity Server.

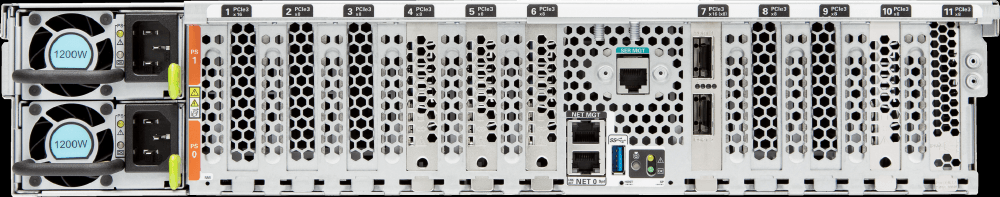

Figure 3-18 Rear View of Oracle Exadata Storage Server X7-2 High Capacity Server

Description of Figure 3-18 follows
Description of "Figure 3-18 Rear View of Oracle Exadata Storage Server X7-2 High Capacity Server"
