2.18.13 Oracle Server X5-8 and X6-8 Oracle Database Server Images

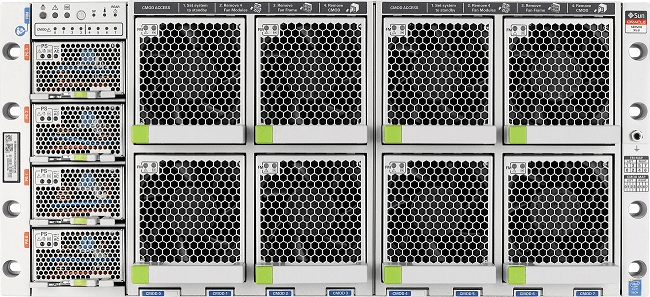

The following image shows the front view of Oracle Server X5-8 Oracle Database Server.

Figure 2-27 Front View of Oracle Server X5-8 Oracle Database Server


Description of Figure 2-27 follows
Description of "Figure 2-27 Front View of Oracle Server X5-8 Oracle Database Server"

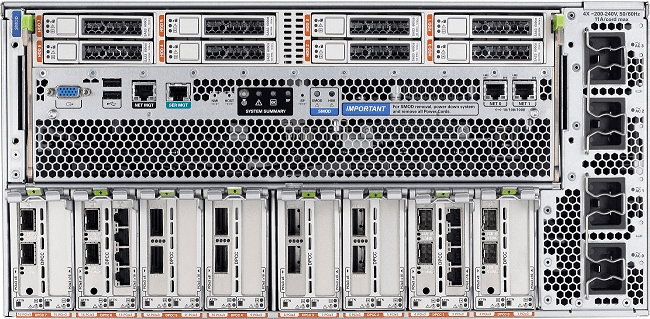

The following image shows the back view of Oracle Server X5-8 Oracle Database Server.

Figure 2-28 Back View of Oracle Server X5-8 Oracle Database Server


Description of Figure 2-28 follows
Description of "Figure 2-28 Back View of Oracle Server X5-8 Oracle Database Server"
