2.18.14 Sun Server X4-8 Oracle Database Server Images

The following image shows the front view of Sun Server X4-8 Oracle Database Server.

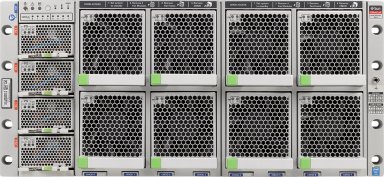

Figure 2-29 Front View of Sun Server X4-8 Oracle Database Server

Description of Figure 2-29 follows
Description of "Figure 2-29 Front View of Sun Server X4-8 Oracle Database Server"

The following image shows the rear view of Sun Server X4-8 Oracle Database Server.

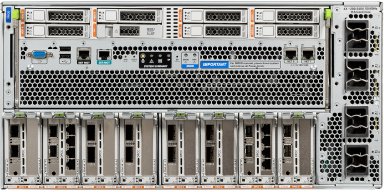

Figure 2-30 Rear View of Sun Server X4-8 Oracle Database Server

Description of Figure 2-30 follows
Description of "Figure 2-30 Rear View of Sun Server X4-8 Oracle Database Server"
