2.18.2 Oracle Server X9-2 Database Server Images

Oracle Server X9-2 is used as the database server in Oracle Exadata X9M-2.

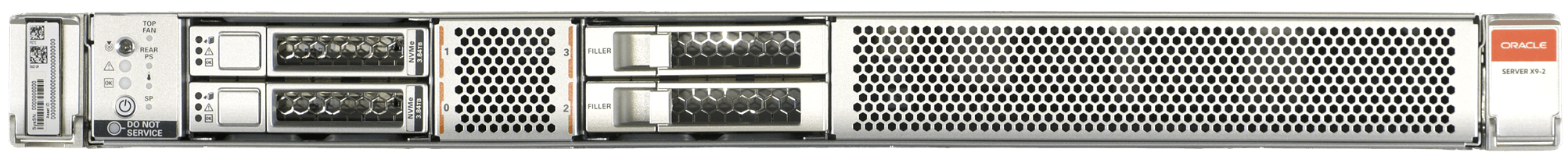

The following image shows the front view of Oracle Server X9-2 Database Servers.

Figure 2-5 Front View of Oracle Server X9-2 Database Servers

Description of "Figure 2-5 Front View of Oracle Server X9-2 Database Servers"

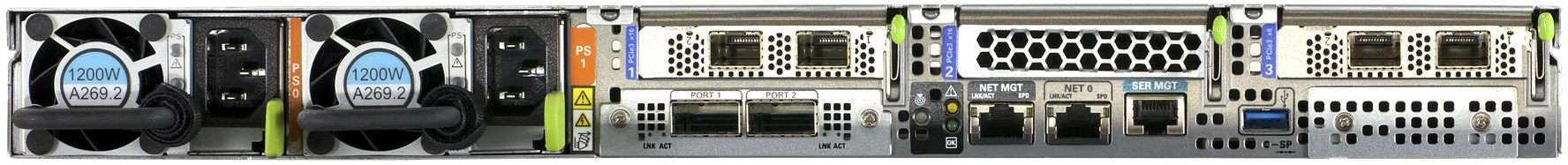

The following image shows a rear view of Oracle Server X9-2. This image shows a server with two dual-port 25 Gb/s network interface cards (in PCI slot 1 and slot3).

Figure 2-6 Rear View of Oracle Server X9-2 Database Servers

Description of "Figure 2-6 Rear View of Oracle Server X9-2 Database Servers"
