Illustrated Parts Breakdown

The following figure identifies the major components of the Oracle Server X10.

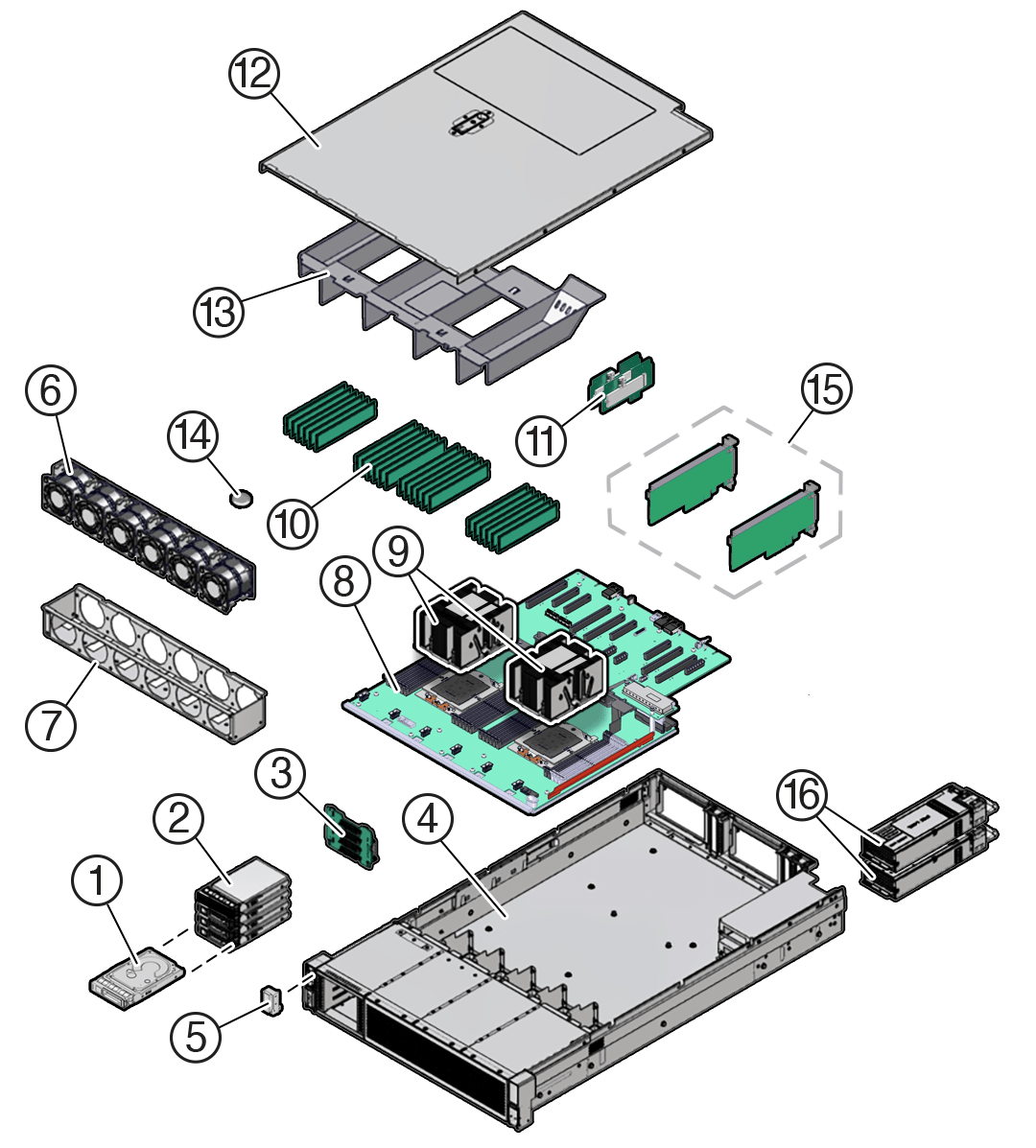

Figure showing exploded view of server with 4-Drive backplane system components.
Callout Description

1

Storage drives – four 2.5-inch hot-pluggable PCIe-based NVMe SFF SSDs in 4-Drive backplane

2

Storage drive bay cage

3

4-Drive backplane (DBP)

4

System chassis

5

Front LED indicator module (FIM)

6

Six fan modules (FM0-5)

7

Fan tray

8

Motherboard assembly (MB)

9

Processors (P0, P1) and heatsinks

10

24 DIMMs

11

 Internal M.2 SSD memory with two internal M.2 Risers

12

Top cover

13

Air baffle

14

System RTC battery

15

HHHL PCIe cards – only slots 1 and 5 are populated in Private Cloud Appliance

16

Two power supplies (PS0, PS1)
