  5. Oracle Exadata Storage Server X9M, X8M, and X8 High Capacity and Extended (XT) Server Parts

Oracle Exadata Storage Server X9M, X8M, and X8 High Capacity and Extended (XT) Server Parts

The following figure shows the front view of the Oracle Exadata Storage Server X9M, X8M and X8 High Capacity and XT servers.

Note:

The Recovery Appliance supports Oracle Exadata Storage Server high capacity servers and does not use Oracle Exadata Storage Server XT servers. Both are discussed for completeness and compatibility with Oracle Exadata documentation.

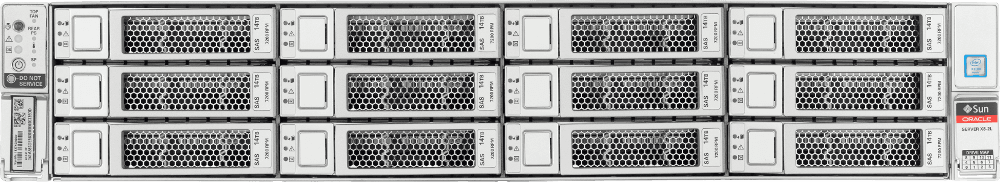

Figure 26-3 Front View of Oracle Exadata Storage Server X9M, X8M and X8 High Capacity and XT servers

Description of Figure 26-3 follows
Description of "Figure 26-3 Front View of Oracle Exadata Storage Server X9M, X8M and X8 High Capacity and XT servers "

The following figure shows the rear view of the Oracle Exadata Storage Server X8M and X8 High Capacity and XT servers.

Note:

The Recovery Appliance does not support XT servers.

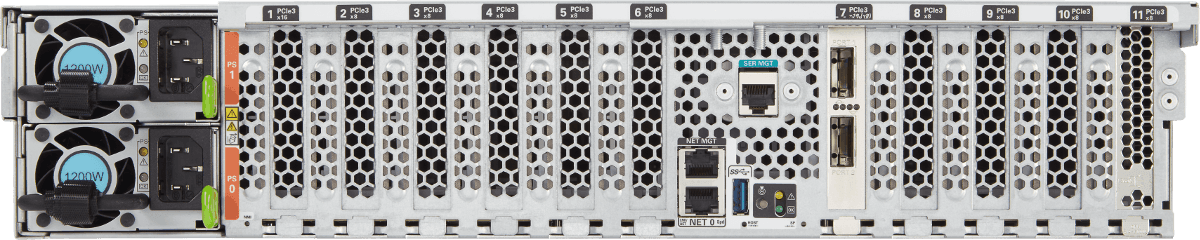

Figure 26-4 Rear View of Oracle Exadata Storage Server X9M, X8M and X8 High Capacity and XT servers

Description of Figure 26-4 follows
Description of "Figure 26-4 Rear View of Oracle Exadata Storage Server X9M, X8M and X8 High Capacity and XT servers "

The following table lists the replaceable parts for Oracle Exadata Storage Server X9M, X8M and X8 High Capacity and XT servers. Refer to this table only if you have a basic warranty. All replacement parts shown in the following table are considered FRU when covered under Premier Support of Systems warranty.

Note:

The Recovery Appliance supports Oracle Exadata Storage Server high capacity servers and does not use Oracle Exadata Storage Server XT servers. Both are discussed for completeness and compatibility with Oracle Exadata.

Table 26-5 Replacement Parts for Oracle Exadata Storage Server X8M and X8 High Capacity and XT Servers

Part Number Description Repair Category Coverage under Basic Warranty Repair Procedure

370-5621-01

3 volt lithium battery grover

EBO

FRU

See "Servicing the Battery" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at http://docs.oracle.com/cd/E93361_01/html/E93395/gqtff.html#scrolltoc

7322171

Assembly, Front LED Indicator Module (LFIM)

EBO

FRU

See "Servicing the Front LED Indicator Module" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at http://docs.oracle.com/cd/E93361_01/html/E93395/gqtpg.html#scrolltoc

7341141

Assembly, 12-slot disk backplane

EBO

FRU

See "Servicing the Disk Backplane" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at http://docs.oracle.com/cd/E93361_01/html/E93395/gqtsb.html#scrolltoc

8200116

Power Supply, A266 F, 1200W, AC Input

HS

FRU

  1. Remove rear left side of the CMA, and then swing it back and out to the right.

    The telescopic cross member supporting the cables directly behind the server can be retracted to access both power supplies.

  2. See "Servicing Power Supplies" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at http://docs.oracle.com/cd/E93361_01/html/E93395/gqtag.html#scrolltoc

  3. Replace the CMA.

7322166

Fan assembly, 2U

HS

FRU

See "Servicing Fan Modules" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at http://docs.oracle.com/cd/E93361_01/html/E93395/gqtak.html#scrolltoc

7046442 (X8)

Assembly, dual port, QDR CX3, Host Channel Adapter

EBO

FRU

  1. If the server is currently running, then it should be shut down gracefully. See "Stopping Recovery Appliance Services" for additional information.

  2. See "Servicing PCIe Cards" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at http://docs.oracle.com/cd/E93361_01/html/E93395/gqtcq.html#scrolltoc

  3. See "Configuring the InfiniBand Switches"

  4. Verify the new hardware meets the hardware and firmware specifications using the following command:

    /opt/oracle.SupportTools/CheckHWnFWprofile

7119792

(X8M-8)

CX5 100GbE Adapter Dual Port QSFP28

 DBO CRU

  1. If the server is currently running, then it should be shut down gracefully. See "Stopping Recovery Appliance Services" for additional information.

  2. See "Servicing PCIe Cards" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at http://docs.oracle.com/cd/E93361_01/html/E93395/gqtcq.html#scrolltoc

  3. See "Configuring the InfiniBand Switches"

  4. Verify the new hardware meets the hardware and firmware specifications using the following command:

    /opt/oracle.SupportTools/CheckHWnFWprofile

7322160

Heat sink, CPU

EBO

FRU

See "Servicing Processors" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at http://docs.oracle.com/cd/E93361_01/html/E93395/gqtmk.html#scrolltoc

7357761

Assembly, Drive, 14TB 3.5" SAS3/7200 rpm Coral with encryption

HS

FRU

See "Servicing Storage Drives" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at http://docs.oracle.com/cd/E93361_01/html/E93395/gqtcs.html#scrolltoc

7353916

RDIMM 16GB, DDR4 2666, 1Rx4 1.2V

EBO

FRU

See "Servicing the DIMMs" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at https://docs.oracle.com/en/servers/x86/x8-2l/exadata-storage-service-manual/gqtcm.html

7332895

HBA, 12 Gbps SAS PCIe 16-port internal RAID with flash module

EBO

FRU

See "Servicing the Internal HBA Card and HBA Super Capacitor" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at http://docs.oracle.com/cd/E93361_01/html/E93395/gqtjv.html#scrolltoc

7086345

Assembly, super cap, 13.5V, 6.4F, SAS3 HBA

EBO

FRU

See "Servicing the Internal HBA Card and HBA Super Capacitor" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at http://docs.oracle.com/cd/E93361_01/html/E93395/gqtjv.html#scrolltoc

7315464

SAS-3 Data Cable Assembly

EBO

FRU

See "Servicing SAS Cables" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at http://docs.oracle.com/cd/E93361_01/html/E93395/gqthb.html#scrolltoc

7361253

M.2,240GB,SATA,22x80mm,SSD,INTEL, DC S4510

EBO

FRU

See "Servicing the Internal M.2 Flash SSDs" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at http://docs.oracle.com/cd/E93361_01/html/E93395/grlly.html#scrolltoc

7335943

6.4TB FLASH F640 NVMe AIC AURA 7

EBO

FRU

See "Servicing PCIe Cards" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at http://docs.oracle.com/cd/E93361_01/html/E93395/gqtcq.html#scrolltoc

7361454

6.4TB FLASH F640 V2 NVMe AIC AURA 8

EBO

FRU

See "Servicing PCIe Cards" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at http://docs.oracle.com/cd/E93361_01/html/E93395/gqtcq.html#scrolltoc

8200426

CPU INTEL CLX G5218 (B1) 2.3 GHz 125W 16c 4S 1TB (S-RF8T)

EBO

FRU

See "Servicing Processors" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at http://docs.oracle.com/cd/E93361_01/html/E93395/gqtmk.html#scrolltoc

7360978

Assembly, System board

EBO

FRU

See "Servicing the Motherboard Assembly" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at http://docs.oracle.com/cd/E93361_01/html/E93395/gqtwc.html#scrolltoc

7341466

Assembly, M.2 form factor riser

EBO

FRU

 See "Servicing the Internal M.2 Flash SSDs" in Oracle Exadata Storage Server X8-2 EF, HC, and XT Service Manual at http://docs.oracle.com/cd/E93361_01/html/E93395/grlly.html#scrolltoc
