Oracle Server X8 and X8M Database Server Parts

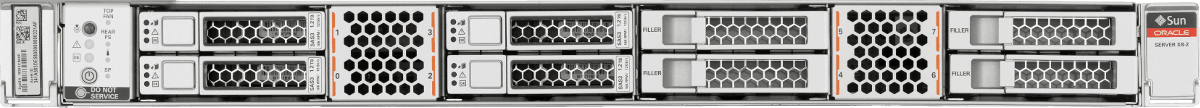

The following image shows the front view of Oracle Server X8 and X8M Database Servers.

Figure 26-1 Front View of Oracle Server X8 and X8M Database Servers

Description of Figure 26-1 follows
Description of "Figure 26-1 Front View of Oracle Server X8 and X8M Database Servers"

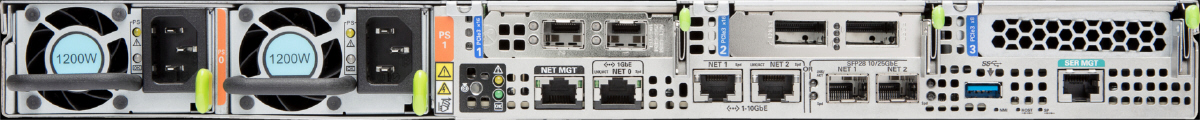

The following image shows the rear view of the Oracle Server.

Figure 26-2 Rear View of Oracle Server X8 and X8M Database Servers

Description of Figure 26-2 follows
Description of "Figure 26-2 Rear View of Oracle Server X8 and X8M Database Servers"

The following table lists the replaceable parts for Oracle Server X8 and X8M database servers. Refer to this table only if you have a basic warranty. All replacement parts shown in the following table are considered FRU when covered under Premier Support of Systems warranty.

Table 26-4 Replacement Parts for Oracle Server X8 and X8M Database Servers

Part Number Description Repair Category Coverage under Basic Warranty Repair Procedure

370-5621-01

3 volt lithium battery grover

DBO

FRU

See "Servicing the Battery (CRU)" in Oracle Exadata X8-2 Database Server Service Manual at http://docs.oracle.com/cd/E93359_01/html/E93386/gqviw.html#scrolltoc

7363537

ASSY DRV 1.2TB 10KRPM SAS3 512N SFF MARLIN

DBO

FRU

See "Servicing Storage Drives (CRU)" in Oracle Exadata X8-2 Database Server Service Manual at http://docs.oracle.com/cd/E93359_01/html/E93386/gquak.html#scrolltoc

7322171

ASM LFIM

DBO

FRU

See "Servicing Other Cables (FRU)" in Oracle Exadata X8-2 Database Server Service Manual at http://docs.oracle.com/cd/E93359_01/html/E93386/gqvev.html#scrolltoc

7339763

BD LP DUAL SFP28 ADAPTER WHITNEY+ PCIe3.0x8

DBO

CRU
  1. If the server is currently running, then it should be shut down gracefully. See "Stopping Recovery Appliance Services" for additional information.

  2. See "Servicing PCIe Cards (CRU)" in Oracle Exadata X8-2 Database Server Service Manual at http://docs.oracle.com/cd/E93359_01/html/E93386/gqvjk.html#scrolltoc

8200663

HEATSINK CPU HEIGHT:23.5 MM

DBO

FRU

See "Servicing Processors (FRU)" in Oracle Exadata X8-2 Database Server Service Manual at http://docs.oracle.com/cd/E93359_01/html/E93386/gqtmk.html#scrolltoc

7343599

Assembly, riser, 1-slot, 1U

DBO

FRU

See "Servicing PCIe Risers (CRU)" in Oracle Exadata X8-2 Database Server Service Manual at http://docs.oracle.com/cd/E93359_01/html/E93386/gqvft.html#scrolltoc

7330698

DIMM, 32 GB, RDIMM, DDR4, 2666 2Rx4 1.2V

DBO

CRU

See "Servicing the DIMMs (CRU)" in Oracle Exadata X8-2 Database Server Service Manual at https://docs.oracle.com/en/servers/x86/x8-2l/exadata-db-service-manual/gqvkr.html

8200116

Power supply, AC, A266, F, 12V, 1200W

HS

CRU

  1. Remove rear left side of the CMA, and then swing it back and out to the right.

    The telescopic cross member supporting the cables directly behind the server can be retracted to access both power supplies.

  2. See "Servicing Power Supplies (CRU)" in Oracle Exadata X8-2 Database Server Service Manual at http://docs.oracle.com/cd/E93359_01/html/E93386/gqunc.html#scrolltoc

  3. Replace the CMA.

7332895

HBA, 12 Gb SAS PCIe 16-port RAID internal with flash module

DBO

FRU

See "Servicing the Internal HBA Card and HBA Super Capacitor (FRU)" in Oracle Exadata X8-2 Database Server Service Manual at http://docs.oracle.com/cd/E93359_01/html/E93386/gqvmq.html#scrolltoc

7086345

Assembly, super cap, 13.5 volt, 6.4F, SAS3 HBA

DBO

FRU

See "Servicing the Internal HBA Card and HBA Super Capacitor (FRU)" in Oracle Exadata X8-2 Database Server Service Manual at http://docs.oracle.com/cd/E93359_01/html/E93386/gqvmq.html#scrolltoc

7340897

Cable, SAS3 to HBA

DBO

CRU

See "Servicing the Internal HBA Cables" in Oracle Exadata X8-2 Database Server Service Manual at http://docs.oracle.com/cd/E93359_01/html/E93386/gqvav.html#scrolltoc

7331123

Assembly, fan module

HS

CRU

See "Servicing Fan Modules (CRU)" in Oracle Exadata X8-2 Database Server Service Manual at http://docs.oracle.com/cd/E93359_01/html/E93386/gquhg.html#scrolltoc

8200428

CPU INTEL CLX P8260 (B1) 2.4 GHz 165W 24c 8S 1TB (S-RF9H)

DBO

FRU

See "Servicing Processors (FRU)" in Oracle Exadata X8-2 Database Server Service Manual at http://docs.oracle.com/cd/E93359_01/html/E93386/gqtmk.html#scrolltoc

7104073

Assembly, Dual 40Gb/Sec (4x) QDR RDMA Fabric Host Channel Adapter Module M3

DBO

CRU

  1. If the server is currently running, then it should be shut down gracefully. See "Stopping Recovery Appliance Services" for additional information.

  2. See "Servicing PCIe Cards (CRU)" in Oracle Exadata X8-2 Database Server Service Manual at http://docs.oracle.com/cd/E93359_01/html/E93386/gqvjk.html#scrolltoc

  3. See "Configuring the InfiniBand Switches"

7046442 (X8)

Assembly, Dual port, QDR CX3, HCA

DBO

CRU

  1. If the server is currently running, then it should be shut down gracefully. See "Stopping Recovery Appliance Services" for additional information.

  2. See "Servicing PCIe Cards (CRU)" in Oracle Exadata X8-2 Database Server Service Manual at http://docs.oracle.com/cd/E93359_01/html/E93386/gqvjk.html#scrolltoc

  3. See "Configuring the InfiniBand Switches"

7119792 (X8M)

CX5 100GbE Adapter Dual Port QSFP28

DBO

CRU

  1. If the server is currently running, then it should be shut down gracefully. See "Stopping Recovery Appliance Services" for additional information.

  2. See "Servicing PCIe Cards (CRU)" in Oracle Exadata X8-2 Database Server Service Manual at http://docs.oracle.com/cd/E93359_01/html/E93386/gqvjk.html#scrolltoc

  3. See Verifying the RoCE Network Fabric Configuration.

7360829

Assembly, motherboard, 1U

DBO

FRU

  1. See "Servicing the Motherboard Assembly (FRU)" in Oracle Exadata X8-2 Database Server Service Manual at http://docs.oracle.com/cd/E93359_01/html/E93386/gqvfa.html#scrolltoc

  2. Press F2 after restarting the server.

  3. Set the boot order.

7331100

Assembly, riser, 2-slot, 1U

DBO

FRU

See "Servicing PCIe Risers (CRU)" in Oracle Exadata X8-2 Database Server Service Manual at http://docs.oracle.com/cd/E93359_01/html/E93386/gqvft.html#scrolltoc

7331142

Assembly, Front LED indicator module

DBO

FRU

See "Servicing the Front LED Indicator Module (FRU)" in Oracle Exadata X8-2 Database Server Service Manual at http://docs.oracle.com/cd/E93359_01/html/E93386/gqvok.html#scrolltoc
