16.1 Recovery Appliance RA26 Rack Layout

The Figure 16-1 figure shows the rack configuration and the sequence for populating the rack from minimum to the maximum (full) rack configuration. The "RA26 HC (number)" is the insertion sequence when expanding storage from the minimum RA26 HC (3) to full RA26 HC (17).

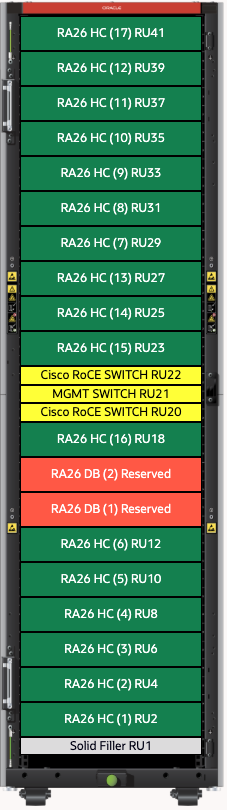

Figure 16-1 RA26 Rack Population
