1 Introduction to Monitoring Exadata Cloud Service

Oracle Enterprise Manager Cloud Control provides a complete cloud lifecycle management solution for Oracle Database Exadata Cloud Service and Oracle Database Exadata Cloud at Customer, collectively Exadata Cloud Service.

Note:

To monitor Oracle Exatadata Database Machine using Oracle Enterprise Manager Cloud Control, see Oracle Exadata Database Machine Getting Started Guide.

Overview and Architecture

Oracle Enterprise Manager Cloud Control provides an integrated monitoring solution for the various layers of Exadata Cloud Service. The end users have access to select components of the service such as the databases, hosts, and ASM. The hardware components like physical servers and network interfaces are monitored and managed by Oracle.

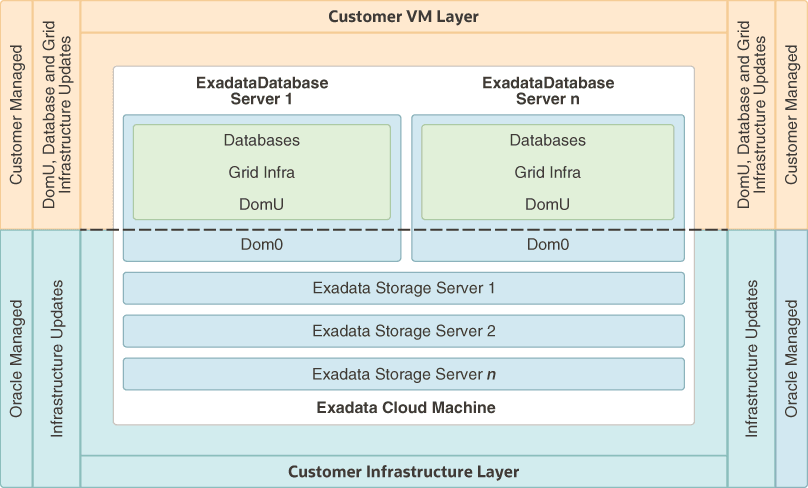

The following diagram shows the various components of Exadata Cloud Service, and their access control and management:


The architecture diagram of the Exadata Cloud Service

Oracle Enterprise Manager Cloud Control discovers Exadata Cloud Service as a single target and automatically identifies and organizes all its dependent components. Using Oracle Enterprise Manager Cloud Control you can then:

  • Monitor and manage all Exadata, Exadata Cloud systems along with any other targets, from a single interface
  • Visualize storage and compute data
  • View performance metrics of your Exadata components

Features

Oracle Enterprise Manager Cloud Control for Oracle Exadata Cloud includes the following features:

Enterprise Manager target for Exadata Cloud

  • Automatically identifies and organizes related targets
  • Provides a high level integration point for Enterprise Manager framework features such as incident rules, groups, notifications, and monitoring templates

Improved Performance Monitoring

  • Adds Exadata Storage Server and Exadata Storage Grid targets.
  • Offers visualization of storage and compute performance for Oracle Exadata Cloud
  • Enables use of the same Maximum Availability Architecture (MAA) Key performance Indicators (KPI) developed for Oracle Exadata Database Machine

Scripted CLI-based discovery

  • Scripts the discovery of Oracle Exadata Cloud, by combing the existing hosts, cluster, ASM, Database and related targets as well as adding the storage server targets

Provides a single pane of glass for Oracle Exadata Database Machine and Oracle Exadata Cloud

  • Monitors and manages Oracle Exadata Database Machine and Oracle Exadata Cloud systems through a common Exadata target menu
  • Exadata Cloud Target provides consistent Enterprise Manager experience across both Exadata Cloud Service and Exadata Cloud at Customer by means of a single target type

Visualization

  • Visualize the database and related targets assosiated with each Oracle Database Exadata Cloud Service and Oracle Database Exadata Cloud at Customer

Supported Operating Systems

The following operating systems (where OMS and agent is installed on) are supported by the Oracle Exadata plug-in 13.5.1:

  • Management Server plug-in (all OMS-certified platforms):

    • IBM AIX on POWER Systems (64-bit)

    • HP-UX Itanium

    • Linux x86 and x86-64

    • Microsoft Windows x64 (64-bit)

    • Oracle Solaris on SPARC (64-bit)

    • Oracle Solaris on x86-64 (64-bit)

  • Agent Plug-ins for Exadata and Supercluster
    • Exadata Plug-in + SI plug-in + VI Plug-in for Exadata
    • Exadata Plug-in + SI Plug-in for SSC
    • Linux x86-64

    • Oracle Solaris on x86-64 (64-bit)

    • Oracle Solaris on SPARC (64-bit)
