Exadata Database Machine Topology

Database Machine management simplifies monitoring and managing tasks by integrating all hardware and software components into one entity. You do not need to monitor each target individually, but instead you can view the whole Exadata Database Machine as a single target. You can view all critical issues in the system, monitor performance, and drill down to individual targets from the Database Machine target home page.

The following topology topics are presented in this section:

Use the Topology page of Database Machine to view the topology of the system by Cluster or by Database. Clusters are a complete software system starting with a RAC database, the underlying ASM, and CRS. Clusters define one logical entity that is interconnected. The Database Machine could include several clusters, one cluster, or could just be a number of individual databases. While hardware racks define the hardware topology of the Database Machine, clusters define the logical or system topology of the Database Machine.

You can view the Topology by Cluster or Database. Click an element in the Topology and view alert data associated with the element.

You can monitor all components of the Database Machine. Database Machine monitors all subcomponent targets, whether hardware or software. This includes the database, ASM, CRS, hosts, Exadata and the InfiniBand network.

To view the topology of an existing Database Machine target:

From the Targets menu, select Exadata.

Enterprise Manager displays the Oracle Exadata Database Machines and Cloud Services page showing all the available Exadata targets. From this page, you can add hardware components (such as Oracle Exadata Storage Servers, InfiniBand switches, Ethernet Switches, KVM switches, PDU, and compute node ILOM) in the Oracle Database Machine as managed targets.
From the Oracle Exadata Database Machines and Cloud Services page, select the Oracle Database Machine target whose topology you want to view.
From the Oracle Database Machine Home page, click the Database Machine menu, then select Members and then Topology from the drop-down menu.

Enterprise Manager Cloud Control displays the Configuration Topology page.

Drilling Down to Individual Targets of Database Machine

You can drill down immediately to a subcomponent target of the Database Machine (such as RAC, a database instance, or an Exadata Storage Server).

To drill down to individual targets:

From the Targets menu, select Exadata.

Enterprise Manager displays the Oracle Exadata Database Machines and Cloud Services page showing all the available Exadata targets.
From the Oracle Exadata Database Machines and Cloud Services page, select the Oracle Database Machine target whose components you want to view.

Enterprise Manager displays the Oracle Database Machine Home page showing an Overview, Schematic, and Incident section for the selected Database Machine.
From the Oracle Database Machine Home page, use the left navigation panel to expand the list of available targets that comprise the Database Machine.
Click the target to which you want to drill down.

Viewing Virtual Exadata Targets

Once discovered, the Exadata plug-in shows the virtual machines monitored by Enterprise Manager Cloud Control:

Note:

The schematic diagram in the Database Machine home page is based on the content of the databasemachine.xml file found during discovery. The virtual platforms (Dom0) are displayed as compute nodes in the rack in the schematic diagram.

The Database Machine Software topology diagram will not display the physical Oracle Server, virtual Oracle Server targets (DomU), and Virtual Platform target (Dom0) targets. However, it will continue to show the host targets which are running in DomU.

The Software tab for the Exadata Database Machine target shows all clusters, ASM, and Database targets in the whole physical Database Machine grouped by clusters:

Viewing Critical Hardware Information for the Database Machine

You can view critical metrics for all the hardware subcomponents of the Database Machine such as DB hosts, Exadata Storage Servers, InfiniBand switches and so on. These metrics vary for different component targets. For example, database server nodes and Exadata servers include the CPU, I/O, and storage metrics.

To view critical hardware-centric information for the entire Database machine:

From the Targets menu, select Exadata.

Enterprise Manager displays the Oracle Exadata Database Machines and Cloud Services page showing all the available Exadata targets.
From the Oracle Exadata Database Machines and Cloud Services page, select the Oracle Database Machine target whose hardware information you want to view.
From the Oracle Database Machine Home page, view the hardware schematic of the Database Machine.

Viewing Exadata Resource Utilization

Access the utilization graphs of compute and storage resources for cluster placement, database placement, database CPU utilization, database memory utilization, database I/O utilization, and disk group space allocation. From the Oracle Exadata Database Machine home page, select the type of resources and view the graphs accordingly.

Compute Resources

From Oracle Exadata Database Machine home page, click the Database Machine drop down > select Resource Utilization > click Compute Resources.

The following compute resource allocation graphs are available in virtualized Exadata. These graphs are dependent on the virtual machine hierarchy and metric data from the VI plug-in:

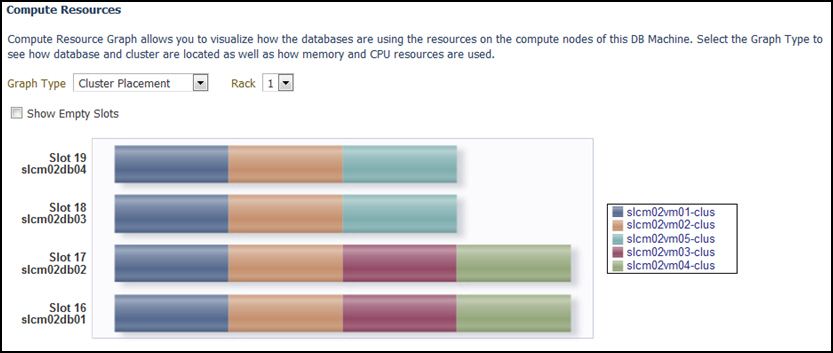

Cluster Placement

This graph shows the ClusterWare cluster placement on physical servers in a particular Exadata Database Machine rack. Since this is a placement graph, the widths of the data series reflect the number of clusters on the physical server that has the most number of clusters.

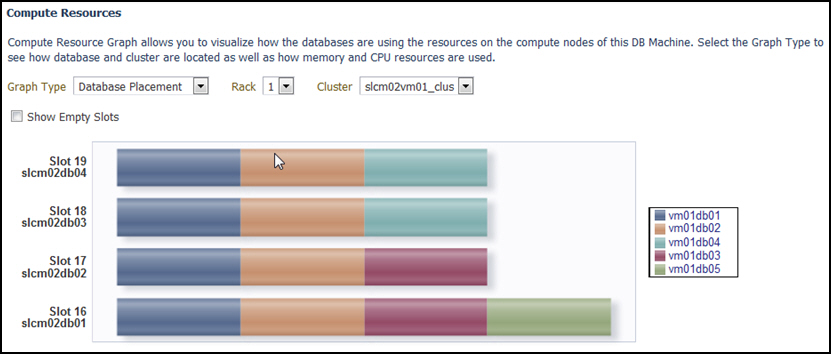

Database Placement

This graph shows the database placement on physical servers in a particular Exadata Database Machine rack for a particular DB cluster. Since this is a placement graph, the widths of the data series reflect the number of DB on the physical server that has the most number of databases for a particular DB cluster.

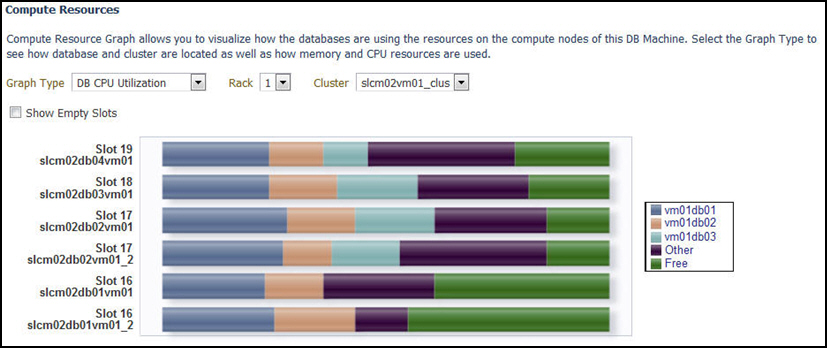

Database CPU Utilization

This graph shows the database CPU utilization per database per VM host for a particular DB cluster.

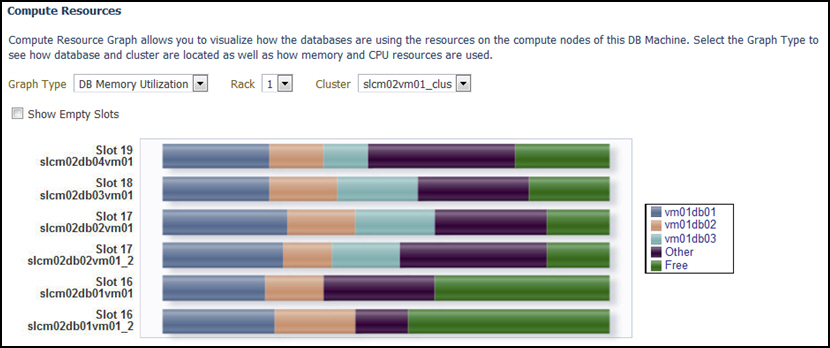

Database Memory Utilization

This graph shows the database memory utilization per database per VM host for a particular DB cluster.

Storage Resources

From Oracle Exadata Database Machine home page, click the Database Machine drop down > select Resource Utilization > click Storage Resources.

The following storage resource allocation graphs are available in virtualized Exadata for Exadata Storage Servers and Exadata Storage Server Grid:

Exadata Storage Servers

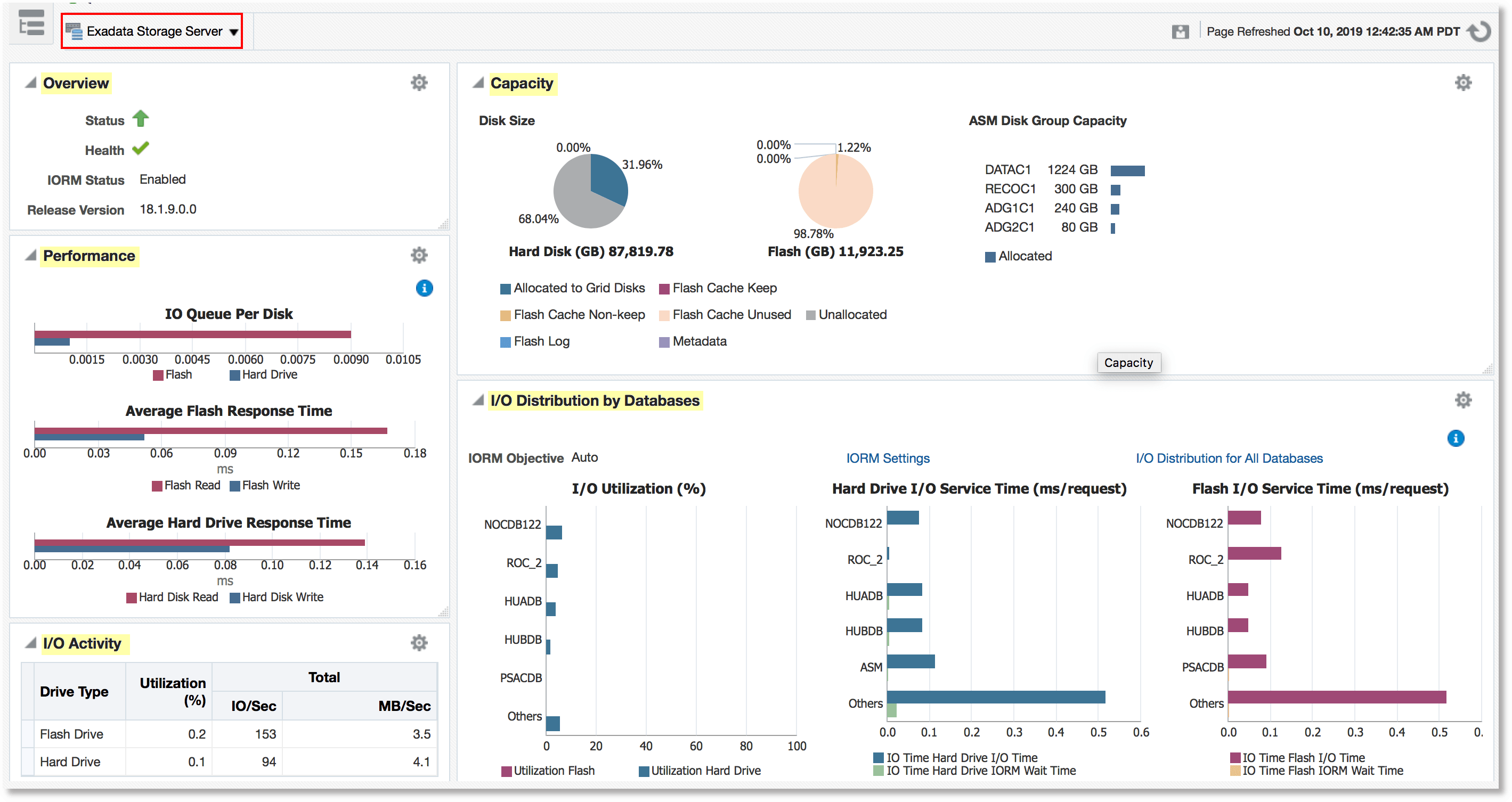

Exadata Storage Server home page has the following sections that provide graphs and detailed information about status and performance of the target:

Overview: Provides details of Exadata Storage Server availability status, health details, I/O Resource Manager status, and server version
Performance: Provides hard drive and flash response time to IO requests, number of I/O’s in the queue averaged per disk type.
Capacity: Provides capacity details of different storage types available on the storage server
- Total available capacity of Hard drive and Flash
- Flash Cache space information about keep objects, non-keep objects, unused space. This section also provides information about the size of the flash used for logging.
- Capacity information for ASM disk groups
I/O Activity: Provides performance information like Utilization, Latency, and Throughput for that available storage drives. This section also provides Flash Cache read and write, Smart Scan I/O throughput, InfiniBand Network throughput, Smart Log Efficiency, and IORM Boost.
I/O Distribution by Database: Displays information about databases that are ranked top 5 in I/O Utilization for the available storage drives. other is an aggregation of remaining databases. This section also displays the Hard Drive I/O Service Time and Flash I/O Service Time for top 5 databases and other databases.
Incidents and Problems: Lists alerts for the target

Database I/O Utilization

The Database I/O utilization graph shows the database I/O utilization per Exadata Storage Server of this Exadata Database Machine.

To access the Database I/O Utilization graph, from the Exadata Storage Servers home page, go to the section I/O Distribution by Databases > click I/O Distribution for All Databases.

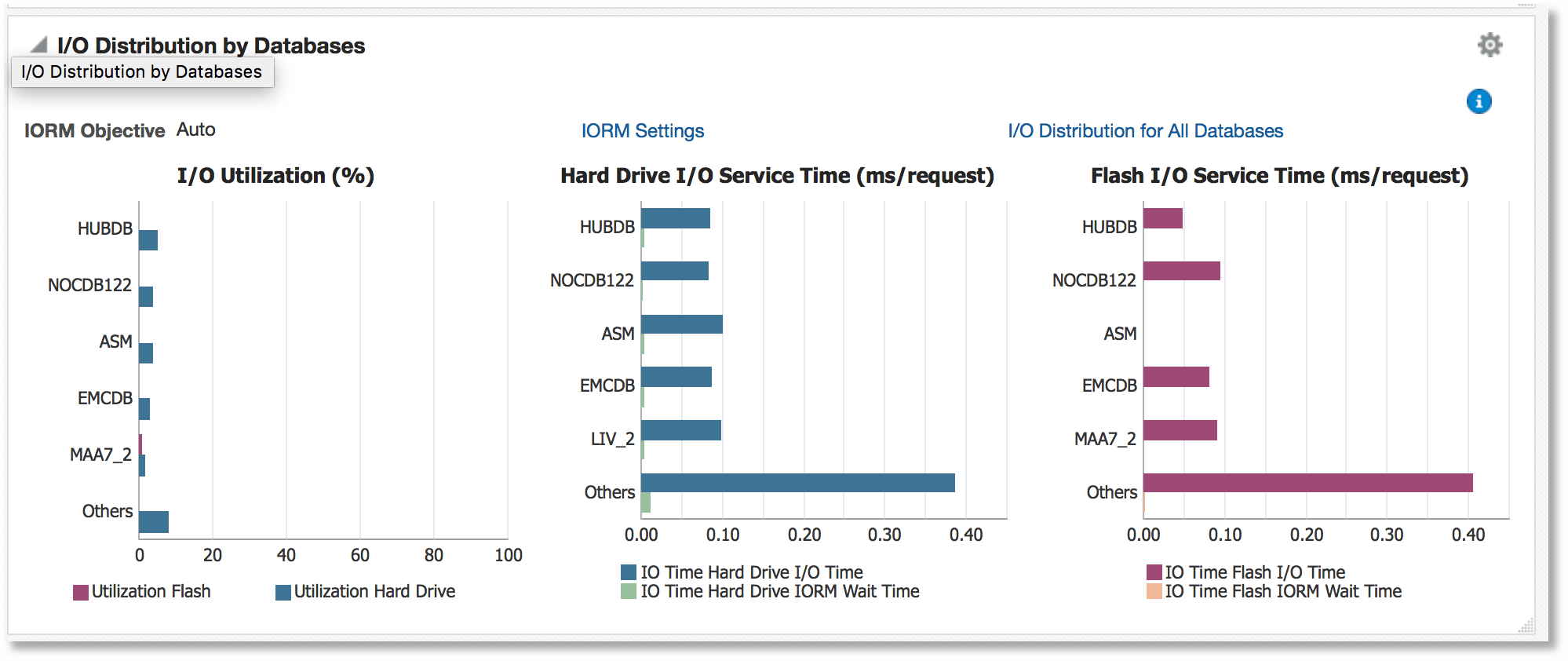

I/O Distribution by Databases:

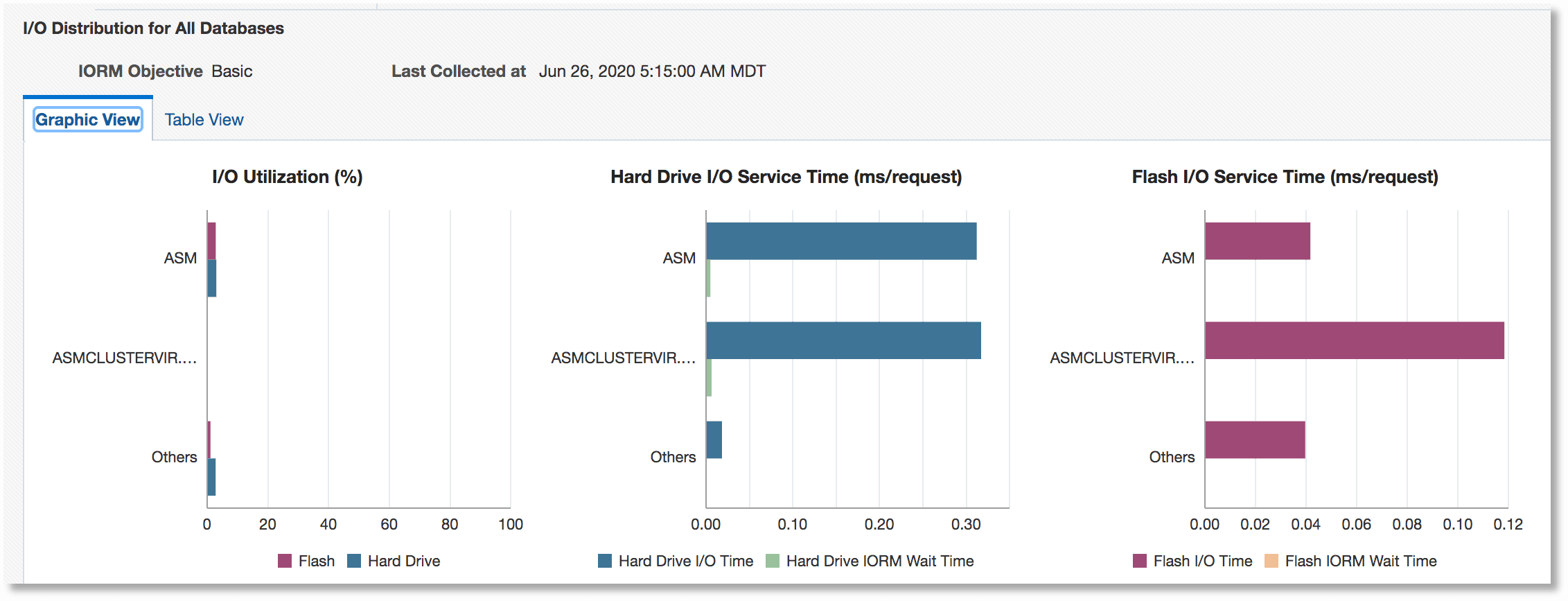

I/O Distribution for All Databases - Graphic View:

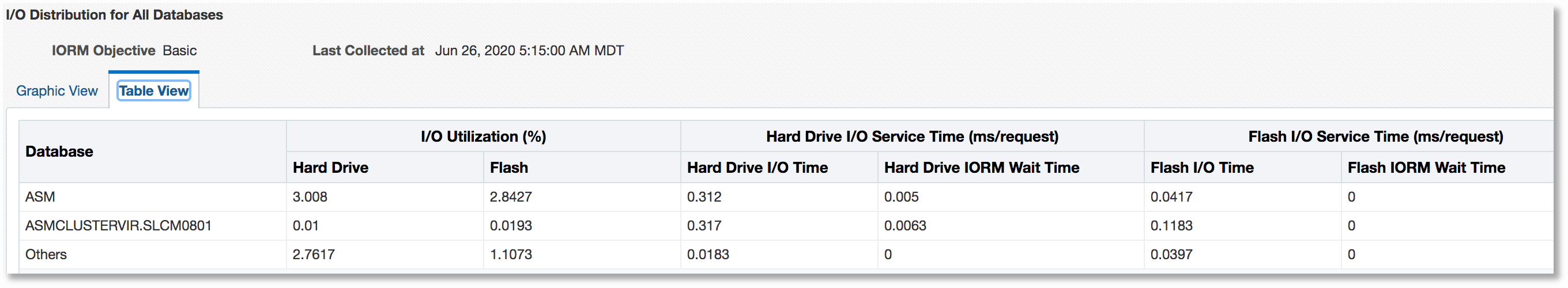

I/O Distribution for All Databases - Tabular View:

Workload Distribution by Databases

The Workload Distribution by Databases graphs show database workload performance on the hard drive and flash and the flash cache space usage.

To access the Workload Distribution by Databases graphs, from the Exadata Storage Servers home page, go to the section I/O Distribution by Databases > click IORM Settings.

To access the Flash Cache Space Usage graph, click the Flash Cache Space Usage tab.

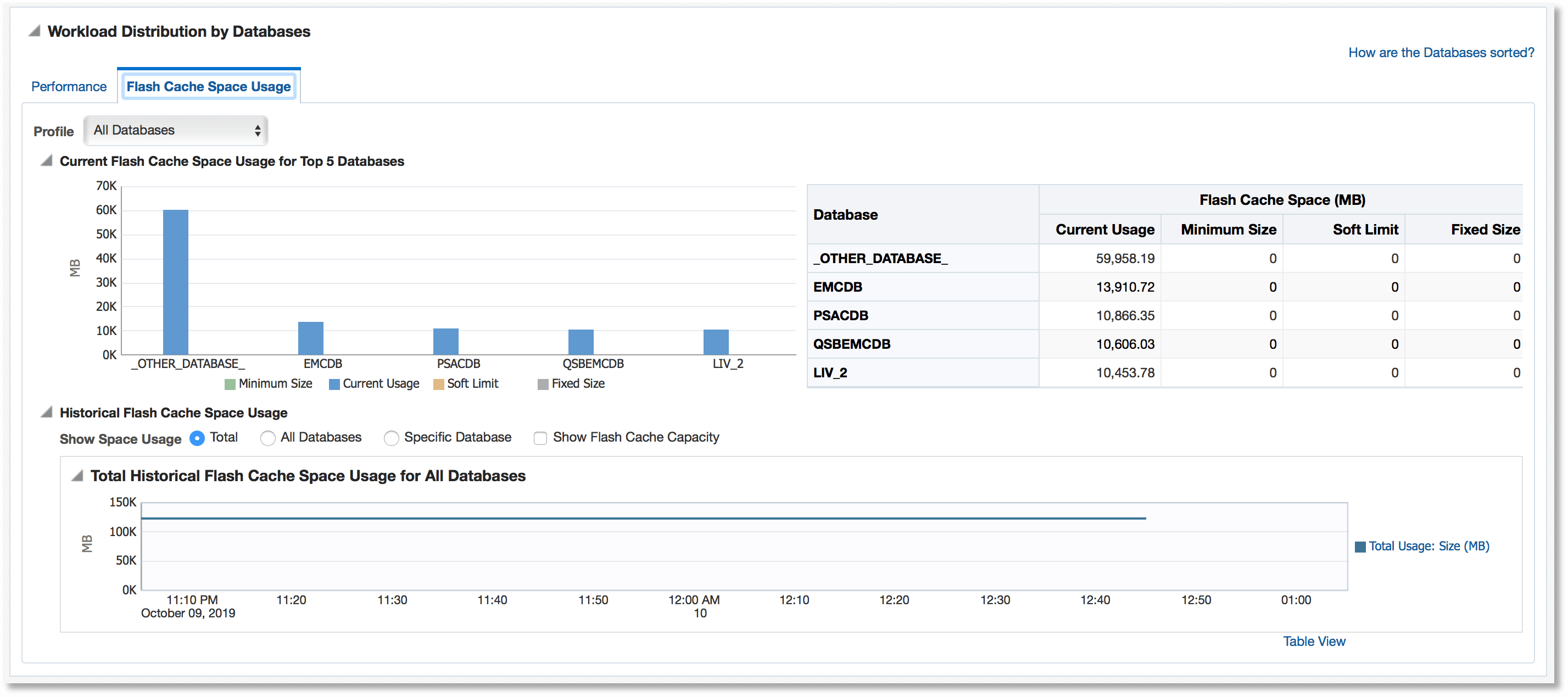

Flash Cache Space Usage:

To view the graphs that correspond to the performance of hard drives and Flash, click the Performance tab.

This section provides database workload performance on Hard Drive and Flash. You can filter databases based on their workload performance rankings. You can view the graphs for the filters like top 5 databases, rank based pagination, or a specific database. You can drill down from database workload performance monitoring to pluggable database and consumer groups. Following are some of the example graphs:

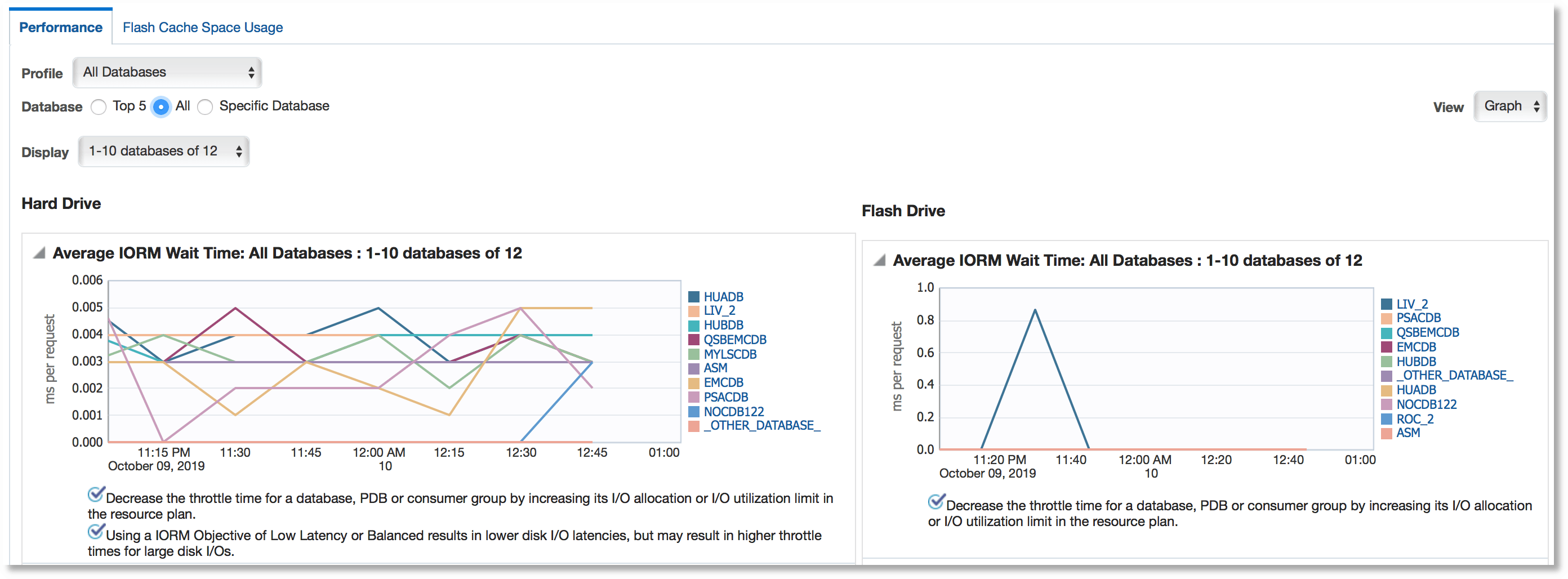

IORM Wait Time for All Databases (Hard Drive and Flash Drive):

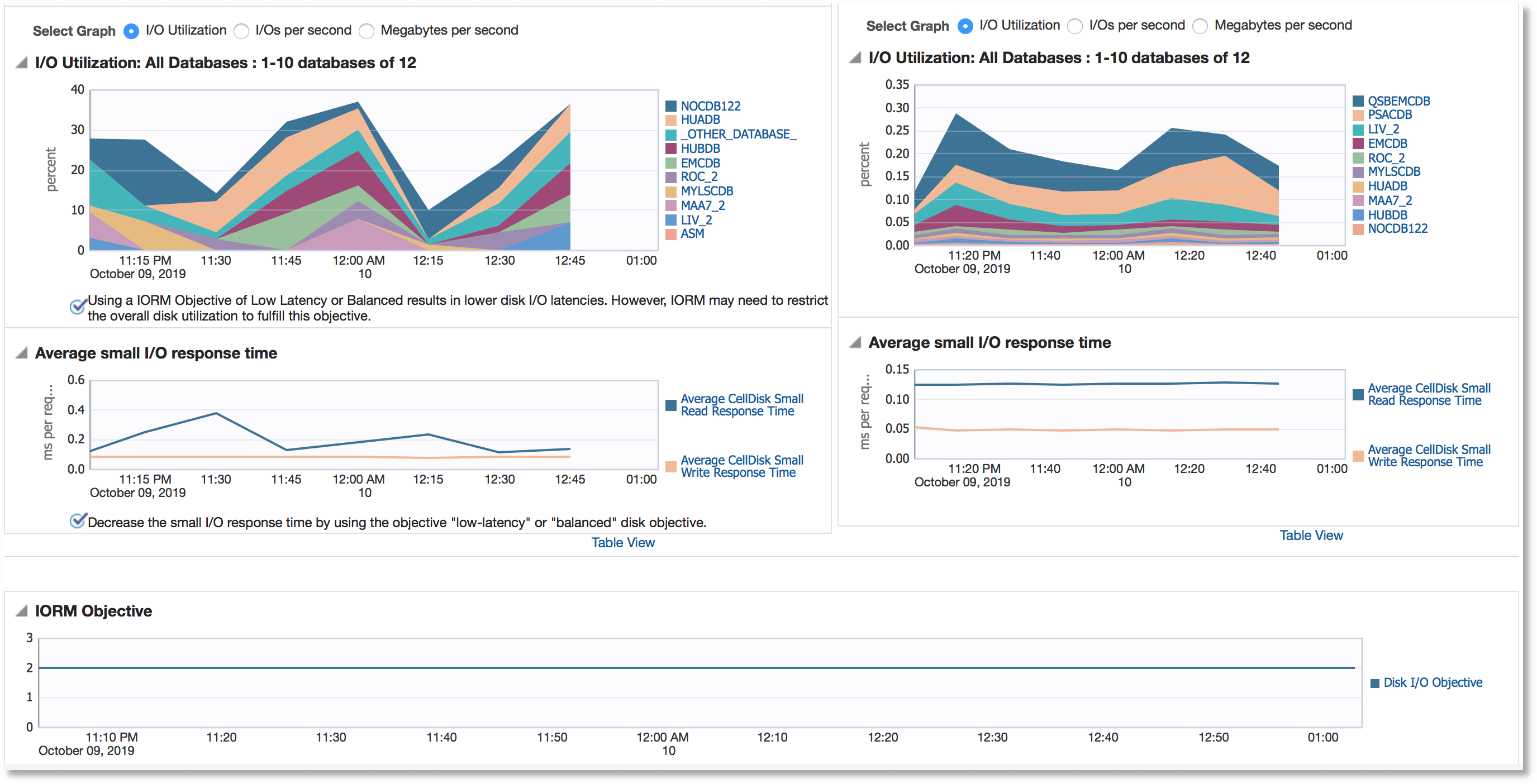

I/O Utilization and Average small I/O response time for All Databases (Hard Drive and Flash Drive):

Exadata Storage Server Grid

Exadata Storage Server Grid home page displays the aggregated status and performance data for all the Exadata Storage Servers. The sections are similar to those that are listed for individual Exadata Storage Server targets.

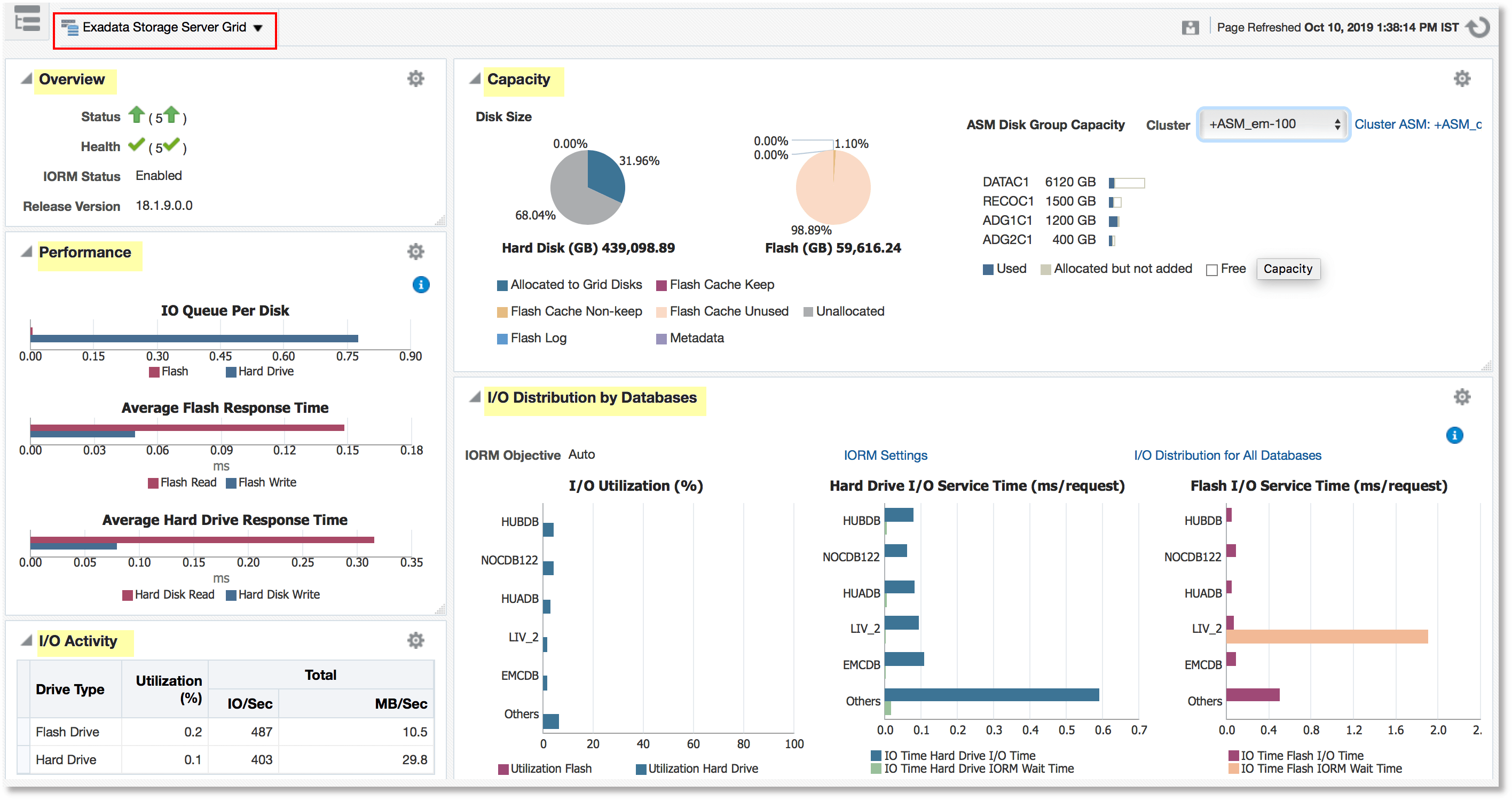

An example Exadata Storage Server Grid home page:

In the Capacity section of the Exadata Storage Server Grid home page, the ASM disk group capacity is displayed for the selected cluster.

You can view the I/O Utilization graph and Workload Distribution of Databases graph by clicking on the links I/O Distribution for All Databases and IORM Settings in the section I/O Distribution by Databases. The graphs that are displayed are the aggregated information from the Exadata Storage Server member targets of the grid. For details of the graphs, see Database I/O Utilization and Workload Distribution by Databases.

Viewing Database Machine Alerts

You can view alerts on the Database Machine and drill down to details about each alert. These alerts may be performance/configuration metrics or hardware faults.

To view Database Machine alerts:

From the Targets menu, select Exadata.

Enterprise Manager displays the Oracle Exadata Database Machines and Cloud Services page showing all the available Exadata targets.
From the Oracle Exadata Database Machines and Cloud Services page, select the Oracle Database Machine target whose machine configuration information you want to view.

Enterprise Manager displays the Oracle Database Machine home page on which you can see all alerts associated with the current DB Machine.

Viewing Metrics

Metrics can be viewed at the component level of Exadata Database Machine. To view the Exadata Storage Server metrics:

Navigate to the Oracle Exadata Storage Server home page by choosing the Oracle Exadata Storage Server target type from the All Targets page of Enterprise Manager.

Enterprise Manager displays the Exadata Storage Server Home page for the target you selected.
From the Exadata Storage Server drop-down menu, choose Monitoring and then All Metrics.

The All Metrics page allows you to view a wide variety of Exadata metrics. For a complete description of the Exadata metrics available, see the Oracle® Enterprise Manager Oracle Database and Database-Related Metric Reference Manual.

Adding Exadata Database Machine Components Manually

You can add Exadata Database Machine components manually using the following steps:

From the Setup menu, select Add Target, then select Add Targets Manually.

Enterprise Manager displays the Add Targets Manually page where you can choose the type of target you want to add.
From the Add Targets Manually section, choose Add Using Guided Process.
From the Add Using Guided Process box, choose Oracle Exadata Database Machine and click Add.
From the Oracle Exadata Database Machine Discovery page, click on the option Discover newly added hardware components in an existing Database machine as targets. From the Select a Database Machine drop down list, select the Database Machine that has the new components and then click Discover Targets.
Choose the monitoring agent using the search option.
Provide the proper Infiniband Switch Credentials and click Next.
A prerequisite check is run. Click Next.
A list of available components for this Database Machine will be displayed. Select the new component(s) that need to be added and click Next.
Select the monitoring agent and backup monitoring agent for the new component(s).
On the Credentials page, set the credentials for the new components and click Next.
On the Review page, review all of the information and then click Submit.

Removing an Exadata Database Machine Target

To remove an Exadata Database Machine target, you can

Remove all members of the Oracle Exadata Database Machine. If the member target is shared with another Database Machine target, then the member target will not be deleted and will continue to be monitored. In other words, the member targets will be deleted if they are associated with only this Database Machine target.
Remove only system members of the Oracle Exadata Database Machine. The other member targets will not be deleted and will continue to be monitored. They can be associated to another Oracle Exadata Database Machine, if required.

Note:

You must remove the SNMP configuration on the InfiniBand switch, ILOM, Cisco switches (RoCE and Admin), and PDU manually if you remove these targets from Enterprise Manager.

SNMP unsubscription is performed automatically for the targets like Oracle Exadata Storage Servers and Oracle Exadata Compute Nodes based on the options selected.

To remove an Exadata Database Machine target:

From the Database Machine target menu, select Target Setup, then select Remove Target.
On the Remove page, select whether to remove all members or to remove only the system members.

If you choose to remove all members, then you also have an additional option to unsubscribe SNMP subscriptions for member Oracle Exadata Storage Servers and Oracle Exadata Compute Nodes. Specify the appropriate user credentials to unsubscribe the SNMP subscriptions.
Click Yes to initiate the remove job.

Note:

Host targets for the compute nodes and any targets that are also member targets of another Oracle Exadata Database Machine target will not be removed. System and non-system targets include:

System Targets:

Oracle Exadata Database Machine
Oracle Infiniband Fabric (Enterprise Manager 13c target)
Oracle Exadata Storage Server Grid

Non-System Targets:

Oracle Exadata Storage Server
Oracle Exadata KVM
Systems Infrastructure Switch
Systems Infrastructure PDU
Systems Infrastructure Rack
Oracle Infiniband Switch (Enterprise Manager 13c target)
Oracle Engineered System Cisco Switch (Enterprise Manager 13c target)
Oracle Engineered System PDU (Enterprise Manager 13c target)
Oracle Engineered System ILOM Server (Enterprise Manager 13c target)

Removing a Component of a Database Machine Target

If you need to remove a component of an Exadata Database Machine target, you can perform this task within Enterprise Manager Cloud Control 13c:

From the Database Machine home page's Target Navigation pane, right-click on the target item you wish to remove.
Select Target Setup, then Remove Target.
A warning page will display to confirm the target deletion. Click Yes to continue.

Updating the Exadata Database Machine Schematic Diagram

The schematic diagram illustrates the placement and status of the components of the Exadata Database Machine.

In some cases, the Exadata Database Machine schematic diagram is not displaying the components correctly. For example:

You may have successfully discovered the Exadata Database Machine, but some components are not displaying correctly in the Exadata schematic diagram. Instead, an empty slot is shown in place of the component.
The Exadata Database Machine schematic diagram shows the status of the component as "red/down" where as individual components would really show that they are up and running fine.
You want to re-locate or rearrange the order of the components in the slots of Exadata Database Machine schematic diagram.

To accomplish these tasks, you will need to drop a component from the schematic diagram and add the correct one:

Drop a Component from the Exadata Database Machine Schematic Diagram

To drop a component from the Exadata Database Machine schematic diagram:

From the Targets menu, select Exadata.
From the Oracle Exadata Database Machines and Cloud Services page, select the Oracle Database Machine target that you want to modify.

Enterprise Manager displays the Oracle Exadata Database Machine home page of the selected Database Machine.
On the Exadata Database Machine schematic diagram right click on the component you wish to remove, click Remove Target.
Ensure you have selected the correct component in pop-up dialog box and click OK.
The Exadata Database Machine schematic diagram will refresh to show the empty slot.

Add Components to the Exadata Database Machine Schematic Diagram

To add a component from the Exadata Database Machine schematic diagram:

From the Targets menu, select Exadata.
From the Oracle Exadata Database Machines and Cloud Services page, select the Oracle Database Machine target you want to modify.

Enterprise Manager displays the Oracle Database Machine home page of the selected Database Machine.
On the Exadata Database Machine schematic diagram, select the Photo-Realistic view option.
Right-click on an empty slot of the photo-realistic diagram to display option the Place Target. A pop-up window Place Target into Rack is displayed. In the pop-up window, select the target to place it in the rack.
Once you see the component added in the slot you specify, click Done on the Exadata Database Machine schematic diagram.
