Attach the Slide-Rails

Use this procedure to attach slide-rail assemblies to the rack.

  1. Orient the slide-rail assembly so that the ball-bearing track is forward and locked in place.

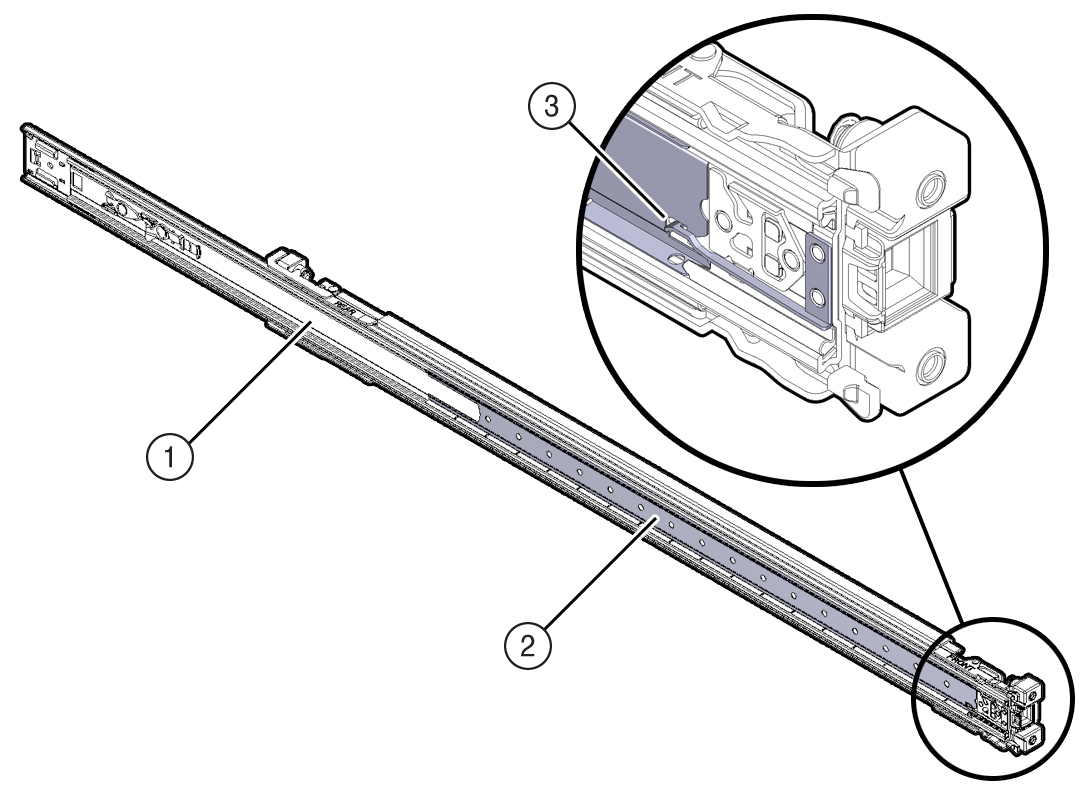

    Figure showing the slide-rail being oriented with the ball-bearing track locked into place.
    Call Out Description

    1

    Slide-rail

    2

    Ball-bearing track

    3

    Ball-bearing locking mechanism
  2. Starting with either the left or right side of the rack, align the back of the slide-rail assembly against the inside of the back rack rail, and push until the assembly locks into place with an audible click.

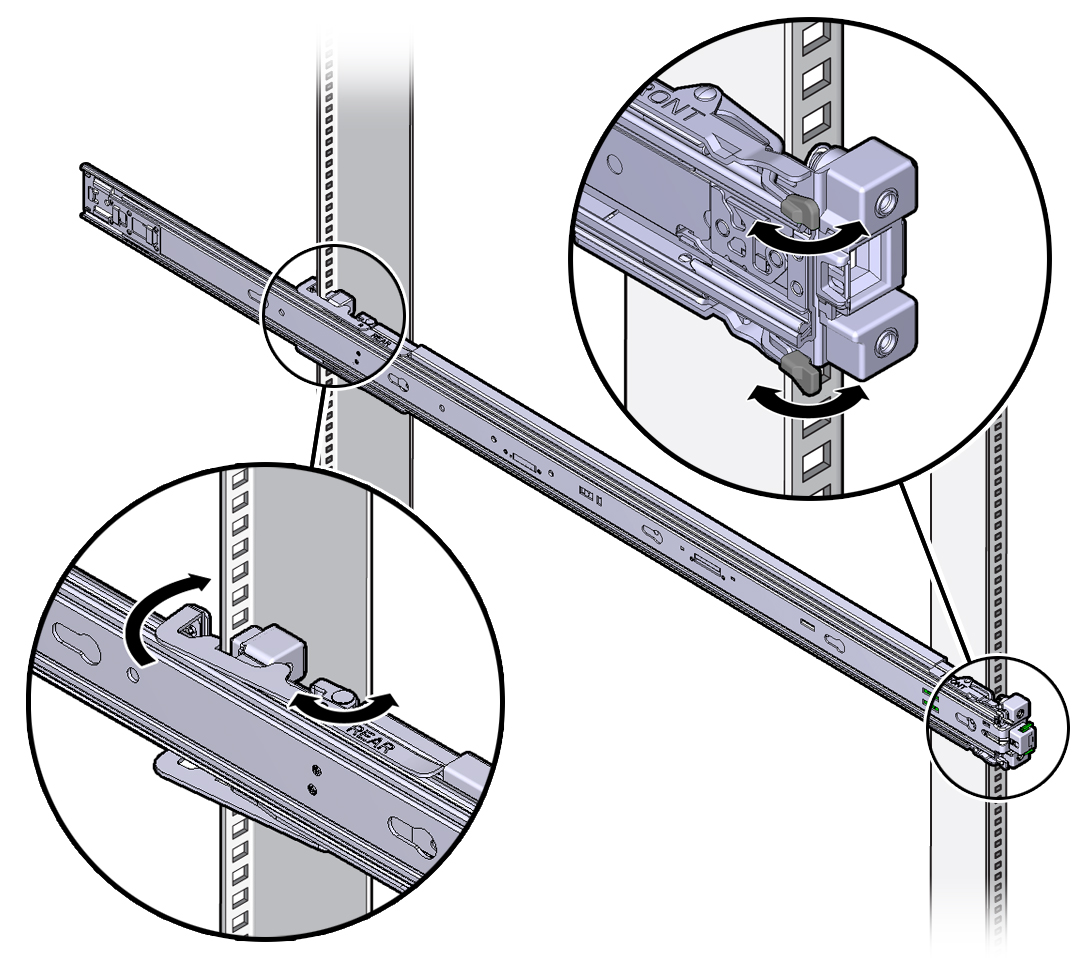

    Figure showing the Slide-rail assembly being aligned with the rack.
  3. Align the front of the slide-rail assembly against the outside of the front rack rail, and push until the assembly locks into place with an audible click.
  4. Repeat Step 1 through Step 3 to attach the slide-rail assembly to the other side of the rack.
