Install the Acme Packet 6400 into the Slide-Rail Assemblies

Use this procedure to install the Acme Packet 6400 chassis with mounting brackets into the slide-rail assemblies that are mounted to the rack.

Caution:

Personal Injury or Equipment Damage: This procedure requires a minimum of two people because of the weight of the Acme Packet 6400. Attempting this procedure alone could result in equipment damage or personal injury.

Caution:

Personal Injury or Equipment Damage: Always load equipment into a rack from the bottom up so that the rack does not become top-heavy and tip over. Extend the rack anti-tilt bar to prevent the rack from tipping during equipment installation.

1. Push the slide-rails as far as possible into the slide-rail assemblies in the rack.
2. Position the Acme Packet 6400 so that the back ends of the mounting brackets are aligned with the slide-rail assemblies that are mounted in the rack.
3. Insert the mounting brackets into the slide-rails, and then push the Acme Packet 6400 into the rack until the mounting brackets are flush with the slide-rail stops (approximately 30 cm or 12 inches).

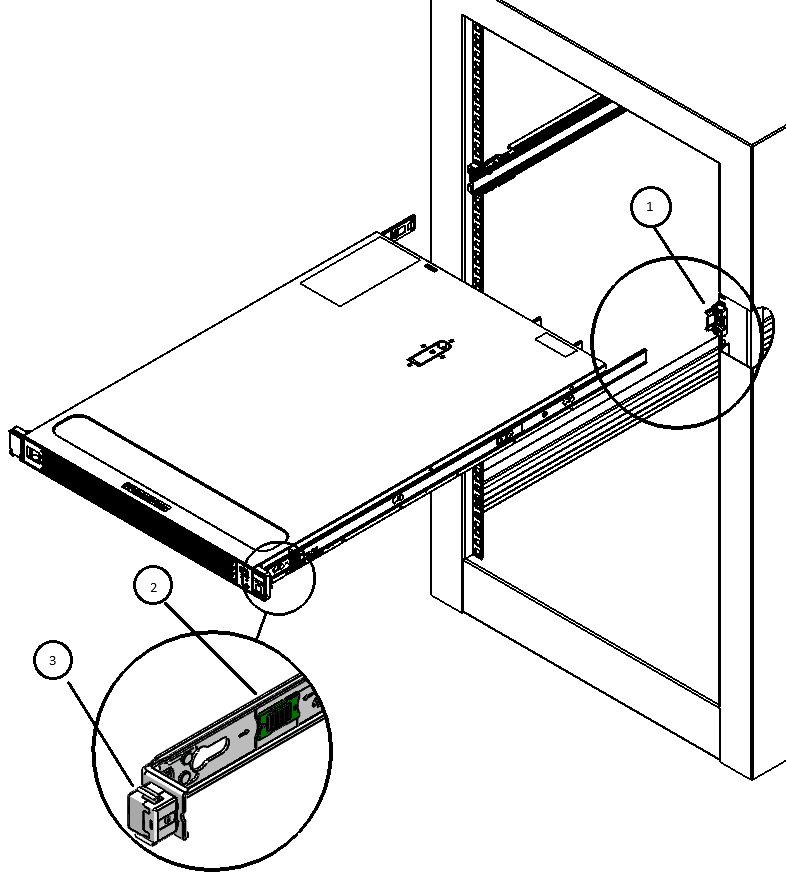

   Call Out	Description
   1	Inserting mounting bracket into slide-rail
   2	Slide-rail release button
   3	Slide-rail lock

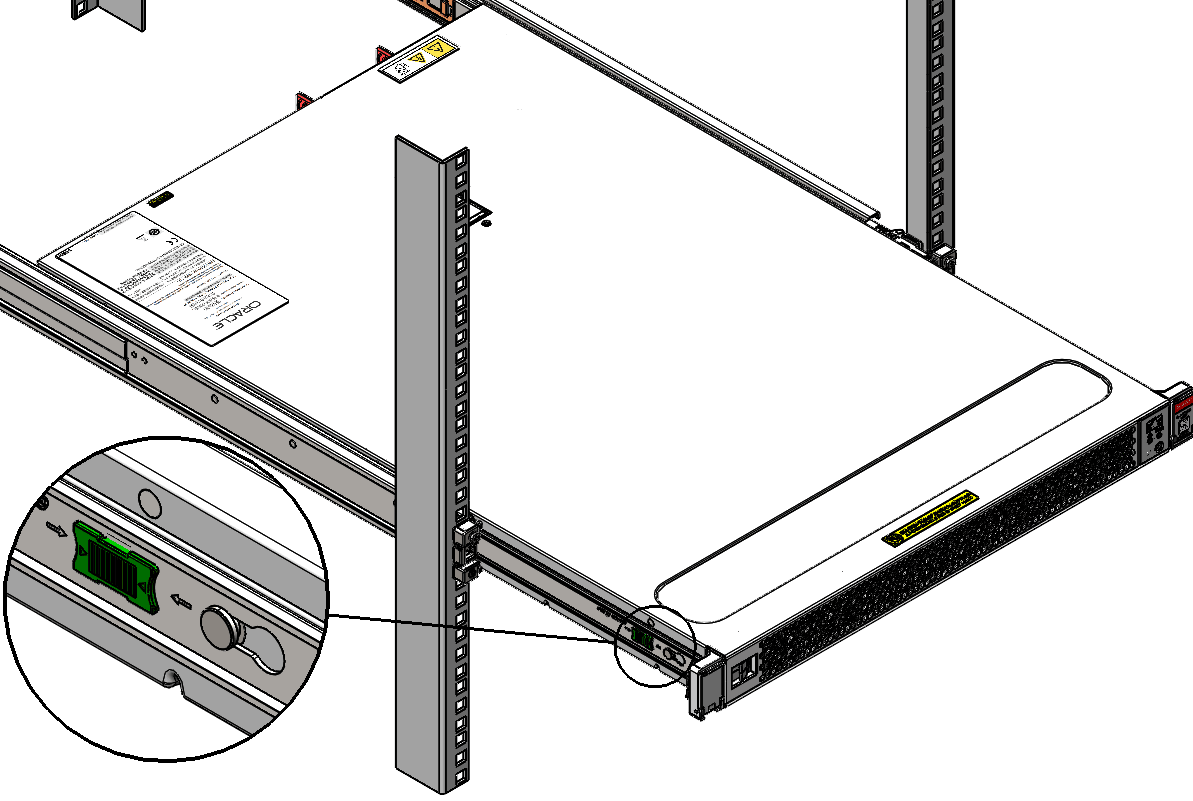

4. Simultaneously push and hold the green slide-rail release buttons on each mounting bracket while you push the Acme Packet 6400 into the rack. Continue pushing the Acme Packet 6400 into the rack until the slide-rail locks (on the front of the mounting brackets) engage the slide-rail assemblies with an audible click.




   Caution:

   Before you install the optional cable management arm verify that the Acme Packet 6400 is securely mounted in the rack and that the slide-rail locks are engaged with the mounting brackets.

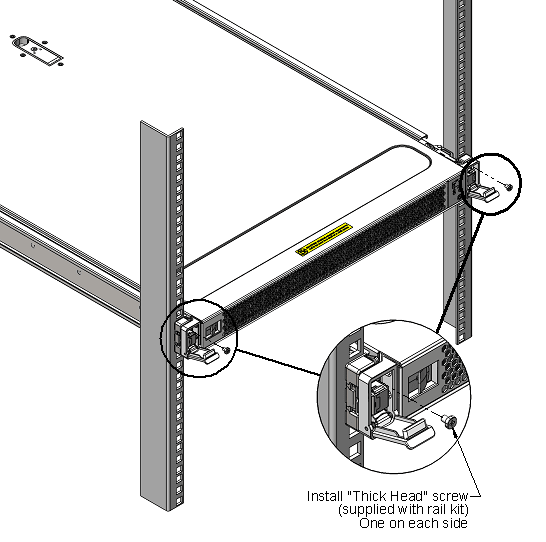

   If NEBS compliance (earthquake) is required, use the thick head screws to secure the Acme Packet 6400.
