6 NSSF Metrics, KPIs, and Alerts

This chapter includes information about Metrics, KPIs, and Alerts for Oracle Communications Cloud Native Core, Network Slice Selection Function.

Note:

The performance and capacity of the NSSF system may vary based on the call model, Feature or Interface configuration, and underlying CNE and hardware environment.

6.1 NSSF Metrics

This section includes information about dimensions, common attributes, and metrics for NSSF.

Dimensions

The following table describes different types of metric dimensions:

Table 6-1 Dimensions

Dimension Description Values
retryCount The attempt number to send a notification. Depends on the helm parameter httpMaxRetries (1, 2...)
ResponseCode HTTP response code. Bad Request, Internal Server Error etc. (HttpStatus.*)
CauseCode It specifies the cause code of an error response. Cause Code of the error response.

For example, "SUBSCRIPTION_NOT_FOUND"
Message Type This specifies the type of NS-Selection query message. INITIAL_REGISTRATION/PDU_SESSION/UE_CONFIG_UPDATE
NFType It specifies the name of the NF Type. For example: Path is /nxxx-yyy/vz/.......

Where XXX(Upper Case) is NFType UNKNOWN if unable to extract NFType from the path.
NFServiceType Name of the Service within the NF. For Eg: Path is /nxxx-yyy/vz/.......

Where nxxx-yyy is NFServiceType UNKNOWN if unable to extract NFServiceType from the path.
Host Specifies IP or FQDN port of ingress gateway. NA
HttpVersion Specifies Http protocol version. HTTP/1.1, HTTP/2.0
Scheme Specifies the Http protocol scheme. HTTP, HTTPS, UNKNOWN
ClientCertIdentity Cerificate Identity of the client. SAN=127.0.0.1,localhost CN=localhost, N/A if data is not available
Route_Path Path predicate or Header predicate that matches the current request. NA
InstanceIdentifier Prefix of the pod configured in helm when there are multiple instances in same deployment. Prefix configured in helm, UNKNOWN
ErrorOriginator Captures the ErrorOriginator. ServiceProducer, Nrf, IngresGW, None
quantile Captures the latency values with ranges as 10ms, 20ms, 40ms, 80ms, 100ms, 200ms, 500ms, 1000ms and 5000ms. Integer values
releaseVersion Indicates the current release version of Ingress or Egress gateway. Picked from helm chart {{ .Chart.Version }}
configVersion Indicates the configuration version that Ingress or gateway is currently maintaining. Value received from config server (1, 2...)
updated Indicates whether the configuration is updated or not. True, False
Direction Indicates the direction of connection established, that is, whether it is incoming or outgoing. ingress, egressOut
AMF Instance Id NF-Id of AMF NA
Subscription- Id Subscription -ID NA
Operation NSAvailability Operation UPDATE/DELETE/SUBSCRIBE/UNSUBSCRIBE
Method HTTP method POST/PUT/PATCH/DELETE/GET/OPTIONS
Status HTTP response code NA
query_type Type of DB read query applypolicy_reg/applypolicy_pdu/evaluate_amfset/evaluate_resolution
ConsumerNFInstanceId NF instance id of the NF service consumer. NA
ConsumerNFType The NF type of the NF service consumer. NRF, UDM, AMF, SMF, AUSF, NEF, PCF, SMSF, NSSF, UDR, LMF, GMLC,5G_EIR, SEPP, UPF, N3IWF, AF, UDSF, BSF, CHF, NWDAF
TargetNFType The NF type of the NF service producer. NRF, UDM, AMF, SMF, AUSF, NEF, PCF, SMSF, NSSF, UDR, LMF, GMLC,5G_EIR, SEPP, UPF, N3IWF, AF, UDSF, BSF, CHF, NWDAF
TargetNFInstanceId NF instance ID of the NF service producer NA
scope NF service name(s) of the NF service producer(s), separated by whitespaces. NA
StatusCode Status code of NRF access token request. Bad Request, Internal Server Error etc. (HttpStatus.*)
issuer NF instance ID of NRF NA
subject NF instance ID of service consumer NA
reason The reason contains the human readable message for oauth validation failure. NA
ConfigurationType Determines the type of configuration in place for OAuth Client in Egress Gateway. If nrfClientQueryEnabled Helm parameter in oauthClient Helm configurations at Egress Gateway is false then the ConfigurationType is STATIC, else DYNAMIC. STATIC, DYNAMIC
id Determines the keyid or instance id that is configured via persistent configuration when oauth is enabled. NA
certificateName Determines the certificate name inside a specific secret that is configured via persistent configuration when oauth is enabled. NA
secretName Determines the secret name that is configured via persistent configuration when oauth is enabled NA
Source Determines if the configuration is done by the operator or fetched from AMF. OperatorConfig/LearnedConfigAMF
ERRORTYPE Determines the type of error. DB_ERROR/MISSING_CONFIGURATION/UNKNOWN

Common Attributes

The following table includes information about common attributes for NSSF.

Table 6-2 Common Attributes

Attribute Description
application The name of the application that the microservice is a part of.
eng_version The engineering version of the application.
microservice The name of the microservice.
namespace The namespace in which microservice is running.
node The name of the worker node that the microservice is running on.

6.1.1 NSSF Success Metrics

This section provides details about the NSSF success metrics.

Table 6-3 ocnssf_nsselection_rx

Field Details
Description Count of request messages received by NSSF for the Nnssf_NSSelection service.
Type Counter
Service Operation NSSelection
Dimension
  • AMF Instance Id
  • Message Type
  • Method

Table 6-4 ocnssf_nsselection_success_tx

Field Details
Description Count of success response messages sent by NSSF for requests for the Nnssf_NSSelection service.
Type Counter
Service Operation NSSelection
Dimension
  • AMF Instance Id
  • Message Type
  • Method

Table 6-5 ocnssf_nsselection_policy_match

Field Details
Description Count of policy matches found during processing of request messages for the Nnssf_NSSelection service.
Type Counter
Service Operation NSSelection
Dimension
  • AMF Instance Id
  • Message Type
  • Policy Rule Name

Table 6-6 ocnssf_nsselection_time_match

Field Details
Description Count of time profile matches found during processing of request messages for the Nnssf_NSSelection service.
Type Counter
Service Operation NSSelection
Dimension
  • AMF Instance Id
  • Message Type
  • Time Profile Name

Table 6-7 ocnssf_nsselection_nsi_selected

Field Details
Description Count of NRF discoveries performed during processing of request messages for the Nnssf_NSSelection service.
Type Counter
Service Operation NSSelection
Dimension None

Table 6-8 ocnssf_nsavailability_notification_trigger_tx

Field Details
Description Count of notification triggers sent to NsSubscription.
Type Counter
Service Operation NSAvailability
Dimension Method

Table 6-9 ocnssf_nsavailability_notification_trigger_response_rx

Field Details
Description Count of success response for notification trigger by NSSubscription.
Type Counter
Service Operation NSAvailability
Dimension Method

Table 6-10 ocnssf_nsselection_nrf_disc_success

Field Details
Description Count of successful discovery results received from NRF during processing of request messages for the Nnssf_NSSelection service.
Type Counter
Service Operation NSSelection
Dimension None

Table 6-11 ocnssf_nssaiavailability_rx

Field Details
Description Count of request messages received by NSSF for the Nnssf_NSSAIAvailability service.
Type Counter
Service Operation NSAvailability
Dimension
  • Method
  • Operation

Table 6-12 ocnssf_nssaiavailability_success_tx

Field Details
Description Count of success response messages sent by NSSF for requests for the Nnssf_NSSAIAvailability service.
Type Counter
Service Operation NSAvailability
Dimension Subscription- Id

Table 6-13 ocnssf_nssaiavailability_notification_success_response_rx

Field Details
Description Count of success notification response messages received by NSSF for requests for the Nnssf_NSSAIAvailability service.
Type Counter
Service Operation NSSubscription
Dimension Subscription- Id

Table 6-14 ocnssf_nssaiavailability_options_rx

Field Details
Description Count of HTTP options received at NSAvailability service.
Type Counter
Service Operation NSAvailability
Dimension None

Table 6-15 ocnssf_nssaiavailability_options_tx_status_ok

Field Details
Description Count of HTTP options response with status 200 OK.
Type Counter
Service Operation NSAvailability
Dimension None

Table 6-16 ocnssf_nssaiavailability_notification_indirect_communication_rx

Field Details
Description Count of request notification messages sent by NSSF using indirect communication.
Type Counter
Service Operation NSAvailability
Dimension
  • AMF Set Id
  • Subscription Id

Table 6-17 ocnssf_nssaiavailability_notification_indirect_communication_tx

Field Details
Description Count of notification response messages received by NSSF using indirect communication.
Type Counter
Service Operation NSAvailability
Dimension
  • AMF Set Id
  • Subscription Id

Table 6-18 ocnssf_nsselection_requests_duration_seconds_sum

Field Details
Description Time duration in seconds taken by NSSF to process requests to NSSelection.
Type Counter
Service Operation NSSelection
Dimension None

Table 6-19 ocnssf_nsselection_requests_duration_seconds_count

Field Details
Description Count of number of requests processed by NSSelection.
Type Counter
Service Operation NSSelection
Dimension None

Table 6-20 ocnssf_nsselection_requests_duration_seconds_max

Field Details
Description Maximum time duration in seconds taken by NSSF to process requests to NSSelection.
Type Counter
Service Operation NSSelection
Dimension None

Table 6-21 ocnssf_db_query_duration_seconds_sum

Field Details
Description Time duration in seconds to process dbQuery.
Type Counter
Service Operation NA
Dimension query_type

Table 6-22 ocnssf_db_query_duration_seconds_count

Field Details
Description Count of number of dbQuery.
Type Counter
Service Operation NA
Dimension query_type

Table 6-23 ocnssf_db_query_duration_seconds_max

Field Details
Description Maximum time duration in seconds taken to process dbQuery.
Type Counter
Service Operation NA
Dimension query_type

Table 6-24 ocnssf_nssaiavailability_submod_rx

Field Details
Description Count of HTTP patch for subscription (SUBMOD) request messages received by NSSF for ocnssf_NSSAIAvailability service.
Type Counter
Service Operation NSAvailability
Dimension
  • SubscriptionId
  • Method

Table 6-25 ocnssf_nssaiavailability_submod_success_response_tx

Field Details
Description Count of success response messages sent by NSSF for HTTP patch for subscription (SUBMOD) requests for ocnssf_NSSAIAvailability service.
Type Counter
Service Operation NSAvailability
Dimension
  • SubscriptionId
  • Method

Table 6-26 ocnssf_notification_trigger_rx

Field Details
Description Count of notification triggers received by NSSF.
Type Counter
Service Operation NSSubscription
Dimension
  • Trigger type
  • Method

Table 6-27 ocnssf_nsconfig_notification_trigger_tx

Field Details
Description Count of notification triggers sent to NsSubscription.
Type Counter
Service Operation NSConfig
Dimension Method

Table 6-28 ocnssf_nsconfig_notification_trigger_response_rx

Field Details
Description Count of success response for notification trigger by NsSubscription.
Type Counter
Service Operation NSConfig
Dimension Method

Table 6-29 ocnssf_nsconfig_nrf_disc_success

Field Details
Description Count of successful discovery results received from NRF during processing of configuration of amf_set in Nnssf_NSConfig service.
Type Counter
Service Operation NSConfig
Dimension None

Table 6-30 ocnssf_subscription_nrf_tx

Field Details
Description Count of successful subscription results received from NRF during processing of configuration of amf_set in Nnssf_NSConfig service.
Type Counter
Service Operation NSConfig
Dimension None

6.1.2 NSSF Error Metrics

This section provides details about the NSSF error metrics.

Table 6-31 ocnssf_configuration_database_read_error

Field Details
Description Count of errors encountered when trying to read the configuration database.
Type Counter
Service Operation NSSelection
Dimension None

Table 6-32 ocnssf_configuration_database_write_error

Field Details
Description Count of errors encountered when trying to write to the configuration database.
Type Counter
Service Operation NSConfig
Dimension None

Table 6-33 ocnssf_nsconfig_notification_trigger_failure_response_rx

Field Details
Description Count of failure response for notification trigger by NSSubscription.
Type Counter
Service Operation NSConfig
Dimension Method

Table 6-34 ocnssf_nsconfig_notification_trigger_retry_tx

Field Details
Description Count of retry notification triggers sent to NSSubscription.
Type Counter
Service Operation NSConfig
Dimension Method

Table 6-35 ocnssf_nsconfig_notification_trigger_failed_tx

Field Details
Description Count of failed notification triggers (all retrys failed) to NSSubscription.
Type Counter
Service Operation NSConfig
Dimension Method

Table 6-36 ocnssf_nsconfig_nrf_disc_error

Field Details
Description Count of failed discovery results received from NRF during processing of configuration of amf_set in Nnssf_NSConfig service.
Type Counter
Service Operation NSConfig
Dimension None

Table 6-37 ocnssf_discovery_nrf_tx_failed

Field Details
Description Count of failed discovery requests sent by NSSF to NRF during configuration of amf_set in Nnssf_NSConfig service.
Type Counter
Service Operation NSConfig
Dimension None

Table 6-38 ocnssf_subscription_nrf_tx_failed

Field Details
Description Count of failed subscription results received from NRF during processing of configuration of amf_set in Nnssf_NSConfig service.
Type Counter
Service Operation NSConfig
Dimension None

Table 6-39 ocnssf_state_data_read_error

Field Details
Description Count of errors encountered when trying to read the state database.
Type Counter
Service Operation NSSelection
Dimension None

Table 6-40 ocnssf_state_data_write_error

Field Details
Description Count of errors encountered when trying to write to the state database.
Type Counter
Service Operation NSAvailability
Dimension None

Table 6-41 ocnssf_nsselection_nrf_disc_failure

Field Details
Description Count of errors encountered when trying to reach the NRF's discovery service.
Type Counter
Service Operation NSSelection
Dimension Status

Table 6-42 ocnssf_nsselection_policy_not_found

Field Details
Description Count of request messages that did not find a configured policy.
Type Counter
Service Operation NSSelection
Dimension
  • AMF Instance Id
  • Message Type

Table 6-43 ocnssf_nsselection_unsupported_plmn

Field Details
Description Count of request messages that did not find mcc and mnc in the PLMN list.
Type Counter
Service Operation NSSelection
Dimension Message Type

Table 6-44 ocnssf_nssaiavailability_subscription_failure

Field Details
Description Count of subscribe requests rejected by NSSF.
Type Counter
Service Operation NSAvailability
Dimension
  • Operation
  • Method
  • Status

Table 6-45 ocnssf_nssaiavailability_notification_error_response_rx

Field Details
Description Count of failure notification response messages received by NSSF for requests by the Nnssf_NSSAIAvailability service.
Type Counter
Service Operation NSSubscription
Dimension
  • MessageType
  • Method
  • ResponseCode
  • CauseCode
  • retryCount

Table 6-46 ocnssf_nssaiavailability_notification_failure

Field Details
Description Count of failure notification response messages received by NSSF for requests by the Nnssf_NSSAI Availability service.
Type Counter
Service Operation NSSubscription
Dimension
  • Subscription- Id
  • Status

Table 6-47 ocnssf_nssaiavailability_options_tx_status_unsupportedmediatype

Field Details
Description Count of HTTP OPTIONS response with status 415 Unsupported Media type.
Type Counter
Service Operation NSAvailability
Dimension None

Table 6-48 ocnssf_nsavailability_unsupported_plmn

Field Details
Description Count of request messages with unsupported PLMN received by NSSF for the ocnssf_NSAvailability service.
Type Counter
Service Operation NSAvailability
Dimension
  • AMF Instance Id
  • Message Type
  • Method

Table 6-49 ocnssf_nsavailability_invalid_location_url

Field Details
Description Count of invalid location header.
Type Counter
Service Operation NSAvailability
Dimension None

Table 6-50 ocnssf_nssaiavailability_submod_error_response_tx

Field Details
Description Count of error response messages sent by NSSF for HTTP patch for subscription (SUBMOD) requests for ocnssf_NSSAIAvailability service.
Type Counter
Service Operation NSAvailability
Dimension
  • ReturnCode
  • SubscriptionId,
  • Method

Table 6-51 ocnssf_nssaiavailability_submod_unimplemented_op

Field Details
Description Count of HTTP patch request messages received by NSSF for ocnssf_NSSAIAvailability service for which PATCH operation (op) is not implemented.
Type Counter
Service Operation NSAvailability
Dimension
  • ReturnCode
  • SubscriptionId
  • Method

Table 6-52 ocnssf_nssaiavailability_submod_patch_apply_error

Field Details
Description Count of HTTP patch request messages received by OCNSSFfor ocnssf_NSSAIAvailability service for which PATCH application returned error.
Type Counter
Service Operation NSAvailability
Dimension
  • ReturnCode
  • SubscriptionId
  • Method

Table 6-53 ocnssf_nsavailability_notification_trigger_failure_response_rx

Field Details
Description Count of failure response for notification trigger by NSSubscription.
Type Counter
Service Operation NSAvailability
Dimension Method

Table 6-54 ocnssf_nsavailability_notification_trigger_retry_tx

Field Details
Description Count of retry notification triggers sent to NSSubscription.
Type Counter
Service Operation NSAvailability
Dimension Method

Table 6-55 ocnssf_nsavailability_notification_trigger_failed_tx

Field Details
Description Count of failed notification triggers (all retries failed) to NSSubscription.
Type Counter
Service Operation NSAvailability
Dimension Method

Table 6-56 ocnssf_nssaiavailability_notification_delete_on_subscription_not_found

Field Details
Description Triggered when 404 Subscription with SUBSCRIPTION_NOT_FOUND is received by AMF.
Type Counter
Service Operation NsSubscription
Dimension Subscription_Removed

Table 6-57 ocnssf_nssaiavailability_notification_db_error

Field Details
Description Triggered when DB error or exception occurs when trying to delete NssaiSubscription.
Type Counter
Service Operation NsSubscription
Dimension None

6.1.3 NSSF Common metrics

This section provides details about the NSSF common metrics.

Table 6-58 http_requests_total

Field Details
Description This is pegged as soon as the request reaches the Ingress or Egress gateway in the first custom filter of the application.
Type Counter
Dimension
  • direction: ingress or egress
  • method: the method from the request line
  • uri: the URI from the request line
  • http_version: the HTTP version from the request line
  • host: the value of the Host header field
  • NFType
  • NFServiceType
  • HttpVersion
  • Scheme
  • Route_path
  • InstanceIdentifier
  • ClientCertIdentity

Table 6-59 http_responses_total

Field Details
Description Responses received or sent from the microservice .
Type Counter
Dimension
  • Status
  • Method
  • Route_path
  • NFType
  • NFServiceType
  • Host
  • HttpVersion
  • Scheme
  • InstanceIdentifier
  • ClientCertIdentity

Table 6-60 http_request_bytes

Field Details
Description Size of requests, including header and body. Grouped in 100 byte buckets.
Type Histogram
Dimension
  • direction
  • method
  • uri
  • http_version

Table 6-61 http_response_bytes

Field Details
Description Size of responses, including header and body. Grouped in 100 byte buckets.
Type Histogram
Dimension
  • direction
  • http_version

Table 6-62 bandwidth_bytes

Field Details
Description Amount of ingress and egress traffic sent and received by the microservice.
Type Counter
Dimension direction

Table 6-63 request_latency_seconds

Field Details
Description This metric is pegged in the last custom filter of the Ingress or Egress gateway while the response is being sent back to the consumer NF. It tracks the amount of time taken for processing the request. It starts as soon the request reaches the first custom filter of the application and lasts till the response is sent back to the consumer NF from the last custom filter of the application.
Type Histogram
Dimension
  • quantile
  • InstanceIdentifier
  • Route_path
  • Method

Table 6-64 connection_failure_total

Field Details
Description This metric is pegged by jetty client when the destination is not reachable by Ingress or Egress gateway. In case of Ingress gateway, the destination service will be a back-end microservice of the NF, and TLS connection failure metrics when connecting to ingress with direction as ingress. For Egress gateway, the destination is producer NF.
Type Counter
Dimension
  • Host
  • Port
  • InstanceIdentifier
  • Direction
  • error_reason

Table 6-65 request_processing_latency_seconds

Field Details
Description This metric is pegged in the last custom filter of the Ingress or Egress gateway while the response is being sent back to the consumer NF. This metric captures the amount of time taken for processing of the request only within Ingress or Egress gateway. It starts as soon the request reaches the first custom filter of the application and lasts till the request is forwarded to the destination.
Type Timer
Dimension
  • quantile
  • InstanceIdentifier
  • Route_path
  • Method

Table 6-66 jetty_request_stat_metrics_total

Field Details
Description This metric is pegged for every event occurred when a request is sent to Ingress or Egress gateway.
Type Counter
Dimension
  • event
  • client_type
  • InstanceIdentifier

Table 6-67 jetty_response_stat_metrics_total

Field Details
Description This metric is pegged for every event occurred when a response is received by Ingress or Egress gateway.
Type Counter
Dimension
  • event
  • client_type
  • InstanceIdentifier

Table 6-68 server_latency_seconds

Field Details
Description This metric is pegged in Jetty response listener that captures the amount of time taken for processing of the request by jetty client
Type Timer
Dimension
  • quantile
  • InstanceIdentifier
  • Method

Table 6-69 roundtrip_latency_seconds

Field Details
Description This metric is pegged in Netty outbound handler that captures the amount of time taken for processing of the request by netty server.
Type Timer
Dimension
  • quantile
  • InstanceIdentifier
  • Method

Table 6-70 oc_configclient_request_total

Field Details
Description This metric is pegged whenever config client is polling for configuration update from common configuration server.
Type Counter
Dimension
  • Release version
  • Config version

Table 6-71 oc_configclient_response_total

Field Details
Description This metrics is pegged whenever config client receives response from common configuration server.
Type Counter
Dimension
  • Release version
  • Config version
  • Updated

Table 6-72 incoming_connections

Field Details
Description This metric pegs active incoming connections from client to Ingress or Egress gateway.
Type Gauge
Dimension
  • Direction
  • Host
  • InstanceIdentifier

Table 6-73 outgoing_connections

Field Details
Description This metric pegs active outgoing connections from Ingress gateway or Egress gateway to destination
Type Gauge
Dimension
  • Direction
  • Host
  • InstanceIdentifier

Table 6-74 sbitimer_timezone_mismatch

Field Details
Description This metric pegs when sbiTimerTimezone is set to ANY and time zone is not specified in the header then above metric is pegged in ingress and egress gateways.
Type Gauge
Dimension
  • Route_path
  • Method

6.1.4 NSSF OAuth Metrics

This section provides details about the NSSF OAuth metrics.

Table 6-75 oc_oauth_nrf_request_total

Field Details
Description This is pegged in the OAuth client implementation if the request is sent to NRF for requesting the OAuth token. OAuth client implementation is used in Egress gateway.
Type Counter
Dimension
  • ConsumerNFInstanceId
  • ConsumerNFType
  • TargetNFType TargetNFInstanceId
  • scope NrfFqdn

Table 6-76 oc_oauth_nrf_response_success_total

Field Details
Description This is pegged in the OAuth client implementation if an OAuth token is successfully received from the NRF. OAuth client implementation is used in Egress gateway.
Type Counter
Dimension
  • ConsumerNFInstanceId
  • ConsumerNFType
  • TargetNFType
  • TargetNFInstanceId
  • scope StatusCode NrfFqdn

Table 6-77 oc_oauth_nrf_response_failure_total

Field Details
Description This is pegged in the OAuthClientFilter in Egress gateway whenever GetAccessTokenFailedException is captured.
Type Counter
Dimension
  • ConsumerNFInstanceId
  • ConsumerNFType
  • TargetNFType
  • TargetNFInstanceId
  • scope StatusCode NrfFqdn

Table 6-78 oc_oauth_nrf_response_failure_total

Field Details
Description This is pegged in the OAuthClientFilter in Egress gateway whenever GetAccessTokenFailedException is captured.
Type Counter
Dimension
  • ConsumerNFInstanceId
  • ConsumerNFType
  • TargetNFType
  • TargetNFInstanceId
  • Scope
  • StatusCode
  • ErrorOriginator
  • NrfFqdn

Table 6-79 oc_oauth_request_failed_internal_total

Field Details
Description This is pegged in the OAuthClientFilter in Egress gateway whenever InternalServerErrorException is captured.
Type Counter
Dimension
  • ConsumerNFInstanceId
  • ConsumerNFType
  • TargetNFType
  • TargetNFInstanceId
  • scope
  • StatusCode
  • ErrorOriginator
  • NrfFqdn

Table 6-80 oc_oauth_token_cache_total

Field Details
Description This is pegged in the OAuth Client Implementation if the OAuth token is found in the cache.
Type Counter
Dimension
  • ConsumerNFInstanceId ConsumerNFType
  • TargetNFType TargetNFInstanceId scope

Table 6-81 oc_oauth_request_invalid_total

Field Details
Description This is pegged in the OAuthClientFilter in Egress gateway whenever a BadAccessTokenRequestException/JsonProcessingException is captured.
Type Counter
Dimension
  • ConsumerNFInstanceId
  • ConsumerNFType
  • TargetNFType
  • TargetNFInstanceId
  • scope
  • StatusCode
  • ErrorOriginator

Table 6-82 oc_oauth_validation_successful_total

Field Details
Description This is pegged in OAuth validator implementation if the received OAuth token is validated successfully. OAuth validator implementation is used in Ingress gateway.
Type Counter
Dimension
  • issuer
  • subject
  • scope

Table 6-83 oc_oauth_validation_failure_total

Field Details
Description This is pegged in OAuth validator implementation if the validation of the received OAuth token is failed. OAuth validator implementation is used in Ingress gateway.
Type Counter
Dimension
  • issuer
  • subject
  • scope
  • reason

Table 6-84 oc_oauth_cert_expiryStatus

Field Details
Description Metric used to peg expiry date of the certificate. This metric is further used for raising alarms if certificate expires within 30 days or 7 days.
Type Gauge
Dimension
  • id
  • certificateName
  • secretName

Table 6-85 oc_oauth_cert_loadStatus

Field Details
Description Metric used to peg whether given certificate can be loaded from secret or not. If it is loadable then "0" is pegged otherwise "1" is pegged. This metric is further used for raising alarms when certificate is not loadable.
Type Gauge
Dimension
  • id
  • certificateName
  • secretName

Table 6-86 oc_oauth_request_failed_cert_expiry

Field Details
Description Metric used to keep track of number of requests with keyId in token that failed due to certificate expiry. Pegged whenever oAuth Validator module throws oauth custom exception due to certificate expiry for an incoming request.
Type Metric
Dimension
  • target nf type
  • target nf instance id
  • consumer nf instance id
  • nrf instance id
  • service name of nf
  • producer service key id

Table 6-87 oc_oauth_keyid_count

Field Details
Description Metric used to keep track of number of requests received with keyId in token. Pegged whenever a request with an access token containing kid in header comes to oAuth Validator. This is independent of whether the validation failed or was successful.
Type Metric
Dimension
  • target nf type
  • target nf instance id
  • consumer nf instance id
  • nrf instance id
  • service name of nf
  • producer service key id

6.1.5 Managed Objects Metrics

This section provides details about the NSSF Managed Object (MO) metrics.

Table 6-88 ocnssf_nssaiauth_req_rx

Field Details
Description Count of nssaiauth requests received by NSConfig.

Trigger Condition: Operator configuration of the Managed Object.

Operator configuration of the Managed Object.

This is pegged when HTTP GET, POST, DELETE, or PUT request is received by NSSF.
Type Counter
Service Operation nssaiauth
Dimension Method

Table 6-89 ocnssf_nssaiauth_res_tx

Field Details
Description Count of successful responses sent by NSConfig for a nssaiauth request.

Trigger Condition: Operator configuration of the Managed Object.

This is pegged when a 2xx response for HTTP GET, POST, DELETE, or PUT request is sent by NSSF.
Type Counter
Service Operation nssaiauth
Dimension Method

Table 6-90 ocnssf_nssaiauth_error_res_tx

Field Details
Description Count of error responses sent by NSConfig for a nssaiauth request.

Trigger Condition: Operator configuration of the Managed Object.

This is pegged when non 2xx response for HTTP GET, POST, DELETE, or PUT request is sent by NSSF.
Type Counter
Service Operation nssaiauth
Dimension

Method

Status

Table 6-91 ocnssf_nssaiauth_created

Field Details
Description Count of nssaiauth created in the database.

Trigger Condition: Operator configuration of the Managed Object leading to storage of the Managed Object in the database and Autoconfiguration by learning from the AMF.

This is pegged as source OperatorConfig when operator configuration is the source and pegged with LearnedConfigAMF when NsAvailabilityUpdate leads to storage of nssaiauth.
Type Counter
Service Operation nssaiauth
Dimension Source

Table 6-92 ocnssf_nssaiauth_deleted

Field Details
Description Count of nssaiauth deleted in the database.

Trigger Condition: Operator configuration of the Managed Object leading to deleting of the Managed Object in the database and autoconfiguration by learning from the AMF.

This is pegged as source OperatorConfig when operator configuration is the source and pegged with LearnedConfigAMF when NSAvailability Update leads to storage of nssaiauth.
Type Counter
Service Operation nssaiauth
Dimension Source

Table 6-93 ocnssf_nssaiauth_updated

Field Details
Description Count of nssaiauth updated in the database.

Trigger Condition: Operator configuration of the Managed Object leading to deleting of the Managed Object in the database and autoconfiguration by learning from the AMF.

This is pegged as source OperatorConfig when operator config is the source and pegged with LearnedConfigAMF when NSAvailability Update leads to storage of nssaiauth.

Note: In current scenario, autoconfiguration does not update the Managed Object in the database, it only deletes and creates Managed Objects.

Type Counter
Service Operation nssaiauth
Dimension Source

Table 6-94 ocnssf_nssaiauth_error

Field Details
Description Count of failures on Managed Object processing.

Trigger Condition: Error while creating, deleting, or updating a Managed object.

This is pegged when error occurs while handling a Managed Object.

Note: This must be pegged when ocnssf_nssaiauth_error_res_tx is pegged.

Type Counter
Service Operation nssaiauth
Dimension
  • Source
  • Operation
  • ERRORTYPE

Table 6-95 ocnssf_nsiprofile_req_rx

Field Details
Description Count of nsiprofile requests received by NSConfig.

Trigger Condition: Operator configuration of the Managed Object.

Operator configuration of the Managed Object.

This is pegged when HTTP GET, POST, DELETE, or PUT request is received by NSSF.
Type Counter
Service Operation nsiprofile
Dimension Method

Table 6-96 ocnssf_amfset_req_rx

Field Details
Description Count of amfset requests received by NSConfig.

Trigger Condition: Operator configuration of the Managed Object.

Operator configuration of the Managed Object.

This is pegged when HTTP GET, POST, DELETE, or PUT request is received by NSSF.
Type Counter
Service Operation amfset
Dimension Method

Table 6-97 ocnssf_amfset_res_tx

Field Details
Description Count of successful responses sent by NSConfig for a amfset request.

Trigger Condition: Operator configuration of the Managed Object.

This is pegged when a 2xx response for HTTP GET, POST, DELETE, or PUT request is sent by NSSF.
Type Counter
Service Operation amfset
Dimension Method

Table 6-98 ocnssf_amfset_error_res_tx

Field Details
Description Count of error responses sent by NSConfig for a amfset request.

Trigger Condition: Operator configuration of the Managed Object.

This is pegged when non 2xx response for HTTP GET, POST, DELETE, or PUT request is sent by NSSF.
Type Counter
Service Operation amfset
Dimension

Method

Status

Table 6-99 ocnssf_amfset_created

Field Details
Description Count of amfset created in the database.

Trigger Condition: Operator configuration of the Managed Object leading to storage of the Managed Object in the database and Autoconfiguration by learning from the AMF.

This is pegged as source OperatorConfig when operator configuration is the source.
Type Counter
Service Operation amfset
Dimension Source

Table 6-100 ocnssf_amfset_deleted

Field Details
Description Count of amfset deleted in the database.

Trigger Condition: Operator configuration of the Managed Object leading to deleting of the Managed Object in the database and autoconfiguration by learning from the AMF.

This is pegged as source OperatorConfig when operator configuration is the source.
Type Counter
Service Operation amfset
Dimension Source

Table 6-101 ocnssf_amfset_updated

Field Details
Description Count of amfset updated in the database.

Trigger Condition: Operator configuration of the Managed Object leading to deleting of the Managed Object in the database and autoconfiguration by learning from the AMF.

This is pegged as source OperatorConfig when operator config is the source.
Type Counter
Service Operation amfset
Dimension Source

Table 6-102 ocnssf_amfset_error

Field Details
Description Count of failures on Managed Object processing.

Trigger Condition: Error while creating, deleting, or updating a Managed object.

This is pegged when error occurs while handling a Managed Object.

Type Counter
Service Operation amfset
Dimension
  • Source
  • Operation
  • ERRORTYPE

Table 6-103 ocnssf_amfresolution_req_rx

Field Details
Description Count of amfresolution requests received by NSConfig.

Trigger Condition: Operator configuration of the Managed Object.

Operator configuration of the Managed Object.

This is pegged when HTTP GET, POST, DELETE, or PUT request is received by NSSF.
Type Counter
Service Operation amfresolution
Dimension Method

Table 6-104 ocnssf_amfresolution_res_tx

Field Details
Description Count of successful responses sent by NSConfig for a amfresolution request.

Trigger Condition: Operator configuration of the Managed Object.

This is pegged when a 2xx response for HTTP GET, POST, DELETE, or PUT request is sent by NSSF.
Type Counter
Service Operation amfresolution
Dimension Method

Table 6-105 ocnssf_amfresolution_error_res_tx

Field Details
Description Count of error responses sent by NSConfig for a amfresolution request.

Trigger Condition: Operator configuration of the Managed Object.

This is pegged when non 2xx response for HTTP GET, POST, DELETE, or PUT request is sent by NSSF.
Type Counter
Service Operation amfresolution
Dimension

Method

Status

Table 6-106 ocnssf_amfresolution_created

Field Details
Description Count of amfresolution created in the database.

Trigger Condition: Operator configuration of the Managed Object leading to storage of the Managed Object in the database and Autoconfiguration by learning from the AMF.

This is pegged as source OperatorConfig when operator configuration is the source.
Type Counter
Service Operation amfresolution
Dimension Source

Table 6-107 ocnssf_amfresolution_deleted

Field Details
Description Count of amfresolution deleted in the database.

Trigger Condition: Operator configuration of the Managed Object leading to deleting of the Managed Object in the database and autoconfiguration by learning from the AMF.

This is pegged as source OperatorConfig when operator configuration is the source.
Type Counter
Service Operation amfresolution
Dimension Source

Table 6-108 ocnssf_amfresolution_updated

Field Details
Description Count of amfresolution updated in the database.

Trigger Condition: Operator configuration of the Managed Object leading to deleting of the Managed Object in the database and autoconfiguration by learning from the AMF.

This is pegged as source OperatorConfig when operator config is the source.
Type Counter
Service Operation amfresolution
Dimension Source

Table 6-109 ocnssf_amfresolution_error

Field Details
Description Count of failures on Managed Object processing.

Trigger Condition: Error while creating, deleting, or updating a Managed object.

This is pegged when error occurs while handling a Managed Object.

Type Counter
Service Operation amfresolution
Dimension
  • Source
  • Operation
  • ERRORTYPE

Table 6-110 ocnssf_timeprofile_req_rx

Field Details
Description Count oftimeprofile requests received by NSConfig.

Trigger Condition: Operator configuration of the Managed Object.

Operator configuration of the Managed Object.

This is pegged when HTTP GET, POST, DELETE, or PUT request is received by NSSF.
Type Counter
Service Operation timeprofile
Dimension Method

Table 6-111 ocnssf_timeprofile_res_tx

Field Details
Description Count of successful responses sent by NSConfig for a timeprofile request.

Trigger Condition: Operator configuration of the Managed Object.

This is pegged when a 2xx response for HTTP GET, POST, DELETE, or PUT request is sent by NSSF.
Type Counter
Service Operation timeprofile
Dimension Method

Table 6-112 ocnssf_timeprofile_error_res_tx

Field Details
Description Count of error responses sent by NSConfig for a timeprofile request.

Trigger Condition: Operator configuration of the Managed Object.

This is pegged when non 2xx response for HTTP GET, POST, DELETE, or PUT request is sent by NSSF.
Type Counter
Service Operation timeprofile
Dimension

Method

Status

Table 6-113 ocnssf_timeprofile_created

Field Details
Description Count of timeprofile created in the database.

Trigger Condition: Operator configuration of the Managed Object leading to storage of the Managed Object in the database and Autoconfiguration by learning from the AMF.

This is pegged as source OperatorConfig when operator configuration is the source.
Type Counter
Service Operation timeprofile
Dimension Source

Table 6-114 ocnssf_timeprofile_deleted

Field Details
Description Count of timeprofile deleted in the database.

Trigger Condition: Operator configuration of the Managed Object leading to deleting of the Managed Object in the database and autoconfiguration by learning from the AMF.

This is pegged as source OperatorConfig when operator configuration is the source.
Type Counter
Service Operation timeprofile
Dimension Source

Table 6-115 ocnssf_timeprofile_updated

Field Details
Description Count of timeprofile updated in the database.

Trigger Condition: Operator configuration of the Managed Object leading to deleting of the Managed Object in the database and autoconfiguration by learning from the AMF.

This is pegged as source OperatorConfig when operator config is the source.
Type Counter
Service Operation timeprofile
Dimension Source

Table 6-116 ocnssf_timeprofile_error

Field Details
Description Count of failures on Managed Object processing.

Trigger Condition: Error while creating, deleting, or updating a Managed object.

This is pegged when error occurs while handling a Managed Object.

Type Counter
Service Operation timeprofile
Dimension
  • Source
  • Operation
  • ERRORTYPE

Table 6-117 ocnssf_defaultsnssai_req_rx

Field Details
Description Count of defaultsnssai requests received by NSConfig.

Trigger Condition: Operator configuration of the Managed Object.

Operator configuration of the Managed Object.

This is pegged when HTTP GET, POST, DELETE, or PUT request is received by NSSF.
Type Counter
Service Operation defaultsnssai
Dimension Method

Table 6-118 ocnssf_defaultsnssai_res_tx

Field Details
Description Count of successful responses sent by NSConfig for a defaultsnssai request.

Trigger Condition: Operator configuration of the Managed Object.

This is pegged when a 2xx response for HTTP GET, POST, DELETE, or PUT request is sent by NSSF.
Type Counter
Service Operation defaultsnssai
Dimension Method

Table 6-119 ocnssf_defaultsnssai_error_res_tx

Field Details
Description Count of error responses sent by NSConfig for a defaultsnssai request.

Trigger Condition: Operator configuration of the Managed Object.

This is pegged when non 2xx response for HTTP GET, POST, DELETE, or PUT request is sent by NSSF.
Type Counter
Service Operation defaultsnssai
Dimension

Method

Status

Table 6-120 ocnssf_defaultsnssai_created

Field Details
Description Count of defaultsnssai created in the database.

Trigger Condition: Operator configuration of the Managed Object leading to storage of the Managed Object in the database and Autoconfiguration by learning from the AMF.

This is pegged as source OperatorConfig when operator configuration is the source.
Type Counter
Service Operation defaultsnssai
Dimension Source

Table 6-121 ocnssf_defaultsnssai_deleted

Field Details
Description Count of defaultsnssai deleted in the database.

Trigger Condition: Operator configuration of the Managed Object leading to deleting of the Managed Object in the database and autoconfiguration by learning from the AMF.

This is pegged as source OperatorConfig when operator configuration is the source.
Type Counter
Service Operation defaultsnssai
Dimension Source

Table 6-122 ocnssf_defaultsnssai_updated

Field Details
Description Count of defaultsnssai updated in the database.

Trigger Condition: Operator configuration of the Managed Object leading to deleting of the Managed Object in the database and autoconfiguration by learning from the AMF.

This is pegged as source OperatorConfig when operator config is the source.
Type Counter
Service Operation defaultsnssai
Dimension Source

Table 6-123 ocnssf_mappingofnssai_req_rx

Field Details
Description Count of mappingofnssai requests received by NSConfig.

Trigger Condition: Operator configuration of the Managed Object.

Operator configuration of the Managed Object.

This is pegged when HTTP GET, POST, DELETE, or PUT request is received by NSSF.
Type Counter
Service Operation mappingofnssai
Dimension Method

Table 6-124 ocnssf_mappingofnssai_res_tx

Field Details
Description Count of successful responses sent by NSConfig for a mappingofnssai request.

Trigger Condition: Operator configuration of the Managed Object.

This is pegged when a 2xx response for HTTP GET, POST, DELETE, or PUT request is sent by NSSF.
Type Counter
Service Operation mappingofnssai
Dimension Method

Table 6-125 ocnssf_mappingofnssai_error_res_tx

Field Details
Description Count of error responses sent by NSConfig for a mappingofnssai request.

Trigger Condition: Operator configuration of the Managed Object.

This is pegged when non 2xx response for HTTP GET, POST, DELETE, or PUT request is sent by NSSF.
Type Counter
Service Operation mappingofnssai
Dimension

Method

Status

Table 6-126 ocnssf_mappingofnssai_created

Field Details
Description Count of mappingofnssai created in the database.

Trigger Condition: Operator configuration of the Managed Object leading to storage of the Managed Object in the database and Autoconfiguration by learning from the AMF.

This is pegged as source OperatorConfig when operator configuration is the source.
Type Counter
Service Operation mappingofnssai
Dimension Source

Table 6-127 ocnssf_mappingofnssai_deleted

Field Details
Description Count of mappingofnssai deleted in the database.

Trigger Condition: Operator configuration of the Managed Object leading to deleting of the Managed Object in the database and autoconfiguration by learning from the AMF.

This is pegged as source OperatorConfig when operator configuration is the source.
Type Counter
Service Operation mappingofnssai
Dimension Source

Table 6-128 ocnssf_mappingofnssai_updated

Field Details
Description Count of mappingofnssai updated in the database.

Trigger Condition: Operator configuration of the Managed Object leading to deleting of the Managed Object in the database and autoconfiguration by learning from the AMF.

This is pegged as source OperatorConfig when operator config is the source.
Type Counter
Service Operation mappingofnssai
Dimension Source

6.1.6 Perf-info metrics for Overload Control

This section provides details about Perf-info metrics for overload control.

Table 6-129 cgroup_cpu_nanoseconds

Field Details
Description Reports the total CPU time (in nanoseconds) on each CPU core for all the tasks in the cgroup.
Type Gauge
Dimension NA

Table 6-130 cgroup_memory_bytes

Field Details
Description Reports the memory usage.
Type Gauge
Dimension NA

Table 6-131 load_level

Field Details
Description Provides information about the overload manager load level.
Type Gauge
Dimension
  • service
  • namespace

6.1.7 Egress Gateway Metrics

This section provides details about Egress Gateway metrics.

Table 6-132 oc_fqdn_alternate_route_total

Field Details
Description Tracks number of registration, deregistration and GET calls received for a given scheme and FQDN.

Note: Registration does not reflect active registration numbers. It captured number of registration requests received.

Type Counter
Service Operation Egress Gateway
Dimension
  • type: Register/Deregister/GET
  • binding_value: <scheme>+<FQDN>

Table 6-133 oc_dns_srv_lookup_total

Field Details
Description Track number of time DNS SRV lookup was done for a given scheme and FQDN.
Type Counter
Service Operation Egress Gateway
Dimension binding_value: <scheme>+<FQDN>

Table 6-134 oc_alternate_route_resultset

Field Details
Description Value provides number of alternate routes known for a given scheme and FQDN.

Whenever DNS SRV lookup or static configuration is done, this metric provide number of known alternate route for a given pair. For example, <"http", "abc.oracle.com">: 2.
Type Gauge
Service Operation Egress Gateway
Dimension binding_value: <scheme>+<FQDN>

Table 6-135 oc_configclient_request_total

Field Details
Description This metric is pegged whenever a polling request is made from config client to the server for configuration updates.
Type Counter
Service Operation Egress Gateway
Dimension Tags: releaseVersion, configVersion.
  • releaseVersion tag indicates the current chart version of alternate route service deployed.
  • configVersion tag indicates the current configuration version of alternate route service.

Table 6-136 oc_configclient_response_total

Field Details
Description This metric is pegged whenever a response is received from the server to client.
Type Counter
Service Operation Egress Gateway
Dimension

Tags: releaseVersion, configVersion, updated.

  • releaseVersion tag indicates the current chart version of alternate route service deployed.
  • configVersion tag indicates the current configuration version of alternate route service.
  • updated tag indicates whether there is a configuration update or not.

Table 6-137 oc_egressgateway_peer_health_status

Field Details
Description It defines Egress Gateway peer health status.

This metric is set to 1, if a peer is unhealthy.

This metric is reset to 0, when it becomes healthy again.
Type Gauge
Service Operation Egress Gateway
Dimension
  • peer
  • vfqdn

Table 6-138 oc_egressgateway_peer_health_ping_request_total

Field Details
Description It defines Egress Gateway peer health ping request.

This metric is incremented every time Egress Gateway send a health ping towards a peer.
Type Counter
Service Operation Egress Gateway
Dimension
  • peer
  • vfqdn
  • statusCode
  • cause

Table 6-139 oc_egressgateway_peer_health_ping_response_total

Field Details
Description Egress Gateway Peer health ping response. This metric is incremented every time a Egress Gateway receives a health ping response (irrespective of success or failure) from a peer.
Type Counter
Service Operation Egress Gateway
Dimension
  • peer
  • vfqdn
  • statusCode
  • cause

Table 6-140 oc_egressgateway_peer_health_status_transitions_total

Field Details
Description It defines Egress Gateway peer health status transitions. Egress Gateway increments this metric every time a peer transitions from available to unavailable or unavailable to available.
Type Counter
Service Operation Egress Gateway
Dimension
  • peer
  • vfqdn
  • from
  • to

Table 6-141 oc_egressgateway_peer_count

Field Details
Description It defines Egress Gateway peer count. This metric is incremented every time for the peer count.
Type Gauge
Service Operation Egress Gateway
Dimension peerset

Table 6-142 oc_egressgateway_peer_available_count

Field Details
Description It defines Egress Gateway available peer count. This metric is incremented every time for the available peer count.
Type Gauge
Service Operation Egress Gateway
Dimension peerset

Table 6-143 oc_egressgateway_user_agent_consumer

Field Details
Description Whenever the feature is enabled and User-Agent Header is getting generated.
Type Counter
Service Operation Egress Gateway
Dimension ConsumerNfInstanceId: ID of consumer NF (NSSF) as configured in Egress Gateway.

6.1.8 Ingress Gateway Metrics

This section provides details about Ingress Gateway metrics.

Table 6-144 oc_ingressgateway_pod_congestion_state

Field Details
Description It is used to track congestion state of a pod.
Type Gauge
Service Operation Ingress Gateway
Dimension level = 0,1,2
  • 0: Normal
  • 1: DOC
  • 2: Congested

Table 6-145 oc_ingressgateway_pod_resource_stress

Field Details
Description It tracks CPU, memory, and queue usage (as percentages) to determine the congestion state of the POD that is performing the calculations.
Type Gauge
Service Operation Ingress Gateway
Dimension type = "PendingRequest","CPU","Memory"

Table 6-146 oc_ingressgateway_pod_resource_state

Field Details
Description It tracks the congestion state of individual resources, which is calculated based on their usage and the configured threshold.
Type Gauge
Service Operation Ingress Gateway
Dimension type = "PendingRequest","CPU","Memory"

level = 0,1,2

  • 0: Normal
  • 1: DOC
  • 2: Congested

Table 6-147 oc_ingressgateway_incoming_pod_connections_rejected_total

Field Details
Description It tracks the number of connections dropped in the congested or Danger Of Congestion (DOC) state.
Type Counter
Service Operation Ingress Gateway
Dimension NA

6.2 NSSF KPIs

This section includes information about KPIs for Oracle Communications Cloud Native Core, Network Slice Selection Function.

The following are the NSSF KPIs:

6.2.1 NSSelection KPIs

Table 6-148 NSSF NSSelection Initial Registration Success Rate

Field Details
Description Percentage of NSSelection Initial registration messages with success response
Expression sum(ocnssf_nsselection_success_tx_total{message_type=\"registration\"})/ sum(ocnssf_nsselection_rx_total{message_type=\"registration\"}))*100"

Table 6-149 NSSF NSSelection PDU establishment success rate

Field Details
Description Percentage of NSSelection PDU establishment messages with success response
Expression sum(ocnssf_nsselection_success_tx_total{message_type=\"pdu_session\"})/ sum(ocnssf_nsselection_rx_total{message_type=\"pdu_session\"}))*100"

Table 6-150 NSSF NSSelection UE-Config Update success rate

Field Details
Description Percentage of NSSelection UE-Config Update messages with success response
Expression sum(ocnssf_nsselection_success_tx_total{message_type=\"ue_config_update\"})/ sum(ocnssf_nsselection_rx_total{message_type=\"ue_config_update\"}))*100",

Table 6-151 4xx Responses (NSSelection)

Field Details
Description Rate of 4xx response for NSSelection
Expression sum(increase(oc_ingressgateway_http_responses{Status=~"4.* ",Uri=~".*nnssf-nsselection.*",Method="GET"}[5m]))

Table 6-152 5xx Responses (NSSelection)

Field Details
Description Rate of 5xx response for NSSelection
Expression sum(increase(oc_ingressgateway_http_responses{Status=~"5.* ",Uri=~".*nnssf-nsselection.*",Method="GET"}[5m])

6.2.2 NSAvailability KPIs

Table 6-153 NSSF NSAvailability PUT success rate

Field Details
Description Percentage of NSAvailability UPDATE PUT messages with success response
Expression sum(ocnssf_nssaiavailability_success_tx_total{message_type=\"availability_update\"}{method=\"PUT"})/sum(ocnssf_nssaiavailability_rx_total{message_type=\"availability_update\"}{method=\"PUT"}))*100"

Table 6-154 NSSF NSAvailability PATCH success rate

Field Details
Description Percentage of NSAvailability UPDATE PATCH messages with success response
Expression sum(ocnssf_nssaiavailability_success_tx_total{message_type=\"availability_update\"}{method=\"PATCH"})/sum(ocnssf_nssaiavailability_rx_total{message_type=\"availability_update\"}{method=\"PATCH"}))*100"

Table 6-155 NSSF NSAvailability Delete success rate

Field Details
Description Percentage of NSAvailability Delete messages with success response
Expression sum(ocnssf_nssaiavailability_success_tx_total{message_type=\"availability_update\"}{method=\"DELETE"})/sum(ocnssf_nssaiavailability_rx_total{message_type=\"availability_update\"}{method=\"DELETE"}))*100""

Table 6-156 NSSF NSAvailability Subscribe success rate

Field Details
Description Percentage of NSAvailability Subscribe messages with success response
Expression sum(ocnssf_nssaiavailability_success_tx_total{message_type=\"availability_subscribe\"}{method=\"POST"})/sum(ocnssf_nssaiavailability_rx_total{message_type=\"availability_subscribe\"}{method=\"POST"}))*100"

Table 6-157 NSSF NSAvailability Unsubscribe success rate

Field Details
Description Percentage of NSAvailability Unsubscribe messages with success response
Expression sum(ocnssf_nssaiavailability_success_tx_total{message_type=\"availability_subscribe\"}{method=\"DELETE"})/sum(ocnssf_nssaiavailability_rx_total{message_type=\"availability_subscribe\"}{method=\"DELETE"}))*100"

Table 6-158 4xx Responses (NSAvailability)

Field Details
Description Rate of 4xx response for NSAvailability
Expression sum(increase(oc_ingressgateway_http_responses{Status=~"4.* ",Uri=~".*nnssf-nsavailability.*",Method="GET"}[5m]))

Table 6-159 5xx Responses (NSAvailability)

Field Details
Description Rate of 5xx response for NSAvailability
Expression sum(increase(oc_ingressgateway_http_responses{Status=~"4.* ",Uri=~".*nnssf-nsavailability.*",Method="GET"}[5m]))

6.2.3 Ingress Gateway KPIs

Table 6-160 NSSF Ingress Request

Field Details
Description Rate of HTTP requests received at NRF Ingress Gateway
Expression oc_ingressgateway_http_requests

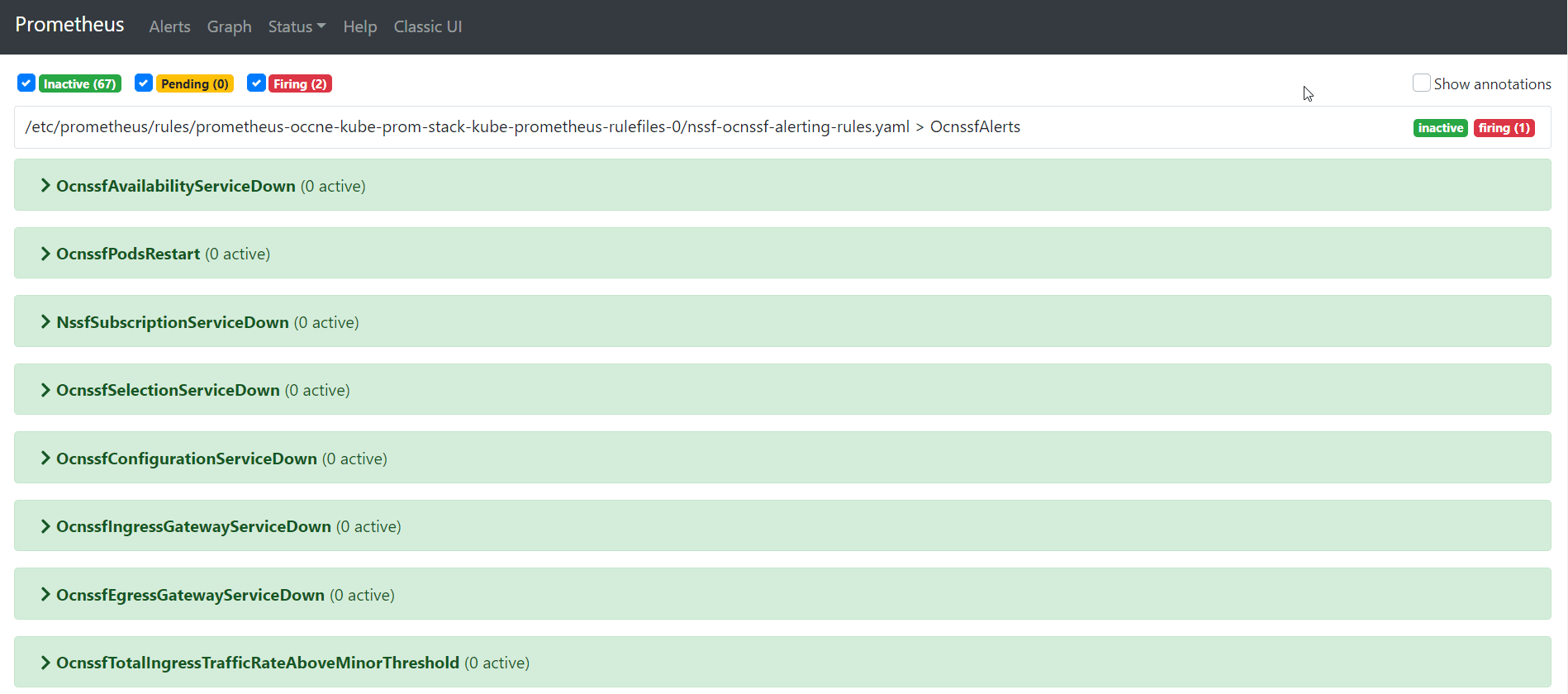

6.3 NSSF Alerts

This section includes information about alerts for Oracle Communications Network Slice Selection Function.

6.3.1 System Level Alerts

This section lists the system level alerts.

6.3.1.1 OcnssfNfStatusUnavailable

Table 6-161 OcnssfNfStatusUnavailable

Field Details
Description 'OCNSSF services unavailable'
Summary 'kubernetes_namespace: {{$labels.kubernetes_namespace}}, timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }} : All OCNSSF services are unavailable.'
Severity Critical
Condition All the NSSF services are unavailable, either because the NSSF is getting deployed or purged. These NSSF services considered are nssfselection, nssfsubscription, nssfavailability, nssfconfiguration, appinfo, ingressgateway and egressgateway.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9001
Metric Used

'up'

Note: This is a Prometheus metric used for instance availability monitoring. If this metric is not available, use the similar metric as exposed by the monitoring system.

Recommended Actions The alert is cleared automatically when the NSSF services start becoming available.

Steps:

  1. Check for service specific alerts which may be causing the issues with service exposure.
  2. Run the following command to check if the pod’s status is in “Running” state:
    kubectl –n <namespace> get pod

    If it is not in running state, capture the pod logs and events.

    Run the following command to fetch the events as follows:

    kubectl get events --sort-by=.metadata.creationTimestamp -n <namespace>
  3. Refer to the application logs on Kibana and check for database related failures such as connectivity, invalid secrets, and so on. The logs can be filtered based on the services.
  4. Run the following command to check Helm status and make sure there are no errors:
    helm status <helm release name of the desired NF> -n <namespace>

    If it is not in “STATUS: DEPLOYED”, then again capture logs and events.

  5. If the issue persists, capture all the outputs from the above steps and contact My Oracle Support.

    Note: Use Cloud Native Core Network Function Data Collector tool for capturing the logs. For more information, see Oracle Communications Cloud Native Core, Network Function Data Collector User Guide.

6.3.1.2 OcnssfPodsRestart

Table 6-162 OcnssfPodsRestart

Field Details
Description 'Pod <Pod Name> has restarted.
Summary 'kubernetes_namespace: {{$labels.namespace}}, podname: {{$labels.pod}}, timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }} : A Pod has restarted'
Severity Major
Condition A pod belonging to any of the NSSF services has restarted.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9002
Metric Used 'kube_pod_container_status_restarts_total'Note: This is a Kubernetes metric. If this metric is not available, use the similar metric as exposed by the monitoring system.
Recommended Actions

The alert is cleared automatically if the specific pod is up.

Steps:

  1. Refer to the application logs on Kibana and filter based on the pod name. Check for database related failures such as connectivity, Kubernetes secrets, and so on.
  2. Run the following command to check orchestration logs for liveness or readiness probe failures:
    kubectl get po -n <namespace>

    Note the full name of the pod that is not running, and use it in the following command:

    kubectl describe pod <desired full pod name> -n <namespace>
  3. Check the database status. For more information, see "Oracle Communications Cloud Native Core, cnDBTier User Guide".
  4. If the issue persists, capture all the outputs from the above steps and contact My Oracle Support.

    Note: Use Cloud Native Core Network Function Data Collector tool for capturing the logs. For more information, see Oracle Communications Cloud Native Core, Network Function Data Collector User Guide.

6.3.1.3 OcnssfSubscriptionServiceDown

Table 6-163 OcnssfSubscriptionServiceDown

Field Details
Description 'OCNSSF Subscription service <ocnssf-nssubscription> is down'
Summary 'kubernetes_namespace: {{$labels.kubernetes_namespace}}, timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }} : NssfSubscriptionServiceDown service down'
Severity Critical
Condition NssfSubscription services is unavailable.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9003
Metric Used

''up'

Note: This is a Prometheus metric used for instance availability monitoring. If this metric is not available, use the similar metric as exposed by the monitoring system.

Recommended Actions The alert is cleared when the NssfSubscription services is available.

Steps:

  1. Check if NfService specific alerts are generated to understand which service is down.

    If the following alerts are generated based on which service is down

    OcnssfSubscriptionServiceDown

  2. Run the following command to check the orchestration log nfsubscription service and check for liveness or readiness probe failures:
    kubectl get po -n <namespace>

    Note the full name of the pod that is not running, and use it in the following command:

    kubectl describe pod <specific desired full pod name> -n <namespace>
  3. Run the following command to check if the pod’s status is in “Running” state:
    kubectl –n <namespace> get pod

    If it is not in running state, capture the pod logs and events .

    Run the following command to fetch events:

    kubectl get events --sort-by=.metadata.creationTimestamp -n <namespace>
  4. Refer to the application logs on Kibana and filter based on above service names. Check for ERROR WARNING logs for each of these services.
  5. Check the database status. For more information, see "Oracle Communications Cloud Native Core, cnDBTier User Guide".
  6. Refer to the application logs on Kibana and check for the service status of the nssfConfig service.
  7. If the issue persists, capture all the outputs for the above steps and contact My Oracle Support.

    Note: Use Cloud Native Core Network Function Data Collector tool for capturing the logs. For more information, see Oracle Communications Cloud Native Core, Network Function Data Collector User Guide.

6.3.1.4 OcnssfSelectionServiceDown

Table 6-164 OcnssfSelectionServiceDown

Field Details
Description 'OCNSSF Selection service <ocnssf-nsselection> is down'.
Summary 'kubernetes_namespace: {{$labels.kubernetes_namespace}}, timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }} : OcnssfSelectionServiceDown service down'
Severity Critical
Condition None of the pods of the NSSFSelection microservice is available.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9004
Metric Used

'up'

Note: This is a Prometheus metric used for instance availability monitoring. If this metric is not available, use the similar metric as exposed by the monitoring system.

Recommended Actions The alert is cleared when the nfsubscription service is available.

Steps:

  1. Run the following command to check the orchestration logs of ocnssf-nsselection service and check for liveness or readiness probe failures:
    kubectl get po -n <namespace>

    Note the full name of the pod that is not running, and use it in the following command:

    kubectl describe pod <specific desired full pod name> -n <namespace>
  2. Refer to the application logs on Kibana and filter based on ocnssf-nsselection service names. Check for ERROR WARNING logs.
  3. Check the database status. For more information, see "Oracle Communications Cloud Native Core, cnDBTier User Guide".
  4. Depending on the failure reason, take the resolution steps.
  5. If the issue persists, capture all the outputs for the above steps and contact My Oracle Support.

    Note: Use Cloud Native Core Network Function Data Collector tool for capturing the logs. For more information, see Oracle Communications Cloud Native Core, Network Function Data Collector User Guide.

6.3.1.5 OcnssfAvailabilityServiceDown

Table 6-165 OcnssfAvailabilityServiceDown

Field Details
Description 'Ocnssf Availability service ocnssf-nsavailability is down'
Summary 'kubernetes_namespace: {{$labels.kubernetes_namespace}}, timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }} : NssfAvailability service down'
Severity Critical
Condition None of the pods of the OcnssfAvailabilityServiceDown microservice is available.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9005
Metric Used

'up'

Note: This is a Prometheus metric used for instance availability monitoring. If this metric is not available, use the similar metric as exposed by the monitoring system.

Recommended Actions The alert is cleared when the ocnssf-nsavailability service is available.

Steps:

  1. Run the following command to check the orchestration logs of ocnssf-nsavailability service and check for liveness or readiness probe failures:
    kubectl get po -n <namespace>

    Note the full name of the pod that is not running, and use it in the following command:

    kubectl describe pod <specific desired full pod name> -n <namespace>
  2. Refer to the application logs on Kibana and filter based on ocnssf-nsavailability service names. Check for ERROR WARNING logs.
  3. Check the database status. For more information, see "Oracle Communications Cloud Native Core, cnDBTier User Guide".
  4. Depending on the failure reason, take the resolution steps.
  5. If the issue persists, capture all the outputs for the above steps and contact My Oracle Support.

    Note: Use Cloud Native Core Network Function Data Collector tool for capturing the logs. For more information, see Oracle Communications Cloud Native Core, Network Function Data Collector User Guide.

6.3.1.6 OcnssfConfigurationServiceDown

Table 6-166 OcnssfConfigurationServiceDown

Field Details
Description 'OCNSSF Config service nssfconfiguration is down'
Summary 'kubernetes_namespace: {{$labels.kubernetes_namespace}}, timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }} : OcnssfConfigServiceDown service down'
Severity Critical
Condition None of the pods of the NssfConfiguration microservice is available.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9006
Metric Used

'up'

Note: : This is a Prometheus metric used for instance availability monitoring. If this metric is not available, use the similar metric as exposed by the monitoring system.

Recommended Actions

The alert is cleared when the nssfconfiguration service is available.

Steps:

  1. Run the following command to check the orchestration logs of nssfconfiguration service and check for liveness or readiness probe failures:
    kubectl get po -n <namespace>

    Note the full name of the pod that is not running, and use in the following command:

    kubectl describe pod <specific desired full pod name> -n <namespace>
  2. Refer the application logs on Kibana and filter based on nssfconfiguration service names. Check for ERROR WARNING logs related to thread exceptions.
  3. Check the database status. For more information, see "Oracle Communications Cloud Native Core, cnDBTier User Guide".
  4. Depending on the reason of failure, take the resolution steps.
  5. If the issue persists, capture all the outputs for the above steps and contact My Oracle Support.

    Note: Use Cloud Native Core Network Function Data Collector tool for capturing the logs. For more information, see Oracle Communications Cloud Native Core, Network Function Data Collector User Guide.

6.3.1.7 OcnssfAppInfoServiceDown

Table 6-167 OcnssfAppInfoServiceDown

Field Details
Description OCNSSF Appinfo service appinfo is down'
Summary kubernetes_namespace: {{$labels.kubernetes_namespace}}, timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }} : Appinfo service down'
Severity Critical
Condition None of the pods of the App Info microservice is available.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9007
Metric Used

'up'

Note: This is a Prometheus metric used for instance availability monitoring. If this metric is not available, use the similar metric as exposed by the monitoring system.

Recommended Actions

The alert is cleared when the app-info service is available.

Steps:

  1. Run the following command to check the orchestration logs of appinfo service and check for liveness or readiness probe failures:
    kubectl get po -n <namespace>

    Note the full name of the pod that is not running, and use it in the following command:

    kubectl describe pod <specific desired full pod name> -n <namespace>
  2. Refer to the application logs on Kibana and filter based on appinfo service names. Check for ERROR WARNING logs related to thread exceptions.
  3. Depending on the failure reason, take the resolution steps.
  4. If the issue persists, capture all the outputs for the above steps and contact My Oracle Support.

    Note: Use Cloud Native Core Network Function Data Collector tool for capturing the logs. For more information, see Oracle Communications Cloud Native Core, Network Function Data Collector User Guide.

6.3.1.8 OcnssfIngressGatewayServiceDown

Table 6-168 OcnssfIngressGatewayServiceDown

Field Details
Description 'Ocnssf Ingress-Gateway service ingressgateway is down'
Summary 'kubernetes_namespace: {{$labels.kubernetes_namespace}}, timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }} : OcnssfIngressGwServiceDown service down'
Severity Critical
Condition None of the pods of the Ingress-Gateway microservice is available.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9008
Metric Used

'up'

Note: This is a Prometheus metric used for instance availability monitoring. If this metric is not available, use the similar metric as exposed by the monitoring system.

Recommended Actions

The alert is cleared when the ingressgateway service is available.

Steps:

  1. Run the following command to check the orchestration logs of ingress-gateway service and check for liveness or readiness probe failures:
    kubectl get po -n <namespace>

    Note the full name of the pod that is not running, and use it in the following command:

    kubectl describe pod <specific desired full pod name> -n <namespace>
  2. Refer to the application logs on Kibana and filter based on ingress-gateway service names. Check for ERROR WARNING logs related to thread exceptions.
  3. Depending on the failure reason, take the resolution steps.
  4. If the issue persists, capture all the outputs for the above steps and contact My Oracle Support.

    Note: Use Cloud Native Core Network Function Data Collector tool for capturing the logs. For more information, see Oracle Communications Cloud Native Core, Network Function Data Collector User Guide.

6.3.1.9 OcnssfEgressGatewayServiceDown

Table 6-169 OcnssfEgressGatewayServiceDown

Field Details
Description 'OCNSSF Egress service egressgateway is down'
Summary 'kubernetes_namespace: {{$labels.kubernetes_namespace}}, timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }} : OcnssfEgressGwServiceDown service down'
Severity Critical
Condition None of the pods of the Egress-Gateway microservice is available.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9009
Metric Used

'up'

Note: This is a Prometheus metric used for instance availability monitoring. If this metric is not available, use the similar metric as exposed by the monitoring system.

Recommended Actions

The alert is cleared when the egressgateway service is available.

Note: The threshold is configurable in the alerts.yaml

Steps:

  1. Run the following command to check the orchestration logs of egress-gateway service and check for liveness or readiness probe failures:
    kubectl get po -n <namespace>

    Note the full name of the pod that is not running, and use it in the following command:

    kubectl describe pod <specific desired full pod name> -n <namespace>
  2. Refer to the application logs on Kibana and filter based on egress-gateway service names. Check for ERROR WARNING logs related to thread exceptions.
  3. Depending on the failure reason, take the resolution steps.
  4. If the issue persists, capture all the outputs for the above steps and contact My Oracle Support.

    Note: Use Cloud Native Core Network Function Data Collector tool for capturing the logs. For more information, see Oracle Communications Cloud Native Core, Network Function Data Collector User Guide.

6.3.1.10 OcnssfTotalIngressTrafficRateAboveMinorThreshold

Table 6-170 OcnssfTotalIngressTrafficRateAboveMinorThreshold

Field Details
Description 'Ingress traffic Rate is above the configured minor threshold i.e. 800 requests per second (current value is: {{ $value }})'
Summary 'timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }}: Traffic Rate is above 80 Percent of Max requests per second(1000)'
Severity Minor
Condition

The total Ocnssf Ingress Message rate has crossed the configured minor threshold of 800 TPS.

Default value of this alert trigger point in NrfAlertValues.yaml is when Ocnssf Ingress Rate crosses 80 % of 1000 (Maximum ingress request rate).
OID 1.3.6.1.4.1.323.5.3.40.1.2.9010
Metric Used 'oc_ingressgateway_http_requests_total'
Recommended Actions

The alert is cleared either when the total Ingress Traffic rate falls below the Minor threshold or when the total traffic rate crosses the Major threshold, in which case the OcnssfTotalIngressTrafficRateAboveMinorThreshold alert shall be raised.

Note: The threshold is configurable in the alerts.yaml

Steps:

Reassess the reason why the NSSF is receiving additional traffic, for example, the mated site NSSF is unavailable in the georedundancy scenario.

If this is unexpected, contact My Oracle Support.

  1. Refer Grafana to determine which service is receiving high traffic.
  2. Refer Ingress Gateway section in Grafana to determine an increase in 4xx and 5xx error codes.
  3. Check Ingress Gateway logs on Kibana to determine the reason for the errors.
6.3.1.11 OcnssfTotalIngressTrafficRateAboveMajorThreshold

Table 6-171 OcnssfTotalIngressTrafficRateAboveMajorThreshold

Field Details
Description 'Ingress traffic Rate is above the configured major threshold i.e. 900 requests per second (current value is: {{ $value }})'
Summary 'timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }}: Traffic Rate is above 90 Percent of Max requests per second(1000)'
Severity Major
Condition

The total Ocnssf Ingress Message rate has crossed the configured major threshold of 900 TPS.

Default value of this alert trigger point in NrfAlertValues.yaml is when Ocnssf Ingress Rate crosses 90 % of 1000 (Maximum ingress request rate).
OID 1.3.6.1.4.1.323.5.3.40.1.2.9011
Metric Used 'oc_ingressgateway_http_requests_total'
Recommended Actions

The alert is cleared when the total Ingress traffic rate falls below the major threshold or when the total traffic rate crosses the critical threshold, in which case the alert shall be raised.

OcnssfTotalIngressTrafficRateAboveCriticalThreshold

Note: The threshold is configurable in the alerts.yaml

Steps:

Reassess the reason why the NSSF is receiving additional traffic, for example, the mated site NSSF is unavailable in the georedundancy scenario.

If this is unexpected, contact My Oracle Support.

  1. Refer Grafana to determine which service is receiving high traffic.
  2. Refer Ingress Gateway section in Grafana to determine an increase in 4xx and 5xx error codes.
  3. Check Ingress Gateway logs on Kibana to determine the reason for the errors.
6.3.1.12 OcnssfTotalIngressTrafficRateAboveCriticalThreshold

Table 6-172 OcnssfTotalIngressTrafficRateAboveCriticalThreshold

Field Details
Description 'Ingress traffic Rate is above the configured critical threshold i.e. 950 requests per second (current value is: {{ $value }})'
Summary 'timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }}: Traffic Rate is above 95 Percent of Max requests per second(1000)'
Severity Critical
Condition

The total Ocnssf Ingress Message rate has crossed the configured critical threshold of 950 TPS.

Default value of this alert trigger point in NrfAlertValues.yaml is when Ocnssf Ingress Rate crosses 95 % of 1000 (Maximum ingress request rate).
OID 1.3.6.1.4.1.323.5.3.40.1.2.9012
Metric Used 'oc_ingressgateway_http_requests_total'
Recommended Actions

The alert is cleared when the Ingress traffic rate falls below the critical threshold.

Note: The threshold is configurable in the alerts.yaml

Steps:

Reassess the reason why the NSSF is receiving additional traffic, for example, the mated site NSSF is unavailable in the georedundancy scenario.

If this is unexpected, contact My Oracle Support.

  1. Refer Grafana to determine which service is receiving high traffic.
  2. Refer Ingress Gateway section in Grafana to determine an increase in 4xx and 5xx error codes.
  3. Check Ingress Gateway logs on Kibana to determine the reason for the errors.
6.3.1.13 OcnssfTransactionErrorRateAbove0.1Percent

Table 6-173 OcnssfTransactionErrorRateAbove0

Field Details
Description 'Transaction Error rate is above 0.1 Percent of Total Transactions (current value is {{ $value }})'
Summary 'timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }}: Transaction Error Rate detected above 0.1 Percent of Total Transactions'
Severity Warning
Condition The number of failed transactions is above 0.1 percent of the total transactions.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9013
Metric Used 'oc_ingressgateway_http_responses_total'
Recommended Actions

The alert is cleared when the number of failure transactions are below 0.1 percent of the total transactions or when the number of failure transactions crosses the 1% threshold in which case the OcnssfTransactionErrorRateAbove1Percent is raised.

Steps:

  1. Check the Service specific metrics to understand the specific service request errors.

    For example: ocnssf_nsselection_success_tx with statusCode ~= 2xx.

  2. Verify the metrics per service, per method.

    For example: Discovery requests can be deduced from the follwing metrics:

    Metrics="oc_ingressgateway_http_responses_total"

    Method="GET"

    NFServiceType="ocnssf-nsselection"

    Route_path="/nnssf-nsselection/v2/**"

    Status="503 SERVICE_UNAVAILABLE"

  3. If guidance is required, contact My Oracle Support.
6.3.1.14 OcnssfTransactionErrorRateAbove1Percent

Table 6-174 OcnssfTransactionErrorRateAbove1Percent

Field Details
Description 'Transaction Error rate is above 1 Percent of Total Transactions (current value is {{ $value }})'
Summary 'timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }}: Transaction Error Rate detected above 1 Percent of Total Transactions'
Severity Warning
Condition The number of failed transactions is above 1 percent of the total transactions.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9014
Metric Used 'oc_ingressgateway_http_responses_total'
Recommended Actions

The alert is cleared when the number failed transactions is below 1% of the total transactions or when the number of failed transactions crosses the 10% threshold in which case the OcnssfTransactionErrorRateAbove10Percent shall be raised.

Steps:

  1. Check the Service specific metrics to understand the specific service request errors.

    For example: ocnssf_nsselection_success_tx with statusCode ~= 2xx.

  2. Verify the metrics per service, per method

    For example: Discovery requests can be deduced from the following metrics:

    Metrics="oc_ingressgateway_http_responses_total"

    Method="GET"

    NFServiceType="ocnssf-nsselection"

    Route_path="/nnssf-nsselection/v2/**"

    Status="503 SERVICE_UNAVAILABLE"

  3. If guidance is required, contact My Oracle Support.
6.3.1.15 OcnssfTransactionErrorRateAbove10Percent

Table 6-175 OcnssfTransactionErrorRateAbove10Percent

Field Details
Description 'Transaction Error rate is above 10 Percent of Total Transactions (current value is {{ $value }})'
Summary 'timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }}: Transaction Error Rate detected above 10 Percent of Total Transactions'
Severity Minor
Condition The number of failed transactions has crossed the minor threshold of 10 percent of the total transactions.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9015
Metric Used 'oc_ingressgateway_http_responses_total'
Recommended Actions

The alert is cleared when the number of failed transactions crosses the 10% threshold of the total transactions or when the ailed transactions crosses the 25% threshold in which case the OcnssfTransactionErrorRateAbove25Percent shall be raised.

Steps:

  1. Check the Service specific metrics to understand the specific service request errors.

    For example: ocnssf_nsselection_success_tx with statusCode ~= 2xx.

  2. Verify the metrics per service, per method

    For example: Discovery requests can be deduced from the following metrics:

    Metrics="oc_ingressgateway_http_responses_total"

    Method="GET"

    NFServiceType="ocnssf-nsselection"

    Route_path="/nnssf-nsselection/v2/**"

    Status="503 SERVICE_UNAVAILABLE"

  3. If guidance is required, contact My Oracle Support.
6.3.1.16 OcnssfTransactionErrorRateAbove25Percent

Table 6-176 OcnssfTransactionErrorRateAbove25Percent

Field Details
Description 'Transaction Error rate is above 25 Percent of Total Transactions (current value is {{ $value }})'
summary 'timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }}: Transaction Error Rate detected above 25 Percent of Total Transactions'
Severity Major
Condition The number of failed transactions has crossed the minor threshold of 25 percent of the total transactions.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9016
Metric Used 'oc_ingressgateway_http_responses_total'
Recommended Actions

The alert is cleared when the number of failed transactions crosses the 25% of the total transactions or when the number of failed transactions crosses the 50% threshold in which case the OcnssfTransactionErrorRateAbove50Percent shall be raised.

Steps:

  1. Check the Service specific metrics to understand the specific service request errors.

    For example: ocnssf_nsselection_success_tx with statusCode ~= 2xx.

  2. Verify the metrics per service, per method

    For example: Discovery requests can be deduced from the following metrics:

    Metrics="oc_ingressgateway_http_responses_total"

    Method="GET"

    NFServiceType="ocnssf-nsselection"

    Route_path="/nnssf-nsselection/v2/**"

    Status="503 SERVICE_UNAVAILABLE"

  3. If guidance is required, contact My Oracle Support.
6.3.1.17 OcnssfTransactionErrorRateAbove50Percent

Table 6-177 OcnssfTransactionErrorRateAbove50Percent

Field Details
Description 'Transaction Error rate is above 50 Percent of Total Transactions (current value is {{ $value }})'
Summary 'timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }}: Transaction Error Rate detected above 50 Percent of Total Transactions'
Severity Critical
Condition The number of failed transactions has crossed the minor threshold of 50 percent of the total transactions.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9017
Metric Used 'oc_ingressgateway_http_responses_total
Recommended Actions

The alert is cleared when the number of failed transactions is below 50 percent of the total transactions.

Steps:

  1. Check for service specific metrics to understand the specific service request errors.

    For example: ocnssf_nsselection_success_tx with statusCode ~= 2xx.

  2. Verify the metrics per service, per method

    For example: Discovery requests can be deduced from the following metrics:

    Metrics="oc_ingressgateway_http_responses_total"

    Method="GET"

    NFServiceType="ocnssf-nsselection"

    Route_path="/nnssf-nsselection/v2/**"

    Status="503 SERVICE_UNAVAILABLE"

  3. If guidance is required, contact My Oracle Support.
6.3.1.18 OcnssfIngressGatewayPodCongestionStateWarning

Table 6-178 OcnssfIngressGatewayPodCongestionStateWarning

Field Details
Description Ingress gateway pod congestion state reached DOC
Summary 'timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }}: Ingress gateway pod congestion state reached DOC'
Severity Warning
Condition Ingress gateway pod has moved into a state of DOC for any of the aforementioned metrics. Thresholds are configured for CPU, Pending messages count.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9027
Metric Used oc_ingressgateway_pod_congestion_state
Recommended Actions

Reassess the reasons leading to NSSF receiving additional traffic.

Steps:

Reassess the reasons leading to NSSF receiving additional traffic.

If this is unexpected, contact My Oracle Support.

1. Refer to alert to determine which service is receiving high traffic. It may be due to a sudden spike in traffic.

For example: When one mated site goes down, the NFs move to the given site.

2. Check the service pod logs on Kibana to determine the reason for the errors.

3. If this is expected traffic, check in Grafana for the distribution of traffic among the Ingress gateway pods. Then the thresholds levels may be reevaluated as per the call rate and reconfigured as mentioned in Oracle Communications Cloud Native Core, Network Slice Selection Function REST Specification Guide.

6.3.1.19 OcnssfIngressGatewayPodCongestionStateMajor

Table 6-179 OcnssfIngressGatewayPodCongestionStateMajor

Field Details
Description Ingress gateway pod congestion state when reached CONGESTED
Summary 'timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }}: Ingress gateway pod congestion state when reached CONGESTED'
Severity Major
Condition Ingress gateway pod has moved into a state of CONGESTED for any of the aforementioned metrics. Thresholds are configured for CPU, Pending messages count.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9028
Metric Used oc_ingressgateway_pod_congestion_state
Recommended Actions

Reassess the reasons leading to NSSF receiving additional traffic.

Steps:

Reassess the reasons leading to NSSF receiving additional traffic.

If this is unexpected, contact My Oracle Support.

1. Refer to alert to determine which service is receiving high traffic. It may be due to a sudden spike in traffic.

For example: When one mated site goes down, the NFs move to the given site.

2. Check the service pod logs on Kibana to determine the reason for the errors.

3. If this is expected traffic, check in Grafana for the distribution of traffic among the Ingress gateway pods. Then the thresholds levels may be reevaluated as per the call rate and reconfigured as mentioned in Oracle Communications Cloud Native Core, Network Slice Selection Function REST Specification Guide.

6.3.1.20 OcnssfIngressGatewayPodResourceStateWarning

Table 6-180 OcnssfIngressGatewayPodResourceStateWarning

Field Details
Description The ingress gateway pod congestion state reached DOC because of excessive usage of resources
Summary 'timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }}: The ingress gateway pod congestion state reached DOC because of excessive usage of resources'
Severity Warning
Condition The configured threshold for resource cunsumption for state DOC for Ingress gateway is breached.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9029
Metric Used oc_ingressgateway_pod_resource_state
Recommended Actions

Reassess the reasons leading to NSSF receiving additional traffic.

Steps:

Reassess the reasons leading to NSSF receiving additional traffic.

If this is unexpected, contact My Oracle Support.

1. Refer to alert to determine which service is receiving high traffic. It may be due to a sudden spike in traffic.

For example: When one mated site goes down, the NFs move to the given site.

2. Check the service pod logs on Kibana to determine the reason for the errors.

3. If this is expected traffic, check in Grafana for the distribution of traffic among the Ingress gateway pods. Then the thresholds levels may be reevaluated as per the call rate and reconfigured as mentioned in Oracle Communications Cloud Native Core, Network Slice Selection Function REST Specification Guide.

6.3.1.21 OcnssfIngressGatewayPodResourceStateMajor

Table 6-181 OcnssfIngressGatewayPodResourceStateMajor

Field Details
Description The ingress gateway pod congestion state reached CONGESTED because of excessive usage of resources
Summary 'timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }}: The ingress gateway pod congestion state reached CONGESTED because of excessive usage of resources'
Severity Major
Condition The configured threshold for resource cunsumption for state CONGESTED for Ingress gateway is breached.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9030
Metric Used oc_ingressgateway_pod_resource_state
Recommended Actions

Reassess the reasons leading to NSSF receiving additional traffic.

Steps:

Reassess the reasons leading to NSSF receiving additional traffic.

If this is unexpected, contact My Oracle Support.

1. Refer to alert to determine which service is receiving high traffic. It may be due to a sudden spike in traffic.

For example: When one mated site goes down, the NFs move to the given site.

2. Check the service pod logs on Kibana to determine the reason for the errors.

3. If this is expected traffic, check in Grafana for the distribution of traffic among the Ingress gateway pods. Then the thresholds levels may be reevaluated as per the call rate and reconfigured as mentioned in Oracle Communications Cloud Native Core, Network Slice Selection Function REST Specification Guide.

6.3.2 Application Level Alerts

This section lists the application level alerts.

6.3.2.1 ocnssfPolicyNotFoundWarning

Table 6-182 ocnssfPolicyNotFoundWarning

Field Details
Description 'Policy Not Found Rate is above warning threshold i.e. 700 mps (current value is: {{ $value }})'
Summary 'timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }}: 'Policy Not Found Rate is above 70 Percent'

rate(ocnssf_nsselection_policy_not_found_total[2m])) >= 100 < 150
Severity Warning
Condition Rate of messages that did not find a matching policy is above warning threshold (Threshold: <>, Current: <>).
OID 1.3.6.1.4.1.323.5.3.40.1.2.9018
Metric Used ocnssf_nsselection_policy_not_found_total
Recommended Actions

This alert is cleared when the number of error transactions are below 70 percent of the total traffic.

Steps:

  1. Check the ocnssf_nsselection_policy_match rate.
  2. Look into logs and find configuration mismatch:
    1. For failure scenario check TAI and SNSSAI in error logs.
    2. Look in configuration for corresponding nssai-auth and nss_rule.
      1. If entry is not found, add configuration.
      2. If entry is found, check Grant_Fileld and update to ALLOWED.
  3. If guidance is required, contact My Oracle Support.
6.3.2.2 ocnssfPolicyNotFoundMajor

Table 6-183 ocnssfPolicyNotFoundMajor

Field Details
Description 'Policy Not Found Rate is above major threshold i.e. 850 mps (current value is: {{ $value }})'
Summary 'timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }}: 'Policy Not Found Rate is above 85 Percent'
Severity Major
Condition Rate of messages that did not find a matching policy is above major threshold.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9019
Metric Used ocnssf_nsselection_policy_not_found_total
Recommended Actions

This alert is cleared when the number of error transactions are below 85% of the total traffic.

Steps:

  1. Check the ocnssf_nsselection_policy_match rate.
  2. Look into logs and find configuration mismatch:
    1. For failure scenario check TAI and SNSSAI in error logs.
    2. Look in configuration for corresponding nssai-auth and nss_rule.
      1. If entry is not found, add configuration.
      2. If entry is found, check Grant_Fileld and update to ALLOWED.
  3. If guidance is required, contact My Oracle Support.
6.3.2.3 ocnssfPolicyNotFoundCritical

Table 6-184 ocnssfPolicyNotFoundCritical

Field Description
Description 'Policy Not Found Rate is above critical threshold i.e. 950 mps (current value is: {{ $value }})'
Summary 'timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }}: 'Policy Not Found Rate is above 95 Percent'
Severity Critical
Condition Rate of messages that did not find a matching policy is above critical threshold.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9020
Metric Used ocnssf_nsselection_policy_not_found_total
Recommended Actions

This alert is cleared when the number of error transactions are below 95 percent of the total traffic.

Steps:

  1. Check the ocnssf_nsselection_policy_match rate..
  2. Look into logs and find configuration mismatch:
    1. For failure scenario check TAI and SNSSAI in error logs.
    2. Look in configuration for corresponding nssai-auth and nss_rule:
      1. If entry is not found, add configuration.
      2. If entry is found, check Grant_Fileld and update to ALLOWED.
  3. If guidance is required, contact My Oracle Support.
6.3.2.4 OcnssfOverloadThresholdBreachedL1

Table 6-185 OcnssfOverloadThresholdBreachedL1

Field Details
Description 'Overload Level of {{$labels.app_kubernetes_io_name}} service is L1'
Summary 'kubernetes_namespace: {{$labels.kubernetes_namespace}}, podname: {{$labels.kubernetes_pod_name}}: Overload Level of {{$labels.app_kubernetes_io_name}} service is L1'
Severity Warning
Condition NSSF Services have breached their configured threshold of Level L1 for any of the aforementioned metrics.

Thresholds are configured for CPU, svc_failure_count, svc_pending_count, and memory.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9021
Metric Used load_level
Recommended Actions

The alert is cleared when the Ingress Traffic rate falls below the configured L1 threshold.

Note: The thresholds can be configured using REST API.

Steps:

Reassess the reasons leading to NSSF receiving additional traffic.

If this is unexpected, contact My Oracle Support.

1. Refer to alert to determine which service is receiving high traffic. It may be due to a sudden spike in traffic.

For example: When one mated site goes down, the NFs move to the given site.

2. Check the service pod logs on Kibana to determine the reason for the errors.

3. If this is expected traffic, then the thresholds levels may be reevaluated as per the call rate and reconfigured as mentioned in Oracle Communications Cloud Native Core, Network Slice Selection Function REST Specification Guide.

6.3.2.5 OcnssfOverloadThresholdBreachedL2

Table 6-186 OcnssfOverloadThresholdBreachedL2

Field Details
Description 'Overload Level of {{$labels.app_kubernetes_io_name}} service is L2'
Summary 'kubernetes_namespace: {{$labels.kubernetes_namespace}}, podname: {{$labels.kubernetes_pod_name}}: Overload Level of {{$labels.app_kubernetes_io_name}} service is L2'
Severity Warning
Condition NSSF Services have breached their configured threshold of Level L2 for any of the aforementioned metrics.

Thresholds are configured for CPU, svc_failure_count, svc_pending_count, and memory.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9022
Metric Used load_level
Recommended Actions

The alert is cleared when the Ingress Traffic rate falls below the configured L2 threshold.

Note: The thresholds can be configured using REST API.

Steps:

Reassess the reasons leading to NSSF receiving additional traffic.

If this is unexpected, contact My Oracle Support.

1. Refer to alert to determine which service is receiving high traffic. It may be due to a sudden spike in traffic.

For example: When one mated site goes down, the NFs move to the given site.

2. Check the service pod logs on Kibana to determine the reason for the errors.

3. If this is expected traffic, then the thresholds levels may be reevaluated as per the call rate and reconfigured as mentioned in Oracle Communications Cloud Native Core, Network Slice Selection Function REST Specification Guide.

6.3.2.6 OcnssfOverloadThresholdBreachedL3

Table 6-187 OcnssfOverloadThresholdBreachedL3

Field Details
Description 'Overload Level of {{$labels.app_kubernetes_io_name}} service is L3'
Summary 'kubernetes_namespace: {{$labels.kubernetes_namespace}}, podname: {{$labels.kubernetes_pod_name}}: Overload Level of {{$labels.app_kubernetes_io_name}} service is L3'
Severity Warning
Condition NSSF Services have breached their configured threshold of Level L3 for any of the aforementioned metrics.

Thresholds are configured for CPU, svc_failure_count, svc_pending_count, and memory.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9023
Metric Used load_level
Recommended Actions

The alert is cleared when the Ingress Traffic rate falls below the configured L3 threshold.

Note: The thresholds can be configured using REST API.

Steps:

Reassess the reasons leading to NSSF receiving additional traffic.

If this is unexpected, contact My Oracle Support.

1. Refer to alert to determine which service is receiving high traffic. It may be due to a sudden spike in traffic.

For example: When one mated site goes down, the NFs move to the given site.

2. Check the service pod logs on Kibana to determine the reason for the errors.

3. If this is expected traffic, then the thresholds levels may be reevaluated as per the call rate and reconfigured as mentioned in Oracle Communications Cloud Native Core, Network Slice Selection Function REST Specification Guide.

6.3.2.7 OcnssfOverloadThresholdBreachedL4

Table 6-188 OcnssfOverloadThresholdBreachedL4

Field Details
Description 'Overload Level of {{$labels.app_kubernetes_io_name}} service is L4'
Summary 'kubernetes_namespace: {{$labels.kubernetes_namespace}}, podname: {{$labels.kubernetes_pod_name}}: Overload Level of {{$labels.app_kubernetes_io_name}} service is L4'
Severity Warning
Condition NSSF Services have breached their configured threshold of Level L4 for any of the aforementioned metrics.

Thresholds are configured for CPU, svc_failure_count, svc_pending_count, and memory.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9024
Metric Used load_level
Recommended Actions

The alert is cleared when the Ingress Traffic rate falls below the configured L4 threshold.

Note: The thresholds can be configured using REST API.

Steps:

Reassess the reasons leading to NSSF receiving additional traffic.

If this is unexpected, contact My Oracle Support.

1. Refer to alert to determine which service is receiving high traffic. It may be due to a sudden spike in traffic.

For example: When one mated site goes down, the NFs move to the given site.

2. Check the service pod logs on Kibana to determine the reason for the errors.

3. If this is expected traffic, then the thresholds levels may be reevaluated as per the call rate and reconfigured as mentioned in Oracle Communications Cloud Native Core, Network Slice Selection Function REST Specification Guide.

6.3.2.8 OcnssfScpMarkedAsUnavailable

Table 6-189 OcnssfScpMarkedAsUnavailable

Field Details
Description 'An SCP has been marked unavailable'
Summary 'kubernetes_namespace: {{$labels.kubernetes_namespace}}, timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }} : One of the SCP has been marked unavailable'
Severity Major
Condition One of the SCPs has been marked unhealthy.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9025
Metric Used 'oc_egressgateway_peer_health_status'
Recommended Actions This alert get cleared when unavailable SCPs become available.
6.3.2.9 OcnssfAllScpMarkedAsUnavailable

Table 6-190 OcnssfAllScpMarkedAsUnavailable

Field Details
Description 'All SCPs have been marked unavailable'
Summary 'kubernetes_namespace: {{$labels.kubernetes_namespace}}, timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }} : All SCPs have been marked as unavailable'
Severity Critical
Condition All SCPs have been marked unavailable.
OID 1.3.6.1.4.1.323.5.3.40.1.2.9026
Metric Used 'oc_egressgateway_peer_count and oc_egressgateway_peer_available_count'
Recommended Actions NF clears the critical alarm when at least one SCP peer in a peer set becomes available such that all other SCP or SEPP peers in the given peer set are still unavailable.

6.3.3 NSSF Alert Configuration

Follow the steps below for NSSF Alert configuration in Prometheus:

Note:

  1. By default, Namespace for NSSF is ocnssf, which must be updated as per the deployment.
  2. The ocnnsf-custom-configTemplate-23.4.0.0.0.zip file can be downloaded from MOS. Unzip the ocnnsf-custom-configTemplate-23.4.0.0.0.zip file after downloading to get ocnssf_custom_values_23.4.0.yaml file.
  3. Set the following parameter in the ocnssf_alert_rules_23.4.0.yaml file:

    app_kubernetes_io_part_of="<deployment name>"

    Example: app_kubernetes_io_part_of="ocnssf"

    Where deployment name is 'ocnssf'.

Configuring NSSF alerts for CNE 1.8.x and previous versions

The following procedure describes how to configure NSSF alerts for CNE version 1.8.x and previous versions:

_NAME_: Helm Release of Prometheus

_Namespace_ : Kubernetes Namespace in which Prometheus is installed

  1. Take a backup of current configuration map of Prometheus:
    kubectl get configmaps _NAME_-server -o yaml -n _Namespace_ > /tmp/ tempConfig.yaml
  2. Check NSSF Alert file name:

sed -i '/etc\/config\/alertsnssf/d' /tmp/tempConfig.yaml
  3. Add NSSF Alert file name inside Prometheus configuration map:

sed -i '/rule_files:/a\ \- /etc/config/alertsnssf'/tmp/tempConfig.yaml
  4. Update configuration map with the updated file name of NSSF alert file:
    kubectl replace configmap _NAME_-server -f /tmp/tempConfig.yaml
  5. Add NSSF Alert rules in configuration map under file name of NSSF alert file:
    kubectl patch configmap _NAME_-server -n _Namespace_--type merge --patch "$(cat ~/ocnssf-<release-version>.alert-rules.yaml)"

    Example:

    kubectl patch configmap _NAME_-server -n _Namespace_--type merge --patch "$(cat ~/ocnssf_alert_rules_23.4.0.yaml)"
  6. Log in to Prometheus GUI and verify the alerts section.

    The alert configuration file must be loaded as shown in the figure.Prometheus Alert Manager

Configuring NSSF alerts for CNE 1.9.x and later versions

This section describes the measurement based Alert rules configuration for NSSF in Prometheus. Use the ocnssf_alerting_rules_promha_<release-number>.yaml file updated in NSSF Alert configuration section.

  1. Run the following command to apply the prometheus rules :
    kubectl apply -f nssfAlertRules-promha_<release-version>.yaml -n _Namespace_

    Example:

    $ kubectl apply -f ocnssf_alert_rules_promha_23.4.0.yaml --namespace ocnssf

    Sample output:


  prometheusrule.monitoring.coreos.com/ocnssf-alerting-rules created
  2. Run the following command to check NSSF alert file is added to prometheusrules:
    $ kubectl get prometheusrules --namespace <namespace>

    Example:

    $ kubectl get prometheusrules --namespace ocnssf

    Sample output:

    NAME                          AGE
nssf-ocnssf-alerting-rules          1m
  3. Log in to Prometheus GUI and verify the alerts section.

    The alert configuration file must be loaded as shown in the figure.Prometheus Alert Manager

Note:

The Prometheus server takes an updated configuration map that is automatically reloaded after approximately 60 seconds. Refresh the Prometheus GUI to confirm that the NSSF Alerts have been reloaded.

Steps to Check Alerts in Prometheus

  1. Run the following command to deploy Prometheus:

    Go to path: ocnssf/automation/infrastructure
    helm install stable/Prometheus occne-prometheus --namespace occne-infra -f
./components/prometheus/values.yaml -f./components/prometheus/values-server-files.yaml --version 9.1.1
  2. Configure the alerts by following NSSF Alert Configuration section.
  3. To find Prometheus on UI:

http://_NODE_IP_:PORT_/

Here _NODE_IP_ is the machine on which Prometheus pod is running.

PORT is occne-prometheus-server port. (Use cmd :: "kubectl get svc -n occne-infra" to get port. Here occne-infra is the namespace where Prometheus is running.)

Disabling Alerts

This section explains the procedure to disable the alerts in NSSF.

Disabling Alerts for CNE 1.8.x and previous versions

  1. Edit ocnssf-.alert-rules.yaml file to remove specific alert.
  2. Remove complete content of the specific alert from the ocnssf-.alert-rules.yaml file.

    ocnssf-.alert-rules.yaml

For example: If you want to remove OcnssfTrafficRateAboveMinorThreshold alert, remove the complete content:

## ALERT SAMPLE START##
- alert: OcnssfTrafficRateAboveMinorThreshold
 annotations:
 description: 'NSSF traffic Rate is above the configured minor threshold i.e. 700 requests per second (current value is: {{ $value }})'
 summary: 'namespace: {{$labels.kubernetes_namespace}}, podname: {{$labels.kubernetes_pod_name}}, timestamp: {{ with query "time()" }}{{ . | first | value | humanizeTimestamp }}{{ end }}: Traffic Rate is above 70 Percent of Max requests per second(1000)'
 expr: sum(rate(oc_ingressgateway_http_requests_total{InstanceIdentifier="nssf_ingressgateway",kubernetes_namespace="nssf"}[2m])) > 0
 labels:
 severity: minor
 oid: "1.3.6.1.4.1.323.5.3.51.1.2.7001"
 namespace: ' {{ $labels.kubernetes_namespace }} '
 podname: ' {{$labels.kubernetes_pod_name}} '
## ALERT SAMPLE END##
  3. Perform Alert configuration.

Disabling Alerts for CNE 1.9.x and later versions

  1. Retrieve prometheusrule name.

    Example:

    Run
    kubectl get prometheusrule

    Sample Output:

    NAME AGE
ocnssf-alerting-rules 7d20h
  2. Delete prometheusrule.

    Example:

    Run
    kubectl delete prometheusrule ocnssf-alerting-rules

    Sample Output:

    prometheusrule.monitoring.coreos.com "ocnssf-alerting-rules" deleted
  3. Update alerting rules.

    Example:

    Run
    kubectl apply -f promHAalerts.yaml

    Sample Output:

    prometheusrule.monitoring.coreos.com/ocnssf-alerting-rules created
