3 Benchmarking SCP Model C

This section describes Model C test topologies and test scenarios for benchmarking SCP.

3.1 Test Topology 1 for SCP Model C Benchmarking

The following image represents the test topology consisting of the following components:

  • SCP

  • Consumer NF test simulator
  • Producer NF test simulator
  • NRF simulator

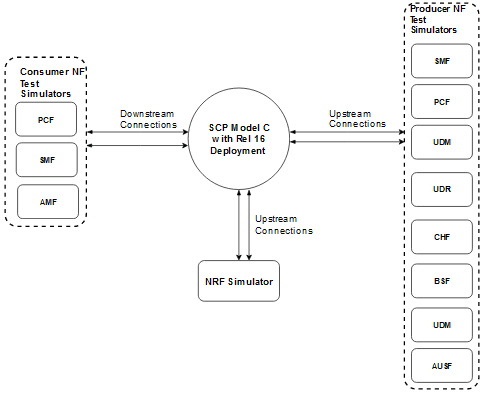

Figure 3-1 SCP Model C Topology 1


SCP Model C Topology 1

The aforementioned image represents the Model C test topology. In Release 16 Model C indirect 5G SBI communication mode, the consumer NF sends NF discovery service requests to NRF. After receiving the discovery response with NF profiles, the consumer NF performs the following tasks:

  • Selects an NF Set or a specific NF instance from the NF Set
  • Sends a service request to SCP with the address of the selected service producer NF in 3gpp-Sbi-Target-apiRoot header
  • Creates multiple network interfaces for different subnet IPs

Then, SCP selects an NF service instance and routes the service requests to the selected producer NF. In case of failure, if reselection is required, SCP selects the producer NF instance based on the NF Set.

3.1.1 Topology 1 Call Flow

The following call flow represents how a service request is processed by SCP:

  1. Consumer NF sends the service request to SCP.
  2. SCP sends the request to the producer NF based on the NF profiles registered through NRF.
  3. Producer NF sends the response to SCP for the service request.
  4. SCP routes the response received from the producer NF to the consumer NF.

Figure 3-2 Topology 1 Call Flow


Model C Call Flow

3.1.2 Topology 1 Traffic Distribution

The following table describes the percentage of messages processed by SCP using N11, N7, N10, N36, N28, and other interfaces.

Table 3-1 Topology 1 Traffic Distribution

NF-C NF-P Interface Reference NF Service Percentage (%) of Messages
AMF SMF N11 nsmf-pdusession 50.00%
SMF PCF N7

npcf-smpolicycontrol

 30.00%
SMF UDM N10
  • nudm-sdm
  • nudm-uecm
 10.90%
PCF UDR N36

nudr-dr

 0.40%
PCF CHF N28 nchf-spendinglimitcontrol 0.40%
PCF BSF Nbsf nbsf-management 0.30%
AMF UDM N8
  • nudm-sdm
  • nudm-uecm
 2.50%
AMF AUSF N12 nausf-auth 2.50%
AMF PCF N15
  • npcf-ue-policy-control
  • npcf-am-policy-control
 3.00%

Topology 1 Routing Configuration

The following table describes the routing configurations for the NF services:

Table 3-2 Routing Configuration

NF Service Initial Message Subsequent Message reverseProxySupport Deployment ResponseTimeout
  routePolicy reroutePolicy routePolicy reroutePolicy
SMF Nsmf_PDUSession Load_Balance RerouteWithinRegion Load_Balance RerouteWithinRegion False REGIONAL 1s
PCF Npcf_SMPolicyControl Load_Balance RerouteWithinRegion Load_Balance RerouteWithinRegion False REGIONAL 1s
UDR Nudr_dm Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite False SITE_WIDE 1s
CHF Nchf_SpendingLimitControl Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite False SITE_WIDE 1s
UDM Nudm_sdm Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite False SITE_WIDE 1s
UDM Nudm_uecm Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite False SITE_WIDE 1s
PCF Npcf_AMPolicyControl Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite False SITE_WIDE 1s
PCF Npcf_UEPolicyControl Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite False SITE_WIDE 1s
AUSF Nausf_UEAuthentication Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite False SITE_WIDE 1s
BSF Nbsf_management Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite False SITE_WIDE 1s
UDR Nudr_udrService Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite False SITE_WIDE 1s

Topology 1 NF Profiles

The following table describes NF profile configuration, traffic, and message call flows for 176 NF profiles registered on SCP:

Table 3-3 NF Profiles

NF-C NF-P Interfaces Supported Services Service-related traffic Profiles Registered NF Range Message Call Flows
AMF SMF N11
  • nsmf-pdusession
  • nsmf-event-exposure
 nsmf-pdusession 80 SMF1 to SMF80
  • Create PDU session
  • Modify PDU session
  • Release PDU session
AMF PCF N15
  • npcf-am-policy-control
  • npcf-smpolicycontrol
  • npcf-policyauthorization
  • npcf-bdtpolicycontrol
  • npcf-ue-policy-control
  • npcf-ue-policy-control
  • npcf-am-policy-control
 12 PCF1 to PCF12

Npcf_AMPolicyControl

  • Create AM Policy Association
  • Retrieve SM Policy
  • Update Policy
  • Policy Update Notification

Npcf_UEPolicyControl

  • Create Policy Association
  • Retrieve Policy Association
  • Update Policy Association
  • Policy Update Notification
SMF PCF N7
  • npcf-am-policy-control
  • npcf-smpolicycontrol
  • npcf-policyauthorization
  • npcf-bdtpolicycontrol
  • npcf-ue-policy-control
 npcf-smpolicycontrol 38 PCF13 to PCF50
  • Create SM Policy
  • Update SM Policy
  • Delete SM Policy
SMF UDM N10
  • nudm-ueau
  • nudm-uecm
  • nudm-sdm
  • nudm-ee
  • nudm-pp
  • nudm-sdm
  • nudm-uecm
 3 UDM1 to UDM3

Nudm_sdm

  • Subscribe to Notifications
  • Data Change Notification
  • Unsubscribe from Notifications

Nudm_uecm

  • Register SMF
  • Deregister SMF
AMF UDM N8
  • nudm-ueau
  • nudm-uecm
  • nudm-sdm
  • nudm-ee
  • nudm-pp
  • nudm-sdm
  • nudm-uecm
 3 UDM4 to UDM6

Nudm_sdm

  • Subscribe to Notifications
  • Data Change Notification
  • Unsubscribe from Notifications

Nudm_uecm

  • Register AMF
  • Deregister AMF
PCF UDR N36
  • nudr-dr
  • nudr-group-id-map
 nudr-dr 10 UDR1 to UDR10
  • Create Policy Data Subscription
  • Delete Policy Data Subscription
PCF CHF N28
  • nchf-spendinglimitcontrol
  • nchf-convergedcharging
 nchf-spendinglimitcontrol 10 CHF1 to CHF10
  • Subscribe to notification
  • Cancel an existing subscription
AMF AUSF N12
  • nausf-auth
  • nausf-sorprotection
  • nausf-upuprotection
 nausf-auth 10 AUSF1 to AUSF10 Authenticate UE
PCF BSF Nbsf nbsf-management nbsf-management 10 BSF1 to BSF10
  • Register the session binding information
  • Retrieve the session binding information
  • Remove an existing session binding
  • 3gpp-sbi-discovery-target-nf-type
  • 3gpp-sbi-discovery-requester-nf-type
  • 3gpp-Sbi-discovery-preferred-locality
  • 3gpp-Sbi-discovery-preferred-api-versions

3.2 Test Topology 2 for SCP Model C Benchmarking with SBI Message Feed

The following image represents the test topology consisting of the following components:

  • SCP

  • Consumer NF test simulator
  • Producer NF test simulator
  • NRF simulator
  • Oracle Communications Network Analytics Data Director (OCNADD)

Figure 3-3 SCP Model C Topology 2


SCP Model C Topology 2

The aforementioned image represents the Model C test topology. In Release 16 Model C indirect 5G SBI communication mode, the consumer NF sends NF discovery service requests to NRF. After receiving the discovery response with NF profiles, the consumer NF performs the following tasks:

  • Selects an NF Set or a specific NF instance from the NF Set
  • Sends a service request to SCP with the address of the selected service producer NF
  • Creates multiple network interfaces for different subnet IPs
  • Service requests from consumer NF are copied to OCNADD and then forwarded to the third-party

Then, SCP selects an NF service instance and routes the service requests to the selected producer NF. In case of failure, if reselection is required, SCP selects the producer NF instance based on the NF Set.

3.2.1 Topology 2 Call Flow

The following call flow represents how a service request is processed by SCP:

  1. Consumer NF sends the service request to SCP.
  2. SCP sends the request to the producer NF based on the NF profiles registered through NRF.
  3. Producer NF sends the response to SCP for the service request.
  4. SCP routes the response received from the producer NF to the consumer NF.
  5. SCP copies the requests and responses to DD.

Figure 3-4 Topology 2 Call Flow


Topology 2 Call Flow

3.2.2 Topology 2 Traffic Distribution

The following table describes the percentage of messages processed by SCP:

Table 3-4 Topology 2 Traffic Distribution

NF-C NF-P Interface Reference NF Service Percentage (%) of Messages
SMF PCF N7

npcf-smpolicycontrol

 79.55%
SMF UDM N10
  • nudm-sdm
  • nudm-uecm
 7.58%
PCF UDR N36

nudr-dr

 0.76%
PCF CHF N28 nchf-spendinglimitcontrol 0.76%
SMF CHF N40 nchf-convergedcharging 11.36%

Topology 2 Routing Configuration

The following table describes the routing configurations for the NF services:

Table 3-5 Routing Configuration

NF Service Initial Message Subsequent Message reverseProxySupport Deployment ResponseTimeout
  routePolicy reroutePolicy routePolicy reroutePolicy
PCF npcf-smpolicycontrol Load_Balance RerouteDisabled Load_Balance RerouteDisabled False SITE_WIDE 3s
UDM nudm-sdm Load_Balance RerouteDisabled Load_Balance RerouteDisabled False SITE_WIDE 3s
UDM nudm-uecm Load_Balance RerouteDisabled Load_Balance RerouteDisabled False SITE_WIDE 3s
UDR nudr-dr Load_Balance RerouteDisabled Load_Balance RerouteDisabled False SITE_WIDE 3s
PCF nchf-spendinglimitcontrol Load_Balance RerouteDisabled Load_Balance RerouteDisabled False SITE_WIDE 3s
CHF nchf-convergedcharging Forward_Route RerouteWithinSite Forward_Route RerouteWithinSite True SITE_WIDE 1s

Topology 2 NF Profiles

The following table describes NF profile configuration, traffic, and message call flows for 15 NF profiles registered on SCP:

Table 3-6 NF Profiles

NF-C NF-P Interfaces Supported Services Service-related traffic Profiles Registered NF Range Message Call flows
SMF PCF N7
  • npcf-bdtpolicycontrol
  • npcf-policyauthorization
  • npcf-ue-policy-contro
  • npcf-am-policy-control
  • npcf-smpolicycontrol
 npcf-smpolicycontrol 8 PCF1-PCF5
  • Initial Requests
  • Subsequent Update
  • Subsequent Terminate
  • Notifications Only
SMF UDM N10
  • nudm-ueau
  • nudm-uecm
  • nudm-ee
  • nudm-pp
  • nudm-sdm
  • nudm-sdm
  • nudm-uecm
 2 UDM1 to UDM2
  • UECM Registration
  • SDM GET
  • SDM Subscription
PCF UDR N36
  • nudr-group-id-map
  • nudr-dr
  • nudr-dr
 1 UDM1
  • Initial Requests (UDR GET)
  • Subscription (POST)
  • Unsubscription (POST)
  • Notifications (POST)
PCF CHF N28
  • nchf-spendinglimitcontro
  • nchf-convergedcharging
 nchf-spendinglimitcontrol 2 CHF1-CHF2
  • Subscription (CHF POST)
  • Unsubscription (CHF POST)
  • Notifications (POST)
SMF CHF N40
  • nchf-spendinglimitcontrol
  • nchf-convergedcharging
 nchf-convergedcharging 2 CHF1-CHF2
  • Charging Data
  • Update
  • Release

3.3 Test Topology 3 for SCP Model C Benchmarking

The following image represents the test topology consisting of the following components:

  • SCP

  • Consumer NF test simulator
  • Producer NF test simulator
  • NRF simulator

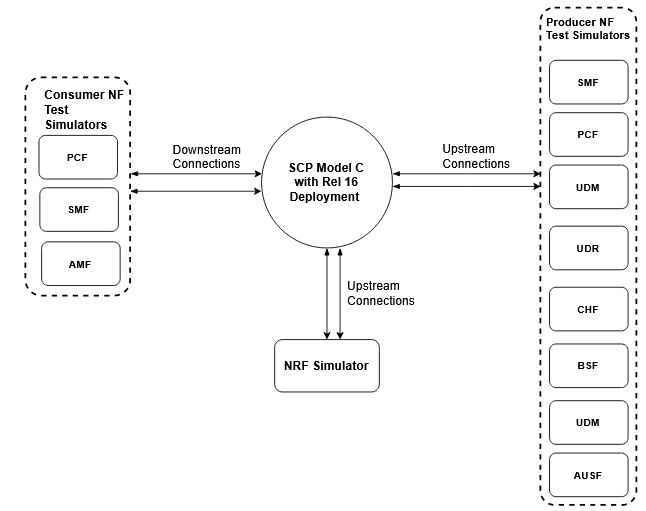

Figure 3-5 SCP Model C Topology 3


SCP Model C Topology 3

The aforementioned image represents the Model C test topology. In Release 16 Model C indirect 5G SBI communication mode, the consumer NF sends NF discovery service requests to NRF. After receiving the discovery response with NF profiles, the consumer NF performs the following tasks:

  • Selects an NF Set or a specific NF instance from the NF Set
  • Sends a service request to SCP with the address of the selected service producer NF in 3gpp-Sbi-Target-apiRoot header
  • Creates multiple network interfaces for different subnet IPs

Then, SCP selects an NF service instance and routes the service requests to the selected producer NF. In case of failure, if reselection is required, SCP selects the producer NF instance based on the NF Set.

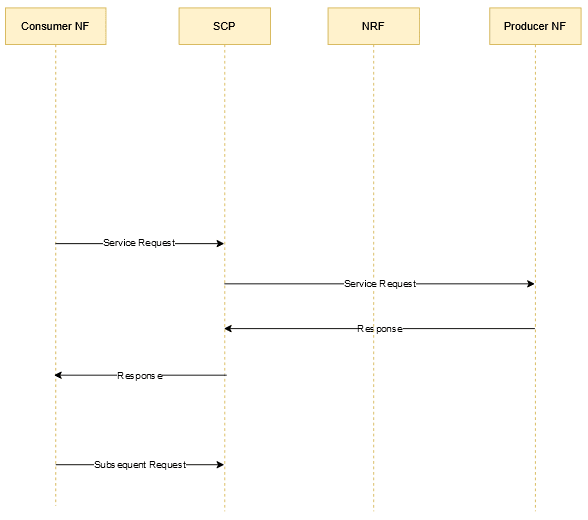

3.3.1 Topology 3 Call Flow

The following call flow represents how a service request is processed by SCP:

  1. Consumer NF sends the service request to SCP.
  2. SCP sends the request to the producer NF based on the NF profiles registered through NRF.
  3. Producer NF sends the response to SCP for the service request.
  4. SCP routes the response received from the producer NF to the consumer NF.

Figure 3-6 Topology 3 Call Flow


Topology 3 Call Flow

3.3.2 Topology 3 Traffic Distribution

The following table describes the percentage of messages processed by SCP using N8, N11, N7, N10, N36, N28, and other interfaces.

Table 3-7 Topology 3 Traffic Distribution

NF-C NF-P Interface Reference Percentage (%) of Messages
SMF PCF N7 60
SMF UDM N10 5
PCF UDR N36 1
PCF CHF N28 1
SMF CHF N40 10
NRF SLF - 3
PCF BSF Nbsf 2
AMF UDM N8 7.5
AMF AUSF N12 7.5
AMF PCF N15 3
NRF SCP Notifications 10 notifications every 15 minutes

Note:

Only UDM, AUSF, and UDR traffic traverses between regions through inter-SCP and is ~30% of the overall AUSF, UDM, and UDR traffic rates as represented by the rate captured for SCP.

Topology 3 Routing Configuration

The following table describes the routing configurations for the NF services:

Table 3-8 Routing Configuration

NF Service Initial Message Subsequent Message Deployment ResponseTimeout
  routePolicy reroutePolicy routePolicy reroutePolicy
PCF Npcf_SMPolicyControl Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite SITE_WIDE 3s
UDR Nudr_dm Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite REGIONAL 3s
CHF Nchf_SpendingLimitControl Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite SITE_WIDE 3s
UDM Nudm_sdm Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite SITE_WIDE 3s
UDM Nudm_uecm Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite SITE_WIDE 3s
PCF Npcf_AMPolicyControl Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite SITE_WIDE 3s
PCF Npcf_UEPolicyControl Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite SITE_WIDE 3s
AUSF Nausf_UEAuthentication Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite SITE_WIDE 3s
BSF Nbsf_management Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite SITE_WIDE 1s
UDR Nudr_udrService Load_Balance RerouteWithinSite Load_Balance RerouteWithinSite SITE_WIDE 3s

Topology 3 NF Profiles

The following table describes NF profile configuration, traffic, and message call flows for 280 NF profiles registered on SCP:

Table 3-9 NF Profiles

NF-C NF-P Interfaces Supported Services Service-related traffic NF Range Profiles Registered Message Call Flows
AMF PCF N15
  • npcf-am-policy-control
  • npcf-smpolicycontrol
  • npcf-policyauthorization
  • npcf-bdtpolicycontrol
  • npcf-ue-policy-control
  • npcf-ue-policy-control
  • npcf-am-policy-control
 30 PCF1 to PCF30

Npcf_AMPolicyControl

  • Create AM Policy Association
  • Retrieve SM Policy
  • Update Policy
  • Policy Update Notification

Npcf_UEPolicyControl

  • Create Policy Association
  • Retrieve Policy Association
  • Update Policy Association
  • Policy Update Notification
SMF PCF N7
  • npcf-am-policy-control
  • npcf-smpolicycontrol
  • npcf-policyauthorization
  • npcf-bdtpolicycontrol
  • npcf-ue-policy-control
 npcf-smpolicycontrol 30 PCF1 to PCF30
  • Create SM Policy
  • Update SM Policy
  • Delete SM Policy
SMF UDM N10
  • nudm-ueau
  • nudm-uecm
  • nudm-sdm
  • nudm-ee
  • nudm-pp
  • nudm-sdm
  • nudm-uecm
 3 UDM1 to UDM3

Nudm_sdm

  • Subscribe to Notifications
  • Data Change Notification
  • Unsubscribe from Notifications

Nudm_uecm

  • Register SMF
  • Deregister SMF
AMF UDM N8
  • nudm-ueau
  • nudm-uecm
  • nudm-sdm
  • nudm-ee
  • nudm-pp
  • nudm-sdm
  • nudm-uecm
 6 UDM6 to UDM12

Nudm_sdm

  • Subscribe to Notifications
  • Data Change Notification
  • Unsubscribe from Notifications

Nudm_uecm

  • Register AMF
  • Deregister AMF
PCF UDR N36
  • nudr-dr
  • nudr-group-id-map
 nudr-dr 24 UDR1 to UDR24
  • Create Policy Data Subscription
  • Delete Policy Data Subscription
PCF CHF N28
  • nchf-spendinglimitcontrol
  • nchf-convergedcharging
 nchf-spendinglimitcontrol 6 CHF1 to CHF6
  • Subscribe to notification
  • Cancel an existing subscription
SMF CHF N40
  • nchf-spendinglimitcontrol
  • nchf-convergedcharging
 nchf-convergedcharging 6 CHF1 to CHF6
  • Subscribe to notification
  • Cancel an existing subscription
AMF AUSF N12
  • nausf-auth
  • nausf-sorprotection
  • nausf-upuprotection
 nausf-auth 6 AUSF1 to AUSF6 Authenticate UE
PCF BSF Nbsf nbsf-management nbsf-management 6 BSF1 to BSF6
  • Register the session binding information
  • Retrieve the session binding information
  • Remove an existing session binding
NRF SLF - nudr-group-id-map nudr-group-id-map 6 SLF1 to SLF6 SLF Look up

3.4 Model C Testcases

This section provides information about SCP Model C testcases.

This test scenario describes the performance and capacity of SCP with Model C and provides the benchmarking results with latency in a network.

3.4.1 Model C Testcase Summary

The following table provides a summary of the benchmark tests.

Table 3-10 Benchmark Testcase Summary

Benchmark Testcase Number Description
Model C - Testcase Scenario 1 The Model C test is based on the network latency of 150 milliseconds at the rate of 460K MPS with no rate limit applied.
Model C - Testcase Scenario 2 The Model C test is based on the network latency of 150 milliseconds at the rate of 460K MPS with rate limit applied.
Model C - Testcase Scenario 3 The Model C test with message feed enabled with 2 trigger points, 100K MPS at SCP (100K MPS towards OCNADD).
Model C - Testcase Scenario 4 The Model C test is based on the network latency of 150 milliseconds at the rate of 620K MPS with a rate limit applied and ASM (Service Mesh) enabled.

3.4.2 Model C - Testcase Scenario 1

This is a Model C test based on the network latency of 150 milliseconds with no rate limit applied.

Objective

This testcase scenario describes the performance and capacity of SCP with Model C. It provides the benchmarking results with latency in a network, and no rate limit is applied to the ingress and egress traffic.

The following table describes test bed configurations:

Table 3-11 Input Parameter Details

Input Parameter Details Configuration Values
Duration of Test 12 Hours
SCP Version Tag 22.3.0
Cluster Test Bed 1 - CNE on Bare Metal. For more information, see Cluster Details
Topology Topology 1. For information about topology, see Test Topology 1 for SCP Model C Benchmarking

Testcase Parameters

The following table describes the testcase parameters and their values:

Table 3-12 Testcase Parameters

Input Parameter Details Configuration Values

Maximum SCP system wide traffic rate (in MPS)

 460K MPS
Network deployment diagram Topology 1. For information about topology, see Test Topology 1 for SCP Model C Benchmarking
Mode of Network deployment (Model-C or Model-D) Model C
Number of NFs deployed in the network which SCP is supposed to learn (number of NF Profiles)
  • Number of NF instances: 176 profiles as described in Table 3-3.
  • NF Services per NF instance:
    • SMF profile has two service types such as nsmf-pdusession and nsmf-event-exposure. Each service type has one instance.
    • PCF profile has five service types such as npcf-am-policy-control, npcf-smpolicycontrol, npcf-policyauthorization, npcf-bdtpolicycontrol, npcf-ue-policy-control. Each service type has one instance.
    • UDM profile has five service types such as nudm-ueau, nudm-uecm, nudm-sdm, nudm-ee, and nudm-pp. Each service type has one instance.
    • UDR profile has two service types such as nudr-dr and nudr-group-id-map. Each service type has one instance.
    • CHF profile has two service types such as nchf-spendinglimitcontrol and nchf-convergedcharging. Each service type has one instance.
    • AUSF profile has three service types such as nausf-auth, nausf-sorprotection, and nausf-upuprotection. Each service type has one instance.
    • BSF profile has one service type such as nbsf-management. Each service type has one instance.
  • IP/FQDN per service: Each service instance has single unique IPendpoint within a service type, which is repeated across multiple service types within an NF profile.
NF Status Information
  • Add or Modify or Delete 10 notification every 15 min
  • Profile notification updates were run every 15 minutes along with traffic run
  • Notifications could come with the following updates:
    • The priority of NF services has changed.
    • The capacity of the NF services has changed.
    • The priority and capacity of NF services have changed.
    • The load of NF has changed.
    • Service instances are removed from the profiles.
    • Service instances are removed from profiles.
NF Profile - Priority, Capacity, Load value same in all services of same kind? (Yes, No) No
LAN latency in intra-SCP services and 5G NF communication (between SCP data and control plane services, SCP and other NFs ) in millisecond 150 milliseconds
WAN latency in SCP services and 5G NF communication (SCP to NFs in other regions) in millisecond 300 milliseconds
Number of SCP ingress IPs configured 1
How many connections per published IP/FQDN producers can handle? 256
Per Egress connection max traffic in MPS 400
How many connections consumer can initiate towards per SCP IP? 1024
Per Ingress connection max traffic in MPS 1000
Average Request and Response message size
  • Average HTTP Request Packet Size: 4000 Bytes
  • Average HTTP Response Packet Size: 4500 Bytes
Percentage of alternate routed requests to NF due to any reason (2% to 5%) 2%
Configured audit interval and audit mode
  • Configured Audit Interval: 3600 seconds
  • Configured Audit Mode: nnrf-mgmt
Number of NRFs and NRF Sets deployed in the network
  • Number of NRFs in an NFSet: 2
  • Number of NRF NFSets: 3
Response time (latency) from NRF (NRF processing time) 150 milliseconds
Delegated Discovery Traffic Information NA
NF Discovery response size and Info NA
Egress and Ingress Configurations NA
Mediation Configurations NA
Mediation Trigger point configuration NA
Secured HTTPs connection - % of message on HTTPs? NA
DNS SRV configuration and response time NA
Roaming traffic details NA
Pods deployed
  • Control plane pods:
    • Notification:1
    • Subscription:1
    • Audit:1
    • Configuration:1
    • Alternate Resolution:1
  • Data plane pods:
    • Worker: 64
    • NRF Proxy: 0
    • NRF Auth : 0
    • Cache:3
    • Mediation:0
SCP Worker Pod Profile 8 vCPU & 12 Gi Memory
Oracle Communications Network Analytics Data Director Configurations NA
LCI Configurations NA
Processing latency(processing time) per producer NF Upstream Network Latency: 150 milliseconds
OAuth Traffic Rate NA
OCI Configurations NA

Result and Observation

The following table provides observation data for the performance test that can be used for benchmark testing to increase the traffic rate:

Table 3-13 Result and Observation

Parameter Values
Test Duration 12 Hours
MPS Achieved 460K MPS
Average MPS per scp-worker pod 7K MPS
Success rate ~ 98 %
Average SCP processing time (Request and Response)

Less than 25 milliseconds for both Request and Response processing

SCP Microservices and their Utilization

The following table describes SCP microservices and their utilization:

Table 3-14 SCP Microservices and their Utilization

SCP Microservices CPU Memory
Max Avg Max Avg
scp-worker 5.3 4.8 7.4 Gi 6.2 Gi
scpc-notification 0.66 0.05 1.2 Gi 309 MB
scpc-audit 0.014 0.004 549 MB 545 MB
scpc-configuration 0.015 0.003 522 MB 520 MB
scpc-subscription 0.015 0.013 412 MB 409 MB
scp-cache 0.015 0.004 730 MB 728 MB

Observed Values of cnDBTier Services

The following table provides information about observed values of cnDBTier services:

Table 3-15 Observed Values of cnDBTier Services

cnDBTier Services Value
Memory usage of data nodes 0.70%
CPU usage of data nodes 0.78%
Write operations per second 0.26 seconds
Read operations per second 30.0 seconds
Transaction rates on data nodes 5.13

3.4.3 Model C - Testcase Scenario 2

This is a Model C test based on the network latency of 150 milliseconds with rate limit applied.

Objective

This testcase scenario describes the performance and capacity of SCP with Model C. It provides the benchmarking results with latency in a network and rate limit is applied to the ingress and egress traffic.

The following table describes test bed configurations:

Table 3-16 Input Parameter Details

Input Parameter Details Configuration Values
Duration of Test 12 Hours
SCP Version Tag 22.3.0
Cluster Test Bed 1 - CNE on Bare Metal. For more information, see Cluster Details
Topology Topology 1. For information about topology, see Test Topology 1 for SCP Model C Benchmarking

Testcase Parameters

The following table describes the testcase parameters and their values:

Table 3-17 Testcase Parameters

Input Parameter Details Configuration Values

Maximum SCP system wide traffic rate (in MPS)

 460K MPS
Network deployment diagram Topology 1. For information about topology, see Test Topology 1 for SCP Model C Benchmarking
Mode of Network deployment (Model-C or Model-D) Model C
Number of NFs deployed in the network which SCP is supposed to learn (number of NF Profiles)
  • Number of NF instances: 176 profiles as described in Table 3-3.
  • NF Services per NF instance:
    • SMF profile has two service types such as nsmf-pdusession and nsmf-event-exposure. Each service type has one instance.
    • PCF profile has five service types such as npcf-am-policy-control, npcf-smpolicycontrol, npcf-policyauthorization, npcf-bdtpolicycontrol, npcf-ue-policy-control. Each service type has one instance.
    • UDM profile has five service types such as nudm-ueau, nudm-uecm, nudm-sdm, nudm-ee, and nudm-pp. Each service type has one instance.
    • UDR profile has two service types such as nudr-dr and nudr-group-id-map. Each service type has one instance.
    • CHF profile has two service types such as nchf-spendinglimitcontrol and nchf-convergedcharging. Each service type has one instance.
    • AUSF profile has three service types such as nausf-auth, nausf-sorprotection, and nausf-upuprotection. Each service type has one instance.
    • BSF profile has one service type such as nbsf-management. Each service type has one instance.
  • IP/FQDN per service: Each service instance has single unique IPendpoint within a service type, which is repeated across multiple service types within an NF profile.
NF Status Information
  • Add or Modify or Delete 10 notification every 15 min
  • Profile notification updates were run every 15 minutes along with traffic run
  • Notifications could come with the following updates:
    • The priority of NF services has changed.
    • The capacity of the NF services has changed.
    • The priority and capacity of NF services have changed.
    • The load of NF has changed.
    • Service instances are removed from the profiles.
    • Service instances are removed from profiles.
NF Profile - Priority, Capacity, Load value same in all services of same kind? (Yes, No) No
LAN latency in intra-SCP services and 5G NF communication (between SCP data and control plane services, SCP and other NFs ) in millisecond 150 milliseconds
WAN latency in SCP services and 5G NF communication (SCP to NFs in other regions) in millisecond 300 milliseconds
Number of SCP ingress IPs configured 1
How many connections per published IP/FQDN producers can handle? 256
Per Egress connection max traffic in MPS 400
How many connections consumer can initiate towards per SCP IP? 831
Per Ingress connection max traffic in MPS 1000
Average Request and Response message size
  • Average HTTP Request Packet Size: 4000 Bytes
  • Average HTTP Response Packet Size: 4500 Bytes
Percentage of alternate routed requests to NF due to any reason (2% to 5%) 2%
Configured audit interval and audit mode
  • Configured Audit Interval: 3600 seconds
  • Configured Audit Mode: nnrf-mgmt
Number of NRFs and NRF Sets deployed in the network
  • Number of NRFs in an NFSet: 2
  • Number of NRF NFSets: 3
Response time (latency) from NRF (NRF processing time) 150 milliseconds
Delegated Discovery Traffic Information NA
NF Discovery response size and Info NA
Egress and Ingress Configurations
  • Number of Global Egress Rate limit configuration (number of unique keys): 0
  • Number of Local Egress Rate limit configuration (number of unique keys): 176
  • Number of Ingress Rate limit configuration (number of unique keys) : 176
Mediation Configurations NA
Mediation Trigger point configuration NA
Secured HTTPs connection - % of message on HTTPs? NA
DNS SRV configuration and response time NA
Roaming traffic details NA
Pods deployed
  • Control plane pods:
    • Notification: 1
    • Subscription: 1
    • Audit: 1
    • Configuration: 1
    • Alternate Resolution: 1
  • Data plane pods:
    • Worker: 64
    • NRF Proxy: 0
    • NRF Auth: 0
    • Cache: 3
    • Mediation: 0
SCP Worker Pod Profile 8 vCPU & 12 Gi Memory
Oracle Communications Network Analytics Data Director Configurations NA
LCI Configurations NA
Processing latency(processing time) per producer NF Upstream Network Latency: 150 milliseconds
OAuth Traffic Rate NA
OCI Configurations NA

Result and Observation

The following table provides observation data for the performance test that can be used for benchmark testing to increase the traffic rate:

Table 3-18 Result and Observation

Parameter Values
Test Duration 12 Hours
MPS Achieved 460K MPS
Average MPS per scp-worker pod 7200 MPS
Success rate ~ 98 %
Average SCP processing time (Request and Response)

Less than 25 milliseconds for both Request and Response processing

SCP Microservices and their Utilization

The following table describes SCP microservices and their utilization:

Table 3-19 SCP Microservices and their Utilization

SCP Microservices CPU Memory
Max Avg Max Avg
scp-worker 5.5 4.9 6.9 Gi 6.9 Gi
scpc-notification 0.875 0.2 1.55 Gi 1.09 Gi
scpc-audit 0.008 0.004 522 MB 522 MB
scpc-configuration 0.015 0.003 536 MB 536 MB
scpc-subscription 0.103 0.07 473 MB 461 MB

Observed Values of cnDBTier Services

The following table provides information about observed values of cnDBTier services:

Table 3-20 Observed Values of cnDBTier Services

cnDBTier Services Value
Memory usage of data nodes 0.70%
CPU usage of data nodes 0.48%
Write operations per second 0.2 seconds
Read operations per second 56.3 seconds
Transaction rates on data nodes 4.27

3.4.4 Model C - Testcase Scenario 3

In Model C testcase scenario, the Message Feed feature is enabled with two trigger points, 100K MPS at SCP, and 100K MPS towards Oracle Communications Network Analytics Data Director (OCNADD).

Objective

This testcase scenario describes the performance and capacity of SCP with Model C. It provides benchmarking results with latency in a network, and no rate limit is applied to the ingress and egress traffic.

The following table describes test bed configurations:

Table 3-21 Input Parameter Details

Input Parameter Details Configuration Values
Duration of Test 12 Hours
SCP Version Tag 23.3.0
Cluster Test Bed 3 - CNE on Bare Metal. For more information, see Cluster Details
Topology Topology 1. For information about topology, see Test Topology 1 for SCP Model C Benchmarking

Testcase Parameters

The following table describes the testcase parameters and their values:

Table 3-22 Testcase Parameters

Input Parameter Details Configuration Values

Maximum SCP system wide traffic rate (in MPS)

 100K MPS for SCP and 100K MPS towards OCNADD
Network deployment diagram Topology 1. For information about topology, see Test Topology 1 for SCP Model C Benchmarking
Mode of Network deployment (Model-C or Model-D) Model C
Number of NFs deployed in the network which SCP is supposed to learn (number of NF Profiles) 8
NF Status Information
  • Add or Modify or Delete 10 notification every 15 min
  • Profile notification updates were run every 15 minutes along with traffic run
  • Notifications could come with the following updates:
    • The priority of NF services has changed.
    • The capacity of the NF services has changed.
    • The priority and capacity of NF services have changed.
    • The load of NF has changed.
    • Service instances are removed from the profiles.
    • Service instances are removed from profiles.
NF Profile - Priority, Capacity, Load value same in all services of same kind? (Yes, No) No
LAN latency in intra-SCP services and 5G NF communication (between SCP data and control plane services, SCP and other NFs ) in millisecond 150 milliseconds
WAN latency in SCP services and 5G NF communication (SCP to NFs in other regions) in millisecond 150 milliseconds
Number of SCP ingress IPs configured 1
How many connections per published IP/FQDN producers can handle? 68
Per Egress connection max traffic in MPS 1000
How many connections consumer can initiate towards per SCP IP? 119
Per Ingress connection max traffic in MPS 1000
Average Request and Response message size
  • Average HTTP Request Packet Size: 4000 Bytes
  • Average HTTP Response Packet Size: 4500 Bytes
Percentage of alternate routed requests to NF due to any reason (2% to 5%) 2%
Configured audit interval and audit mode
  • Configured Audit Interval: 3600 seconds
  • Configured Audit Mode: nnrf-mgmt
Number of NRFs and NRF Sets deployed in the network NA
Response time (latency) from NRF (NRF processing time) 150 milliseconds
Delegated Discovery Traffic Information NA
NF Discovery response size and Info NA
Egress and Ingress Configurations NA
Mediation Configurations NA
Mediation Trigger point configuration NA
Secured HTTPs connection - % of message on HTTPs? NA
DNS SRV configuration and response time NA
Roaming traffic details NA
Pods deployed
  • Control plane pods:
    • Notification: 1
    • Subscription: 1
    • Audit: 1
    • Configuration: 1
    • Alternate Resolution: 1
  • Data plane pods:
    • Worker: 17
    • NRF Proxy: 0
    • NRF Auth: 0
    • Cache: 6
    • Mediation: 0
SCP Worker Pod Profile 8 vCPU & 12 Gi Memory
Oracle Communications Network Analytics Data Director Configurations NA
LCI Configurations NA
Processing latency(processing time) per producer NF Upstream Network Latency: 150 milliseconds
OAuth Traffic Rate NA
OCI Configurations NA

Result and Observation

The performance test observation data shown in the following table can be used to conduct benchmark testing to raise the traffic rate:

Table 3-23 Result and Observation

Parameter Values
Test Duration 20 Hours
MPS Achieved 100K MPS
Average MPS per scp-worker pod 5.88K MPS
Success rate ~ 99.92 %
Average SCP processing time (Request and Response) ~2 milliseconds for both Request and Response processing

SCP Microservices and their Utilization

The following table describes SCP microservices and their utilization:

Table 3-24 SCP Microservices and their Utilization

SCP Microservices CPU Memory
Max Avg Max Avg
scp-cache 0.008 0.003 1.08 0.88
scp-load-manager 0.014 0.013 0.77 0.77
scp-worker 4.47 4.32 3.52 3.15
scpc-audit 0.036 0.007 0.57 0.56
scpc-configuration 0.04 0.018 0.62 0.60
scpc-notification 0.095 0.064 1.50 1.49
scpc-subscription 0.084 0.050 0.49 0.46

Observed Values of cnDBTier Services

The following table provides information about the observed values of cnDBTier services:

Table 3-25 Observed Values of cnDBTier Services

cnDBTier Services Value
Memory usage of data nodes 4.39%
CPU usage of data nodes 0.4%
Write operations per second 0.001 seconds
Read operations per second 5.46 seconds
Transaction rates on data nodes 1.45

3.4.5 Model C - Testcase Scenario 4

The Model C test is based on the network latency of 150 milliseconds at the rate of 620K MPS with a rate limit applied and ASM (Service Mesh) enabled.

Objective

This testcase scenario describes the performance and capacity of SCP with Model C. It provides benchmarking results with latency in a network, and no rate limit is applied to the ingress and egress traffic.

The following table describes test bed configurations:

Table 3-26 Input Parameter Details

Input Parameter Details Configuration Values
Duration of Test 12 Hours
SCP Version Tag 23.3.1
Cluster Test Bed 4 - CNE on Bare Metal. For more information, see Cluster Details
Topology Topology 3. For information about topology, see Test Topology 3 for SCP Model C Benchmarking

Testcase Parameters

The following table describes the testcase parameters and their values:

Table 3-27 Testcase Parameters

Input Parameter Details Configuration Values

Maximum SCP system wide traffic rate (in MPS)

 620K MPS
Network deployment diagram Topology 3. For information about topology, see Test Topology 3 for SCP Model C Benchmarking
Mode of Network deployment (Model-C or Model-D) Model C
Number of NFs deployed in the network which SCP is supposed to learn (number of NF Profiles) 280
NF Status Information
  • Add or Modify or Delete 10 notification every 15 min
  • Profile notification updates were run every 15 minutes along with traffic run
  • Notifications could come with the following updates:
    • The priority of NF services has changed.
    • The capacity of the NF services has changed.
    • The priority and capacity of NF services have changed.
    • The load of NF has changed.
    • Service instances are removed from the profiles.
    • Service instances are removed from profiles.
NF Profile - Priority, Capacity, Load value same in all services of same kind? (Yes, No) No
LAN latency in intra-SCP services and 5G NF communication (between SCP data and control plane services, SCP and other NFs ) in millisecond 150 milliseconds
WAN latency in SCP services and 5G NF communication (SCP to NFs in other regions) in millisecond 150 milliseconds
Number of SCP ingress IPs configured 1
How many connections per published IP/FQDN producers can handle? 260
Per Egress connection max traffic in MPS 1000
How many connections consumer can initiate towards per SCP IP? 455
Per Ingress connection max traffic in MPS 1000
Average Request and Response message size
  • Average HTTP Request Packet Size: 4000 Bytes
  • Average HTTP Response Packet Size: 4500 Bytes
Percentage of alternate routed requests to NF due to any reason (2% to 5%) 2%
Configured audit interval and audit mode
  • Configured Audit Interval: 3600 seconds
  • Configured Audit Mode: nnrf-mgmt
Number of NRFs and NRF Sets deployed in the network
  • Number of NRFs in an NFSet: 2
  • Number of NRF NFSets: 3
Response time (latency) from NRF (NRF processing time) 150 milliseconds
Delegated Discovery Traffic Information NA
NF Discovery response size and Info NA
Egress and Ingress Configurations
  • Number of Global Egress Rate limit configuration (number of unique keys): 0
  • Number of Local Egress Rate limit configuration (number of unique keys): 280
  • Number of Ingress Rate limit configuration (number of unique keys) : 280
Mediation Configurations NA
Mediation Trigger point configuration NA
Secured HTTPs connection - % of message on HTTPs? NA
DNS SRV configuration and response time
  • Number of DNS SRV configuration: 280 SRV records
  • DNS query response time: 5ms
Roaming traffic details NA
Pods deployed
  • Control plane pods:
    • Notification: 1
    • Subscription: 1
    • Audit: 1
    • Configuration: 1
    • Alternate Resolution: 1
  • Data plane pods:
    • Worker: 65
    • NRF Proxy: 0
    • NRF Auth: 0
    • Cache: 6
    • Mediation: 0
SCP Worker Pod Profile 12 vCPU & 16 Gi Memory
Oracle Communications Network Analytics Data Director Configurations NA
LCI Configurations
  • SCP LCI Conveyance: Enabled
  • Frequency of LCI header received with changed values: 5 sec
  • Configured minimum peer LCI change:5
  • Number of NF/NFService Instances reporting LCI:280
Processing latency(processing time) per producer NF Upstream Network Latency: 150 milliseconds
OAuth Traffic Rate NA
OCI Configurations NA

Result and Observation

The performance test observation data shown in the following table can be used to conduct benchmark testing to raise the traffic rate:

Table 3-28 Result and Observation

Parameter Values
Test Duration 12 Hours
MPS Achieved 620K MPS
Average MPS per scp-worker pod 9.5K MPS
Success rate 100 %
Average SCP processing time (Request and Response) Less than 25 milliseconds for both Request and Response processing

SCP Microservices and their Utilization

The following table describes SCP microservices and their utilization:

Table 3-29 SCP Microservices and their Utilization

SCP Microservices CPU/Pod Memory/Pod CPU/Pod Sidecar Memory/Pod Sidecar
Max Avg Max Avg Max Avg Max Avg
scp-worker 6.75 5.63 5.29 GB 4.70 GB 4.17 3.89 653 MB 573 MB
scp-nrfproxy NA NA NA NA NA NA NA NA
scpc-notification 0.999 0.960 2.13 GB 2.13 GB 0.307 0.295 286 MB 273 MB
scpc-audit 0.00982 0.00686 672 MB 672 MB 0.0371 0.0183 261 MB 248 MB
scpc-configuration 0.0678 0.0573 766 MB 764 MB 0.0614 0.0487 281 MB 268 MB
scpc-subscription 0.0391 0.0350 488 MB 487 MB 0.0303 0.0170 248 MB 235 MB
scp-cache 0.965 0.888 1.19 GB 1.19 GB 0.266 0.0197 238 MB 225 MB
scp-load-manager 0.456 0.0702 1.53 GB 1.53 GB 0.845 0.00948 240 MB 228 MB
scpc-alternate-resolution 0.0133 0.0112 1.39 GB 1.39 GB 0.0277 0.0121 238 MB 225 MB

Observed Values of cnDBTier Services

The following table provides information about the observed values of cnDBTier services:

Table 3-30 Observed Values of cnDBTier Services

cnDBTier Services Value
Memory usage of data nodes 0.5%
CPU usage of data nodes 0.7%
Write operations per second 0.9 seconds
Read operations per second 69 seconds
Transaction rates on data nodes 1.6
