2 Installing UDR

This chapter provides information about installing Oracle Communications Cloud Native Core, Unified Data Repository (UDR) in a cloud native environment.

Note:

UDR supports both fresh installation, and it can also be upgraded from 23.1.x. 22.4.x. and 22.3.x. For more information on how to upgrade UDR, see Upgrading Unified Data Repository.

2.1 Prerequisites

Before installing and configuring UDR, ensure that the following prerequisites are met:

2.1.1 Software Requirements

This section lists the software that must be installed before installing UDR.

Table 2-1 Preinstalled Software

Software Versions
Kubernetes 1.27.5, 1.26.x, 1.25.x, and 1.24.x
Helm 3.12.3, 3.12.0, 3.10.3, and 3.8.2
Podman 4.2.0, 4.0.2, and 3.4.2
To check the versions of the preinstalled software in the cloud native environment, run the following commands:
kubectl version
helm version
Podman version
The following software are available if UDR is deployed in CNE. If you are deploying UDR in any other cloud native environment, these additional software must be installed before installing UDR. To check the installed software, run the following command:
helm3 ls -A
The list of additional software items, along with the supported versions and usage, is provided in the following table:

Table 2-2 Additional Software

Software Version Required for
OpenSearch Dashboard 2.3.0 Logging
OpenSearch 2.3.0 Logging
containerd 1.7.5 Container Lifecycle Managemet
Fuentd Opensearch 1.16.2 Logging
metallb 0.13.11 Loadbalancer
Prometheus 2.44.0 Metrics and Alerts
Grafana 9.5.3 Metrics and KPIs
Jaeger 1.45.0 Tracing
Istio 1.18.2 Service mesh
Kyverno 1.9.0 Logging
cert-manager 1.12.4 Certificates management
Velero 1.12.0 Migration, backup and restore for Kubernetes cluster

2.1.2 Environment Setup Requirements

This section describes the environment setup required for installing UDR.

2.1.2.1 Client Machine Requirements

This section describes the requirements for client machine, that is, the machine used by the user to run deployment commands.

The client machine should have:
  • Helm repository configured.
  • network access to the Helm repository and Docker image repository.
  • network access to the Kubernetes cluster.
  • required environment settings to run the kubectl and docker, and Podman commands. The environment should have privileges to create a namespace in the Kubernetes cluster.
  • Helm client installed with the 'push' plugin. Configure the environment in such a manner that the helm install command to deploy the software in the Kubernetes cluster.
2.1.2.2 Network Access Requirement

The Kubernetes cluster hosts must have network access to the following repositories:

  • Local Helm repository: It contains the UDR Helm charts. To check if the Kubernetes cluster hosts can access the local Helm repository, run the following command:
    helm repo update
  • Local docker image repository: It contains the UDR docker images. To check if the Kubernetes cluster hosts can access the local Docker image repository, pull any image with an image-tag using either of the following commands:
    podman pull <Podman-repo>/<image-name>:<image-tag>
    Where:
    • <Podman-repo> is the IP address or host name of the Podman repository.
    • <image-name> is the Docker image name.
    • <image-tag> is tag assigned to the Docker image used for the UDR pod.

Note:

Run the kubectl and helm commands on a system based on the deployment infrastructure. For instance, it can be run on a client machine such as VM, server, local desktop, and so on.
2.1.2.3 Server or Space Requirement

For information about server or space requirements, see Oracle Communications Cloud Native Core, Cloud Native Environment Installation, Upgrade, and Fault Recovery Guide

2.1.2.4 Access to OpenStack Environment

The user should have access to an existing OpenStack environment, including the OpenStack desktop. This environment is configured with appropriate resource flavors and network resources that allow its users to allocate resources to the virtual machines.

2.1.2.5 Availability of a Public Key

The user must have a public key for logging into the Bootstrap Host. This key should be placed into the customer OpenStack environment using the Import Key tab on the Launch Instance→Key Pair dialog box or through the Compute→Access and Security.

2.1.2.6 UDR Software
For UDR software, the user must install Kubernetes v1.27.5 and HELM v3.12.3. The UDR software consists of:
  • Helm Charts that reflect the UDR software version. It is a zipped tar file.
  • Docker images of the microservices that are shared as tar file.

Tools Package

It consists of deployment template yaml files for the nudr-migration and nudr-bulk-import services.

2.1.2.7 CNE Requirement

This section is applicable only if you are installing UDR on Cloud Native Environment (CNE).

UDR supports CNE 23.2.x, 23.3.x, and 23.4.x

To check the CNE version, run the following command:
echo $OCCNE_VERSION

Note:

If cnDBTier 23.4.x is used during installation, set the ndb_allow_copying_alter_table parameter to 'ON' in the ocudr_udr_10msub_dbtier_23.4.1_custom_values_23.4.1 or ocudr_slf_37msub_dbtier_23.4.1_custom_values_23.4.1 files before installing UDR or SLF.

For more information about CNE, see Oracle Communications Cloud Native Core, CloudNative Environment Installation, Upgrade, and Fault Recovery Guide.

2.1.2.8 cnDBTier Requirement

UDR supports cnDBTier 23.2.x, 23.3.x, and 23.4.x cnDBTier must be configured and running before installing UDR. For more information about cnDBTier installation, see OracleCommunications Cloud Native Core, cnDBTier Installation, Upgrade, and Fault Recovery Guide..

2.1.2.9 OSO Requirement

UDR supports Operations Services Overlay (OSO) 23.4.x, 23.3.x, and 23.2.x, for common operation services (Prometheus and components such as alertmanager, pushgateway) on a Kubernetes cluster, which does not have these common services. For more information on installation procedure, see Oracle Communications Cloud Native Core, Operations Services Overlay Installation and Upgrade Guide.

2.1.2.10 CNC Console Requirements

UDR supports CNC Console 23.4.x. For more information about CNC Console, see Cloud Native Configuration Console Installation, Upgrade, and Fault Recovery Guide.

2.1.3 Resource Requirements

This section lists the resource requirements to install and run UDR, SLF, EIR, UDR Hooks, and UDR Tools.

Note:

The performance and capacity of the UDR system may vary based on the call model, feature or interface configuration, and underlying CNE and hardware environment, including but not limited to, the size of the json payload, operation type, and traffic model.

Table 2-3 Resource Profile for UDR Deployment

Resource Requirement Minimum Minimum (Including side car requirement) Default Default (Including side car requirement) Performance-25K Diameter Only Performance-10K Policy Performance-25K SH and 2K SOAP
CPU 26 CPUs 48 CPUs 64 CPUs 102 CPUs 71 CPUs 136 CPUs 122 GB
Memory 26 GB 48 GB 64CPUs 102 GB 86 GB 118 GB 134 GB
Ephemeral Storage 21 GB 21 GB 38 GB 38 GB 23 GB 38 GB 53 GB
Individual Microservice Resource Requirements Minimum Resource Requirements for UDR Minimum Resource Requirements for UDR Default Resource Requirements for UDR Default Resource Requirements for UDR Performance 25K Diameter 10K Performance Policy Performance 25K SH and 2K SOAP

For information about resources required for UDR hooks and UDR tools, see:

Table 2-4 Resource Profile for SLF Deployment

Resource Requirement (Includes side car requirement) Minimum Minimum (Including side car requirement) Default Default (Including side car requirement) Performance-5.5K SLF Performance-36K SLF Performance-12.1K SLF
CPU 22 CPUs 40 CPUs 47 CPUs 79 CPUs 149 CPUs 265 CPUs 117 CPUs
Memory 18 GB 36 GB 47 GB 78 GB 133 GB 161 GB 84 CPUs
Ephemeral Storage 18 GB 18 GB 30 GB 30 GB 32 GB 42 GB 27 CPUs
Individual Microservice Resource Requirements Minimum Resource Requirements for SLF Minimum Resource Requirements for SLF Default Resource Requirements for SLF Default Resource Requirements for SLF Performance 5.5K for SLF Performance 36K for SLF Performance 12.1K for SLF

Table 2-5 Resource Profile for EIR Deployment

Resource Requirement (Includes side car requirement) Minimum Minimum (Including side car requirement) Default Default (Including side car requirement) Performance-10K EIR Lookup
CPU 22 CPUs 40 CPUs 47 CPUs 80 CPUs 104 CPUs
Memory 18 GB 36 GB 47 GB 79 GB 90 GB
Ephemeral Storage 18 GB 18 GB 30 GB 30 GB 37 GB
Individual Microservice Resource Requirements Minimum Resource Requirements for EIR Minimum Resource Requirements for EIR Default Resource Requirements for EIR Default Resource Requirements for EIR Performance 10K for EIR
2.1.3.1 Default Resource Requirements for UDR
The following table shows the default resource requirements to deploy UDR:

Table 2-6 Default Resource Requirements: UDR with Aspen Service Mesh (ASM) Enabled

Microservice Name CPU Per Pod Memory Per Pod Ephemeral Storage Per Pod Replicas (As per default deployment) Total CPU Total Memory Total Ephemeral Storage
nudr-drservice 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-dr-provservice 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-config 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-config-server 2 CPUs 2 GB 1 GB 2 2 CPUs 4 GB 2 GB
ingressgateway-sig 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
ingressgateway-prov 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
egressgateway 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-diameterproxy 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
diam-gateway 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-ondemandmigration 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-notify-service 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
alternate-route 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
perf-info 1 CPU 1 GB 1 GB 2 2 CPU 2 GB 2 GB
app-info 0.5 CPU 1 GB 1 GB 2 2 CPU 2 GB 2 GB
nudr-nrf-client-nfmanagement 1 CPU 1 GB 1 GB 2 2 CPU 2 GB 2 GB
nudr-dbcr-auditor-service 2 CPUs 2 GB 1 GB 1 2 CPU 2 GB 1 GB
Total - - - - CPU Memory Ephemeral Storage
Total resources (Considering Main service containers) - - - - 56 CPUs 56 GB 31 GB
Additional Resources (Hooks/Init/Update Containers) - - - - 8 CPUs 8 GB 7 GB
Total Resources - - - - 64 CPUs 64 GB 38 GB
Total side car resources (Applicable for ASM setups) - - - - 38 CPUs 38 GB NA
Grand Total for UDR with side car requirement - - - - 102 CPUs 102 GB 38 GB

Note:

If the debug tool is enabled, then the additional resource requirements are 1 CPU, 2GB RAM, and 4G ephemeral storage for each pod.
2.1.3.2 Minimum Resource Requirements for UDR
The minimum resource requirements to install UDR with ASM enabled are:

Table 2-7 Minimum Resource Requirements: UDR with Aspen Service Mesh (ASM) Enabled

Microservice Name CPU Per Pod Memory Per Pod Ephemeral Storage Per Pod Replicas (As per minimum deployment) Total CPU Total Memory Total Ephemeral Storage
nudr-drservice 1 CPU 1 GB 1 GB 1 1 CPU 1 GB 1 GB
nudr-dr-provservice 1 CPU 1 GB 1 GB 1 1 CPU 1 GB 1 GB
nudr-config 1 CPU 1 GB 1 GB 1 1 CPU 1 GB 1 GB
nudr-config-server 1 CPU 1 GB 1 GB 1 1 CPU 1 GB 1 GB
nudr-nrf-client-nfmanagement 1 CPU 1 GB 1 GB 1 1 CPU 1 GB 1 GB
ingressgateway-sig 2 CPUs 1 GB 1 GB 1 2 CPUs 2 GB 1 GB
ingressgateway-prov 2 CPUs 1 GB 1 GB 1 2 CPUs 2 GB 1 GB
egressgateway 2 CPUs 1 GB 1 GB 1 2 CPUs 2 GB 1 GB
nudr-diameterproxy 1 CPU 1 GB 1 GB 1 1 CPU 1 GB 1 GB
diam-gateway 1 CPU 1 GB 1 GB 1 1 CPU 1 GB 1 GB
nudr-ondemandmigration 1 CPU 1 GB 1 GB 1 1 CPUs 1 GB 1 GB
nudr-notify-service 1 CPU 1 GB 1 GB 1 1 CPU 1 GB 1 GB
alternate-route 2 CPU 1 GB 1 GB 1 2 CPU 2 GB 1 GB
perf-info 1 CPU 1 GB 1 GB 1 1 CPU 1 GB 1 GB
app-info 0.5 CPU 1 GB 1 GB 1 1 CPU 1 GB 1 GB
nudr-dbcr-auditor-service 1 CPUs 1 GB 1 GB 1 1 CPU 1 GB 1 GB
Total - - - - CPU Memory Ephemeral Storage
Total UDR resources (Considering default values) - - - - 20 CPUs 20 GB 16 GB
Additional Resources (Hooks/Init/Update Containers) - - - - 6 CPUs 6 GB 5 GB
Total Resources - - - - 26 CPUs 26 GB 21 GB
Total side car resources (Applicable for ASM setups) - - - - 22 CPUs 22 GB NA
Grand Total for SLF with side car - - - - 48 CPUs 48 GB 21 GB

Note:

If the debug tool is enabled, then the additional resource requirements are 1 CPU, 2GB RAM, and 4G ephemeral storage for each pod.
2.1.3.3 Performance 25K Diameter

The resources required to deploy diameter based microservices are:

Table 2-8 Resources for Diameter Based Microservices

Microservice Name CPU Per Pod Memory Per Pod Ephemeral Storage per pod Replicas Total CPU Total Memory Total Ephemeral Storage
nudr-diam-gateway 6 CPUs 4 GB 1 GB 2 12 CPUs 8 GB 2 GB
nudr-diameterproxy 3 CPUs 4 GB 1 GB 19 57 CPUs 76 GB 19 GB
Additional Resources (Hooks/Init/Update Containers) - - - - 2 CPUs 2 GB 2 GB
Total Resources - - - - 71 CPUs 86 GB 23 GB
2.1.3.4 10K Performance Policy

The resources required to deploy 10K Performance Policy are:

Table 2-9 Resource Requirement for 10K Performance Policy

Microservice Name CPU Per Pod Memory Per Pod Ephemeral Storage per pod Replicas Total CPU Total Memory Total Ephemeral Storage
ingress-gateway 6 CPUs 5 GB 1 GB 5 30 CPUs 25 GB 5 GB
nudr-drservice 5 CPUs 4 GB 1 GB 10 50 CPUs 40 GB 10 GB
nudr-notify-service 4 CPUs 4 GB 1 GB 7 28 CPUs 25 GB 7 GB
egress-gateway 4 CPUs 4 GB 1 GB 4 16 CPUs 16 GB 4 GB
Additional Resources (Hooks/Init/Update Containers) - - - - 12 CPUs 12 GB 12 GB
Total Resources - - - - 136 CPUs 118 GB 38 GB
2.1.3.5 Performance 25K SH and 2K SOAP
The resources required to deploy Performance 25K SH and 2K SOAP are:

Table 2-10 Performance 25K SH and 2K SOAP

Microservice Name CPU Per Pod Memory Per Pod Ephemeral Storage per pod Replicas Total CPU Total Memory Total Ephemeral Storage
nudr-diam-gateway 6 CPUs 4 GB 1 GB 3 18 CPUs 12 GB 3 GB
nudr-diameterproxy 3 CPUs 4 GB 1 GB 19 57 CPUs 76 GB 19 GB
ingressgateway-sig 2 CPU 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
ingressgateway-prov 2 CPU 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
egressgateway 2 CPU 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-drservice 2 CPU 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-dr-provservice 2 CPU 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-config 1 CPU 1 GB 1 GB 2 2 CPUs 2 GB 2 GB
nudr-config-server 1 CPU 1 GB 1 GB 2 2 CPUs 2 GB 2 GB
alternate-route 1 CPU 1 GB 1 GB 2 2 CPUs 2 GB 2 GB
perf-info 1 CPU 1 GB 1 GB 2 2 CPUs 2 GB 2 GB
app-info 1 CPU 1 GB 1 GB 2 2 CPUs 2 GB 2 GB
nudr-nrf-client-nfmanagement 1 CPU 1 GB 1 GB 2 2 CPUs 2 GB 2 GB
nudr-dbcr-auditor-service 1 CPUs 1 GB 1 GB 1 1 CPU 1 GB 1 GB
Additional Resources (Hooks/Init/Update Containers)         14 CPUs 14 GB 8 GB
Total Resources         122 CPUs 134 GB 53 GB
2.1.3.6 Default Resource Requirements for SLF

Table 2-11 Default Resource Requirements: SLF with ASM enabled

Microservice Name CPU Per Pod Memory Per Pod Sidecar container CPU Per Pod Sidecar container Memory Per Pod Ephemeral Storage Per Pod Replicas (As per default deployment) Total CPU (Micro service + Sidecar Containers) Total Memory for the Pod (Micro service + Sidecar Containers) Total Ephemeral Storage
nudr-drservice 2 CPUs 2 GB 1 CPUs 1 GB 1 GB 2 6 CPUs 6 GB 2 GB
nudr-dr-provservice 2 CPUs 2 GB 1 CPUs 1 GB 1 GB 2 6 CPUs 6 GB 2 GB
nudr-config 2 CPUs 2 GB 1 CPU 1 GB 1 GB 2 6 CPUs 6 GB 2 GB
nudr-config-server 2 CPUs 2 GB 1 CPU 1 GB 1 GB 2 6 CPUs 6 GB 2 GB
nudr-nrf-client-nfmanagement 1 CPU 1 GB 1 CPU 1 GB 1 GB 2 4 CPUs 4 GB 2 GB
ingressgateway-sig 2 CPUs 2 GB 1 CPUs 1 GB 1 GB 2 6 CPUs 6 GB 2 GB
ingressgateway-prov 2 CPUs 2 GB 1 CPUs 1 GB 1 GB 2 6 CPUs 6 GB 2 GB
egressgateway 2 CPUs 2 GB 1 CPUs 1 GB 1 GB 2 6 CPUs 6 GB 2 GB
alternate-route 2 CPUs 2 GB 1 CPU 1 GB 1 GB 2 6 CPUs 6 GB 2 GB
perf-info 1 CPU 1 GB 1 CPU 1 GB 1 GB 2 4 CPUs 4 GB 2 GB
app-info 0.5 CPU 1 GB 1 CPU 1 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-dbcr-auditor-service 1 CPU 1 GB 1 CPU 1 GB 1 GB 1 2 CPUs 2 GB 1 GB
Total - - - - - - CPU Memory Ephemeral Storage
SLF resource Requirement - - - - - - 39 CPUs 39 GB 23 GB
Additional Resources (Hooks/Init/Update Containers) - - - - - - 8 CPUs 8 GB 7 GB
SLF Total Resources - - - - - - 47 CPUs 47 GB 30 GB
Total side car resources - - - - - - 32 CPUs 31 GB NA
Total Resources - - - - - - 79 CPUs 78 GB 30 GB

Note:

If the debug tool is enabled, then the additional resource requirements are 1 CPU, 2GB RAM, and 4G ephemeral storage for each pod.
2.1.3.7 Minimum Resource Requirements for SLF
The resource requirements to install SLF with ASM enabled are:

Table 2-12 Minimum Resource Requirements: SLF with ASM Enabled

Microservice Name CPU Per Pod Memory Per Pod Sidecar container CPU Per Pod Sidecar container Memory Per Pod Ephemeral Storage Per Pod Replicas (As per default deployment) Total CPU (Micro service + Sidecar Containers) Total Memory for the Pod (Micro service + Sidecar Containers) Total Ephemeral Storage
nudr-drservice 1 CPU 1 GB 1 CPU 1 GB 1 GB 1 2 CPUs 2 GB 1 GB
nudr-dr-provservice 1 CPU 1 GB 1 CPU 1 GB 1 GB 1 2 CPUs 2 GB 1 GB
nudr-config 1 CPU 1 GB 1 CPU 1 GB 1 GB 1 2 CPUs 2 GB 1 GB
nudr-config-server 1 CPU 1 GB 1 CPU 1 GB 1 GB 1 2 CPUs 2 GB 1 GB
nudr-nrf-client-nfmanagement 1 CPU 1 GB 1 CPU 1 GB 1 GB 1 2 CPUs 2 GB 1 GB
ingressgateway-sig 2 CPUs 1 GB 1 CPU 1 GB 1 GB 1 3 CPUs 2 GB 1 GB
ingressgateway-prov 2 CPUs 1 GB 1 CPU 1 GB 1 GB 1 3 CPUs 2 GB 1 GB
egressgateway 2 CPUs 1 GB 1 CPU 1 GB 1 GB 1 3 CPUs 2 GB 1 GB
alternate-route 2 CPU 1 GB 1 CPU 1 GB 1 GB 1 3 CPUs 2 GB 1 GB
perf-info 1 CPU 1GB 1 CPU 1 GB 1 GB 1 2 CPUs 2 GB 1 GB
app-info 0.5 CPU 1 GB 1 CPU 1 GB 1 GB 1 2 CPUs 2 GB 1 GB
nudr-dbcr-auditor-service 1 CPU 1 GB 1 CPU 1 GB 1 GB 1 2 CPUs 2 GB 1 GB
Total - - - - - - CPU Memory Ephemeral Storage
SLF resource Requirement - - - - - - 16 CPUs 12 GB 12 GB
Additional Resources (Hooks/Init/Update Containers) - - - - - - 6 CPUs 6 GB 6 GB
SLF Total Resources - - - - - - 22 CPUs 18 GB 18 GB
Total side car resources - - - - - - 18 CPUs 18 GB NA
Total Resources - - - - - - 40 CPUs 36 GB 18 GB

Note:

If the debug tool is enabled, then the additional resource requirements are 1 CPU, 2GB RAM, and 4G ephemeral storage for each pod.
2.1.3.8 Performance 5.5K for SLF
The performance based resource requirements are as follows:

Note:

This deployment can support 5.7K SLF traffic (200 Provisioning + 5500 SLF Lookup). The subscriber size on cnDBTier used for testing is 12M.

Table 2-13 Resource Requirements - Performance

Microservice Name CPU Per Pod Memory Per Pod Sidecar container CPU Per Pod Sidecar container Memory Per Pod Ephemeral Storage Per Pod Replicas (As per default deployment) Total CPU (Micro service + Sidecar Containers) Total Memory for the Pod (Micro service + Sidecar Containers) Total Ephemeral Storage
nudr-drservice 5 CPUs 4 GB 4 CPUs 4 GB 1 GB 4 36 CPUs 32 GB 4 GB
nudr-dr-provservice 5 CPUs 4 GB 4 CPUs 4 GB 1 GB 2 18 CPUs 16 GB 2 GB
nudr-config 2 CPUs 2 GB 1 CPU 1 GB 1 GB 2 6 CPUs 6 GB 2 GB
nudr-config-server 2 CPUs 2 GB 1 CPU 1 GB 1 GB 2 6 CPUs 6 GB 2 GB
nudr-nrf-client-nfmanagement 1 CPU 1 GB 1 CPU 1 GB 1 GB 2 4 CPUs 4 GB 2 GB
ingressgateway-sig 6 CPUs 4 GB 4 CPUs 4 GB 1 GB 2 20 CPUs 16 GB 2 GB
ingressgateway-prov 6 CPUs 4 GB 4 CPUs 4 GB 1 GB 2 20 CPUs 16 GB 2 GB
egressgateway 2 CPUs 2 GB 2 CPUs 1 GB 1 GB 2 8 CPUs 6 GB 2 GB
alternate-route 2 CPUs 2 GB 1 CPU 1 GB 1 GB 2 6 CPUs 6 GB 2 GB
perf-info 1 CPU 1 GB 1 CPU 1 GB 1 GB 2 4 CPUs 4 GB 2 GB
app-info 0.5 CPU 1 GB 1 CPU 1 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-dbcr-auditor-service 1 CPU 1 GB 1 CPU 1 GB 1 GB 1 2 CPUs 2 GB 1 GB
Total - - - - - - CPU Memory Ephemeral Storage
SLF resource Requirement - - - - - - 77 CPUs 63 GB 25 GB
Additional Resources (Hooks/Init/Update Containers) - - - - - - 7 CPUs 7 GB 7 GB
SLF Total Resources - - - - - - 84 CPUs 70 GB 32 GB
Total side car resources - - - - - - 65 CPUs 63 GB NA
Total Resources - - - - - - 149 CPUs 133 GB 32 GB

Note:

If the debug tool is enabled, then the additional resource requirements are 1 CPU, 2GB RAM, and 4G ephemeral storage for each pod.
2.1.3.9 Performance 36K for SLF
The performance deployment can support 36K SLF traffic + 1.26K Provisioning. The subscriber size on cnDBTier used for testing is 50M.

Table 2-14 Resource Requirements - Performance

Microservice Name CPU Per Pod Memory Per Pod Sidecar container CPU Per Pod Sidecar container Memory Per Pod Ephemeral Storage Per Pod Replicas (As per default deployment) Total CPU (Micro service + Sidecar Containers) Total Memory for the Pod (Micro service + Sidecar Containers) Total Ephemeral Storage
nudr-drservice 7 CPUs 4 GB 3 CPUs 1 GB 1 GB 10 100 CPUs 50 GB 10 GB
nudr-dr-provservice 4 CPUs 4 GB 3 CPUs 1 GB 1 GB 2 14 CPUs 10 GB 2 GB
nudr-config 2 CPUs 2 GB 1 CPU 1 GB 1 GB 2 6 CPUs 6 GB 2 GB
nudr-config-server 2 CPUs 2 GB 1 CPU 1 GB 1 GB 2 6 CPUs 6 GB 2 GB
nudr-nrf-client-nfmanagement 1 CPU 1 GB 1 CPU 1 GB 1 GB 2 4 CPUs 4 GB 2 GB
ingressgateway-sig 6 CPUs 4 GB 3 CPUs 1 GB 1 GB 10 90 CPUs 50 GB 10 GB
ingressgateway-prov 6 CPUs 4 GB 3 CPUs 1 GB 1 GB 2 18 CPUs 10 GB 2 GB
egressgateway 2 CPUs 2 GB 2 CPUs 1 GB 1 GB 2 8 CPUs 6 GB 2 GB
alternate-route 2 CPUs 2 GB 1 CPU 1 GB 1 GB 2 6 CPUs 6 GB 2 GB
perf-info 1 CPU 1 GB 1 CPU 1 GB 1 GB 2 4 CPUs 4 GB 2 GB
app-info 0.5 CPU 1 GB 1 CPU 1 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-dbcr-auditor-service 1 CPU 1 GB 1 CPU 1 GB 1 GB 1 2 CPUs 2 GB 1 GB
Total - - - - - - CPU Memory Ephemeral Storage
SLF resource Requirement - - - - - - 173 CPUs 119 GB 39 GB
Additional Resources (Hooks/Init/Update Containers) - - - - - - 3 CPUs 3 GB 3 GB
SLF Total Resources - - - - - - 176 CPUs 122 GB 42 GB
Total side car resources - - - - - - 89 CPUs 39 GB NA
Total Resources - - - - - - 265 CPUs 161 GB 42 GB

Note:

If the debug tool is enabled, then the additional resource requirements are 1 CPU, 2GB RAM, and 4G ephemeral storage for each pod.
2.1.3.10 Performance 12.1K for SLF
The performance deployment can support 12.1K SLF traffic + 1.26K Provisioning. The subscriber size on cnDBTier used for testing is 37M.

Table 2-15 Resource Requirements - Performance

Microservice Name CPU Per Pod Memory Per Pod Sidecar container CPU Per Pod Sidecar container Memory Per Pod Ephemeral Storage Per Pod Replicas (As per default deployment) Total CPU (Micro service + Sidecar Containers) Total Memory for the Pod (Micro service + Sidecar Containers) Total Ephemeral Storage
nudr-drservice 6 CPUs 4 GB 2 CPUs 1 GB 1 GB 3 24 CPUs 15 GB 3 GB
nudr-dr-provservice 4 CPUs 4 GB 1 CPUs 1 GB 1 GB 2 12 CPUs 10GB 2 GB
nudr-config 2 CPUs 2 GB 1 CPU 1 GB 1 GB 1 3 CPUs 3 GB 1 GB
nudr-config-server 2 CPUs 2 GB 1 CPU 1 GB 1 GB 1 3CPUs 3 GB 1 GB
nudr-nrf-client-nfmanagement 1 CPU 1 GB 1 CPU 1 GB 1 GB 2 4 CPUs 4 GB 2 GB
ingressgateway-sig 6 CPUs 4 GB 4 CPUs 1 GB 1 GB 4 40 CPUs 20 GB 4 GB
ingressgateway-prov 4 CPUs 4 GB 2 CPUs 1 GB 1 GB 2 12 CPUs 10 GB 2 GB
egressgateway 1 CPUs 1 GB 1 CPUs 1 GB 1 GB 2 4 CPUs 4 GB 2 GB
alternate-route 2 CPUs 2 GB 1 CPU 1 GB 1 GB 2 6 CPUs 6 GB 2 GB
perf-info 1 CPU 1 GB 1 CPU 1 GB 1 GB 2 4 CPUs 4 GB 2 GB
app-info 1 CPU 1 GB 1 CPU 1 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-dbcr-auditor-service 1 CPU 1 GB 1 CPU 1 GB 1 GB 1 2 CPUs 2 GB 1 GB
Total - - - - - - CPU Memory Ephemeral Storage
SLF resource Requirement - - - - - - 73 CPUs 57 GB 24 GB
Additional Resources (Hooks/Init/Update Containers) - - - - - - 3 CPUs 3 GB 3 GB
SLF Total Resources - - - - - - 76 CPUs 60 GB 27 GB
Total side car resources - - - - - - 41 CPUs 24 GB NA
Total Resources - - - - - - 117 CPUs 84 GB 27 GB

Note:

If the debug tool is enabled, then the additional resource requirements are 1 CPU, 2GB RAM, and 4G ephemeral storage for each pod.
2.1.3.11 Default Resource Requirements for EIR

Table 2-16 Default Resource Requirements: EIR

Microservice Name CPU Per Pod Memory Per Pod Ephemeral Storage Per Pod Replicas (As per default deployment) Total CPU Total Memory for the Pod Total Ephemeral Storage
nudr-drservice 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-dr-provservice 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-config 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-config-server 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-nrf-client-nfmanagement 1 CPU 1 GB 1 GB 2 4 CPUs 4 GB 2 GB
ingressgateway-sig 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
ingressgateway-prov 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
egressgateway 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
alternate-route 2 CPUs 2 GB 1 GB 2 4 CPUs 2 GB 2 GB
perf-info 1 CPU 1 GB 1 GB 2 2 CPUs 2 GB 2 GB
app-info 0.5 CPU 1 GB 1 GB 2 2 CPUs 2 GB 2 GB
nudr-dbcr-auditor-service 1 CPU 1 GB 1 GB 1 1 CPU 1 GB 1 GB
Total - - - - CPU Memory Ephemeral Storage
EIR resource Requirement - - - - 39 CPUs 39 GB 23 GB
Additional Resources (Hooks/Init/Update Containers) - - - - 8 CPUs 8 GB 7 GB
EIR Total Resources - - - - 47 CPUs 47 GB 30 GB
Total side car resources, if installed with ASM - - - - 33 CPUs 32 GB NA
Total Resources - - - - 80 CPUs 79 GB 30 GB

Note:

If the debug tool is enabled, then the additional resource requirements are 1 CPU, 2GB RAM, and 4G ephemeral storage for each pod.
2.1.3.12 Minimum Resource Requirements for EIR

Table 2-17 Minimum Resource Requirements: EIR

Microservice Name CPU Per Pod Memory Per Pod Ephemeral Storage Per Pod Replicas (As per minimum deployment) Total CPU Total Memory for the Pod Total Ephemeral Storage
nudr-drservice 1 CPU 1 GB 1 GB 1 1 CPUs 1 GB 1 GB
nudr-dr-provservice 1 CPU 1 GB 1 GB 1 1 CPUs 1 GB 1 GB
nudr-config 1 CPU 1 GB 1 GB 1 1 CPUs 1 GB 1 GB
nudr-config-server 1 CPU 1 GB 1 GB 1 1 CPUs 1 GB 1 GB
nudr-nrf-client-nfmanagement 1 CPU 1 GB 1 GB 1 1 CPUs 1 GB 1 GB
ingressgateway-sig 2 CPUs 1 GB 1 GB 1 2 CPUs 1 GB 1 GB
ingressgateway-prov 2 CPUs 1 GB 1 GB 1 2 CPUs 1 GB 1 GB
egressgateway 2 CPUs 1 GB 1 GB 1 2 CPUs 1 GB 1 GB
alternate-route 2 CPU 1 GB 1 GB 1 2 CPUs 1 GB 1 GB
perf-info 1 CPU 1GB 1 GB 1 1 CPUs 1 GB 1 GB
app-info 0.5 CPU 1 GB 1 GB 1 1 CPUs 1 GB 1 GB
nudr-dbcr-auditor-service 1 CPU 1 GB 1 GB 1 1 CPU 1 GB 1 GB
Total - - - - CPU Memory Ephemeral Storage
EIR resource Requirement - - - - 16 CPUs 12 GB 12 GB
Additional Resources (Hooks/Init/Update Containers) - - - - 6 CPUs 6 GB 6 GB
EIR Total Resources - - - - 22 CPUs 18 GB 18 GB
Total side car resources, if installed with ASM - - - - 18 CPUs 18 GB NA
Total Resources - - - - 40 CPUs 36 GB 18 GB

Note:

If the debug tool is enabled, then the additional resource requirements are 1 CPU, 2GB RAM, and 4G ephemeral storage for each pod.
2.1.3.13 Performance 10K for EIR
The performance based resource requirements are as follows:

Note:

This deployment can support 10k EIR EIC traffic. The subscriber size on cnDBTier used for testing is 300k.

Table 2-18 Resource Requirements - Performance 10K for EIR

Microservice Name CPU Per Pod Memory Per Pod Ephemeral Storage Per Pod Replicas (As per default deployment) Total CPU Total Memory for the Pod Total Ephemeral Storage
nudr-drservice 4 CPUs 4 GB 1 GB 6 24 CPUs 24 GB 6 GB
nudr-dr-provservice 4 CPUs 4 GB 1 GB 2 8 CPUs 8 GB 2 GB
nudr-config 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-config-server 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
nudr-nrf-client-nfmanagement 1 CPU 1 GB 1 GB 2 2 CPUs 2 GB 2 GB
ingressgateway-sig 6 CPUs 4 GB 1 GB 5 30 CPUs 20 GB 5 GB
ingressgateway-prov 6 CPUs 4 GB 1 GB 2 12 CPUs 8 GB 2 GB
egressgateway 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
alternate-route 2 CPUs 2 GB 1 GB 2 4 CPUs 4 GB 2 GB
perf-info 1 CPU 1 GB 1 GB 2 2 CPUs 2 GB 1 GB
app-info 0.5 CPU 1 GB 1 GB 2 2 CPUs 2 GB 2 GB
nudr-dbcr-auditor-service 1 CPU 1 GB 1 GB 1 1 CPU 1 GB 1 GB
Total - - - - CPU Memory Ephemeral Storage
EIR resource Requirement - - - - 97 CPUs 83 GB 30 GB
Additional Resources (Hooks/Init/Update Containers) - - - - 7 CPUs 7 GB 7 GB
Total Resources - - - - 104 CPUs 90 GB 37 GB

Note:

If the debug tool is enabled, then the additional resource requirements are 1 CPU, 2GB RAM, and 4G ephemeral storage for each pod.
2.1.3.14 Resource Requirements for UDR Hooks
For UDR hooks, the following set of resources should be available:

Table 2-19 Install, Upgrade, Rollback, Delete or Uninstall, and Test Hooks

Hook Name CPU Requirement Memory Requirement Side car CPU Requirement Side car Memory Requirement Ephemeral Storage Requirement
nudr-config-server-pre-install 1 CPU 1 GB 1 CPU 1 GB 1 GB
nudr-config-server-post-install 1 CPU 1 GB 1 CPU 1 GB 1 GB
nudr-config-server-pre-upgrade 1 CPU 1 GB 1 CPU 1 GB 1 GB
nudr-config-server-post-upgrade 1 CPU 1 GB 1 CPU 1 GB 1 GB
nudr-config-server-pre-rollback 1 CPU 1 GB 1 CPU 1 GB 1 GB
nudr-config-server-post-rollback 1 CPU 1 GB 1 CPU 1 GB 1 GB
nudr-config-server-pre-delete 1 CPU 1 GB 1 CPU 1 GB 1 GB
nudr-config-server-post-delete 1 CPU 1 GB 1 CPU 1 GB 1 GB
nudr-pre-install 1 CPU 1 GB 1 CPU 1 GB 1 GB
nudr-post-install 1 CPU 1 GB 1 CPU 1 GB 1 GB
nudr-pre-upgrade 1 CPU 1 GB 1 CPU 1 GB 1 GB
nudr-post-upgrade 1 CPU 1 GB 1 CPU 1 GB 1 GB
ingressgateway-pre-install 1 CPU 1 GB 1 CPU 1 GB 1 GB
ingressgateway-pre-upgrade 1 CPU 1 GB 1 CPU 1 GB 1 GB
ingressgateway-pre-rollback 1 CPU 1 GB 1 CPU 1 GB 1 GB
ingressgateway-pre-delete 1 CPU 1 GB 1 CPU 1 GB 1 GB
ingressgateway-post-upgrade 1 CPU 1 GB 1 CPU 1 GB 1 GB
ingressgateway-post-rollback 1 CPU 1 GB 1 CPU 1 GB 1 GB
ingressgateway-pre-upgrade-oauth-validator 1 CPU 1 GB 1 CPU 1 GB 1 GB
egressgateway-pre-install 1 CPU 1 GB 1 CPU 1 GB 1 GB
egressgateway-pre-upgrade 1 CPU 1 GB 1 CPU 1 GB 1 GB
egressgateway-pre-rollback 1 CPU 1 GB 1 CPU 1 GB 1 GB
egressgateway-pre-delete 1 CPU 1 GB 1 CPU 1 GB 1 GB
egressgateway-post-upgrade 1 CPU 1 GB 1 CPU 1 GB 1 GB
egressgateway-post-rollback 1 CPU 1 GB 1 CPU 1 GB 1 GB
alternate-route-pre-install 1 CPU 1 GB 1 CPU 1 GB 1 GB
alternate-route-pre-upgrade 1 CPU 1 GB 1 CPU 1 GB 1 GB
alternate-route-pre-rollback 1 CPU 1 GB 1 CPU 1 GB 1 GB
alternate-route-pre-delete 1 CPU 1 GB 1 CPU 1 GB 1 GB
alternate-route-post-upgrade 1 CPU 1 GB 1 CPU 1 GB 1 GB
alternate-route-post-rollback 1 CPU 1 GB 1 CPU 1 GB 1 GB
perf-info-pre-install 1 CPU 1 GB 1 CPU 1 GB 1 GB
perf-info-pre-upgrade 1 CPU 1 GB 1 CPU 1 GB 1 GB
perf-info-pre-rollback 1 CPU 1 GB 1 CPU 1 GB 1 GB
perf-info-pre-delete 1 CPU 1 GB 1 CPU 1 GB 1 GB
perf-info-post-upgrade 1 CPU 1 GB 1 CPU 1 GB 1 GB
perf-info-post-rollback 1 CPU 1 GB 1 CPU 1 GB 1 GB
app-info-pre-install 1 CPU 1 GB 1 CPU 1 GB 1 GB
app-info-pre-upgrade 1 CPU 1 GB 1 CPU 1 GB 1 GB
app-info-pre-rollback 1 CPU 1 GB 1 CPU 1 GB 1 GB
app-info-pre-delete 1 CPU 1 GB 1 CPU 1 GB 1 GB
app-info-post-upgrade 1 CPU 1 GB 1 CPU 1 GB 1 GB
app-info-post-rollback 1 CPU 1 GB 1 CPU 1 GB 1 GB
nudr-nrf-client-nfmanagement-pre-install 1 CPU 1 GB 1 CPU 1 GB 1 GB
nudr-nrf-client-nfmanagement-pre-upgrade 1 CPU 1 GB 1 CPU 1 GB 1 GB
nudr-nrf-client-nfmanagement-pre-rollback 1 CPU 1 GB 1 CPU 1 GB 1 GB
nudr-nrf-client-nfmanagement-pre-delete 1 CPU 1 GB 1 CPU 1 GB 1 GB
nudr-nrf-client-nfmanagement-post-upgrade 1 CPU 1 GB 1 CPU 1 GB 1 GB
nudr-nrf-client-nfmanagement-post-rollback 1 CPU 1 GB 1 CPU 1 GB 1 GB
test 1 CPU 1 GB NA NA 1 GB

Note:

  • These hooks are applicable for both SLF and UDR deployments with ASM. However, these hooks are executed on demand, for example, during install, uninstall, upgrade, rollback, or helm-test cases.
  • All the hooks in the above table except test are cleared once the job is completed.
2.1.3.15 Resource Requirements for UDR Tools

The resource details to install UDR Tools are:

Table 2-20 UDR Tools with ASM Enabled

Microservice Name CPU Per Pod Memory Per Pod Sidecar container CPU Per Pod Sidecar container Memory Per Pod Ephemeral Storage Per Pod Replicas (As per default deployment) Total CPU (Micro service + Sidecar Containers) Total Memory for the Pod (Micro service + Sidecar Containers) Total Ephemeral Storage
nudr-bulk-import 4 CPUs 6 GB 2 CPUs 1 GB 1 GB 1 6 CPUs 7 GB 1 GB
nudr-migration 4 CPUs 4 GB 2 CPUs 1 GB 1 GB 1 6 CPUs 5 GB 1 GB
nudr-export-tool 4 CPUs 3 GB 2 CPUs 1 GB 1 GB 1 6 CPUs 5 GB 1 GB

Note:

If the Debug tool is enabled, then you need additional resources; 1 CPU, 2GB RAM and 4G ephemeral storage for each pod.

2.2 Installation Sequence

This section describes UDR preinstallation, installation, and postinstallation tasks.

2.2.1 PreInstallation Tasks

Before installing UDR, perform the tasks described in this section:

2.2.1.1 Downloading Unified Data Repository Package

To download the UDR package from My Oracle Support (MOS), perform the following steps:

  1. Log in to My Oracle Support using your login credentials.
  2. Select the Patches and Updates tab.
  3. In the Patch Search console, select Product or Family (Advanced) option.
  4. Enter Oracle Communications Cloud Native Core - 5G in Product field and select the product from the Product drop-down list.
  5. From the Release drop-down list select Oracle Communications Cloud Native Core Unified Data Repository <release_number>. Where, <release_number> indicates the required release number of OCUDR.
  6. Click Search. The Patch Advanced Search Results list appears.
  7. Select the required patch from the search results. The Patch Details window appears.
  8. Click Download. The File Download window appears.
  9. Click the <p********_<release_number>_Tekelec>.zip file to download the package.
2.2.1.2 Pushing the Images to Customer Docker Registry

UDR deployment package includes ready-to-use images and Helm charts to orchestrate containers in Kubernetes.

To push the images to the registry:
  1. Unzip the release package to the location where you want to install UDR. The package is as follows: ReleaseName_pkg_Releasenumber.tgz.
  2. Untar the UDR package zip file to get UDR image tar file:

    tar -xvf ocudr_pkg_23_4_2_0_0.tgz

    This command results into ocudr_pkg_23_4_2_0_0.tgz directory. The directory consists of following:
    • ocudr_pkg_23_4_2_0_0.tgz
    • ocudr-23.4.2.tgz (helm chart)
    • ocudr-23.4.2.tgz.sha256 (checksum)
    • nudr-bulk-import-23.4.2.tgz (helm chart for bulk import tool)
    • nudr-bulk-import-23.4.2.tgz.sha256 (checksum)
    • nudr-export-tool-23.4.2.tgz (helm chart for export tool)
    • nudr-export-tool-23.4.2.tgz.sha256 (checksum)
    • nudr-migration-tool-23.4.2.tgz (helm chart for migration tool)
    • nudr-migration-tool-23.4.2.tgz.sha256 (checksum)
    • ocudr-servicemesh-config-23.4.2.tgz (service mesh helm chart)
    • nudr-export-tool-23.4.2.tgz.sha256 (checksum)
    • ocudr-servicemesh-config-23.4.2.tgz.sha256 (checksum)
    • ocudr-images-23.4.2.tar (docker images)
    • ocudr-images-23.4.2.tar.sha256 (checksum)
    • ocudr_custom_configtemplates_23.4.2.zip
    • ocudr_custom_configtemplates_23.4.2.zip.sha256
    • Readme.txt (Contains cksum and md5sum of tarballs)
  3. Verify the package content from the Readme.txt file.
  4. Run one of the following commands to load the ocudr-images-23.4.2.tar file into the Docker system. Run the following command:
    docker load --input /root/ocudr-images-23.4.2.tar
    sudo podman load --input /root/ocudr-images-23.4.2.tar
  5. To verify if the image is loaded correctly, run the following command:
    docker images | grep ocudr

    Note:

    If required, re-tag and push the images according to their repository.

    The following table lists the docker images for UDR:

    Table 2-21 UDR Images

    Service Name Image Image Version
    nudr-drservice ocudr/nudr_datarepository_service 23.4.2
    ocudr/debug-tools 23.4.2
    nudr-dr-provservice ocudr/nudr_datarepository_service 23.4.2
    ocudr/debug-tools 23.4.2
    nudr-notify-service ocudr/nudr_notify_service 23.4.2
    ocudr/debug-tools 23.4.2
    nrf-client ocudr/nrf-client 23.4.5
    ocudr/debug-tools 23.4.2
    ingressgateway ocudr/ocingress_gateway 23.4.7
    ocudr/configurationinit 23.4.7
    ocudr/configurationupdate 23.4.7
    ocudr/debug-tools 23.4.2
    egressgateway ocudr/ocegress_gateway 23.4.7
    ocudr/configurationinit 23.4.7
    ocudr/configurationupdate 23.4.7
    ocudr/debug-tools 23.4.2
    nudr-config ocudr/nudr_config 23.4.2
    ocudr/debug-tools 23.4.2
    nudr-config-server ocudr/ocpm_config_server 23.4.9
    ocudr/debug-tools 23.4.2
    nudr-diameterproxy ocudr/nudr_diameterproxy 23.4.2
    ocudr/debug-tools 23.4.2
    diam-gateway ocudr/nudr_diameterproxy 23.4.2
    ocudr/debug-tools 23.4.2
    nudr-ondemand-migration ocudr/nudr_ondemand_migration 23.4.2
    ocudr/debug-tools 23.4.2
    alternate-route ocudr/alternate_route 23.4.7
    ocudr/debug-tools 23.4.2
    nudr-perf-info ocudr/perf-info 23.4.9
    ocudr/debug-tools 23.4.2
    nudr-app-info ocudr/app-info 23.4.9
    ocudr/debug-tools 23.4.2
    nudr-bulk-import ocudr/nudr-bulk-import 23.4.2
    ocudr/nudr-xmltocsv 23.4.2
    ocudr/nudr-pdbitocsv 23.4.2
    ocudr/debug-tools 23.4.2
    nudr-export-tool ocudr/nudr-export-tool 23.4.2
    ocudr/debug-tools 23.4.2
    nudr-migration ocudr/nudr_pre_migration_hook 23.4.2
    ocudr/nudr_migration 23.4.2
    ocudr/debug-tools 23.4.2
    nudr-dbcr-auditor-service ocudr/nudr_dbcr_auditor_service 23.4.2
    ocudr/debug-tools 23.4.2
    ingressgateway/egressgateway/alternate-route/perf-info/app-info hooks ocudr/common_config_hook 23.4.7
    nudr-pre-install-hook/nudr-pre-upgrade-hook/nudr-post-upgrade-hook/nudr-post-rollback-hook/nudr-post-install-hook ocudr/nudr_common_hooks 23.4.2
    nudr-bulk-import-pre-upgrade-hook ocudr/nudr_bulk_import_pre_upgrade_hook 23.4.2
    nudr-bulk-import-post-upgrade-hook ocudr/nudr_bulk_import_post_upgrade_hook 23.4.2
    nudr-export-tool-pre-upgrade-hook ocudr/nudr_export_tool_pre_upgrade_hook 23.4.2
    nudr-export-tool-post-upgrade-hook ocudr/nudr_export_tool_post_upgrade_hook 23.4.2
    test ocudr/nf_test 23.4.2

    Note:

    The nudr-notify-service and nudr-diameterproxy-service microservices are not required for SLF deployment and nudr-notify-service, nudr-diameterproxy, and nudr-ondemand-migration are not required for EIR deployment. So, disable these services by setting the 'enabled' value as 'false' under the nudr-diameterproxy and nudr-notity-service, and nudr-ondemand-migration sections of the custom values file. For more information, see User Configurable Parameter.
  6. Run one of the following commands to tag the images to the registry:
    docker tag <image-name>:<image-tag> <docker-repo>/<image-name>:<image-tag>
    sudo podman tag <customer repo>/<imagen name>:<image version> <customer repo>/<imagen name>:<image version>

    Sample Tag Commands:

    # podman tag ocudr/nudr_datarepository_service:23.4.2 <customer repo>/nudr_datarepository_service:23.4.2
# podman tag ocudr/nrf-client:23.4.5 <customer repo>/nrf-client:23.4.5
# podman tag ocudr/nudr_common_hooks:23.4.2 <customer repo>/nudr_common_hooks:23.4.2
# podman tag ocudr/nf_test:23.4.2 <customer repo>/nf_test:23.4.2
# podman tag ocudr/nudr_bulk_import:23.4.2 <customer repo>/nudr_bulk_import:23.4.2
# podman tag ocudr/nudr_bulk_import_pre_install_hook:23.4.2 <customer repo>/nudr_bulk_import_pre_install_hook:23.4.2
# podman tag ocudr/nudr_bulk_import_post_upgrade_hook:23.4.2 <customer repo>/nudr_bulk_import_post_upgrade_hook:23.4.2
# podman tag ocudr/nudr_export_tool_pre_install_hook:23.4.2 <customer repo>/nudr_export_tool_pre_install_hook:23.4.2
# podman tag ocudr/nudr_export_tool_post_upgrade_hook:23.4.2 <customer repo>/nudr_export_tool_post_upgrade_hook:23.4.2
# podman tag ocudr/nudr_export_tool:23.4.2 <customer repo>/nudr_export_tool:23.4.2
# podman tag ocudr/nudr_migration:23.4.2 <customer repo>/nudr_migration:23.4.2
# podman tag ocudr/nudr_pre_migration_hook:23.4.2 <customer repo>/nudr_pre_migration_hook:23.4.2
# podman tag ocudr/nudr_config:23.4.2 <customer repo>/nudr_config:23.4.2
# podman tag ocudr/ocpm_config_server:23.4.9 <customer repo>/ocpm_config_server:23.4.9
# podman tag ocudr/ocingress_gateway:23.4.7 <customer repo>/ocingress_gateway:23.4.7
# podman tag ocudr/ocegress_gateway:23.4.7 <customer repo>/ocegress_gateway:23.4.7
# podman tag ocudr/configurationinit:23.4.7 <customer repo>/configurationinit:23.4.7
# podman tag ocudr/configurationupdate:23.4.7 <customer repo>/configurationupdate:23.4.7
# podman tag ocudr/debug-tools:23.4.2 <customer repo>/debug-tools:23.4.2
# podman tag ocudr/alternate_route:23.4.7 <customer repo>/alternate_route:23.4.7
# podman tag ocudr/common_config_hook:23.4.7 <customer repo>/commo_config_hook:23.4.7
# podman tag ocudr/perf-info:23.4.9 <customer repo>/perf-info:23.4.9
# podman tag ocudr/app-info:23.4.9 <customer repo>/app-info:23.4.9
# podman tag ocudr/nudr_dbcr_auditor_service:23.4.2 <customer repo>/nudr_dbcr_auditor_service:23.4.2
    Below microservices are applicable only in UDR mode.
    # podman tag ocudr/nudr_notify_service:23.4.2 <customer repo>/nudr_notify_service:23.4.2
# podman tag ocudr/nudr_diameterproxy:23.4.2 <customer repo>/nudr_diameterproxy:23.4.2
# podman tag ocudr/nudr_diam_gateway:23.4.2 <customer repo>/nudr_diam_gateway:23.4.2
# podman tag ocudr/nudr_ondemand_migration:23.4.2 <customer repo>/nudr_ondemand_migration:23.4.2

    Note:

    • <customer_repo> is the local docker registry on the cluster having Port Number, if registry has a port attached to it.
    • For OCCNE, copy the package to bastion server and use localhost:5000 as CUSTOMER_REPO to tag the images and push to bastion docker registry.
    • You may need to configure the Docker certificate before the push command to access customer registry via HTTPS, otherwise, docker push command may fail.
  7. Run one of the following commands to push the images to the registry:
    docker push <docker-repo>/<image-name>:<image-tag>
    # sudo podman push <customer repo>/<imagen name>:<image version>

    Note:

    Beginning from OC-CNE 1.9, Docker is replaced by Podman. Run the following sample Podman command to push the Docker image:

    Sample Push Commands:


# podman push <customer repo>/readiness_check:23.4.2
# podman push <customer repo>/nudr_datarepository_service:23.4.2
# podman push <customer repo>/nrf-client:23.4.5
# podman push <customer repo>/nudr_common_hooks:23.4.2
# podman push <customer repo>/nf_test:23.4.2
# podman push <customer repo>/nudr_bulk_import:23.4.2
# podman push <customer repo>/nudr_bulk_import_pre_install_hook:23.4.2
# podman push <customer repo>/nudr_bulk_import_post_upgrade_hook:23.4.2
# podman push <customer repo>/nudr_export_tool_pre_install_hook:23.4.2
# podman push <customer repo>/nudr_export_tool_post_upgrade_hook:23.4.2
# podman push <customer repo>/nudr_export_tool:23.4.2
# podman push <customer repo>/nudr_migration:23.4.2
# podman push <customer repo>/nudr_pre_migration_hook:23.4.2
# podman push <customer repo>/nudr_config:23.4.2
# podman push <customer repo>/ocpm_config_server:23.4.9
# podman push <customer repo>/ocingress_gateway:23.4.7
# podman push <customer repo>/ocegress_gateway:23.4.7
# podman push <customer repo>/configurationinit:23.4.7
# podman push <customer repo>/configurationupdate:23.4.7
# podman push <customer repo>/debug-tools:23.4.2
# podman push <customer repo>/alternate_route:23.4.7
# podman push <customer repo>/common_config_hook:23.4.7
# podman push <customer repo>/perf-info:23.4.9
# podman push <customer repo>/app-info:23.4.9
# podman push <customer repo>/nudr_dbcr_auditor_service:23.4.2
    Below microservices are applicable only in UDR mode.
    # podman push <customer repo>/nudr_notify_service:23.4.2
# podman push <customer repo>/nudr_diameterproxy:23.4.2
# podman push <customer repo>/nudr_diam_gateway:23.4.2
# podman push <customer repo>/nudr_ondemand_migration:23.4.2
  8. Run the following command to untar the Helm files:

    tar -xvzf ocudr-23.4.2.tgz

  9. To download the ocudr_custom_configtemplates_23.4.2.zip, click the file available on My Oracle Support (MOS).
  10. Unzip the template to get ocudr_custom_configtemplates_23.4.2.zip file that contains the following:
    • ocudr_custom_values_23.4.2.yaml - Custom values for UDR or SLF used during helm installation.
    • ocudr_nudr_bulk_import_custom_values_23.4.2.yaml - Custom value file for UDR bulk import tool.
    • ocudr_nudr_export_tool_custom_values_23.4.2.yaml - Custom value file for UDR export tool.
    • ocudr_nudr_migration_tool_custom_values_23.4.2.yaml - Custom value file for UDR migration tool.
    • ocudr_servicemesh_config_custom_values_23.4.0.yaml - Custom values for UDR service mesh charts used during helm installation.
    • commonConfig_rollback.py - Rollback scripts for Database Schema rollback.
    • RollBack_Schema_15.3.py - Rollback scripts for Schema rollback to 15.3 version specification.
    • ocslf_alerts_23.4.0.yaml - SLF Alerts template for CNE 1.8 and below. Applicable for OSO 1.6.x and 22.3.x versions.
    • ocslf_alerts_haprom_23.4.0.yaml - SLF Alerts CRD for CNE 1.9 and above. Applicable only for CNE deployments
    • ocslf_dashboard_23.4.0.json - SLF KPI and metrics representation template that should be loaded on Grafana.
    • ocslf_dashboard_haprom_23.4.0.json - SLF KPI and metrics representation template that should be loaded on Grafana (CNE 1.9 and Above).
    • ocslf_kibanaconfig_23.4.0.json - SLF Kibana Template for logging that should be loaded on Kibana.
    • ocudr_alerts_23.4.0.yaml - UDR Alerts CRD, Applicable only for CNE deployments.
    • ocudr_dashboard_23.4.0.json - UDR KPI and metrics representation template that should be loaded on Grafana.
    • ocslf_alerts_23.4.0.yaml - EIR Alerts CRD, Applicable only for CNE deployments.
    • oceir_dashboard_23.4.0.json - EIR KPI and metrics representation template that should be loaded on Grafana.
    • ocslf_mib_23.4.0.mib - SLF top level mib file, where the Objects and their datatypes are defined.
    • ocslf_mib_tc_23.4.0.mib - SLF mib file, where the Objects and their data types are defined.
    • ocudr_mib_23.4.0.mib - OCUDR top level mib file, where the Objects and their data types are defined.
    • ocudr_mib_tc_23.4.0.mib - OCUDR mib file, where the Objects and their data types are defined.
    • oceir_mib_23.4.0.mib - EIR top level mib file, where the Objects and their datatypes are defined.
    • oceir_mib_tc_23.4.0.mib - EIR mib file, where the Objects and their data types are defined.
    • toplevel.mib - Top level MIB file, where the Objects and their data types are defined.
    • ocudr_nudr_config_api_23.4.0.yaml - Open API spec file.
    • ocudr_mgm_api_23.4.0.yaml - Open API Spec for MGM APIs
    • /db_conflict_resolution_sqlfiles/EIR_mode_ndb_replication_insert_UPGRADE.sql
    • /db_conflict_resolution_sqlfiles/SLF_mode_ndb_replication_insert_UPGRADE.sql
    • /db_conflict_resolution_sqlfiles/ALL_mode_ndb_replication_insert.sql
    • /db_conflict_resolution_sqlfiles/EIR_mode_ndb_replication_insert.sql
    • /db_conflict_resolution_sqlfiles/SLF_mode_ndb_replication_insert.sql
    • /db_conflict_resolution_sqlfiles/ALL_mode_ndb_replication_insert_UPGRADE.sql

Note:

It is recommended to configure the Docker certificate before running the push command to access customer registry through HTTPS, otherwise docker push command may fail.
2.2.1.3 Verifying and Creating Namespace
This section explains how to verify and create a namespace in the system.

Note:

This is a mandatory step, and must be performed before proceeding any further. The namespace created or verified in this step is used as an input for further steps in the installation procedure.

To verify and create a namespace:

  1. Run the following command to verify if the required namespace already exists in the system:

    In the output of the above command, if the namespace exists, continue with the Naming Convention for Namespaces section.

    kubectl get namespace
  2. If the required namespace is not available, create the namespace using the following command::
    kubectl create namespace <required namespace>
  3. Update the global.nameSpace parameter in the ocudr-23.4.x-custom-values.yaml file with the namespace created in the previous step.
    For example, the following kubectl command create the namespace ocudr kubectl create namespace ocudr
    global: # NameSpace where secret is deployed nameSpace: ocudr

Naming Convention for Namespaces

The namespace should::

  • start and end with an alphanumeric character.
  • contain 63 characters or less.
  • contain only alphanumeric characters or '-'.

Note:

It is recommended to avoid using the prefix, kube- when creating a namespace. The prefix is reserved for Kubernetes system namespaces.
2.2.1.4 Creating Service Account, Role, and RoleBinding

This section is optional and it describes how to manually create a service account, role, and rolebinding. It is required only when customer needs to create a role, rolebinding, and service account manually before installing UDR.

Note:

The secret(s) should exist in the same namespace where UDR is getting deployed. This helps to bind the Kubernetes role with the given service account.

Creating Service Account, Role, and RoleBinding

  1. Run the following command to create a UDR resource file:
    vi <ocudr-resource-file>
    Example:

    vi ocudr-sample-resource-template.yaml

  2. Update the ocudr-sample-resource-template.yaml with release specific information:

    Note:

    Make sure to update <helm-release> and <namespace> in the following template with respective UDR namespace and UDR helm release name.

    A sample template to update the ocudr-sample-resource-template.yaml file with is given below:

    #
# Sample template start
#
apiVersion: v1
kind: ServiceAccount
metadata:
  name: <helm-release>-serviceaccount
  namespace: <namespace>
---

apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: <helm-release>-role
  namespace: <namespace>
rules:
- apiGroups:
  - "" # "" indicates the core API group
  resources:
  - services
  - configmaps
  - pods
  - secrets
  - endpoints
  - persistentvolumeclaims
  verbs:
  - get
  - watch
  - list
  - update
- apiGroups:
  - apps
  resources:
  - deployments
  - statefulsets
  verbs:
  - get
  - watch
  - list
  - update
- apiGroups:
  - autoscaling
  resources:
  - horizontalpodautoscalers
  verbs:
  - get
  - watch
  - list
  - update
- apiGroups:
  - rbac.authorization.k8s.io
  resources:
  - roles
  - rolebindings
  verbs:
  - get
  - watch
  - list
  - update
- apiGroups:
  - monitoring.coreos.com
  resources:
  - prometheusrules
  verbs:
  - get
  - watch
  - list
  - update
 ---

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: <helm-release>-rolebinding
  namespace: <namespace>
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: <helm-release>-role
subjects:
- kind: ServiceAccount
  name:  <helm-release>-serviceaccount
  namespace: <namespace>
#
# Sample template end
#
  3. Run the following command to create the service account, role and role binding:
    kubectl -n <ocudr-namespace> create -f ocudr-sample-resource-template.yaml

    Example: kubectl -n ocudr create -f ocudr-sample-resource-template.yaml

  4. Update the serviceAccountName parameter in the ocudr-custom-values-23.4.x.yaml file with the value updated in the name field under kind: ServiceAccount. For more information about the serviceAccountName parameter, see Global Configurable Parameters.
2.2.1.5 Pod Security Policy, Role, and Role Binding Creation
The Debug Tool provides third-party troubleshooting tools for debugging the runtime issues in a lab environment. The following tools are available to debug UDR issues:
  • tcpdump
  • ip
  • netstat
  • curl
  • ping
  • dig

Running Debug tool containers from CNE version 23.2.0

Follow the steps below to run the debug tool containers from CNE version 23.2.0:

Running Debug tool containers for previous CNE versions:

This section describes how to create a Pod Security Policy (PSP), role, and role binding resources. These resources are used to define the Role Based Access Control (RBAC) rules for debug container running as part of each pod.

This step is optional. It is required only when the debug tool is enabled and customer wants to create a role, role binding, and service account for it manually.

This role binding should be associated with the service account that you have created in Creating Service Account, Role, and RoleBinding section.

To create a PSP, role, and role binding resources:
  1. Add the following sample template to the sample resource input yaml file (ocudr-debug-tool-rbac.yaml).
    apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
  name: ocudr-debug-tool-psp
spec:
  allowPrivilegeEscalation: true
  allowedCapabilities:
  - NET_ADMIN
  - NET_RAW
  fsGroup:
    ranges:
    - max: 65535
      min: 1
    rule: MustRunAs
  runAsUser:
    rule: MustRunAsNonRoot
  seLinux:
    rule: RunAsAny
  supplementalGroups:
    rule: RunAsAny
  volumes:
  - configMap
  - downwardAPI
  - emptyDir
  - persistentVolumeClaim
  - projected
  - secret

---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: <ocudr-helm-release-name>-debug-tool-role
  namespace: <ocudr-namespace>
rules:
- apiGroups:
  - policy
  resources:
  - podsecuritypolicies
  verbs:
  - use
  resourceNames:
  - ocudr-debug-tool-psp

---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: <ocudr-helm-release-name>-debug-tool-rolebinding
  namespace: <ocudr-namespace>
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: <ocudr-helm-release-name>-debug-tool-role
subjects:
- kind: Group
  apiGroup: rbac.authorization.k8s.io
  name: <helm-release>-serviceaccount
  namespace: <ocudr-namespace>
  2. Run the following command to create the resources:
    kubectl –n <ocudr-namespace> create -f ocudr-debug-tool-rbac.yaml

The debug container uses readOnlyRootFileSystem, allowPrivilegeEscalation, and allowedCapabilities parameters as part of PSP. Other parameters are mandatory for PSP creation and you can customize them as per the CNE environment. It is recommended to use the default values used in the same template.

The PSP parameters are as follows:

Table 2-22 PSP Parameters

Parameter Description
apiVersion It defines the versioned schema of this representation of an object.
kind It is a string value representing the REST resource this object represents.
metadata Standard object's metadata.
metadata.name Name must be unique within a namespace.
spec spec defines the policy enforced.
spec.allowPrivilegeEscalation This parameter controls whether or not a user is allowed to set the security context of a container to true.
spec.allowedCapabilities This parameter provides a list of capabilities that are allowed to be added to a container.
spec.fsGroup It controls the supplemental group applied to some volumes. RunAsAny allows any fsGroup ID to be specified.
spec.runAsUser It controls the user ID with which the containers are run. RunAsAny allows any runAsUser to be specified.
spec.seLinux In this parameter, RunAsAny allows any seLinuxOptions to be specified.
spec.supplementalGroups It controls the group IDs that containers can add. RunAsAny allows any supplementalGroups to be specified.
spec.volumes This parameter provides a list of allowed volume types. The allowable values correspond to the volume sources that are defined when creating a volume.
The Role parameters are as follows:

Table 2-23 Role Parameters

Parameter Description
apiVersion It defines the versioned schema of this representation of an object.
kind It is a string value representing the REST resource this object represents.
metadata Standard object's metadata.
metadata.name Name must be unique within a namespace.
metadata.namespace Namespace defines the space within which each name must be unique.
rules Rules holds all the PolicyRules for this Role.
apiGroups APIGroups is the name of the APIGroup that contains the resources.
rules.resources Resources is a list of resources this rule applies to.
rules.verbs Verbs is a list of verbs that apply to ALL the ResourceKinds and AttributeRestrictions contained in this rule.
rules.resourceNames ResourceNames is an optional list of names to which the rule applies.
The role binding parameters are as follows:

Table 2-24 Role Binding Parameters

Parameter Description
apiVersion It defines the versioned schema of this representation of an object.
kind It is a string value representing the REST resource this object represents.
metadata Standard object's metadata.
metadata.name Name must be unique within a namespace.
metadata.namespace Namespace defines the space within which each name must be unique.
roleRef RoleRef can reference a Role in the current namespace or a ClusterRole in the global namespace.
roleRef.apiGroup APIGroup is the group for the resource being referenced
roleRef.kind Kind is the type of resource being referenced
roleRef.name Name is the name of resource being referenced
subjects Subjects holds references to the objects, the role applies to.
subjects.kind Kind of object being referenced. Values defined by this API group are "User", "Group", and "ServiceAccount".
subjects.apiGroup APIGroup holds the API group of the referenced subject.
subjects.name Name of the object being referenced.
2.2.1.6 Configuring cnDBTier

With cnDBTier, UDR facilitates automatic user creation with its pre-install hook. However, ensure that there is a privileged user on the NDB cluster, which has privileges similar to root user. This user should have necessary permissions to allow connections from remote hosts.

For cnDBTier version 23.4.x, enable the flag ndb_allow_copying_alter_table on cnDBTier configurations during installation.

Single Site Deployment

Perform the following steps on each of the SQL nodes.
  1. Log in to MySQL on each of the API nodes of cnDBTier to verify this.
    mysql>select host from mysql.user where User='<privileged username>';
+------+
| host |
+------+
| %    |
+------+
1 rowinset(0.00 sec)
  2. If you do not see '%' in the output of the above query, modify this field to allow remote connections to root.
    mysql>update mysql.user set host='%' where User='<privileged username>';
Query OK, 0rowsaffected (0.00 sec)
Rowsmatched: 1  Changed: 0  Warnings: 0
mysql> flushprivileges;
Query OK, 0rowsaffected (0.06 sec)

    Note:

    Perform this step on each SQL node.

Multiple Site Deployment

To configure cnDBTier in case of multiple site deployment:

  1. Update mysqld configuration in the cnDBTier custom values file before the installing or upgrading UDR or SLF.
    global:
  ndbconfigurations:
    api
      auto_increment_increment: 3
      auto_increment_offset: 1

    Note:

    • Set the auto_increment_increment parameter as same as number of sites. For example: If the number of sites is 2, set its value as 2 and if the number of sites is 3, set its value as 3.
    • Set the auto_increment_offset parameter as site ID. For example: The site ID for Site 1 is 1, Site 2 is 2, for Site 3 is 3 and so on.
  2. If the fresh installation or upgrade of UDR or SLF on cnDBTier is not planned, then run the following command to edit the exiting mysqldconfig configmap on all the cnDBTier sites.
    kubectl edit configmap mysqldconfig <db-site-namespace>

    For Example: kubectl edit configmap mysqldconfig -n site1

    Note:

    Update the auto_increment_increment and auto_increment_offset values as mentioned in the previous step for all sites.
2.2.1.7 Configuring Multiple Site Deployment

In case of multiple site deployment of EIR or SLF, there is only one subscriber database which is used by each site and different configuration databases for each site, as each site has its own configuration. To have different configuration databases and same subscriber database, you need to create secrets accordingly. For more information about creating secrets, see Creating Kubernetes Secret - DBName, Username, Password, and Encryption Key.

To configure multiple site deployment:
  1. Configure nfInstanceId under the global section of the ocudr-custom-values-23.4.2.yaml file differently for each UDR, SLF, or EIR site deployed.

    Note:

    Ensure the nfInstanceId configuration in the global section is same as that in the appProfile section of nrf-client.
    global:
  # Unique ID to register to NRF, Should be configured differently on multi site deployments for each SLF/UDR
  nfInstanceId: &nfInsId 5a7bd676-ceeb-44bb-95e0-f6a55a328b03

nrf-client:
  configmapApplicationConfig:
    profile: |-
      appProfiles=[{"nfInstanceId":"5a7bd676-ceeb-44bb-95e0-f6a55a328b03","nfStatus":"REGISTERED","fqdn":"ocudr-ingressgateway.myudr.svc.cluster.local","nfType":"UDR","allowedNfTypes":["NRF"],"plmnList":[{"mnc":"14","mcc":"310"}],"priority":10,"capacity":500,"load":0,"locality":"bangalore","nfServices":[{"load":0,"scheme":"http","versions":[{"apiFullVersion":"2.1.0.alpha-3","apiVersionInUri":"v1"}],"fqdn":"ocudr-ingressgateway.myudr.svc.cluster.local","ipEndPoints":[{"port":"80","ipv4Address":"10.0.0.0","transport":"TCP"}],"nfServiceStatus":"REGISTERED","allowedNfTypes":["NRF"],"serviceInstanceId":"547d42af-628a-4d5d-a8bd-38c4ba672682","serviceName":"nudr-group-id-map","priority":10,"capacity":500}],"udrInfo":{"groupId":"udr-1","externalGroupIdentifiersRanges":[{"start":"10000000000","end":"20000000000"}],"supiRanges":[{"start":"10000000000","end":"20000000000"}],"gpsiRanges":[{"start":"10000000000","end":"20000000000"}]},"heartBeatTimer":90,"nfServicePersistence":false,"nfProfileChangesSupportInd":false,"nfSetIdList":["setxyz.udrset.5gc.mnc012.mcc345"]}]
  2. Configure fullnameOverride under the config-server section to <helm-release-name>-config-server. It should be different for each site deployed.
    config-server:
  fullnameOverride: ocudr1-config-server
  3. Configure fullnameOverride under the appinfo section to <helm-release-name>-app-info. It should be different for each site deployed.
    appinfo:
  fullnameOverride: ocudr1-app-info
  4. For cnDBTier configurations in multiple site deployment, see Configuring cnDBTier.
2.2.1.8 Creating Kubernetes Secret - DBName, Username, Password, and Encryption Key

UDR Database

For UDR application, twotypes of databases are required:
  1. Subscriber Database: Subscriber database includes all subscriber data such as SLF, EIR, PCF, UDM, and NEF data.
  2. Configuration database: Configuration database includes configuration content for all microservices.

UDR Users

This section explains how database administrators can create users and database in a single and multisite deployment.

Note:

  • Before running the procedure for georedundant sites, ensure that the cnDBTier for georedundant sites is already up and replication channels are enabled.
  • While performing a fresh installation, if UDR is already deployed, purge the deployment, and remove the database and users that were used for the previous deployment. For uninstallation procedure, see Uninstalling UDR.
There are two types of UDR database users with different set of permissions:
  • Privileged User: This user requires to be granted remote access and complete set of permissions to create, alter, and drop udrdb and udrconfigdb databases across the SQL nodes. If necessary, the user should have the required permissions to create the application user.
  • Application User: This user provided in the secret can be created by the UDR if global.preInstall.createUser=true in the custom-values.yaml. If the application user is manually created, then the user requires to be granted remote access and have a minimum set of permission for the udrdb and udrconfigdb to insert, update, get, and remove the records across the SQL nodes.

Single Site Deployment

To create a secret, run the following command:
kubectl create secret generic ocudr-secrets --from-literal=dbname=<dbname> --from-literal=configdbname=<configdbname> --from-literal=privilegedUsername=<privilegedUsername> --from-literal=privilegedPassword=<privilegedPassword> --from-literal=dsusername=<udruserName> --from-literal=dspassword=<udruserPassword> --from-literal=encryptionKey='My secret passphrase' -n <ocudr-namespace>

Example

kubectl create secret generic ocudr-secrets --from-literal=dbname=udrdb --from-literal=configdbname=udrconfigdb --from-literal=privilegedUsername=privUsr --from-literal=privilegedPassword=privUsrPasswd --from-literal=dsusername=udruser --from-literal=dspassword=udrpasswd --from-literal=encryptionKey='My secret passphrase' -n myudr

Multiple Site Deployment

In case of multiple site deployment, configure the configdbname differently for each site. Each site has its own configuration content and it is stored separately in their respective configuration databases. Multiple UDRs under the same segment also have different configuration databases.

To create a secret in case of two site deployment, run the following commands:

  1. For site 1:
    kubectl create secret generic ocudr-secrets --from-literal=dbname=<dbname> --from-literal=configdbname=<configdbname1> --from-literal=privilegedUsername=<privilegedUsername> --from-literal=privilegedPassword=<privilegedPassword> --from-literal=dsusername=<udruserName> --from-literal=dspassword=<udruserPassword> --from-literal=encryptionKey='My secret passphrase' -n <ocudr1-namespace>

    Example:

    kubectl create secret generic ocudr-secrets --from-literal=dbname=udrdb --from-literal=configdbname=udrconfigdb1 --from-literal=privilegedUsername=privUsr --from-literal=privilegedPassword=privUsrPasswd --from-literal=dsusername=udruser --from-literal=dspassword=udrpasswd --from-literal=encryptionKey='My secret passphrase' -n myudr
  2. For site 2:
    kubectl create secret generic ocudr-secrets --from-literal=dbname=<dbname> --from-literal=configdbname=<configdbname2> --from-literal=privilegedUsername=<privilegedUsername> --from-literal=privilegedPassword=<privilegedPassword> --from-literal=dsusername=<udruserName> --from-literal=dspassword=<udruserPassword> --from-literal=encryptionKey='My secret passphrase' -n <ocudr2-namespace>

    Example:

    kubectl create secret generic ocudr-secrets --from-literal=dbname=udrdb --from-literal=configdbname=udrconfigdb2 --from-literal=privilegedUsername=privUsr --from-literal=privilegedPassword=privUsrPasswd --from-literal=dsusername=udruser --from-literal=dspassword=udrpasswd --from-literal=encryptionKey='My secret passphrase' -n myudr
2.2.1.9 Enabling HTTP1.1
By default, UDR, EIR or SLF deployment supports HTTP2 requests. To enable HTTP1, perform the following steps:

Note:

  • This configuration is required for CNC Console to perform provisioning on UDR or SLF deployment.
  • CNC Console communicates only to ingressgateway-prov service for provisioning. Ingressgateway-prov communicates over selected ingressgateway-prov.global.publicHttp1SignalingPort port (81 port by default) which is a HTTP1.1 specific port. This configuration is not required to be enabled for ingressgateway-sig.
  • Enable the enableIncomingHttp1 parameter under ingressgateway section in ocudr-custom-values file.
  • Configure the port to be used for HTTP1 using publicHttp1SignalingPort under global section in ocudr-custom-values file.
  • To enable HTTPS on HTTP1 port, enable the configuration enableTLSIncomingHttp1 under ingressgateway section in ocudr-custom-values file.

    Note:

    There are additional configurations to enable HTTPS on Ingress Gateway. For more information, see Enabling HTTPS on Ingress Gateway and Egress Gateway.

    Sample template

    ingressgateway-prov:
 global:
   .....
   .....
   # port on which UDR's API-Gateway service is exposed
   # If httpsEnabled is false, this Port would be HTTP/2.0 Port (unsecured)
   # If httpsEnabled is true, this Port would be HTTPS/2.0 Port (secured SSL)
   publicHttpSignalingPort: 80
   publicHttpsSignalingPort: 443
   # HTTP1 Port
   publicHttp1SignalingPort: 81

 ......
 ......

 # Enable HTTP1
 enableIncomingHttp1: true

 # Enable Secure HTTP1
 enableTLSIncomingHttp1: true
  • You are required to configure routes on cncc-core-custom-values file to connect to its port on ingressgateway for the provisioning routes configured. For this, check the routesConfig section as follows:

    CNCC Core routesConfig

    ingress-gateway:
  routesConfig:
  ......
  ......
# uri should be configured with UDR/SLF ingressgateway fqdn with HTTP1 port. (Example: ocudr-ingressgateway.ocudr:81)
# 81 used above should be same as publicHttp1SignalingPort configured in ocudr-custom-values.yaml file
  - id: udr_ingress
    uri: http://<FQDN>:<PORT>
    path: /nudr-dr-prov/**,/nudr-dr-mgm/**,/nudr-group-id-map-prov/**,/slf-group-prov/**
2.2.1.10 Enabling HTTPS on Ingress Gateway and Egress Gateway

This step is optional. It is required only when SSL settings need to be enabled on Ingress Gateway and Egress Gateway microservices of UDR.

Note:

For more information about the ssl section configuration, see UDR Configuration Parameters.

Important:

If the certificates are not available, then create them following the instructions given in the Creating Private Keys and Certificates for Ingress Gateway section of this guide.
2.2.1.10.1 Enabling HTTPS on Ingress Gateway

To enable HTTPS on Ingress Gateway:

  1. Enable initssl and enableIncomingHttps parameters in the ingressgateway-sig and ingressgateway-provsections of the ocudr-custom-values.yaml file.
  2. Configure the following details in the ssl section under ingressgateway
    • Configure the following details in the ssl section of ingressgateway-sig and ingressgateway-prov in the ocudr-custom-values.yaml file.
      • Kubernetes namespace
      • Kubernetes secret name holding the certificate details
      • Certificate information
      # Configure this section to support TLS with ingress gateway
ssl:
  # TLS verison used
  tlsVersion: TLSv1.2

  # Secret Details for certificates
  privateKey:
    k8SecretName: ocudr-gateway-secret
    k8NameSpace: ocudr
    rsa:
      fileName: rsa_private_key_pkcs1.pem
    ecdsa:
      fileName: ecdsa_private_key_pkcs8.pem

  certificate:
    k8SecretName: ocudr-gateway-secret
    k8NameSpace: ocudr
    rsa:
      fileName: apigatewayrsa.cer
    ecdsa:
      fileName: apigatewayecdsa.cer

  caBundle:
    k8SecretName: ocudr-gateway-secret
    k8NameSpace: ocudr
    fileName: caroot.cer

  keyStorePassword:
    k8SecretName: ocudr-gateway-secret
    k8NameSpace: ocudr
    fileName: key.txt

  trustStorePassword:
    k8SecretName: ocudr-gateway-secret
    k8NameSpace: ocudr
    fileName: trust.txt

  initialAlgorithm: RS256

Note:

If there are different sets of ssl certificates for the signaling and the provisioning interface, use two different secrets for ingressgateway-sig and ingressgateway-prov.
2.2.1.10.2 Enabling HTTPS on Egress Gateway

To enable HTTPS on Egress Gateway:

  1. Enable the outgoingHttps parameter under globalsection of the ocudr-custom-values.yaml file.
  2. Configure the following details in the ssl section of egressgateway in the ocudr-custom-values.yaml file.
    • Kubernetes namespace
    • Kubernetes secret name holding the certificate details
    • Certificate information
    # Configure this section to support TLS with egress gateway
ssl:
  # TLS verison used
  tlsVersion: TLSv1.2
  initialAlgorithm: RS256

  # Secret Details for certificates
  privateKey:
    k8SecretName: ocudr-gateway-secret
    k8NameSpace: ocudr
    rsa:
      fileName: rsa_private_key_pkcs1.pem
    ecdsa:
      fileName: ecdsa_private_key_pkcs8.pem

  certificate:
    k8SecretName: ocudr-gateway-secret
    k8NameSpace: ocudr
    rsa:
      fileName: apigatewayrsa.cer
    ecdsa:
      fileName: apigatewayecdsa.cer

  caBundle:
    k8SecretName: ocudr-gateway-secret
    k8NameSpace: ocudr
    fileName: caroot.cer

  keyStorePassword:
    k8SecretName: ocudr-gateway-secret
    k8NameSpace: ocudr
    fileName: key.txt

  trustStorePassword:
    k8SecretName: ocudr-gateway-secret
    k8NameSpace: ocudr
    fileName: trust.txt
2.2.1.11 Creating Kubernetes Secret - Keys and Certificates for OAuth2 Support

This section describes how to create Kubernetes secret to store keys and certificates for OAuth2 support. This step is optional. It is required only when you want to enable Oauth2 validation on UDR Ingress Gateway microservice.

Creating a Secret to Store Keys and Certificates for OAuth2

To create a secret for storing keys and certificates for OAuth2:
  1. NRF creates access tokens using following private keys.

    ECDSA private key (Example: ecdsa_private_key_pkcs8.pem)

    RSA private key (Example: rsa_private_key_pkcs1.pem)

  2. To validate these access tokens, create a secret and configure the certificates fetched from NRF into the ocudr-ingress-gateway. The certificates naming format should be:
    <nrfInstanceId>_<AlgorithmUsed>.crt (6faf1bbc-6e4a-4454-a507-a14ef8e1bc5c_ES256.crt
  3. To create a secret:
    1. Log in to Bastion Host or a server that has kubectl.
    2. Run the following command to create a namespace for the secret:
      kubectl create namespace ocudr
    3. Run the following command to create kubernetes secret for NF access token validation:
      kubectl create secret generic oauthsecret --from-file=6faf1bbc-6e4a-4454-a507
-a14ef8e1bc5c_ES256.crt -n ocudr

      Note:

      The file names in the above command are same as in Step 1.
    4. Run the following command to verify whether a secret is created successfully or not:
      kubectl describe secret oauthsecret -n ocudr

Updating an OAuth Token

To update an OAuth token:
  1. Log in to Bastion Host or a server that has kubectl.
  2. To update the secret with new or updated details:
    1. Run the following command to delete the secret:
      kubectl delete secret oauthsecret -n ocudr
    2. Update the certificates required from NRF.
    3. Run the following command to recreate the secret with updated details:
      kubectl create secret generic oauthsecret --from-file=0263663c-f5c2-4d1b-9170-f7b1a9116337_ES256.crt -n ocudr
2.2.1.12 Creating Persistent Volume Claim

This step is optional and is required when the UDR 1.12.0 and lower bulk import tool is deployed. For newer version, this is not required.

Note:

The bulk import Persistent Volume Claim (PVC) and xmltocsv container PVC are created automatically using helm.
To create a PVC:
  1. Use the following sample template for previous release versions and save it as <file-name>.yaml file.

    PersistentVolumeClaim Bulk Import Service

    apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: bulkimportpersistentclaim
spec:
  storageClassName: <Please Provide your StorageClass  Name>
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi
  2. Run the following command to create a PVC.
    kubectl create -f <file-name>.yaml
  3. Run the following command to verify whether a PVC is created or not.
    kubectl get pvc -n <namespace>

    Figure 2-1 Verifying PVC Creation

    Verifying PVC Creation
  4. Run the following command to verify whether a Persistent Volume (PV) is created and bound to the PVC volume.
    kubectl get pv

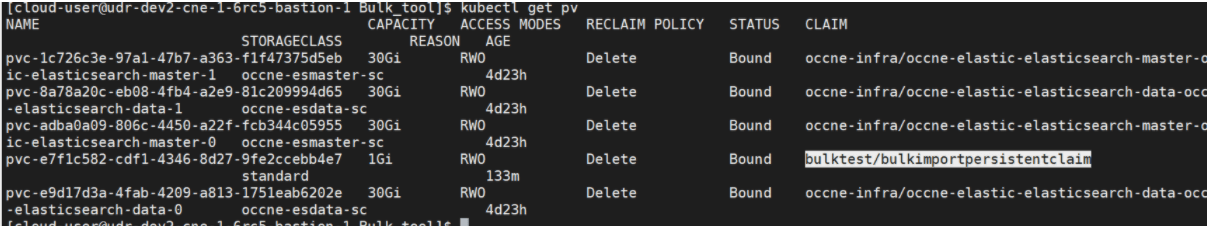

    Figure 2-2 Verifying PV Creation

    Verifying PV Creation

For more information about Bulk Import Provisioning, see Oracle Communications Cloud Native Core, Unified Data Repository User Guide.

2.2.1.13 UDR Compatibility with Kubernetes, CNE and Kyverno Policies

Perform the below steps before starting the ASM deployment to avoid ASM deployment failure due to Kubernetes version 1.25, CNE verion 23.4.x, and Kyverno policies.

kubectl patch clusterpolicy disallow-capabilities --type "json" -p '[{"op":"add","path":"/spec/rules/0/exclude/any/0/resources/namespaces/-","value":"testns"}] testns need to replace with user ns.
2.2.1.14 Configuring UDR to Support Aspen Service Mesh

UDR leverages the Platform Service Mesh (for example, Aspen Service Mesh (ASM)) for all internal and external TLS communication by deploying a special sidecar proxy in each pod to intercept all the network communications. The service mesh integration provides inter-NF communication and allows API gateway to co-work with service mesh. The service mesh integration supports the services by deploying a special sidecar proxy in each pods to intercept all the network communications between microservices.

The Service Mesh configurations are classified into:

  • Control Plane: It involves adding labels or annotations to inject sidecar. The control plane configurations are already part of NF Helm chart.
  • Data Plane: It helps in traffic management like handling NF call flows by adding Service Entries (SE), Destination Rules (DR), Envoy Filters (EF), and other resource changes like apiVersion change between versions. This is done manually depending on the NF requirement and Service Mesh deployment.

Data Plane Configuration

Data Plane configuration consists of following Custom Resource Definitions (CRDs):

  • Service Entry (SE)
  • Destination Rule (DR)
  • Envoy Filter (EF)
  • Peer Authentication
  • Virtual Service (VS)
  • Request Authentication (RA)
  • Policy Authorization (PA)

Note:

Use Helm charts to add or delete CRDs that you may require due to Service Mesh upgrades to configure features across different releases.

The Data Plane configuration is applicable in following scenarios:

  • NF to NF Communication: During NF to NF communication where sidecar is injected on both NFs, you need SE and DR to communicate to the other NF, otherwise sidecar rejects the communication. All Egress communications of NFs must have an entry for SE and DR and the same needs to be configured.

    Note:

    For out of cluster communication, you must configure the core DNS with producer NF end point to enable the access.
  • Kube-api-server: For Kube-api-server, there are few NF flows that require access to Kubernetes API server. The Service Mesh proxy (mTLS enabled) may block this. As per F5 recommendation, the NF need to add SE for Kubernetes API server for its own namespace.
  • Envoy Filters: Sidecars rewrite the header with its own default value as a result the headers from back end services are lost. So, you need Envoy Filters to help in passing the headers from back end services to use it as it is.
  • Peer Authentication: This template can be used to change the default mTLS mode on the deployment. It allows values such as STRICT, PERMISSIVE, and DISABLE.
  • Virtual Service: If the target host returns 503 error response in the first attempt, then by default Istio tries to access the target host for two more times. To configure the number of retry attempts, use virtual service. Based on this configured number, Istio tries to access the target host.

    Note:

    If there is a requirement to configure multiple destination hosts, then it is recommended to use separate virtual services for each destination host instead of using one common virtual service.
  • Request Authentication: This template is used to configure JWT tokens for OAuth use case. NF need to authenticate the OAuth token sent by consumer NFs. This is done by using the public key of the NRF signing certificate and telling ServiceMesh to authenticate the token. UDR and SLF do not use this feature.
  • Policy Authorization: Istio Authorization Policy enables access control on workloads in the mesh. Authorization policy supports CUSTOM, DENY and ALLOW actions for access control. When CUSTOM, DENY and ALLOW actions are used for a workload at the same time, the CUSTOM action is evaluated first, then the DENY action, and finally the ALLOW action is evaluated.

You need CRDs for the following UDR and SLF use cases:

  • UDR to NRF communication (applicable for UDR and SLF)
  • UDR to Notifications (applicable to UDR only)
  • Kube-api-server (applicable to UDR and SLF)
  • Envoy Filter for Serverheader and XFCC (applicable for UDR and SLF)
2.2.1.14.1 UDR Service Mesh Values.yaml File
A sample UDR Service Mesh values.yaml is given below:

Note:

To connect to vDBTier, create an SE and DR for MySQL connectivity service if the database is in different cluster. Else, the sidecar rejects request as vDBTier does not support sidecars.
serviceEntries:
 # Required to communicate to k8 api server
  - hosts: |-
      [ "kubernetes.default.svc.cluster.local",
        "kubernetes.default.svc.cluster.local1" ]    # kubernetes cluster name
    exportTo: |-
      [ "." ]                     # refers to the current namespace
    location: MESH_INTERNAL
    addresses: |-
      [ "198.223.0.1",
        "198.223.0.2" ]
    ports:
    - number: 443
      name: https
      protocol: HTTPS
    name: kube-api-server

 # Add Service Entries for the producer NF's. Provide the public fqdn host list along with the corresponding service entry related settings
  - hosts: |-
      [ "nrf123.oracle.com" ]         # pubic fqdn of destination NF (NRF)
    exportTo: |-
      [ "." ]
    location: MESH_EXTERNAL
    ports:
    - number: 8081
      name: http2-8081
      protocol: TCP
    - number: 8082
      name: http2-8082
      protocol: TCP
    resolution: NONE                   # should be NONE/DNS - if we are using wildchars in fqdn it must be NONE
    name: nrf                         # unique name in service entry and destination rule to identify destination NF

 # Below entry is required to send out notifications from UDR
  #- hosts: |-
  #    [ "notifyurl.oracle.com" ]
  #  location: MESH_EXTERNAL
  #  portno: 80
  #  portname: http2
  #  portprotocol: HTTP2
  #  resolution: NONE
  #  name: notify
  #  namespace: ocudr

destinationRules:
  - host: "nrf123.oracle.com"
    mode: DISABLE
    name: ocudr-to-other-nf-dr-test
    sbitimers: true
    tcpConnectTimeout: "750ms"
    tcpKeepAliveProbes: 3
    tcpKeepAliveTime: "1500ms"
    tcpKeepAliveInterval: "1s"
#  - host: "notifyurl.oracle.com"
#    mode: DISABLE
#    name: notify
#    sbitimers: false

# Add Envoy Filters for server header and XFCC filters w.r.t to asm version 1.6.x
#envoyFilters_v_16x:
#  - name: xfccfilter
#    labelselector: "app.kubernetes.io/instance: ocudr"
#    configpatch:
#      - applyTo: NETWORK_FILTER
#        filtername: envoy.filters.network.http_connection_manager
#        operation: MERGE
#        typeconfig: type.googleapis.com/envoy.config.filter.network.http_connection_manager.v2.HttpConnectionManager
#        configkey: forward_client_cert_details
#        configvalue: ALWAYS_FORWARD_ONLY
#  - name: serverheaderfilter
#    labelselector: "app.kubernetes.io/instance: ocudr"
#    configpatch:
#      - applyTo: NETWORK_FILTER
#        filtername: envoy.filters.network.http_connection_manager
#        operation: MERGE
#        typeconfig: type.googleapis.com/envoy.config.filter.network.http_connection_manager.v2.HttpConnectionManager
#        configkey: server_header_transformation
#        configvalue: PASS_THROUGH
# Add Envoy Filters for server header and XFCC filters w.r.t to asm version 1.9.x & 1.11.x
envoyFilters_v_19x_111x:
  - name: xfccfilter
    labelselector: "app.kubernetes.io/instance: ocudr"
    configpatch:
      - applyTo: NETWORK_FILTER
        filtername: envoy.filters.network.http_connection_manager
        operation: MERGE
        typeconfig: type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
        configkey: forward_client_cert_details
        configvalue: ALWAYS_FORWARD_ONLY
  - name: serverheaderfilter
    labelselector: "app.kubernetes.io/instance: ocudr"
    configpatch:
      - applyTo: NETWORK_FILTER
        filtername: envoy.filters.network.http_connection_manager
        operation: MERGE
        typeconfig: type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
        configkey: server_header_transformation
        configvalue: PASS_THROUGH
  - name: custom-http-stream
    labelselector: "app.kubernetes.io/instance: ocudr"
    configpatch:
      - applyTo: NETWORK_FILTER
        filtername: envoy.filters.network.http_connection_manager
        operation: MERGE
        typeconfig: type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
        configkey: server_header_transformation
        configvalue: PASS_THROUGH
        stream_idle_timeout: "6000ms"
        max_stream_duration: "7000ms"
        patchContext: SIDECAR_OUTBOUND
        networkFilter_listener_port: 8000
  - name: custom-tcpsocket-timeout
    labelselector: "app.kubernetes.io/instance: ocudr"
    configpatch:
      - applyTo: FILTER_CHAIN
        patchContext: SIDECAR_INBOUND
        operation: MERGE
        transport_socket_connect_timeout: "750ms"
        filterChain_listener_port: 8000
  - name: custom-http-route
    labelselector: "app.kubernetes.io/instance: ocudr"
    configpatch:
      - applyTo: HTTP_ROUTE
        patchContext: SIDECAR_OUTBOUND
        operation: MERGE
        route_idle_timeout: "6000ms"
        route_max_stream_duration: "7000ms"
        httpRoute_routeConfiguration_port: 8000
        vhostname: "ocudr.svc.cluster:8000"
  - name: logicaldnscluster
    labelselector: "app.kubernetes.io/instance: ocudr"
    configpatch:
      - applyTo: CLUSTER
        clusterservice: rchltxekvzwcamf-y-ec-x-002.amf.5gc.mnc480.mcc311.3gppnetwork.org
        operation: MERGE
        logicaldns: LOGICAL_DNS
      - applyTo: CLUSTER
        clusterservice: rchltxekvzwcamd-y-ec-x-002.amf.5gc.mnc480.mcc311.3gppnetwork.org
        operation: MERGE
        logicaldns: LOGICAL_DNS
  - name: slfexactbalancesample
    labelselector: "app.kubernetes.io/name: ingressgateway-prov"
    configpatch:
      - applyTo: LISTENER
        patchContext: SIDECAR_OUTBOUND
        listener_port: 5001
        operation: MERGE
        exactbalance: true

#PeerAuthentication is required to allow the incoming traffic with tls mode
peerAuthentication:
  - name: allservices
    labelselector: "app.kubernetes.io/part-of: ocudr"
    tlsmode: PERMISSIVE
#
# VirtualService is required to configure the retry attempts for the destination host.
# By configuring this retries attempts will override the istio default behaviour for retries for example for 503 response istio reties for 2 times.
# If we want mutiple virtualServices to configure, we can add entries like below.
virtualService:
  - name: nrfvirtual1
    host: ocudr-ocudr-egress-gateway
    destinationhost: ocudr-ocudr-egress-gateway
    port: 8000
    exportTo: |-
      [ "." ]
    attempts: "0"
    timeout: 7s
  - name: nrfvirtual2
    host: ocudr-egress-gateway
    destinationhost: ocudr-egress-gateway
    port: 8000
    exportTo: |-
      [ "." ]
    retryon: 5xx
    attempts: "1"
    timeout: 7s

#
# RequestAuthentication is required to configure ouath secrets
# Note: Only one of jwks and jwksUri should be used as per istio document
#requestAuthentication:
#  - name: jwttokenwithjson
#    labelselector: "app: httpbin"
#    issuer: "jwtissue"
#    jwks: |-
#     '{
#       "keys": [{
#       "kid": "1",
#       "kty": "EC",
#       "crv": "P-256",
#       "x": "Qrl5t1-Apuj8uRI2o_BP9loqvaBnyM4OPTPAD_peDe4",
#       "y": "Y7vNMKGNAtlteMV-KJIaG-0UlCVRGFHtUVI8ZoXIzRY"
#      }]
#     }'
#  - name: jwttoken
#    labelselector: "app: httpbin"
#    issuer: "jwtissue"
#    jwksUri: https://example.com/.well-known/jwks.json

#authorizationPolicies:
#- name: allow-all-provisioning-on-ingressgateway-ap
#  labelselector: "app.kubernetes.io/name: ingressgateway"
#  action: "ALLOW"
#  hosts:
#    - "*"
#  paths:
#    - "/nudr-dr-prov/*"
#    - "/nudr-dr-mgm/*"
#    - "/nudr-group-id-map-prov/*"
#    - "/slf-group-prov/*"
#- name: allow-all-sbi-on-ingressgateway-ap
#  labelselector: "app.kubernetes.io/name: ingressgateway"
#  action: "ALLOW"
#  hosts:
#    - "*"
#  paths:
#    - "/nudr-group-id-map/v1/*"
#  xfccvalues:
#    - "*DNS=<dns-url-1>"
#    - "*DNS=<dns-url-2>"


# Template for Service Entry,Destination Rules and Envoy Filters
# The above range of host list will be used here in the below templates to create CRD's
servicemeshResourcesTemplate: |
  {{- range .Values.serviceEntries }}
  apiVersion: networking.istio.io/v1alpha3
  kind: ServiceEntry
  metadata:
    name: {{ .name }}
    namespace: {{ .namespace | default $.Release.Namespace }}
  spec:
    hosts: {{ .hosts }}
    exportTo: {{ .exportTo }}
    {{ if .addresses }}
    addresses: {{ .addresses }}
    {{ end }}
    ports:
    {{- range .ports }}
    - number: {{ .number }}
      name: {{ .name }}
      protocol: {{ .protocol }}
    {{- end }}
    location: {{ .location | default "MESH_EXTERNAL" }}
    resolution: {{ .resolution | default "NONE" }}
  ---
  {{- end -}}

  {{- range .Values.destinationRules }}
  apiVersion: networking.istio.io/v1alpha3
  kind: DestinationRule
  metadata:
    name: {{ .name }}
    namespace: {{ .namespace | default $.Release.Namespace }}
  spec:
    host: "{{ .host }}"
    trafficPolicy:
      tls:
        mode: {{ .mode | default "MUTUAL" }}
        {{ if ne .mode "DISABLE" }}
        clientCertificate: /etc/certs/cert-chain.pem
        privateKey: /etc/certs/key.pem
        caCertificates: /etc/certs/root-cert.pem
        {{ end }}
      {{- if .sbitimers }}
      connectionPool:
        tcp:
          connectTimeout: {{ .tcpConnectTimeout | default "750ms" }}
          tcpKeepalive:
            probes: {{ .tcpKeepAliveProbes | default 3 }}
            time: {{ .tcpKeepAliveTime | default "1500ms" }}
            interval: {{ .tcpKeepAliveInterval | default "1s" }}
      {{- end }}
  ---
  {{- end -}}

  {{- range .Values.envoyFilters_v_16x }}
  apiVersion: networking.istio.io/v1alpha3
  kind: EnvoyFilter
  metadata:
    name: {{ .name }}
    namespace: {{ .namespace | default $.Release.Namespace }}
  spec:
    workloadSelector:
      labels:
        {{ .labelselector }}
    configPatches:
    {{- range .configpatch }}
    - applyTo: {{ .applyTo | default "NETWORK_FILTER" }}
      match:
        {{- if .patchContext }}
        context: {{ .patchContext }}
        {{- end }}
        {{- if eq .applyTo "CLUSTER" }}
        cluster:
          service:  {{ .clusterservice }}
        {{- end }}
        {{- if eq .applyTo "HTTP_ROUTE" }}
        routeConfiguration:
          {{- if .httpRoute_routeConfiguration_port }}
          portNumber: {{ .httpRoute_routeConfiguration_port }}
          {{- end }}
          vhost:
            name: {{ required ( printf "Error in %s envoyFilter. vhostname is required for routeConfiguration when applyTo is HTTP_ROUTE." .name ) .vhostname }}
        {{- else if eq .applyTo "FILTER_CHAIN" }}
        listener:
          {{- if .filterChain_listener_port }}
          portNumber: {{ .filterChain_listener_port }}
          {{- end }}
        {{- else if eq .applyTo "NETWORK_FILTER" }}
        listener:
          {{- if .filtername }}
          filterChain:
            filter:
              name: {{ .filtername | default "envoy.http_connection_manager" }}
          {{- end }}
          {{- if .networkFilter_listener_port }}
          portNumber: {{ .networkFilter_listener_port }}
          {{- end }}
        {{- end }}
      patch:
        operation: {{ .operation | default "MERGE" }}
        value:
          {{- if .typeconfig }}
          typed_config:
            '@type': {{ .typeconfig }}
            {{ .configkey }}: {{ .configvalue }}
            {{- if .stream_idle_timeout }}
            stream_idle_timeout: {{ .stream_idle_timeout }}
            {{- end }}
            {{- if .max_stream_duration }}
            common_http_protocol_options:
              max_stream_duration: {{ .max_stream_duration }}
            {{- end }}
          {{- end }}
          {{- if .transport_socket_connect_timeout }}
          transport_socket_connect_timeout: {{ .transport_socket_connect_timeout }}
          {{- end }}
          {{- if or .route_idle_timeout .route_max_stream_duration }}
          route:
            {{- if .route_idle_timeout }}
            idle_timeout: {{ .route_idle_timeout }}
            {{- end }}
            {{- if .route_max_stream_duration }}
            max_stream_duration:
              max_stream_duration: {{ .route_max_stream_duration }}
            {{- end }}
          {{- end }}
          {{- if .logicaldns }}
          type: {{ .logicaldns }}
          {{- end }}
    {{- end -}}
  ---
  {{- end -}}

  {{- range .Values.envoyFilters_v_19x_111x }}
  apiVersion: networking.istio.io/v1alpha3
  kind: EnvoyFilter
  metadata:
    name: {{ .name }}
    namespace: {{ .namespace | default $.Release.Namespace }}
  spec:
    workloadSelector:
      labels:
        {{ .labelselector }}
    configPatches:
    {{- range .configpatch }}
    - applyTo: {{ .applyTo | default "NETWORK_FILTER" }}
      match:
        {{- if .patchContext }}
        context: {{ .patchContext }}
        {{- end }}
        {{- if eq .applyTo "CLUSTER" }}
        cluster:
          service:  {{ .clusterservice }}
        {{- end }}
        {{- if eq .applyTo "HTTP_ROUTE" }}
        routeConfiguration:
          {{- if .httpRoute_routeConfiguration_port }}
          portNumber: {{ .httpRoute_routeConfiguration_port }}
          {{- end }}
          vhost:
            name: {{ required ( printf "Error in %s envoyFilter. vhostname is required for routeConfiguration when applyTo is HTTP_ROUTE." .name ) .vhostname }}
        {{- else if eq .applyTo "FILTER_CHAIN" }}
        listener:
          {{- if .filterChain_listener_port }}
          portNumber: {{ .filterChain_listener_port }}
          {{- end }}
        {{- else if eq .applyTo "LISTENER" }}
        listener:
          {{- if .listener_port }}
          portNumber: {{ .listener_port }}
          {{- end }}
        {{- else if eq .applyTo "NETWORK_FILTER" }}
        listener:
          {{- if .filtername }}
          filterChain:
            filter:
              name: {{ .filtername | default "envoy.http_connection_manager" }}
          {{- end }}
          {{- if .networkFilter_listener_port }}
          portNumber: {{ .networkFilter_listener_port }}
          {{- end }}
        {{- end }}
      patch:
        operation: {{ .operation | default "MERGE" }}
        value:
          {{- if .typeconfig }}
          typed_config:
            '@type': {{ .typeconfig }}
            {{ .configkey }}: {{ .configvalue }}
            {{- if .stream_idle_timeout }}
            stream_idle_timeout: {{ .stream_idle_timeout }}
            {{- end }}
            {{- if .max_stream_duration }}
            common_http_protocol_options:
              max_stream_duration: {{ .max_stream_duration }}
            {{- end }}
          {{- end }}
          {{- if .transport_socket_connect_timeout }}
          transport_socket_connect_timeout: {{ .transport_socket_connect_timeout }}
          {{- end }}
          {{- if or .route_idle_timeout .route_max_stream_duration }}
          route:
            {{- if .route_idle_timeout }}
            idle_timeout: {{ .route_idle_timeout }}
            {{- end }}
            {{- if .route_max_stream_duration }}
            max_stream_duration:
              max_stream_duration: {{ .route_max_stream_duration }}
            {{- end }}
          {{- end }}
          {{- if .logicaldns }}
          type: {{ .logicaldns }}
          {{- end }}
          {{- if .exactbalance }}
          connection_balance_config:
            exact_balance: {}
          {{- end }}
    {{- end }}
  ---
  {{- end -}}

  {{- range .Values.peerAuthentication }}
  apiVersion: security.istio.io/v1beta1
  kind: PeerAuthentication
  metadata:
    name: {{ .name }}
    namespace: {{ .namespace | default $.Release.Namespace }}
  spec:
    {{ if .labelselector }}
    selector:
       matchLabels:
        {{ .labelselector }}
    {{ end }}
    mtls:
      mode: {{ .tlsmode }}
  ---
  {{- end -}}

  {{- range .Values.virtualService }}
  apiVersion: networking.istio.io/v1alpha3
  kind: VirtualService
  metadata:
    name: {{ .name }}
    namespace: {{ .namespace | default $.Release.Namespace }}
  spec:
    hosts:
    - {{ .host }}
    exportTo: {{ .exportTo }}
    http:
    - route:
      - destination:
          host: {{ .destinationhost }}
          port:
            number: {{ .port }}
      {{- if .timeout }}
      timeout: {{ .timeout }}
      {{- end }}
      {{ if or .attempts .retryon  }}
      retries:
            {{ if .attempts }}
               attempts: {{ .attempts }}
            {{ end }}
            {{ if .retryon }}
               retryOn: {{ .retryon }}
            {{ end }}
      {{ end }}
  ---
  {{- end -}}

  {{- range .Values.requestAuthentication }}
  apiVersion: security.istio.io/v1beta1
  kind: RequestAuthentication
  metadata:
    name: {{ .name }}
    namespace: {{ .namespace | default $.Release.Namespace }}
  spec:
    selector:
      matchLabels:
        {{ .labelselector }}
    jwtRules:
    - issuer: {{ .issuer }}
      {{ if .jwksUri }}
      jwksUri: {{ .jwksUri }}
      {{ end }}
      {{ if .jwks }}
      jwks: {{ .jwks }}
      {{ end }}
      forwardOriginalToken: true
  ---
  {{- end -}}

  {{- range .Values.authorizationPolicies }}
  apiVersion: security.istio.io/v1beta1
  kind: AuthorizationPolicy
  metadata:
    name: {{ .name }}
    namespace: {{ .namespace | default $.Release.Namespace }}
  spec:
    action: {{ .action }}
    rules:
    - to:
      - operation:
          {{- if .hosts }}
          hosts:
          {{- range .hosts }}
          - {{ . | quote -}}
          {{- end }}
          {{- end }}
          {{- if .paths }}
          paths:
          {{- range .paths }}
          - {{ . | quote -}}
          {{- end }}
          {{- end }}
      {{- if .xfccvalues }}
      when:
      - key: request.headers[X-Forwarded-Client-Cert]
        values:
        {{- range .xfccvalues }}
        - {{ . | quote -}}
        {{- end }}
      {{- end }}
    selector:
      matchLabels:
        {{ .labelselector }}
  ---
  {{- end -}}

Supported Fields in Custom Resource Definitions

Table 2-25 Supported Fields in Custom Resource Definitions

Custom Resource Definition Fields
Service Entry hosts
exportTo
addresses
ports.name
ports.number
ports.protocol
resolution
Destination Rule host
mode
sbitimers
tcpConnectTimeout
tcpKeepAliveProbes
tcpKeepAliveTime
tcpKeepAliveInterval
Envoy Filter labelselector
applyTo
filtername
operation
typeconfig
configkey
configvalue
stream_idle_timeout
max_stream_duration
patchContext
networkFilter_listener_port
transport_socket_connect_timeout
filterChain_listener_port
route_idle_timeout
route_max_stream_duration
httpRoute_routeConfiguration_port
vhostname
cluster.service
type
listener_port
exactbalance
Peer Authentication labelselector
tlsmode
Virtual Service host
destinationhost
port
exportTo
retryon
attempts
timeout
Request Authentication labelselector
issuer
jwks/jwksUri
Policy Authorization labelselector
action
hosts
paths
xfccvalues
2.2.1.14.2 Installation of ASM Configuration Charts
Perform the below steps to install ASM configuration charts:
  1. Download the ASM charts.tar file ocudr-servicemesh-config-23.4.0.tgz available with the CSAR files. .
  2. Configure the custom-values.yaml file as follows:
    • Modify only the data section for all the Custom Resource Definition (CRD). You can comment the CRDs that you do not need. For example, in the CRD Service Entry modify the default values for all the fields with the values that you want to apply. This is applicable to all the supported CRDs.
    • The key and value mentioned for each CRD's is replaced in the template section. For example, the following sample envoy filters data shows how to configure the sample envoy filters using different FILTERS, PORTS:
      envoyFilters_v_19x_111x:
  - name: xfccfilter
    labelselector: "app.kubernetes.io/instance: ocudr"
    configpatch:
      - applyTo: NETWORK_FILTER
        filtername: envoy.filters.network.http_connection_manager
        operation: MERGE
        typeconfig: type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
        configkey: forward_client_cert_details
        configvalue: ALWAYS_FORWARD_ONLY
  - name: serverheaderfilter
    labelselector: "app.kubernetes.io/instance: ocudr"
    configpatch:
      - applyTo: NETWORK_FILTER
        filtername: envoy.filters.network.http_connection_manager
        operation: MERGE
        typeconfig: type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
        configkey: server_header_transformation
        configvalue: PASS_THROUGH
  - name: custom-http-stream
    labelselector: "app.kubernetes.io/instance: ocudr"
    configpatch:
      - applyTo: NETWORK_FILTER
        filtername: envoy.filters.network.http_connection_manager
        operation: MERGE
        typeconfig: type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
        configkey: server_header_transformation
        configvalue: PASS_THROUGH
        stream_idle_timeout: "6000ms"
        max_stream_duration: "7000ms"
        patchContext: SIDECAR_OUTBOUND
        networkFilter_listener_port: 8000
  - name: custom-tcpsocket-timeout
    labelselector: "app.kubernetes.io/instance: ocudr"
    configpatch:
      - applyTo: FILTER_CHAIN
        patchContext: SIDECAR_INBOUND
        operation: MERGE
        transport_socket_connect_timeout: "750ms"
        filterChain_listener_port: 8000
  - name: custom-http-route
    labelselector: "app.kubernetes.io/instance: ocudr"
    configpatch:
      - applyTo: HTTP_ROUTE
        patchContext: SIDECAR_OUTBOUND
        operation: MERGE
        route_idle_timeout: "6000ms"
        route_max_stream_duration: "7000ms"
        httpRoute_routeConfiguration_port: 8000
        vhostname: "ocudr.svc.cluster:8000"
  - name: logicaldnscluster
    labelselector: "app.kubernetes.io/instance: ocudr"
    configpatch:
      - applyTo: CLUSTER
        clusterservice: rchltxekvzwcamf-y-ec-x-002.amf.5gc.mnc480.mcc311.3gppnetwork.org
        operation: MERGE
        logicaldns: LOGICAL_DNS
      - applyTo: CLUSTER
        clusterservice: rchltxekvzwcamd-y-ec-x-002.amf.5gc.mnc480.mcc311.3gppnetwork.org
        operation: MERGE
        logicaldns: LOGICAL_DNS
  - name: slfexactbalancesample
    labelselector: "app.kubernetes.io/name: ingressgateway-prov"
    configpatch:
      - applyTo: LISTENER
        patchContext: SIDECAR_OUTBOUND
        listener_port: 5001
        operation: MERGE
        exactbalance: true
  3. Install the ASM configuration charts as below:
    • Run the below Helm install command to the namespace you want to apply the changes:
      helm install <Release-Name> -n <Namespace>
    • Run the below command to verify if all CRDs are installed:
      kubectl get <CRD-Name> -n <Namespace>

      ASM chart installation Verification

    • Run the below Helm upgrade command to make changes in the custom-values.yaml file:
      helm upgrade <Release-Name> -n <Namespace>
2.2.1.14.3 Verification of Charts

Pre-requisite: A system has service mesh deployed with few ASM configurations like service entries and destination rule for UDR or SLF communication to NRF. Example: nrf1.abc.com.

To update and verify the service mesh configurations:
  1. Unzip the attached zip file which contains ocudr asm charts.
  2. Use the ocudr-asm-config’s values.yaml file to add a new SE and DR with nrf1.abc.com and nrf2.abc.com.
  3. Modify the asmResourceTemplate as needed.
  4. Runt the helm3 upgrade command on the values.yaml file.
  5. Use the kubectl get se and kubectl get dr commands to verify the updates and ensure service mesh applies these new changes.

For Inter-Cluster NF Communication Service Mesh verification, perform the following steps:

  1. For Source NF configuration, add the destination rule mode as 'DISABLE' and in service entry, provide the host (which is configured on DNS) and load balancer port details.
    destinationRules:
   - hosts: nrf124.oracle.com
     mode: DISABLE
     name: nrf
  2. For destination NF, configure the peerAuthentication for the namespace with mTLS mode as 'PERMISSIVE'. A sample template is as follows:

    Peer Authentication:

    apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: allservice
  namespace: ocudr
spec:
  mtls:
    mode: PERMISSIVE
  3. After performing the above steps, verify the inter cluster communication between two NF's.
2.2.1.14.4 ASM Specific Configuration

To configure ASM

  • Add the following annotation under global section:
    # ********  Sub-Section Start: Custom Extension Global Parameters ********
  #**************************************************************************
global:
  customExtension:
    allResources:
      labels: {}
      annotations:
        oracle.com/cnc: "true"

    lbServices:
      labels: {}
      annotations: {}

    lbDeployments:
      labels: {}
      annotations: {}

    nonlbServices:
      labels: {}
      annotations: {}

    nonlbDeployments:
      labels: {}
      annotations: {}

  # ********  Sub-Section End: Custiom Extensions Global Parameters ********
  #**************************************************************************
  • Enable the following flag under global section in custom values file:
    global:

  # Servicemesh related configurations

# Enable when deployed with ASM
  serviceMeshCheck: true
  • Enable the following flag under ingressgateway section.
    ingressgateway:

  global:

    # In case of ASPEN Service Mesh enabled, to support clear text traffic from outside of the cluster below flag needs to be true.

    istioIngressTlsSupport:

      ingressGateway: true
  • Change Ingress Gateway Service Type to ClusterIP under the ingressgateway section.
    ingressgateway:
  global:
    # Service Type
    type: ClusterIP
  • Exclude actuator ports from Aspen mesh to avoid traffic through side car. These ports should be same as actuator ports (used for readiness/liveness checks) for Ingress Gateway and UDR microservices.

    The default actuator port (service.port.management) used for UDR microservices is 9000 and ingress/egress gateway is 9090 (ingressgateway.ports.actuatorPort). If the default ports are not changed then use the same annotation as given below. Also, exclude the management port of nudr-nrf-client-service from nudr-nrf-client-service's side car.

    nudr-nrf-client-service:
  deployment:
    customExtension:
      labels: {}
      annotations:
        traffic.sidecar.istio.io/excludeInboundPorts: "9000"

    Note:

    Exclude the management port of nudr-nrf-client-service from nudr-nrf-client-service side car.
  • This step is conditional. In custom-values.yaml file, if any port is listed with excludeInboundPorts and excludeOutboundPorts annotation for ingress gateway, egressgateway, and alternate-route services, then you are required to exclude the coherence ports along with the port added. Following are the ports used for coherence by default.
    traffic.sidecar.istio.io/excludeInboundPorts: 8095, 8096 9090, 7, 53
traffic.sidecar.istio.io/excludeOutboundPorts: 8095, 8096 9090, 7, 53
  • Create a destination rule and service entry to enable MYSQL connectivity service to establish a connection between UDR/SLF and NDB cluster. This is outside ASM. Sample template is given below:
    Creating a Service for External MySQL Instance
    apiVersion: v1
kind: Endpoints
metadata:
  name: mysql-connectivity-service-headless
  namespace: <ocudr-namespace>
subsets:
- addresses:
  - ip: <sql-node1-ip>
  - ip: <sql-node2-ip>
  ports:
  - port: 3306
    protocol: TCP
---
apiVersion: v1
kind: Service
metadata:
  name: mysql-connectivity-service-headless
  namespace: <ocudr-namespace>
spec:
  clusterIP: None
  ports:
  - port: 3306
    protocol: TCP
    targetPort: 3306
  sessionAffinity: None
  type: ClusterIP
---
apiVersion: v1
kind: Service
metadata:
  name: mysql-connectivity-service
  namespace: <ocudr-namespace>
spec:
  externalName: mysql-connectivity-service-headless.<ocudr-namespace>.svc.cluster.local
  sessionAffinity: None
  type: ExternalName

    Creating Service Entry and Destination Rule for External Database Instance

    apiVersion: networking.istio.io/v1alpha3
kind: ServiceEntry
metadata:
  name: mysql-external-se
  namespace: <ocudr-namespace>
spec:
  hosts:
  - mysql-connectivity-service-headless.<ocudr-namespace>.svc.cluster.local
  ports:
  - number: 3306
    name: mysql
    protocol: MySQL
  location: MESH_EXTERNAL
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: mysql-external-dr
  namespace: <ocudr-namespace>
spec:
  host: mysql-connectivity-service-headless.<ocudr-namespace>.svc.cluster.local
  trafficPolicy:
    tls:
      mode: DISABLE

    Note:

    Do not use this template if you are using cnDBTier with ASM as backend for UDR/SLF 1.9.0 or above.
  • If you enable nudr-ondemand-migration service, then a policy for 4G UDR connectivity is required as it is outside ASM.

    A sample template to create an external Kubernetes service for 4G UDR along with service entry and destination rule is given below:

    External Kubernetes Service for 4G UDR

    apiVersion: v1
kind: Endpoints
metadata:
  name: sourceudr-service-headless
  namespace: <ocudr-namespace>
subsets:
- addresses:
  - ip: <4gudr-destination-ip>
  ports:
  - port: <4gudr-destination-port>
    protocol: TCP
---
apiVersion: v1
kind: Service
metadata:
  name: sourceudr-service-headless
  namespace: <ocudr-namespace>
spec:
  clusterIP: None
  ports:
  - port: <4gudr-destination-port>
    protocol: TCP
    targetPort: <4gudr-destination-port>
  sessionAffinity: None
  type: ClusterIP
---
apiVersion: v1
kind: Service
metadata:
  name: sourceudr-service
  namespace: <ocudr-namespace>
spec:
  externalName: sourceudr-service-headless.<ocudr-namespace>.svc.cluster.local
  sessionAffinity: None
  type: ExternalName

    Service Entry and Destination Rule (for the service created in the previous template)

    apiVersion: networking.istio.io/v1alpha3
kind: ServiceEntry
metadata:
  name: sourceudr-external-se
  namespace: <ocudr-namespace>
spec:
  hosts:
  - sourceudr-service-headless.<ocudr-namespace>.svc.cluster.local
  ports:
  - number: <4gudr-destination-port>
    name: sourceudr
  location: MESH_EXTERNAL
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: sourceudr-external-dr
  namespace: <ocudr-namespace>
spec:
  host: sourceudr-service-headless.<ocudr-namespace>.svc.cluster.local
  trafficPolicy:
    tls:
      mode: DISABLE
  • If you are using nudr-migration tool with ASM setup, it is mandatory to create a service entry and a destination rule for 4G UDR IP along with the port used, which is outside ASM. Use same IP Address given in the host IP details of nudr-migration template. A sample template is given below:
    apiVersion: networking.istio.io/v1alpha3
kind: ServiceEntry
metadata:
  name: sourceudr-external-se
  namespace: <ocudr-namespace>
spec:
  hosts:
  - sourceudr-service-headless.<ocudr-namespace>.svc.cluster.local
  addresses:
  - 10.196.7.251
  ports:
  - number: 3867
    name: firstconnectionport
  - number: 3866
    name: secondconnectionport
  location: MESH_EXTERNAL---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: sourceudr-external-dr
  namespace: <ocudr-namespace>
spec:
  host: sourceudr-service-headless.<ocudr-namespace>.svc.cluster.local
  trafficPolicy:
    tls:
      mode: DISABLE
  • To run XFCC and Server header related ATS test cases on SLF or UDR with ASM, envoy filters are used to forward the header passed by client. Sample envoy filters template is given below:
    apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
  name: <server-header envoyfilter name>
  namespace: <NF deployment namespace>
spec:
  workloadSelector:
    labels:
      app.kubernetes.io/instance: <helm release name>
  configPatches:
  - applyTo: NETWORK_FILTER
    match:
      listener:
        filterChain:
          filter:
            name: "envoy.http_connection_manager"
    patch:
      operation: MERGE
      value:
        typed_config:
          '@type': type.googleapis.com/envoy.config.filter.network.http_connection_manager.v2.HttpConnectionManager
          server_header_transformation: PASS_THROUGH

---
apiVersion: networking.istio.io/v1alpha3
kind: EnvoyFilter
metadata:
  name: <xfcc envoyfilter name>
  namespace: <NF deployment namespace>
spec:
  workloadSelector:
    labels:
      app.kubernetes.io/instance: <helm release name>
  configPatches:
  - applyTo: NETWORK_FILTER
    match:
      listener:
        filterChain:
          filter:
            name: "envoy.http_connection_manager"
    patch:
      operation: MERGE
      value:
        typed_config:
          '@type': type.googleapis.com/envoy.config.filter.network.http_connection_manager.v2.HttpConnectionManager
          forward_client_cert_details: ALWAYS_FORWARD_ONLY
  • For inter pod communication on UDR or SLF deployed with ASM, create Peer Authentication on pods. Sample template is given below:

    Peer Authentication

    apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: <Peer Authentication name>
  namespace: <UDR/SLF deployment namespace>
spec:
  selector:
    matchLabels:
      app.kubernetes.io/part-of: ocudr
  mtls:
    mode: PERMISSIVE
2.2.1.14.5 Deleting ASM

This section describes the steps to delete ASM.

To delete ASM, run the following command:
helm delete <helm-release-name> -n <namespace>
Where,
  • <helm-release-name> is the release name used by the helm command. This release name must be the same as the release name used for ServiceMesh.
  • <namespace> is the deployment namespcae used by Helm command.
For example:
helm delete ocudr-servicemesh-config -n ocudr
To disable ASM, run the following command:
kubectl label --overwrite namespace ocudr istio-injection=disabled
To verify if ASM is disabled, run the following command:
kubectl get se,dr,peerauthentication,envoyfilter,vs -n ocudr
2.2.1.15 Configuring udrServices and consumerNF Flags
Before installing or upgrading UDR, it is important to configure udrServices and consumerNF flags.
  • udrService: This flag indicates UDR mode. It can be either All, nudr-dr, or nudr-group-id-map (slf). On the basis of udrService value, NF profiles regiater with NRF. If the udrService value is 'All' or 'nudr-dr', it is filtered further on the basis of consumerNF flag.
  • consumerNF: This flag indicates consumer network functions for UDR. It is a comma separated list of possible consumer services like PCF, UDM, NEF, or any combination of these services.

To configure the udrService and consumerNF flags, use the following information.

  • If the udrService is All, then on the basis of udrMode and consumerNF type, set the value of allowedNFTypes in appProfile.

    Note:

    NRF needs to be added in allowedNFType.

    The default value of consumerNF type in this mode is PCF, UDM, NEF. The details are:

    Table 2-26 Allowed NF Type Values When udrService is All

    Consumer NF Value of Allowed NF Type (a field in App PROFILE) Notes
    PCF "allowedNfTypes":["PCF","NRF"] Only PCF related entries are loaded in udrdb.
    UDM "allowedNfTypes":["UDM","NRF"] Only UDM related entries are loaded in udrdb. Make sure diameter proxy and diameter gateway microservices are disabled.
    NEF "allowedNfTypes":["NEF","NRF"] Only NEF related entries are loaded in udrdb. Make sure diameter proxy and diameter gateway microservices are disabled.
    PCF, UDM "allowedNfTypes":["PCF","NRF","UDM"] Only PCF and UDM related entries are loaded in udrdb.
    PCF, NEF "allowedNfTypes":["PCF","NRF","NEF"] Only PCF,NEF related entries are loaded in udrdb.
    UDM, NEF "allowedNfTypes":["UDM","NRF","NEF"] Only UDM and NEF related entries are loaded in udrdb. Make sure diameter proxy and diameter gateway microservices are disabled.
    PCF, UDM, NEF

    (default)

    		 "allowedNfTypes":["PCF","UDM","NRF","NEF"] PCF, UDR, and UDM related entries are loaded in udrdb
    The default app profile request is:
    [{"nfInstanceId":"5a7bd676-ceeb-44bb-95e0-f6a55a328b03","nfStatus":"REGISTERED","fqdn":"ocudr-ingressgateway.myudr.svc.cluster.local","nfType":"UDR","allowedNfTypes":["PCF","UDM","NRF"],"plmnList":[{"mnc":"14","mcc":"310"}],"priority":10,"capacity":500,"load":0,"locality":"bangalore","nfServices":[{"load":0,"scheme":"http","versions":[{"apiFullVersion":"2.1.0.alpha-3","apiVersionInUri":"v1"}],"fqdn":"ocudr-ingressgateway.myudr.svc.cluster.local","ipEndPoints":[{"port":"80","ipv4Address":"10.0.0.0","transport":"TCP"}],"nfServiceStatus":"REGISTERED","allowedNfTypes":["PCF","UDM"],"serviceInstanceId":"ae870316-384d-458a-bd45-025c9e748976","serviceName":"nudr-dr","priority":10,"capacity":500},{"load":0,"scheme":"http","versions":[{"apiFullVersion":"2.1.0.alpha-3","apiVersionInUri":"v1"}],"fqdn":"ocudr-ingressgateway.myudr.svc.cluster.local","ipEndPoints":[{"port":"80","ipv4Address":"10.0.0.0","transport":"TCP"}],"nfServiceStatus":"REGISTERED","allowedNfTypes":["NRF"],"serviceInstanceId":"547d42af-628a-4d5d-a8bd-38c4ba672682","serviceName":"nudr-group-id-map","priority":10,"capacity":500}],"udrInfo":{"supportedDataSets":["POLICY","SUBSCRIPTION"],"groupId":"udr-1","externalGroupIdentifiersRanges":[{"start":"10000000000","end":"20000000000"}],"supiRanges":[{"start":"10000000000","end":"20000000000"}],"gpsiRanges":[{"start":"10000000000","end":"20000000000"}]},"heartBeatTimer":90,"nfServicePersi
  • If the udrService is nudr-dr, then on the basis of udrMode and consumerNF type, set the value of allowedNFTypes in appProfile. The default value of consumerNF is PCF.

    Table 2-27 Allowed NF Type Values When udrService is nudr-dr

    Consumer NF Value of Allowed NF Type (a field in NF PROFILE) Notes
    PCF

    (default)

    		 "allowedNfTypes":["PCF"] Only PCF related entries are loaded in udrdb.
    UDM "allowedNfTypes":["UDM"] Only UDM related entries are loaded in udrdb. Make sure diameter proxy and diameter gateway microservices are disabled.
    NEF "allowedNfTypes":["NEF"] Only NEF related entries are loaded in udrdb. Make sure diameter proxy and diameter gateway microservices are disabled.
    PCF, UDM "allowedNfTypes":["PCF","UDM"] Only PCF and UDM related entries are loaded in udrdb.
    PCF, NEF "allowedNfTypes":["PCF","NEF"] Only PCF and NEF related entries are loaded in udrdb.
    UDM, NEF "allowedNfTypes":["UDM","NEF"] Only UDM and NEF related entries are loaded in udrdb. Make sure diameter proxy and diameter gateway microservices are disabled.
    PCF, UDM, NEF "allowedNfTypes":["PCF","UDM","NEF"] PCF, UDR, and UDM related entries are loaded in udrdb.
    The default appProfile request is:
    nudr-dr [{"nfInstanceId":"5a7bd676-ceeb-44bb-95e0-f6a55a328b03","nfStatus":"REGISTERED","fqdn":"ocudr-ingressgateway.myudr.svc.cluster.local","nfType":"UDR","allowedNfTypes":["PCF","UDM","NRF"],"plmnList":[{"mnc":"14","mcc":"310"}],"priority":10,"capacity":500,"load":0,"locality":"bangalore","nfServices":[{"load":0,"scheme":"http","versions":[{"apiFullVersion":"2.1.0.alpha-3","apiVersionInUri":"v1"}],"fqdn":"ocudr-ingressgateway.myudr.svc.cluster.local","ipEndPoints":[{"port":"80","ipv4Address":"10.0.0.0","transport":"TCP"}],"nfServiceStatus":"REGISTERED","allowedNfTypes":["PCF","UDM"],"serviceInstanceId":"ae870316-384d-458a-bd45-025c9e748976","serviceName":"nudr-dr","priority":10,"capacity":500}],"udrInfo":{"supportedDataSets":["POLICY","SUBSCRIPTION"],"groupId":"udr-1","externalGroupIdentifiersRanges":[{"start":"10000000000","end":"20000000000"}],"supiRanges":[{"start":"10000000000","end":"20000000000"}],"gpsiRanges":[{"start":"10000000000","end":"20000000000"}]},"heartBeatTimer":90,"nfServicePersistence":false,"nfProfileChangesSupportInd":false,"nfSetIdList":["setxyz.udrset.5gc.mnc012.mcc345"]}]
  • If the udrService is nudr-group-id-map, then set the allowedNFType in appProfile as NRF. The default appProfile request is:
    [{"nfInstanceId":"5a7bd676-ceeb-44bb-95e0-f6a55a328b03","nfStatus":"REGISTERED","fqdn":"ocudr-ingressgateway.myudr.svc.cluster.local","nfType":"UDR","allowedNfTypes":["NRF"],"plmnList":[{"mnc":"14","mcc":"310"}],"priority":10,"capacity":500,"load":0,"locality":"bangalore","nfServices":[{"load":0,"scheme":"http","versions":[{"apiFullVersion":"2.1.0.alpha-3","apiVersionInUri":"v1"}],"fqdn":"ocudr-ingressgateway.myudr.svc.cluster.local","ipEndPoints":[{"port":"80","ipv4Address":"10.0.0.0","transport":"TCP"}],"nfServiceStatus":"REGISTERED","allowedNfTypes":["NRF"],"serviceInstanceId":"547d42af-628a-4d5d-a8bd-38c4ba672682","serviceName":"nudr-group-id-map","priority":10,"capacity":500}],"udrInfo":{"groupId":"udr-1","externalGroupIdentifiersRanges":[{"start":"10000000000","end":"20000000000"}],"supiRanges":[{"start":"10000000000","end":"20000000000"}],"gpsiRanges":[{"start":"10000000000","end":"20000000000"}]},"heartBeatTimer":90,"nfServicePersistence":false,"nfProfileChangesSupportInd":false,"nfSetIdList":["setxyz.udrset.5gc.mnc012.mcc345"]}]
2.2.1.16 Configuring eirServices and consumerNF Flags
Before installing or upgrading EIR, it is important to configure udrServices and consumerNF flags.
  • udrService: eirService indicates EIR mode. eirService is n5g-eir-eic. Set the parameter global.udrServices to n5g-eir-eic to indicate EIR mode. n5g-eir-eic is the service used to register EIR with NRF.
  • consumerNF: This flag indicates consumer network functions for EIR.

To configure the eirService and consumerNF flags, use the following information.

  • If the eirService is n5g-eir-eic, then on the basis of eirMode and consumerNF type, set the value of allowedNfTypes in appProfile. The default value of consumerNF is AMF.

    Note:

    NRF needs to be added in allowedNFType.

    Table 2-28 Allowed NF Type Values When eirService is n5g-eir-eic

    Consumer NF Value of Allowed NF Type (a field in App PROFILE) Notes
    AMF "allowedNfTypes":["AMF"] Only AMF related entries are loaded.
    The default app profile request is:
    [{
    "nfInstanceId": "5a7bd676-ceeb-44bb-95e0-f6a55a328b03",
    "nfStatus": "REGISTERED",
    "fqdn": "ocudr-ingressgateway-sig.myudr.svc.cluster.local",
    "nfType": "5G_EIR",
    "allowedNfTypes": ["AMF"],
    "plmnList": [{
        "mnc": "14",
        "mcc": "310"
    }],
    "priority": 10,
    "capacity": 500,
    "load": 0,
    "locality": "bangalore",
    "nfServices": [{
        "load": 0,
        "scheme": "http",
        "versions": [{
            "apiFullVersion": "2.1.0.alpha-3",
            "apiVersionInUri": "v1"
        }],
        "fqdn": "ocudr-ingressgateway-sig.myudr.svc.cluster.local",
        "ipEndPoints": [{
            "port": "80",
            "ipv4Address": "10.0.0.0",
            "transport": "TCP"
        }],
        "nfServiceStatus": "REGISTERED",
        "allowedNfTypes": ["AMF"],
        "serviceInstanceId": "ae870316-384d-458a-bd45-025c9e748976",
        "serviceName": "n5g-eir-eic",
        "priority": 10,
        "capacity": 500
    }],
    "heartBeatTimer": 90,
    "nfServicePersistence": false,
    "nfProfileChangesSupportInd": false,
    "nfSetIdList": ["setxyz.udrset.5gc.mnc012.mcc345"]
}]
2.2.1.17 Configuring PodDisruptionBudget Kubernetes Resource
The PodDisruptionBudget (PDB) is a Kubernetes resource, which you can use for the nudr-drservice, nudr-notify-service, nudr-config service, config-server, nudr-diameter-proxy, and nudr-diamgateway services. This PDB resource allows you to specify the number of concurrent disruptions for your pods. It is helpful when a pod is deleted either deliberately or accidentally.

Note:

The performance and capacity of the UDR system may vary based on the call model, feature or interface configuration, and underlying CNE and hardware environment, including but not limited to, the size of the json payload, operation type, and traffic model.
When a Kubernetes node runs out of RAM or disk space, the pod evicts in an attempt to ensure the node is running properly. It uses the maxAvailable parameter specified in the Helm chart to determine the minimum number of pods that are available during a disruption, even in the absence of the evicted pod.

Note:

The value of the maxAvailable parameter is an absolute number.

Table 2-29 PodDisruptionBudget for SLF Deployment

Microservice PDB Value Specified (maxUnavailable) Notes
ingressgateway 1 NA
egressgateway 1 NA
nudr-drservice 1 NA
nudr-dr-provservice 1 NA
nudr-config 1 NA
config-server 1 NA
alternate-route 1 NA
nrf-client 1 NA
app-info 1 NA
perf-info 1 NA
perf-info-prov 1 NA

Table 2-30 PodDisruptionBudget for UDR Deployment

Microservice PDB Value Specified (maxUnavailable) Notes
ingressgateway 1 NA
egressgateway 1 NA
nudr-drservice 1 NA
nudr-dr-provservice 1 NA
nudr-notify-service 1 NA
nudr-diam-gateway 1 NA
nudr-diameterproxy 1 NA
nudr-ondemand-migration 1 NA
nudr-config 1 NA
config-server 1 NA
alternate-route 1 NA
nrf-client 1 NA
app-info 1 NA
perf-info 1 NA
perf-info-prov 1 NA

Table 2-31 PodDisruptionBudget for EIR Deployment

Microservice PDB Value Specified (maxUnavailable) Notes
ingressgateway 1 NA
egressgateway 1 NA
nudr-drservice 1 NA
nudr-dr-provservice 1 NA
nudr-config 1 NA
config-server 1 NA
alternate-route 1 NA
nrf-client 1 NA
app-info 1 NA
perf-info 1 NA
perf-info-prov 1 NA
2.2.1.18 Configuring Network Policies

Overview

The network policies allow ingress or egress rules to be defined based on Kubernetes resources such as Pod, Namespace, IP, and Ports. These rules are selected based on Kubernetes labels in the application. These network policies enforces access restrictions for all the applicable data flows except communication from Kubernetes node to pod for invoking container probe.

Note:

Configuring network policies is an optional step. Based on the security requirements, network policies may or may not be configured.

For more information on the network policy, see https://kubernetes.io/docs/concepts/services-networking/network-policies/.

Configuring Network Policies

Following are the various operations that can be performed for network policies after UDR deployment.

Installing Network Policies

The Network Policies are part of ocudr Helm package and can be modified from ocudr_custom_values.yaml file. The entire specification section in the ocudr_custom_values.yaml file is taken as input for network policies. You can provide names to each policy to differentiate the policies when deployed. The template file for network policy is as below:

#Template for various network Policy
{{- if .Values.global.createNetworkPolicy }}
{{- range .Values.global.networkPolicy }}
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: {{ .metadata.name }}
spec:
  {{- .spec | toYaml | nindent 2 }}
---
{{- end -}}
{{- end }}
The ocudr_custom_values.yaml file consists of various network policies for UDR that you can use to update the network policies. If there are no policies in a namespace by default, then all ingress and egress traffic is allowed to and from the pods in that namespace.
 - - metadata:
      name: deny-ingress-all-udr
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/part-of: ocudr
      policyTypes:
      - Ingress
  - metadata:
      name: allow-ingress-sbi-udr
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/name: ingressgateway-sig
      policyTypes:
      - Ingress
      ingress:
      - {}

  - metadata:
      name: allow-ingress-prov-udr
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/name: ingressgateway-prov
      policyTypes:
      - Ingress
      ingress:
      - {}

  - metadata:
      name: allow-ingress-diamgateway-udr
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/name: nudr-diam-gateway
      policyTypes:
      - Ingress
      ingress:
      - ports:
        - protocol: TCP
          port: 3868

  - metadata:
      name: deny-egress-all-ocudr
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/part-of: ocudr
    policyTypes:
    - Egress

  - metadata:
      name: allow-egress-through-egress-ocudr
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/name: egressgateway
      policyTypes:
      - Egress
      egress:
      - {}

  - metadata:
      name: allow-egress-through-perf-ocudr
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/name: perf-info
      policyTypes:
      - Egress
      egress:
      - {}

  - metadata:
      name: allow-egress-through-appinfo-ocudr
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/name: appinfo
      policyTypes:
      - Egress
      egress:
      - {}

  - metadata:
      name: allow-egress-through-diamgateway-ocudr
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/name: nudr-diam-gateway
      policyTypes:
      - Egress
      egress:
      - {}

# Allow ingress for Prometheus Metrics Scrapping
  - metadata:
      name: allow-ingress-prometheus-udr
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/part-of: ocudr
      policyTypes:
      - Ingress
      ingress:
      - ports:
        - protocol: TCP
          port: 9090 # Prometheus Port
        - protocol: TCP
          port: 9000
        - protocol: TCP
          port: 9001
        - protocol: TCP
          port: 9002

  - metadata:
      name: allow-ingress-service-mesh-ocudr
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/part-of: ocudr
      policyTypes:
      - Ingress
      ingress:
      - ports:
        - protocol: TCP
          port: 15021
        - protocol: TCP
          port: 15012
        - protocol: TCP
          port: 15000
        - protocol: TCP
          port: 15020

# Allow egress to DB SQL and Monitoring Ports
  - metadata:
      name: allow-mysql-db-udr
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/part-of: ocudr
      policyTypes:
      - Egress
      egress:
      - ports:
        - protocol: TCP
          port: 3306 # DB SQL Port
        - protocol: TCP
          port: 8080 # DB Monitoring Port

# Allow egress to K8s API Port
  - metadata:
      name: allow-egress-k8s
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/part-of: ocudr
      policyTypes:
      - Egress
      egress:
      - ports:
        - protocol: TCP
          port: 6443 # K8s API Server Port

# Allow egress to Jaeger Agent
  - metadata:
      name: allow-jaeger-udr
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/part-of: ocudr
      policyTypes:
      - Egress
      egress:
      - ports:
        - protocol: TCP
          port: 4318 # Jaeger Agent Port

# Allow egress to DNS
  - metadata:
      name: allow-egress-dns-udr
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/part-of: ocudr
      policyTypes:
      - Egress
      egress:
      - ports:
        - protocol: TCP
          port: 53   # DNS TCP Port
        - protocol: UDP
          port: 53   # DNS UDP Port

  - metadata:
       name: allow-egress-service-mesh-ocudr
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/part-of: ocudr
      policyTypes:
      - Egress
      egress:
      - ports:
        - protocol: TCP
          port: 15021
        - protocol: TCP
          port: 15012
        - protocol: TCP
          port: 15000
        - protocol: TCP
          port: 15020

# Allow ingress from UDR Pods
  - metadata:
      name: allow-ingress-from-udr-pods
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/part-of: ocudr
      policyTypes:
      - Ingress
      ingress:
      - from:
        - podSelector:
            matchLabels:
              app.kubernetes.io/part-of: ocudr

# Allow egress to UDR Pods
  - metadata:
      name: allow-egress-to-udr-pods
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/part-of: ocudr
      policyTypes:
      - Egress
      egress:
      - to:
        - podSelector:
            matchLabels:
              app.kubernetes.io/part-of: ocudr

# Allow ingress from Console
  - metadata:
      name: allow-ingress-from-console-udr
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/name: nudr-config
      policyTypes:
      - Ingress
      ingress:
       - from:
         - namespaceSelector: {}
           podSelector:
             matchLabels:
               app.kubernetes.io/part-of: cncc-core
         ports:
         - protocol: TCP
           port: 5001

  - metadata:
      name: allow-ingress-from-atspod-config-ocudr
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/name: nudr-config
      policyTypes:
      - Ingress
      ingress:
      - from:
        - podSelector:
            matchLabels:
              app: ocats-udr
        ports:
        - protocol: TCP
          port: 5001
Network policies are applicable only to a particular namespace. If the policies are required to be valid across namespaces, for example, in CNC console, if a different namespace is installed than that of UDR then you must edit the policy for CNC console to nudr-config as follow:
- metadata:
    name: allow-ingress-from-console-udr
    spec:
      podSelector:
        matchLabels:
          app.kubernetes.io/name: nudr-config
      policyTypes:
      - Ingress
      ingress:
       - from:
         - namespaceSelector:
             matchLabels:
               kubernetes.io/metadata.name=<namespace of console>
           podSelector:
             matchLabels:
               app.kubernetes.io/part-of: cncc-core
         ports:
         - protocol: TCP
           port: 5001
When the remote transfer is enabled for subscriber export tool and subscriber bulk tool, you must uncomment the network policy section as follows to allow the transfer:
#Uncomment line no 76 to 88 If sftp is enabled and to transfer out the files to remote server for export tool
  #- metadata:
  #    name: sftp-export-network-policy
  #    namespace: ocudr     # should be deployed ns
  #  spec:
  #    podSelector:
  #      matchLabels:
  #        app.kubernetes.io/name: nudr-export-tool
  #    policyTypes:
  #    - Egress
  #    egress:
  #    - to:
  #      - ipBlock:
  #          cidr: 10.121.29.66/32    #Give the remote server ip here

  #Uncomment line no 91 to 117 If sftp is enabled and to transfer out the files to remote server for import tool
  #- metadata:
  #    name: sftp-import-egress-network-policy
  #    namespace: ocudr     # should be deployed ns
  #  spec:
  #    podSelector:
  #      matchLabels:
  #        app.kubernetes.io/name: nudr-bulk-import
  #    policyTypes:
  #    - Egress
  #    egress:
  #    - to:
  #      - ipBlock:
  #          cidr: 10.75.229.137/32    #Give the remote server ip here

  #- metadata:
  #    name: sftp-import-ingress-network-policy
  #    namespace: ocudr     # should be deployed ns
  #  spec:
  #    podSelector:
  #      matchLabels:
  #        app.kubernetes.io/name: nudr-bulk-import
  #    policyTypes:
  #    - Ingress
  #    ingress:
  #    - from:
  #      - ipBlock:
  #          cidr: 10.75.229.137/32    #Give the remote server ip here
2.2.1.18.1 Verifying Network Policies
Run the below command to check if network policies are deployed:
kubectl get networkpolicy -n <namespace>
The sample output of the network policy is as below:

allow-egress-dns-provgw                 app.kubernetes.io/part-of=provgw               4d3h
allow-egress-dns-udr                    app.kubernetes.io/part-of=ocudr                7d19h
allow-egress-k8s                        app.kubernetes.io/part-of=ocudr                7d19h
allow-egress-k8s-provgw                 app.kubernetes.io/part-of=provgw               4d3h
allow-egress-to-provgw-pods             app.kubernetes.io/part-of=provgw               4d3h
allow-egress-to-udr-pods                app.kubernetes.io/part-of=ocudr                7d19h
allow-ingress-from-console-provgw       app.kubernetes.io/name=provgw-config           4d3h
allow-ingress-from-console-udr          app.kubernetes.io/name=nudr-config             7d19h
allow-ingress-from-provgw-pods-provgw   app.kubernetes.io/part-of=provgw               4d3h
allow-ingress-from-udr-pods             app.kubernetes.io/part-of=ocudr                7d19h
allow-ingress-prometheus-provgw         app.kubernetes.io/part-of=provgw               4d3h
allow-ingress-prometheus-udr            app.kubernetes.io/part-of=ocudr                7d19h
allow-ingress-prov-udr                  app.kubernetes.io/name=ingressgateway-prov     7d19h
allow-ingress-provgw                    app.kubernetes.io/name=prov-ingressgateway     4d3h
allow-ingress-sbi-udr                   app.kubernetes.io/name=ingressgateway-sig      7d19h
allow-jaeger-provgw                     app.kubernetes.io/part-of=provgw               4d3h
allow-jaeger-udr                        app.kubernetes.io/part-of=ocudr                7d19h
allow-mysql-db-provgw                   app.kubernetes.io/part-of=provgw               4d3h
allow-mysql-db-udr                      app.kubernetes.io/part-of=ocudr                7d19h
deny-egress-all-except-egw-provgw       app.kubernetes.io/name notin (egressgateway)   4d3h
deny-egress-all-except-egw-udr          app.kubernetes.io/name notin (egressgateway)   7d19h
deny-ingress-all-provgw                 app.kubernetes.io/part-of=provgw               4d3h
deny-ingress-all-udr                    app.kubernetes.io/part-of=ocudr                7d19h

Table 2-32 Supported Kubernetes Resource for Configuring Network Policies

Parameter Description Details
apiVersion

This indicates Kubernetes version for access control.

Note: This is the supported API version for network policies. This is a read-only parameter.

Data Type: string

Default Value: networking.k8s.i o/v1
kind

This represents the REST resource this object represents.

Note: This is a read-only parameter.

Data Type: NetworkPolicy

Default Value: networking.k8s.i o/v1
metadata.name

This indicates unique name for the network policy.

Default Value: {{ .metadata.name }}

This is a mandatory parameter.
spec.{}

This consists of all the information needed to define a particular network policy in the given namespace.

Default Value: NA

This is a mandatory parameter.

For more information about this functionality, see Network Policies in the Oracle Communications Cloud Native Core, Unified Data Repository User Guide.

2.2.1.19 Manual Creation of UDR Database and MySQL User
Follow the below steps to manaually create UDR Database and MySQL User:
  1. Perform the following steps to create the UDR databases required for the deployment:
    1. Run the following command to log in to one of the ndbappmysqld node pods:
      kubectl exec -it ndbappmysqld-0 -n <db-namespace>
    2. Once logged into the pod, run the following command with root credentials to login to mysql terminal:
       mysql -h127.0.0.1 -uroot -p<rootPassword>
    3. Run the following command to create the UDR subscriber and configuration database:
      • CREATE DATABASE IF NOT EXISTS <udrdbname> CHARACTER SET utf8;
      • CREATE DATABASE IF NOT EXISTS <udrconfigdbname> CHARACTER SET utf8;

      Note:

      In case of multiple site deployment you can create the configuration database for all sites using the similar CREATE statements. This can be performed in one of the ndbappmysqld under any one site.
  2. Perform the following steps to create the mysql user required for accessing the UDR databases. These instructions need to be executed on all ndbappmysqld and ndbmysql nodes:
    1. Run the following command to log in to one of the sql node pods:
      kubectl exec -it ndbappmysqld-x/ndbmysqld- -n <db-namespace>
    2. Once logged in to the pod, run the following command with root credentials to login to mysql terminal:
      mysql -h127.0.0.1 -uroot -p<rootPassword>
    3. Run the following command to create mysql user and provide required GRANTS for the user:
      • CREATE USER IF NOT EXISTS '<udruser>'@'%' IDENTIFIED BY '<udrpasswd>';
      • GRANT SELECT, INSERT, CREATE, ALTER, DROP, LOCK TABLES, CREATE TEMPORARY TABLES, DELETE, UPDATE,EXECUTE,REFERENCES ON <udrdbname>.* TO '<udruser>' @'%';
      • GRANT SELECT, INSERT, CREATE, ALTER, DROP, LOCK TABLES, CREATE TEMPORARY TABLES, DELETE, UPDATE,EXECUTE,REFERENCES ON <udrconfigdbname>.* TO '<udruser>' @'%';
      • FLUSH PRIVILEGES;

      Note:

      In case of multiple site deployment using the GRANT command provide access to all UDR configuration databases created in the Step 1.
2.2.1.20 Enabling and Disabling Conflict Resolution

To enable or disable the Conflict Resolution feature, see "Conflict Resolution" section in the Oracle Communications Cloud Native Core, Unified Data Repository User Guide.

2.2.2 Installation Tasks

This section explains how to install UDR.

Note:

Before installing UDR, you must complete Prerequisites and PreInstallation Tasks.
2.2.2.1 Installing UDR Package

To install the UDR package, perform the following steps:

You can install UDR either with HELM repository or with HELM tar. To install UDR in Kubernetes cluster:
  1. Run the following command to access the extracted package:
    cd ocudr-<release_number>
  2. (Optional) Customize the ocudr-custom-values-23.4.2.yaml file with the required input parameters. To customize the file, see UDR Configuration Parameters.
  3. Run the following command to install UDR:
    helm install <helm chart> [--version <OCUDR version>] --name <release> --namespace <k8s namespace> -f <ocudr-custom-values-23.4.2.yaml>
    In the above command:
    • <helm chart> - is the name of the chart, which is of the form <helm repo>/ocudr.
    • <OCUDR version> - is the software version (helm chart version) of the OCUDR. This is optional. If omitted, the default is latest version available in helm repository.
    • <release> - is a user defined release name to identify the helm deployment, all pod names, service name, deployment name will be prepended by this release name. This name should be different for each UDR/SLF site incase of multisite deployments
    • <k8s namespace> - is a name of user's choice to identify the Kubernetes namespace of the Unified Data Repository. All the Unified Data Repository microservices are deployed in this Kubernetes namespace.
    • <ocudr-custom-values-23.4.2.yaml> - is the customized ocudr-custom-values-23.4.2.yaml file. The ocudr-custom-values-23.4.2.yaml file is a part of customer documentation. Download the file and modify it as per user site.

    Note:

    If helm3 is used, run the following command to install UDR:
    helm install -name <release> --namespace <k8s namespace> -f <ocudr-custom-values-23.4.2.yaml> <helm chart> [--version <OCUDR version>]

    Caution:

    Do not exit from helm install command manually. After running the helm install command, it takes some time to install all the services. In the meantime, you must not press "ctrl+c" to come out from helm install command. It leads to some anomalous behavior.

Preinstall Hook Failure Warning

If there is installation failure at the the pre-install hook and if the hook pod goes to error state with the error log "message":" Access denied for user 'root'@'127.0.0.6' (u sing password: YES)". You must manually create the UDR databases and mysql user along with GRANTS. For more information, see . When you perform these manual instructions, disable the configuration createUser under the global.preInstall section on the ocudr custom values file before retrying helm installation.

2.2.3 Post Installation Task

This section explains the postinstallation tasks for UDR.

2.2.3.1 Verifying Installation
To verify the installation:
  1. Run the following command:
    helm ls release_name -n <release-namespace>
    Where,

    <hem-release> is the Helm release name of UDR.

    <namespace> is the namespace of UDR deployment.

    In the output, if STATUS is showing as deployed, then the deployment is successful.

  2. Run the following command to verify if the pods are up and active:
    kubectl get jobs,pods -n release_namespace
    Where,

    <Namespace> is the namespace where UDR is deployed.

    kubectl get pod -n ocudr

    In the output, the STATUS column of all the pods must be Running and the READY column of all the pods must be n/n, where n is the number of containers in the pod.

  3. Run the following command to verify if the services are deployed and active:
    kubectl get services -n release_namespace

    Example: kubectl get services -n ocudr

If the installation is unsuccessful or the STATUS of all the pods is not in the as Running state, perform the troubleshooting steps provided in the Oracle Communications Cloud Native Core, Unified Data Repository Troubleshooting Guide.

2.2.3.2 Performing Helm Test

Helm Test - Overview

This section describes how to perform sanity check for UDR installation through Helm test. The pods to be checked should be based on the namespace and label selector configured for the Helm test configurations.

Note:

Helm test can be performed only on Helm3.

Helm Test is a feature that validates successful installation of UDR along with the readiness of all its pods. It also validates PVCs and confirms if they are in the bound state.

This test also checks for all the PVCs to be in the Bound state under the release namespace and label selector configured.

Configuring Helm Test

Before running the Hem Test command, it is important to do the following configurations:
  1. Complete the Helm test configurations under the Global section of the custom-values.yaml file.
    global:
  # Helm test related configurations
  test:
    nfName: ocudr
    image:
      name: ocudr/nf_test
      tag: 23.4.2
    config:
      logLevel: WARN
      timeout: 240
    resources:
    - horizontalpodautoscalers/v1
    - deployments/v1
    - configmaps/v1
    - prometheusrules/v1
    - serviceaccounts/v1
    - poddisruptionbudgets/v1
    - roles/v1
    - statefulsets/v1
    - persistentvolumeclaims/v1
    - services/v1
    - rolebindings/v1
    #used to enable the helm test logging feature
    complianceEnable: true

    For more details about the configurable parameters, see UDR Configuration Parameters.

  2. Ensure the app.kubernetes.io/instance: {{ .Release.Name }} label is part of all microservice deployments. The Helm Test feature takes the labelSelector internally, along with the helm release namespace, to select the pods and PVCs for verification.

    Note:

    If the above label is not present, add it to the labels section so that the helm test can work on specific helm release.
  3. Run the following helm test command:
    helm test <helm_release_name> -n <k8s namespace>
    Once the helm test job completes, check the output whether the test job is successful or not.

    Note:

    • The Pod or PVC to be verified is fetched based on namespace and labelselector. If the list is empty, then the Helm Test is considered as success. If the Helm Test fails with errors, then see the Oracle Communications Cloud Native Core, Unified Data Repository Troubleshooting Guide.
    • When the deployment has two replicas enabled for the nrf-client-nfmanagement micro service, the helm test fails stating that one of the nrf-client-nfmanagement pod is not ready. In such a case, this behavior is expected and the helm test failure can be ignored.
2.2.3.3 Taking a Backup
Take a backup of the following files, which are required during fault recovery:
  • Updated custom-values.yaml file
  • Updated Helm charts
  • Secrets, certificates, and keys that are used during installation
