Maintenance Procedures

7.1 Accessing the CNE

This section describes the procedures to access an CNE for maintenance purposes.

7.1.1 Accessing the Bastion Host

This section provides information about how to access a CNE Bastion Host.

Prerequisites

SSH private key must be available on the server or VM that is used to access the Bastion Host.
The SSH private keys generated or provided during the installation must match the authorized key (public) present in the Bastion Hosts. For more information about the keys, see the installation prerequisites in Oracle Communications Cloud Native Core, Cloud Native Environment Installation, Upgrade, and Fault Recovery Guide.

Procedure

All commands must be run from a server or VM that has network access to the CNE Bastion Hosts. To access the Bastion Host, perform the following tasks.

7.1.1.1 Logging in to the Bastion Host

This section describes the procedure to log in to the Bastion Host.

Determine the Bastion Host IP address.
Contact your system administrator to obtain the IP addresses of the CNE Bastion Hosts. The system administrator can obtain the IP addresses from the OpenStack Dashboard, VMware Cloud Director, or by other means such as from the BareMetal Hosts.
To log in to the Bastion Host, run the following command:

Note:
The default value for <user_name> is cloud-user (for vCNE) or admusr (for Baremetal).
```
$ ssh -i /<ssh_key_dir>/<ssh_key_name>.key <user_name>@<bastion_host_ip_address>
```

7.1.1.2 Copying Files to the Bastion Host

This section describes the procedure to copy the files to the Bastion Host.

Determine the Bastion Host IP address.
Contact your system administrator to obtain the IP addresses of the CNE Bastion Hosts. The system administrator can obtain the IP addresses from the Openstack Dashboard, VMware Cloud Director, or by other means such as from the BareMetal Hosts.

To copy files to the Bastion Host, run the following command:

$ scp -i /<ssh_key_dir>/<ssh_key_name>.key <source_file> <user_name>@<bastion_host_ip_address>:/<path>/<dest_file>

7.1.1.3 Managing Bastion Host

The Bastion Host comes with the following built-in scripts to manage the Bastion Hosts:

is_active_bastion
get_active_bastion
get_other_bastions
update_active_bastion.sh

These scripts are used to get details about Bastion Hosts, such as checking if the current Bastion Host is the active one and getting the list of other Bastions. This section provides the procedures to manage Bastion Hosts using these scripts.

These scripts are located in the /var/occne/cluster/$OCCNE_CLUSTER/artifacts/ directory. You don't have to change the directory to run these scripts. You can run these scripts from anywhere within a Bastion Host like a system command as the directory containing the scripts is a part of $PATH.

All the scripts interact with the bastion-controller pod and its database directly by querying it or updating it through Kubectl. The commands fails to run in the following conditions:

If the lb-controller pod is not running.
If the kubectl admin configuration is not set properly.

For more information about the possible errors and troubleshooting, seeTroubleshooting Bastion Host.

7.1.1.3.1 Verifying if the Current Bastion Host is the Active One

This section describes the procedure to verify if the current Bastion Host is the active one using the is_active_bastion script.

Run the following command to check if the current Bastion Host is the active Bastion Host:
```
$ is_active_bastion
```
On running the command, the system runs the is_active_bastion script to compare the current Bastion IP against the active Bastion IP retrieved from the database of the bastion-controller pod. If the IP stored at the bastion-controller database is equal to the IP of the Bastion where the script is run from, then the system displays the following response:
```
IS active-bastion
```
If the IP addresses don't match, the system displays the following response indicating, the current Bastion Host is not the active one:
```
NOT active-bastion
```

7.1.1.3.2 Getting the Host IP or Hostname of the Current Bastion Host

This section provides details about getting the Host IP or Hostname of the current Bastion Host using the get_active_bastion script.

Run the following command to get the Host IP of the current Bastion Host:
```
$ get_active_bastion
```
On running the command, the system runs the get_active_bastion script to get the IP address of the Bastion from the bastion-controller DB:
Sample output:
```
192.168.200.10
```
Run the following command to get the Hostname of the current Bastion Host.
```
$ DBFIELD=name get_active_bastion
```
The DBFIELD=name parameter in the command is the additional parameter that is passed to get the Hostname from the bastion-controller DB.
Sample output:
```
occne1-rainbow-bastion-1
```

7.1.1.3.3 Getting the List of Other Bastion Hosts

This section provides details about getting the list of other Bastion Hosts in the cluster using the get_other_bastions script.

Run the following command to get the Hostnames of other Bastion Hosts in the cluster:
```
$ get_other_bastions
```
Sample output:
```
occne1-rainbow-bastion-2
```
Run the following command to get the Host IPs of the other Bastion Hosts in the cluster.
```
$ DBFIELD=ipaddr get_other_bastions
```
The DBFIELD=ipaddr parameter in the command is the additional parameter to get the Host IPs from the bastion-controller DB.
Sample output:
```
192.168.200.11
```
You can provide additional parameters to filter the list of other Bastion Hosts in the cluster.
For example, you can use the CRITERIA="state == 'HEALTHY'" or CRITERIA="state != 'FAILED' filter criteria to fetch the list of other Bastion Hosts in the cluster that are active:
```
$ CRITERIA="state == 'HEALTHY'" get_other_bastions
```
Sample output:
```
occne1-rainbow-bastion-2
```

7.1.1.3.4 Changing the Bastion Host to Active

This section provides the steps to make a standby Bastion Host as active using the update_active_bastion.sh script.

Run the following command to make the current Bastion Host as the active Bastion Host:
```
$ update_active_bastion.sh
```
On running the command, the system runs the get_active_bastion script to compare the current Bastion IP with the active Bastion IP retrieved from thebastion-controller pod DB. If the IP stored in the bastion-controller DB is equal to the IP of the Bastion where the script is run from, then the system takes no action as the current Bastion is already the active Bastion. Otherwise, the system updates the DB with the current IP of the Bastion Host, making it the new active Bastion.
Sample output showing the response when the current Bastion is already the active Bastion:
```
2023-11-24:17-17-34: Setting 192.168.200.10 as bastion
Bastion already set to 192.168.200.10
```
Sample output showing the response when the current Bastion is updated as the active Bastion:
```
2023-11-24:17-29-09: Setting 192.168.200.11 as bastion
```

7.1.1.4 Troubleshooting Bastion Host

This section describes the issues that you may encounter while using Bastion Host and their troubleshooting guidelines.

Permission Denied Error While Running Kubernetes Command

Problem:

Users may encounter "Permission Denied" error while running Kubernetes commands if there is no proper access.

Error Message:

error: error loading config file "/var/occne/cluster/occne1-rainbow/artifacts/admin.conf": open /var/occne/cluster/occne1-rainbow/artifacts/admin.conf: permission denied

Resolution:

Verify permission access to admin.conf. The user running the command must be able to run basic kubectl commands to use the Bastion scripts.

Commands Take Too Long to Respond and Fail to Return Output

Problem:

A command may take too long to display any output. For example, running the is_active_bastion command may take too long to respond leading to the timed out error.

Error Message:

error: timed out waiting for the condition

Resolution:

Verify the status of the bastion-controller. This error can occur if the pods are not running or in a crash state due to various reasons such as lack of resources at the cluster.
Print the bastion controller logs to check the issue. For example, print the logs and check if a loop crash error is caused due to lack of resources.
```
$ kubectl logs -n ${OCCNE_NAMESPACE} deploy/occne-bastion-controller
```
Sample output:
```
Error from server (BadRequest): container "bastion-controller" in pod "occne-bastion-controller-797db5f845-hqlm6" is waiting to start: ContainerCreating
```

Command Not Found Error

Problem:

User may encounter command not found error while running a script.

Error Message:

-bash: is_active_bastion: command not found

Resolution:

Run the following command and verify that the $PATH variable is set properly and contains the artifacts directory.

Note:

By default, CNE sets up the path automatically during the installation.

$ echo $PATH

Sample output showing the correct $PATH:

/home/cloud-user/.local/bin:/home/cloud-user/bin:/usr/local/bin:/usr/bin:/usr/local/sbin:/usr/sbin:/var/occne/cluster/occne1-rainbow/artifacts/istio-1.18.2/bin/:/var/occne/cluster/occne1-rainbow/artifacts

7.2 General Configuration

This section describes the general configuration tasks for CNE.

7.2.1 Configuring SNMP Trap Destinations

This section describes the procedure to set up SNMP notifiers within CNE, such that the AlertManager can send alerts as SNMP traps to one or more SNMP receivers.

Perform the following steps to verify the cluster condition before setting up multiple trap receivers:

Run the following command and verify that the alertmanager and snmp-notifier services are running:

$ kubectl get services --all-namespaces | grep -E 'snmp-notifier|alertmanager'

Sample output:

NAMESPACE     NAME                                            TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)                                  AGE
occne-infra    occne-kube-prom-stack-kube-alertmanager          LoadBalancer   10.233.16.156   10.75.151.178   80:31100/TCP                        11m
occne-infra    occne-alertmanager-snmp-notifier                              ClusterIP      10.233.41.30    <none>          9464/TC                             11m

Run the following command and verify that the alertmanager and snmp-notifier pods are running:

$ kubectl get pods --all-namespaces | grep -E 'snmp-notifier|alertmanager'

Sample output:

occne-infra     alertmanager-occne-kube-prom-stack-kube-alertmanager-0           2/2     Running   0          18m
occne-infra     alertmanager-occne-kube-prom-stack-kube-alertmanager-1           2/2     Running   0          18m
occne-infra     occne-alertmanager-snmp-notifier-744b755f96-m8vbx                             1/1     Running   0          18m

Perform the following steps to edit the default snmp-destination and add a new snmp-destination:
1. Run the following command from Bastion Host to get the current snmp-notifier resources:
```
$ kubectl get all -n occne-infra | grep snmp
```
  Sample output:
```
pod/occne-alertmanager-snmp-notifier-75656cf4b7-gw55w 1/1 Running 0 37m
service/occne-alertmanager-snmp-notifier ClusterIP 10.233.29.86 <none> 9464/TCP 10h
deployment.apps/occne-alertmanager-snmp-notifier 1/1 1 1 10h
replicaset.apps/occne-alertmanager-snmp-notifier-75656cf4b7 1 1 1 37m
```
2. The snmp-destination is the interface IP address of the trap receiver to get the traps. Edit the deployment to modify snmp-destination and add a new snmp-destination when needed:
  1. Run the following command to edit the deployment:
```
$ kubectl edit -n occne-infra deployment occne-alertmanager-snmp-notifier
```
  2. From the vi editor, move down to the snmp-destination section. The default configuration is as follows:
```
- --snmp.destination=127.0.0.1:162
```
  3. Add a new destination to receive the traps.
    For example:
```
 - --snmp.destination=192.168.200.236:162
```
  4. If want to add multiple trap receivers, add them in multiple new lines.
    For example:
```
 - --snmp.destination=192.168.200.236:162
 - --snmp.destination=10.75.135.11:162
 - --snmp.destination=10.33.64.50:162
```
  5. After editing, use the :x or :wq command to save the exit.
    Sample output:
```
deployment.apps/occne-alertmanager-snmp-notifier edited
```
3. Perform the following steps to verify the new replicaset and delete the old replicaset:
  1. Run the following command to get the resource and check the restart time to verify that the pod and replicaset are regenerated:
```
$  kubectl get all -n occne-infra | grep snmp
```
    Sample output:
```
pod/occne-alertmanager-snmp-notifier-88976f7cc-xs8mv            1/1     Running   0             90s
service/occne-alertmanager-snmp-notifier                 ClusterIP      10.233.29.86    <none>          9464/TCP                                          10h
deployment.apps/occne-alertmanager-snmp-notifier           1/1     1            1           10h
replicaset.apps/occne-alertmanager-snmp-notifier-75656cf4b7           0         0         0       65m
replicaset.apps/occne-alertmanager-snmp-notifier-88976f7cc            1         1         1       90s
```
  2. Identify the old replicaset from the previous step and delete it.
    For example, the restart time of the replicaset.apps/occne-alertmanager-snmp-notifier-75656cf4b7 in the previous step output is 65m. This indicates that it is the old replica set. Use the following command to delete the old replicaset:
```
$ kubectl delete -n occne-infra replicaset.apps/occne-alertmanager-snmp-notifier-75656cf4b7
```
4. Port 162 of the server must be open and have some application to catch the traps to test if the new trap receiver receives the SNMP traps. This step may vary depending on the type of server. The following codeblock provides an example for Linux server:
```
$ sudo iptables -A INPUT -p udp -m udp --dport 162 -j ACCEPT
$ sudo dnf install -y tcpdump
$ sudo tcpdump -n -i <interface of the ip address set in snmp-destination> port 162
```

7.2.2 Changing Network MTU

This section describes the procedure to modify the Maximum Transmission Unit (MTU) of the Kubernetes internal network after the initial CNE installation.

Prerequisites:

Ensure that the cluster runs in a healthy state.
The commands in this procedure must be primarily run from the active CNE Bastion Host unless specified otherwise.

Changing MTU on Internal Interface for vCNE (OpenStack or VMware)

From the active Bastion, run the following command to instantiate a container that is used as a workspace and contains the necessary tools:
```
$ podman run -it --rm --rmi --network host --name DEPLOY_${OCCNE_CLUSTER} -v /var/occne/cluster/${OCCNE_CLUSTER}:/host -e 'OCCNEINV=/host/hosts -i /host/occne.ini' ${CENTRAL_REPO}:5000/occne/provision:${OCCNE_VERSION} bash
```
Note:
The prompt changes from Bastion's prompt to Provision Container's prompt. For example, bash-5.1.
Run the following command to print the default primary interface name and make a note of it to be used in the following step:
Note:
- The default interface name may vary depending on the platform.
- Ansible sets a primary interface as the default. This can be used to determine the default connection name for the internal network.
- The interface name must be consistent across all nodes in a cluster. This is the expected and default setting and you cannot proceed with the procedure if the interface names are different.
```
$ ansible -i $OCCNEINV k8s-cluster -m ansible.builtin.setup -a 'gather_subset=!all,network filter=ansible_default_ipv4' | grep -e interface -e SUCCESS
```
Sample output:
```
occne-k8s-ctrl-1 | SUCCESS => {
            "interface": "eth0",
occne-k8s-ctrl-3 | SUCCESS => {
            "interface": "eth0",
occne-k8s-node-4 | SUCCESS => {
            "interface": "eth0",
occne-k8s-node-3 | SUCCESS => {
            "interface": "eth0",
occne-k8s-node-2 | SUCCESS => {
            "interface": "eth0",
occne-k8s-node-1 | SUCCESS => {
            "interface": "eth0",
occne-k8s-ctrl-2 | SUCCESS => {
            "interface": "eth0",
```
In this example, the default interface name is "eth0" and all the nodes have the same default interface name as expected.
Set up an environment variable using the default interface name obtained in the previous step:
```
$ export DEFAULT_NIC_NAME="<value collected from the above step>"
```
For example:
```
$ export DEFAULT_NIC_NAME="eth0"
```
You can verify the environment variable by running the following command:
```
$ echo $DEFAULT_NIC_NAME
```

Perform the following steps to modify the MTU value using ansible:

Run the following command to set the new MTU value as desired:
```
$ export NEW_MTU=<MTU value>
```

Run the following ansible command to modify each interface using the environment variable:

$ ansible -i $OCCNEINV k8s-cluster -m shell -a 'sudo nmcli con mod "$(nmcli -f GENERAL.CONNECTION -m tabular -t dev show '$DEFAULT_NIC_NAME')" 802-3-ethernet.mtu '$NEW_MTU'; sudo nmcli con up  "$(nmcli -f GENERAL.CONNECTION -m tabular -t dev show '$DEFAULT_NIC_NAME')"'

Sample output:

occne-k8s-node-3 | CHANGED | rc=0 >>
Connection successfully activated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/6)
occne-k8s-node-4 | CHANGED | rc=0 >>
Connection successfully activated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/6)
occne-k8s-node-2 | CHANGED | rc=0 >>
Connection successfully activated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/6)
occne-k8s-node-1 | CHANGED | rc=0 >>
Connection successfully activated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/6)
occne-k8s-ctrl-3 | CHANGED | rc=0 >>
Connection successfully activated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/6)
occne-k8s-ctrl-2 | CHANGED | rc=0 >>
Connection successfully activated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/6)
occne-k8s-ctrl-1 | CHANGED | rc=0 >>
Connection successfully activated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/6)

Run the following ansible commands to print the newly set MTU value across the cluster:

Run the following command to show the connection MTU:

$ ansible -i $OCCNEINV k8s-cluster -m shell -a 'nmcli -f GENERAL.NAME,802-3-ethernet.mtu con show "$(nmcli -f GENERAL.CONNECTION -m tabular -t dev show '$DEFAULT_NIC_NAME')"'

Sample output:

occne-k8s-node-3 | CHANGED | rc=0 >>
802-3-ethernet.mtu:                     8980
GENERAL.NAME:                           System eth0
occne-k8s-node-2 | CHANGED | rc=0 >>
802-3-ethernet.mtu:                     8980
GENERAL.NAME:                           System eth0
occne-k8s-node-4 | CHANGED | rc=0 >>
802-3-ethernet.mtu:                     8980
GENERAL.NAME:                           System eth0
occne-k8s-node-1 | CHANGED | rc=0 >>
802-3-ethernet.mtu:                     8980
GENERAL.NAME:                           System eth0
occne-k8s-ctrl-1 | CHANGED | rc=0 >>
802-3-ethernet.mtu:                     8980
GENERAL.NAME:                           System eth0
occne-k8s-ctrl-3 | CHANGED | rc=0 >>
802-3-ethernet.mtu:                     8980
GENERAL.NAME:                           System eth0
occne-k8s-ctrl-2 | CHANGED | rc=0 >>
802-3-ethernet.mtu:                     8980
GENERAL.NAME:                           System eth0

Run the following command to show the MTU using IP command:

$ ansible -i $OCCNEINV k8s-cluster -m shell -a "ip link show $DEFAULT_NIC_NAME"

Sample output:

occne-k8s-node-3 | CHANGED | rc=0 >>
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 8980 qdisc fq_codel state UP mode DEFAULT group default qlen 1000
    link/ether fa:16:3f:eb:1b:f5 brd ff:ff:ff:ff:ff:ff
    altname enp0s3
    altname ens3
occne-k8s-node-4 | CHANGED | rc=0 >>
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 8980 qdisc fq_codel state UP mode DEFAULT group default qlen 1000
    link/ether fa:16:3f:fd:b4:c6 brd ff:ff:ff:ff:ff:ff
    altname enp0s3
    altname ens3
occne-k8s-node-2 | CHANGED | rc=0 >>
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 8980 qdisc fq_codel state UP mode DEFAULT group default qlen 1000
    link/ether fa:16:3f:82:0b:d7 brd ff:ff:ff:ff:ff:ff
    altname enp0s3
    altname ens3
occne-k8s-ctrl-1 | CHANGED | rc=0 >>
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 8980 qdisc fq_codel state UP mode DEFAULT group default qlen 1000
    link/ether fa:16:3f:b5:41:e6 brd ff:ff:ff:ff:ff:ff
    altname enp0s3
    altname ens3
occne-k8s-node-1 | CHANGED | rc=0 >>
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 8980 qdisc fq_codel state UP mode DEFAULT group default qlen 1000
    link/ether fa:16:3f:01:5f:c6 brd ff:ff:ff:ff:ff:ff
    altname enp0s3
    altname ens3
occne-k8s-ctrl-3 | CHANGED | rc=0 >>
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 8980 qdisc fq_codel state UP mode DEFAULT group default qlen 1000
    link/ether fa:16:3f:48:1d:ac brd ff:ff:ff:ff:ff:ff
    altname enp0s3
    altname ens3
occne-k8s-ctrl-2 | CHANGED | rc=0 >>
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 8980 qdisc fq_codel state UP mode DEFAULT group default qlen 1000
    link/ether fa:16:3f:d4:bb:23 brd ff:ff:ff:ff:ff:ff
    altname enp0s3
    altname ens3

Changing MTU on All Interfaces of BareMetal VM Host and VM Guest

Note:

The MTU value on the VM host depends on the ToR switch configuration:
- cisco Nexus9000 93180YC-EX has "system jumbomtu" up to 9216.
- If you're using port-channel/vlan-interface/uplnk-interface-to-customer-switch, then run the "system jumbomtu <mtu>" command and configure "mtu <value>" up to the value obtained from the command.
- If you're using other types of ToR switches, you can configure the MTU value of VM host up to the maximum MTU value of the switch. Therefore, check the switches for the maximum MTU value and configure the MTU value accordingly.
The following steps are for a standard setup with bastion-1 or master-1 on host-1, bastion-2 or master-2 on host-2, and master-3 on host-3. If you have a different setup, then modify the commands accordingly. Each step in this procedure is performed to change MTU for the VM host and the Bastion on the VM host.

SSH to k8s-host-2 from bastion-1:
```
$ ssh k8s-host-2
```
Run the following command to show all the connections:
```
$ nmcli con show
```
Run the following commands to modify the MTU value on all the connections:

Note:
Modify the connection names in the following commands according to the connection names obtained from step 2.
```
$ sudo nmcli con mod bond0 802-3-ethernet.mtu <MTU value>
$ sudo nmcli con mod bondbr0 802-3-ethernet.mtu <MTU value>
$ sudo nmcli con mod "vlan<mgmt vlan id>-br" 802-3-ethernet.mtu <MTU value>
```
Run the following commands if there is vlan<ilo_vlan_id>-br on this host:
```
$ sudo nmcli con mod "vlan<ilo vlan id>-br" 802-3-ethernet.mtu <MTU value>
$ sudo nmcli con up "vlan<ilo vlan id>-br"
```
Note:
- The following sudo nmcli con up commands takes effect on the MTU values modified in the previous step. Ensure that you perform the following steps in the given in the given order. Not following the correct order can make the host-2 and bastion-2 unreachable.
- The base interface has higher MTU during the sequence. For the bond0 interface, bond0 MTU is greater than or equal to the bondbr0 MTU and vlan bridge interface. The bond0.<vlan id> interface MTU is modified when vlan<vlan id>-br interface is modified and restarted.
Run the following commands if the <MTU value> is lower than the old value:
```
$ sudo nmcli con up "vlan<mgmt vlan id>-br"
$ sudo nmcli con up bond0br0
$ sudo nmcli con up bond0
```

Run the following commands if the <MTU value> is higher than the old value:

$ sudo nmcli con up bond0
$ sudo nmcli con up bond0br0$
$ sudo nmcli con up "vlan<mgmt vlan id>-br"

After the values are updated on VM host, run the following commands to shut down all the VM guests:
```
$ sudo virsh list --all
$ sudo virsh shutdown <VM guest>
```
where, <VM guest> is the VM guest name obtained from the $ sudo virsh list --all command.
Run the virsh list command until the status of the VM guest is changed to "shut off":
```
$ sudo virsh list --all
```
Run the following command to start the VM guest:
```
$ sudo virsh  start <VM guest>
```
where, <VM guest> is the name of the VM guest.
Exit from host-2 and return to bastion-1. Wait until bastion-2 is reachable and run the following command to SSH to bastion-2:
```
$ ssh bastion-2
```
Run the following command to list all connections in bastion-2:
```
$ nmcli con show
```

Run the following commands to modify the MTU value on all the connections in bastion-2:

Note:

Modify the connection names in the following commands according to the connection names obtained in step 2.

$ sudo nmcli con mod "System enp1s0" 802-3-ethernet.mtu <MTU value>
$ sudo nmcli con mod "System enp2s0" 802-3-ethernet.mtu <MTU value>
$ sudo nmcli con mod "System enp3s0" 802-3-ethernet.mtu <MTU value>
$ sudo nmcli con up "System enp1s0"
$ sudo nmcli con up "System enp2s0"
$ sudo nmcli con up "System enp3s0"

Wait until bastion-2 is reachable and run the following command to SSH to bastion-2:
```
$ ssh bastion-2
```
Repeat steps 9 and 10 to change the MTU value on k8s-host-1 and bastion-1.
Repeat steps 1 to 10 to change the MTU values on k8s-host-3 and restart all VM guests on it. You can use bastion-1 or bastion-2 for performing this step.

Note:
For the VM guests that are controller nodes, perform only the virsh shutdown and virsh start commands to restart the VM guests. The MTU values of these controller nodes are updated in the following section.

Changing MTU on enp1s0 or bond0 Interface for BareMetal Controller or Worker Nodes

Run the following command to launch the provision container:
```
$ podman run -it --rm --network host -v /var/occne/cluster/${OCCNE_CLUSTER}:/host winterfell:5000/occne/provision:<release> /bin/bash
```
Where, <release> is the currently installed release.

This creates a Bash shell session running within the provision container.
Run the following commands to change enp1s0 interfaces for controller nodes and validate MTU value of the interface:
1. Change enp1s0 interfaces for controller nodes:
  Replace <MTU value> in the command with a real integer value.
```
$ ansible -i /host/hosts.ini kube-master -m shell -a 'sudo  nmcli con mod "System enp1s0" 802-3-ethernet.mtu <MTU value>;  sudo  nmcli con up "System enp1s0"'
```
2. Validate the MTU value of the interface:
```
$ ansible -i /host/hosts.ini kube-master -m shell -a 'ip link show enp1s0'
```
Run the following commands to change bond0 interfaces for worker nodes and validate the MTU value of the interface:
1. Change bond0 interfaces for controller nodes:
  Replace <MTU value> in the command with a real integer value.
```
$ ansible -i /host/hosts.ini kube-node -m shell -a 'sudo  nmcli con mod bond0 802-3-ethernet.mtu <MTU value>;  sudo  nmcli con up bond0'
```
2. Validate the MTU value of the interface:
```
$ ansible -i /host/hosts.ini kube-node -m shell -a 'ip link show bond0'
$ exit
```

Changing MTU on vxlan Interface (vxlan.calico) for BareMetal and vCNE

Log in to the Bastion host and run the following command:
```
$ kubectl edit daemonset calico-node -n kube-system
```
Locate the line with FELIX_VXLANMTU and replace the current <MTU value> with the new integer value:

Note:
vxlan.calico has an extra header in the packet. The modified MTU value must be at least 50 lower than the MTU set in previous steps to work.
```
- name: FELIX_VXLANMTU
         value: "<MTU value>"
```
Use :x to save and exit the vi editor and run the following command to perform a rollout restart:
```
$ kubectl rollout restart daemonset calico-node -n kube-system
```

Run the following command to provision container:

$ podman run -it --rm --network host -v /var/occne/cluster/${OCCNE_CLUSTER}:/host winterfell:5000/occne/provision:${OCCNE_VERSION} /bin/bash

Validate the MTU value of the interface on the controller nodes and worker nodes:
- For BareMetal, run the following command to validate the MTU value:
```
$ ansible -i /host/hosts.ini k8s-cluster -m shell -a 'ip link show vxlan.calico'
```
- For vCNE (OpenStack or VMware), run the following command to validate the MTU value:
```
$ ansible -i /host/hosts k8s-cluster -m shell -a 'ip link show vxlan.calico'
```
  Note:
  It takes some time for all the nodes to change to the new MTU. If the MTU value isn't updated, run the command several times to see the changes in the values.

Changing MTU on Calico Interfaces (cali*) for vCNE or BareMetal

Run the following command from the Bastion Host to edit configmap calico-config:
```
$ kubectl edit configmap calico-config -n kube-system "mtu": 1500,    →   "mtu": <MTU value>,
```

Run the following command to restart daemonset:

$ kubectl rollout restart daemonset calico-node -n kube-system

The change in Calico interface MTU takes effect when a new pod on the node is started. The following codeblock provides an example to restart occne-kube-prom-stack-grafana deployment. Verify that the deployment is READY 1/1 before you delete and reapply:
```
$ kubectl rollout restart deployment occne-kube-prom-stack-grafana -n occne-infra
```

Run the following commands to verify the MTU change on worker nodes:

Verify which node has the new pod:

$ kubectl get pod -A -o wide | grep occne-kube-prom-stack-grafana

Sample output:

 occne-infra     occne-kube-prom-stack-grafana-79f9b5b488-cl76b                    3/3     Running     0                60s   10.233.120.22   k8s-node-2     <none>           <none>

Use SSH to log in to the node and check the calico interface change. Only the last interface MTU changes due to new pod for the services. Other Calico interface MTU changes when other services are changed.

$ ssh k8s-node-2

$ ip link

Sample output:

...
35: calia44682149a1@if4: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1480 qdisc noqueue state UP mode DEFAULT group default
link/ether ee:ee:ee:ee:ee:ee brd ff:ff:ff:ff:ff:ff link-netns cni-7f1a8116-5acf-b7df-5d6a-eb4f56330cf1
115: calif0adcd64a1c@if4: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu <MTU value> qdisc noqueue state UP mode DEFAULT group default
link/ether ee:ee:ee:ee:ee:ee brd ff:ff:ff:ff:ff:ff link-netns cni-7b99dc36-3b3b-75c6-e27c-9045eeb8242d

Reboot all worker nodes if possible. In this case, all pods get restarted and all cali* interfaces have the new MTU:
```
$ ssh <worker node>$ sudo reboot
```

7.2.3 Changing Metrics Storage Allocation

The following procedure describes how to increase the amount of persistent storage allocated to Prometheus for metrics storage.

Prerequisites

The revised amount of persistent storage required by metrics must be calculated. Rerun the metrics storage calculations as provided in the "Preinstallation Tasks" section of Oracle Communications Cloud Native Core, Cloud Native Environment Installation, Upgrade, and Fault Recovery Guide, and record the calculated total_metrics_storage value.

Note:

When you increase the storage size for Prometheus, the retention size must also be increased to maintain the purging cycle of Prometheus. The default retention is set to 6.8 GB. If the storage is increased to a higher value and retention remains at 6.8 GB, the amount of data that is stored inside the storage is still 6.8 GB. Therefore, follow the Changing Retention Size of Prometheus procedure to calculate the retention size and update the retention size in Prometheus. These steps are applied while performing Step 3.

Procedure

A Prometheus resource is used to configure all Prometheus instances running in CNE. Run the following command to identify the Prometheus resource:

$ kubectl get prometheus -n occne-infra

Sample output:

 NAME                                    VERSION   DESIRED   READY   RECONCILED   AVAILABLE   AGE
occne-kube-prom-stack-kube-prometheus   v2.44.0   2         2       True         True        20h

Run the following command to edit the Prometheus resource:

$ kubectl edit prometheus occne-kube-prom-stack-kube-prometheus -n occne-infra

Note:

You are placed in a vi editor session that contains all of the configuration for the CNE Prometheus instances.

Scroll down to the line that contains the "storage" key(line-91), then change the value to <desired pv size>. Also scroll down to the line that contains the "replicas" key(line-54), then change the value to 0. This scales down both the pods. The file must look similar to the following example.

Sample output:

53       release: occne-kube-prom-stack
    54   replicas: 2
    55   resources:
    56     limits:
    57       cpu: 2000m
    58       memory: 4Gi
    59     requests:
    60       cpu: 2000m
    61       memory: 4Gi
    62   retention: 14d
    63   retentionSize: 6.8GB
    64   routePrefix: /occne4-utpalkant-kumar/prometheus
    65   ruleNamespaceSelector: {}
    66   ruleSelector:
    67     matchLabels:
    68       role: cnc-alerting-rules
    69   scrapeInterval: 1m
    70   scrapeTimeout: 30s
    71   secrets:
    72   - etcd-occne4-utpalkant-kumar-k8s-ctrl-1
    73   - etcd-occne4-utpalkant-kumar-k8s-ctrl-2
    74   - etcd-occne4-utpalkant-kumar-k8s-ctrl-3
    75   securityContext:
    76     fsGroup: 2000
    77     runAsGroup: 2000
    78     runAsNonRoot: true
    79     runAsUser: 1000
    80   serviceAccountName: occne-kube-prom-stack-kube-prometheus
    81   serviceMonitorNamespaceSelector: {}
    82   serviceMonitorSelector: {}
    83   shards: 1
    84   storage:
    85     volumeClaimTemplate:
    86       spec:
    87         accessModes:
    88         - ReadWriteOnce
    89         resources:
    90           requests:
    91             storage: 10Gi
    92         storageClassName: occne-metrics-sc

Note:

Type ":wq" to exit the editor session and save the changes. Verify that Prometheus instances are scaled down.

To change the pvc size of Prometheus pods, run the following command:
```
$ kubectl edit pvc prometheus-occne-kube-prom-stack-kube-prometheus-db-prometheus-occne-kube-prom-stack-kube-prometheus-0 -n occne-infra
```
Note:
You will be placed in a vi editor session that contains all of the configuration for the CNE Prometheus pvc. Scroll down to the line that contains the "spec.resources.requests.storage" key, then update the value to the <desired pv size>. The file must look similar to the following example:
```
 spec:
   accessModes:
   - ReadWriteOnce
   resources:
     requests:
       storage: 10Gi
   storageClassName: occne-metrics-sc
   volumeMode: Filesystem
```
Type ":wq" to exit the editor session and save the changes.
To verify if the pvc size change is applied, run the following command:
```
$ kubectl get pv |grep kube-prom-stack-kube-prometheus-0
```
Sample output:
```
pvc-3c595b70-4265-42e8-a0ca-623b28ce4221  10Gi  RWO  Delete  Bound  occne-infra/prometheus-occne-kube-prom-stack-kube-prometheus-db-prometheus-occne-kube-prom-stack-kube-prometheus-0   occne-metrics-sc
```
Note:
Wait until the new desired size "10Gi" gets reflected. Repeat step 3 and step 4 for "kube-prom-stack-kube-prometheus-1" pvc.
Once both the pv sizes are updated to the new desired size, run the following command to scale up the Prometheus pods:
```
$ kubectl edit prometheus occne-kube-prom-stack-kube-prometheus -n occne-infra
```
Note:
You will be placed in a vi editor session that contains all of the configuration for the CNE Prometheus instances. Scroll down to the line that contains the "replicas" key, then change the value back to 2. This scale backs up both the pods. The file must look similar to the following example:
```
53       release: occne-kube-prom-stack
54   replicas: 2
55   resources:
56     limits:
57       cpu: 2000m
58       memory: 4Gi
59     requests:
60       cpu: 2000m
61       memory: 4Gi
62   retention: 14d
```

To verify that the Prometheus pods are up and running, run the following command:

$ kubectl get pods -n occne-infra | grep kube-prom-stack-kube-prometheus

Example output:

prometheus-occne-kube-prom-stack-kube-prometheus-0 2/2 Running 1 40s
prometheus-occne-kube-prom-stack-kube-prometheus-1 2/2 Running 1 29s

7.2.4 Changing OpenSearch Storage Allocation

This section describes the procedure to increase the amount of persistent storage allocated to OpenSearch for data storage.

Prerequisites

Calculate the revised amount of persistent storage required by OpenSearch. Rerun the OpenSearch storage calculations as provided in the "Preinstallation Taks" section of Oracle Communications Cloud Native Core, Cloud Native Environment Installation, Upgrade, and Fault Recovery Guide, and record the calculated log_trace_active_storage and log_trace_inactive_storage values.

Procedure

This procedure uses the value of log_trace_active_storage for opensearch-data PV size and log_trace_inactive_storage for opensearch-master PV size. The following table displays the sample PV sizes considered in this procedure:

OpenSearch Component	Current PV Size	Desired PV Size
occne-opensearch-master	500Mi	500Mi
occne-opensearch-data	10Gi	200Gi (log_trace_active_storage)
opensearch-data-replicas-count	5	7

Expanding PV size for opensearch-master nodes

Store the output of the current configuration values for the os-master-helm-values.yaml file.
```
$ helm -n occne-infra get values occne-opensearch-master > os-master-helm-values.yaml
```
Update the PVC size block in the os-master-helm-values.yaml file. The PVC size must be updated to the newly required PVC size (in this case, 50Gi as per the sample value considered). The os-master-helm-values.yaml file is required in Step 8 to recreate occne-opensearch-master Statefulset.
```
$ vi os-master-helm-values.yaml
persistence:
  enabled: true
  image: occne-repo-host:5000/docker.io/busybox
  imageTag: 1.31.0
  size: <desired size>Gi
  storageClass: occne-esmaster-sc
```
Delete the statefulset of occne-opensearch-cluster-master by running the following command:
```
$ kubectl -n occne-infra delete sts --cascade=orphan occne-opensearch-cluster-master
```
Delete the occne-opensearch-cluster-master-2 pod by running the following command:
```
$ kubectl -n occne-infra delete pod occne-opensearch-cluster-master-2
```

Update the PVC storage size in the PVC of occne-opensearch-cluster-master-2 by running the following command:

$ kubectl -n occne-infra patch -p '{ "spec": { "resources": { "requests": { "storage": "40Gi" }}}}' pvc occne-opensearch-cluster-master-occne-opensearch-cluster-master-2

Get the PV volume ID from the PVC of opensearch-master-2:
```
$ kubectl get pvc -n occne-infra | grep master-2
```
Sample output:
```
occne-opensearch-cluster-master-occne-opensearch-cluster-master-2   Bound    pvc-9d9897c1-b7b9-43a3-bf78-f03b91ea4d72   30Gi       RWO            occne-esmaster-sc   17h
```
In this case, the PV volume ID in the sample output is pvc-9d9897c1-b7b9-43a3-bf78-f03b91ea4d72.

Hold on to the PV attached to occne-opensearch-cluster-master-2 PVC using the volume ID until the newly updated size gets reflected. Verify the updated PVC value by running the following command:

$ kubectl get pv -w | grep pvc-9d9897c1-b7b9-43a3-bf78-f03b91ea4d72

Sample output:

pvc-9d9897c1-b7b9-43a3-bf78-f03b91ea4d72   30Gi       RWO            Delete           Bound    occne-infra/occne-opensearch-cluster-master-occne-opensearch-cluster-master-2    occne-esmaster-sc            17h
pvc-9d9897c1-b7b9-43a3-bf78-f03b91ea4d72   40Gi       RWO            Delete           Bound    occne-infra/occne-opensearch-cluster-master-occne-opensearch-cluster-master-2    occne-esmaster-sc            17h

Run Helm upgrade to recreate the occne-opensearch-master statefulset:

$ helm upgrade -f os-master-helm-values.yaml occne-opensearch-master opensearch-project/opensearch -n occne-infra

Once the deleted pod (master-2) and its statefulset are up and running, check the pod's PVC status and verify if it reflects the updated size.

$ kubectl get pvc -n occne-infra | grep master-2

Sample output:

occne-opensearch-cluster-master-occne-opensearch-cluster-master-2    Bound    pvc-9d9897c1-b7b9-43a3-bf78-f03b91ea4d72  40Gi       RWO            occne-esmaster-sc   17h
e.g id: pvc-9d9897c1-b7b9-43a3-bf78-f03b91ea4d72

Repeat steps 3 through 9 for each of the remaining pods, one after the other (in order master-1, master-0).

Expanding PV size for opensearch-data nodes

Store the output of the current configuration values for os-master-helm-values.yaml file.
```
$ helm -n occne-infra get values occne-opensearch-data > os-data-helm-values.yaml
```
Update the PVC size block in the os-master-helm-values.yaml file. The PVC size must be updated to the newly required PVC size (in this case, 200Gi as per the sample value considered). The os-master-helm-values.yaml file is required in Step 8 of this procedure to recreate the occne-opensearch-data statefulset.
```
$ vi os-data-helm-values.yaml
```
Sample output:
```
persistence:
  enabled: true
  image: occne-repo-host:5000/docker.io/busybox
  imageTag: 1.31.0
  size: <desired size>Gi
  storageClass: occne-esdata-sc
```
Delete the statefulset of occne-opensearch-opensearch-data by the running the following command:
```
$ kubectl -n occne-infra delete sts --cascade=orphan occne-opensearch-cluster-data
```

Delete the occne-opensearch-cluster-data-2.

$ kubectl -n occne-infra delete pod occne-opensearch-cluster-data-2

Update the PVC storage size in the PVC of occne-opensearch-cluster-data-2.

$ kubectl -n occne-infra patch -p '{ "spec": { "resources": { "requests": { "storage": "20Gi" }}}}' pvc occne-opensearch-cluster-data-occne-opensearch-cluster-data-2

Get the PV volume ID from the PVC of opensearch-data-2.

$ kubectl get pvc -n occne-infra | grep data-2

Sample output:

occne-opensearch-cluster-data-occne-opensearch-cluster-data-2   Bound    pvc-80a56d73-d7b7-417f-a7a7-c8484bc8171d   10Gi       RWO            occne-esdata-sc   17h

Hold on to the PV attached to opensearch-data-2 PVC using the volume ID until the newly updated size gets reflected. Verify the updated PVC value by running the following command:

$ kubectl get pv -w | grep pvc-80a56d73-d7b7-417f-a7a7-c8484bc8171d

Sample output:

pvc-80a56d73-d7b7-417f-a7a7-c8484bc8171d   10Gi       RWO            Delete           Bound    occne-infra/occne-opensearch-cluster-data-occne-opensearch-cluster-data-2    occne-esdata-sc            17h
pvc-80a56d73-d7b7-417f-a7a7-c8484bc8171d   20Gi       RWO            Delete           Bound    occne-infra/occne-opensearch-cluster-data-occne-opensearch-cluster-data-2    occne-esdata-sc            17h

Run helm upgrade to recreate the occne-opensearch-data statefulset

$ helm upgrade -f os-data-helm-values.yaml occne-opensearch-data opensearch-project/opensearch -n occne-infra

Once the deleted pod (data-2) and its statefulset are up and running, check the pod's PVC status and verify if it reflects the updated size.
```
$ kubectl get pvc -n occne-infra | grep data-2
```
Sample output:
```
occne-opensearch-cluster-data-occne-opensearch-cluster-data-2   Bound    pvc-80a56d73-d7b7-417f-a7a7-c8484bc8171d  20Gi       RWO            occne-esdata-sc   17h
```
Repeat steps 3 through 9 for each of the remaining pods, one after the other (in the order, data-1, data-0,..).

7.2.5 Changing the RAM and CPU Resources for Common Services

This section describes the procedure to change the RAM and CPU resources for CNE common services.

Prerequisites

Before changing the RAM, CPU, or both the resources for CNE common services, make sure that the following prerequisites are met:

The cluster must be in a healthy state. This can verified by checking if all the common services are up and running.
Note:
- When changing the CPU and RAM resources for any component, the limit value must always be greater than or equal to the requested value.
- Run all the commands in this section from the Bastion Host.

7.2.5.1 Changing the Resources for Prometheus

This section describes the procedure to change the RAM or CPU resources for Prometheus.

Procedure

Run the following command to edit the Prometheus resource:
```
kubectl edit prometheus occne-kube-prom-stack-kube-prometheus -n occne-infra
```
The system opens a vi editor session that contains all the configuration for the CNE Prometheus instances.
Scroll to the resources section and change the CPU and Memory resources to the desired values. This updates the resources for both the prometheus pods.
For example:
```
resources:
    limits:
      cpu: 2000m
      memory: 4Gi
    requests:
      cpu: 2000m
      memory: 4Gi
```
Type :wq to exit the editor session and save the changes.

Verify if both the Prometheus pods are restarted:

kubectl get pods -n occne-infra |grep kube-prom-stack-kube-prometheus

Sample output:

prometheus-occne-kube-prom-stack-kube-prometheus-0              2/2     Running     0              85s
prometheus-occne-kube-prom-stack-kube-prometheus-1              2/2     Running     0              104s

7.2.5.2 Changing the Resources for Alertmanager

This section describes the procedure to change the RAM or CPU resources for Alertmanager.

Procedure

Run the following command to edit the Alertmanager resource:
```
kubectl edit alertmanager occne-kube-prom-stack-kube-alertmanager -n occne-infra
```
The system opens a vi editor session that contains all the configuration for the CNE Alertmanager instances.
Scroll to the resources section and change the CPU and Memory resources to the desired values. This updates the resources for the Alertmanager pods.
For example:
```
resources:
    limits:
      cpu: 20m
      memory: 64Mi
    requests:
      cpu: 20m
      memory: 64Mi
```
Type :wq to exit the editor session and save the changes.

Verify if the Alertmanager pods are restarted:

kubectl get pods -n occne-infra |grep alertmanager

Sample output:

alertmanager-occne-kube-prom-stack-kube-alertmanager-0          2/2     Running     0              16s
alertmanager-occne-kube-prom-stack-kube-alertmanager-1          2/2     Running     0              35s

7.2.5.3 Changing the Resources for Grafana

This section describes the procedure to change the RAM or CPU resources for Grafana.

Procedure

Run the following command to edit the Grafana resource:
```
kubectl edit deploy occne-kube-prom-stack-grafana -n occne-infra
```
The system opens a vi editor session that contains all the configuration for the CNE Grafana instances.
Scroll to the resources section and change the CPU and Memory resources to the desired values. This updates the resources for the Grafana pod.
For example:
```
resources:
    limits:
      cpu: 100m
      memory: 128Mi
    requests:
      cpu: 100m
      memory: 128Mi
```
Type :wq to exit the editor session and save the changes.

Verify if the Grafana pod is restarted:

kubectl get pods -n occne-infra |grep grafana

Sample output:

occne-kube-prom-stack-grafana-84898d89b4-nzkr4                  3/3     Running     0              54s

7.2.5.4 Changing the Resources for Kube State Metrics

This section describes the procedure to change the RAM or CPU resources for kube-state-metrics.

Procedure

Run the following command to edit the kube-state-metrics resource:
```
kubectl edit deploy occne-kube-prom-stack-kube-state-metrics -n occne-infra
```
The system opens a vi editor session that contains all the configuration for the CNE kube-state-metrics instances.
Scroll to the resources section and change the CPU and Memory resources to the desired values. This updates the resources for the kube-state-metrics pod.
For example:
```
resources:
    limits:
      cpu: 20m
      memory: 100Mi
    requests:
      cpu: 20m
      memory: 32Mi
```
Type :wq to exit the editor session and save the changes.

Verify if the kube-state-metrics pod is restarted:

kubectl get pods -n occne-infra |grep kube-state-metrics

Sample output:

occne-kube-prom-stack-kube-state-metrics-cff54c76c-t5k7p        1/1     Running     0              20s

7.2.5.5 Changing the Resources for OpenSearch

This section describes the procedure to change the RAM or CPU resources for OpenSearch.

Procedure

Run the following command to edit the opensearch-master resource:
```
kubectl edit sts occne-opensearch-cluster-master -n occne-infra
```
The system opens a vi editor session that contains all the configuration for the CNE opensearch-master instances.
Scroll to the resources section and change the CPU and Memory resources to the desired values. This updates the resources for the opensearch-master pod.
For example:
```
resources:
    limits:
      cpu: "1"
      memory: 2Gi
    requests:
      cpu: "1"
      memory: 2Gi
```
Type :wq to exit the editor session and save the changes.

Verify if the opensearch-master pods are restarted:

kubectl get pods -n occne-infra |grep opensearch-cluster-master

Sample output:

occne-opensearch-cluster-master-0                           1/1     Running   0             3m34s
occne-opensearch-cluster-master-1                           1/1     Running   0             4m8s
occne-opensearch-cluster-master-2                           1/1     Running   0             4m19s

Note:

Repeat this procedure for opensearch-data and opensearch-client pods if required.

7.2.5.6 Changing the Resources for OpenSearch Dashboard

This section describes the procedure to change the RAM or CPU resources for OpenSearch Dashboard.

Procedure

Run the following command to edit the opensearch-dashboard resource:
```
kubectl edit deploy occne-opensearch-dashboards -n occne-infra
```
The system opens a vi editor session that contains all the configuration for the CNE opensearch-dashboard instances.
Scroll to the resources section and change the CPU and Memory resources to the desired values. This updates the resources for the opensearch-dashboard pod.
For example:
```
resources:
    limits:
      cpu: 100m
      memory: 512Mi
    requests:
      cpu: 100m
      memory: 512Mi
```
Type :wq to exit the editor session and save the changes.

Verify if the opensearch-dashboard pod is restarted:

kubectl get pods -n occne-infra |grep dashboard

Sample output:

occne-opensearch-dashboards-7b7749c5f7-jcs7d                1/1     Running   0              20s

7.2.5.7 Changing the Resources for Fluentd OpenSearch

This section describes the procedure to change the RAM or CPU resources for Fluentd OpenSearch.

Procedure

Run the following command to edit the occne-fluentd-opensearch resource:
```
kubectl edit ds occne-fluentd-opensearch -n occne-infra
```
The system opens a vi editor session that contains all the configuration for the CNE Fluentd OpenSearch instances.
Scroll to the resources section and change the CPU and memory resources to the desired values. This updates the resources for the Fluentd OpenSearch pods.
For example:
```
resources:
    limits:
      cpu: 100m
      memory: 128Mi
    requests:
      cpu: 100m
      memory: 128Mi
```
Type :wq to exit the editor session and save the changes.

Verify if the Fluentd OpenSearch pods are restarted:

kubectl get pods -n occne-infra |grep fluentd-opensearch

Sample output:

occne-fluentd-opensearch-kcx87                                      1/1     Running   0             19s
occne-fluentd-opensearch-m9zhz                                      1/1     Running   0             9s
occne-fluentd-opensearch-pbbrw                                      1/1     Running   0             14s
occne-fluentd-opensearch-rstqf                                      1/1     Running   0             4s

7.2.5.8 Changing the Resources for Jaeger Agent

This section describes the procedure to change the RAM or CPU resources for Jaeger Agent.

Procedure

Run the following command to edit the jaeger-agent resource:
```
kubectl edit ds occne-tracer-jaeger-agent -n occne-infra
```
The system opens a vi editor session that contains all the configuration for the CNE jaeger-agent instances.
Scroll to the resources section and change the CPU and Memory resources to the desired values. This updates the resources for the jaeger-agent pods.
For example:
```
resources:
    limits:
      cpu: 500m
      memory: 512Mi
    requests:
      cpu: 256m
      memory: 128Mi
```
Type :wq to exit the editor session and save the changes.

Verify if the jaeger-agent pods are restarted:

kubectl get pods -n occne-infra |grep jaeger-agent

Sample output:

occne-tracer-jaeger-agent-dpn4v                                 1/1     Running     0              58s
occne-tracer-jaeger-agent-dvpnv                                 1/1     Running     0              62s
occne-tracer-jaeger-agent-h4t67                                 1/1     Running     0              55s
occne-tracer-jaeger-agent-q92ld                                 1/1     Running     0              51s

7.2.5.9 Changing the Resources for Jaeger Query

This section describes the procedure to change the RAM or CPU resources for Jaeger Query.

Procedure

Run the following command to edit the jaeger-query resource:
```
kubectl edit deploy occne-tracer-jaeger-query -n occne-infra
```
The system opens a vi editor session that contains all the configuration for the CNE jaeger-query instances.
Scroll to the resources section and change the CPU and Memory resources to the desired values. This updates the resources for the jaeger-query pod.
For example:
```
resources:
    limits:
      cpu: 500m
      memory: 512Mi
    requests:
      cpu: 256m
      memory: 128Mi
```
Type :wq to exit the editor session and save the changes.
Verify if the jaeger-query pod is restarted:
```
kubectl get pods -n occne-infra |grep jaeger-query
```
Sample output:
```
occne-tracer-jaeger-query-67bdd85fcb-hw67q                      2/2     Running     0              19s
```
Note:
Repeat this procedure for the jaeger-collector pod if required.

7.2.6 Activating and Configuring Local DNS

This section provides information about activating and configuring local DNS.

7.2.6.1 Activating Local DNS

Local DNS allows CNE clusters to perform domain name lookups within Kubernetes clusters. This section provides the procedure to activate the local DNS feature on a CNE cluster.

Note:

Before activating Local DNS, ensure that you are aware about the following conditions:

Local DNS does not handle backups of any added record.
You must run this procedure to activate local DNS only after installing or upgrading to release 23.4.x.
Once you activate Local DNS, you cannot rollback or deactivate the feature.

7.2.6.1.1 Prerequisites

Before activating local DNS, ensure that the following prerequisites are met:

Ensure that the cluster is running in a healthy state.
Ensure that the CNE cluster is running with version 23.4.x. You can validate the CNE version by echoing the OCCNE_VERSION environment variable on Bastion Host:
```
echo $OCCNE_VERSION
```
Ensure that the cluster is running with the Bastion DNS configuration.

7.2.6.1.2 Prevalidation

This section provides information about the validation that are performed before activating local DNS.

Determining the Active Bastion Host

Log in to the Active Bastion Host (for example, Bastion 1). If the current Bastion is not active then log into the mate Bastion and verify the activity with the same check. Run the following command to determine the activity:
```
$ is_active_bastion
```
The system displays the following output if the Bastion Host is active :
```
IS active-bastion
```

Determine the current state of the bastion_http_server service API

By default, as a post-installation procedure, the bastion_http_server service is disabled and shut down.

To verify the bastion_http_server service, run the following command:

The following example shows the service as inactive and disabled (default after post-installation):

$ systemctl status bastion_http_server.service

Sample output:

○ bastion_http_server.service - Bastion http server
     Loaded: loaded (/etc/systemd/system/bastion_http_server.service; disabled; preset: disabled)
     Active: inactive (dead)

May 06 23:01:39 occne-test-bastion-1.novalocal systemd[1]: Stopping Bastion http server...
May 06 23:01:40 occne-test-bastion-1.novalocal gunicorn[82034]: [2025-05-06 23:01:39 +0000] [82034] [INFO] Handling signal: term
May 06 23:01:40 occne-test-bastion-1.novalocal gunicorn[82057]: [2025-05-06 23:01:39 +0000] [82057] [INFO] Worker exiting (pid: 82057)
May 06 23:01:40 occne-test-bastion-1.novalocal gunicorn[82056]: [2025-05-06 23:01:39 +0000] [82056] [INFO] Worker exiting (pid: 82056)
May 06 23:01:40 occne-test-bastion-1.novalocal gunicorn[82055]: [2025-05-06 23:01:39 +0000] [82055] [INFO] Worker exiting (pid: 82055)
May 06 23:01:41 occne-test-bastion-1.novalocal gunicorn[82034]: [2025-05-06 23:01:41 +0000] [82034] [INFO] Shutting down: Master
May 06 23:01:42 occne-test-bastion-1.novalocal systemd[1]: bastion_http_server.service: Deactivated successfully.
May 06 23:01:42 occne-test-bastion-1.novalocal systemd[1]: Stopped Bastion http server.
May 06 23:01:42 occne-test-bastion-1.novalocal systemd[1]: bastion_http_server.service: Consumed 3min 37.802s CPU time.

Verifying if Local DNS is Already Activated

Navigate to the cluster directory:
```
$ cd /var/occne/cluster/${OCCNE_CLUSTER}
```
Open the occne.ini file (for vCNE) or hosts.ini file (for Bare Metal) and verify if the local_dns_enabled variable under the occne:vars header is set to False.
Example for vCNE:
```
$ cat occne.ini
```
Sample output:
```
[occne:vars]
.
local_dns_enabled=False
.
```
Example for Bare Metal:
```
$ cat hosts.ini
```
Sample output:
```
[occne:vars]
.
local_dns_enabled=False
.
```
If local_dns_enabled is set to True, then it indicates that local DNS feature is already enabled in the CNE cluster.

Note:
Ensure that the first character of the variable value (True or False) is capitalized and there is no space before and after the equal to sign.

7.2.6.1.3 Enabling Local DNS

This section provides the procedure to enable Local DNS in a CNE cluster.

Log in to the active Bastion Host and run the following command to navigate to the cluster directory:
```
$ cd /var/occne/cluster/${OCCNE_CLUSTER}
```
Open the occne.ini file (for vCNE) or hosts.ini file (for Bare metal) in edit mode:
Example for vCNE:
```
$ vi occne.ini
```
Example for Bare Metal:
```
$ vi hosts.ini
```
Set the local_dns_enabled variable under the occne:vars header to True. If the local_dns_enabled variable is not present under the occne:vars header, then add the variable.

Note:
Ensure that the first character of the variable value (True or False) is capitalized and there is no space before and after the equal to sign.
For example,
```
[occne:vars]
.
local_dns_enabled=True
.
```
For vCNE (OpenStack or VMware) deployments, additionally add the provider_domain_name and provider_ip_address variables under the occne:vars section of the occne.ini file. You can obtain the provider domain name and IP address from the provider administrator and set the variable values accordingly.
The following block shows the sample occne.ini file with the additional variables:
```
[occne:vars]
.
local_dns_enabled=True
provider_domain_name=<cloud provider domain name>
provider_ip_address=<cloud provider IP address>
.
```

Run the following commands on the Bastion Host to start and enable the bastion_http_server service:

$ sudo systemctl enable bastion_http_server.service
$ sudo systemctl start bastion_http_server.service

Update the cluster with the new settings in the ini file:
```
$ OCCNE_CONTAINERS=(K8S) OCCNE_STAGES=(DEPLOY) OCCNE_ARGS='--tags=coredns' pipeline.sh
```

7.2.6.1.4 Validating Local DNS

This section provides the steps to validate if you have successfully enabled local DNS.

Local DNS provides the validateLocalDns.py script to validate if you have successfully enabled Local DNS. The validateLocalDns.py script is located in the /var/occne/cluster/${OCCNE_CLUSTER}/artifacts/maintenance/validateLocalDns.py folder. This automated script validates Local DNS by performing the following actions:

Creating a test record
Reloading local DNS
Querying the test record from within a pod
Getting the response (Success status)
Deleting the test record

To run the validateLocalDns.py script:

Log in to the active Bastion Host and navigate to the cluster directory:
```
$ cd /var/occne/cluster/${OCCNE_CLUSTER}
```

Run the validateLocalDns.py script:

$ ./artifacts/maintenance/validateLocalDns.py

Sample output:

Beginning local DNS validation
 - Validating local DNS configuration in occne.ini
 - Adding DNS A record.
 - Adding DNS SRV record.
 - Reloading local coredns.
 - Verifying local DNS A record.
   - DNS A entry has not been propagated, retrying in 10 seconds (retry 1/5)
 - Verifying local DNS SRV record.
 - Deleting DNS SRV record.
 - Deleting DNS A record.
 - Reloading local coredns.
Validation successful

Note:

If the script encounters an error, it returns an error message indicating which part of the process failed. For more information about troubleshooting local DNS errors, see Troubleshooting Local DNS.

Once you successfully enable Local DNS, add the external hostname records using the Local DNS API to resolve external domain names using CoreDNS. For more information, see Adding and Removing DNS Records.

7.2.6.2 Deactivating Local DNS

This section provides the procedure to deactivate Local DNS in a CNE cluster.

Log in to Bastion Host (for example, Bastion 1) and determine if that Bastion Host is active or not. If the current Bastion is not active, then log in to the mate Bastion and verify if the mate Bastion is active or not.
Run the following command to check if Bastion Host is active or not:
```
$ is_active_bastion
IS active-bastion
```
Deactivating local DNS:
1. On the active Bastion Host, change to the cluster directory from the existing directory.
```
$ cd /var/occne/cluster/${OCCNE_CLUSTER}
```
2. Edit the occne.ini (vCNE) or hosts.ini (Bare metal) file.
  Example for vCNE:
```
$ vi occne.ini
```
  Example for Bare Metal:
```
$ vi hosts.ini
```
3. Set the local_dns_enabled variable under the occne:vars header to False. If the local_dns_enabled variable is not present under the occne:vars header, then add the variable.

  Note:
  Ensure that the first character of the variable value (True or False) is capitalized and there is no space before and after the equal to sign.

  For example,
```
[occne:vars]
.
local_dns_enabled=False
.
```
4. Delete the CoreDNS configmap using the following command:

  Note:
  Running the following command will delete all the records added using the API as part of Local DNS.
```
$ kubectl delete cm coredns -n kube-system
```
5. Run the following commands on the bastion host to stop and disable the bastion_http_server service:
```
$ sudo systemctl stop bastion_http_server.service
$ sudo systemctl disable bastion_http_server.service
```
6. Update the cluster with the new settings in the ini file:
```
$ OCCNE_CONTAINERS=(K8S) OCCNE_STAGES=(DEPLOY) OCCNE_ARGS='--tags=coredns' pipeline.sh
```

7.2.6.3 Adding and Removing DNS Records

This section provides the procedures to add and remove DNS records ("A" records and SRV records) using Local DNS API to the core DNS configuration.

Each Bastion Host runs a version of the Local DNS API as a service on port 8000. The system doesn't require any authentication from inside a Bastion Host and runs the API requests locally.

7.2.6.3.1 Prerequisites

Before adding or removing DNS records, ensure that the following prerequisites are met:

The Local DNS feature must be enabled on the cluster. For more information about enabling Local DNS, see Activating Local DNS.
The CNE cluster version must be 23.2.x or above.

7.2.6.3.2 Adding an A Record

This section provides information on how to use the Local DNS API to create or add an A record in the CNE cluster.

The system creates zones to group records with similar domain names together. When an API call is made to the Local DNS API, the request payload (request body) is used to create the zones automatically. The system creates a new zone when it identifies a domain name for the first time. Henceforth, it stores each request coming with the same domain name within the same zone.

Note:

You cannot create and maintain identical A records.
You cannot create two A records with the same name.

The following table provides details on how to use the Local DNS API to add an "A" record:

Table 7-1 Adding an A Record

Request URL HTTP Method Content Type Request Body Response Code Sample Response

Request URL	HTTP Method	Content Type	Request Body	Response Code	Sample Response
`http://localhost:8000/occne/dns/a`	POST	application/json	`{ "name": "string", "ttl": "integer", "ip-address": "string" }` Note: Define each field in the request body within double quotes (" "). Sample request: `curl -X POST http://localhost:8000/occne/dns/a \ -H 'Content-Type: application/json' \ -d '{"name":"occne.lab.oracle.com","ttl":"3600","ip-address":"175.80.200.20"}'`	200: Record Added Successfully. 400: Already exists, request payload/parameters incomplete or not valid. 503: Could not be added, internal error.	200: `DNS A record added in coredns file for occne.lab.oracle.com 175.80.200.20 3600, msg SUCCESS: Zone info and A record updated for domain name`

http://localhost:8000/occne/dns/a

POST

application/json

{
  "name": "string",
  "ttl": "integer",
  "ip-address": "string"
}

Note: Define each field in the request body within double quotes (" ").

Sample request:

curl -X POST http://localhost:8000/occne/dns/a \
     -H 'Content-Type: application/json' \
     -d '{"name":"occne.lab.oracle.com","ttl":"3600","ip-address":"175.80.200.20"}'

200: Record Added Successfully.
400: Already exists, request payload/parameters incomplete or not valid.
503: Could not be added, internal error.

200:

DNS A record
                added in coredns file for occne.lab.oracle.com 175.80.200.20 3600, msg SUCCESS: Zone
                info and A record updated for domain name

The following table provides details about the request body parameters:

Table 7-2 Request Body Parameters

Parameter Required or Optional Type Description

name

Required

string

Parameter	Required or Optional	Type	Description
name	Required	string	Fully-Qualified Domain Name (FQDN) to be include in the core DNS. This parameter can contain multiple subdomains where each subdomain can range between 1 and 63 characters and contain the following characters: `[a-zA-Z0-9_-]`. This parameter cannot start or end with `-` or `_`. The last segment of this parameter is taken as the domain name to create zones. For example, `sample.oracle.com`
ip-address	Required	string	The IP address to locate a service. For example, `xxx.xxx.xxx.xxx`. The API supports IPv4 protocol only.
ttl	Required	integer	The Time To Live (TTL) in seconds. This is the amount of time the record is allowed to be cached by a resolver. The minimum and the maximum value that can be set are 300 and 3600 respectively.

Fully-Qualified Domain Name (FQDN) to be include in the core DNS.

This parameter can contain multiple subdomains where each subdomain can range between 1 and 63 characters and contain the following characters: [a-zA-Z0-9_-].

This parameter cannot start or end with - or _.

The last segment of this parameter is taken as the domain name to create zones.

For example, sample.oracle.com

ip-address

Required

string

The IP address to locate a service. For example, xxx.xxx.xxx.xxx.

The API supports IPv4 protocol only.

ttl

Required

integer

The Time To Live (TTL) in seconds. This is the amount of time the record is allowed to be cached by a resolver.

The minimum and the maximum value that can be set are 300 and 3600 respectively.

7.2.6.3.3 Deleting an A Record

This section provides information on how to use the Local DNS API to delete an A record in the CNE cluster.

Note:

When the last A record in a zone is deleted, the system deletes the zone as well.
You cannot delete an A record that is linked to an existing SRV record. You much first delete the linked SRV record to delete the A record.

The following table provides details on how to use the Local DNS API to delete an "A" record:

Table 7-3 Deleting an A Record

Request URL HTTP Method Content Type Request Body Response Code Sample Response

Request URL	HTTP Method	Content Type	Request Body	Response Code	Sample Response
`http://localhost:8000/occne/dns/a`	DELETE	application/json	`{ "name": "string", "ip-address": "string" }` Note: Define each field in the request body within double quotes (" "). Sample request: `curl -X DELETE http://localhost:8000/occne/dns/a \ -H 'Content-Type: application/json' \ -d '{"name":"occne.lab.oracle.com","ip-address":"175.80.200.20"}'`	200: Record Deleted Successfully. 400: Record does not exist, or request payload/parameters are incomplete or not valid. 503: Could not be deleted, internal error.	200: `DNS A record added in coredns file for occne.lab.oracle.com 175.80.200.20 3600, msg SUCCESS: Zone info and A record updated for domain name`

http://localhost:8000/occne/dns/a

DELETE

application/json

{
  "name": "string",
  "ip-address": "string"
}

Note: Define each field in the request body within double quotes (" ").

Sample request:

curl -X DELETE http://localhost:8000/occne/dns/a \
     -H 'Content-Type: application/json' \
     -d '{"name":"occne.lab.oracle.com","ip-address":"175.80.200.20"}'

200: Record Deleted Successfully.
400: Record does not exist, or request payload/parameters are incomplete or not valid.
503: Could not be deleted, internal error.

200:

DNS A record
                added in coredns file for occne.lab.oracle.com 175.80.200.20 3600, msg SUCCESS: Zone
                info and A record updated for domain name

The following table provides details about the request body parameters:

Table 7-4 Request Body Parameters

Parameter Required or Optional Type Description

name

Required

string

Parameter	Required or Optional	Type	Description
name	Required	string	Fully-Qualified Domain Name (FQDN). This parameter can contain multiple subdomains where each subdomain can range between 1 and 63 characters and contain the following characters: `[a-zA-Z0-9_-]`. This parameter cannot start or end with `-` or `_`. For example, `sample.oracle.com`
ip-address	Required	string	The IP address to locate a service. For example, `xxx.xxx.xxx.xxx`.

Fully-Qualified Domain Name (FQDN).

This parameter can contain multiple subdomains where each subdomain can range between 1 and 63 characters and contain the following characters: [a-zA-Z0-9_-].

This parameter cannot start or end with - or _.

For example, sample.oracle.com

ip-address Required string The IP address to locate a service. For example, xxx.xxx.xxx.xxx.

7.2.6.3.4 Adding an SRV Record

This section provides information on how to use the Local DNS API to create or add an SRV record in the CNE cluster.

SRV records are linked to A records. To add a new SRV record, you must already have an A record in the system. Adding an SRV record creates a dependency between the A record and the SRV record. Therefore, to delete an A record, you must first delete the SRV record pointing to the A record. When you are adding an SRV record, the system adds the SRV record to the designated zone, matching the domain name and the related A record.

Note:

You cannot create and maintain identical SRV records. However, you can have a different protocol for the same combo service and target A record.
Currently, there is no provision to edit an existing SRV record. If you want to edit an SRV record, then delete the existing SRV record and then re-add the record with the updated parameters (weight, priority, or TTL).

The following table provides details on how to use the Local DNS API to create an SRV record:

Table 7-5 Adding an SRV Record

Request URL HTTP Method Content Type Request Body Response Code Sample Response

Request URL	HTTP Method	Content Type	Request Body	Response Code	Sample Response
`https://localhost:8000/occne/dns/srv`	POST	application/json	`{ "service": "string", "protocol": "string", "dn": "string", "ttl": "integer" "priority": "integer", "weight": "integer", "port": "integer", "server": "string", "a_record": "string" }` Note: Define each field in the request body within double quotes (" "). Sample request: `curl -X POST http://localhost:8000/occne/dns/srv \ -H 'Content-Type: application/json' \ -d '{"service":"sip","protocol":"tcp","dn":"lab.oracle.com","ttl":"3600","weight":"100","port":"35061","server":"occne","priority":"10","a_record":"occne.lab.oracle.com"}'`	200: Record Added Successfully. 400: Request payload/parameters incomplete or not valid. 409: Already exists. 503: Could not be added, internal error.	200: `SUCCESS: SRV record successfully added to config map coredns.`

https://localhost:8000/occne/dns/srv

POST

application/json

{
  "service": "string",
  "protocol": "string",
  "dn": "string",
  "ttl": "integer"
  "priority": "integer",
  "weight": "integer",
  "port": "integer",
  "server": "string",
  "a_record": "string"
}

Note: Define each field in the request body within double quotes (" ").

Sample request:

curl -X POST http://localhost:8000/occne/dns/srv \
     -H 'Content-Type: application/json' \
          -d '{"service":"sip","protocol":"tcp","dn":"lab.oracle.com","ttl":"3600","weight":"100","port":"35061","server":"occne","priority":"10","a_record":"occne.lab.oracle.com"}'

200: Record Added Successfully.
400: Request payload/parameters incomplete or not valid.
409: Already exists.
503: Could not be added, internal error.

200:

SUCCESS: SRV
                record successfully added to config map coredns.

The following table provides details about the request body parameters:

Table 7-6 Request Body Parameters

Parameter	Required or Optional	Type	Description
service	Required	string	The symbolic name for the service, such as "sip", and "my_sql". The value of this parameter can range between 1 and 63 characters and contain the following characters: [a-zA-Z0-9_-]. The parameter cannot start or end with `-` or `_`.
protocol	Required	string	The protocol supported by the service. The allowed values are: tcp tcp
dn	Required	string	The domain name that the SRV record is applicable to. This parameter can contain multiple subdomains where each subdomain can range between 1 and 63 characters and contain the following characters: `[a-zA-Z0-9_-]`. For example: `lab.oracle.com.` If the SRV record is applicable to the entire domain, then provide only the domain name without subdomains. For example, `oracle.com` The length of the Top Level Domains (TLD) must be between 1 and 6 characters and must only contain the following characters: `[a-z]`. For example: .com, .net, and .uk.
ttl	Required	integer	The Time To Live (TTL) in seconds. This is the amount of time the record is allowed to be cached by a resolver. This value can range between 300 and 3600.
priority	Required	integer	The priority of the current SRV record in comparison to the other SRV records. The values can range from 0 to n.
weight	Required	integer	The weight of the current SRV record in comparison to the other SRV records with the same priority. The values can range from 0 to n.
port	Required	integer	The port on which the target service is found. The values can range from 1 to 65535.
server	Required	string	The name of the machine providing the service without including the domain name (value provided in the dn field). The value can range between 1 and 63 characters and contain the following characters: `[a-zA-Z0-9_-]`. The parameter cannot start or end with `-` or `_`. For example: `occne-node1`.
a_record	Required	string	The "A" record name to which the SRV is added. The "A" record mentioned here must be already added. Otherwise the request fails.

7.2.6.3.5 Deleting an SRV Record

This section provides information on how to use the Local DNS API to delete an SRV record in the CNE cluster.

Note:

To delete an SRV record, the details in the request payload must exactly match the details, such as weight, priority, and ttl, of an existing SRV record.

The following table provides details on how to use the Local DNS API to delete an SRV record:

Table 7-7 Deleting an SRV Record

Request URL HTTP Method Content Type Request Body Response Code Sample Response

Request URL	HTTP Method	Content Type	Request Body	Response Code	Sample Response
`https://localhost:8000/occne/dns/srv`	DELETE	application/json	`{ "service": "string", "protocol": "string", "dn": "string", "ttl": "integer" "priority": "integer", "weight": "integer", "port": "integer", "server": "string" "a_record": "string" }` Note: Define each field in the request body within double quotes (" "). Sample request: `curl -X DELETE http://localhost:8000/occne/dns/srv \ -H 'Content-Type: application/json' \ -d '{"service":"sip","protocol":"tcp","dn":"lab.oracle.com","ttl":"3600","weight":"100","port":"35061","server":"occne","priority":"10","a_record":"occne.lab.oracle.com"}'`	200: Record Deleted Successfully. 400: Record does not exist, or request payload/parameters incomplete or not valid. 503: Could not be deleted, internal error.	200: `SUCCESS: SRV record successfully deleted from config map coredns`

https://localhost:8000/occne/dns/srv

DELETE

application/json

{
  "service": "string",
  "protocol": "string",
  "dn": "string",
  "ttl": "integer"
  "priority": "integer",
  "weight": "integer",
  "port": "integer",
  "server": "string"
  "a_record": "string"
}

Note: Define each field in the request body within double quotes (" ").

Sample request:

curl -X DELETE http://localhost:8000/occne/dns/srv \
     -H 'Content-Type: application/json' \
          -d '{"service":"sip","protocol":"tcp","dn":"lab.oracle.com","ttl":"3600","weight":"100","port":"35061","server":"occne","priority":"10","a_record":"occne.lab.oracle.com"}'

200: Record Deleted Successfully.
400: Record does not exist, or request payload/parameters incomplete or not valid.
503: Could not be deleted, internal error.

200:

SUCCESS: SRV
                record successfully deleted from config map coredns

The following table provides details about the request body parameters:

Table 7-8 Request Body Parameters

Parameter	Required or Optional	Type	Description
service	Required	string	The symbolic name for the service, such as "sip", and "my_sql". The value of this parameter can range between 1 and 63 characters and contain the following characters: [a-zA-Z0-9_-]. The parameter cannot start or end with `-` or `_`.
protocol	Required	string	The protocol supported by the service. The allowed values are: tcp tcp
dn	Required	string	The domain name that the SRV record is applicable to. This parameter can contain multiple subdomains where each subdomain can range between 1 and 63 characters and contain the following characters: `[a-zA-Z0-9_-]`. The length of the Top Level Domains (TLD) must be between 1 and 6 characters and must only contain the following characters: `[a-z]`. For example: .com, .net, and .uk.
ttl	Required	integer	The Time To Live (TTL) in seconds. This is the amount of time the record is allowed to be cached by a resolver. This value can range between 300 and 3600.
priority	Required	integer	The priority of the current SRV record in comparison to the other SRV records. The values can range from 0 to n.
weight	Required	integer	The weight of the current SRV record in comparison to the other SRV records with the same priority. The values can range from 0 to n.
port	Required	integer	The port on which the target service is found. The values can range from 1 to 65535.
server	Required	string	The name of the machine providing the service minus the domain name (the value in the dn field). The value can range from 1 and 63 characters and contain the following characters: `[a-zA-Z0-9_-]`. The parameter cannot start or end with `-` or `_`.
a_record	Required	string	The "A" record name from which the SRV is deleted. The "A" record mentioned here must be already added. Otherwise the request fails.

7.2.6.4 Adding and Removing Forwarding Nameservers

The forward section added in the coreDNS forwards the queries to the nameservers if they are not resolved by coreDNS. This section provides information about adding or removing forwarding nameservers using the forward endpoint provided by Local DNS API.

7.2.6.4.1 Adding Forwarding Nameservers

This section provides information about adding forward section in coreDNS using the forward endpoint provided by Local DNS API.

Note:

Add forward section in coreDNS by using the payload data.
Ensure that the forward section is not added already.

The following table provides details on how to use the Local DNS API endpoint to add forward section:

Table 7-9 Adding Forwarding Nameserver

Request URL HTTP Method Content Type Request Body Response Code Sample Response

Request URL	HTTP Method	Content Type	Request Body	Response Code	Sample Response
`https://localhost:8000/occne/dns/forward`	POST	application/json	`{ "ip-address": "string", }` Note: Define each field in the request body within double quotes (" "). Sample request to add forward section: `curl -X POST http://localhost:8000/occne/dns/forward \ -H 'Content-Type: application/json' \ -d '{"ip-address":"192.168.100.25,10.75.100.5"}'`	200: Forward successfully configured. 400: Request payload/parameters incomplete or not valid. 503: Could not configure, internal error.	200: `SUCCESS: Forwarding nameserver list added to coredns successfully`

https://localhost:8000/occne/dns/forward

POST

application/json

{
  "ip-address": "string",
}

Note: Define each field in the request body within double quotes (" ").

Sample request to add forward section:

curl -X POST http://localhost:8000/occne/dns/forward \
     -H 'Content-Type: application/json' \
     -d '{"ip-address":"192.168.100.25,10.75.100.5"}'

200: Forward successfully configured.
400: Request payload/parameters incomplete or not valid.
503: Could not configure, internal error.

200:

SUCCESS: Forwarding nameserver list added
                                to coredns successfully

The following table provides details about the request body parameters:

Table 7-10 Request Body Parameters

Parameter	Required or Optional	Type	Description
ip-address	Required	string	The IP addresses to forward the requests. You can define up to 15 IP addresses. The IP addresses must be valid IPv4 addresses and they must be defined as a comma separated list without extra space.

7.2.6.4.2 Removing Forwarding Nameservers

This section provides information about deleting forward section in coreDNS using the forward endpoint provided by Local DNS API.

Note:

CNE doesn't support updating the forward section. If you want to update the forward nameservers, then remove the existing forward section and add a new one with the updated data.
Before removing the forward section, ensure that there is already a forward section to delete.

The following table provides details on how to use the Local DNS API endpoint to remove forward section:

Table 7-11 Removing Forwarding Nameserver

Request URL	HTTP Method	Content Type	Request Body	Response Code	Sample Response
`https://localhost:8000/occne/dns/forward`	DELETE	NA	Sample request to delete forward section: `curl -X DELETE http://localhost:8000/occne/dns/forward`	200: Forward configuration successfully removed. 400: Request payload/parameters incomplete or not valid. Not configured, unable to remove. 503: Could not configure, internal error.	200: `SUCCESS: Forwarding nameserver list deleted from coredns successfully`

7.2.6.5 Reloading Local or Core DNS Configurations

This section provides information about reloading core DNS configuration using the reload endpoint provided by Local DNS API.

Note:

You must reload the core DNS configuration to commit the last configuration update, whenever you:

add or remove multiple records in the same zone
update a single or multiple DNS records

The following table provides details on how to use the Local DNS API endpoint to reload the core DNS configuration:

Table 7-12 Reloading Local or Core DNS Configurations

Request URL	HTTP Method	Content Type	Request Body	Response Code	Sample Response
`http://localhost:8000/occne/coredns/reload`	POST	application/json	`{ "deployment-name": "string", "namespace": "string" }` Note: Define each field in the request body within double quotes (" "). Currently, the system always uses the default values for the `"deployment-name"` and `"namespace"` parameters and doesn't consider any modification done to them. This will be address in the future releases. Sample request to reload the core DNS without payload (using the default values): `curl -X POST http://localhost:8000/occne/coredns/reload` Sample request to reload the core DNS using the payload: `curl -X POST http://localhost:8000/occne/coredns/reload \ -H 'Content-Type: application/json' \ -d '{"deployment-name":"coredns","namespace":"kube-system"}'`	200: Local DNS or Core DNS Reloaded Successfully. 400: Request payload/parameters incomplete or not valid. 503: Could not be reloaded, internal error.	200: `Deployment reloaded, msg SUCCESS: Reloaded coredns deployment in ns kube-system`

The following table provides details about the request body parameters:

Table 7-13 Request Body Parameters

Parameter	Required or Optional	Type	Description
deployment-name	Required	string	The deployment Name to be reloaded. The value must be a valid Kubernetes deployment name. The default value is coredns.
namespace	Required	string	The namespace where the deployment exists. The value must be a valid Kubernetes namespace name. The default value is kube-system.

7.2.6.6 Other Local DNS API Endpoints

This section provides information about the additional endpoints provided by Local DNS API.

Get Data

The Local DNS API provides an endpoint to get the current configuration, zones and records of local DNS or core DNS.

The following table provides details on how to use the Local DNS API endpoint to get the Local DNS or core DNS configuration details:

Table 7-14 Get Local DNS or Core DNS Configurations

Request URL HTTP Method Content Type Request Body Response Code Sample Response

Request URL	HTTP Method	Content Type	Request Body	Response Code	Sample Response
`http://localhost:8000/occne/dns/data`	GET	NA	Sample request: `curl -X GET http://localhost:8000/occne/dns/data`	200: Returns core DNS configmap data, including zones and records. 503: Could not get data, internal error.	200: [True, {'api_version': 'v1', 'binary_data': None, 'data': {'Corefile': '.:53 {\n' ... # Output Omitted ... 'db.oracle.com': ';oracle.com db file\n' 'oracle.com. 300 ' 'IN SOA ns1.oracle.com andrei.oracle.com ' '201307231 3600 10800 86400 3600\n' 'occne1.us.oracle.com. ' '3600 IN A ' '10.65.200.182\n' '_sip._tcp.lab.oracle.com 30 IN SRV 10 102 32061 ' 'occne.lab.oracle.com.\n' 'occne.lab.oracle.com. ' '3600 IN A ' '175.80.200.20\n', ... # Output Omitted ...


                            http://localhost:8000/occne/dns/data

GET

NA

Sample request:

curl -X GET http://localhost:8000/occne/dns/data

200: Returns core DNS configmap data, including zones and records.
503: Could not get data, internal error.

200:

[True, {'api_version': 'v1',
 'binary_data': None,
 'data': {'Corefile': '.:53 {\n'
...
# Output Omitted
...
        'db.oracle.com': ';oracle.com db file\n'
                         'oracle.com.                  300                  '
                         'IN      SOA     ns1.oracle.com  andrei.oracle.com '
                         '201307231 3600 10800 86400 3600\n'
                         'occne1.us.oracle.com.                  '
                         '3600                  IN      A       '
                         '10.65.200.182\n'
                         '_sip._tcp.lab.oracle.com 30 IN SRV 10 102 32061 '
                         'occne.lab.oracle.com.\n'
                         'occne.lab.oracle.com.                  '
                         '3600                  IN      A       '
                         '175.80.200.20\n',
...
# Output Omitted
...

7.2.6.7 Troubleshooting Local DNS

This section describes the issues that you may encounter while configuring Local DNS and their troubleshooting guidelines.

By design, the Local DNS functionality is built on top of the core DNS (CoreDNS). Therefore, all the troubleshooting, logging, and configuration management are performed directly on the core DNS. Each cluster runs a CoreDNS deployment (2 pods), with the rolling update strategy. Therefore, any change in the configuration is applied to both the pods one by one. This process can take some time (approximately, 30 to 60 seconds to reload both pods).

A NodeLocalDNS daemonset is a cache implementation of core DNS. The NodeLocalDNS runs as a pod on each node and is used for quick DNS resolution. When a pod requires a certain domain name resolution, it first checks its NodeLocalDNS pod, the one running in the same node, for resolution. If the pod doesn't get the required resolution, then it forwards the request to the core DNS.

All local DNS records are stored inside the core DNS configmap grouped by zones.

Note:

Use the active Bastion to run all the troubleshooting procedures in this section.

7.2.6.7.1 Troubleshooting Local DNS API

This section provides the troubleshooting guidelines for the common scenarios that you may encounter while using Local DNS API.

Validating Local DNS API

Local DNS API, that is used to add or remove DNS records, runs as a service ("bastion_http_server") in all Bastion servers. To validate if the API is up and running, run the following command from a Bastion server:

$ systemctl status bastion_http_server

Sample output:

● bastion_http_server.service - Bastion http server
Loaded: loaded (/etc/systemd/system/bastion_http_server.service; enabled; vendor preset: disabled)
Active: active (running) since Wed 2023-04-12 00:12:51 UTC; 1 day 19h ago
Main PID: 283470 (gunicorn)
Tasks: 4 (limit: 23553)
Memory: 102.6M
CGroup: /system.slice/bastion_http_server.service
├─283470 /usr/bin/python3.6 /usr/local/bin/gunicorn --workers=3 --bind 0.0.0.0:8000 --chdir /bin/bastion_http_setup wsgi:app --max-requests 0 --timeout 5 --keep>
├─283474 /usr/bin/python3.6 /usr/local/bin/gunicorn --workers=3 --bind 0.0.0.0:8000 --chdir /bin/bastion_http_setup wsgi:app --max-requests 0 --timeout 5 --keep>
├─283476 /usr/bin/python3.6 /usr/local/bin/gunicorn --workers=3 --bind 0.0.0.0:8000 --chdir /bin/bastion_http_setup wsgi:app --max-requests 0 --timeout 5 --keep>
└─641094 /usr/bin/python3.6 /usr/local/bin/gunicorn --workers=3 --bind 0.0.0.0:8000 --chdir /bin/bastion_http_setup wsgi:app --max-requests 0 --timeout 5 --keep>

The sample output shows the status of the Bastion http server service as active (running) and enabled. All Bastion servers have their own independent version of this service. Therefore, it is recommended to check the status of all Bastion servers.

Starting or Restarting Local DNS API

If Local DNS API is not running, run the following command to start or restart it:

Command to start Local DNS API:

$ sudo systemctl start bastion_http_server

Command to restart Local DNS API:

$ sudo systemctl restart bastion_http_server

The start and restart commands don’t display any output on completion. To check the status of Local DNS API, perform the Validating Local DNS API procedure.

If bastion_http_server doesn't run even after starting or restarting it, refer to the following section to check its log.

Generating and Checking Local DNS Logs

This section provides details about generating and checking Local DNS logs.

Generating Local DNS Logs

You can use journalctl to get the logs of Local DNS API that runs as a service (bastion_http_server) on each bastion server.

Run the following command to get the logs of Local DNS API:

$ journalctl -u bastion_http_server

Run the following command to print only the latest 20 logs of Local DNS API:

journalctl -u bastion_http_server --no-pager -n 20

Note:

In the interactive mode, you can use the keyboard shortcuts to scroll through the logs. The system displays the latest logs at the end.

Sample output:

-- Logs begin at Tue 2023-04-11 22:36:02 UTC. --
Apr 12 16:33:27 test-bastion-1.novalocal gunicorn[283474]: 2023-04-12 16:33:27,357 BHHTTP:INFO: Request payload: Record name occne.lab.oracle.com record ip 175.80.200.20 [/bin/bastion_http_setup/bastionApp.py:125]
Apr 12 16:33:27 test-bastion-1.novalocal gunicorn[283474]: 2023-04-12 16:33:27,357 BHHTTP:INFO: Domain name oracle.com db name db.oracle.com for record entry [/bin/bastion_http_setup/coreDnsData.py:362]
Apr 12 16:33:27 test-bastion-1.novalocal gunicorn[283474]: 2023-04-12 16:33:27,369 BHHTTP:INFO: SUCCESS:  Validate coredns common config msg data oracle.com [/bin/bastion_http_setup/commons.py:36]
Apr 12 16:33:27 test-bastion-1.novalocal gunicorn[283474]: 2023-04-12 16:33:27,380 BHHTTP:INFO: SUCCESS:  A Record deleted msg data occne.lab.oracle.com [/bin/bastion_http_setup/commons.py:36]
Apr 12 16:33:27 test-bastion-1.novalocal gunicorn[283474]: 2023-04-12 16:33:27,380 BHHTTP:INFO: SUCCESS:  A Record deleted msg data occne.lab.oracle.com [/bin/bastion_http_setup/commons.py:36]
Apr 12 16:33:27 test-bastion-1.novalocal gunicorn[283474]: 2023-04-12 16:33:27,380 BHHTTP:INFO: Domain name oracle.com db name db.oracle.com for record entry [/bin/bastion_http_setup/coreDnsData.py:362]
Apr 12 16:33:27 test-bastion-1.novalocal gunicorn[283474]: 2023-04-12 16:33:27,388 BHHTTP:INFO: SUCCESS:  Validate coredns common config msg data oracle.com [/bin/bastion_http_setup/commons.py:36]
Apr 12 16:33:27 test-bastion-1.novalocal gunicorn[283474]: 2023-04-12 16:33:27,388 BHHTTP:INFO: DNS A record deleted in coredns file for occne.lab.oracle.com 175.80.200.20,  msg SUCCESS:  SUCCESS:  A Record deleted [/bin/bastion_http_setup/commons.py:47]
Apr 12 16:34:13 test-bastion-1.novalocal gunicorn[283474]: 2023-04-12 16:34:13,487 BHHTTP:INFO: Deployment reloaded,  msg SUCCESS:  Reloaded coredns deployment in ns kube-system [/bin/bastion_http_setup/commons.py:47]

Checking Local DNS Logs

Local DNS logs contain information, errors, and debug messages about all the activities in Local DNS. The following table lists some of the sample messages and their description:

Table 7-15 Local DNS Log Messages

Message	Type/ Level	Description
Deployment reloaded, msg SUCCESS: Reloaded coredns deployment in ns kube-system	INFO	Success message indicating that the core DNS deployment reloaded successfully.
Validate coredns common config msg data oracle.com	INFO	Indicates that the module was able to process core DNS configuration data for a specific domain name.
Request payload incomplete. Request requires name and ip-address, error missing param 'ip-address'	ERROR	Indicates an invalid payload. The API sends this type of messages when the payload used for a given record is not valid or not complete.
FAILED: A record occne.lab.oracle.com does not exists in Zone db.oracle.com	ERROR	This message is used by an API module to trigger a creation of a new zone. This error message does not require any intervention.
Already exists: DNS A record in coredns file for occne.lab.oracle.com 175.80.200.20 3600, msg SUCCESS: A record occne.lab.oracle.com already exists in Zone db.oracle.com, msg: Record occne.lab.oracle.com cannot be duplicated.	ERROR	Same domain name error. Records in the same zone cannot have the same name. This message is displayed if either of these conditions is true.
DNS A record deleted in coredns file for occne.lab.oracle.com 175.80.200.20, msg SUCCESS: A Record deleted	INFO	Success message indicating that an A record was deleted successfully.
DNS A record added in coredns file for occne.lab.oracle.com 175.80.200.20 3600, msg SUCCESS: Zone info and A record updated for domain name	INFO	Success message indicating that the API has successfully added a new A record and updated the zone information.
ERROR in app: Exception on /occne/dns/a [POST] ... Traceback Omitted	ERROR	Fatal error indicating that an exception has occurred while processing a request. You can get more information by performing a traceback. This type of error is not common and must be reported as a bug.
Zone already present with domain name oracle.com	DEBUG	This type of debug messages are not enabled by default. They are usually used to print a high amount of information while troubleshooting.
FAILED: Unable to add SRV record: _sip._tcp.lab.oracle.com. 3600 IN SRV 10 100 35061 occne.lab.oracle.com. - record already exists - data: ... Data Omitted	ERROR	Error message indicating that the record already exists and cannot be duplicated.

7.2.6.7.2 Troubleshooting Core DNS

This section provides information about troubleshooting Core DNS using the core DNS logs.

Local DNS records are added to CoreDNS configuration. Therefore, the logs are generated and reported by the core DNS pods. As per the default configuration, CoreDNS reports information logs only on start up (for example, after a reload) and on running into an error.

Run the following command to print all logs from both core DNS pods to the terminal, separated by name:

$ for pod in $(kubectl -n kube-system get pods | grep coredns | awk '{print $1}'); do echo "----- $pod -----"; kubectl -n kube-system logs $pod; done

Sample output:

----- coredns-8ddb9dc5d-5nvrv -----
[INFO] plugin/ready: Still waiting on: "kubernetes"
[INFO] plugin/auto: Inserting zone `occne.lab.oracle.com.' from: /etc/coredns/..2023_04_12_16_34_13.510777403/db.occne.lab.oracle.com
.:53
[INFO] plugin/reload: Running configuration SHA512 = 2bc9e13e66182e6e829fe1a954359de92746468f433b8748589dfe16e1afd0e790e1ff75415ad40ad17711abfc7a8348fdda2770af99962db01247526afbe24a
CoreDNS-1.9.3
linux/amd64, go1.18.2, 45b0a11
----- coredns-8ddb9dc5d-6lf5s -----
[INFO] plugin/auto: Inserting zone `occne.lab.oracle.com.' from: /etc/coredns/..2023_04_12_16_34_15.930764941/db.occne.lab.oracle.com
.:53
[INFO] plugin/reload: Running configuration SHA512 = 2bc9e13e66182e6e829fe1a954359de92746468f433b8748589dfe16e1afd0e790e1ff75415ad40ad17711abfc7a8348fdda2770af99962db01247526afbe24a
CoreDNS-1.9.3
linux/amd64, go1.18.2, 45b0a11

Additionally, you can pipe the above command to a file for better readability and sharing:

$ for pod in $(kubectl -n kube-system get pods | grep coredns | awk '{print $1}'); do echo "----- $pod -----"; kubectl -n kube-system logs $pod; done > coredns.logs
$ vi coredns.logs

Run the following command to get the latest logs from any of the CoreDNS pods:

$ kubectl -n kube-system --tail 20 logs $(kubectl -n kube-system get pods | grep coredns | awk  '{print $1 }' | head -n 1)

This command prints the latest 20 log entries. You can modify the --tail value as per your requirement.

Sample output:

[INFO] plugin/auto: Inserting zone `occne.lab.oracle.com.' from: /etc/coredns/..2023_04_13_19_29_29.1646737834/db.occne.lab.oracle.com
.:53
[INFO] plugin/reload: Running configuration SHA512 = 2bc9e13e66182e6e829fe1a954359de92746468f433b8748589dfe16e1afd0e790e1ff75415ad40ad17711abfc7a8348fdda2770af99962db01247526afbe24a
CoreDNS-1.9.3
linux/amd64, go1.18.2, 45b0a11

7.2.6.7.3 Troubleshooting DNS Records

This section provides information about validating, and querying internal and external records.

Note:

Use the internal cluster network to resolve the records added to core DNS through local DNS API. The system does not respond if you query for a DNS record from outside the cluster (for example, querying from a Bastion server).

Validating Records

You can use any pod to access and query a DNS record in core DNS. However, most of the pods do not have the network utilities to directly query a record. In such cases, you can include the network utilities, such as bind-utils, bundled with the pods to allow them to access and query records.

You can also use the MetalLB controller pod, which is already bundled with bind-utils, to query the DNS records:

Run the following command from a Bastion server to query an A record:

$ kubectl -n occne-infra exec -i -t $(kubectl -n occne-infra get pod | grep metallb-cont | awk '{print $1}') -- nslookup occne.lab.oracle.com

Sample output:

.oracle.com
Server: 169.254.25.10
Address: 169.254.25.10:53


Name: occne.lab.oracle.com
Address: 175.80.200.20

Run the following command from a Bastion server to query an SRV record:

$ kubectl -n occne-infra exec -i -t $(kubectl -n occne-infra get pod | grep metallb-cont | awk '{print $1}') -- nslookup -type=srv _sip._tcp.lab.oracle.com

Sample output:

Server:         169.254.25.10
Address:        169.254.25.10:53

_sip._tcp.lab.oracle.com        service = 10 100 35061 occne.lab.oracle.com

Note:

Reload the core DNS configuration after adding multiple records to ensure that your changes are applied.

The following code block provides the command to query a DNS record using a pod that is created on a different namespace. By default, this pod is not bundled with the CNE cluster:

Note:

This example considers that an A record is already loaded to occne1.us.oracle.com using the API.

$ kubectl -n occne-demo exec -it test-app -- nslookup occne1.us.oracle.com

Sample output:

.oracle.com
Server: 169.254.25.10
Address: 169.254.25.10:53


Name: occne1.us.oracle.com
Address: 10.65.200.182

Querying Non Existing or External Records

You cannot access or query an external record or a record that is not added using the API. The system terminates such queries with an error code.

For example:

the following codeblock shows a case where a non existing A record is queried:

$ kubectl -n occne-infra exec -i -t $(kubectl -n occne-infra get pod | grep metallb-cont | awk '{print $1}') -- nslookup not-in.oracle.com

Sample output:

Server:         169.254.25.10
Address:        169.254.25.10:53

** server can't find not-in.oracle.com: NXDOMAIN

** server can't find not-in.oracle.com: NXDOMAIN

command terminated with exit code 1

the following codeblock shows a case where a non existing SRV record is queried:

$ kubectl -n occne-infra exec -i -t $(kubectl -n occne-infra get pod | grep metallb-cont | awk '{print $1}') -- nslookup not-in.oracle.com

Sample output:

Server:         169.254.25.10
Address:        169.254.25.10:53

** server can't find not-in.oracle.com: NXDOMAIN

** server can't find not-in.oracle.com: NXDOMAIN

command terminated with exit code 1

Querying Internal Services

Core DNS is configured to resolve internal services by default. Therefore, you can query any internal Kubernetes services as usual.

For example,

the following codeblock shows a case where an A record is queried from an internal Kubernetes service:

$ kubectl -n occne-infra exec -i -t $(kubectl -n occne-infra get pod | grep metallb-cont | awk '{print $1}') -- nslookup kubernetes

Sample output:

Server:         169.254.25.10
Address:        169.254.25.10:53


Name:   kubernetes.default.svc.test
Address: 10.233.0.1

** server can't find kubernetes.svc.test: NXDOMAIN
** server can't find kubernetes.svc.test: NXDOMAIN
** server can't find kubernetes.test: NXDOMAIN
** server can't find kubernetes.test: NXDOMAIN
** server can't find kubernetes.occne-infra.svc.test: NXDOMAIN
** server can't find kubernetes.occne-infra.svc.test: NXDOMAIN

The sample output displays the response from default.svc.test as "Kubernetes", as a service, exists only in the default namespace.

the following codeblock shows a case where an SRV record is queried from an internal Kubernetes service:

$ kubectl -n occne-infra exec -i -t $(kubectl -n occne-infra get pod | grep metallb-cont | awk '{print $1}') -- nslookup -type=srv kubernetes.default.svc.test

Sample output:

Server:         169.254.25.10
Address:        169.254.25.10:53

kubernetes.default.svc.occne3-toby-edwards      service = 0 100 443 kubernetes.default.svc.test

** server can't find kubernetes.svc.test: NXDOMAIN
** server can't find kubernetes.occne-infra.svc.test: NXDOMAIN
** server can't find kubernetes.test: NXDOMAIN

The sample output displays the response from default.svc.test as "Kubernetes", as a service, exists only in the default namespace.

7.2.6.7.4 Accessing Configuration Files

This section provides information about accessing configuration files for troubleshooting.

Local DNS does not have any configuration file of its own; it relies entirely on CoreDNS config files. CoreDNS and nodelocaldns (CoreDNS cache daemon) have their configuration files as configmaps on the kube-system namespace.

Note:

Local DNS API takes care of configurations and modifications by default. Therefore, it is not recommended to access or update the configmaps as manual intervention to these files can potentially break the entire CoreDNS functionality.

If there is absolute necessity to access configmap for troubleshooting, then use the data endpoint to access records of all zones along with the CoreDNS configuration.

Sample configuration:

# The following line, starting with "db.DOMAIN-NAME" represents a Zone file
'db.oracle.com': ';oracle.com db file\n'
               'oracle.com.                  300                  ' # All zone files contain a default SOA entry auto generated
               'IN      SOA     ns1.oracle.com  andrei.oracle.com '
               '201307231 3600 10800 86400 3600\n'
               'occne.lab.oracle.com.                  ' # User added A record
               '3600                  IN      A       175.80.200.20\n'
               '_sip._tcp.lab.oracle.com 30 IN SRV 10 102 32061 ' # User added SRV record
               'occne.lab.oracle.com.\n'
               'occne1.us.oracle.com.                  ' # User added A record
               '3600                  IN      A       '
               '10.65.200.182\n'},

7.2.6.7.5 Troubleshooting Validation Script Errors

The local DNS feature provides the validateLocalDns.py script to validate if the Local DNS feature is activated successfully. This section provides information about troubleshooting some of the common issues that occur while using the validateLocalDns.py script.

Local DNS variable is not set properly

You can encounter the following or a similar error message while running the validation script if the local DNS variable is not set properly:

Beginning local DNS validation
 - Getting the occne-metallb-controller pod's name.
 - Validating occne.ini.
Unable to continue - err: Cannot continue - local_dns_enabled variable is set to False, which is not valid to continue..

In such cases, ensure that:

the local_dns_enabled variable is set to True: local_dns_enabled=True
there are no black spaces before and after the "=" sign
the variable is typed correctly as it is case sensitive

Note:

To successfully enable Local DNS, you must follow the entire activation procedure. Otherwise, the system doesn't enable the feature successfully even after you set the ocal_dns_enabled variable to the correct value.

Unable to access the test pod

The validation script uses the occne-metallb-controller pod to validate the test record. This is because the DNS records can be accessed from inside the cluster only, and the MetalLB pod contains the necessary utility tools to access the records by default. You can encounter the following error while running the validation script if the MetalLB pod is not accessible:

Beginning local DNS validation
 - Getting the occne-metallb-controller pod's name.
  - Error while trying to get occne-metallb-controller pod's name, error: ...

In such cases, ensure that the occne-metallb-controller is accessible.

Unable to add a test record

While performing a validation, the validation script creates and removes a test record using the API to check if the Local DNS feature is working properly. You can encounter the following error when the script is unable to create a test record:

Beginning local DNS validation
 - Getting the occne-metallb-controller pod's name.
 - Validating occne.ini.
 - Adding DNS A record.
Unable to continue - err: Failed to add DNS entry.

The following table lists some of the common issues why the script can fail to add a test record, along with the resolutions:

Table 7-16 Validation Script Errors and Resolutions

Issue	Error Message	Resolution
The script is previously run and interrupted before it finished. The script possibly created a test record the previous time it was run unsuccessfully. When the script is run again, it tries to create a duplicate test record and fails.	Cannot add a duplicate record. Test record: name:occne.dns.local.com, ip-address: 10.0.0.3	Delete the existing test record from the system and rerun the validation script.
A record similar to the test record is added manually.	Cannot add a duplicate record. Test record: name:occne.dns.local.com, ip-address: 10.0.0.3	Delete the existing test record from the system and rerun the validation script.
Local DNS API is not available.	The Local DNS API is not running or is in an error state	Validate if the Local DNS feature is enabled properly. For more information, see Troubleshooting Local DNS API.
Local DNS API returns 50X status code.	Kubernetes Admin Configmap missing or misconfigured	Check if Kubernetes admin.conf is properly set to allow the API to interact with Kubernetes.

Note:

The name and ip-address of the test record are managed by the script. Use these details for validation purpose only.

Unable to reload configuration

You can encounter the following error if the validation script fails to reload the core DNS configuration:

Beginning local DNS validation
 - Getting the occne-metallb-controller pod's name.
 - Validating occne.ini.
 - Adding DNS A record.
 - Adding DNS SRV record.
 - Reloading local coredns.
  - Error while trying to reload the local coredns, error: .... # Reason Omitted

In such cases, analyze the cause of the issue using the Local DNS logs. For more information, see Troubleshooting Local DNS API.

Other miscellaneous errors

If you are encountering other miscellaneous errors (such as, "unable to remove record"), follow the steps in the Troubleshooting Local DNS API section to generate logs and analyze the issue.

7.3 Managing the Kubernetes Cluster

This section provides instructions on how to manage the Kubernetes Cluster.

7.3.1 Creating CNE Cluster Backup

This section describes the procedure to create a backup of CNE cluster data using the createClusterBackup.py script.

Critical CNE data can be damaged or lost during a fault recovery scenario. Therefore, it is advised to take a backup of your CNE cluster data regularly. These backups can be used to restore your CNE cluster when the cluster data is lost or damaged.

Backing up a CNE cluster data involves the following steps:

Backing up Bastion Host data
Backing up Kubernetes data using Velero

The createClusterBackup.py script is used to backup both the bastion host data and Kubernetes data.

Prerequisites

Before creating CNE cluster backup, ensure that the following prerequisites are met:

Velero must be activated successfully. For Velero installation procedure, see Oracle Communications Cloud Native Core, Cloud Native Environment Installation, Upgrade, and Fault Recovery Guide.
Velero v1.10.0 server must be installed and running.
Velero CLI for v1.10.0 must be installed and running.
boto3 python module must be installed. For more information, see the "Configuring PIP Repository" section in the Oracle Communications Cloud Native Core, Cloud Native Environment Installation, Upgrade, and Fault Recovery Guide.
The S3 Compatible Object Storage Provider must be configured and ready to be used.
The following S3 related credentials must be available:
- Endpoint Url
- Access Key Id
- Secret Access Key
- Region Name
- Bucket Name
An external S3 compatible data store to store backup data must have been configured while installing CNE.
Cluster must be in a good state, that is all content included in the following namespaces must be up and running:
- occne-infra
- cert-manager
- kube-system
- rook-ceph (for bare metal)
- istio-system
All bastion-controller and lb-controller PVCs must be in "Bound" status.

Note:

This procedure creates only a CNE cluster backup that contains bastion host data, including Kubernetes.
For Kubernetes, this procedure creates the backup content included in the following namespaces only:
- occne-infra
- cert-manager
- kube-system
- rook-ceph (for bare metal)
- istio-system
You must take the bastion backup in the ACTIVE bastion only.

7.3.1.1 Creating a Backup of Bastion Host and Kubernetes Data

This section describes the procedure to back up the Bastion Host and Kubernetes data using the createClusterBackup.py script.

Procedure

Run the following command to verify if you are currently on an active Bastion. If you are not, log in to an active Bastion and continue this procedure.
```
$ is_active_bastion
```
Sample output:
```
IS active-bastion
```

Use the following commands to run the createClusterBackup.py script:

$ cd /var/occne/cluster/${OCCNE_CLUSTER}/artifacts
$ ./backup/createClusterBackup.py

Sample output:

Initializing cluster backup occne-cluster-20230717-183615

No /var/occne/cluster/occne-cluster/artifacts/backup/cluster_backups_log.json log file, creating new one
Creating bastion backup: 'occne-cluster-20230717-183615'

Successfully created bastion backup

GENERATED LOG FILE AT: /var/occne/cluster/occne-cluster/createBastionBackup-20230717-183615.log

Creating velero backup: 'occne-cluster-20230717-183615'

Successfully created velero backup

Successfully created cluster backup
GENERATED LOG FILE AT: /var/occne/cluster/occne-cluster/createClusterBackup.py-20230717-183615.log

If the createClusterBackup.py script fails due to a missing boto3 library, then perform the following steps to add your proxy and download boto3. Else, move to Step 3.
1. Run the following commands to install boto3 library:
```
export http_proxy=YOUR_PROXY
export https_proxy=$http_proxy
export HTTP_PROXY=$http_proxy
export HTTPS_PROXY=$http_proxy


pip3 install boto3
```
  While installing boto3 library, you may see a warning regarding the versions of dependencies. You can ignore the warning as the boto3 library can work without these dependencies.
2. Once you install boto3 library, run the following commands to unset the proxy:
```
unset HTTP_PROXY
unset https_proxy
unset http_proxy
unset HTTPS_PROXY
```
Navigate to the /home/cloud-user directory and verify if the backup tar file is generated.
Log in to your S3 cloud storage and verify if the Bastion Host data is uploaded successfully.

7.3.1.2 Verifying Backup in S3 Bucket

This section describes the procedure to verify the CNE cluster data backup in S3 bucket.

S3 bucket contains two folders:

bastion-data-backups: for storing Bastion backup
velero-backup: for storing Velero backup

Verify if the Bastion Host data is stored as a .tar file in the {BUCKET_NAME}/bastion-data-backups/{CLUSTER-NAME}/{BACKUP_NAME} folder. Where, {CLUSTER-NAME} is the name of the cluster and{BACKUP_NAME} is the name of the backup.
Verify if the Velero Kubernetes backup is stored in the {BUCKET_NAME}/velero-backup/{BACKUP_NAME}/ folder. Where, {BACKUP_NAME} is the name of the backup.

Caution:
The velero-backup folder must not be modified manually as this folder is managed by Velero. Modifying the folder can corrupt the structure or files.

For information about restoring CNE cluster from a backup, see "Restoring CNE from Backup" in Oracle Communications Cloud Native Core, Cloud Native Environment Installation, Upgrade, and Fault Recovery Guide.

7.3.2 Renewing Kubernetes Certificates

Some of the Kubernetes certificates in your cluster are valid for a period of one year. These certificates include various important files that secure the communication within your cluster, such as the API server certificate, the etcd certificate, and the controller manager certificate. To maintain the security and operation of your CNE Kubernetes cluster, it is important to keep these certificates updated. The certificates are renewed automatically during the CNE upgrade. If you have not performed an CNE upgrade in the last year, you must run this procedure to renew your certificates for the continued operation of the CNE Kubernetes cluster.

Introduction

Kubernetes uses many different TLS certificates to secure access to internal services. There certificates are automatically renewed during upgrade. However, if upgrade is not performed regularly, these certificates may expire and cause the Kubernetes cluster to fail. To avoid this situation follow the procedure below to renew all certificates used by Kubernetes. This procedure can also be used to renew expired certificates and restore access to the Kubernetes cluster.

List of K8s internal certificates

The following table lists the Kubernetes (K8s) internal certificates and their validity.

Table 7-17 Kubernetes Internal Certificates and Validity Period

Node Type	Componet Name	.crt File Path	Validity (in years)	.pem File Path	Validity (in years)
Kubernetes Controller	etcd	/etc/pki/ca-trust/source/anchors/etcd-ca.crt	100	/etc/ssl/etcd/ssl/admin-<node_name>.pem	100
Kubernetes Controller	etcd	NA	NA	/etc/ssl/etcd/ssl/ca.pem	100
Kubernetes Controller	etcd	NA	NA	/etc/ssl/etcd/ssl/member-<node_name>.pem	100
Kubernetes Controller	etcd	NA	NA	/etc/ssl/etcd/ssl/member-<node_name>.pem	100
Kubernetes Controller	Kubernetes	/etc/kubernetes/ssl/ca.crt	10	NA	NA
Kubernetes Controller	Kubernetes	/etc/kubernetes/ssl/apiserver.crt	1	NA	NA
Kubernetes Controller	Kubernetes	/etc/kubernetes/ssl/apiserver-kubelet-client.crt	1	NA	NA
Kubernetes Controller	Kubernetes	/etc/kubernetes/ssl/front-proxy-ca.crt	10	NA	NA
Kubernetes Controller	Kubernetes	/etc/kubernetes/ssl/front-proxy-client.crt	1	NA	NA
Kubernetes Node	Kubernetes	/etc/kubernetes/ssl/ca.crt	10	NA	NA

You can use the above table to keep a record of the Kubernetes certificates and their validity details. Fill the Validity column in the table with your certificates' validity.

Prerequisites

Caution:

Run this procedure on each controller node and verify that the certificates are renewed successfully to avoid cluster failures. The controller nodes are the orchestrator and maintainers of the metadata of all objects and components of the cluster. If you do not run this procedure on all the controller nodes and the certificates expire, the integrity of the cluster and the applications that are deployed on the cluster are staged at risk. This causes the communication within the internal components to be lost resulting in a total cluster failure. In such a case, you must recover each controller node or in the worst case scenario, recover the complete cluster.

Checking Certificate Expiry

Log in to any Kubernetes controller node and run the following commands to verify the expiration date for the Kubernetes certificates:

$ sudo su
# export PATH=$PATH:/usr/local/bin
# kubeadm certs check-expiration

Sample output:

[check-expiration] Reading configuration from the cluster...
[check-expiration] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
W0214 13:39:25.870724   84036 utils.go:69] The recommended value for "clusterDNS" in "KubeletConfiguration" is: [10.233.0.10]; the provided value is: [169.254.25.10]

CERTIFICATE                EXPIRES                  RESIDUAL TIME   CERTIFICATE AUTHORITY   EXTERNALLY MANAGED
admin.conf                 Feb 14, 2026 17:42 UTC   364d            ca                      no
apiserver                  Feb 14, 2026 17:42 UTC   364d            ca                      no
apiserver-kubelet-client   Feb 14, 2026 17:42 UTC   364d            ca                      no
controller-manager.conf    Feb 14, 2026 17:42 UTC   364d            ca                      no
front-proxy-client         Feb 14, 2026 17:42 UTC   364d            front-proxy-ca          no
scheduler.conf             Feb 14, 2026 17:42 UTC   364d            ca                      no
super-admin.conf           Feb 14, 2026 17:42 UTC   364d            ca                      no

CERTIFICATE AUTHORITY   EXPIRES                  RESIDUAL TIME   EXTERNALLY MANAGED
ca                      Feb 12, 2035 17:42 UTC   9y              no
front-proxy-ca          Feb 12, 2035 17:42 UTC   9y              no

Procedure

Use SSH to log in to the active Bastion Host.
Run the following command to verify if the Bastion Host is the active Bastion Host:
```
$ is_active_bastion
```
The system displays the following output if the Bastion Host is the active Bastion Host:
```
IS active-bastion
```
If the Bastion Host is not the active Bastion Host, try a different Bastion Host.

Note:
If the certificates are expired, the is_active_bastion command doesn't work as it depends on kubectl. In this case, skip this step and move to the next step.
Perform the following steps to log in to a controller node as a root user and back up the SSL directory:
1. Use SSH to log in to Kubernetes controller node as a root user:
```
$ ssh <k8s-ctrl-node>
$ sudo su
# export PATH=$PATH:/usr/local/bin
```
2. Take a backup of the ssl directory:
```
# cp -r /etc/kubernetes/ssl /etc/kubernetes/ssl_backup
```

Renew all kubeadm certificates:

# kubeadm certs renew all

Sample output:

[renew] Reading configuration from the cluster...
[renew] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
W0212 18:04:43.840444 3620859 utils.go:69] The recommended value for "clusterDNS" in "KubeletConfiguration" is: [10.233.0.10]; the provided value is: [169.254.25.10]

certificate embedded in the kubeconfig file for the admin to use and for kubeadm itself renewed
certificate for serving the Kubernetes API renewed
certificate for the API server to connect to kubelet renewed
certificate embedded in the kubeconfig file for the controller manager to use renewed
certificate for the front proxy client renewed
certificate embedded in the kubeconfig file for the scheduler manager to use renewed
certificate embedded in the kubeconfig file for the super-admin renewed

Done renewing certificates. You must restart the kube-apiserver, kube-controller-manager, kube-scheduler and etcd, so that they can use the new certificates.

Perform the following steps to remove the manifest files in the /etc/kubernetes/manifests/ directory and restart the static pods:

Note:

This step requires removing (moving the file to tmp folder) the manifest files in the /etc/kubernetes/manifests/ directory and copying back the file to the same directory to restart the kube-apiserver pod. Each time you remove and copy the manifest files, the system waits for a period configured in fileCheckFrequency. fileCheckFrequency is a Kubelet configuration and the default value is 20 seconds.

Perform the following steps to restart the API server pod:

Remove the kube-apiserver pod:

# mv /etc/kubernetes/manifests/kube-apiserver.yaml /tmp

Run the watch command until the kube-apiserver pod is removed. When the pod is removed, use Ctrl+C to exit the watch command:

# watch -n 1 "sudo /usr/local/bin/crictl -r unix:///run/containerd/containerd.sock ps | grep -e api -e kube-controller-manager -e scheduler"

Sample output:

Every 1.0s: sudo /usr/local/bin/crictl -r unix:///run/containerd/contain...  occne-example-k8s-ctrl-1: Fri Feb 14 13:52:26 2025

ff79b19fdffd7       9aa1fad941575       27 seconds ago      Running             kube-scheduler                     2
  ab0da7c51b413       kube-scheduler-occne-example-k8s-ctrl-1
64059f7efadc5       175ffd71cce3d       27 seconds ago      Running             kube-controller-manager            3
  9591cd755dae4       kube-controller-manager-occne-example-k8s-ctrl-1

Restore the kube-apiserver pod to the /etc/kubernetes/manifests/ directory:
```
# mv /tmp/kube-apiserver.yaml /etc/kubernetes/manifests
```

Run the watch command until the kube-apiserver pod appears in the output. When the pod appears, use Ctrl+C to exit the watch command:

# watch -n 1 "sudo /usr/local/bin/crictl -r unix:///run/containerd/containerd.sock ps | grep -e api -e kube-controller-manager -e scheduler"

Sample output:

Every 1.0s: sudo /usr/local/bin/crictl -r unix:///run/containerd/contain...  occne-example-k8s-ctrl-1: Fri Feb 14 13:53:28 2025

67c8d5c42645f       6bab7719df100       10 seconds ago       Running             kube-apiserver                     0
   3bb9f31dad8c6       kube-apiserver-occne-example-k8s-ctrl-1
ff79b19fdffd7       9aa1fad941575       About a minute ago   Running             kube-scheduler                     2
   ab0da7c51b413       kube-scheduler-occne-example-k8s-ctrl-1
64059f7efadc5       175ffd71cce3d       About a minute ago   Running             kube-controller-manager            3
   9591cd755dae4       kube-controller-manager-occne-example-k8s-ctrl-1

Perform the following steps to restart the controller manager pod:

Remove the kube-controller-manager pod:

# mv /etc/kubernetes/manifests/kube-controller-manager.yaml /tmp

Run the watch command until the kube-controller-manager pod is removed. When the pod is removed, use Ctrl+C to exit the watch command:

# watch -n 1 "sudo /usr/local/bin/crictl -r unix:///run/containerd/containerd.sock ps | grep -e api -e kube-controller-manager -e scheduler"

Sample output:

Every 1.0s: sudo /usr/local/bin/crictl -r unix:///run/containerd/contain...  occne-example-k8s-ctrl-1: Fri Feb 14 13:55:48 2025

67c8d5c42645f       6bab7719df100       2 minutes ago       Running             kube-apiserver                     0
  3bb9f31dad8c6       kube-apiserver-occne-example-k8s-ctrl-1
ff79b19fdffd7       9aa1fad941575       3 minutes ago       Running             kube-scheduler                     2
  ab0da7c51b413       kube-scheduler-occne-example-k8s-ctrl-1

Restore the kube-controller-manager pod to the /etc/kubernetes/manifests/ directory:
```
# mv /tmp/kube-controller-manager.yaml /etc/kubernetes/manifests
```

Run the watch command until the kube-controller-manager pod appears in the output. When the pod appears, use Ctrl+C to exit the watch command:

# watch -n 1 "sudo /usr/local/bin/crictl -r unix:///run/containerd/containerd.sock ps | grep -e api -e kube-controller-manager -e scheduler"

Sample output:

Every 1.0s: sudo /usr/local/bin/crictl -r unix:///run/containerd/contain...  occne-example-k8s-ctrl-1: Fri Feb 14 13:57:11 2025

fa16530da2e04       175ffd71cce3d       15 seconds ago      Runningeconds ago   kube-controller-manager            0
  9b6c69c940bfa       kube-controller-manager-occne-example-k8s-ctrl-1
67c8d5c42645f       6bab7719df100       3 minutes ago       Running             kube-apiserver                     0
  3bb9f31dad8c6       kube-apiserver-occne-example-k8s-ctrl-1
ff79b19fdffd7       9aa1fad941575       5 minutes ago       Running             kube-scheduler                     2
  ab0da7c51b413       kube-scheduler-occne-example-k8s-ctrl-1

Perform the following steps to restart the scheduler pod:

Remove the kube-scheduler pod:

# mv /etc/kubernetes/manifests/kube-scheduler.yaml /tmp

Run the watch command until the kube-scheduler pod is removed. When the pod is removed, use Ctrl+C to exit the watch command:

# watch -n 1 "sudo /usr/local/bin/crictl -r unix:///run/containerd/containerd.sock ps | grep -e api -e kube-scheduler -e scheduler"

Sample output:

Every 1.0s: sudo /usr/local/bin/crictl -r unix:///run/containerd/contain...  occne-example-k8s-ctrl-1: Thu Feb 13 13:16:06 2025

fa16530da2e04       175ffd71cce3d       19 minutes ago      Running             kube-controller-manager            0
  9b6c69c940bfa       kube-controller-manager-occne-example-k8s-ctrl-1
67c8d5c42645f       6bab7719df100       23 minutes ago      Running             kube-apiserver                     0
  3bb9f31dad8c6       kube-apiserver-occne-example-k8s-ctrl-1

Restore the kube-scheduler pod to the /etc/kubernetes/manifests/ directory:
```
# mv /tmp/kube-scheduler.yaml /etc/kubernetes/manifests
```

Run the watch command until the kube-scheduler pod appears in the output. When the pod appears, use Ctrl+C to exit the watch command:

# watch -n 1 "sudo /usr/local/bin/crictl -r unix:///run/containerd/containerd.sock ps | grep -e api -e kube-scheduler -e scheduler"

Sample output:

Every 1.0s: sudo /usr/local/bin/crictl -r unix:///run/containerd/contain...  occne-example-k8s-ctrl-1: Fri Feb 14 14:16:35 2025

8c4500f3d61d7       9aa1fad941575       16 seconds ago      Running             kube-scheduler                     0
  7c175d8106f0c       kube-scheduler-occne-example-k8s-ctrl-1
fa16530da2e04       175ffd71cce3d       19 minutes ago      Running             kube-controller-manager            0
  9b6c69c940bfa       kube-controller-manager-occne-example-k8s-ctrl-1
67c8d5c42645f       6bab7719df100       23 minutes ago      Running             kube-apiserver                     0
  3bb9f31dad8c6       kube-apiserver-occne-example-k8s-ctrl-1

Renew the admin.conf file and update the contents of $HOME/.kube/config. Type yes when prompted.

# cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
cp: overwrite '/root/.kube/config'? yes

# chown $(id -u):$(id -g) $HOME/.kube/config

Run the following command to validate if the certificates are renewed:

# kubeadm certs check-expiration

Sample output:

[check-expiration] Reading configuration from the cluster...
[check-expiration] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
W0214 14:21:49.907835  143445 utils.go:69] The recommended value for "clusterDNS" in "KubeletConfiguration" is: [10.233.0.10]; the provided value is: [169.254.25.10]

CERTIFICATE                EXPIRES                  RESIDUAL TIME   CERTIFICATE AUTHORITY   EXTERNALLY MANAGED
admin.conf                 Feb 14, 2026 18:51 UTC   364d            ca                      no
apiserver                  Feb 14, 2026 18:51 UTC   364d            ca                      no
apiserver-kubelet-client   Feb 14, 2026 18:51 UTC   364d            ca                      no
controller-manager.conf    Feb 14, 2026 18:51 UTC   364d            ca                      no
front-proxy-client         Feb 14, 2026 18:51 UTC   364d            front-proxy-ca          no
scheduler.conf             Feb 14, 2026 18:51 UTC   364d            ca                      no
super-admin.conf           Feb 14, 2026 18:51 UTC   364d            ca                      no

CERTIFICATE AUTHORITY   EXPIRES                  RESIDUAL TIME   EXTERNALLY MANAGED
ca                      Feb 12, 2035 17:42 UTC   9y              no
front-proxy-ca          Feb 12, 2035 17:42 UTC   9y              no

Perform steps 3 through 7 on the remaining controller nodes.
Exit from the root user privilege:
```
# exit
```
Copy the /etc/kubernetes/admin.conf file from the controller node to the artifacts directory of the active Bastion.
Note:
- Replace <OCCNE_ACTIVE_BASTION> and <OCCNE_CLUSTER> with the values corresponding to your system. Refer to Step 2 for the value of <OCCNE_ACTIVE_BASTION> (For example, occne-example-bastion-1).
- Type yes and enter your password if prompted.
```
$ sudo scp /etc/kubernetes/admin.conf ${USER}@<OCCNE_ACTIVE_BASTION>:/var/occne/cluster/<OCCNE_CLUSTER>/artifacts
```

Log in to the active Bastion Host and update the server address in the admin.conf file to https://lb-apiserver.kubernetes.local:6443:

$ ssh <active-bastion>
$ sed -i 's#https://127.0.0.1:6443#https://lb-apiserver.kubernetes.local:6443#' /var/occne/cluster/${OCCNE_CLUSTER}/artifacts/admin.conf

If you are using a Load Balancer VM (LBVM), perform the following steps to delete the existing lb-controller-admin secret and create a new one:
1. Run the following command to delete the existing lb-controller-admin secret:
```
$ kubectl -n occne-infra delete secret lb-controller-admin-config
```
2. Run the following command to create a new lb-controller-admin secret from the updated admin.conf file:
```
$ kubectl -n occne-infra create secret generic lb-controller-admin-config --from-file=/var/occne/cluster/${OCCNE_CLUSTER}/artifacts/admin.conf
```
If you are using a Load Balancer VM (LBVM), perform the following steps to patch the lb-controller-admin-config secret and restart the lb-controller-server pod:
1. Patch the lb-controller-admin-config secret:
```
$ echo -n "$(kubectl get secret lb-controller-admin-config -n occne-infra -o jsonpath='{.data.admin\.conf}' | base64 -d | sed 's#https://lb-apiserver.kubernetes.local:6443#https://kubernetes.default:443#g')" | base64 -w0 | xargs -I{} kubectl -n occne-infra patch secret lb-controller-admin-config --patch '{"data":{"admin.conf":"{}"}}'
```
2. Remove the lb-controller-server pod:
```
$ kubectl scale deployment/occne-lb-controller-server -n occne-infra --replicas=0
```
3. Run the watch command until the occne-lb-controller-server pod is removed. When the pod is removed, use Ctrl+C to exit the watch command:
```
$ watch -n 1 "kubectl -n occne-infra get pods | grep lb-controller"
```
4. Restore the lb-controller-server pod:
```
$ kubectl scale deployment/occne-lb-controller-server -n occne-infra --replicas=1
```
5. Run the watch command until the occne-lb-controller-server pod appears in the output. When the pod appears, use Ctrl+C to exit the watch command:
```
$ watch -n 1 "kubectl -n occne-infra get pods | grep lb-controller"
```

7.3.2.1 Renewing Kyverno Certificates

Kyverno 1.9.0 doesn't support automatic certificate renewal. Therefore, if you are using Kyverno 1.9.0, you must renew the certificates manually. This section provides the procedure to renew Kyverno certificates.

Renew the Kyverno certificates by deleting the secrets from the kyverno namespace:

$ kubectl delete secret occne-kyverno-svc.kyverno.svc.kyverno-tls-ca -n kyverno

Sample output:

secret "occne-kyverno-svc.kyverno.svc.kyverno-tls-ca" deleted

$ kubectl delete secret occne-kyverno-svc.kyverno.svc.kyverno-tls-pair -n kyverno

Sample output:

secret "occne-kyverno-svc.kyverno.svc.kyverno-tls-pair" deleted

Perform the following steps to verify if the secrets are recreated and the certificates are renewed:

Run the following command to verify the Kyverno secrets:

$ kubectl get secrets -n kyverno

Sample output:

NAME                                             TYPE                 DATA   AGE
occne-kyverno-svc.kyverno.svc.kyverno-tls-ca     kubernetes.io/tls    2      21s
occne-kyverno-svc.kyverno.svc.kyverno-tls-pair   kubernetes.io/tls    2      11s
sh.helm.release.v1.occne-kyverno-policies.v1     helm.sh/release.v1   1      26h
sh.helm.release.v1.occne-kyverno.v1              helm.sh/release.v1   1      26h

Run the following commands to review the expiry dates of Kyverno certificates:

$ for secret in $(kubectl -n kyverno get secrets --no-headers | grep kubernetes.io/tls | awk {'print $1'}); do currdate=$(date +'%s'); echo $secret; expires=$(kubectl -n kyverno get secrets $secret -o jsonpath="{.data['tls\.crt']}" | base64 -d | openssl x509 -enddate -noout | awk -F"=" {'print $2'} | xargs -d '\n' -I {} date -d '{}' +'%s'); if [ $expires -le $currdate ]; then echo "Certificate invalid, expired: $(date -d @${expires})"; echo "Need to renew certificate using:"; echo "kubectl -n kyverno delete secret $secret"; else echo "Certificate valid, expires: $(date -d @${expires})"; fi done

Sample output:

occne-kyverno-svc.kyverno.svc.kyverno-tls-ca
Certificate valid, expires: Wed Feb 25 05:35:03 PM EST 2026
occne-kyverno-svc.kyverno.svc.kyverno-tls-pair
Certificate valid, expires: Fri Jul 25 06:35:12 PM EDT 2025

7.3.2.2 Renewing Kubelet Server Certificates

This section provides the procedure to renew Kubelet server certificate using the renew-kubelet-server-cert.sh script.

The certificate rotation configuration of the Kubelet server renews the Kubelet client certificates automatically, as this configuration is enabled by default. The renew-kubelet-server-cert.sh script sets the --rotate-server-certificates flag to true, which enables the serverTLSBootstrap variable in the Kubelet configuration.

Note:

Perform this procedure from the active Bastion.

Use SSH to log in to the active Bastion Host.
Run the following command to verify if the Bastion Host is the active Bastion Host:
```
$ is_active_bastion
```
The system displays the following output if the Bastion Host the active Bastion Host:
```
IS active-bastion
```
If the Bastion Host is not the active Bastion Host, try a different Bastion Host.

Note:
If the certificates are expired, the is_active_bastion command doesn't work as it depends on kubectl. In this case, skip this step and move to the next step.
Navigate to the /var/occne/cluster/${OCCNE_CLUSTER}/artifacts/ directory:
```
$ cd /var/occne/cluster/${OCCNE_CLUSTER}/artifacts/
```

Run the renew-kubelet-server-cert.sh script:

$ ./renew-kubelet-server-cert.sh

Sample output:

============ Checking if all nodes are accessible via ssh ============
occne3-k8s-ctrl-1
occne3-k8s-ctrl-2
occne3-k8s-ctrl-3
occne3-k8s-node-1
occne3-k8s-node-2
occne3-k8s-node-3
occne3-k8s-node-4
All nodes are healthy and accessible using ssh, Starting kubelet server certificate renewal procedure now...
----------------------------------------------------------------------------------------------
Starting renewal of K8s kubelet server certificate for occne3-k8s-ctrl-1.
Adding the line --rotate-server-certificates=true --tls-cipher-suites=TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256 to kubelet environment file.
Restarting Kubelet to trigger Certificate signing request...
Kubelet is successfully restarted!
A signing request has been raised, Verifying it now....
A Certificate signing request csr-lfsq9 has been found, Approving it now!
certificatesigningrequest.certificates.k8s.io/csr-lfsq9 approved
The CSR has been approved for the node occne3-k8s-ctrl-1.
Checking if the new K8s kubelet server certificate has been generated...
New K8s kubelet server certificate has been successfully generated for the node occne3-k8s-ctrl-1 as shown below.
lrwxrwxrwx. 1 root root 59 Jul 24 08:05 kubelet-server-current.pem -> /var/lib/kubelet/pki/kubelet-server-2024-07-24-08-05-40.pem
Marked occne3-k8s-ctrl-1 as RENEWED.
Kubelet server certificate creation was successful for the node occne3-k8s-ctrl-1.

7.3.3 Renewing the Kubernetes Secrets Encryption Key

This section describes the procedure to renew the key that is used to encrypt the Kubernetes Secrets stored in the CNE Kubernetes cluster.

Procedure

Note:

Secret encryption is enabled by default during CNE installation or upgrade.

The key that is used to encrypt Kubernetes Secrets does not expire. However, it is recommended to change the encryption key periodically to ensure the security of your Kubernetes Secrets. If you think that your key is compromised, you must change the encryption key immediately.

To renew a Kubernetes Secrets encryption key, perform the following steps:

From bastion host, run the following commands:

$ NEW_KEY=$(head -c 32 /dev/urandom | base64)
$ KEY_NAME=$(cat /dev/random | tr -dc '[:alnum:]' | head -c 10)
$ kubectl get nodes | awk '/control-plane/ {print $1}' | xargs -I{} ssh {} " sudo sed -i '/keys:$/a\        - name: key_$KEY_NAME\n\          secret: $NEW_KEY' /etc/kubernetes/ssl/secrets_encryption.yaml; sudo cat /etc/kubernetes/ssl/secrets_encryption.yaml"

This creates a random encryption key with a random key name, and adds it to the /etc/kubernetes/ssl/secrets_encryption.yaml file within each controller node. The output shows the new encryption key, the key name, and the contents of the /etc/kubernetes/ssl/secrets_encryption.yaml file.

Sample Output:

This site is for the exclusive use of Oracle and its authorized customers and partners. Use of this site by customers and partners is subject to the Terms of Use and Privacy Policy for this site, as well as your contract with Oracle. Use of this site by Oracle employees is subject to company policies, including the Code of Conduct. Unauthorized access or breach of these terms may result in termination of your authorization to use this site and/or civil and criminal penalties.
kind: EncryptionConfig
apiVersion: v1
resources:
  - resources:
    - secrets

    providers:
    - secretbox:
        keys:
        - name: key_ZOJ1Hf5OCx
          secret: l+CaDTmMkC85LwJRiWJ0LQPYVtOyZ0TdtNZ2ij+kuGA=
        - name: key
          secret: ZXJ1Ulk2U0xSbWkwejdreTlJWkFrZmpJZjhBRzg4U00=
    - identity: {}

Restart the API server by running the following command. This ensures that all the secrets get encrypted with the new key while encrypting the secrets in the next step:
```
kubectl get nodes | awk '/control-plane/ {print $1}' | xargs -I{} ssh {} " sudo mv /etc/kubernetes/manifests/kube-apiserver.yaml ~; sleep 2; sudo mv ~/kube-apiserver.yaml /etc/kubernetes/manifests"
```

To encrypt all the existing secrets with a new key, run the following command:

kubectl get secrets --all-namespaces -o json | kubectl replace -f

Sample output:

-secret/occne-cert-manager-webhook-ca replaced
secret/sh.helm.release.v1.occne-cert-manager.v1 replaced
secret/istio-ca-secret replaced
secret/cloud-config replaced
secret/external-openstack-cloud-config replaced
secret/occne-kyverno-svc.kyverno.svc.kyverno-tls-ca replaced
secret/occne-kyverno-svc.kyverno.svc.kyverno-tls-pair replaced
secret/sh.helm.release.v1.occne-kyverno-policies.v1 replaced
secret/sh.helm.release.v1.occne-kyverno.v1 replaced
secret/alertmanager-occne-kube-prom-stack-kube-alertmanager replaced
secret/etcd-occne6-j-jorge-l-lopez-k8s-ctrl-1 replaced
secret/etcd-occne6-j-jorge-l-lopez-k8s-ctrl-2 replaced
secret/etcd-occne6-j-jorge-l-lopez-k8s-ctrl-3 replaced
secret/lb-controller-user replaced
secret/occne-alertmanager-snmp-notifier replaced
secret/occne-kube-prom-stack-grafana replaced
secret/occne-kube-prom-stack-kube-admission replaced
secret/occne-kube-prom-stack-kube-prometheus-scrape-confg replaced
secret/occne-metallb-memberlist replaced
secret/occne-tracer-jaeger-elasticsearch replaced
secret/prometheus-occne-kube-prom-stack-kube-prometheus replaced
secret/prometheus-occne-kube-prom-stack-kube-prometheus-tls-assets-0 replaced
secret/prometheus-occne-kube-prom-stack-kube-prometheus-web-config replaced
secret/sh.helm.release.v1.occne-alertmanager-snmp-notifier.v1 replaced
secret/sh.helm.release.v1.occne-bastion-controller.v1 replaced
secret/sh.helm.release.v1.occne-fluentd-opensearch.v1 replaced
secret/sh.helm.release.v1.occne-kube-prom-stack.v1 replaced
secret/sh.helm.release.v1.occne-lb-controller.v1 replaced
secret/sh.helm.release.v1.occne-metallb.v1 replaced
secret/sh.helm.release.v1.occne-metrics-server.v1 replaced
secret/sh.helm.release.v1.occne-opensearch-client.v1 replaced
secret/sh.helm.release.v1.occne-opensearch-dashboards.v1 replaced
secret/sh.helm.release.v1.occne-opensearch-data.v1 replaced
secret/sh.helm.release.v1.occne-opensearch-master.v1 replaced
secret/sh.helm.release.v1.occne-promxy.v1 replaced
secret/sh.helm.release.v1.occne-tracer.v1 replaced
secret/webhook-server-cert replaced
Error from server (Conflict): error when replacing "STDIN": Operation cannot be fulfilled on secrets "alertmanager-occne-kube-prom-stack-kube-alertmanager-generated": the object has been modified; please apply your changes to the latest version and try again
Error from server (Conflict): error when replacing "STDIN": Operation cannot be fulfilled on secrets "alertmanager-occne-kube-prom-stack-kube-alertmanager-tls-assets-0": the object has been modified; please apply your changes to the latest version and try again
Error from server (Conflict): error when replacing "STDIN": Operation cannot be fulfilled on secrets "alertmanager-occne-kube-prom-stack-kube-alertmanager-web-config": the object has been modified; please apply your changes to the latest version and try again

Note:

You may encounter some errors on the output depending on how the secret is created. You can ignore these errors and verify that the encrypted secret's key is replaced with a new one using the following steps.

Run the following command from a controller node with any cert pem and key pem pair files to show all existing secrets:
```
sudo ETCDCTL_API=3 /usr/local/bin/etcdctl --cert /etc/ssl/etcd/ssl/<cert-pem-file> --key /etc/ssl/etcd/ssl/<key-pem-file> get --keys-only=true --prefix /registry/secrets
```
Select any secret path you want to verify from the output.

To verify that the secret is using the newly generated key, run the following command from a controller node. Replace

<cert pem
                        file>

, <key pem file> and <secret-path> in the following command with the corresponding values.

sudo ETCDCTL_API=3 /usr/local/bin/etcdctl --cert /etc/ssl/etcd/ssl/<cert-pem-file> --key /etc/ssl/etcd/ssl/<key-pem-file> get <secret-path> -w fields | grep Value

Example:

[cloud-user@occne3-user-k8s-ctrl-3 ~]$ sudo ETCDCTL_API=3 /usr/local/bin/etcdctl --cert /etc/ssl/etcd/ssl/node-occne3-user-k8s-ctrl-1.pem --key /etc/ssl/etcd/ssl/node-occne3-user-k8s-ctrl-1-key.pem get /registry/secrets/default/secret1 -w fields | grep Value
"Value" : "k8s:enc:secretbox:v1:key_ZOJ1Hf5OCx:&9\x90\u007f'*6\x0e\xf8]\x98\xd7t1\xa9|\x90\x93\x88\xebc\xa9\xfe\x82<\xebƞ\xaa\x17$\xa4\x14%m\xb7<\x1d\xf7N\b\xa7\xbaZ\xb0\xd4#\xbev)\x1bv9\x19\xdel\xab\x89@\xe7\xaf$L\xb8)\xc9\x1bl\x13\xc1V\x1b\xf7\bX\x88\xe7\ue131\x1dG\xe2_\x04\xa2\xf1n\xf5\x1dP\\4\xe7)^\x81go\x99\x98b\xbb\x0eɛ\xc0R;>աj\xeeV54\xac\x06̵\t\x1b9\xd5N\xa77\xd9\x03㵮\x05\xfb%\xa1\x81\xd5\x0e \xcax\xc4\x1cz6\xf3\xd8\xf9?Щ\x9a%\x9b\xe5\xa7й\xcd!,\xb8\x8b\xc2\xcf\xe2\xf2|\x8f\x90\xa9\x05y\xc5\xfc\xf7\x87\xf9\x13\x0e4[i\x12\xcc\xfaR\xdf3]\xa2V\x1b\xbb\xeba6\x1c\xba\v\xb0p}\xa5;\x16\xab\x8e\xd5Ol\xb7\x87BW\tY;寄ƻ\xcaċ\x87Y;\n;/\xf2\x89\xa1\xcc\xc3\xc9\xe3\xc5\v\x1b\x88\x84Ӯ\xc6\x00\xb4\xed\xa5\xe2\xfa\xa9\xff \xd9kʾ\xf2\x04\x8f\x81,l"

This example shows a new key, key_ZOJ1Hf5OCx, being used to encrypt secret1 secret.

7.3.4 Adding a Kubernetes Worker Node

This section provides the procedure to add additional worker nodes to a previously installed CNE Kubernetes cluster.

Note:

For a BareMetal installation, ensure that you are familiar with the inventory file preparation procedure. For more information about this procedure, see "Inventory File Preparation" section in Oracle Communications Cloud Native Core, Cloud Native Environment Installation, Upgrade, and Fault Recovery Guide.
Run this procedure from the active Bastion Host only.
You can add only one node at a time using this procedure.

Adding a Kubernetes Worker Node on BareMetal

Note:

For any failure or successful run, the system maintains all Terraform and pipeline output in the /var/occne/cluster/${OCCNE_CLUSTER}/addBmWkrNodeCapture-<mmddyyyy_hhmmss>.log file.

Log in to Bastion Host and verify if it's an active Bastion Host. If the Bastion Host isn't an active Bastion Host, then log in to another.
Use the following command to check if the Bastion Host is an active Bastion Host:
```
$ is_active_bastion
```
The system displays the following output if the Bastion Host is an active Bastion Host:
IS active-bastion

The system displays the following output if the Bastion Host isn't an active Bastion Host:

NOT active-bastion
Run the following command to navigate to the cluster directory:
```
$ cd /var/occne/cluster/${OCCNE_CLUSTER}/
```
Run the following command to open the host.ini file in edit mode:
```
$ vi host.ini
```
Perform the following steps to edit the hosts.ini file and add the node details:
1. Run the following command to open the hosts.ini file in edit mode:
```
$ vi hosts.ini
```
2. Add the node details under the [host_hp_gen_X] or [host_netra_X] hardware header, depending on your hardware type:
```
[host_hp_gen_10]/[host_netra_X]
k8s-node.example.oracle.com ansible_host=<ipv4> hp_ilo=<ipv4> mac=<mac-address> pxe_config_ks_nic=<nic0> pxe_config_nic_list=<nic0>,<nic1>,<nic2> pxe_uefi=False
```
  where, <NODE_FULL_NAME> is the full name of the node that is added.
  Note:
  - <NODE_FULL_NAME>, ansible_host, hp_ilo or netra_ilom, and mac are the required parameters and their values must be unique in the host.ini file.
  - <mac-address> must be a string of six two-digit hexadecimal numbers separated by a dash. For example, a2-27-3d-d3-b4-00.
  - All IP addresses must be in proper IPV4 format.
  - pxe_config_ks_nic, pxe_config_nic_list, and pxe_uefi are the optional parameters. The node details can also contain other optional parameters that are not listed in the example.
  - All the required and optional parameters must be in the <KEY>=<VALUE> format without any space between the equal to sign.
  - All defined parameters must have a valid value.
  - Comments must be added in a separate line using # and must not be added at the end of the line.
  For example, the following code block displays the node details of a worker node (k8s-node-5.test.us.oracle.com) added under the [host_hp_gen_10] hardware header:
```
...
[host_hp_gen_10]
k8s-host-1.test.us.oracle.com ansible_host=179.1.5.2 hp_ilo=172.16.9.44 mac=a2-27-3d-d3-b4-00 oam_host=10.75.216.13
k8s-host-2.test.us.oracle.com ansible_host=179.1.5.3 hp_ilo=172.16.9.45 mac=4d-d9-1a-e2-7e-e8 oam_host=10.75.216.14
k8s-host-3.test.us.oracle.com ansible_host=179.1.5.4 hp_ilo=172.16.9.46 mac=e1-15-b4-1d-32-10

k8s-node-1.test.us.oracle.com ansible_host=179.1.5.5 hp_ilo=172.16.9.47 mac=3b-d2-2d-f6-1e-20
k8s-node-2.test.us.oracle.com ansible_host=179.1.5.6 hp_ilo=172.16.9.48 mac=a8-1a-37-b1-c0-dc
k8s-node-3.test.us.oracle.com ansible_host=179.1.5.7 hp_ilo=172.16.9.49 mac=a4-be-2d-3f-21-f0
k8s-node-4.test.us.oracle.com ansible_host=179.1.5.8 hp_ilo=172.16.9.35 mac=3a-d9-2c-e6-35-18
# New node
k8s-node-5.test.us.oracle.com ansible_host=179.1.5.9 hp_ilo=172.16.9.46 mac=2a-e1-c3-d4-12-a9
...
```
3. Add the full name of the node under the [kube-node] header.
```
[kube-node]
<NODE_FULL_NAME>
```
  where, <NODE_FULL_NAME> is the full name of the node that is added.
  For example, the following code block shows the full name of the worker node (k8s-node-5.test.us.oracle.com) added under the [kube-node] header:
```
...
[kube-node]
k8s-node-1.test.us.oracle.com
k8s-node-2.test.us.oracle.com
k8s-node-3.test.us.oracle.com
k8s-node-4.test.us.oracle.com
# New node
k8s-node-5.test.us.oracle.com
...
```
4. Save the host.ini file and exit.

Navigate to the maintenance directory:

$ cd /var/occne/cluster/${OCCNE_CLUSTER}/artifacts/maintenance

The addBmWorkerNode.py script in the maintenance directory is used to add Kubernetes worker node on BareMetal. Run the following command to add one worker node at a time:

$ ./addBmWorkerNode.py -nn <NODE_FULL_NAME>

where, <NODE_FULL_NAME> is the full name of the node that you added to the host.ini file in the previous steps.

For example:

$ ./addBmWorkerNode.py -nn k8s-5.test.us.oracle.com

Sample output:

Beginning add worker node: k8s-5.test.us.oracle.com
 - Backing up configuration files
 - Verify hosts.ini values
 - Updating /etc/hosts on all nodes with new node
    - Successfully updated file: /etc/hosts on all servers - check /var/occne/cluster/test/addBmWkrNodeCapture-05312024_224446.log for details.
 - Set maintenance banner
    - Successfully set maintenance banner - check /var/occne/cluster/test/addBmWkrNodeCapture-05312024_224446.log for details.
 - Create toolbox
 - Checking if the rook-ceph toolbox deployment already exists.
    - rook-ceph toolbox deployment already exists, skipping creation.
 - Wait for Toolbox pod
 - Waiting for Toolbox pod to be in Running state.
    - ToolBox pod in namespace rook-ceph is now in Running state.
 - Updating OS on new node
    - Successfully run Provisioning pipeline - check /var/occne/cluster/test/addBmWkrNodeCapture-05312024_224446.log for details.
 - Scaling new node into cluster
    - Successfully run k8_install scale playbook - check /var/occne/cluster/test/addBmWkrNodeCapture-05312024_224446.log for details.
 - Running verification
   - Node k8s-5.test.us.oracle.com verification passed.
 - Restarting rook-ceph operator
   - rook-ceph pods ready!
 - Restoring default banner
    - Successfully run POST stage on PROV container - check /var/occne/cluster/test/addBmWkrNodeCapture-05312024_224446.log for details.
Worker node: k8s-5.test.us.oracle.com added successfully

Run the following commands to verify if the node is added successfully:

Run the following command and verify if the new node is in the Ready state:

$ kubectl get nodes

Sample output:

NAME                              STATUS   ROLES           AGE     VERSION
k8s-master-1.test.us.oracle.com   Ready    control-plane   7d15h   v1.29.1
k8s-master-2.test.us.oracle.com   Ready    control-plane   7d15h   v1.29.1
k8s-master-3.test.us.oracle.com   Ready    control-plane   7d15h   v1.29.1
k8s-node-1.test.us.oracle.com     Ready    <none>          7d15h   v1.29.1
k8s-node-2.test.us.oracle.com     Ready    <none>          7d15h   v1.29.1
k8s-node-4.test.us.oracle.com     Ready    <none>          7d15h   v1.29.1
k8s-node-5.test.us.oracle.com     Ready    <none>          14m     v1.29.1

Run the following command and verify if all pods are in the Running or Completed state:
```
$ kubectl get pod -A
```
Run the following command and verify if the services are running and the service GUIs are reachable:
```
$ kubectl get svc -A
```

Adding a Kubernetes Worker Node on vCNE (OpenStack and VMware)

Note:

For any failure or successful run, the system maintains all Terraform and pipeline output in the /var/occne/cluster/${OCCNE_CLUSTER}/addWrkNodeCapture-<mmddyyyy_hhmmss>.log file.

Log in to a Bastion Host and ensure if all the pods are in the Running or Completed state:
```
$ kubectl get pod -A
```
Verify if the services are reachable and if the common services GUIs are accessible using the LoadBalancer EXTERNAL-IPs:
```
$ kubectl get svc -A | grep LoadBalancer
$ curl <svc_external_ip>
```
Navigate to the cluster directory:
```
$ cd /var/occne/cluster/$OCCNE_CLUSTER/
```
Run the following command to open the $OCCNE_CLUSTER/cluster.tfvars file. Search for the number_of_k8s_nodes parameter in the file and increment the value of the parameter by one.
```
$ vi $OCCNE_CLUSTER/cluster.tfvars
```
The following example shows the current value of number_of_k8s_nodes set to 5:
```
...
# k8s nodes
#
number_of_k8s_nodes = 5
...
```
The following example shows the value of number_of_k8s_nodes incremented by one to 6.
```
...
# k8s nodes
#
number_of_k8s_nodes = 6
...
```
For OpenStack, perform this step to source the openrc.sh file. The openrc.sh file sets the necessary environment variables for OpenStack. For VMware, skip this step and move to the next step.
1. Source the openrc.sh file.
```
$ source openrc.sh
```
2. Enter the OpenStack username and password when prompted.
  The following block shows the username and password prompt displayed by the system:
```
Please enter your OpenStack Username:
 Please enter your OpenStack Password as <username>:
```
Run the following command to ensure that the openstack-cacert.pem file exists in the same folder and the file is populated with appropriate certificates if TLS is supported:
```
$ ls /var/occne/cluster/$OCCNE_CLUSTER
```
Sample output:
```
...
openstack-cacert.pem
...
```

Depending on the type of Load Balancer, run the respective script to add a worker node:

Note:

The system backs up number of files such as lbvm/lbCtrlData.json, cluster.tfvars, hosts.ini, terraform.tfstate (renamed to terraform.tfstate.ORIG), and /etc/hosts into the /var/occne/cluster/${OCCNE_CLUSTER}/backUpConfig directory. These files are backed up only once to take a backup of the original files.

For LBVM, run the addWorkerNode.py script:

$ ./scripts/addWorkerNode.py

Sample output for OpenStack:

Starting addWorkerNode instance for the last worker node.

 - Backing up configuration files...

 - Checking if cluster.tfvars matches with the terraform state...
   Succesfully checked the number_of_k8s_nodes parameter in the cluster.tfvars file.

 - Running terraform apply to update its state...
   Successfully applied Openstack terraform apply - check /var/occne/cluster/occne-test/addWkrNodeCapture-11262024_220914.log for details

 - Get name for the new worker node...
   Successfully retrieved the name of the new worker node.

 - Update /etc/hosts files on all previous servers...
   Successfully updated file: /etc/hosts on all servers - check /var/occne/cluster/occne-test/addWkrNodeCapture-11262024_220914.log for details.

 - Setting maintenance banner...
   Successfully set maintenance banner - check /var/occne/cluster/occne-test/addWkrNodeCapture-11262024_220914.log for details.

 - Running pipeline.sh for provision - can take considerable time to complete...
   Successfully run Provisioning pipeline - check /var/occne/cluster/occne-test/addWkrNodeCapture-11262024_220914.log for details.

 - Running pipeline.sh for k8s_install - can take considerable time to complete...
   Successfully run K8s pipeline - check /var/occne/cluster/occne-test/addWkrNodeCapture-11262024_220914.log for details.

 - Get IP address for the new worker node...
   Successfully retrieved IP address of the new worker node occne-test-k8s-node-5.

 - Update lbCtrlData.json file...
   Successfully updated file: /var/occne/cluster/occne-test/lbvm/lbCtrlData.json.

 - Update lb-controller-ctrl-data and lb-controller-master-ip configmap...
   Successfully created configmap lb-controller-ctrl-data.
   Successfully created configmap lb-controller-master-ip.

 - Restarting LB Controller POD to bind in configmaps...
   Successfully restarted deployment occne-lb-controller-server.
   Waiting for occne-lb-controller-server deployment to return to Running status.
   Deployment "occne-lb-controller-server" successfully rolled out

 - Update servers from new occne-lb-controller pod...
   Successfully updated server list for each service in haproxy.cfg on LBVMs with new node: occne-test-k8s-node-5.

 - Restoring default banner...
   Successfully restored default banner - check /var/occne/cluster/occne-test/addWkrNodeCapture-11262024_220914.log for details.

Worker node successfully added to cluster: occne-test

Sample output for VMware:

Starting addWorkerNode instance for the last worker node.

 - Backing up configuration files...

 - Checking if cluster.tfvars matches with the terraform state...
   Succesfully checked the number_of_k8s_nodes parameter in the cluster.tfvars file.

 - Running terraform apply to update its state...
   VmWare terraform apply -refresh-only successful - check /var/occne/cluster/occne5-chandrasekhar-musti/addWkrNodeCapture-11282023_115313.log for details.
   VmWare terraform apply successful - node - check /var/occne/cluster/occne5-chandrasekhar-musti/addWkrNodeCapture-11282023_115313.log for details.

 - Get name for the new worker node...
   Successfully retrieved the name of the new worker node.

 - Running pipeline.sh for provision - can take considerable time to complete...
   Successfully run Provisioning pipeline - check /var/occne/cluster/occne5-chandrasekhar-musti/addWkrNodeCapture-11282023_115313.log for details.

 - Running pipeline.sh for k8s_install - can take considerable time to complete...
   Successfully run K8s pipeline - check /var/occne/cluster/occne5-chandrasekhar-musti/addWkrNodeCapture-11282023_115313.log for details.

 - Get IP address for the new worker node...
   Successfully retrieved IP address of the new worker node occne5-chandrasekhar-musti-k8s-node-4.

 - Update /etc/hosts files on all previous servers...
   Successfully updated file: /etc/hosts on all servers - check /var/occne/cluster/occne5-chandrasekhar-musti/addWkrNodeCapture-11282023_115313.log for details.

 - Update lbCtrlData.json file...
   Successfully updated file: /var/occne/cluster/occne5-chandrasekhar-musti/lbvm/lbCtrlData.json.

 - Update lb-controller-ctrl-data and lb-controller-master-ip configmap...
   Successfully created configmap lb-controller-ctrl-data.
   Successfully created configmap lb-controller-master-ip.

 - Deleting LB Controller POD: occne-lb-controller-server-5d8cd867b7-s5gb2 to bind in configmaps...
   Successfully restarted deployment occne-lb-controller-server.
   Waiting for occne-lb-controller-server deployment to return to Running status.
   Deployment "occne-lb-controller-server" successfully rolled out

 - Update servers from new occne-lb-controller pod...
   Successfully updated server list for each service in haproxy.cfg on LBVMs with new node: occne5-chandrasekhar-musti-k8s-node-4.

Worker node successfully added to cluster: occne5-chandrasekhar-musti

For CNLB, run the addCnlbK8sNode.py script:

$ ./scripts/addCnlbK8sNode.py

Sample output for OpenStack:

Starting addCnlbK8sNode instance for the newly added k8s node.

 - Backing up configuration files...

 - Checking if cluster.tfvars matches with the tofu state...
   Succesfully checked the occne_node_names List in the cluster.tfvars file.

 - Setting maintenance banner...
   Successfully set maintenance banner - check /var/occne/cluster/occne4-prince-p-pranav/addCnlbWkrNodeCapture-09062024_072915.log for details.

 - Tofu/Terraform Operations start...
   Successfully applied openstack tofu/terraform apply - check /var/occne/cluster/occne4-prince-p-pranav/addCnlbWkrNodeCapture-09062024_072915.log for details

 - Get name and IP for the new k8s node...

   New k8s node Name: occne4-prince-p-pranav-k8s-node-5

   New k8s node IP: 192.168.202.15

 - Update /etc/hosts files on all previous servers...
   Successfully updated file: /etc/hosts on all servers - check /var/occne/cluster/occne4-prince-p-pranav/addCnlbWkrNodeCapture-09062024_072915.log for details.

 - Running pipeline.sh for provision - can take considerable time to complete...
   Successfully run Provisioning pipeline - check /var/occne/cluster/occne4-prince-p-pranav/addCnlbWkrNodeCapture-09062024_072915.log for details.

 - Running pipeline.sh for k8s_install - can take considerable time to complete...
   Successfully run K8s pipeline - check /var/occne/cluster/occne4-prince-p-pranav/addCnlbWkrNodeCapture-09062024_072915.log for details.

 - Restoring default banner...
   Successfully restored default banner - check /var/occne/cluster/occne4-prince-p-pranav/addCnlbWkrNodeCapture-09062024_072915.log for details.

K8s node successfully added to cluster: occne4-prince-p-pranav

If there's a failure in the previous step, perform the following steps to rerun the script:
1. Copy backup files to the original files:
```
$ cp /var/occne/cluster/${OCCNE_CLUSTER}/cluster.tfvars ${OCCNE_CLUSTER}/cluster.tfvars
$ cp /var/occne/cluster/${OCCNE_CLUSTER}/backupConfig/lbCtrlData.json lbvm/lbCtrlData.json
# sudo cp /var/occne/cluster/${OCCNE_CLUSTER}/backupConfig/hosts /etc/hosts
```
2. If you ran Podman commands before the failure, then drain the new pods before rerunning the script:
```
$ kubectl drain --ignore-daemonsets <worker_node_hostname>
```
  For example:
```
$ kubectl drain --ignore-daemonsets ${OCCNE_CLUSTER}-k8s-node-5
```
3. Rerun the addWorkerNode.py or addCnlbK8sNode.py script depending on the Load Balancer:
```
$ scripts/addWorkerNode.py
```
  or
```
$ scripts/addCnlbK8sNode.py
```
4. After rerunning the script, uncordon the nodes:
```
$ kubectl uncordon <new node>
```
  For example:
```
$ kubectl uncordon ${OCCNE_CLUSTER}-k8s-node-5
```
Verify the nodes, pods, and services:
1. Verify if the new nodes are in Ready state by running the following command:
```
$ kubectl get nodes
```
2. Verify if all pods are in the Running or Completed state by running the following command:
```
$ kubectl get pod -A -o wide
```
3. The services are running and the services GUIs are reachable:
```
$ kubectl get svc -A
```

7.3.5 Removing a Kubernetes Worker Node

This section describes the procedure to remove a worker node from the CNE Kubernetes cluster after the original CNE installation. This procedure is used to remove a worker node that is unreachable (crashed or powered off), or that is up and running.

Procedure

Note:

This procedure is used to remove only one node at a time. If you want to remove multiple nodes, then perform this procedure on each node.
Removing multiple worker nodes can cause unwanted side effects such as increasing the overall load of your cluster. Therefore, before removing multiple nodes, make sure that there is enough capacity left in the cluster.
CNE requires a minimum of three worker nodes to properly run some of the common services such as, Opensearch, Bare Metal Rook Ceph cluster, and any daemonsets that require three or more replicas.
For a vCNE deployment, this procedure is used to remove only the last worker node in the Kubernetes. Therefore, refrain from using this procedure to remove any other worker node.

Remove a Kubernetes Worker Node in Openstack and VMware Deployment

Note:

For any failure or successful run, the system maintains all terraform and pipeline output in the


                    /var/occne/cluster/${OCCNE_CLUSTER}/removeWrkNodeCapture-<mmddyyyy_hhmmss>.log

file.

Log in to a Bastion Host and verify the following:

Run the following command to verify if all pods are the Running or Completed:

$ kubectl get pod -A

Sample output:

NAMESPACE       NAME                                                            READY   STATUS                  RESTARTS         AGE
cert-manager    occne-cert-manager-6dcffd5b9-jpzmt                              1/1     Running                 1 (3h17m ago)    4h56m
cert-manager    occne-cert-manager-cainjector-5d6bccc77d-f4v56                  1/1     Running                 2 (3h15m ago)    3h48m
cert-manager    occne-cert-manager-webhook-b7f4b7bdc-rg58k                      0/1     Completed               0                3h39m
cert-manager    occne-cert-manager-webhook-b7f4b7bdc-tx7gz                      1/1     Running                 0                3h17m
...

Run the following command to verify if the service LoadBalancer IPs are reachable and common service GUIs are running:

$ kubectl get svc -A | grep LoadBalancer

Sample output:

occne-infra    occne-kibana                                     LoadBalancer   10.233.36.151   10.75.180.113   80:31659/TCP                                    4h57m
occne-infra    occne-kube-prom-stack-grafana                    LoadBalancer   10.233.63.254   10.75.180.136   80:32727/TCP                                    4h56m
occne-infra    occne-kube-prom-stack-kube-alertmanager          LoadBalancer   10.233.32.135   10.75.180.204   80:30155/TCP                                    4h56m
occne-infra    occne-kube-prom-stack-kube-prometheus            LoadBalancer   10.233.3.37     10.75.180.126   80:31964/TCP                                    4h56m
occne-infra    occne-promxy-apigw-nginx                         LoadBalancer   10.233.42.250   10.75.180.4     80:30100/TCP                                    4h56m
occne-infra    occne-tracer-jaeger-query                        LoadBalancer   10.233.4.43     10.75.180.69    80:32265/TCP,16687:30218/TCP                    4h56m

Navigate to the /var/occne/cluster/${OCCNE_CLUSTER}/ directory:
```
$ cd /var/occne/cluster/${OCCNE_CLUSTER}/
```
Open the $OCCNE_CLUSTER/cluster.tfvars file and decrement the value of the number_of_k8s_nodes field by 1:
```
$ vi $OCCNE_CLUSTER/cluster.tfvars
```
The following example shows the current value of number_of_k8s_nodes set to 6:
```
...
# k8s nodes
#
number_of_k8s_nodes = 6
...
```
The following example shows the value of number_of_k8s_nodes decremented by 1 to 5:
```
...
# k8s nodes
#
number_of_k8s_nodes = 5
...
```
For OpenStack, perform this step to establish a connection between Bastion Host and OpenStack cloud. For VMware, skip this step and move to the next step.
Source the openrc.sh file. Enter the Openstack username and password when prompted. The openrc.sh file sets the necessary environment variables for OpenStack. Once you source the file, ensure that the openstack-cacert.pem file exists in the same folder and the file is populated for TLS support:
```
$ source openrc.sh
```
The following block shows the username and password prompt displayed by the system:
```
Please enter your OpenStack Username:
 Please enter your OpenStack Password as <username>:
 Please enter your OpenStack Domain:
```

Run the following command to get the list of nodes:

$ kubectl get nodes -o wide | grep -v control-plane

Sample output:

NAME     STATUS   ROLES           AGE     VERSION   INTERNAL-IP       EXTERNAL-IP   OS-IMAGE                  KERNEL-VERSION                    CONTAINER-RUNTIME
occne6-my-cluster-k8s-node-1   Ready    <none>          6d23h   v1.25.6   192.168.201.183   <none>        Oracle Linux Server 8.7   5.4.17-2136.316.7.el8uek.x86_64   containerd://1.6.15
occne6-my-cluster-k8s-node-2   Ready    <none>          6d23h   v1.25.6   192.168.201.136   <none>        Oracle Linux Server 8.7   5.4.17-2136.316.7.el8uek.x86_64   containerd://1.6.15
occne6-my-cluster-k8s-node-3   Ready    <none>          6d23h   v1.25.6   192.168.201.131   <none>        Oracle Linux Server 8.7   5.4.17-2136.316.7.el8uek.x86_64   containerd://1.6.15
occne6-my-cluster-k8s-node-4   Ready    <none>          6d23h   v1.25.6   192.168.200.100   <none>        Oracle Linux Server 8.7   5.4.17-2136.316.7.el8uek.x86_64   containerd://1.6.15

Run the following command to obtain the worker node IPs and verify if the worker node IPs match with the list obtained in Step 4:

$ kubectl exec -it $(kubectl -n occne-infra get pods | grep occne-lb-controller-server) -n occne-infra -- /bin/bash -c "sqlite3 /data/sqlite/db/lbCtrlData.db 'SELECT * FROM nodeIps;'"

Sample output:

192.168.201.183
192.168.201.136
192.168.201.131
192.168.200.100

Run the removeWorkerNode.py script.

Note:

The system backs up the lbvm/lbCtrlData.json, cluster.tfvars, hosts.ini, terraform.tfstate, and /etc/hosts files into the /var/occne/cluster/${OCCNE_CLUSTER}/backUpConfig directory. These files are backed up only once to back up the original files.

$ ./scripts/removeWorkerNode.py

Example for OpenStack deployment:

$ ./scripts/removeWorkerNode.py

Sample output:

Starting removeWorkerNode instance for the last worker node.

- Backing up configuration files...

- Checking if cluster.tfvars matches with the terraform state...
Successfully checked the number_of_k8s_nodes parameter in the cluster.tfvars file.

- Getting the IP address for the worker node to be deleted...
Successfully gathered occne7-devansh-m-marwaha-k8s-node-4's ip: 192.168.200.105.

- Draining node - can take considerable time to complete...
Successfully drained occne7-devansh-m-marwaha-k8s-node-4 node.

- Removing node from the cluster...
Successfully removed occne7-devansh-m-marwaha-k8s-node-4 from the cluster.

- Running terraform apply to update its state...
Successfully applied Openstack terraform apply - check /var/occne/cluster/occne7-devansh-m-marwaha/removeWkrNodeCapture-11282023_090320.log for details

- Updating /etc/hosts on all servers...
Successfully updated file: /etc/hosts on all servers - check /var/occne/cluster/occne7-devansh-m-marwaha/removeWkrNodeCapture-11282023_090320.log for details.

- Updating lbCtrlData.json file...
Successfully updated file: /var/occne/cluster/occne7-devansh-m-marwaha/lbvm/lbCtrlData.json.

- Updating lb-controller-ctrl-data and lb-controller-master-ip configmap...
Successfully created configmap lb-controller-ctrl-data.
Successfully created configmap lb-controller-master-ip.

- Deleting LB Controller POD: occne-lb-controller-server-fc869755-lm4hd to bind in configmaps...
Successfully restarted deployment occne-lb-controller-server.
Waiting for occne-lb-controller-server deployment to return to Running status.
Deployment "occne-lb-controller-server" successfully rolled out

- Update servers from new occne-lb-controller pod...
Successfully removed the node: occne7-devansh-m-marwaha-k8s-node-4 from server list for each service in haproxy.cfg on LBVMs.

Worker node successfully removed from cluster: occne7-devansh-m-marwaha

Example for VMware deployment:

./scripts/removeWorkerNode.py

Sample output:

Starting removeWorkerNode instance for the last worker node.
Successfully obtained index 3 from node occne5-chandrasekhar-musti-k8s-node-4.

- Backing up configuration files...

- Checking if cluster.tfvars matches with the terraform state...
Successfully checked the number_of_k8s_nodes parameter in the cluster.tfvars file.

- Getting the IP address for the worker node to be deleted...
Successfully gathered occne5-chandrasekhar-musti-k8s-node-4's ip: 192.168.1.15.

- Draining node - can take considerable time to complete...
Successfully drained occne5-chandrasekhar-musti-k8s-node-4 node.

- Removing node from the cluster...
Successfully removed occne5-chandrasekhar-musti-k8s-node-4 from the cluster.

- Running terraform apply to update its state...
Successfully applied VmWare terraform apply - check /var/occne/cluster/occne5-chandrasekhar-musti/removeWkrNodeCapture-11282023_105101.log fodetails.

- Updating /etc/hosts on all servers...
Successfully updated file: /etc/hosts on all servers - check /var/occne/cluster/occne5-chandrasekhar-musti/removeWkrNodeCapture-11282023_1051.log for details.

- Updating lbCtrlData.json file...
Successfully updated file: /var/occne/cluster/occne5-chandrasekhar-musti/lbvm/lbCtrlData.json.

- Updating lb-controller-ctrl-data and lb-controller-master-ip configmap...
Successfully created configmap lb-controller-ctrl-data.
Successfully created configmap lb-controller-master-ip.

- Deleting LB Controller POD: occne-lb-controller-server-7b894fb6b5-5cr8g to bind in configmaps...
Successfully restarted deployment occne-lb-controller-server.
Waiting for occne-lb-controller-server deployment to return to Running status.
Deployment "occne-lb-controller-server" successfully rolled out

- Update servers from new occne-lb-controller pod...
Successfully removed the node: occne5-chandrasekhar-musti-k8s-node-4 from server list for each service in haproxy.cfg on LBVMs.

Worker node successfully removed from cluster: occne5-chandrasekhar-musti

Verify if the specified node is removed:

Run the following command to list the worker nodes:

$ kubectl get nodes -o wide

Sample output:

NAME                             STATUS   ROLES                  AGE   VERSION   INTERNAL-IP       EXTERNAL-IP   OS-IMAGE                  KERNEL-VERSION                      CONTAINER-RUNTIME
occne6-my-cluster-k8s-ctrl-1   Ready    control-plane,master   6d23h v1.25.6   192.168.203.106   <none>        Oracle Linux Server 8.7   5.4.17-2136.316.7.el8uek.x86_64   containerd://1.6.15
occne6-my-cluster-k8s-ctrl-2   Ready    control-plane,master   6d23h v1.25.6   192.168.202.122   <none>        Oracle Linux Server 8.7   5.4.17-2136.316.7.el8uek.x86_64   containerd://1.6.15
occne6-my-cluster-k8s-ctrl-3   Ready    control-plane,master   6d23h v1.25.6   192.168.202.248   <none>        Oracle Linux Server 8.7   5.4.17-2136.316.7.el8uek.x86_64   containerd://1.6.15
occne6-my-cluster-k8s-node-1   Ready    <none>                 6d23h v1.25.6   192.168.201.183   <none>        Oracle Linux Server 8.7   5.4.17-2136.316.7.el8uek.x86_64   containerd://1.6.15
occne6-my-cluster-k8s-node-2   Ready    <none>                 6d23h v1.25.6   192.168.201.136   <none>        Oracle Linux Server 8.7   5.4.17-2136.316.7.el8uek.x86_64   containerd://1.6.15
occne6-my-cluster-k8s-node-3   Ready    <none>                 6d23h v1.25.6   192.168.201.131   <none>        Oracle Linux Server 8.7   5.4.17-2136.316.7.el8uek.x86_64   containerd://1.6.15

Run the following command and check if the targeted worker node is removed:

$ kubectl exec -it $(kubectl -n occne-infra get pods | grep occne-lb-controller-server) -n occne-infra -- /bin/bash -c "sqlite3 /data/sqlite/db/lbCtrlData.db 'SELECT * FROM nodeIps;'"

Sample output:

192.168.201.183
192.168.201.136
192.168.201.131

Remove a Kubernetes Worker Node in Bare Metal Deployment

Note:

For any failure or successful run, the system maintains all pipeline outputs in the


                    /var/occne/cluster/${OCCNE_CLUSTER}/removeWrkNodeCapture-<mmddyyyy_hhmmss>.log

file. The system displays other outputs, messages, or errors directly on the terminal during the runtime of the script.

Log in to Bastion Host and verify if it's an active Bastion Host. If the Bastion Host isn't an active Bastion Host, then log in to another.
Use the following command to check if the Bastion Host is an active Bastion Host:
```
$ is_active_bastion
```
The system displays the following output if the Bastion Host is an active Bastion Host:
IS active-bastion

The system displays the following output if the Bastion Host isn't an active Bastion Host:

NOT active-bastion
Navigate to the /var/occne/cluster/${OCCNE_CLUSTER}/artifacts/maintenance directory:
```
$ cd /var/occne/cluster/${OCCNE_CLUSTER}/artifacts/maintenance
```

Run the following command to get the list of nodes and identify the node to be removed:

Note:

The node that you want to remove must be present in the list and must be a worker node.
The node can be in any status (Ready or NotReady).

$ kubectl get nodes

Sample output:

NAME                              STATUS      ROLES           AGE     VERSION
k8s-master-1.test.us.oracle.com   Ready       control-plane   7d15h   v1.25.6
k8s-master-2.test.us.oracle.com   Ready       control-plane   7d15h   v1.25.6
k8s-master-3.test.us.oracle.com   Ready       control-plane   7d15h   v1.25.6
k8s-node-1.test.us.oracle.com     Ready       <none>          7d15h   v1.25.6
k8s-node-2.test.us.oracle.com     Ready       <none>          7d15h   v1.25.6
k8s-node-3.test.us.oracle.com     NotReady    <none>          7d15h   v1.25.6
k8s-node-4.test.us.oracle.com     Ready       <none>          7d15h   v1.25.6

For example, consider that the k8s-node-3.test.us.oracle.com node that is in NotReady state is removed in this procedure.

Run the following command to remove the targeted worker node:

Note:

Remove one node at a time. If you want to remove multiple worker nodes, remove them one by one.
Removing a node can take several minutes. Once the script is run, don't cancel it in between; wait for the script to complete.

$ ./removeBmWorkerNode.py -nn <NODE_FULL_NAME>

where, <NODE_FULL_NAME> is the name of the node that you want to remove (in this case, k8s-3.test.us.oracle.com).

For example:

$ ./removeBmWorkerNode.py -nn k8s-3.test.us.oracle.com

Sample output:

Beginning remove worker node: k8s-3.test.us.oracle.com
 - Backing up configuration files.
    - Backup folder: /var/occne/cluster/delta/backupConfig
 - Removing BM worker node, could take considerable amount of time.
    - k8s-3.test.us.oracle.com is not reachable
       - Performing node cleanup.
          - k8s-3.test.us.oracle.com pods are scheduled for deletion.
             - Node cleanup completed.
       - Removing... Please Wait. Do not cancel.
       - Removed. Check /var/occne/cluster/delta/removeBmWkrNodeCapture-05312024_215105.log for details.
 - Checking if the rook-ceph toolbox deployment already exists.
    - rook-ceph toolbox deployment does not exist.
    - Creating the rook-ceph toolbox deployment.
       - rook-ceph toolbox created.
 - Waiting for Toolbox pod to be Running.
    - Waiting for toolbox pod in namespace rook-ceph to be in Running state, current state:
    - ToolBox pod in namespace rook-ceph is now in Running state.
 - Getting the OSD Id.
    - Found OSD ID: 1, for worker node: k8s-3.test.us.oracle.com
 - Scaling down the rook-ceph-operator deployment.
    - rook-ceph-operator deployment scaled down.
 - Scaling down the OSD deployment.
    - rook-ceph-osd-1 deployment scaled down.
 - Purging OSD Id.
    - OSD.1 purged.
    - OSD host k8s-3.test.us.oracle.com removed.
    - OSD auth key osd.1 removed.
 - Deleting OSD deployment.
    - rook-ceph-osd-1 deleted.
 - Scaling up the rook-ceph-operator deployment.
    - rook-ceph-operator deployment scaled up.
 - Checking if the rook-ceph toolbox deployment exists.
    - Removing the rook-ceph toolbox deployment.
       - rook-ceph toolbox removed.
 - Cleanup leftover rook-ceph-mon replicasets
    - Found pod rook-ceph-mon-c-74f5d4d498-tw4d6, getting replica set...
       - Found deployment rook-ceph-mon-c, deleting...
    - rook-ceph-mon cleanup completed.
Worker node: k8s-3.test.us.oracle.com removed Successfully

Run the following command to verify if the targeted worker node is removed (in this case, k8s-3.test.us.oracle.com):

$ kubectl get nodes

Sample output:

NAME                              STATUS   ROLES           AGE     VERSION
k8s-master-1.test.us.oracle.com   Ready    control-plane   7d15h   v1.29.1
k8s-master-2.test.us.oracle.com   Ready    control-plane   7d15h   v1.29.1
k8s-master-3.test.us.oracle.com   Ready    control-plane   7d15h   v1.29.1
k8s-node-1.test.us.oracle.com     Ready    <none>          7d15h   v1.29.1
k8s-node-2.test.us.oracle.com     Ready    <none>          7d15h   v1.29.1
k8s-node-4.test.us.oracle.com     Ready    <none>          7d15h   v1.29.1

The k8s-3.test.us.oracle.com node deleted in step 5 is not present in the sample output.

Check if the cluster is healthy by checking the pods and services:
```
$ kubectl get pods -A
$ kubectl get svc -A
```
There are many ways to check the health of a cluster. Checking the pods and services is one of the simple options. You can use your preferred way to check the cluster health.
Navigate to the /var/occne/cluster/${OCCNE_CLUSTER}/ directory:
```
$ cd /var/occne/cluster/${OCCNE_CLUSTER}/
```

Edit the hosts.ini file and remove the lines containing the details of the node that is removed (in this case, k8s-3.test.us.oracle.com):

Open the host.ini file in edit mode:
```
$ vi hosts.ini
```

Remove the lines containing the details of the node that is removed, from both the hardware header [host_hp_gen_X]/[host_netra_X] and [kube-node] header.

Note:

As per the example considered in this procedure, the node that is removed is k8s-node-3.test.us.oracle.com. The lines to be removed are highlighted in bold in the following sample output.

[host_hp_gen_X]/[host_netra_X] # Host header may vary depending on your hardware
k8s-host-1.test.us.oracle.com ansible_host=179.1.5.2 hp_ilo=172.16.9.44 mac=a2-27-3d-d3-b4-00 oam_host=10.75.216.13
k8s-host-2.test.us.oracle.com ansible_host=179.1.5.3 hp_ilo=172.16.9.45 mac=4d-d9-1a-e2-7e-e8 oam_host=10.75.216.14
k8s-host-3.test.us.oracle.com ansible_host=179.1.5.4 hp_ilo=172.16.9.46 mac=e1-15-b4-1d-32-10

k8s-node-1.test.us.oracle.com ansible_host=179.1.5.5 hp_ilo=172.16.9.47 mac=3b-d2-2d-f6-1e-20
k8s-node-2.test.us.oracle.com ansible_host=179.1.5.6 hp_ilo=172.16.9.48 mac=a8-1a-37-b1-c0-dc
k8s-node-3.test.us.oracle.com ansible_host=179.1.5.7 hp_ilo=172.16.9.49 mac=a4-be-2d-3f-21-f0
k8s-node-4.test.us.oracle.com ansible_host=179.1.5.8 hp_ilo=172.16.9.35 mac=3a-d9-2c-e6-35-18
.
.
.
[kube-node]
k8s-node-1.test.us.oracle.com
k8s-node-2.test.us.oracle.com
k8s-node-3.test.us.oracle.com
k8s-node-4.test.us.oracle.com

Save the file and exit.

7.3.6 Adding a New External Network

This section provides the procedure to add a new external network that applications can use to talk to external clients, by adding a Peer Address Pool (PAP) in a virtualized CNE (vCNE) and Bare Metal, after installation in CNE.

The cluster must be in good working condition. All pods and services must be running and no existing LBVMs must be in a FAILED state. Use the following command to run a full cluster test before starting the procedure:

OCCNE_STAGES=(TEST) pipeline.sh

7.3.6.1 Adding a New External Network in vCNE

The following procedure provides the steps to add a single Peer Address Pool (PAP) in vCNE.

Each time the script is run, the system creates a log file with a timestamp. The format of the log file is, addpapCapture-<mmddyyyy_hhmmss>.log. For example, addPapCapture-09172021_000823.log. The log includes the output from the Terraform and the pipeline call to configure the new LBVMs.

Each time the script is run, the system creates a new directory, addPapSave-<mmddyyyy-hhmmss>. The following files from the /var/occne/cluster/<cluster_name> directory are saved in the addPapSave-<mmddyyyy-hhmmss> directory:

lbvm/lbCtrlData.json
metallb.auto.tfvars
mb_resources.yaml
terraform.tfstate
hosts.ini
cluster.tfvars

Prerequisites

On an OpenStack deployment, run the following steps to source the OpenStack environment file. This step is not required for a VMware deployment as the credential settings are derived automatically.
1. Log in to Bastion Host and change the directory to the cluster directory:
```
$ cd /var/occne/cluster/${OCCNE_CLUSTER}
```
2. Source the OpenStack environment file:
```
$ source openrc.sh
```

Procedure

Update the /var/occne/cluster/<cluster_name>/<cluster_name>/cluster.tfvars file to include the new pool that is required.
For more information about the following, see Oracle Communications Cloud Native Core, Cloud Native Environment Installation, Upgrade, and Fault Recovery Guide:
- Updating the cluster.tfvars file.
- Adding a Peer Address Pool (PAP) object to the existing cluster.tfvars file.
- Adding the additional PAP name to the occne_metallb_peer_addr_pool_names list.
- Adding the additional pool objects to the occne_metallb_list object.

Run the addPeerAddrPools.py script:

The script is located on the Bastion Host at /var/occne/cluster/<cluster_name>/scripts. The script is fully automated. When the script completes, the new LBVM pair is fully integrated into the deployment. The script doesn't require any parameter and performs all the steps required to complete the addition of the new Peer Address Pool (PAP) including a validation at the end. All output echos back to the terminal.

It is recommended to perform the following before running the script:

Start a terminal output capture process to ensure that all data output is captured (for example, the script).
Run tail -f on the current addPapCapture log file to see how the Terraform and pipeline is running.

Run the following commands to run the addPeerAddrPools.py script:

$ cd /var/occne/cluster/<cluster_name>
$ ./scripts/addPeerAddrPools.py

Sample output to show a new PAP, "sig", added. The cluster_name in the sample output is considered as occne1-cluster:

- Capturing current lbCtrlData.json data...

 - Generating new metallb.auto.tfvars file...
   Successfully generated the metallb.auto.tfvars file.

 - Executing terraform apply to generate new LBVM and port resources...
   . terraform apply attempt 1
   Successful execution of terraform apply -auto-approve -compact-warnings -var-file=/var/occne/cluster/occne1-cluster/occne1-cluster/cluster.tfvars

 - Generating new mb_resources.yaml file...
   Successfully updated the /var/occne/cluster/occne1-cluster/mb_resources.yaml file.

 - Applying new mb_resources.yaml file...
   Successfully applied mb_resources.yaml file.

 - Generating new lbvm/lbCtrlData.json file (can take longer due to number of existing LBVM pairs)...
   Successfully updated the lbvm/lbCtrlData.json file.

 - Generating new pool list...

 - Updating hosts.ini with new LBVMs...
   Successfully updated hosts.ini.

 - Running pipeline to config the new LBVMs (can take 10 minutes or more)...
   Successfully updated the new LBVM config.

 - Updating /etc/hosts with new LBVMs...
   Successfully updated /etc/hosts

 - Generating new config maps for lb-controller...
   . Updating config map: lb-controller-ctrl-data from file: /var/occne/cluster/occne1-cluster/lbvm/lbCtrlData.json
     Successfully applied new config map: lb-controller-ctrl-data from file: /var/occne/occne1-cluster/lbvm/lbCtrlData.json
     Pausing for 30 seconds to allow completion of config map: lb-controller-ctrl-data update from file: /var/occne/cluster/occne1-cluster/lbvm/lbCtrlData.json.
   . Updating config map: lb-controller-master-ip from file: /etc/hosts
     Successfully applied new config map: lb-controller-master-ip from file: /etc/hosts
     Pausing for 30 seconds to allow completion of config map: lb-controller-master-ip update from file: /etc/hosts.
   . Updating config map: lb-controller-mb-resources from file: /var/occne/cluster/occne1-cluster/mb_resources.yaml
     Successfully applied new config map: lb-controller-mb-resources from file: /var/occne/cluster/occne1-cluster/mb_resources.yaml
     Pausing for 30 seconds to allow completion of config map: lb-controller-mb-resources update from file: /var/occne/cluster/occne1-cluster/mb_resources.yaml.
     Successfully restarted deployment: occne-lb-controller-server
     Waiting for occne-lb-controller-server deployment to return to Running status.
     Deployment "occne-lb-controller-server" successfully rolled out

 - Generating the LBVM HAProxy templates...
   Successfully updated the templates files in the LBVMs.

 - Updating the lb-controller Db...
   Successfully added new pools to the lb_controller Db.

 - Restarting occne-egress-controller pods...
     Successfully restarted daemonset: occne-egress-controller
     Waiting for occne-egress-controller daemonset to return to Running status.
   Daemon set "occne-egress-controller" successfully rolled out

 - Restarting occne-metallb-controller pod...
     Successfully restarted deployment: occne-metallb-controller
     Waiting for occne-metallb-controller deployment to return to Running status.
   Deployment "occne-metallb-controller" successfully rolled out

 - Restarting occne-metallb-speaker pods...
     Successfully restarted daemonset: occne-metallb-speaker
     Waiting for occne-metallb-speaker daemonset to return to Running status.
   Daemon set "occne-metallb-speaker" successfully rolled out

 - Validating LBVM configuration
   . Validating IPAddressPool CRD for pool: sig
     IPAddressPool CRD validated successfully for pool: sig
   . Validating BGPAdvertisements CRD for pool: sig
     BGPAdvertisements bgpadvertisement1 validated successfully for pool: sig
   . Validating ACTIVE LBVM for pool: sig
     ACTIVE LBVM haproxy.cfg validation successful for pool: sig
   . Validating LB Controller Db for pool: tme
     LB Controller Db validation successful for pool: sig

Successfully added new LBVMs and ports for the new Peer Address Pool.

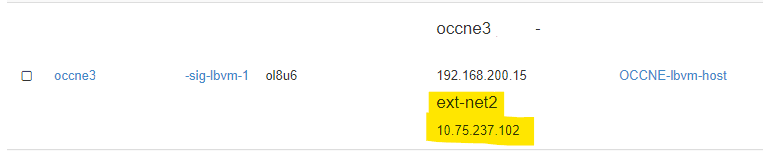

Log in to the OpenStack GUI and validate if the new pool LBVMs are created and the new external egress port is attached to the Active LBVM.

7.3.6.2 Adding a New External Network in Bare Metal

This section describes the procedure to add an additional network to an existing bare metal installation of CNE.

Note:

Run all commands in this procedure from the Bastion Host.

Navigate to the /var/occne/cluster/${OCCNE_CLUSTER} directory.
Edit the mb_resources.yaml file to reflect the new network configuration. Add the following new address pool configuration as per the directions and example provided in the "Populate the MetalLB Configuration" section of Oracle Communications Cloud Native Core, Cloud Native Environment Installation, Upgrade, and Fault Recovery Guide:
- Add the new IPAddressPool section.
- Add the new pool's name to the BGPAdvertisement description.
Run the following command to apply the new metalLB configuration file:
```
$ kubectl apply -f mb_resources.yaml
```
Perfrom the following steps to delete the address pool:
1. Remove the address pool from the IPAddressPool section of the mb_resources.yaml file.
2. Remove the address pool's name from the BGPAdvertisement description.
3. Run the following command to effect the removal of the advertisement:
```
kubectl apply -f mb_resources.yaml
```
4. Run the following command to delete the now orphaned IPAddressPool resource description:
```
kubectl delete IPAddressPool <pool-name>  -n <namespace>
```

7.3.7 Renewing the Platform Service Mesh Root Certificate

This section describes the procedure to renew the root certificate used by the platform service mesh to generate certificates for Mutual Transport Layer Security (mTLS) communication when the Intermediate Certification Authority (ICA) issuer type is used.

Prerequisites

The CNE platform service mesh must have been configured to use the Intermediate CA issuer type.
A network function configured with the platform service mesh, commonly istio, must be available.

Procedure

Renew the root CA certificate
1. Obtain a new certificate and key

  Generate a new signing certificate and key from the external CA that generated the original root CA certificate and key. The generated certificate and key values must be base64 encoded.

  Check the Certificate Authority documentation for generating the required certificate and key.
2. Set required environment variables
  Set the OCCNE_NEW_CA_CERTIFICATE and OCCNE_NEW_CA_KEY as follows:
```
$ OCCNE_NEW_CA_CERTIFICATE=<base64 encoded root CA certificate>
$ OCCNE_NEW_CA_KEY=<base64 encoded root CA key>
```
  Note:
  Ensure that for each certificate and key is encoded with a base64 value.
  Example:
```
OCCNE_NEW_CA_CERTIFICATE=LS0tLS1CRUdJTiBDRVJUSUZJQ0F...0tRU5EIENFUlRJRklDQVRFLS0tLS0K
OCCNE_NEW_CA_KEY=LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVk...CBSU0EgUFJJVkFURSBLRVktLS0tLQo
```
3. Renew the root certificate
  Run the following script to renew the root certificate:
```
$ /var/occne/cluster/${OCCNE_CLUSTER}/artifacts/renew_istio_root_certificate.sh ${OCCNE_NEW_CA_CERTIFICATE} ${OCCNE_NEW_CA_KEY}
```
Verify that root certificate is renewed
1. Check that the Kubernetes Secret containing the certificate and key is updated
  Run the following command to retrieve the istio-ca secret:
```
$ kubectl -n istio-system get secret istio-ca -o jsonpath="{.data['tls\.crt']}"
```
  Verify that the retrieved certificate and key match with the ones provided in the previous step.
2. Verify that the service mesh is configured to use the new certificate:
  1. Run the following command to retrieve the Istio configured root certificate:
```
$ kubectl -n istio-system get cm istio-ca-root-cert -o jsonpath="{.data['root-cert\.pem']}" | base64 -w0; echo
```
  2. Verify that the retrieved certificate and key match with the ones provided in the previous step.
3. Verify that NF pods are aware of the new root certificate.
  Check that NF pod is updated with new root certificate value. It must be same as ${OCCNE_NEW_CA_CERTIFICATE}. Repeat the step for other NF pods as follows:
```
# set the istio binary path
$ ISTIO_BIN=/var/occne/cluster/${OCCNE_CLUSTER}/artifacts/istio-$(cat /var/occne/cluster/${OCCNE_CLUSTER}/artifacts/CFG_container_images.txt | grep istio/pilot | cut -d: -f 2)/bin/istioctl

# set the pod name
$ POD_NAME=<nf-pod-name>

# set the namespace
$ NAME_SPACE=<nf-namespace>

# execute istio proxy-config command to get the root certificate of the NF pod
$ ${ISTIO_BIN} proxy-config secret ${POD_NAME} -n ${NAME_SPACE} -o json | grep -zoP 'trustedCa.*\n.*inlineBytes.*' | tail -n 1 | awk -d: '{ print $2 }' | tr -d \"
```

7.3.8 Performing an etcd Data Backup

This section describes the procedure to back up the etcd database.

A backup copy of the etcd database is required to restore the CNE Kubernetes cluster in case all controller nodes fail simultaneously. You must back up the etcd data in the following scenarios:

After a 5G NF is installed, uninstalled, or upgraded
Before and after CNE is upgraded

This way the backed-up etcd data can be used to recover the CNE Kubernetes cluster during disaster scenarios. The etcd data is consistent across all controller nodes within a cluster. Therefore it is sufficient to take a backup from any one of the active Kubernetes controller nodes.

Procedure

Find Kubernetes controller hostname: Run the following command to get the names of Kubernetes controller nodes. The backup must be taken from any one of the controller nodes that is in Ready state.
```
$ kubectl get nodes
```
Run the etcd-backup script:
1. On the Bastion Host, switch to the /var/occne/cluster/${OCCNE_CLUSTER}/artifacts directory:
```
$ cd /var/occne/cluster/${OCCNE_CLUSTER}/artifacts
```
2. Run the etcd_backup.sh script:
```
$ ./etcd_backup.sh
```
  On running the script, the system prompts you to enter the k8s-ctrl node name. Enter the name of the controller node from which you want to back up the etcd data.

  Note:
  The script keeps only three backup snapshots in the PVC and automatically deletes the older snapshots.

7.4 Managing Kyverno

Policies are used to audit workloads running on Kubernetes. Kubernetes 1.21.x deprecated its policy framework PodSecurityPolicies (PSP) and halted its support in Kubernetes release 1.25.x. Therefore, CNE supports Kyverno, an open-source tool, as an alternate to PSP for managing Kubernetes policies. This section provides information about Kyverno deployment in CNE, migrating from PodSecurityPolicies (PSP) to Kyverno, and using Kyverno to manage Kubernetes policies.

Note:

PodSecurityPolicies (PSP) are not supported from CNE 23.2.x onwards (that is, Kubernetes 1.25.x onwards).
If you are creating your own custom Kyverno policies, ensure that you exclude occne-infra namespace as shown in the following example. This ensures that the existing occne-infra deployments are not affected.
```
policyExclude:
  disallow-capabilities:
    any:
    - resources:
        kinds:
        - Pod
        - DaemonSet
        namespaces:
        - kube-system
        - occne-infra
        - rook-ceph
```

Kyverno Deployment

Kyverno framework is deployed as a common service in CNE. All PSP based policies are removed. CNE is configured with number of baseline policies that are applied across CNE clusters.

The following table provides information about the policies that are deployed in CNE:

Table 7-18 Kyverno Policies

Policy	Policy Level (23.1.x)	Policy Level (23.2.x to 24.2.x)	Policy Level (24.3.x onwards)
disallow-capabilities	audit	enforced	enforced
disallow-host-namespaces	audit	enforced	enforced
disallow-host-path	audit	enforced	enforced
disallow-host-ports	audit	enforced	enforced
disallow-host-process	audit	enforced	enforced
disallow-privileged-containers	audit	enforced	enforced
disallow-proc-mount	audit	enforced	enforced
disallow-selinux	audit	enforced	enforced
restrict-apparmor-profiles	audit	enforced	enforced
restrict-seccomp	audit	enforced	enforced
restrict-sysctls	audit	enforced	enforced
require-emptydir-requests-and-limits	NA	NA	audit

In release 23.1.x, the baseline policies are set to the "audit" level. This means that, the cluster keeps record of the policy failures, but doesn’t cause non-compliant resources to fail. Starting 23.2.x, the policies are set to the "enforced" level. This means that, any resource that are non-compliant to any policy will fail. When a new policy is added in a release, CNE determines the level of the policy to control how a non-compliant scenario is handled.

References:

Kyverno pod security policy: https://github.com/kyverno/kyverno/tree/main/charts/kyverno-policies
Kyverno policy validation and enforcement: https://kyverno.io/docs/writing-policies/validate/
Kyverno policy writing: https://kyverno.io/docs/kyverno-policies/
Kyverno reporting: https://kyverno.io/docs/policy-reports/
Kyverno metrics: https://kyverno.io/docs/monitoring/#installation-and-setup

7.4.1 Accessing Cluster Policy Report

Kyverno performs regular scans and updates validation status in "ClusterPolicyReport". When a new resource is created by a user or process, Kyverno checks the properties of the resource against the validation rule. This section provides information about access ClusterPolicyReport.

Run the following command to access

ClusterPolicyReport

:

$kubectl get policyreport -A

Sample output:

NAMESPACE       NAME                    PASS   FAIL   WARN   ERROR   SKIP   AGE
cert-manager    polr-ns-cert-manager    36     0      0      0       0      10d
ingress-nginx   polr-ns-ingress-nginx   11     1      0      0       0      10d
istio-system    polr-ns-istio-system    12     0      0      0       0      10d
occne-infra     polr-ns-occne-infra     263    13     0      0       0      10d

You can use the describe policyreport command to get details about the policies that is violated. For example, in the above example, the ingress-nginx deployment reports one violation. You can use the following command to get details about the policy violation in ingress-nginx:

$kubectl describe policyreport polr-ns-ingress-nginx -n ingress-nginx

Sample output:

Name:         polr-ns-ingress-nginx
Namespace:    ingress-nginx
Labels:       managed-by=kyverno
Annotations:  <none>
API Version:  wgpolicyk8s.io/v1alpha2
Kind:         PolicyReport
.
.
.
Results:
  Category:  Pod Security Standards (Baseline)
  Message:   validation error: Use of host ports is disallowed. The fields spec.containers[*].ports[*].hostPort , spec.initContainers[*].ports[*].hostPort, and spec.ephemeralContainers[*].ports[*].hostPort must either be unset or set to `0`. Rule autogen-host-ports-none failed at path /spec/template/spec/containers/0/ports/0/hostPort/
  Policy:    disallow-host-ports
  Resources:
    API Version:  apps/v1
    Kind:         DaemonSet
    Name:         ingress-nginx-controller
    Namespace:    ingress-nginx

The sample output shows that the ingress-nginx-controller resource violates the disallow-host-ports policy.

7.4.2 Migrating from PSP to Kyverno

Every component that runs on CNE 23.2.x and above must migrate all PSP based policy resources to Kyverno pod security policies. For information and examples about performing a migration from PSP to Kyveno, see Kyverno pod security policy and Kyverno source documentations.

7.4.3 Adding Policy Exclusions and Exceptions

This section provides details about adding exclusions and exceptions to Kyverno policies.

Adding Exclusions

Exclusions simplify policy management when used alongside Pod Security Admission (PSA). Instead of creating multiple policies for each control in PSA, you can leverage Kyverno to provide detailed and selective exclusions, reducing policy overhead and enhancing overall manageability. You can add exclusion to policies by editing the current policies or running kubectl patch. For more information about policy exclusions, see Kyverno documentation.

Adding Exceptions

There are scenarios where users need to deploy resources that require privileged access. This can be done by adding exceptions to the Kyverno policies for individual resources. The following code block provides a sample YAML file with the required information to create a PolicyException resource:

apiVersion: v1
items:
- apiVersion: kyverno.io/v2alpha1
  kind: PolicyException
  metadata:
    name: cncc-exception
    namespace: occne-infra
  spec:
    exceptions:
    - policyName: disallow-capabilities
      ruleNames:
      - adding-capabilities
    match:
      any:
      - resources:
          kinds:
          - Pod
          - Deployment
          names:
          - cncc-debug-tool*
          namespaces:
          - cncc
kind: List
metadata:
  resourceVersion: ""

In this example, PolicyException allows the pods named cncc-debug-tool* (the * character indicates the system to include any resources belonging to a deployment to be allowed) in the "cncc" namespace to bypass the "disallow-capabilities > adding-capabilities" policy.

After creating the policy exception file (in this case, policyException.yaml), proceed to create the resource:

$ kubectl create -f policyException.yaml

7.4.4 Managing Kyverno Metrics

When you install Kyverno using Helm, additional services are created inside the Kyverno namespace that expose metrics on port 8000. This section provides details about managing Kyverno metrics.

You can the following command to get the Kyverno metric services:

$ kubectl -n kyverno get svc

By default, the service type of these services is ClusterIP.

Turning off Metrics in Kyverno

This section provides the procedure to turnoff Kyverno metrics.

Before turning off Kyverno metrics, be aware that turning off Kyverno metrics has the following implications:

Kyverno Grafana dashboard will stop working, losing insights into policy enforcement and compliance monitoring.
There will be lack of resource usage monitoring for Kyverno controller.
There will be reduced troubleshooting capabilities and difficulty in identifying issues.
There will be limited observability and visibility into Kyverno's behavior and performance.
It impacts decision-making process as you become less data-driven.

Retrieve the current configuration of FluentBit to the fluent-bit.yaml file:

$ helm -n occne-infra get values occne-fluent-bit -o yaml > fluent-bit.yaml

Open the fluent-bit.yaml file you created in the previous step in edit mode:
```
$ vi fluent-bit.yaml
```

Delete the content in the "metricsService" section:

...


metricsService:
    create: true
    type: ClusterIP
    port: 8000


...

Upgrade your installation using Helm:

$ helm -n occne-infra upgrade occne-fluent-bit fluent/fluent-bit -f fluent-bit.yaml

7.4.5 Validating Kyverno Compliance

This section provides the steps to validate if the CNE cluster runs Kyverno policy management tool and if all CNE resources run in compliance mode.

Prerequisites

Before validating Kyverno compliance, ensure that the following prerequisites are met:

CNE cluster must be healthy.
The CNE cluster version must be at least 23.2.0.
All pods in the cluster must be running.
There must be no violations in the Kyverno report.

Verify Kyverno Policies:

Run the following command to list all clusterpolicy configured by Kyverno:

$ kubectl get clusterpolicy -n kyverno

Sample output:

NAME                             BACKGROUND   VALIDATE ACTION   READY   AGE
disallow-capabilities            true         Enforce           true    10h
disallow-host-namespaces         true         Enforce           true    10h
disallow-host-path               true         Enforce           true    10h
disallow-host-ports              true         Enforce           true    10h
disallow-host-process            true         Enforce           true    10h
disallow-privileged-containers   true         Enforce           true    10h
disallow-proc-mount              true         Enforce           true    10h
disallow-selinux                 true         Enforce           true    10h
restrict-apparmor-profiles       true         Enforce           true    10h
restrict-seccomp                 true         Enforce           true    10h
restrict-sysctls                 true         Enforce           true    10h

Run the following command and ensure that there are no policy violations in any policy report in any namespace:

$ kubectl get policyreport -A

Sample output:

NAMESPACE       NAME                                  PASS   FAIL   WARN   ERROR   SKIP   AGE
cert-manager    cpol-disallow-capabilities            3      0      0      0       0      9h
cert-manager    cpol-disallow-host-namespaces         3      0      0      0       0      9h
cert-manager    cpol-disallow-host-path               3      0      0      0       0      9h
cert-manager    cpol-disallow-host-ports              3      0      0      0       0      9h
cert-manager    cpol-disallow-host-process            9      0      0      0       0      9h
cert-manager    cpol-disallow-privileged-containers   3      0      0      0       0      9h
cert-manager    cpol-disallow-proc-mount              9      0      0      0       0      9h
cert-manager    cpol-disallow-selinux                 18     0      0      0       0      9h
cert-manager    cpol-restrict-apparmor-profiles       9      0      0      0       0      9h
cert-manager    cpol-restrict-seccomp                 9      0      0      0       0      9h
cert-manager    cpol-restrict-sysctls                 9      0      0      0       0      9h
ingress-nginx   cpol-disallow-capabilities            4      0      0      0       0      10h
ingress-nginx   cpol-disallow-host-namespaces         4      0      0      0       0      10h
ingress-nginx   cpol-disallow-host-path               4      0      0      0       0      10h
ingress-nginx   cpol-disallow-host-process            5      0      0      0       0      10h
ingress-nginx   cpol-disallow-privileged-containers   4      0      0      0       0      10h
ingress-nginx   cpol-disallow-proc-mount              5      0      0      0       0      10h
ingress-nginx   cpol-disallow-selinux                 10     0      0      0       0      10h
ingress-nginx   cpol-restrict-apparmor-profiles       5      0      0      0       0      10h
ingress-nginx   cpol-restrict-seccomp                 5      0      0      0       0      10h
ingress-nginx   cpol-restrict-sysctls                 5      0      0      0       0      10h
istio-system    cpol-disallow-capabilities            1      0      0      0       0      9h
istio-system    cpol-disallow-host-namespaces         1      0      0      0       0      9h
istio-system    cpol-disallow-host-path               1      0      0      0       0      9h
istio-system    cpol-disallow-host-ports              1      0      0      0       0      9h
istio-system    cpol-disallow-host-process            3      0      0      0       0      9h
istio-system    cpol-disallow-privileged-containers   1      0      0      0       0      9h
istio-system    cpol-disallow-proc-mount              3      0      0      0       0      9h
istio-system    cpol-disallow-selinux                 6      0      0      0       0      9h
istio-system    cpol-restrict-apparmor-profiles       3      0      0      0       0      9h
istio-system    cpol-restrict-seccomp                 3      0      0      0       0      9h
istio-system    cpol-restrict-sysctls                 3      0      0      0       0      9h
kube-system     cpol-disallow-host-process            62     0      0      0       0      10h
kube-system     cpol-disallow-proc-mount              62     0      0      0       0      10h
kube-system     cpol-disallow-selinux                 124    0      0      0       0      10h
kube-system     cpol-restrict-apparmor-profiles       62     0      0      0       0      10h
kube-system     cpol-restrict-seccomp                 62     0      0      0       0      10h
kube-system     cpol-restrict-sysctls                 62     0      0      0       0      10h
kyverno         cpol-disallow-capabilities            3      0      0      0       0      9h
kyverno         cpol-disallow-host-namespaces         3      0      0      0       0      9h
kyverno         cpol-disallow-host-path               3      0      0      0       0      9h
kyverno         cpol-disallow-host-ports              3      0      0      0       0      9h
kyverno         cpol-disallow-host-process            5      0      0      0       0      9h
kyverno         cpol-disallow-privileged-containers   3      0      0      0       0      9h
kyverno         cpol-disallow-proc-mount              5      0      0      0       0      9h
kyverno         cpol-disallow-selinux                 10     0      0      0       0      9h
kyverno         cpol-restrict-apparmor-profiles       5      0      0      0       0      9h
kyverno         cpol-restrict-seccomp                 5      0      0      0       0      9h
kyverno         cpol-restrict-sysctls                 5      0      0      0       0      9h
occne-infra     cpol-disallow-host-process            86     0      0      0       0      9h
occne-infra     cpol-disallow-proc-mount              86     0      0      0       0      9h
occne-infra     cpol-disallow-selinux                 172    0      0      0       0      9h
occne-infra     cpol-restrict-apparmor-profiles       86     0      0      0       0      9h
occne-infra     cpol-restrict-seccomp                 86     0      0      0       0      9h
occne-infra     cpol-restrict-sysctls                 86     0      0      0       0      9h

Run the following command to verify that there are no pods running in the cluster due to Kyverno clusterpolicy:
```
$ kubectl get pods -A | grep -v Runn
```
Sample output:
```
NAMESPACE      NAME      READY       STATUS       RESTARTS          AGE
```

Verify the daemonset, statefulset, and deployment in the cluster:

Run the following command to verify all the deamonset (ds) in the cluster:

$ kubectl -n occne-infra get ds

Sample output:

NAME                                             DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR            AGE
occne-egress-controller                          4         4         4       4            4                             11h
occne-fluent-bit                                 4         4         4       4            4                             11h
occne-kube-prom-stack-prometheus-node-exporter   7         7         7       7            7                             11h
occne-metallb-speaker                            4         4         4       4            4           kubernetes.io/os=linux   11h
occne-tracer-jaeger-agent                        4         4         4       4            4                             11h

Run the following command to verify all the statefulset (sts) in the cluster:

$ kubectl -n occne-infra get sts

Sample output:

NAME                                                   READY   AGE
alertmanager-occne-kube-prom-stack-kube-alertmanager   2/2     11h
occne-opensearch-cluster-client                        3/3     11h
occne-opensearch-cluster-data                          3/3     11h
occne-opensearch-cluster-master                        3/3     11h
prometheus-occne-kube-prom-stack-kube-prometheus       2/2     11h

Run the following command to verify all the deploy in the cluster:

$ kubectl -n occne-infra get deploy

Sample output:

NAME                                       READY   UP-TO-DATE   AVAILABLE   AGE
occne-bastion-controller                   1/1     1            1           11h
occne-kube-prom-stack-grafana              1/1     1            1           11h
occne-kube-prom-stack-kube-operator        1/1     1            1           11h
occne-kube-prom-stack-kube-state-metrics   1/1     1            1           11h
occne-lb-controller-server                 1/1     1            1           11h
occne-metallb-controller                   1/1     1            1           11h
occne-metrics-server                       1/1     1            1           11h
occne-opensearch-dashboards                1/1     1            1           11h
occne-promxy                               1/1     1            1           11h
occne-promxy-apigw-nginx                   2/2     2            2           11h
occne-snmp-notifier                        1/1     1            1           11h
occne-tracer-jaeger-collector              1/1     1            1           11h
occne-tracer-jaeger-query                  1/1     1            1           11h

Scale down and scale up the deployments to verify any impact of Kyverno clusterpolicy:

Run the following command to scale down the deployment in the cluster:
```
kubectl scale --replicas=0 deploy --all -n occne-infra
```

Run the following command to scale up the deployment in the cluster:

$ kubectl scale --replicas=1 deploy --all -n occne-infra
$ kubectl scale --replicas=2 deploy occne-promxy-apigw-nginx -n occne-infra

Run the following command to get the deployment list:

$ kubectl -n occne-infra get deploy

Sample output:

NAME                                       READY   UP-TO-DATE   AVAILABLE   AGE
occne-bastion-controller                   1/1     1            1           12h
occne-kube-prom-stack-grafana              1/1     1            1           12h
occne-kube-prom-stack-kube-operator        1/1     1            1           12h
occne-kube-prom-stack-kube-state-metrics   1/1     1            1           12h
occne-lb-controller-server                 1/1     1            1           12h
occne-metallb-controller                   1/1     1            1           12h
occne-metrics-server                       1/1     1            1           12h
occne-opensearch-dashboards                1/1     1            1           12h
occne-promxy                               1/1     1            1           12h
occne-promxy-apigw-nginx                   2/2     2            2           12h
occne-snmp-notifier                        1/1     1            1           12h
occne-tracer-jaeger-collector              1/1     1            1           12h
occne-tracer-jaeger-query                  1/1     1            1           12h

Run the following command to scale down the statefulset (sts) in the cluster:

$ kubectl scale --replicas=0 sts --all -n occne-infra

Sample output:

statefulset.apps/alertmanager-occne-kube-prom-stack-kube-alertmanager scaled
statefulset.apps/occne-opensearch-cluster-client scaled
statefulset.apps/occne-opensearch-cluster-data scaled
statefulset.apps/occne-opensearch-cluster-master scaled
statefulset.apps/prometheus-occne-kube-prom-stack-kube-prometheus scaled

Run the following command to scale up the statefulset (sts) in the cluster:

$ kubectl scale sts occne-opensearch-cluster-master occne-opensearch-cluster-data occne-opensearch-cluster-client -n occne-infra --replicas 3

Run the following command to get the list of statefulset:

$ kubectl -n occne-infra get sts

Sample output:

NAME                                                   READY   AGE
alertmanager-occne-kube-prom-stack-kube-alertmanager   2/2     2d19h
occne-opensearch-cluster-client                        3/3     2d19h
occne-opensearch-cluster-data                          3/3     2d19h
occne-opensearch-cluster-master                        3/3     2d19h
prometheus-occne-kube-prom-stack-kube-prometheus       2/2     2d19h

Run the following command to restart the daemonset (ds):

$ kubectl rollout restart ds -n occne-infra

Sample output:

daemonset.apps/occne-egress-controller restarted
daemonset.apps/occne-fluent-bit restarted
daemonset.apps/occne-kube-prom-stack-prometheus-node-exporter restarted
daemonset.apps/occne-metallb-speaker restarted
daemonset.apps/occne-tracer-jaeger-agent restarted

Run the following command to get the list of daemonset:

$ kubectl -n occne-infra get ds

Sample output:

NAME                                             DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR            AGE
occne-egress-controller                          4         4         4       4            4           <none>                   2d19h
occne-fluent-bit                                 4         4         4       4            4           <none>                   2d19h
occne-kube-prom-stack-prometheus-node-exporter   7         7         7       7            7           <none>                   2d19h
occne-metallb-speaker                            4         4         4       4            4           kubernetes.io/os=linux   2d19h
occne-tracer-jaeger-agent                        4         4         4       4            4           <none>                   2d19h

Reverify Kyverno Policies:

Run the following command to list all the cluster policies configured by Kyverno:

$ kubectl get clusterpolicy -n kyverno

Sample output:

NAME                             BACKGROUND   VALIDATE ACTION   READY   AGE
disallow-capabilities            true         Enforce           true    12h
disallow-host-namespaces         true         Enforce           true    12h
disallow-host-path               true         Enforce           true    12h
disallow-host-ports              true         Enforce           true    12h
disallow-host-process            true         Enforce           true    12h
disallow-privileged-containers   true         Enforce           true    12h
disallow-proc-mount              true         Enforce           true    12h
disallow-selinux                 true         Enforce           true    12h
restrict-apparmor-profiles       true         Enforce           true    12h
restrict-seccomp                 true         Enforce           true    12h
restrict-sysctls                 true         Enforce           true    12h

Run the following command and ensure that there are no policy violations in any policy report in any namespace:

$ kubectl get policyreport -A

Sample output:

NAMESPACE       NAME                                  PASS   FAIL   WARN   ERROR   SKIP   AGE
cert-manager    cpol-disallow-capabilities            3      0      0      0       0      2d15h
cert-manager    cpol-disallow-host-namespaces         3      0      0      0       0      2d15h
cert-manager    cpol-disallow-host-path               3      0      0      0       0      2d15h
cert-manager    cpol-disallow-host-ports              3      0      0      0       0      2d15h
cert-manager    cpol-disallow-host-process            9      0      0      0       0      2d15h
cert-manager    cpol-disallow-privileged-containers   3      0      0      0       0      2d15h
cert-manager    cpol-disallow-proc-mount              9      0      0      0       0      2d15h
cert-manager    cpol-disallow-selinux                 18     0      0      0       0      2d15h
cert-manager    cpol-restrict-apparmor-profiles       9      0      0      0       0      2d15h
cert-manager    cpol-restrict-seccomp                 9      0      0      0       0      2d15h
cert-manager    cpol-restrict-sysctls                 9      0      0      0       0      2d15h
ingress-nginx   cpol-disallow-capabilities            4      0      0      0       0      2d15h
ingress-nginx   cpol-disallow-host-namespaces         4      0      0      0       0      2d15h
ingress-nginx   cpol-disallow-host-path               4      0      0      0       0      2d15h
ingress-nginx   cpol-disallow-host-process            5      0      0      0       0      2d15h
ingress-nginx   cpol-disallow-privileged-containers   4      0      0      0       0      2d15h
ingress-nginx   cpol-disallow-proc-mount              5      0      0      0       0      2d15h
ingress-nginx   cpol-disallow-selinux                 10     0      0      0       0      2d15h
ingress-nginx   cpol-restrict-apparmor-profiles       5      0      0      0       0      2d15h
ingress-nginx   cpol-restrict-seccomp                 5      0      0      0       0      2d15h
ingress-nginx   cpol-restrict-sysctls                 5      0      0      0       0      2d15h
istio-system    cpol-disallow-capabilities            1      0      0      0       0      2d15h
istio-system    cpol-disallow-host-namespaces         1      0      0      0       0      2d15h
istio-system    cpol-disallow-host-path               1      0      0      0       0      2d15h
istio-system    cpol-disallow-host-ports              1      0      0      0       0      2d15h
istio-system    cpol-disallow-host-process            3      0      0      0       0      2d15h
istio-system    cpol-disallow-privileged-containers   1      0      0      0       0      2d15h
istio-system    cpol-disallow-proc-mount              3      0      0      0       0      2d15h
istio-system    cpol-disallow-selinux                 6      0      0      0       0      2d15h
istio-system    cpol-restrict-apparmor-profiles       3      0      0      0       0      2d15h
istio-system    cpol-restrict-seccomp                 3      0      0      0       0      2d15h
istio-system    cpol-restrict-sysctls                 3      0      0      0       0      2d15h
kube-system     cpol-disallow-host-process            62     0      0      0       0      2d15h
kube-system     cpol-disallow-proc-mount              62     0      0      0       0      2d15h
kube-system     cpol-disallow-selinux                 124    0      0      0       0      2d15h
kube-system     cpol-restrict-apparmor-profiles       62     0      0      0       0      2d15h
kube-system     cpol-restrict-seccomp                 62     0      0      0       0      2d15h
kube-system     cpol-restrict-sysctls                 62     0      0      0       0      2d15h
kyverno         cpol-disallow-capabilities            3      0      0      0       0      2d15h
kyverno         cpol-disallow-host-namespaces         3      0      0      0       0      2d15h
kyverno         cpol-disallow-host-path               3      0      0      0       0      2d15h
kyverno         cpol-disallow-host-ports              3      0      0      0       0      2d15h
kyverno         cpol-disallow-host-process            5      0      0      0       0      2d15h
kyverno         cpol-disallow-privileged-containers   3      0      0      0       0      2d15h
kyverno         cpol-disallow-proc-mount              5      0      0      0       0      2d15h
kyverno         cpol-disallow-selinux                 10     0      0      0       0      2d15h
kyverno         cpol-restrict-apparmor-profiles       5      0      0      0       0      2d15h
kyverno         cpol-restrict-seccomp                 5      0      0      0       0      2d15h
kyverno         cpol-restrict-sysctls                 5      0      0      0       0      2d15h
occne-infra     cpol-disallow-host-process            88     0      0      0       0      2d15h
occne-infra     cpol-disallow-proc-mount              88     0      0      0       0      2d15h
occne-infra     cpol-disallow-selinux                 176    0      0      0       0      2d15h
occne-infra     cpol-restrict-apparmor-profiles       88     0      0      0       0      2d15h
occne-infra     cpol-restrict-seccomp                 88     0      0      0       0      2d15h
occne-infra     cpol-restrict-sysctls                 88     0      0      0       0      2d15h

Run the following command to verify that there are no pods running in the cluster due to Kyverno clusterpolicy:
```
$ kubectl get pods -A | grep -v Runn
```
Sample output:
```
NAMESPACE      NAME      READY       STATUS       RESTARTS          AGE
```

7.5 Updating Grafana Password

This section describes the procedure to update the password of Grafana which is used to access the graphical user interface of Grafana dashboard.

Prerequisites

A CNE cluster of version 22.x or above must be deployed.
The Grafana pod must be up and running.
The Load Balancer IP of Grafana must be accessible through browser.

Limitations and Expectations

This procedure works on the existing Grafana deployments instantly. However, this procedure requires a restart of the Grafana pod causing temporary unavailability of the service.
The grafana-cli is used to update the password by running an exec to get into the pod, which means it's ephemeral.
The newly set password is not persistent. Therefore, if the Grafana pod restarts or crashes due to any unfortunate incidents, then rerun this procedure to set the password. Otherwise, the GUI displays the Invalid Username or Password errors.
Only the password that is updated during an installation is persistent. However, if you change this password impromptu and patch the new password into the secret again, the password change doesn't take effect. To update and persist a password, use this procedure during installation of the CNE cluster.

Procedure

Log in to the Bastion Host of your CNE cluster.

Get the name of the Grafana pod in the occne-infra namespace:

$ kubectl get pods -n occne-infra | grep grafana

For example:

$ kubectl get pods | grep grafana

Sample output:

occne-prometheus-grafana-7f5fb7c4d4-lxqsr 3/3 Running 0 12m

Use exec to get into the Grafana pod:

$ kco exec -it occne-prometheus-grafana-7f5fb7c4d4-lxqsr bash

Run the following command to update the password:

Note:

Use a strong unpredictable password consisting of complex strings of more than 10 mixed characters.

$ grafana-cli admin reset-admin-password <password>

where, <password> is the new password to be updated.

For example:

occne-prometheus-grafana-7f5fb7c4d4-lxqsr:/usr/share/grafana$ grafana-cli admin reset-admin-password samplepassword123#

Sample output:

INFO [01-29|07:44:25] Starting Grafana logger=settings version= commit= branch= compiled=1970-01-01T00:00:00Z
WARN [01-29|07:44:25] "sentry" frontend logging provider is deprecated and will be removed in the next major version. Use "grafana" provider instead. logger=settings
INFO [01-29|07:44:25] Config loaded from logger=settings file=/usr/share/grafana/conf/defaults.ini
INFO [01-29|07:44:25] Config overridden from Environment variable logger=settings var="GF_PATHS_DATA=/var/lib/grafana/"
INFO [01-29|07:44:25] Config overridden from Environment variable logger=settings var="GF_PATHS_LOGS=/var/log/grafana"
INFO [01-29|07:44:25] Config overridden from Environment variable logger=settings var="GF_PATHS_PLUGINS=/var/lib/grafana/plugins"
INFO [01-29|07:44:25] Config overridden from Environment variable logger=settings var="GF_PATHS_PROVISIONING=/etc/grafana/provisioning"
INFO [01-29|07:44:25] Config overridden from Environment variable logger=settings var="GF_SECURITY_ADMIN_USER=admin"
INFO [01-29|07:44:25] Config overridden from Environment variable logger=settings var="GF_SECURITY_ADMIN_PASSWORD=*********"
INFO [01-29|07:44:25] Target logger=settings target=[all]
INFO [01-29|07:44:25] Path Home logger=settings path=/usr/share/grafana
INFO [01-29|07:44:25] Path Data logger=settings path=/var/lib/grafana/
INFO [01-29|07:44:25] Path Logs logger=settings path=/var/log/grafana
INFO [01-29|07:44:25] Path Plugins logger=settings path=/var/lib/grafana/plugins
INFO [01-29|07:44:25] Path Provisioning logger=settings path=/etc/grafana/provisioning
INFO [01-29|07:44:25] App mode production logger=settings
INFO [01-29|07:44:25] Connecting to DB logger=sqlstore dbtype=sqlite3
INFO [01-29|07:44:25] Starting DB migrations logger=migrator
INFO [01-29|07:44:25] migrations completed logger=migrator performed=0 skipped=484 duration=908.661µs
INFO [01-29|07:44:25] Envelope encryption state logger=secrets enabled=true current provider=secretKey.v1

Admin password changed successfully ✔

After updating the password, log in to the Grafana GUI using the updated password. Ensure that you are aware of the limitations listed in Limitations and Expectations.

7.6 Updating OpenStack Credentials

This section describes the procedure to update the OpenStack credentials for vCNE.

Prerequisites

You must have access to active Bastion Host of the cluster.
All commands in this procedure must be run from the active CNE Bastion Host.
You must have knowledge of kubectl and handling base64 encoded and decoded strings.

Modifying Password for Cinder Access

Kubernetes uses the cloud-config secret when interacting with OpenStack Cinder to acquire persistent storage for applications. The following steps describe how to update this secret to include the new password.

Run the following command to decode and save the current cloud-config secret configurations in a temporary file:

$ kubectl get secret cloud-config -n kube-system -o jsonpath="{.data.cloud\.conf}" | base64 --decode > /tmp/decoded_cloud_config.txt

Run the following command to open the temporary file in vi editor and update the username and password fields in the file with required values:
```
$ vi /tmp/decoded_cloud_config.txt
```
Sample to edit the username and password:
```
username="new_username"
password="new_password"
```
After updating the credentials, save and exit from the file.
Run the following command to re-encode the cloud-config secret in Base64. Save the encoded output to use it in the following step.
```
$ cat /tmp/decoded_cloud_config.txt | base64 -w0
```

Run the following command to edit the cloud-config Kubernetes secret:

$ kubectl edit secret cloud-config -n kube-system

Refer to the following sample to edit the cloud-config Kubernetes secret:

Note:

Replace <encoded-output> in the following sample with the encoded output that you saved in the previous step.

# Please edit the object below. Lines beginning with a '#' will be ignored,
# and an empty file will abort the edit. If an error occurs while saving this file will be
# reopened with the relevant failures.
#
apiVersion: v1
data:
 cloud.conf: <encoded-output>
kind: Secret
metadata:
 annotations:
 kubectl.kubernetes.io/last-applied-configuration: |
 {"apiVersion":"v1","data":{"cloud.conf":"<encoded-output>"},"kind":"Secret","metadata":{"annotations":{},"name":"cloud-config","namespace":"kube-system"}}
 creationTimestamp: "2022-01-12T02:34:52Z"
 name: cloud-config
 namespace: kube-system
 resourceVersion: "2225"
 uid: 0994b024-6a4d-41cf-904c
type: Opaque

Save the changes and exit the editor.

Run the following command to remove the temporary file:
```
$ rm /tmp/decoded_cloud_config.txt
```

Modifying Password for OpenStack Cloud Controller Access

Kubernetes uses the external-openstack-cloud-config secret when interacting with the OpenStack Controller. The following steps describe the procedure to update the secret to include the new credentials.

Run the following command to decode the current external-openstack-cloud-config secret configurations in a temporary file:

$ kubectl get secret external-openstack-cloud-config -n kube-system -o jsonpath="{.data.cloud\.conf}" | base64 --decode > /tmp/decoded_external_openstack_cloud_config.txt

Run the following command to open the temporary file in vi editor and update the username and password fields in the file with required values:
```
$ vi /tmp/decoded_external_openstack_cloud_config.txt
```
Sample to edit the username and password:
```
username="new_username"
password="new_password"
```
After updating the credentials, save and exit from the file.
Run the following command to re-encode external-openstack-cloud-config in Base64. Save the encoded output to use it in the following step.
```
$ cat /tmp/decoded_external_openstack_cloud_config.txt | base64 -w0
```
Run the following command to edit the Kubernetes Secret named, external-openstack-cloud-config:
```
$ kubectl edit secret external-openstack-cloud-config -n kube-system
```
Refer to the following sample to edit the external-openstack-cloud-config Kubernetes Secret with the new encoded value:
Note:
- Replace <encoded-output> in the following sample with the encoded output that you saved in the previous step.
- An empty file aborts the edit. If an error occurs while saving, the file reopens with the relevant failures.
```
apiVersion: v1
data:
  ca.cert:
  cloud.conf:<encoded-output>
kind: Secret
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"v1","data":{"ca.cert":" ","cloud.conf":"<encoded-output>"},"kind":"Secret","metadata":{"annotations":{},"name":"external-openstack-cloud-config","namespace":"kube-system"}}
  creationTimestamp: "2022-07-21T17:05:26Z"
  name: external-openstack-cloud-config
  namespace: kube-system
  resourceVersion: "16"
  uid: 9c18f914-9c78-401d-ae79
type: Opaque
```
Save the changes and exit the editor.
Run the following command to remove the temporary file:
```
$ rm /tmp/decoded_external_openstack_cloud_config.txt
```

Restarting Affected Pods to Use the New Password

Services that use OpenStack credentials must be restarted to use the new password. The following steps describe how to restart the services.

Note:

Before restarting the services, verify that all the affected Kubernetes resources to be restarted are in healthy state.

Perform the following steps to restart Cinder Container Storage Interface (Cinder CSI) controller plugin:
1. Run the following command to restart Cinder Container Storage Interface (Cinder CSI) deployment:
```
$ kubectl rollout restart deployment csi-cinder-controllerplugin -n kube-system
```
  Sample output:
```
deployment.apps/csi-cinder-controllerplugin restarted
```
2. Run the following command to get the pod and verify if it is running:
```
$ kubectl get pods -l app=csi-cinder-controllerplugin -n kube-system
```
  Sample output:
```
NAME                                           READY   STATUS    RESTARTS   AGE
csi-cinder-controllerplugin-7c9457c4f8-88sbt   6/6     Running   0          19m
```
3. [Optional]: If the pod is not up or if the pod is in the crashloop state, get the logs from the cinder-csi-plugin container inside the csi-cinder-controller pod using labels and validate the logs for more information:
```
$ kubectl logs -l app=csi-cinder-controllerplugin -c cinder-csi-plugin -n kube-system
```
  Sample output to show a successful log retrieval:
```
I0904 21:36:09.162886       1 server.go:106] Listening for connections on address: &net.UnixAddr{Name:"/csi/csi.sock", Net:"unix"}
```
  Sample output to show a log retrieval failure:
```
W0904 21:34:34.252515       1 main.go:105] Failed to GetOpenStackProvider: Authentication failed
```

Perform the following steps to restart Cinder Container Storage Interface (Cinder CSI) nodeplugin daemonset:

Run the following command to restart Cinder Container Storage Interface (Cinder CSI) nodeplugin daemonset:
```
$ kubectl rollout restart -n kube-system daemonset csi-cinder-nodeplugin
```
Sample output:
```
daemonset.apps/csi-cinder-nodeplugin restarted
```

Run the following command to get the pod and verify if it is running:

$ kubectl get pods -l app=csi-cinder-nodeplugin -n kube-system

Sample output:

NAME                          READY   STATUS    RESTARTS   AGE
csi-cinder-nodeplugin-pqqww   3/3     Running   0          3d19h
csi-cinder-nodeplugin-vld6m   3/3     Running   0          3d19h
csi-cinder-nodeplugin-xg2kj   3/3     Running   0          3d19h
csi-cinder-nodeplugin-z5vck   3/3     Running   0          3d19h
csi-cinder-nodeplugin-z5vck   3/3     Running   0          3d19h
csi-cinder-nodeplugin-z5vck   3/3     Running   0          3d19h
csi-cinder-nodeplugin-z5vck   3/3     Running   0          3d19h

[Optional]: If the pod is not up or if the pod is in the crashloop state, verify the logs for more information

Run the following command to restart the OpenStack cloud controller daemonset:
1. Run the following command to restart the OpenStack cloud controller daemonset:
```
$ kubectl rollout restart -n kube-system daemonset openstack-cloud-controller-manager
```
  Sample output:
```
daemonset.apps/openstack-cloud-controller-manager restarted
```
2. Run the following command to get the pod and verify if it is running:
```
$ kubectl get pods -l k8s-app=openstack-cloud-controller-manager -n kube-system
```
  Sample output:
```
NAME                                       READY   STATUS    RESTARTS   AGE
openstack-cloud-controller-manager-qtfff   1/1     Running   0          38m
openstack-cloud-controller-manager-sn2pg   1/1     Running   0          38m
openstack-cloud-controller-manager-w5dcv   1/1     Running   0          38m
```
3. [Optional]: If the pod is not up, or is in the crashloop state, verify the logs for more information.

Changing Inventory File

When you perform the steps to modify password for Cinder access and modify password for OpenStack cloud controller access, you modify the Kubernetes secrets to contain the new credentials. However, running the pipeline (for example, performing a standard upgrade or adding a new node to the cluster) takes the current credentials stored in the occne.ini file, causing the changes to be overridden. Therefore, it is important to update the occne.ini file with the new credentials.

Navigate to the cluster directory:
```
$ cd /var/occne/cluster/${OCCNE_CLUSTER}/
```
Open the occne.ini file:
```
$ vi occne.ini
```
Update External Openstack credentials (both username and password) as shown below:
```
external_openstack_username = USER
external_openstack_password = PASSWORD
```
Update Cinder credentials (both username and password) as shown below:
```
cinder_username = USER
cinder_password = PASSWORD
```

Updating Credentials for lb-controller-user

Note:

Run all the commands in this section from Bastion Host.

Run the following commands to update lb-controller-user credentials:

$ echo -n "<Username>" | base64 -w0 | xargs -I{} kubectl -n occne-infra patch --type=merge secret lb-controller-user --patch '{"data":{"USERNAME":"{}"}}'

$ echo -n "<Password>" | base64 -w0 | xargs -I{} kubectl -n occne-infra patch --type=merge secret lb-controller-user --patch '{"data":{"PASSWORD":"{}"}}'

where:

<Username>, is the new OpenStack username.
<Password>, is the new OpenSatck password.

Run the following command to restart lb-controller-server to use the new credentials:
```
$ kubectl rollout restart deployment occne-lb-controller-server -n occne-infra
```
Wait until the lb-controller restarts and run the following command to get the lb-controller pod status using labels. Ensure that only one pod is in the Running status:
```
$ kubectl get pods -l app=lb-controller -n occne-infra
```
Sample output:
```
NAME                                          READY   STATUS    RESTARTS   AGE
occne-lb-controller-server-74fd947c7c-vtw2v   1/1     Running   0          50s
```

Validate the new credentials by printing the username and password directly from the new pod's environment variables:

$ kubectl exec -it $(kubectl get pod -n occne-infra | grep lb-controller-server | cut -d " " -f1) -n occne-infra -- bash -c "echo -n \$USERNAME"
$ kubectl exec -it $(kubectl get pod -n occne-infra | grep lb-controller-server | cut -d " " -f1) -n occne-infra -- bash -c "echo -n \$PASSWORD"

7.7 Updating the Guest or Host OS

You must update the host OS (for Bare Metal installations) or guest OS (for virtualized installations) periodically so that CNE has the latest Oracle Linux software. If the CNE is not upgraded recently, or there are known security patches then perform an update by referring to the upgrade procedures in Oracle Communications Cloud Native Core, Cloud Native Environment Installation, Upgrade, and Fault Recovery Guide.

7.8 CNE Grafana Dashboards

Grafana is an observability tool available as open source and enterprise versions. Grafana supports number of data sources such as Prometheus from where it can read data for analytics. You can find the official list of supported data sources at Grafana Datasources.

CNE offers the following default Grafana dashboards:

CNE Kubernetes dashboard
CNE Prometheus dashboard
CNE logging dashboard
CNE persistent storage dashboard (only for Bare Metal)

Note:

The Grafana dashboards provisioned by CNE are read-only. Refrain from updating or modifying these default dashboards.

You can clone these dashboards to customize them as per your requirement and save the customized dashboards in JSON format. This section provides details about the features offered by the open source Grafana version to add the required observability framework to CNE.

7.8.1 Accessing Grafana Interface

This section provides the procedure to access Grafana web interface.

Perform the following steps to get the Load Balancer IP address and port number for accessing the Grafana web interface:
1. Run the following command to get the Load Balancer IP address of the Grafana service:
```
$ export GRAFANA_LOADBALANCER_IP=$(kubectl get services occne-kube-prom-stack-grafana --namespace occne-infra -o jsonpath="{.status.loadBalancer.ingress[*].ip}")
```
2. Run the following command to get the LoadBalancer port number of the Grafana service:
```
$ export GRAFANA_LOADBALANCER_PORT=$(kubectl get services occne-kube-prom-stack-grafana --namespace occne-infra -o jsonpath="{.spec.ports[*].port}")
```
3. Run the following command to get the complete URL for accessing Grafana in an external browser:
```
$ echo http://$GRAFANA_LOADBALANCER_IP:$GRAFANA_LOADBALANCER_PORT/$OCCNE_CLUSTER/grafana
```
  Sample output:
```
http://10.75.225.60:80/mycne-cluster/grafana
```
Use the URL obtained in the previous step (in this case, http://10.75.225.60:80/mycne-cluster/grafana) to access the Grafana home page.
Click Downloads and select Browse.
Expand the CNE folder to view the CNE dashboards.

Note:
CNE doesn't support user access management on Grafana.

7.8.2 Cloning a Grafana Dashboard

This section describes the procedure to clone a Grafana dashboard.

Open the dashboard that you want to clone.
Click the Share dashboard or panel icon next to the dashboard name.
Select Export and click Save to file to save the dashboard in JSON format in your local system.
Perform the following steps to import the saved dashboard to Grafana:
1. Click Dashboards and select Import.
2. Click Upload JSON file and select the dashboard that you saved in step 3.
3. Change the name and UID of the dashboard.
  You have cloned the dashboard successfully. You can now use the cloned dashboard to customize the options as per your requirement.

7.8.3 Restoring a Grafana Dashboard

The default Grafana dashboards provided by CNE are stored as configmap in the CNE cluster and artifact directory to restore them to their default state. This section describes the procedure to restore a Grafana dashboard.

Note:

This procedure is used to restore the dashboards to the default state (that is, the default dashboards provided by CNE).
When you restore the dashboards, you lose all the customizations that you made on the dashboards. You can't use this procedure to restore the customizations that you made on top of the CNE default dashboards.
You can't use this procedure to restore other Grafana dashboards that you created.

Navigate to the occne-grafana-dashboard directory:

$ cd /var/occne/cluster/${OCCNE_CLUSTER}/artifacts/occne-grafana-dashboard

Run the following command to restore all the dashboards present in the occne-grafana-dashboard directory to its default state. The command uses the YAML files of the dashboards in the directory to restore them.
```
$ kubectl -n occne-infra apply -R -f occne-grafana-dashboard
```
You can also restore a specific dashboard by providing a specific YAML file name in the command. For example, you can use the following command to restore only the CNE Kubernetes dashboard:
```
$ kubectl -n occne-infra apply -f occne-grafana-dashboard/occne-k8s-cluster-dashboard.yaml
```

7.9 Managing 5G NFs

This section describes procedures to manage 5G NFs in CNE.

7.9.1 Installing an NF

This section describes the procedure to install an NF in the CNE Kubernetes cluster.

Prerequisites

Load container images and Helm charts onto Central Server repositories.
Container and Helm repositories are created on a Central Server for easy CNE deployment at multiple customer sites. These repositories store all of the container images and Helm charts required to install CNE. When necessary, Helm pulls container images and Helm charts to the central server repositories on the local CNE Bastion Hosts. Similarly, NF installation uses Helm so that the container images and Helm charts needed to install NFs are loaded onto the same Central Server repositories. This procedure assumes that all container images and Helm charts required to install the NF are already loaded onto the Central Server repositories.

Determine the NF deployment parameters

The following values determine the NF's identity and where it is deployed. These values are used in the following procedure:

Table 7-19 NF Deployment Parameters

Parameters	Value	Description
nf-namespace	Any valid namespace name	The namespace where you want to install the NF. Typically each NF is installed in its own namespace.
nf-deployment-name	Any valid Kubernetes deployment name	The name that this NF instance is known to the Kubernetes.

Load NF artifacts onto Bastion Host repositories

All the steps in this section are run on the CNE Bastion Host where the NF installation happens.

Load NF container images

Create a file container_images.txt listing the Container images and tags as required by the NF:
```
<image-name>:<release>
```
Example:
```
busybox:1.29.0
```

Run the following command to load the container images into the CNE Container registry:

$ retrieve_container_images.sh <external-container-repo-name>:<external-container-repo-port> ${HOSTNAME}:5000 < container_images.txt

Example:

$ retrieve_container_images.sh mycentralrepo:5000 ${HOSTNAME%%.*}:5000 < container_images.txt

Load NF Helm charts

Create a file helm_charts.txt listing the Helm chart and version:
```
<external-helm-repo-name>/<chart-name> <chart-version>
```
Example:
```
mycentralhelmrepo/busybox 1.33.0
```

Run the following command to load the charts into the CNE Helm chart repository:

$ retrieve_helm.sh /var/www/html/occne/charts http://<external-helm-repo-name>/occne/charts [helm_executable_full_path_if_not_default] < helm_charts.txt

Example:

$ retrieve_helm.sh /var/www/html/occne/charts http://mycentralrepo/occne/charts < helm_charts.txt

Install the NF

On the Bastion Host, create a YAML file named <nf-short-name>-values.yaml to contain the values to be passed to the NF Helm chart.
Add NF-specific values to file
See the NF installation instructions to understand which keys and values must be included in the values file.
Additional NF configuration
Before installing the NF, see the installation instructions to understand the requirements of additional NF configurations along with Helm chart values.

Run the following command to install the NF:

$ helm install --namespace <nf-namespace> --create-namespace -f <nf-short-name>-values.yaml <nf-deployment-name> <chart-or-chart-location>

7.9.2 Upgrading an NF

This section describes the procedure to upgrade a 5G network function that was previously installed in the CNE Kubernetes cluster.

Prerequisites

Load container images and Helm charts onto Central Server repositories.

Container and Helm repositories are created on a Central Server for easy CNE deployment at multiple customer sites. These repositories store all of the container images and Helm charts required to install CNE. When necessary, Helm pulls container images and Helm charts to the central server repositories on the local CNE Bastion Hosts. Similarly, Network Function (NF) installation uses Helm so that the container images and Helm charts needed to install NFs are loaded onto the same Central Server repositories. This procedure assumes that all container images and Helm charts required to install the NF are already loaded onto the Central Server repositories.

Procedure

Perform the following steps to upgrade an NF. All commands must be run from the Bastion Host.

Load NF artifacts onto Bastion Host repositories

All the steps in this section are run on the CNE Bastion Host where the NF installation happens.

Load NF container images

Create a file container_images.txt listing the Container images and tags as required by the NF:
```
<image-name>:<release>
```
Example:
```
busybox:1.29.0
```

Run the following command to load the container images into the CNE Container registry:

$ retrieve_container_images.sh <external-container-repo-name>:<external-container-repo-port> ${HOSTNAME%%.*}:5000 < container_images.txt

Example:

$ retrieve_container_images.sh mycentralrepo:5000 ${HOSTNAME%%.*}:5000 < container_images.txt

Load NF Helm charts

Create a file helm_charts.txt listing the Helm chart and version:
```
<external-helm-repo-name>/<chart-name> <chart-version>
```
Example:
```
mycentralhelmrepo/busybox 1.33.0
```

Run the following command to load the charts into the CNE Helm chart repository:

$ retrieve_helm.sh /var/www/html/occne/charts http://<external-helm-repo-name>/occne/charts [helm_executable_full_path_if_not_default] < helm_charts.txt

Example:

$ retrieve_helm.sh /var/www/html/occne/charts http://mycentralrepo/occne/charts < helm_charts.txt

Upgrade the NF

Change Helm input values used in previous NF release

To change any input value in the Helm chart during the upgrade, refer to the NF-specific upgrade instructions in <NF-specific> Installation, Upgrade, and Fault Recovery Guide for the new release. If any new input parameters are added in the new release, then run the following steps:

On the Bastion Host, create a YAML file named <nf-short-name>-values.yaml to contain the values to be passed to the NF Helm chart.
Create a YAML file that contains new and changed values needed by the NF Helm chart.
See the NF installation instructions to understand which keys and values must be included in the values file. Only values for parameters that were not included in the Helm input values applied to the previous release, or parameters whose names changed from the previous release, must be included in this file.
If the yaml file is created for this upgrade, run the following command to upgrade the NF with new values:
```
$ helm upgrade -f <nf-short-name>-values.yaml <nf-deployment-name> <chart-name-or-chart-location>
```
Note:
The nf-deployment-name value must match the value used when installing the NF.

Retain all Helm input values used in previous NF release

If there is no requirement to change the Helm chart input values during upgrade and if no new input parameters were added in the new release, then run the following command to upgrade and retain all the NF values:

$ helm upgrade --reuse-values <nf-deployment-name> <chart-name-or-chart-location>

Note:

The nf-deployment-name value must match the value used when installing the NF.

7.9.3 Uninstalling an NF

This section describes the procedure to uninstall a 5G network function that was previously installed in the CNE Kubernetes cluster.

Prerequisites

Determine the NF deployment parameters. The following values determine the NF's identity and where it is deployed:

Table 7-20 NF Deployment Parameters

Variable	Value	Description
nf-namespace	Any valid namespace name	The namespace where you want to install the NF. Typically each NF is installed in its own namespace.
nf-deployment-name	Any valid Kubernetes deployment name	The name by which the Kubernetes identifies this NF instance.

All commands in this procedure must be run from the Bastion Host.

Procedure

Run the following command to uninstall an NF:
```
$ helm uninstall <nf-deployment-name> --namespace <nf-namespace>
```
If there are remaining NF resource such as PVCs and namespace, run the following command to remove them:
1. Run the following command to remove residual PVCs:
```
$ kubectl --namespace <nf-namespace> get pvc | awk '{print $1}'| xargs -L1 -r kubectl --namespace <nf-namespace> delete pvc
```
2. Run the following command to delete namespace:
```
$ kubectl delete namespace <nf-namespace>
```
  Note:
  Steps a and b are used to remove all the PVCs from the <nf-namespace> and delete the <nf-namespace>, respectively. If there are other components running in the <nf-namespace>, manually delete the PVCs that need to be removed and skip the kubectl delete namespace <nf-namespace> command.

7.9.4 Update Alerting Rules for an NF

This section describes the procedure to add or update the alerting rules for any Cloud Native Core 5G NF in Prometheus Operator and OSO.

Prerequisites

For CNE Prometheus Operator, a YAML file containing an PrometheusRule CRD defining the NF-specific alerting rules is available. The YAML file must be an ordinary text file in a valid YAML format with the extension .yaml.
For OSO Prometheus, a valid OSO release must be installed and an alert file describing all NF alert rules according to old format is required.

Procedure for Prometheus Operator

To copy the NF-specific alerting rules file from your computer to the /tmp directory on the Bastion Host, see the Accessing the Bastion Host procedure.

Run the following command to create or update the PrometheusRule CRD containing the alerting rules for the NF:

$ kubectl apply -f /tmp/rules_file.yaml -n occne-infra
# To verify the creation of the alert-rules CRD, run the following command:
$ kubectl get prometheusrule -n occne-infra
NAME                              AGE
occne-alerting-rules              43d
occne-dbtier-alerting-rules       43d
test-alerting-rules               5m

The alerting rules automatically loads into all running Prometheus instances within 1 minute.

In the Prometheus GUI, select the Alerts tab. Select individual rules from the list to view the alert details and verify if the new rules are loaded.

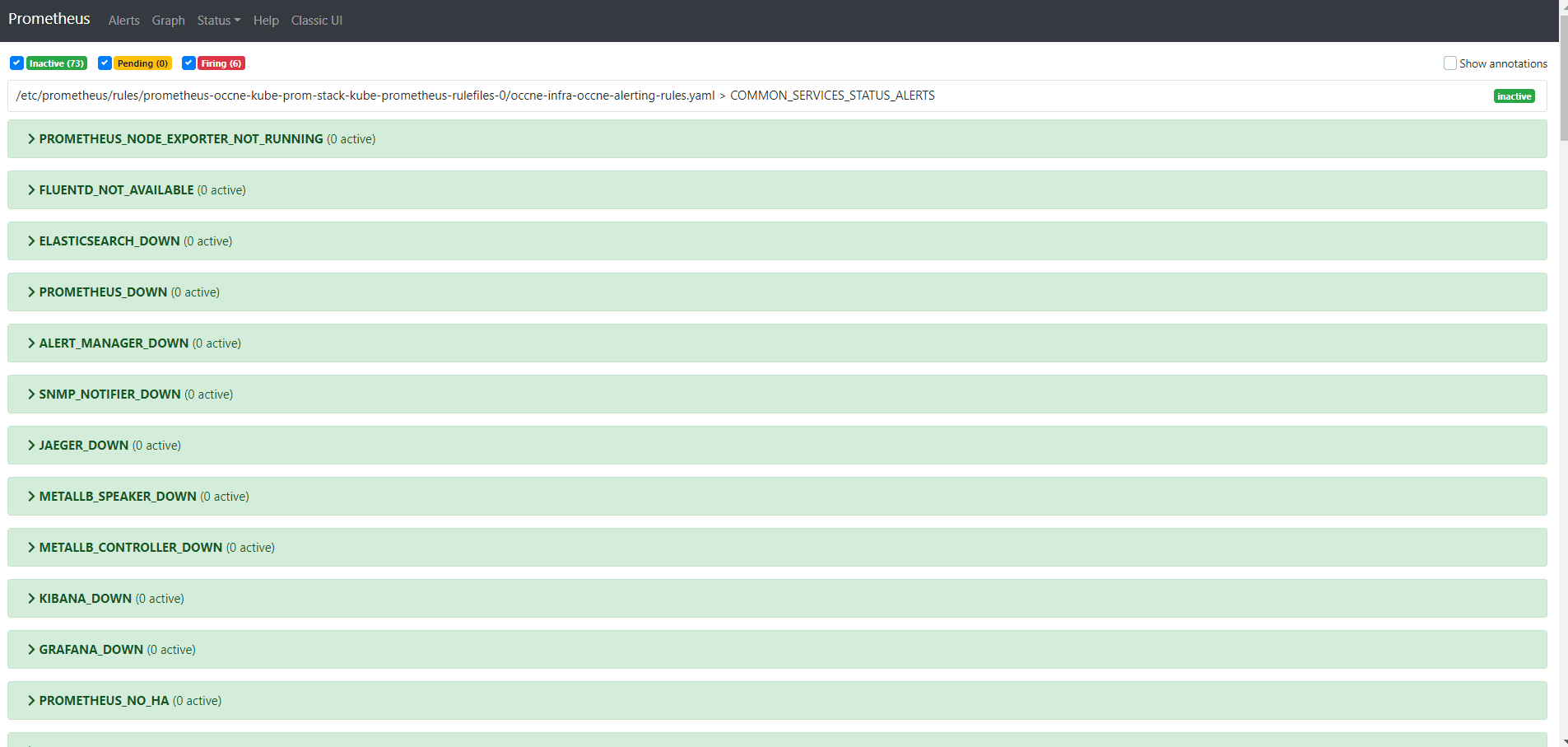

Figure 7-1 New Alert Rules are loaded in Prometheus GUI

Procedure for OSO

Perform the following steps to add alert rules in OSO promethues GUI:

Take the backup of the current configuration map of OSO Prometheus:

$ kubectl get configmaps <OSO-prometheus-configmap-name> -o yaml -n <namespace> > /tmp/tempPrometheusConfig.yaml

Check and add the NF alert file name inside Prometheus configuration map. The NF alert file names vary from NF to NF. Retrieve the name of the NF alert rules file to add the name in Prometheus configuration map. Once you retrieve the file name, run the following commands to add the NF alert file name inside Prometheus configuration map:
```
$ sed -i '/etc\/config\/<nf-alertsname>/d' /tmp/tempPrometheusConfig.yaml
$ sed -i '/rule_files:/a\    \- /etc/config/<nf-alertsname>' /tmp/tempPrometheusConfig.yaml
```

Update configuration map with the updated file:

$ kubectl -n <namespace> replace configmap <OSO-prometheus-configmap-name> -f /tmp/tempPrometheusConfig.yaml

Patch the NF Alert rules in OSO Prometheus configuration map by mentioning the alert rule file path:
```
$ kubectl patch configmap <OSO-prometheus-configmap-name> -n <namespace> --type merge --patch "$(cat ./NF_altertrules.yaml)"
```

7.9.5 Configuring Egress NAT for an NF

This section provides information about configuring NF microservices that originate egress requests to ensure compatibility with CNE.

Annotation for Specifying Egress Network

Starting CNE 22.4.x, egress requests do not get the IP address of the Kubernetes worker node assigned to the source IP field. Instead, each microservice that originates egress requests specifies an egress network through an annotation. An IP address from the indicated network is inserted into the source IP field for all egress requests.

For each microservice that originates egress requests, add the following annotation to the deployment specification and its pods:

annotations:
  oracle.com.cnc/egress-network: "oam"

Note:

The value of the annotation must match the name of an external network configured.
This annotation must not be added for microservices that do not originate egress requests, as it leads to decreased CNE performance.
CNE does not allow any microservice to pick a separate IP address. When CNE is installed, a single IP address is selected for each network.
All pods in a microservice get the same source IP address attached to all egress requests.
CNE 22.4.x supports this annotation in vCNE deployments only.

Configuring Egress Controller Environment

Egress controller runs as Kubernetes resource of type DaemonSet. The following table provides details about the environmental variables that can be edited in the Egress controller manifest file:

Note:

Do not edit any variables that are not listed in the following table.

Table 7-21 Egress Controller Environment Configuration

Environment Variable	Default Value	Possible Value	Description
DAEMON_MON_TIME	0.5	Between 0.1 and 5	This value reflects the time in seconds and highlights the frequency at which the Egress controller checks the cluster status.

Configuring Egress NAT for Destination Subnet or IP Address

Destination subnet or IP address must be specified to route traffic trough a particular network. The destination subnet or IP address is specified in the form of a dictionary, where the pools are the dictionary keys and the lists of subnets or IP addresses are the dictionary values.

The following annotations show different scenarios of adding pools and destination subnets or IP addresses with examples:

Specifying annotation for destination subnet:

annotations:
  oracle.com.cnc/egress-destination: '{"<pool>" : ["<subnet_ip_address>/<subnet_mask>"]}'

For example:

annotations:
  oracle.com.cnc/egress-destination: '{"oam" : ["10.20.30.0/24"]}'

Specifying annotation for destination IP address:

annotations:
  oracle.com.cnc/egress-destination: '{"<pool>" : ["<ip_address>"]}'

For example:

annotations:
  oracle.com.cnc/egress-destination: '{"oam" : ["10.20.30.40"]}'

Specifying annotation for multiple pools:

annotations:
  oracle.com.cnc/egress-destination: '{"<pool_one>" : ["<subnet_ip_address>/<subnet_mask>"], "<pool_two>" : ["<subnet_ip_address>/<subnet_mask>"]}'

For example:

annotations:
  oracle.com.cnc/egress-destination: '{"oam" : ["10.20.30.0/24"], "sig" : ["30.20.10.0/24"]}'

Specifying annotation for multiple pools and multiple destinations:

annotations:
  oracle.com.cnc/egress-destination: '{"<pool_one>" : ["<subnet_ip_address>/<subnet_mask>", "<subnet_ip_address>/<subnet_mask>"], "<pool_two>" : ["<subnet_ip_address>/<subnet_mask>", "<ip_address>"]}'

For example:

annotations:
  oracle.com.cnc/egress-destination: '{"oam" : ["10.20.30.0/24", "100.200.30.0/22"], "sig" : ["30.20.10.0/24", "20.10.5.1"]}'

Compatibility Between Egress NAT and Destination Egress NAT

Both Egress NAT and Destination Egress NAT annotations are independent and compatible. This means that they can be used independently or combined to create more specific rules. Egress NAT is enabled to route all traffic from a particular pod through a particular network. Whereas, Destination Egress NAT permits traffic to be routed using a destination subnet or IP address before regular Egress NAT rules are matched within the routing table. This feature allows more granularity to route traffic through a particular network.

For example, the following annotations show both the features combined to route a pod's traffic through the sig network, except the traffic destined for 10.20.30.0/24 subnet, which is routed through the oam network:

annotations:
  oracle.com.cnc/egress-destination: '{"oam" : ["10.20.30.0/24"]}'
  oracle.com.cnc/egress-network: sig

7.10 Updating CNLB Network Attachments

This section provides information on how to update the network in an existing CNLB deployment and also explains the non-disruptive and disruptive network updates.

Note:

Network attachment updates are supported for vCNE OpenStack and vCNE VMware deployments only.

Prerequisites

Before updating the network, ensure that the following prerequisites are met:

CNLB-enabled cluster must be installed and configured.
You must know how to configure the cnlb.ini file.
For vCNE on VMware, it is recommended that before running this procedure, while performing any disruptive update, application traffic must be diverted to another georedundant site.
For more information about the disruptive update, see Disruptive Updates section.

Disruptive Updates

Disruptive updates remove or modify the settings in the cnlb.ini file, which can affect the traffic flow due to the current cloud configuration. In such instances, the impact varies depending on the platform and may include an outage of all applications or NFs' that use CNLB.

The following table lists the operations that are performed for a disruptive network update:

Table 7-22 Disruptive Updates

Description	Assumptions	Platform	How to prevent outage
Adding a new network	All the applications or NFs (for example, Deployments and StatefulSets) including CNE common services must be restarted after the script completes. This allows CNLB to refresh its status from each annotation.	VMware	This change will switch around the order and network interface names (mac addresses and IPs may also be impacted). This is an inherent limitation that arises due to VMware Cloud Director (VCD) and OpenTofu providers. The outage will occur as soon as OpenTofu applies the new configuration (as part of the script), and will resolve only after the script has successfully completed and all the applications or NFs or common services have been restarted.
Removing an unused network	All the applications or NFs (for example, Deployments and StatefulSets) including CNE common services must be restarted after the script is run. This allows CNLB to refresh its status from each annotation.	VMware	This change will switch around the order and network interface names (mac addresses and IPs can be impacted). This is an inherent limitation that arises due to VMware Cloud Director (VCD) and OpenTofu providers. The outage will occur as soon as OpenTofu applies the new configuration (as part of the script), and will resolve only after the script has successfully finished and all the applications or NFs or common services have been restarted.
Removing a network	The network is used by annotated applications or NFs.	OpenStack and VMware	Before performing this action, all applications or NFs annotated with this network must be reconfigured, that is change the annotation to point to a different active network to avoid an outage.
Removing an IP address from `service_ip_addr` list of an existing network	The service IP is used by an annotated application or NF.	OpenStack and VMware	Before performing this action, the application or NF using this `service_ip` must be reconfigured, that is change the annotation to point to a different `service_ip` in the same network or another network, to avoid an outage.
Removing an IP address from an `egress_dest` list of an existing network	The egress_dest is used by one or more annotated applications or NFs. There can be more than one egress_dest in the list.	OpenStack and VMware	Before performing this action, all applications or NFs annotated with the egress_dest list must be reconfigured, that is change the annotation to point to a different egress_dest.
Replacing an existing IP address from the service_ip_addr list of an existing network	There is an application or NF (for example, Deployments or StatefulSets) with annotation that is actively using this service IP address. The annotations are updated immediately after the script finishes.	OpenStack and VMware	To clear the outage, the application or NFs annotations must be reconfigured.
Updating an existing network `network_id` or `subnet_id`	The network is being used by annotated applications or NFs. The annotations (for all the applicable applications or NFs) are updated immediately after the script execution is complete. Fields such as service_ip_addr and egress_dest must also be updated to match the new network.	OpenStack and VMware	To clear the outage, the application or NFs' annotations must be reconfigured.
Modifying shared-internal variable from true to false (or vice versa)	The network is being used by annotated applications or NFs. Network attachment definitions (for all the applicable applications or NFs) are updated immediately after the script is run completely. Restart annotated applications or NFs for the changes made to network attachment definitions to reflect.	OpenStack and VMware	To clear the outage, the application deployments using modified network attachment definitions must be restarted to reflect the updated configuration.

Non-Disruptive Updates

Non-disruptive updates perform network operations on an existing network that does not affect the current traffic flow. For example, Adding a new network, Adding an IP address to an existing network, and so on.

Note:

Deleting a network or an IP address can be non-disruptive depending on how the network or IP address is configured in the cluster.

The following table lists the operations that are performed for a non-disruptive network update:

Table 7-23 Non-Disruptive Updates

Description	Assumptions	Platform
Adding a new network	None	OpenStack
Adding an IP address to the `service_ip_addr` list of an existing network	None	OpenStack and VMware
Adding an IP address to the `egress_dest` list of an existing network	None	OpenStack and VMware
Removing an unused network	There are no applications or NFs (for example, Deployments or StatefulSets) with annotations pointing to this network.	OpenStack
Removing an IP address to the `service_ip_addr` list of an existing network	There is no application or NF (for example, Deployment or StatefulSets) with an annotation that uses this service IP address.	OpenStack and VMware
Removing an IP address to the `egress_dest` list of an existing network	There is no application or NF (for example, Deployments or StatefulSets) with an annotation that uses this IP address.	OpenStack and VMware
Replacing an existing IP address from the `service_ip_addr` list of an existing network	There is no application or NF (for example, Deployments or StatefulSets) with an annotation that uses this service IP address.	OpenStack and VMware

Procedure to update a network attachment

To add, delete, or update a CNLB network, perform the following procedure.

Update the cnlb.ini file before running the script, located at /var/occne/cluster/${OCCNE_CLUSTER}/installer/updNetwork.py. Once the script is run successfully, verification must be performed.

Note:

It is recommended to identify the changes to be made to cnlb.ini file before running the updNetwork.py script. Running the script with updates that include deletion and/or updates of configuration made to the cnlb.ini file, can be disruptive to the current CNLB configuration. In such cases, validation can be performed only on the syntax of the cnlb.ini file.

Running the updNetwork.py script, it performs the following steps:

The cnlb.ini file is validated, ensuring the changes made are syntactically correct and that there are no unsupported duplicate IPs used.
The updated cnlb.auto.tfvars file is generated.
The OpenTofu is run to generate the new configuration resources.
The installCnlb.py is run to generate the Kubernetes objects in the cluster.

The following two files are generated which show the results of the script after it completes. Check these files to ensure that the script is successful.

updNetwork-<timestamp>.log
This file must include the output from the OpenTofu run.
installer.log
This file must include any logs generated by the installCnlb.py script.

Note:

The -h option in the command syntax, displays the help.

Note:

For this release, only occne-infra namespace is operational. If the script is run without any parameters, the default namespace used is occne-infra. The -ns/--namespace option can be used, but must be set to occne-infra namespace only. It is recommended not to insert any other namespace.

Run the following command to display the help option.

$ installer/updNetwork.py -h

The following sample output shows the usage of the configuration options:

usage: updNetwork.py [-h] [-ns NAMESPACE] [-db]

Used to update the network on an existing CNLB deployment.
Parameters:
  Required parameters:
    None

  Optional Parameters:
    -ns/--namespace: Namespace for network
    -db/--debug: Print tracebacks on error

optional arguments:
  -h, --help            show this help message and exit
  -ns NAMESPACE, --namespace NAMESPACE
                        namespace for network
  -db, --debug

    Examples:
     ./updNetwork.py
     ./updNetwork.py -ns occne-infra -db

Updating an Existing CNLB Network Configuration

This procedure provides the steps to follow when updating an existing CNLB network configuration. The following example demonstrates how to add a network to the existing CNLB Network configuration.

For specific examples, refer to Examples cases section in this chapter. After running the updNetwork.py script, all changes made must be manually verified. Refer to Validating updates section, to validate the update.

Edit the cnlb.ini file located at /var/occne/cluster/$OCCNE_CLUSTER/ to add the configuration for the new network. In this case, the network named sig is added to the cnlb.ini file, to the existing oam network. This includes adding the necessary service IPs along with all other necessary fields for the new network.

The following sample code snippet shows how to add a sig network.

Run the following command to add the configurations required for the new network:

$ vi /var/occne/cluster/$OCCNE_CLUSTER/cnlb.ini

Below is a sample cnlb.ini file:

[cnlb]

[cnlb:vars]
cnlb_replica_cnt = 4

[cnlb:children]
oam
sig

[oam:vars]
service_network_name = "oam"
subnet_id = "43df8249-8316-48ed-a6b7-79de5413ddbb"
network_id = "18e0s112-ac40-4c57-bedf-a16b9df497cf"
external_network_range = "10.199.180.0/24"
external_default_gw = "10.199.180.1"
egress_ip_addr = ["10.199.180.11", "10.199.180.189"]
internal_network_range = "132.16.0.0/24"
service_ip_addr = ["10.199.180.128", "10.199.180.10", "10.199.180.247", "10.199.180.174", "10.199.180.131", "10.199.180.4"]
egress_dest = ["10.199.180.0/24","10.123.155.0/25"]

[sig:vars]
service_network_name = "sig"
subnet_id = "2f317932-91bd-4440-a2fe-f3e5fc0af49c"
network_id = "7375bbd7-a787-4f33-ae60-dbcc58c075c2"
external_network_range = 10.199.201.0/24
external_default_gw = "10.199.201.1"
egress_ip_addr = ["10.199.201.10", "10.199.201.11"]
internal_network_range = 172.16.0.0/24
service_ip_addr = ["10.199.201.15","10.199.201.16"]
shared_internal = False

For OpenStack-only deployment, source the openrc.sh file in the cluster directory and provide the OpenStack credentials as prompted.
```
$ source openrc.sh
```

Run the updNetworks.py script to add a sig network.

$ ./installer/updNetwork.py

Sample output:

Updating CNLB network as indicated in the cnlb.ini file
- Validating the cnlb.ini file
    - Successfully validated cnlb.ini file
- Generating new cnlb.auto.tfvars file
    - Successfully created cnlb.auto.tfvars file
- Initializing and running tofu apply
    - Tofu initialized
    - Running tofu apply... (may take several minutes)
      - Apply complete! Resources: 14 added, 0 changed, 0 destroyed
      - Successful run of tofu apply - check /var/occne/cluster/occne-user/updNetwork-08122024_164714.log for details
- Running installCnlb.py
    - Successfully ran installCnlb.py
- Restarting cnlb-manager and cnlb-app deployments
    - Deployment: cnlb-manager was restarted. Please wait for the pods status to be 'running'
    - Deployment: cnlb-app was restarted. Please wait for the pods status to be 'running'
- Network update successfully completed

Validating Updates

This procedure is to validate the configurations of the updated CNLB network after running the updNetwork.py script. The changes must be manually verified using the following commands.

kubectl describe cm cnlb-manager-networks -n occne-infra
kubectl get net-attach-def -A

The commands required for validation are based on the changes made to the cnlb.ini file.

Procedure

Run the following describe command to retrieve and display the data from cnlb-manager-networks.

kubectl describe cm cnlb-manager-networks -n occne-infra

Sample output:

Name:         cnlb-manager-networks
Namespace:    occne-infra
Labels:       <none>
Annotations:  <none>

Data
====
cnlb_manager_net_cm.json:
----
{
    "networks": [
        {
            "external-network": [
                {
                    "range": "10.199.180.0/24",
                    "gatewayIp": "10.199.180.1"
                }
            ],
            "internal-network": [
                {
                    "range": "132.16.0.0/24",
                    "egressIp": [
                        [
                            "10.199.180.11",
                            "132.16.0.193"
                        ],
                        [
                            "10.199.180.189",
                            "132.16.0.194"
                        ]
                    ]
                }
            ],
            "networkName": "oam"
        },
        {
            "external-network": [
                {
                    "range": "10.199.201.0/24",
                    "gatewayIp": "10.199.201.1"
                }
            ],
            "internal-network": [
                {
                    "range": "172.16.0.0/24",
                    "egressIp": [
                        [
                            "10.199.201.10",
                            "172.16.0.193"
                        ],
                        [
                            "10.199.201.11",
                            "172.16.0.194"
                        ]
                    ]
                }
            ],
            "networkName": "sig"
        }
    ]
}

BinaryData
====

The data can also be retrieved and displayed using the kubectl get net-attach-def -A command. This command retrieves the set of network attachment objects created for the oam and sig networks.

$ kubectl get net-attach-def -A

Sample output:

NAMESPACE     NAME          AGE
default       nf-oam-egr1   3h5m
default       nf-oam-egr2   3h5m
default       nf-oam-ie1    3h5m
default       nf-oam-ie2    3h5m
default       nf-oam-ie3    3h5m
default       nf-oam-ie4    3h5m
default       nf-oam-ie5    3h5m
default       nf-oam-ie6    3h5m
default       nf-oam-int1   3h5m
default       nf-oam-int2   3h5m
default       nf-oam-int3   3h5m
default       nf-oam-int4   3h5m
default       nf-oam-int5   3h5m
default       nf-oam-int6   3h5m
default       nf-sig-egr1   26m
default       nf-sig-egr2   26m
default       nf-sig-ie1    26m
default       nf-sig-ie2    26m
default       nf-sig-int1   86m
default       nf-sig-int2   86m
occne-infra   lb-oam-ext    3h5m
occne-infra   lb-oam-int    3h5m
occne-infra   lb-sig-ext    86m
occne-infra   lb-sig-int    86m

Validate the following:
- There is 1 "ie" object and 1 "int" for each service_ip_addr list.
- There is 1 "int" and 1 "egr" for each egress_ip-addr list.
- There are lb objects for external and internal networks for oam and sig.

Example cases:

The examples provided in this section are for an OpenStack cluster deployment. The flow of the script is same for both the platforms, however, VMware includes additional configurations for the infrastructure after running OpenTofu Apply.

Note:

The examples provided in this section, indicate at the beginning, if it corresponds to the output of the script ran on a vCNE cluster or on a VMware cluster.

Refer to Validating Updates section, to validate the update of the CNLB network configuration.

Note:

These are examples only. The IPs used must be changed as per the system on which these commands are run.

The subsequent sections provide in detail the following operations with a sample output:

7.10.1 Adding a New Network

This section describes the steps to add a new network to an existing CNLB deployment.

Prerequisites

Before adding a network, ensure that the oam network is added during CNE installation.

Procedure

The following procedure provides an example output of a script run on a VMware vCNE cluster.

Edit the cnlb.ini file to add the sig network to the cnlb.ini file.

[cnlb]

[cnlb:vars]
# if set to true, it will use list of worker nodes mentioned in cnlb group to host lb client pods, if not set then use all
cnlb_replica_cnt = 4

[cnlb:children]

# Network names to be used for pod and external
# networking, these networks and ports
# will be created and attached to hosts
# in cnlb host group

oam
sig

[oam:vars]
service_network_name = "oam"
subnet_id = "cnlb-dhcp2"
network_id = "cnlb-dhcp2"
external_network_range = 10.199.180.0/25
external_default_gw = "10.199.180.1"
egress_ip_addr = ["10.199.180.76","10.199.180.77"]
internal_network_range = 132.16.0.0/24
service_ip_addr = ["10.199.180.78","10.199.180.79","10.199.180.80","10.199.180.81","10.199.180.82","10.199.180.83"]
# Optional variable. Uncomment and specify external destination subnets to communicate with.
# If egress NADs are not needed for a network, then below variable should not be added.
egress_dest = ["10.199.180.0/25"]

[sig:vars]
service_network_name = "sig"
subnet_id = "cnlb-dhcp2"
network_id = "cnlb-dhcp2"
external_network_range = 10.199.201.0/25
external_default_gw = "10.199.201.1"
egress_ip_addr = ["10.199.201.2","10.199.201.6"]
internal_network_range = 172.16.0.0/24
service_ip_addr = ["10.199.201.16","10.199.201.28"]
# Optional variable. Uncomment and specify external destination subnets to communicate with.
# If egress NADs are not needed for a network, then below variable should not be added.
egress_dest = ["10.199.201.0/25"]
shared_internal = False

Run the updNetwork.py script to update the CNLB network.

$ ./installer/updNetwork.py

Sample output:

Updating CNLB network as indicated in the cnlb.ini file
- Validating the cnlb.ini file
    - Successfully validated cnlb.ini file
- Generating new cnlb.auto.tfvars file
    - Successfully created cnlb.auto.tfvars file
- Removing Stale Network Interfaces
    - No stale interfaces found to remove
- Initializing and running tofu apply
    - Tofu initialized
    - Running tofu apply... (may take several minutes)
      - Apply complete! Resources: 1 added, 4 changed, 0 destroyed
      - Successful run of tofu apply - check /var/occne/cluster/occne-user/updNetwork-08092024_183741.log for details
- Renew DHCP Lease
    - Renewing DHCP lease for host occne-user-k8s-node-1...
    - Renewing DHCP lease for host occne-user-k8s-node-2...
    - Renewing DHCP lease for host occne-user-k8s-node-3...
    - Renewing DHCP lease for host occne-user-k8s-node-4...
    - DHCP lease was successfully renewed
- Validate Number of Networks and NICs match
    - Compare active connections against TF state number of networks
    - Success: Correct number of Active Connections across all nodes
- Refresh tofu state, refresh IP allocation
    - Successful run of tofu refresh - check /var/occne/cluster/occne-user/updNetwork-08092024_183741.log for details
- Running installCnlb.py
    - Successfully ran installCnlb.py
- Restarting cnlb-manager and cnlb-app deployments
    - Deployment: cnlb-manager was restarted. Please wait for the pods status to be 'running'
    - Deployment: cnlb-app was restarted. Please wait for the pods status to be 'running'
- Network update successfully completed

Verify the changes using the following command.

$ kubectl describe cm cnlb-manager-networks -n occne-infra

Sample output:

Name:         cnlb-manager-networks
Namespace:    occne-infra
Labels:       <none>
Annotations:  <none>

Data
====
cnlb_manager_net_cm.json:
----
{
    "networks": [
        {
            "external-network": [
                {
                    "range": "10.199.180.0/24",
                    "gatewayIp": "10.199.180.1"
                }
            ],
            "internal-network": [
                {
                    "range": "132.16.0.0/24",
                    "egressIp": [
                        [
                            "10.199.180.76",
                            "132.16.0.193"
                        ],
                        [
                            "10.199.180.77",
                            "132.16.0.194"
                        ]
                    ]
                }
            ],
            "networkName": "oam"
        },
        {
            "external-network": [
                {
                    "range": "10.199.201.0/24",
                    "gatewayIp": "10.199.201.1"
                }
            ],
            "internal-network": [
                {
                    "range": "172.16.0.0/24",
                    "egressIp": [
                        [
                            "10.199.201.2",
                            "172.16.0.193"
                        ],
                        [
                            "10.199.201.6",
                            "172.16.0.194"
                        ]
                    ]
                }
            ],
            "networkName": "sig"
        }
    ]
}

BinaryData
====

After the verification, run the following command to fetch the additional default network attachment definitions ie1 and ie2 for sig network.


$ kubectl get net-attach-def -A

Sample output:

NAMESPACE     NAME          AGE
default       nf-oam-egr1   118m
default       nf-oam-egr2   118m
default       nf-oam-ie1    118m
default       nf-oam-ie2    118m
default       nf-oam-ie3    118m
default       nf-oam-ie4    118m
default       nf-oam-ie5    118m
default       nf-oam-ie6    118m
default       nf-oam-int1   118m
default       nf-oam-int2   118m
default       nf-oam-int3   118m
default       nf-oam-int4   118m
default       nf-oam-int5   118m
default       nf-oam-int6   118m
default       nf-sig-int1   19m
default       nf-sig-int2   19m
occne-infra   lb-oam-ext    118m
occne-infra   lb-oam-int    118m
occne-infra   lb-sig-ext    19m
occne-infra   lb-sig-int    19m

7.10.2 Deleting a network

This section describes the steps to delete a network.

Prerequisites

Before deleting a network, ensure that the sig network is added as explained in the section, Adding a New Network or ensure that the cluster was initially deployed with this network.

Procedure

The following procedure provides an example output of a script run on a VMware vCNE cluster.

Edit the cnlb.ini file to delete the sig network. Remove the sig name under the cnlb:children and the sig:vars groups with all the indicated fields as shown below.

[cnlb]

[cnlb:vars]
# if set to true, it will use list of worker nodes mentioned in cnlb group to host lb client pods, if not set then use all
cnlb_replica_cnt = 4

[cnlb:children]

# Network names to be used for pod and external
# networking, these networks and ports
# will be created and attached to hosts
# in cnlb host group

oam
sig

[oam:vars]
service_network_name = "oam"
subnet_id = "cnlb-dhcp2"
network_id = "cnlb-dhcp2"
external_network_range = 10.199.180.0/25
external_default_gw = "10.199.180.1"
egress_ip_addr = ["10.199.180.76","10.199.180.77"]
internal_network_range = 132.16.0.0/24
service_ip_addr = ["10.199.180.78","10.199.180.79","10.199.180.80","10.199.180.81","10.199.180.82","10.199.180.83"]
# Optional variable. Uncomment and specify external destination subnets to communicate with.
# If egress NADs are not needed for a network, then below variable should not be added.
egress_dest = ["10.199.180.0/25"]

Run the updNetwork.py script to update the CNLB network.

$ ./installer/updNetwork.py

Sample output:

Updating CNLB network as indicated in the cnlb.ini file
- Validating the cnlb.ini file
    - Successfully validated cnlb.ini file
- Generating new cnlb.auto.tfvars file
    - Successfully created cnlb.auto.tfvars file
- Removing Stale Network Interfaces
    - No stale interfaces found to remove
- Initializing and running tofu apply
    - Tofu initialized
    - Running tofu apply... (may take several minutes)
      - Apply complete! Resources: 0 added, 4 changed, 1 destroyed
      - Successful run of tofu apply - check /var/occne/cluster/occne-user/updNetwork-08092024_183741.log for details
- Renew DHCP Lease
    - Renewing DHCP lease for host occne-user-k8s-node-1...
    - Renewing DHCP lease for host occne-user-k8s-node-2...
    - Renewing DHCP lease for host occne-user-k8s-node-3...
    - Renewing DHCP lease for host occne-user-k8s-node-4...
    - DHCP lease was successfully renewed
- Validate Number of Networks and NICs match
    - Compare active connections against TF state number of networks
    - Success: Correct number of Active Connections across all nodes
- Refresh tofu state, refresh IP allocation
    - Successful run of tofu refresh - check /var/occne/cluster/occne-user/updNetwork-08092024_183741.log for details
- Running installCnlb.py
    - Successfully ran installCnlb.py
- Restarting cnlb-manager and cnlb-app deployments
    - Deployment: cnlb-manager was restarted. Please wait for the pods status to be 'running'
    - Deployment: cnlb-app was restarted. Please wait for the pods status to be 'running'
- Network update successfully completed

Verify the changes using the following command:

$ kubectl describe cm cnlb-manager-networks -n occne-infra

Sample output:

Name:         cnlb-manager-networks
Namespace:    occne-infra
Labels:       <none>
Annotations:  <none>

Data
====
cnlb_manager_net_cm.json:
----
{
    "networks": [
        {
            "external-network": [
                {
                    "range": "10.199.180.0/24",
                    "gatewayIp": "10.199.180.1"
                }
            ],
            "internal-network": [
                {
                    "range": "132.16.0.0/24",
                    "egressIp": [
                        [
                            "10.199.180.76",
                            "132.16.0.193"
                        ],
                        [
                            "10.199.180.77",
                            "132.16.0.194"
                        ]
                    ]
                }
            ],
            "networkName": "oam"
        }
    ]
}

After the verification, run the following command to fetch the additional default network attachment definitions for oam ie1 and ie2.


$ kubectl get net-attach-def -A

Sample output:

NAMESPACE     NAME          AGE
default       nf-oam-egr1   3h24m
default       nf-oam-egr2   3h24m
default       nf-oam-ie1    3h24m
default       nf-oam-ie2    3h24m
default       nf-oam-ie3    3h24m
default       nf-oam-ie4    3h24m
default       nf-oam-ie5    3h24m
default       nf-oam-ie6    3h24m
default       nf-oam-int1   3h24m
default       nf-oam-int2   3h24m
default       nf-oam-int3   3h24m
default       nf-oam-int4   3h24m
default       nf-oam-int5   3h24m
default       nf-oam-int6   3h24m
occne-infra   lb-oam-ext    3h24m
occne-infra   lb-oam-int    3h24m

7.10.3 Adding an IP to the `service_ip_addr` list of an existing network

This section describes the steps to add an IP to the service_ip_addr list of an existing network.

Prerequisites

Before adding an IP to a network, ensure that the sig network is added as explained in the section, Adding a New Network.

Procedure

Edit the cnlb.ini file and add a valid external IP to the end of the service_ip_addr field for the sig network.

Below is a sample cnlb.ini file.

[cnlb]

[cnlb:vars]
# if set to true will use list of worker nodes mentioned in cnlb group to host lb client pods, if not set then use all
cnlb_replica_cnt = 4

[cnlb:children]
# Network names to be used for pod and external
# networking, these networks and ports
# will be created and attached to hosts
# in cnlb host group
oam
sig

[oam:vars]
service_network_name = "oam"
subnet_id = "43df8249-8316-48ed-a6b7-79de5413ddbb"
network_id = "18e0s112-ac40-4c57-bedf-a16b9df497cf"
external_network_range = "10.199.180.0/24"
external_default_gw = "10.199.180.1"
egress_ip_addr = ["10.199.180.11", "10.199.180.189"]
internal_network_range = "132.16.0.0/24"
service_ip_addr = ["10.199.180.128", "10.199.180.10", "10.199.180.247", "10.199.180.174", "10.199.180.131", "10.199.180.4"]
egress_dest = ["10.199.180.0/24","10.123.155.0/25"]

[sig:vars]
service_network_name = "sig"
subnet_id = "2f317932-91bd-4440-a2fe-f3e5fc0af49c"
network_id = "7375bbd7-a787-4f33-ae60-dbcc58c075c2"
external_network_range = 10.199.201.0/24
external_default_gw = "10.199.201.1"
egress_ip_addr = ["10.199.201.10", "10.199.201.11"]
internal_network_range = 172.16.0.0/24
service_ip_addr = ["10.199.201.15","10.199.201.16","10.199.201.76"]
shared_internal = False

The IP 10.199.201.76 is added.

Run the updNetwork.py script to update the CNLB network.

$ ./installer/updNetwork.py

Sample output:

Updating CNLB network as indicated in the cnlb.ini file
- Validating the cnlb.ini file
    - Successfully validated cnlb.ini file
- Generating new cnlb.auto.tfvars file
    - Successfully created cnlb.auto.tfvars file
- Initializing and running tofu apply
    - Tofu initialized
    - Running tofu apply... (may take several minutes)
      - Apply complete! Resources: 1 added, 0 changed, 0 destroyed
      - Successful run of tofu apply - check /var/occne/cluster/occne-user/updNetwork-08122024_171433.log for details
- Running installCnlb.py
    - Successfully ran installCnlb.py
- Restarting cnlb-manager and cnlb-app deployments
    - Deployment: cnlb-manager was restarted. Please wait for the pods status to be 'running'
    - Deployment: cnlb-app was restarted. Please wait for the pods status to be 'running'
- Network update successfully completed

Verify the changes using the following command:

$ kubectl describe cm cnlb-manager-networks -n occne-infra

Sample output:

Name:         cnlb-manager-networks
Namespace:    occne-infra
Labels:       <none>
Annotations:  <none>

Data
====
cnlb_manager_net_cm.json:
----
{
    "networks": [
        {
            "external-network": [
                {
                    "range": "10.199.180.0/24",
                    "gatewayIp": "10.199.180.1"
                }
            ],
            "internal-network": [
                {
                    "range": "132.16.0.0/24",
                    "egressIp": [
                        [
                            "10.199.180.11",
                            "132.16.0.193"
                        ],
                        [
                            "10.199.180.189",
                            "132.16.0.194"
                        ]
                    ]
                }
            ],
            "networkName": "oam"
        },
        {
            "external-network": [
                {
                    "range": "10.199.201.0/24",
                    "gatewayIp": "10.199.201.1"
                }
            ],
            "internal-network": [
                {
                    "range": "172.16.0.0/24",
                    "egressIp": [
                        [
                            "10.199.201.10",
                            "172.16.0.193"
                        ],
                        [
                            "10.199.201.11",
                            "172.16.0.194"
                        ]
                    ]
                }
            ],
            "networkName": "sig"
        }
    ]
}

BinaryData
====

After the verification, run the following command to fetch the additional default network attachment definitions.

$ kubectl get net-attach-def -A

Sample output:


NAMESPACE     NAME          AGE
default       nf-oam-egr1   132m
default       nf-oam-egr2   132m
default       nf-oam-ie1    132m
default       nf-oam-ie2    132m
default       nf-oam-ie3    132m
default       nf-oam-ie4    132m
default       nf-oam-ie5    132m
default       nf-oam-ie6    132m
default       nf-oam-int1   132m
default       nf-oam-int2   132m
default       nf-oam-int3   132m
default       nf-oam-int4   132m
default       nf-oam-int5   132m
default       nf-oam-int6   132m
default       nf-sig-int1   33m
default       nf-sig-int2   33m
default       nf-sig-int3   6m11s
occne-infra   lb-oam-ext    132m
occne-infra   lb-oam-int    132m
occne-infra   lb-sig-ext    33m
occne-infra   lb-sig-int    33m

7.10.4 Deleting an IP from the `service_ip_addr` list of an existing network

This section describes the steps to delete an IP from the service_ip_addr list of an existing network.

Prerequisites

Before proceeding to delete an IP from a network, ensure that the sig network is added as explained in the section, Adding a New Network in addition to the service IP 10.199.201.76.

Procedure

Edit the cnlb.ini file to remove the external IP 10.199.201.76 from the service_ip_addr field for the sig network.

Below is a sample cnlb.ini file.

[cnlb]

[cnlb:vars]
# if set to true, it will use list of worker nodes mentioned in cnlb group to host lb client pods, if not set then use all
cnlb_replica_cnt = 4

[cnlb:children]

# Network names to be used for pod and external
# networking, these networks and ports
# will be created and attached to hosts
# in cnlb host group
oam
sig

[oam:vars]
service_network_name = "oam"
subnet_id = "43df8249-8316-48ed-a6b7-79de5413ddbb"
network_id = "18e0s112-ac40-4c57-bedf-a16b9df497cf"
external_network_range = "10.199.180.0/24"
external_default_gw = "10.199.180.1"
egress_ip_addr = ["10.199.180.11", "10.199.180.189"]
internal_network_range = "132.16.0.0/24"
service_ip_addr = ["10.199.180.128", "10.199.180.10", "10.199.180.247", "10.199.180.174", "10.199.180.131", "10.199.180.4"]
egress_dest = ["10.199.180.0/24","10.123.155.0/25"]

[sig:vars]
service_network_name = "sig"
subnet_id = "2f317932-91bd-4440-a2fe-f3e5fc0af49c"
network_id = "7375bbd7-a787-4f33-ae60-dbcc58c075c2"
external_network_range = 10.199.201.0/24
external_default_gw = "10.199.201.1"
egress_ip_addr = ["10.199.201.10", "10.199.201.11"]
internal_network_range = 172.16.0.0/24
service_ip_addr = ["10.199.201.15","10.199.201.16"]
shared_internal = False

Run the updNetwork.py script to update the CNLB network.

$ ./installer/updNetwork.py

Sample output:

Updating CNLB network as indicated in the cnlb.ini file
- Validating the cnlb.ini file
    - Successfully validated cnlb.ini file
- Generating new cnlb.auto.tfvars file
    - Successfully created cnlb.auto.tfvars file
- Initializing and running tofu apply
    - Tofu initialized
    - Running tofu apply... (may take several minutes)
      - Apply complete! Resources: 0 added, 0 changed, 1 destroyed
      - Successful run of tofu apply - check /var/occne/cluster/occne-user/updNetwork-08122024_172857.log for details
- Running installCnlb.py
    - Successfully ran installCnlb.py
- Restarting cnlb-manager and cnlb-app deployments
    - Deployment: cnlb-manager was restarted. Please wait for the pods status to be 'running'
    - Deployment: cnlb-app was restarted. Please wait for the pods status to be 'running'
- Network update successfully completed

Verify the changes using the following command.

$ kubectl describe cm cnlb-manager-networks -n occne-infra

Sample output:

Name:         cnlb-manager-networks
Namespace:    occne-infra
Labels:       <none>
Annotations:  <none>

Data
====
cnlb_manager_net_cm.json:
----
{
    "networks": [
        {
            "external-network": [
                {
                    "range": "10.199.180.0/24",
                    "gatewayIp": "10.199.180.1"
                }
            ],
            "internal-network": [
                {
                    "range": "132.16.0.0/24",
                    "egressIp": [
                        [
                            "10.199.180.11",
                            "132.16.0.193"
                        ],
                        [
                            "10.199.180.189",
                            "132.16.0.194"
                        ]
                    ]
                }
            ],
            "networkName": "oam"
        },
        {
            "external-network": [
                {
                    "range": "10.199.201.0/24",
                    "gatewayIp": "10.199.201.1"
                }
            ],
            "internal-network": [
                {
                    "range": "172.16.0.0/24",
                    "egressIp": [
                        [
                            "10.199.201.10",
                            "172.16.0.193"
                        ],
                        [
                            "10.199.201.11",
                            "172.16.0.194"
                        ]
                    ]
                }
            ],
            "networkName": "sig"
        }
    ]
}

BinaryData
====

After the verification, run the following command to fetch the additional default network attachment definitions.

$ kubectl get net-attach-def -A

Sample output:

NAMESPACE     NAME          AGE
default       nf-oam-egr1   143m
default       nf-oam-egr2   143m
default       nf-oam-ie1    143m
default       nf-oam-ie2    143m
default       nf-oam-ie3    143m
default       nf-oam-ie4    143m
default       nf-oam-ie5    143m
default       nf-oam-ie6    143m
default       nf-oam-int1   143m
default       nf-oam-int2   143m
default       nf-oam-int3   143m
default       nf-oam-int4   143m
default       nf-oam-int5   143m
default       nf-oam-int6   143m
default       nf-sig-int1   44m
default       nf-sig-int2   44m
occne-infra   lb-oam-ext    143m
occne-infra   lb-oam-int    143m
occne-infra   lb-sig-ext    44m
occne-infra   lb-sig-int    44m

7.10.5 Changing an IP in the `service_ip_addr` list of an existing network

This section describes the steps to change an IP in the service_ip_addr list of an existing network.

Prerequisites

Before proceeding to delete an IP from a network, ensure that the sig network is added as explained in the section, Adding a New Network in addition to the service IP 10.199.201.76.

Procedure

Edit the cnlb.ini file to change the service IP 10.199.201.76 to 10.199.201.16 in the service_ip_addr field for the sig network.

Below is a sample cnlb.ini file.

[cnlb]

[cnlb:vars]
# if set to true will use list of worker nodes mentioned in cnlb group to host lb client pods, if not set then use all
cnlb_replica_cnt = 4

[cnlb:children]

# Network names to be used for pod and external
# networking, these networks and ports
# will be created and attached to hosts
# in cnlb host group
oam
sig

[oam:vars]
service_network_name = "oam"
subnet_id = "43df8249-8316-48ed-a6b7-79de5413ddbb"
network_id = "18e0s112-ac40-4c57-bedf-a16b9df497cf"
external_network_range = "10.199.180.0/24"
external_default_gw = "10.199.180.1"
egress_ip_addr = ["10.199.180.11", "10.199.180.189"]
internal_network_range = "132.16.0.0/24"
service_ip_addr = ["10.199.180.128", "10.199.180.10", "10.199.180.247", "10.199.180.174", "10.199.180.131", "10.199.180.4"]
egress_dest = ["10.199.180.0/24","10.123.155.0/25"]

[sig:vars]
service_network_name = "sig"
subnet_id = "2f317932-91bd-4440-a2fe-f3e5fc0af49c"
network_id = "7375bbd7-a787-4f33-ae60-dbcc58c075c2"
external_network_range = 10.199.201.0/24
external_default_gw = "10.199.201.1"
egress_ip_addr = ["10.199.201.10", "10.199.201.11"]
internal_network_range = 172.16.0.0/24
service_ip_addr = ["10.199.201.15","10.199.201.16","10.199.201.16"]
shared_internal = False

Run the updNetwork.py script to update the CNLB network.

$ ./installer/updNetwork.py

Sample output:

Updating CNLB network as indicated in the cnlb.ini file
- Validating the cnlb.ini file
    - Successfully validated cnlb.ini file
- Generating new cnlb.auto.tfvars file
    - Successfully created cnlb.auto.tfvars file
- Initializing and running tofu apply
    - Tofu initialized
    - Running tofu apply... (may take several minutes)
      - Apply complete! Resources: 1 added, 0 changed, 1 destroyed
      - Successful run of tofu apply - check /var/occne/cluster/occne-user/updNetwork-08122024_173855.log for details
- Running installCnlb.py
    - Successfully ran installCnlb.py
- Restarting cnlb-manager and cnlb-app deployments
    - Deployment: cnlb-manager was restarted. Please wait for the pods status to be 'running'
    - Deployment: cnlb-app was restarted. Please wait for the pods status to be 'running'
- Network update successfully completed

Verify the changes using the following commands.

$ kubectl describe cm cnlb-manager-networks -n occne-infra
$ kubectl get net-attach-def -A

Sample output:

Name:         cnlb-manager-networks
Namespace:    occne-infra
Labels:       <none>
Annotations:  <none>

Data
====
cnlb_manager_net_cm.json:
----
{
    "networks": [
        {
            "external-network": [
                {
                    "range": "10.199.180.0/24",
                    "gatewayIp": "10.199.180.1"
                }
            ],
            "internal-network": [
                {
                    "range": "132.16.0.0/24",
                    "egressIp": [
                        [
                            "10.199.180.11",
                            "132.16.0.193"
                        ],
                        [
                            "10.199.180.189",
                            "132.16.0.194"
                        ]
                    ]
                }
            ],
            "networkName": "oam"
        },
        {
            "external-network": [
                {
                    "range": "10.199.201.0/24",
                    "gatewayIp": "10.199.201.1"
                }
            ],
            "internal-network": [
                {
                    "range": "172.16.0.0/24",
                    "egressIp": [
                        [
                            "10.199.201.10",
                            "172.16.0.193"
                        ],
                        [
                            "10.199.201.11",
                            "172.16.0.194"
                        ]
                    ]
                }
            ],
            "networkName": "sig"
        }
    ]
}

BinaryData
====

Run the following command:

$ kubectl get net-attach-def -A

NAMESPACE     NAME          AGE
default       nf-oam-egr1   153m
default       nf-oam-egr2   153m
default       nf-oam-ie1    153m
default       nf-oam-ie2    153m
default       nf-oam-ie3    153m
default       nf-oam-ie4    153m
default       nf-oam-ie5    153m
default       nf-oam-ie6    153m
default       nf-oam-int1   153m
default       nf-oam-int2   153m
default       nf-oam-int3   153m
default       nf-oam-int4   153m
default       nf-oam-int5   153m
default       nf-oam-int6   153m
default       nf-sig-int1   53m
default       nf-sig-int2   53m
occne-infra   lb-oam-ext    153m
occne-infra   lb-oam-int    153m
occne-infra   lb-sig-ext    53m
occne-infra   lb-sig-int    53m

7.10.6 Adding a CIDR to the `egress_dest` field of an existing network

This section describes the steps to add a Classless Inter-Domain Routing (CIDR) to the egress_dest field of an existing network.

Prerequisites

Before adding a CIDR to the egress_dest field, ensure that the sig network is added as explained in the section, Adding a New Network.

Validation commands

The following commands are used to validate the changes.

Table 7-24 Validation commands

Command	Purpose
`kubectl describe cm cnlb-manager-networks -n occne-infra`	This command is used to retrieve and display the data from `cnlb-manager-networks`.
`kubectl get net-attach-def -A`	This command is used to get the network attachment definition through out the cluster. Here, `-A` represents all namespaces.
`kubectl describe net-attach-def nf-sig-egr1 -n default`	This command is used to retrieve the contents of the network attachment definition, `nf-sig-egr1` in default namespace.

Procedure

Edit the cnlb.ini file to add the IP, 10.199.100.0/25 to the egress_dest field for the sig network.

For more information on how to add sig network, see Adding a New Network.

Below is a sample cnlb.ini file.

[cnlb]

[cnlb:vars]
# if set to true, it will use list of worker nodes mentioned in cnlb group to host lb client pods, if not set then use all
cnlb_replica_cnt = 4

[cnlb:children]

# Network names to be used for pod and external
# networking, these networks and ports
# will be created and attached to hosts
# in cnlb host group
oam
sig

[oam:vars]
service_network_name = "oam"
subnet_id = "43df8249-8316-48ed-a6b7-79de5413ddbb"
network_id = "18e0s112-ac40-4c57-bedf-a16b9df497cf"
external_network_range = "10.199.180.0/24"
external_default_gw = "10.199.180.1"
egress_ip_addr = ["10.199.180.11", "10.199.180.189"]
internal_network_range = "132.16.0.0/24"
service_ip_addr = ["10.199.180.128", "10.199.180.10", "10.199.180.247", "10.199.180.174", "10.199.180.131", "10.199.180.4"]
egress_dest = ["10.199.180.0/24","10.123.155.0/25"]

[sig:vars]
service_network_name = "sig"
subnet_id = "2f317932-91bd-4440-a2fe-f3e5fc0af49c"
network_id = "7375bbd7-a787-4f33-ae60-dbcc58c075c2"
external_network_range = 10.199.201.0/24
external_default_gw = "10.199.201.1"
egress_ip_addr = ["10.199.201.10", "10.199.201.11"]
internal_network_range = 172.16.0.0/24
service_ip_addr = ["10.199.201.15","10.199.201.16","10.199.201.16"]
egress_dest = ["10.199.201.0/25","10.199.100.0/25"]
shared_internal = False

Run the updNetwork.py script to update the CNLB network.

$ ./installer/updNetwork.py

Sample output:

Updating CNLB network as indicated in the cnlb.ini file
- Validating the cnlb.ini file
    - Successfully validated cnlb.ini file
- Generating new cnlb.auto.tfvars file
    - Successfully created cnlb.auto.tfvars file
- Initializing and running tofu apply
    - Tofu initialized
    - Running tofu apply... (may take several minutes)
      - Apply complete! Resources: 0 added, 0 changed, 0 destroyed
      - Successful run of tofu apply - check /var/occne/cluster/occne-user/updNetwork-08122024_174922.log for details
- Running installCnlb.py
    - Successfully ran installCnlb.py
- Restarting cnlb-manager and cnlb-app deployments
    - Deployment: cnlb-manager was restarted. Please wait for the pods status to be 'running'
    - Deployment: cnlb-app was restarted. Please wait for the pods status to be 'running'
- Network update successfully completed

Verify the changes using the following command.

$ kubectl describe net-attach-def nf-sig-egr1 -n default

The parameter net-attach-def route from the configuration is added to the /Spec/Config section and also as shown below. See "routes" below where {"dst": "10.199.100.0/25", "gw": "172.16.0.193"} is added.

Sample output:

Name:         nf-sig-egr1
Namespace:    default
Labels:       <none>
Annotations:  <none>
API Version:  k8s.cni.cncf.io/v1
Kind:         NetworkAttachmentDefinition
Metadata:
  Creation Timestamp:  2024-08-12T17:48:09Z
  Generation:          2
  Resource Version:    55141
  UID:                 f3720ac4-f49e-487b-a0cc-5b2096d12432
Spec:
  Config:  {"cniVersion": "0.4.0", "name": "nf-sig-egr1", "plugins": [{"type": "macvlan", "mode": "bridge", "master": "eth3", "ipam": {"type": "whereabouts", "range": "132.16.0.0/24", "range_start": "132.16.0.129", "range_end": "132.16.0.190", "gateway": "132.16.0.193", "routes": [{"dst": "10.199.201.0/23", "gw": "132.16.0.193"}, {"dst": "10.199.100.0/25", "gw": "172.16.0.193"}]}}]}
Events:    <none>

7.10.7 Deleting a CIDR from the `egress_dest` field of an existing network

This section describes the procedure to delete a CIDR from the egress_dest field from an existing network

Prerequisites

Before deleting a CIDR from the egress_dest field, ensure that the sig network is added as explained in the section, Adding a New Network.

Procedure

Edit the cnlb.ini file and delete IP 10.199.100.0/25 from the egress_dest field for the sig network.

Below is a sample cnlb.ini file.

[cnlb]

[cnlb:vars]
# if set to true, it will use list of worker nodes mentioned in cnlb group to host lb client pods, if not set then use all
cnlb_replica_cnt = 4

[cnlb:children]
# Network names to be used for pod and external
# networking, these networks and ports
# will be created and attached to hosts
# in cnlb host group
oam
sig

[oam:vars]
service_network_name = "oam"
subnet_id = "43df8249-8316-48ed-a6b7-79de5413ddbb"
network_id = "18e0s112-ac40-4c57-bedf-a16b9df497cf"
external_network_range = "10.199.180.0/24"
external_default_gw = "10.199.180.1"
egress_ip_addr = ["10.199.180.11", "10.199.180.189"]
internal_network_range = "132.16.0.0/24"
service_ip_addr = ["10.199.180.128", "10.199.180.10", "10.199.180.247", "10.199.180.174", "10.199.180.131", "10.199.180.4"]
egress_dest = ["10.199.180.0/24","10.123.155.0/25"]

[sig:vars]
service_network_name = "sig"
subnet_id = "2f317932-91bd-4440-a2fe-f3e5fc0af49c"
network_id = "7375bbd7-a787-4f33-ae60-dbcc58c075c2"
external_network_range = 10.199.201.0/24
external_default_gw = "10.199.201.1"
egress_ip_addr = ["10.199.201.10", "10.199.201.11"]
internal_network_range = 172.16.0.0/24
service_ip_addr = ["10.199.201.15","10.199.201.16","10.199.201.16"]
egress_dest = ["10.199.201.0/25"]
shared_internal = False

Run the updNetwork.py script to update the CNLB network.

$ ./installer/updNetwork.py

Sample output:

Updating CNLB network as indicated in the cnlb.ini file
- Validating the cnlb.ini file
    - Successfully validated cnlb.ini file
- Generating new cnlb.auto.tfvars file
    - Successfully created cnlb.auto.tfvars file
- Initializing and running tofu apply
    - Tofu initialized
    - Running tofu apply... (may take several minutes)
      - Apply complete! Resources: 0 added, 0 changed, 0 destroyed
      - Successful run of tofu apply - check /var/occne/cluster/occne-user/updNetwork-08122024_175715.log for details
- Running installCnlb.py
    - Successfully ran installCnlb.py
- Restarting cnlb-manager and cnlb-app deployments
    - Deployment: cnlb-manager was restarted. Please wait for the pods status to be 'running'
    - Deployment: cnlb-app was restarted. Please wait for the pods status to be 'running'
- Network update successfully completed

Verify the following changes by running the command

$
                        kubectl describe net-attach-def nf-sig-egr1 -n default

:

route net-attach-def is removed from /spec/config section as shown in the sample output below
Observe that in the routes field, the IPs {"dst": "10.199.100.0/25", "gw": "172.16.0.193"} are deleted.

Sample output:

Name:         nf-sig-egr1
Namespace:    default
Labels:       <none>
Annotations:  <none>
API Version:  k8s.cni.cncf.io/v1
Kind:         NetworkAttachmentDefinition
Metadata:
  Creation Timestamp:  2024-08-12T17:48:09Z
  Generation:          2
  Resource Version:    55141
  UID:                 f3720ac4-f49e-487b-a0cc-5b2096d12432
Spec:
  Config:  {"cniVersion": "0.4.0", "name": "nf-sig-egr1", "plugins": [{"type": "macvlan", "mode": "bridge", "master": "eth3", "ipam": {"type": "whereabouts", "range": "132.16.0.0/24", "range_start": "132.16.0.129", "range_end": "132.16.0.190", "gateway": "132.16.0.193", "routes": [{"dst": "10.199.201.0/23", "gw": "132.16.0.193"}]}}]}
Events:    <none>

7.10.8 Converting CNLB configuration to CNLB-SIN configuration

This section describes the steps to convert a CNLB configuration to a CNLB-SIN configuration.

Prerequisites

Before deleting a CIDR from the egress_dest field, ensure that the sig network is added as explained in the section, Adding a New Network.
The sig network is not CNLB-SIN enabled.

Procedure

Edit the cnlb.ini file and modify the shared_internal parameter value to True for the sig network.

Below is a sample cnlb.ini file.

[cnlb]

[cnlb:vars]
# if set to true will use list of worker nodes mentioned in cnlb group to host lb client pods, if not set then use all
cnlb_replica_cnt = 4

[cnlb:children]
# Network names to be used for pod and external
# networking, these networks and ports
# will be created and attached to hosts
# in cnlb host group
oam
sig

[oam:vars]
service_network_name = "oam"
subnet_id = "43df8249-8316-48ed-a6b7-79de5413ddbb"
network_id = "18e0s112-ac40-4c57-bedf-a16b9df497cf"
external_network_range = "10.199.180.0/24"
external_default_gw = "10.199.180.1"
egress_ip_addr = ["10.199.180.11", "10.199.180.189"]
internal_network_range = "132.16.0.0/24"
service_ip_addr = ["10.199.180.128", "10.199.180.10", "10.199.180.247", "10.199.180.174", "10.199.180.131", "10.199.180.4"]
egress_dest = ["10.199.180.0/24","10.123.155.0/25"]

[sig:vars]
service_network_name = "sig"
subnet_id = "2f317932-91bd-4440-a2fe-f3e5fc0af49c"
network_id = "7375bbd7-a787-4f33-ae60-dbcc58c075c2"
external_network_range = 10.199.201.0/24
external_default_gw = "10.199.201.1"
egress_ip_addr = ["10.199.201.10", "10.199.201.11"]
internal_network_range = 172.16.0.0/24
service_ip_addr = ["10.199.201.15","10.199.201.16","10.199.201.16"]
egress_dest = ["10.199.201.0/25"]
shared_internal = True

Run the updNetwork.py script to update the CNLB network.

$ ./installer/updNetwork.py

Sample output:

Updating CNLB network as indicated in the cnlb.ini file
- Validating the cnlb.ini file
    - Successfully validated cnlb.ini file
- Generating new cnlb.auto.tfvars file
    - Successfully created cnlb.auto.tfvars file
- Initializing and running tofu apply
    - Tofu initialized
    - Running tofu apply... (may take several minutes)
      - Apply complete! Resources: 0 added, 0 changed, 0 destroyed
      - Successful run of tofu apply - check /var/occne/cluster/occne-user/updNetwork-08122024_175715.log for details
- Running installCnlb.py
    - Successfully ran installCnlb.py
- Restarting cnlb-manager and cnlb-app deployments
    - Deployment: cnlb-manager was restarted. Please wait for the pods status to be 'running'
    - Deployment: cnlb-app was restarted. Please wait for the pods status to be 'running'
- Network update successfully completed

Run the following describe command to retrieve the data of the oam and sig internal network attachments.

$ kubectl describe net-attach-def lb-oam-int -n occne-infra

Sample output:

Name:         lb-oam-int
Namespace:    occne-infra
Labels:       <none>
Annotations:  <none>
API Version:  k8s.cni.cncf.io/v1
Kind:         NetworkAttachmentDefinition
Metadata:
  Creation Timestamp:  2024-12-11T23:10:58Z
  Generation:          1
  Resource Version:    3054
  UID:                 09ca27ac-bdfd-4a9b-8ef9-a41e207d6887
Spec:
  Config:  {"cniVersion": "0.4.0", "name": "lb-oam-int", "plugins": [{"type": "macvlan", "mode": "bridge", "master": "eth2", "ipam": {"type": "whereabouts", "range": "2.2.2.0/24", "range_start": "2.2.2.10", "range_end": "2.2.2.200", "gateway": "2.2.2.1"}}]}
Events:    <none>

Run the following command to verify that the oam network uses "eth2" in "master" and sig network also uses "eth2" in "master.


$ kubectl describe net-attach-def lb-sig-int -n occne-infra

Sample output:


Name:         lb-sig-int
Namespace:    occne-infra
Labels:       <none>
Annotations:  <none>
API Version:  k8s.cni.cncf.io/v1
Kind:         NetworkAttachmentDefinition
Metadata:
  Creation Timestamp:  2024-12-11T23:10:59Z
  Generation:          1
  Resource Version:    3074
  UID:                 efb4022b-9a9c-4a51-b745-40a3343e9b4a
Spec:
  Config:  {"cniVersion": "0.4.0", "name": "lb-sig-int", "plugins": [{"type": "macvlan", "mode": "bridge", "master": "eth2", "ipam": {"type": "whereabouts", "range": "2.2.2.0/24", "range_start": "2.2.2.10", "range_end": "2.2.2.200", "gateway": "2.2.2.1"}}]}
Events:    <none>

7.10.9 Converting CNLB-SIN Configuration to CNLB Configuration

This section describes the steps to convert a CNLB-SIN configuration to a CNLB configuration.

Prerequisites

This procedure assumes that the sig network has already been added. If not added, perform the steps given in the section Adding a New Network.
The sig network is CNLB-SIN enabled.

Procedure to Convert CNLB-SIN Configuration to CNLB Configuration

Edit the cnlb.ini file and update the value of the shared_internal parameter to False for the sig network.

Below is a sample cnlb.ini file.

[cnlb]

[cnlb:vars]
# if set to true will use list of worker nodes mentioned in cnlb group to host lb client pods, if not set then use all
cnlb_replica_cnt = 4

[cnlb:children]
# Network names to be used for pod and external
# networking, these networks and ports
# will be created and attached to hosts
# in cnlb host group
oam
sig

[oam:vars]
service_network_name = "oam"
subnet_id = "43df8249-8316-48ed-a6b7-79de5413ddbb"
network_id = "18e0s112-ac40-4c57-bedf-a16b9df497cf"
external_network_range = "10.199.180.0/24"
external_default_gw = "10.199.180.1"
egress_ip_addr = ["10.199.180.11", "10.199.180.189"]
internal_network_range = "132.16.0.0/24"
service_ip_addr = ["10.199.180.128", "10.199.180.10", "10.199.180.247", "10.199.180.174", "10.199.180.131", "10.199.180.4"]
egress_dest = ["10.199.180.0/24","10.123.155.0/25"]

[sig:vars]
service_network_name = "sig"
subnet_id = "2f317932-91bd-4440-a2fe-f3e5fc0af49c"
network_id = "7375bbd7-a787-4f33-ae60-dbcc58c075c2"
external_network_range = 10.199.201.0/24
external_default_gw = "10.199.201.1"
egress_ip_addr = ["10.199.201.10", "10.199.201.11"]
internal_network_range = 172.16.0.0/24
service_ip_addr = ["10.199.201.15","10.199.201.16","10.199.201.16"]
egress_dest = ["10.199.201.0/25"]
shared_internal = False

Run the updNetwork.py script to update the CNLB network.

$ ./installer/updNetwork.py

Sample output:

Updating CNLB network as indicated in the cnlb.ini file
- Validating the cnlb.ini file
    - Successfully validated cnlb.ini file
- Generating new cnlb.auto.tfvars file
    - Successfully created cnlb.auto.tfvars file
- Initializing and running tofu apply
    - Tofu initialized
    - Running tofu apply... (may take several minutes)
      - Apply complete! Resources: 0 added, 0 changed, 0 destroyed
      - Successful run of tofu apply - check /var/occne/cluster/occne-user/updNetwork-08122024_175715.log for details
- Running installCnlb.py
    - Successfully ran installCnlb.py
- Restarting cnlb-manager and cnlb-app deployments
    - Deployment: cnlb-manager was restarted. Please wait for the pods status to be 'running'
    - Deployment: cnlb-app was restarted. Please wait for the pods status to be 'running'
- Network update successfully completed

Run the following kubectl describe command to retrieve the data of the oam and sig internal network attachments.

$ kubectl describe net-attach-def lb-oam-int -n occne-infra

Sample output:

Name:         lb-oam-int
Namespace:    occne-infra
Labels:       <none>
Annotations:  <none>
API Version:  k8s.cni.cncf.io/v1
Kind:         NetworkAttachmentDefinition
Metadata:
  Creation Timestamp:  2024-12-11T23:10:58Z
  Generation:          1
  Resource Version:    3054
  UID:                 09ca27ac-bdfd-4a9b-8ef9-a41e207d6887
Spec:
  Config:  {"cniVersion": "0.4.0", "name": "lb-oam-int", "plugins": [{"type": "macvlan", "mode": "bridge", "master": "eth2", "ipam": {"type": "whereabouts", "range": "2.2.2.0/24", "range_start": "2.2.2.10", "range_end": "2.2.2.200", "gateway": "2.2.2.1"}}]}
Events:    <none>

Run the following command to verify that the oam network uses "eth2" in "master" and sig network uses "eth3" in "master.

$ kubectl describe net-attach-def lb-sig-int -n occne-infra

Sample output:

Name:         lb-sig-int
Namespace:    occne-infra
Labels:       <none>
Annotations:  <none>
API Version:  k8s.cni.cncf.io/v1
Kind:         NetworkAttachmentDefinition
Metadata:
  Creation Timestamp:  2024-12-11T23:10:59Z
  Generation:          1
  Resource Version:    3074
  UID:                 efb4022b-9a9c-4a51-b745-40a3343e9b4a
Spec:
  Config:  {"cniVersion": "0.4.0", "name": "lb-sig-int", "plugins": [{"type": "macvlan", "mode": "bridge", "master": "eth3", "ipam": {"type": "whereabouts", "range": "2.2.2.0/24", "range_start": "2.2.2.10", "range_end": "2.2.2.200", "gateway": "2.2.2.1"}}]}
Events:    <none>

7.11 Secure DNS Zone Customization through CNLB

Overview

DNS Zone Customization functionality in the CNE environment enhances the security and scalability of DNS requests by routing traffic based on domain zones, such as OAM or Signaling. The feature isolates DNS traffic and forwards requests through Cloud Native Load Balancers (CNLB) to external DNS servers, which are managed by customers. CNE does not control these external servers, but ensures the secure routing of requests. When this feature is enabled, it is required that CoreDNS pods are not scheduled to run on control plane nodes.

Impact on CNE Environment

DNS Zone Customization feature modifies the DNS resolution flow within the CNE environment to optimize name resolution and centralize DNS routing through the CNLB application. It introduces improved control over external DNS traffic by routing it through an active CNLB application, bypassing the Bastion-host-based resolution flow.

DNS requests originating from worker pods are routed through CoreDNS, which examines the requested domain zone (for example, OAM, Signaling). Depending on the zone type, the DNS request is forwarded through the appropriate CNLB (Cloud Native Load Balancer) application to the corresponding external DNS server.

Egress Network Attachment Definitions (NADs) isolate DNS traffic paths for different domain zones, such as OAM and Signaling. CoreDNS pods must not be running on control nodes when this feature is enabled, it must be restricted to worker nodes only, ensuring that DNS requests are handled within the local cluster network before being forwarded to external DNS servers.

DNS traffic is routed through specific CNLB interfaces, enabling detailed control over egress traffic and supporting customer-specific routing rules to ensure each zone's traffic uses a secure and dedicated path.

Note:

The cluster should be CNLB enabled.
External IPs of the DNS servers will be provided and maintained by the Customers.
During the implementation of the DNS enhancement procedure, CNE cluster may experience a momentary service disruption due to transient DNS lookup unavailability affecting Network Functions (NFs) and other dependent components during the configuration switchover. The disruption is brief and self-limiting, with services expected to automatically stabilize upon completion of the procedure.

Note:

After activating the flow, no issues have been observed during subsequent self-update and upgrade processes. All components continue to function as expected. Additionally, the ConfigMap changes for NodeLocalDNS and CoreDNS remain intact.

Switch DNS Routing using CNLB

Switching DNS routing to utilize the Cloud Native Load Balancer (CNLB) improves scalability and reliability. The switchover procedure involves the following steps:

Determine the active Bastion Host
Defining variables to configure the External DNS server and zone settings in occne.ini
Enabling TLS in zones
Enabling DNS enhancement

7.11.1 Determining Active Bastion Host

Log in to either Bastion Host (typically Bastion 1).
Check if the Bastion Host is hosting the active cluster services by running the following command:
```
$ is_active_bastion
```
Sample output:
```
IS active-bastion
```
If the current Bastion is not active, log out and connect to the mate Bastion Host.
Repeat the check using the same command:
```
$ is_active_bastion
```
Sample output:
```
IS active-bastion
```
Confirm that the Bastion is hosting active services before proceeding with any further actions.

7.11.2 Defining Variables for External DNS Server

Populate the required values in the occne.ini file.

For this step, ensure the following values are correctly populated under the [occne:vars] section of the occne.ini file:

Table 7-25 Variables for External DNS Server

Field Name	Description	Required/Optional	Structure	Notes
enable_dns_enhancement	This field enables the DNS enhancement flow when set to `True`.	Required	`enable_dns_enhancement: True`	Boolean value Set to True to activate DNS enhancement logic Set to False for rollout the DNS enhancement
upstream_dns_servers	Indicates if any request that does not match the zones defined in `coredns_external_zones` will be forwarded to these upstream servers for resolution.	Required	`upstream_dns_servers: ["IP1"]`	Must be a list of IP addresses If not set, non-matching queries will fail Can include multiple IPs
coredns_egress_nad	Indicates the list of Network Attachment Definitions (NADs) for routing CoreDNS egress traffic.	Required	`coredns_egress_nad = ["default/nad-egr@nad-egr"]`	Traffic is routed through CNLB interfaces Can include one or more NAD names
coredns_external_zones	Each entry is a combination of the fields: zones, nameservers, and cache used to define how specific DNS queries must be resolved using external DNS servers.	Required	`coredns_external_zones = [{"cache": 30,"zones":["zone1"],"nameservers":["IP1"]}]`	JSON array defining zone names, caching TTL, and their corresponding nameservers. Must be a valid stringified JSON. defines a list of external DNS zones and their respective upstream nameservers to which CoreDNS will forward matching queries, optionally with rewrite rules.

The following table lists the fields to be added to the coredns_external_zones variable.

Table 7-26 coredns_external_zones Fields

Field Name	Description	Required/Optional	Structure	Notes
zones	List of zones (domains) for which DNS queries should be forwarded	Required	"zones": ["zone1"]	Must be a list of strings Multiple zones can be added as part of this list
nameservers	List of External DNS server IPs to which these zone queries should be forwarded	Required	"nameservers": ["IP1"]	Must be a list of valid IP addresses Multiple entries are supported
cache	TTL (in seconds) for caching responses from the DNS servers	Required	"cache": 30	Cache cannot be 0 or a negative number Useful to reduce DNS resolution time for frequently queried domains
rewrite	Rules to rewrite DNS queries before forwarding (for example, changing domain names)	Optional	"rewrite": ["rule1", "rule2"]	Must be a list of strings List of rewrite rules Each rule follows CoreDNS syntax

Example:

[occne:vars]
enable_dns_enhancement = True
upstream_dns_servers = ["10.**.**.**"]
coredns_egress_nad = ["default/egr-nad-name@egr-nad-name"]
coredns_external_zones = [{"zones":["example1.com","example2.io:1053"],"nameservers":["1.1.1.1","2.2.2.2"],"cache":5},{"zones":["examplesvc1.local:4453"],"nameservers":["192.168.0.53"],"cache":9},{"zones":["exampledomain.tld"],"nameservers":["10.233.0.3"],"cache":5,"rewrite":["name stop example.tld example.namespace.svc.cluster.local"]}]

Note:

Ensure that zones are written entirely in lowercase letters.
The enable_dns_enhancement parameter requires an exact boolean value of True (case-sensitive) to activate DNS enhancement. Any deviation from this value, such as true or 1, will result in the feature being disabled.
DNS enhancement feature can also be enabled along with local DNS feature.
If enable_dns_enhancement is set to True, then all the other 3 variables are required, else it will fail.

7.11.3 Enabling TLS in Zones

This section explains how to enable TLS for secure communication in the DNS Enhancement setup.

If TLS is not required for communication between CoreDNS and external DNS servers, this section can be skipped.

CoreDNS supports TLS connections with external DNS servers. DNS enhancement allows to enable TLS in each zone independently.

Enabling TLS in Zones

Edit the occne.ini file in the cluster directory.
```
$ vi /var/occne/cluster/${OCCNE_CLUSTER}/occne.ini
```

To enable TLS in DNS enhancement, a JSON Object named tls must be defined in the coredns_external_zones variable.

The following table lists the fields to be added to the tls JSON Object.

Table 7-27 tls JSON Object Variables

Field	Description	Required/Optional	Structure	Notes
tls_port	Port used for communication with the external DNS server via TLS	Optional	"tls_port": "port_number"	Default port for TLS is 853 Other port numbers may be used
tls_servername	Server name of the external DNS server used during the TLS handshake.	Required	"tls_servername": "server_name"	Used to validate certificates for TLS handshake
tls_key_path	Relative path of client's key used during the TLS handshake.	Optional	"tls_key_path": "client.key"	Depends on the TLS configuration of the external DNS server If defined, tls_crt_path must be also defined When omitted, no client authentication is performed The TLS client key must be created or located under the /var/occne/cluster/${OCCNE_CLUSTER}/installer/dns_enhancement directory. Sub directories are allowed.
tls_crt_path	Relative path of client's cert used during the TLS handshake.	Optional	"tls_crt_path": "client.crt"	Depends on the TLS configuration of the external DNS server If defined, tls_key_path must be also defined When omitted, no client authentication is performed The TLS client cert must be created or located under the `/var/occne/cluster/${OCCNE_CLUSTER}/installer/dns_enhancement` directory. Sub directories are allowed.
tls_ca_path	Relative path of CA cert used during the TLS handshake.	Optional	"tls_ca_path": "ca.crt"	Depends on the TLS configuration of the external DNS server Can be used without defining tls_crt_path and tls_key_path. The TLS CA cert must be created or located under the`/var/occne/cluster/${OCCNE_CLUSTER}/installer/dns_enhancement` directory. Sub directories are allowed.

Note:

TLS configuration requires zones that have it enabled, to only have one nameserver defined.
Ensure that tls_servername is always defined in the zones that have TLS enabled.

When using subdirectories for tls_key_path, tls_crt_path, or tls_ca_path, value must be written with the following structure:

sub_directory/second_sub_directory/client_key_crt_or_ca_crt

Following is an example TLS configuration:

[occne:vars]....coredns_external_zones = [{"zones":["example1.com","example2.io:1053"],"nameservers":["1.1.1.1"],"cache":5,"tls":{"tls_port":"853","tls_key_path":"example1_zone_keys/coredns.key","tls_crt_path":"example1_zone_keys/certs/coredns.crt","tls_servername":"example.local"}},{"zones":["examplesvc1.local:4453"],"nameservers":["192.168.0.53"],"cache":5},{"zones":["exampledomain.tld"],"nameservers":["10.233.0.3"],"cache":5,"tls":{"tls_ca_path":"ca.crt","tls_servername":"exampledomain.local"},"rewrite":["name stop example.tld example.namespace.svc.cluster.local"]}]

7.11.4 Enabling DNS Enhancement

The coreDnsEnhancement.py script is used to enable the DNS enhancement feature.

This script automates the necessary configuration steps to update CoreDNS and related components as part of the DNS enhancement process.

Enabling DNS Enhancement

Navigate to the cluster directory.
```
cd /var/occne/cluster/${OCCNE_CLUSTER}
```

Run the coreDnsEnhancement.py script.

The coreDnsEnhancement.py script configures and enhances the DNS setup based on the occne.ini file configurations.

./installer/dns_enhancement/coreDnsEnhancement.py

Sample output:

2025-07-24 09:06:55,077 CNLB_LOGGER:INFO: step-1: Load ini file into file parser
2025-07-24 09:06:55,078 CNLB_LOGGER:INFO: step-2: Check for enable_dns_enhancement parameter
2025-07-24 09:06:55,078 CNLB_LOGGER:INFO: step-3: Check for upstream_dns_servers parameter
2025-07-24 09:06:55,078 CNLB_LOGGER:INFO: upstream_dns_servers is defined with value: ['10.75.200.13']
2025-07-24 09:06:55,078 CNLB_LOGGER:INFO: step-4: Check for coredns_egress_nad parameter
2025-07-24 09:06:55,078 CNLB_LOGGER:INFO: coredns_egress_nad is defined with value: ['default/nf-oam-egr2@nf-oam-egr2']
2025-07-24 09:06:55,078 CNLB_LOGGER:INFO: NAD to be attached to coredns is: nf-oam-egr2
2025-07-24 09:06:55,078 CNLB_LOGGER:INFO: step-5: Check for coredns_external_zones parameter
2025-07-24 09:06:55,078 CNLB_LOGGER:INFO: step-6: Take back up of configurations
2025-07-24 09:06:55,273 CNLB_LOGGER:INFO: step-7: Run kubernetes pipeline to update coreDNS
2025-07-24 09:07:37,107 CNLB_LOGGER:INFO: step-8: update the zones file with new data
2025-07-24 09:07:37,113 CNLB_LOGGER:INFO: step-9: restart resources for adoption of changes
2025-07-24 09:07:37,322 CNLB_LOGGER:INFO: step-10: push dns validation image to occne-repo-host
2025-07-24 09:07:42,134 CNLB_LOGGER:INFO: SUCCESS: DNS is enhanced, now coredns can reach external zones

Using coreDnsEnhancement.py script:

[cloud-user@occne-cluster-name-bastion-1 cluster-name]$ ./installer/dns_enhancement/coreDnsEnhancement.py -h
usage: coreDnsEnhancement.py [-h] [-nn TESTNODENAME] [-t TESTRECORD] [-sz] [-d]

Used to update the network on an existing CNLB deployment.
Parameters:
  Required parameters:
    None

  Optional Parameters:
    -nn/--testNodeName: Node to be used for testing the DNS query (allowed only with -t)
    -t/--testRecord: runs test only
    -sz/--syncZoneFile: Only syncs external zone file in bastion host
    -d/--debugOn: sets the debug level as On

Following are some example arguments that can be passed with the script:

./coreDnsEnhancement.py
     ./coreDnsEnhancement.py -nn k8s-node-1 -t testrecord.oam
     ./coreDnsEnhancement.py -t testrecord.oam
     ./coreDnsEnhancement.py -sz
     ./coreDnsEnhancement.py -d

Following are some of the optional arguments:

-h, --help show this help message and exit
-nn TESTNODENAME, --testNodeName TESTNODENAME Node used for testing the DNS query
-t TESTRECORD, --testRecord TESTRECORD runs only test of enhancement for the given record
-sz, --syncZoneFile only syncs the zone file in bastion host
-d, --debugOn sets the log level as Debug

Note:

The -sz argument syncs the zone file in Bastion host with the occne.ini file.
Test node name can only be sent with the -t option, else it will be ignored and the setup proceeds with the default parameters.

./installer/dns_enhancement/coreDnsEnhancement.py -t
                            <zonename> -nn k8s-node-1

Testing DNS Resolution:

The DNS enhancement script includes a testing feature that enables verification of DNS resolution for a specified zone name. To perform a DNS test, run the script with the -t option followed by a valid zone name.

Example 1:

./installer/dns_enhancement/coreDnsEnhancement.py -t testrecord.abc

Sample output:

2025-07-24 09:11:45,489 CNLB_LOGGER:INFO: Update configurations in validationPod.yaml and kubectl apply it.
2025-07-24 09:11:49,845 CNLB_LOGGER:INFO: waiting for dnsvalidation pod to be up
2025-07-24 09:11:50,265 CNLB_LOGGER:INFO: nslookup of testrecord.pranavs, result: Server:               169.254.25.10
Address:        169.254.25.10#53

Name:   testrecord.abc
Address: 10.4.1.8
Name:   testrecord.abc
Address: abbb:abbb::1
2025-07-24 09:11:50,265 CNLB_LOGGER:INFO: Deleting the temporary test pod

Example 2:

./installer/dns_enhancement/coreDnsEnhancement.py -t dns1.abc

Sample output:


2025-07-24 09:13:45,955 CNLB_LOGGER:INFO: Update configurations in validationPod.yaml and kubectl apply it.
2025-07-24 09:13:47,128 CNLB_LOGGER:INFO: waiting for dnsvalidation pod to be up
2025-07-24 09:13:47,488 CNLB_LOGGER:INFO: nslookup of dns1.abc, result: Server:             169.254.25.10
Address:        169.254.25.10#53

Name:   dns1.abc
Address: 10.4.1.1
2025-07-24 09:13:47,488 CNLB_LOGGER:INFO: Deleting the temporary test pod

This test checks DNS resolution for the specified zone name and provides insight into the functionality of the DNS enhancement. Additionally, the -nn option can be used to specify a particular node to test DNS connectivity, allowing for more targeted testing. For example:

./installer/dns_enhancement/coreDnsEnhancement.py -t <zonename> -nn <node_name>

7.11.5 Verifying Packet Flow Through the CNLB Interface

This section explains about verifying packet flow through the CNLB interface to monitor network traffic in cloud-native environments.

Run the following command to get the coredns pod IPs (nf-oam-egr2):

kubectl -n kube-system describe po -l k8s-app=kube-dns | grep -A3 egr2

                            "name": "default/nf-oam-egr2",
                            "interface": "nf-oam-egr2",
                            "ips": [
                                "132.16.0.142"
                            ],
--
                      k8s.v1.cni.cncf.io/networks: default/nf-oam-egr2@nf-oam-egr2
                      kubectl.kubernetes.io/restartedAt: 2025-04-03T09:10:41Z
Status:               Running
SeccompProfile:       RuntimeDefault
--
                            "name": "default/nf-oam-egr2",
                            "interface": "nf-oam-egr2",
                            "ips": [
                                "132.16.0.139"
                            ],
--
                      k8s.v1.cni.cncf.io/networks: default/nf-oam-egr2@nf-oam-egr2
                      kubectl.kubernetes.io/restartedAt: 2025-04-03T09:10:41Z
Status:               Running
SeccompProfile:       RuntimeDefault

In the above sample output, the coredns pod IPs are 132.16.0.142 and 132.16.0.139.

Run the following command to get the gateway IP from the net-attach-definition configuration:

kubectl describe net-attach-def nf-oam-egr2

Sample output:

Name:         nf-oam-egr2
Namespace:    default
Labels:       <none>
Annotations:  <none>
API Version:  k8s.cni.cncf.io/v1
Kind:         NetworkAttachmentDefinition
Metadata:
  Creation Timestamp:  2025-04-01T08:39:54Z
  Generation:          2
  Resource Version:    985125
  UID:                 75c9c2ef-141b-49b7-929e-93fb16cc2d67
Spec:
  Config:  {"cniVersion": "0.4.0", "name": "nf-oam-egr2", "plugins": [{"type": "macvlan", "mode": "bridge", "master": "eth2", "ipam": {"type": "whereabouts", "range": "132.16.0.0/24", "range_start": "132.16.0.129", "range_end": "132.16.0.190", "gateway": "132.16.0.194", "routes": [{"dst": "10.75.201.0/24", "gw": "132.16.0.194"}]}}]}
Events:    <none>

In the above sample output, the gateway IP is 132.16.0.194.

Run the following command to get the pods IP using the gateway IP:

$ kubectl -n occne-infra exec -it $(kubectl -n occne-infra get po --no-headers -l app=cnlb-manager -o
      custom-columns=:.metadata.name) -- curl http://localhost:5001/net-info | python -m json.tool | jq

Sample output:

{
  "10.233.68.72": [
    {
      "egressIpExt": "10.75.200.91",
      "gatewayIp": "132.16.0.193",
      "networkName": "oam"
    }
  ],
  "10.233.68.73": [
    {
      "egressIpExt": "10.75.200.12",
      "gatewayIp": "132.16.0.194",
      "networkName": "oam"
    }
  ]
}

From the above sample output the pod IP is 10.233.68.73.

Run the following command to retrieve the pod name using the pod IP:

$ kubectl -n occne-infra get po -l app=cnlb-app -o wide | grep <active cnlb app ip>

Sample output:

cnlb-app-fd566bffb-mhmg2   1/1     Running   0          145m   10.233.68.73
      occne3-prince-p-pranav-k8s-node-4   <none>

Get into the active pod to monitor the traffic.
The pod whose name matches the IP address is the current active one, where traffic can be monitored. To do so, run the following commant in the same pod and monitor the traffic while performing the queries.
```
kubectl -n occne-infra exec -it <POD_NAME> -- bash
```

Run the following command to capture the packets:

bash-5.1# tcpdump -i lb-oam-int port 53 and udp -n -vv

Sample output:

dropped privs to tcpdump
tcpdump: listening on lb-oam-int, link-type EN10MB (Ethernet), snapshot length 262144 bytes09:13:49.476867 IP (tos 0x0, ttl 64, id 60831, offset 0, flags [DF], proto UDP (17), length 75)
    132.16.0.142.58822 > 10.75.201.36.domain: [udp sum ok] 50867+ [1au] A? testrecord.pranavs. ar: . OPT UDPsize=2048 DO (47)
09:13:49.479133 IP (tos 0x0, ttl 61, id 19793, offset 0, flags [none], proto UDP (17), length 91)
    10.75.201.36.domain > 132.16.0.142.58822: [udp sum ok] 50867* q: A? testrecord.pranavs. 1/0/1 testrecord.pranavs. A 10.4.1.8 ar: . OPT UDPsize=1232 DO (63)
09:13:49.480514 IP (tos 0x0, ttl 64, id 60832, offset 0, flags [DF], proto UDP (17), length 75)
    132.16.0.142.58822 > 10.75.201.36.domain: [udp sum ok] 676+ [1au] AAAA? testrecord.pranavs. ar: . OPT UDPsize=2048 DO (47)
09:13:49.481049 IP (tos 0x0, ttl 61, id 19794, offset 0, flags [none], proto UDP (17), length 103)
    10.75.201.36.domain > 132.16.0.142.58822: [udp sum ok] 676* q: AAAA? testrecord.pranavs. 1/0/1 testrecord.pranavs. AAAA abbb:abbb::1 ar: . OPT UDPsize=1232 DO (75)
09:13:49.701706 IP (tos 0x0, ttl 64, id 60833, offset 0, flags [DF], proto UDP (17), length 73)
    132.16.0.142.58822 > 10.75.201.36.domain: [udp sum ok] 65302+ [1au] A? ipv6test.pranavs. ar: . OPT UDPsize=2048 DO (45)
09:13:49.702754 IP (tos 0x0, ttl 61, id 19871, offset 0, flags [none], proto UDP (17), length 125)
    10.75.201.36.domain > 132.16.0.142.58822: [udp sum ok] 65302* q: A? ipv6test.pranavs. 0/1/1 ns: pranavs. SOA dns1.pranavs. hostmaster.pranavs. 3001 21600 3600 604800 86400 ar: . OPT UDPsize=1232 DO (97)
09:13:49.704475 IP (tos 0x0, ttl 64, id 60834, offset 0, flags [DF], proto UDP (17), length 73)
    132.16.0.142.58822 > 10.75.201.36.domain: [udp sum ok] 63895+ [1au] AAAA? ipv6test.pranavs. ar: . OPT UDPsize=2048 DO (45)
09:13:49.704855 IP (tos 0x0, ttl 61, id 19873, offset 0, flags [none], proto UDP (17), length 101)
    10.75.201.36.domain > 132.16.0.142.58822: [udp sum ok] 63895* q: AAAA? ipv6test.pranavs. 1/0/1 ipv6test.pranavs. AAAA abbb:abbb::2 ar: . OPT UDPsize=1232 DO (73)
09:13:49.825753 IP (tos 0x0, ttl 64, id 60835, offset 0, flags [DF], proto UDP (17), length 70)
    132.16.0.142.58822 > 10.75.201.36.domain: [udp sum ok] 5680+ [1au] A? alias.pranavs. ar: . OPT UDPsize=2048 DO (42)
09:13:49.826438 IP (tos 0x0, ttl 61, id 19888, offset 0, flags [none], proto UDP (17), length 111)
    10.75.201.36.domain > 132.16.0.142.58822: [udp sum ok] 5680* q: A? alias.pranavs. 2/0/1 alias.pranavs. CNAME testrecord.pranavs., testrecord.pranavs. A 10.4.1.8 ar: . OPT UDPsize=1232 DO (83)
09:13:49.942999 IP (tos 0x0, ttl 64, id 60836, offset 0, flags [DF], proto UDP (17), length 64)
    132.16.0.142.58822 > 10.75.201.36.domain: [udp sum ok] 34442+ [1au] MX? pranavs. ar: . OPT UDPsize=2048 DO (36)
09:13:49.943851 IP (tos 0x0, ttl 61, id 19911, offset 0, flags [none], proto UDP (17), length 101)
    10.75.201.36.domain > 132.16.0.142.58822: [udp sum ok] 34442* q: MX? pranavs. 1/0/2 pranavs. MX mail.pranavs. 10 ar: mail.pranavs. A 10.4.1.15, . OPT UDPsize=1232 DO (73)
09:13:50.067124 IP (tos 0x0, ttl 64, id 60837, offset 0, flags [DF], proto UDP (17), length 64)
    132.16.0.142.58822 > 10.75.201.36.domain: [udp sum ok] 30499+ [1au] TXT? pranavs. ar: . OPT UDPsize=2048 DO (36)
09:13:50.067926 IP (tos 0x0, ttl 61, id 20007, offset 0, flags [none], proto UDP (17), length 104)
    10.75.201.36.domain > 132.16.0.142.58822: [udp sum ok] 30499* q: TXT? pranavs. 1/0/1 pranavs. TXT "v=spf1 ip4:10.4.1.0/24 -all" ar: . OPT UDPsize=1232 DO (76)
^C
14 packets captured
14 packets received by filter
0 packets dropped by kernel

Note:

To capture the above packets, DNS server's external IP must be in the range of egress_dest = ["10.*.*.*/25"], defined in the cnlb.ini file. If it doesn't, change the egress_dest with the required subnet range and run updNtework.py. Delete (or restart) each coredns pod manually so that the new annotation can take effect. The tcpdump command does not process any traffic until pods are restarted.

7.11.6 Rolling back coredns and nodelocaldns deployment and configmap

This section explains how to rollback CoreDNS deployment and nodelocaldns deployment, as well as any associated ConfigMap or zone files that were modified or added. This ensures that the DNS resolution returns to its original state before the changes were made.

Run the following command to change the directories to the cluster directory:
```
cd /var/occne/cluster/${OCCNE_CLUSTER}
```

The following values must be modified under [occne:vars] in the occne.ini file:

[occne:vars]
enable_dns_enhancement = False
#upstream_dns_servers = ["10.**.**.**"]
#coredns_egress_nad = ["default/egr-nad-name@egr-nad-name"]
#coredns_external_zones = [{"cache": 30,"zones":["sample1"],"nameservers":["10.**.**.**"]}]

After commenting the above variables in occne.ini file, run the script coreDnsEnhancement.py to trigger cleanup:

./installer/dns_enhancement/coreDnsEnhancement.py

Sample output:

2025-07-21 13:11:28,230 CNLB_LOGGER:INFO: step-1: Load ini file into file parser
2025-07-21 13:11:28,231 CNLB_LOGGER:INFO: step-2: Check for enable_dns_enhancement parameter
2025-07-21 13:11:28,232 CNLB_LOGGER:INFO: step-3: Running cleanup since the enable_dns_enhancement variable is removed/made as False
2025-07-21 13:11:28,682 CNLB_LOGGER:INFO: Ran ./tests/setupZones.sh -c in cloud-user@10.75.200.57 server
2025-07-21 13:11:28,682 CNLB_LOGGER:INFO: running k8s pipeline to update coredns and nodelocaldns

7.11.7 Updating DNS Enhancement

In cases where the DNS enhancement setup script has already been run, and there is a need to either re-run the script without any changes or apply modifications to parameters in the occne.ini file such as nameservers, cache values, zone_name, or other configuration variables, the external_zones.yaml file generated under the dns_enhancement directory must be deleted prior to re-execution. This step ensures that any updated values are properly applied and prevents stale or conflicting configuration from previous runs.

7.11.8 Validating DNS Enhancement

To ensure the proper functioning of DNS Enhancement, it is necessary to check the following:

Ensure CoreDNS pods are in Running State
Verify CoreDNS ConfigMap
Ensure NodeLocalDNS pods are in Running State

Perform the following steps to validate DNS enhancement:

Ensure CoreDNS pods are in the running state. CoreDNS is an essential part of DNS enhancement therefore, CoreDNS pods must be healthy.
Run the following command to check the status of the CoreDNS pods:
```
$ kubectl -n kube-system get pod -l k8s-app=kube-dns
```
Sample output:
```
NAME                       READY   STATUS    RESTARTS   AGE
coredns-5965687c46-4hjfk   1/1     Running   0          13h
coredns-5965687c46-8q9d4   1/1     Running   0          13h
```

Review the CoreDNS pods logs. See ALL logs from both CoreDNS pods.

$ for pod in $(kubectl -n kube-system get pods | grep coredns | awk '{print $1}'); do echo "----- $pod -----"; kubectl -n kube-system logs $pod; done

Sample output:

----- coredns-8ddb9dc5d-5nvrv -----
[INFO] plugin/ready: Still waiting on: "kubernetes"
[INFO] plugin/auto: Inserting zone `occne.lab.oracle.com.' from: /etc/coredns/..2023_04_12_16_34_13.510777403/db.occne.lab.oracle.com
.:53
[INFO] plugin/reload: Running configuration SHA512 = 2bc9e13e66182e6e829fe1a954359de92746468f433b8748589dfe16e1afd0e790e1ff75415ad40ad17711abfc7a8348fdda2770af99962db01247526afbe24a
CoreDNS-1.9.3
linux/amd64, go1.18.2, 45b0a11
----- coredns-8ddb9dc5d-6lf5s -----
[INFO] plugin/auto: Inserting zone `occne.lab.oracle.com.' from: /etc/coredns/..2023_04_12_16_34_15.930764941/db.occne.lab.oracle.com
.:53
[INFO] plugin/reload: Running configuration SHA512 = 2bc9e13e66182e6e829fe1a954359de92746468f433b8748589dfe16e1afd0e790e1ff75415ad40ad17711abfc7a8348fdda2770af99962db01247526afbe24a
CoreDNS-1.9.3
linux/amd64, go1.18.2, 45b0a11

### TIP ###
# Additionally, the above command can be piped to a file, for better readability and sharing purposes.
$ for pod in $(kubectl -n kube-system get pods | grep coredns | awk '{print $1}'); do echo "----- $pod -----"; kubectl -n kube-system logs $pod; done > coredns.logs
$ vi coredns.logs

Run the following command to verify the changes implemented by DNS Enhancement that can be viewed in the CoreDNS ConfigMap:

$ kubectl -n kube-system get cm coredns -o yaml

Sample output:

apiVersion: v1
data:
  Corefile: |
    example.com {
        log
        errors {
        }
        forward . tls://10.95.18.61:853 {
          tls /etc/ssl/example-com/tls.crt /etc/ssl/example-com/tls.key /etc/ssl/example-com/ca.crt
          tls_servername named.local
        }
        loadbalance
        cache 5
        reload
    }
    test.com {
        log
        errors {
        }
        forward . tls://10.12.15.16 {
          tls /etc/ssl/test-com/tls.crt /etc/ssl/test-com/tls.key /etc/ssl/test-com/ca.crt
          tls_servername named.local
        }
        loadbalance
        cache 5
        reload
    }
    .:53 {
        errors {
        }
        health {
            lameduck 5s
        }
        ready
        kubernetes occne-example in-addr.arpa ip6.arpa {
          pods insecure
          fallthrough in-addr.arpa ip6.arpa
        }
        prometheus :9153
        forward . 10.75.144.85 {
          prefer_udp
          max_concurrent 1000
        }
        cache 30

        loop
        reload
        loadbalance
    }
kind: ConfigMap
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"v1","data":{"Corefile":"example.com {\n    log\n    errors {\n    }\n    forward . tls://10.75.180.161:853 {\n      tls /etc/ssl/example-com/tls.crt /etc/ssl/example-com/tls.key /etc/ssl/example-com/ca.crt\n      tls_servername named.local\n    }\n    loadbalance\n    cache 5\n    reload\n}\ntest.com {\n    log\n    errors {\n    }\n    forward . tls://10.75.180.161 {\n      tls /etc/ssl/test-com/tls.crt /etc/ssl/test-com/tls.key /etc/ssl/test-com/ca.crt\n      tls_servername named.local\n    }\n    loadbalance\n    cache 5\n    reload\n}\n.:53 {\n    errors {\n    }\n    health {\n        lameduck 5s\n    }\n    ready\n    kubernetes occne-example in-addr.arpa ip6.arpa {\n      pods insecure\n      fallthrough in-addr.arpa ip6.arpa\n    }\n    prometheus :9153\n    forward . 10.75.144.85 {\n      prefer_udp\n      max_concurrent 1000\n    }\n    cache 30\n\n    loop\n    reload\n    loadbalance\n}\n"},"kind":"ConfigMap","metadata":{"annotations":{},"labels":{"addonmanager.kubernetes.io/mode":"EnsureExists"},"name":"coredns","namespace":"kube-system"}}
  creationTimestamp: "2025-07-31T20:51:39Z"
  labels:
    addonmanager.kubernetes.io/mode: EnsureExists
  name: coredns
  namespace: kube-system
  resourceVersion: "1654250"
  uid: c5a4a0b6-3795-43ae-b0c2-1ec52212d0f5

Run the following command to ensure that NodeLocalDNS pods are in running state:

$ kubectl -n kube-system get pod -l k8s-app=node-local-dns

Sample output:

NAME                 READY   STATUS    RESTARTS   AGE
nodelocaldns-65657   1/1     Running   0          14h
nodelocaldns-6hzn6   1/1     Running   0          14h
nodelocaldns-8lrd7   1/1     Running   0          14h
nodelocaldns-jdxct   1/1     Running   0          14h
nodelocaldns-ktjsx   1/1     Running   0          14h
nodelocaldns-qfvjx   1/1     Running   0          14h
nodelocaldns-xcn7j   1/1     Running   0          14h

7 Maintenance Procedures

7.1 Accessing the CNE

7.1.1 Accessing the Bastion Host

7.1.1.1 Logging in to the Bastion Host

7.1.1.2 Copying Files to the Bastion Host

7.1.1.3 Managing Bastion Host

7.1.1.3.1 Verifying if the Current Bastion Host is the Active One

7.1.1.3.2 Getting the Host IP or Hostname of the Current Bastion Host

7.1.1.3.3 Getting the List of Other Bastion Hosts

7.1.1.3.4 Changing the Bastion Host to Active

7.1.1.4 Troubleshooting Bastion Host

7.2 General Configuration

7.2.1 Configuring SNMP Trap Destinations

7.2.2 Changing Network MTU

7.2.3 Changing Metrics Storage Allocation

7.2.4 Changing OpenSearch Storage Allocation

7.2.5 Changing the RAM and CPU Resources for Common Services

7.2.5.1 Changing the Resources for Prometheus

7.2.5.2 Changing the Resources for Alertmanager

7.2.5.3 Changing the Resources for Grafana

7.2.5.4 Changing the Resources for Kube State Metrics

7.2.5.5 Changing the Resources for OpenSearch

7.2.5.6 Changing the Resources for OpenSearch Dashboard

7.2.5.7 Changing the Resources for Fluentd OpenSearch

7.2.5.8 Changing the Resources for Jaeger Agent

7.2.5.9 Changing the Resources for Jaeger Query

7.2.6 Activating and Configuring Local DNS

7.2.6.1 Activating Local DNS

7.2.6.1.1 Prerequisites

7.2.6.1.2 Prevalidation

7.2.6.1.3 Enabling Local DNS

7.2.6.1.4 Validating Local DNS

7.2.6.2 Deactivating Local DNS

7.2.6.3 Adding and Removing DNS Records

7.2.6.3.1 Prerequisites

7.2.6.3.2 Adding an A Record

7.2.6.3.3 Deleting an A Record

7.2.6.3.4 Adding an SRV Record

7.2.6.3.5 Deleting an SRV Record

7.2.6.4 Adding and Removing Forwarding Nameservers

7.2.6.4.1 Adding Forwarding Nameservers

7.2.6.4.2 Removing Forwarding Nameservers

7.2.6.5 Reloading Local or Core DNS Configurations

7.2.6.6 Other Local DNS API Endpoints

7.2.6.7 Troubleshooting Local DNS

7.2.6.7.1 Troubleshooting Local DNS API

7.2.6.7.2 Troubleshooting Core DNS

7.2.6.7.3 Troubleshooting DNS Records

7.2.6.7.4 Accessing Configuration Files

7.2.6.7.5 Troubleshooting Validation Script Errors

7.3 Managing the Kubernetes Cluster

7.3.1 Creating CNE Cluster Backup

7.3.1.1 Creating a Backup of Bastion Host and Kubernetes Data

7.3.1.2 Verifying Backup in S3 Bucket

7.3.2 Renewing Kubernetes Certificates

7.3.2.1 Renewing Kyverno Certificates

7.3.2.2 Renewing Kubelet Server Certificates

7.3.3 Renewing the Kubernetes Secrets Encryption Key

7.3.4 Adding a Kubernetes Worker Node

7.3.5 Removing a Kubernetes Worker Node

7.3.6 Adding a New External Network

7.3.6.1 Adding a New External Network in vCNE

7.3.6.2 Adding a New External Network in Bare Metal

7.3.7 Renewing the Platform Service Mesh Root Certificate

7.3.8 Performing an etcd Data Backup

7.4 Managing Kyverno

7.4.1 Accessing Cluster Policy Report

7.4.2 Migrating from PSP to Kyverno

7.4.3 Adding Policy Exclusions and Exceptions

7.4.4 Managing Kyverno Metrics

7.4.5 Validating Kyverno Compliance

7.5 Updating Grafana Password

7.6 Updating OpenStack Credentials

7.7 Updating the Guest or Host OS

7.8 CNE Grafana Dashboards

7.8.1 Accessing Grafana Interface

7.8.2 Cloning a Grafana Dashboard

7.8.3 Restoring a Grafana Dashboard

7.9 Managing 5G NFs

7.9.1 Installing an NF

7.10.3 Adding an IP to the `service_ip_addr` list of an existing network

7.10.4 Deleting an IP from the `service_ip_addr` list of an existing network

7.10.5 Changing an IP in the `service_ip_addr` list of an existing network

7.10.6 Adding a CIDR to the `egress_dest` field of an existing network

7.10.7 Deleting a CIDR from the `egress_dest` field of an existing network
