1 Introduction

Oracle Communications Cloud Native core, Certificate Management (OCCM) is an automated solution for managing the certificates needed for Oracle 5G Network Functions (NFs). OCCM constantly monitors and renews the certificates based on their validity or expiry period.

As 3GPP recommends using separate certificates based on the client or server mode and the type of workflow, it leads to many certificates in the network. Automated certificate management eliminates any possibilities of network disruption due to expired certificates. In SBA network deployments, the Network Functions (NFs) are required to support multiple operator certificates for different purposes and interfaces. This amounts to hundreds of certificates in the network with varying validity periods and unwieldy to monitor and renew the certificates manually. Hence, automation of certificate management becomes important to avoid network disruptions due to expired certificates.

1.1 Overview

OCCM integrates with the Certificate Authority(s) using Certificate Management Protocol Version 2 (CMPv2) and RFC4210 to facilitate these certificate management operations:

  • Operator-initiated certificate creation
  • Operator-initiated certificate recreation
  • Automatic certificate monitoring and renewal

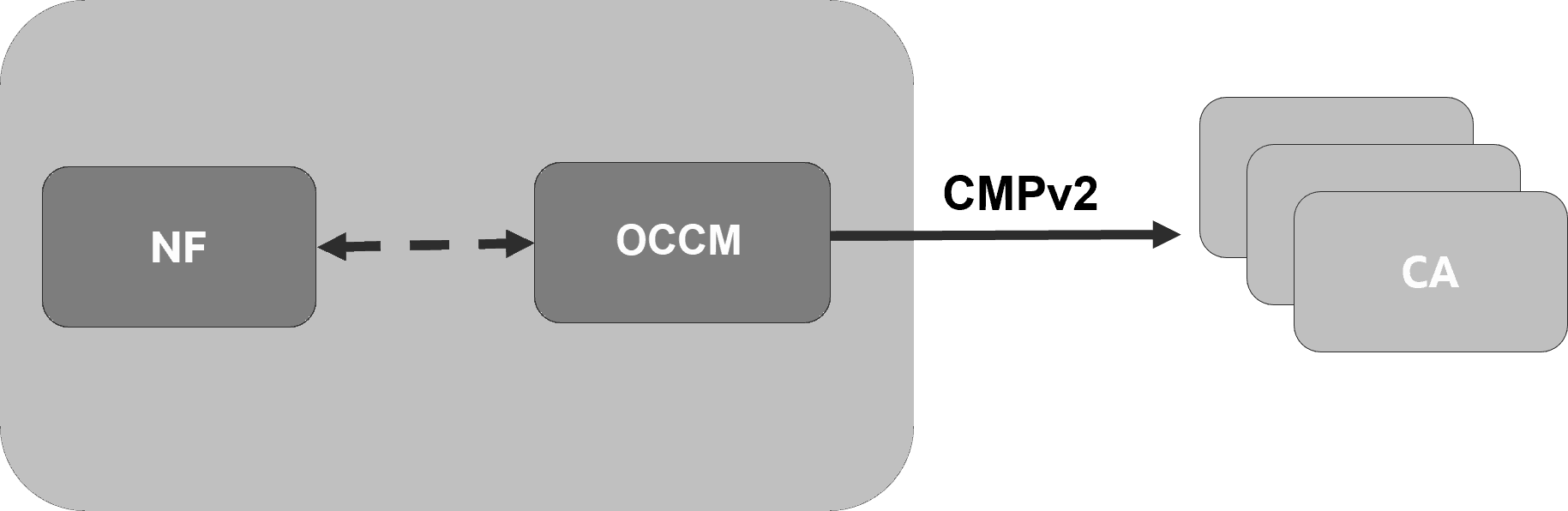

Figure 1-1 OCCM Integration with CA


CMPv2 Message Authentication

OCCM supports transport of CMPv2 messages using HTTP-based protocol.

OCCM provides the following mechanisms to establish initial trust between OCCM and CA(s):
  1. Certificate-based message signing
  2. Pre-shared key or MAC based authentication

All the subsequent CMPv2 procedures are authenticated using the certificate-based mechanism in compliance with 3GPP TS 33.310.

The keys and X.509 certificates are managed using Kubernetes secrets.

1.2 Reference

Refer to the following documents for more information:
  • Oracle Communications Cloud Native Core, Certificate Management Installation, Upgrade, and Fault Recovery Guide
  • Oracle Communications Cloud Native Core, Certificate Management Troubleshooting Guide
  • Oracle Communications Cloud Native Core, Certificate Management REST Specification Guide
  • Oracle Communications Cloud Native Core, Security Guide
  • Oracle Communications Cloud Native Core, Solution Upgrade Guide
