2 Deployment Environment

This section provides information about the cloud native platform infrastructure details for deploying Oracle Communications Cloud Native Core, Converged Policy.

Note:

The performance and capacity of the Policy system may vary based on the Call model, Feature/Interface configurations, underlying CNE and hardware environment, including but not limited to the complexity of deployed policies, policy table size, object expression, and custom json usage in policy design.

2.1 Deployed Components

This section provides details about the deployed components.

Deployment Platform

Oracle Communications Cloud Native Core, Cloud Native Environment (CNE) 23.3.x or 24.2.x and BareMetal are used for performing benchmark tests.

Table 2-1 Observability Services

Service Name Version
OpenSearch 2.15.0
Fluentd 1.17.1
Prometheus 3.2.0
Grafana 9.5.3
Jaeger 1.65.0

Cloud Native Orchestrator

Kubernetes 1.29.x is used to manage application pods across the cluster.

cnDBTier

cnDBTier 25.1.200 is used for performing benchmark tests.

Policy Infrastructure Details

Infrastructure used for benchmarking Policy performance run is described in this section.

Table 2-2 Hardware Details

Hardware Details
Environment BareMetal
Server Oracle Server X9-2
Model Intel(R) Xeon(R) Platinum 8358
Clock Speed 2.600 GHz
Total Cores 128
Memory Size 768 GB
Type DDR4 SDRAM
Installed DIMMs 18
Maximum DIMMs 24
Installed Memory 768 GB

Table 2-3 Software Details

Aplications Version
Policy 24.3.0
cnDBTier 24.3.0
OSO NA
CNE 24.2.0

For more information about Policy Installation, see Oracle Communications Cloud Native Core, Converged Policy Installation, Upgrade, and Fault Recovery Guide.

2.2 Deployment Diagram

Figure 2-1 Policy Deployment in Single Site with ASM Disabled


Policy Deployment in Single Site with ASM Disabled

Figure 2-2 Policy Deployment in Two-Site GR Setup


SM Call Flow Deployment in 2-Site GR setup

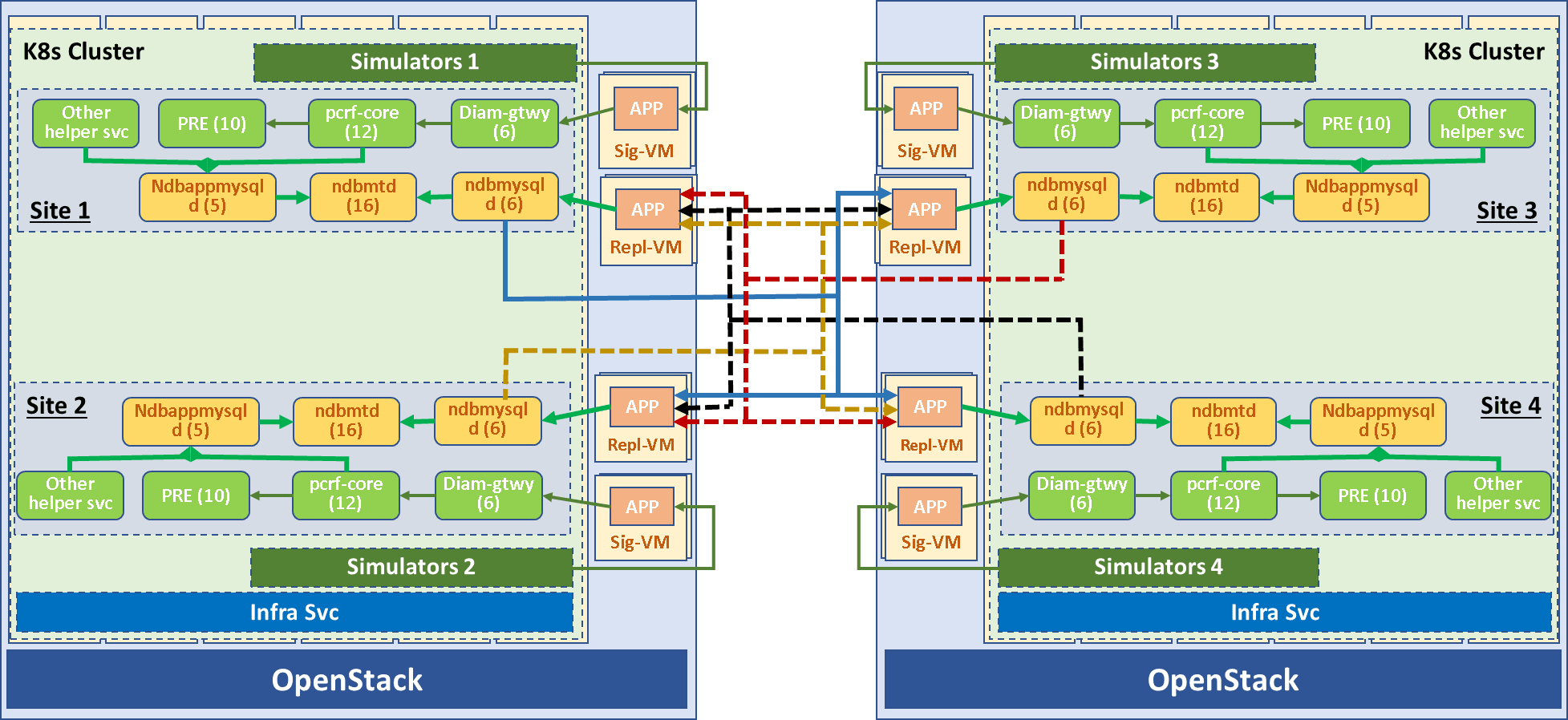

Figure 2-3 Policy Deployment in Four-Site GR Setup


Policy Deployment in Four-Site GR Setup
