3 Benchmarking Policy Call Models
This section describes different Policy call models and the performance test scenarios which were run using these call model.
3.1 PCRF Call Model 1

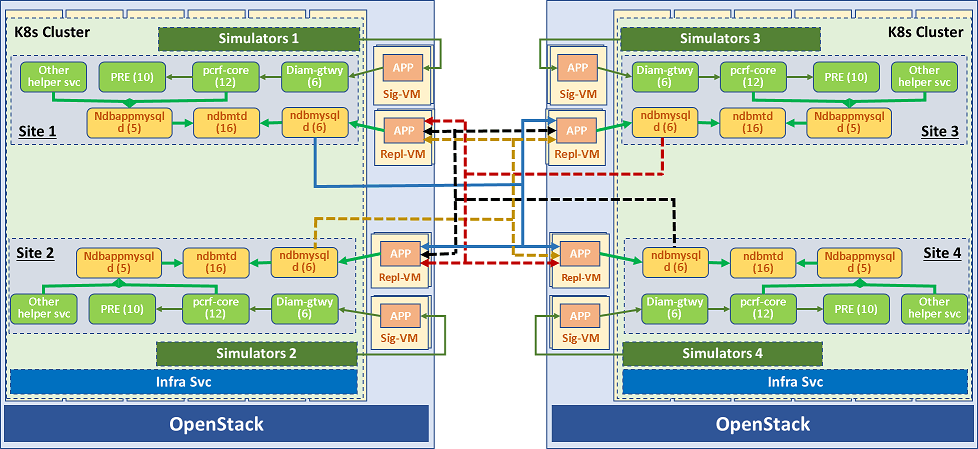

The following diagram describes the architecture for a multisite PCRF deployment.
Figure 3-1 PCRF 4 Site GR Deployment Architecture

To test this PCRF call model, the Policy application is deployed in converged mode on a four-site georedundant site. The cnDBTier database and PCRF application are replicated on all the four-sites. The database replication is used to perform data synchronization between databases over the replication channels.
3.1.1 Test Scenario 1: PCRF Data Call Model on Four-Site GeoRedundant setup, with 7.5K Transaction Per Second (TPS) on each site and ASM disabled
This test run benchmarks the performance and capacity of PCRF data call model that is deployed in converged mode on a four-site georedundant setup. Each site in the setup handles an incoming traffic of 7.5K TPS. Aspen Service Mesh (ASM) is disabled.
3.1.1.1 Test Case and Setup Details
Table 3-1 Test Case Parmeters
Parameters | Values |
---|---|
Call Rate | 30K TPS (7.5K TPS on each site) |
Execution Time | 12 Hours |
ASM | Disable |
Table 3-2 Call Model Data
Messages | Total CPS Instance-1 | sy Traffic | Ldap Traffic | Total TPS |
---|---|---|---|---|
CCR-I | 320 | 320 | 320 | 960 |
CCR-U | 320 | 0 | 0 | 320 |
CCR-T | 320 | 320 | 0 | 640 |
Total Messages | 960 | 640 | 320 | 1920 |
Table 3-3 PCRF Configurations
Service Name | Status |
---|---|
Binding Service | Disable |
Policy Event Record (PER) | Disable |
Subscriber Activity Log (SAL) | Enable |
LDAP | Enable |
Online Charging System (OCS) | Enable |
Table 3-4 PCF Interfaces
Feature Name | Status |
---|---|
N36 UDR query (N7/N15-Nudr) | Disable |
N36 UDR subscription (N7/N15-Nudr) | Disable |
UDR on-demand nrf discovery | Disable |
CHF (SM-Nchf) | Disable |
BSF (N7-Nbsf) | Disable |
AMF on demand nrf discovery | Disable |
LDAP (Gx-LDAP) | Enable |
Sy (PCF N7-Sy) | Enable |
Table 3-5 PCRF Interfaces
Feature Name | Status |
---|---|
Sy (PCRF Gx-Sy) | Enable |
Sd (Gx-Sd) | Disable |
Gx UDR query (Gx-Nudr) | Disable |
Gx UDR subscription (Gx-Nudr | Disable |
CHF enabled (AM) | Disable |
Usage Monitoring (Gx) | Disable |
Subscriber HTTP Notifier (Gx) | Disable |
Table 3-6 Configuring cnDBTier Helm Parameters
Helm Parameter | New Value |
---|---|
ndb_batch_size | 2G |
TimeBetweenEpochs | 100 |
NoOfFragmentLogFiles | 50 |
FragmentLogFileSize | 256M |
RedoBuffer | 1024M |
ndbappmysqld Pods Memory | 19/20 Gi |
ndbmtd pods CPU | 8/8 |
ndb_report_thresh_binlog_epoch_slip | 50 |
ndb_eventbuffer_max_alloc | 19G |
ndb_log_update_minimal | 1 |
ndbmysqld Pods Memory | 25/25 Gi |
replicationskiperrors | enable: true |
replica_skip_errors | '1007,1008,1050,1051,1022' |
numOfEmptyApiSlots | 4 |
Table 3-7 Policy Microservices Resource
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replica |
---|---|---|---|---|---|
ocpcf-appinfo | 1 | 1 | 0.5 | 1 | 1 |
ocpcf-oc-binding | 5 | 6 | 1 | 8 | 15 |
ocpcf-oc-diam-connector | 3 | 4 | 1 | 2 | 8 |
ocpcf-oc-diam-gateway | 3 | 4 | 1 | 2 | 7 |
ocpcf-occnp-config-server | 2 | 4 | 0.5 | 2 | 1 |
ocpcf-occnp-egress-gateway | 3 | 4 | 4 | 6 | 2 |
ocpcf-ocpm-ldap-gateway | 3 | 4 | 1 | 2 | 10 |
ocpcf-occnp-ingress-gateway | 3 | 4 | 4 | 6 | 2 |
ocpcf-occnp-nrf-client-nfdiscovery | 3 | 4 | 0.5 | 2 | 2 |
ocpcf-occnp-nrf-client-nfmanagement | 1 | 1 | 1 | 1 | 2 |
ocpcf-ocpm-audit-service | 1 | 2 | 1 | 1 | 1 |
ocpcf-ocpm-cm-service | 2 | 4 | 0.5 | 2 | 1 |
ocpcf-ocpm-policyds | 5 | 6 | 1 | 4 | 25 |
ocpcf-ocpm-pre | 5 | 5 | 0.5 | 4 | 25 |
ocpcf-ocpm-queryservice | 1 | 2 | 1 | 1 | 1 |
ocpcf-pcf-smservice | 7 | 8 | 1 | 4 | 2 |
ocpcf-pcrf-core | 7 | 8 | 8 | 8 | 30 |
ocpcf-performance | 1 | 1 | 0.5 | 1 | 2 |
Note:
Min Replica = Max ReplicaTable 3-8 cnDBTier Services Resources:
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replica |
---|---|---|---|---|---|
ndbappmysqld | 8 | 8 | 19 | 20 | 5 |
ndbmgmd | 2 | 2 | 9 | 11 | 2 |
ndbmtd | 8 | 8 | 73 | 83 | 8 |
ndbmysqld | 4 | 4 | 19 | 20 | 12 |
Note:
Min Replica = Max Replica3.1.1.2 CPU Utilization
This section lists the CPU utilization for Policy and cnDBTier microservices. The CPU utilization is the ratio between the (total CPU utilization against total CPU request (X)) versus (target CPU Utilization (Y) configured for the Pod).
Table 3-9 Policy Microservices Resource Utilization
Service | CPU (X/Y) - Site 1 | CPU (X/Y)- Site 2 | CPU(X/Y) - Site 3 | CPU(X/Y) - Site 4 |
---|---|---|---|---|
ocpcf-alternate-route | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-appinfo | 1%/80% | 2%/80% | 2%/80% | 3%/80% |
ocpcf-occnp-config-server | 10%/80% | 11%/80% | 12%/80% | 12%/80% |
ocpcf-oc-diam-connector | 10%/40% | 11%/40% | 10%/40% | 10%/40% |
ocpcf-occnp-egress-gateway | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-occnp-ingress-gateway | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-ocpm-ldap-gateway | 4%/60% | 4%/60% | 5%/60% | 4%/60% |
ocpcf-occnp-nrf-client-nfdiscovery | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-occnp-nrf-client-nfmanagement | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-oc-binding | 0%/60% | 0%/60% | 0%/60% | 0%/60% |
ocpcf-occnp-chf-connector | 0%/50% | 0%/50% | 0%/50% | 0%/50% |
ocpcf-occnp-udr-connector | 0%/50% | 0%/50% | 0%/50% | 0%/50% |
ocpcf-ocpm-audit-service | 0%/60% | 0%/60% | 0%/60% | 0%/60% |
ocpcf-ocpm-policyds | 11%/60% | 11%/60% | 11%/60% | 11%/60% |
ocpcf-ocpm-soapconnector | 0%/60% | 0%/60% | 0%/60% | 0%/60% |
ocpcf-ocpm-pre | 13%/80% | 13%/80% | 13%/80% | 13%/80% |
ocpcf-pcf-smservice | 0%/50% | 0%/50% | 0%/50% | 0%/50% |
ocpcf-pcrf-core | 7%/40% | 7%/40% | 7%/40% | 7%/40% |
ocpcf-ocpm-queryservice | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
Table 3-10 cnDBTier Services Resource Utilization
Name | CPU (X/Y) - Site 1 | CPU (X/Y) - Site 2 | CPU (X/Y) - Site 3 | CPU (X/Y) - Site 4 |
---|---|---|---|---|
ndbappmysqld | 35%/80% | 36%/80% | 35%/80% | 35%/80% |
ndbmgmd | 1%/80% | 1%/80% | 0%/80% | 0%/80% |
ndbmtd | 15%/80% | 15%/80% | 18%/80% | 17%/80% |
ndbmysqld | 5%/80% | 5%/80% | 5%/80% | 5%/80% |
3.1.1.3 Results
Table 3-11 Result and Observations
Parameter | Values |
---|---|
Test Duration | 12 Hours |
TPS Achieved | 30K TPS (7.5KTPS on each site) |
It was observed that on a four-site GR setup, handling an incoming traffic of 7.5K TPS on each site, the call model was working successfully without any replication delay and traffic drop.
3.1.2 Test Scenario 2: PCRF Voice Call Model on Two-Sites of Four-Site GeoRedundant setup, with 15K Transaction Per Second (TPS) on each site and ASM disabled
This test run benchmarks the performance and capacity of PCRF voice call model that is deployed in converged mode on a two-site of a four-site georedundant setup. Each site in the setup handles an incoming traffic of 15K TPS, and with Aspen Service Mesh (ASM) disabled.
3.1.2.1 Test Case and Setup Details
Table 3-12 Test Case Parmeters
Parameters | Values |
---|---|
Call Rate | 30K TPS (15K TPS on each site) |
Execution Time | 10 Hours |
ASM | Disable |
Table 3-13 Call Model Data
Command | Messages per call |
---|---|
CCRI (Single APN) | 9.08% |
CCRU (Single APN) | 18.18% |
CCRT (Single APN) | 9.09 % |
Gx RAR | 18.18% |
AARI | 9.09 % |
AARU | 9.09 % |
Rx RAR | 18.18% |
STR | 9.09% |
Table 3-14 PCRF Configurations
Service Name | Status |
---|---|
Binding Service | Enable |
Policy Event Record (PER) | Disable |
Subscriber Activity Logging (SAL) | Enable |
LDAP | Disable |
Online Charging System (OCS) | Disable |
Table 3-15 PCF Interfaces
Feature Name | Status |
---|---|
N36 UDR query (N7/N15-Nudr) | Disable |
N36 UDR subscription (N7/N15-Nudr) | Disable |
UDR on-demand nrf discovery | Disable |
CHF (SM-Nchf) | Disable |
BSF (N7-Nbsf) | Disable |
AMF on demand nrf discovery | Disable |
LDAP (Gx-LDAP) | Disable |
Sy (PCF N7-Sy) | Disable |
Table 3-16 PCRF Interfaces
Feature Name | Status |
---|---|
Sy (PCRF Gx-Sy) | Disable |
Sd (Gx-Sd) | Disable |
Gx UDR query (Gx-Nudr) | Disable |
Gx UDR subscription (Gx-Nudr | Disable |
CHF enabled (AM) | Disable |
Usage Monitoring (Gx) | Disable |
Subscriber HTTP Notifier (Gx) | Disable |
Table 3-17 Configuring cnDBTier Helm Parameters
Helm Parameter | Value |
---|---|
ndb_batch_size | 2G |
TimeBetweenEpochs | 100 |
NoOfFragmentLogFiles | 50 |
FragmentLogFileSize | 256M |
RedoBuffer | 1024M |
ndbappmysqld Pods Memory | 19/20 Gi |
ndbmtd pods CPU | 8/8 |
ndb_report_thresh_binlog_epoch_slip | 50 |
ndb_eventbuffer_max_alloc | 19G |
ndb_log_update_minimal | 1 |
ndbmysqld Pods Memory | 25/25 Gi |
replicationskiperrors | enable: true |
replica_skip_errors | '1007,1008,1050,1051,1022' |
numOfEmptyApiSlots | 4 |
Table 3-18 Policy Microservices Resource
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replica |
---|---|---|---|---|---|
ocpcf-appinfo | 1 | 1 | 0.5 | 1 | 1 |
ocpcf-oc-binding | 5 | 6 | 1 | 8 | 18 |
ocpcf-oc-diam-connector | 3 | 4 | 1 | 2 | 8 |
ocpcf-oc-diam-gateway | 3 | 4 | 1 | 2 | 9 |
ocpcf-occnp-config-server | 2 | 4 | 0.5 | 2 | 2 |
ocpcf-occnp-egress-gateway | 3 | 4 | 4 | 6 | 1 |
ocpcf-ocpm-ldap-gateway | 3 | 4 | 1 | 2 | 0 |
ocpcf-occnp-ingress-gateway | 3 | 4 | 4 | 6 | 2 |
ocpcf-occnp-nrf-client-nfdiscovery | 3 | 4 | 0.5. | 2 | 1 |
ocpcf-occnp-nrf-client-nfmanagement | 1 | 1 | 1 | 1 | 1 |
ocpcf-ocpm-audit-service | 1 | 2 | 1 | 1 | 1 |
ocpcf-ocpm-cm-service | 2 | 4 | 0.5 | 2 | 1 |
ocpcf-ocpm-policyds | 5 | 6 | 1 | 4 | 2 |
ocpcf-ocpm-pre | 5 | 5 | 0.5 | 4 | 15 |
ocpcf-ocpm-queryservice | 1 | 2 | 1 | 1 | 1 |
ocpcf-pcf-smservice | 7 | 8 | 1 | 4 | 2 |
ocpcf-pcrf-core | 7 | 8 | 8 | 8 | 24 |
ocpcf-performance | 1 | 1 | 0.5 | 1 | 2 |
Note:
Min Replica = Max ReplicaTable 3-19 cnDBTier Microservices Resources:
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replica |
---|---|---|---|---|---|
ndbappmysqld | 8 | 8 | 19 | 20 | 5 |
ndbmgmd | 2 | 2 | 9 | 11 | 3 |
ndbmtd | 8 | 8 | 73 | 83 | 8 |
ndbmysqld | 4 | 4 | 19 | 20 | 6 |
Note:
Min Replica = Max Replica3.1.2.2 CPU Utilization
This section lists the CPU utilization for Policy and cnDBTier microservices. The CPU utilization is the ratio between the (total CPU utilization against total CPU request (X)) versus (target CPU Utilization (Y) configured for the pod).
Table 3-20 Policy Microservices Resource Utilization
Service | CPU (X/Y) - Site 1 | CPU (X/Y) - Site 2 |
---|---|---|
ocpcf-appinfo | 2%/80% | 1%/80% |
ocpcf-occnp-config-server | 8%/80% | 8%/80% |
ocpcf-oc-diam-connector | 0%/40% | 0%/40% |
ocpcf-occnp-egress-gateway | 0%/80% | 0%/80% |
ocpcf-occnp-ingress-gateway | 0%/80% | 1%/80% |
ocpcf-occnp-nrf-client-nfdiscovery | 0%/80% | 0%/80% |
ocpcf-occnp-nrf-client-nfmanagement | 0%/80% | 0%/80% |
ocpcf-oc-binding | 12%/60% | 0%/60% |
ocpcf-ocpm-audit-service | 0%/60% | 0%/60% |
ocpcf-ocpm-policyds | 0%/60% | 0%/60% |
ocpcf-ocpm-pre | 13%/80% | 0%/80% |
ocpcf-pcf-smservice | 0%/50% | 0%/50% |
ocpcf-pcrf-core | 25%/40% | 0%/40% |
ocpcf-ocpm-queryservice | 0%/80% | 0%/80% |
Table 3-21 cnDBTier Services Resource Utilization
Name | CPU (X/Y) - Site 1 | CPU (X/Y) - Site 2 |
---|---|---|
ndbappmysqld | 75%/80% | 76%/80% |
ndbmgmd | 0%/80% | 0%/80% |
ndbmtd | 19%/80% | 6%/80% |
ndbmysqld | 8%/80% | 3%/80% |
3.1.3 Test Scenario: PCRF Data Call Model on Two-Site GeoRedundant setup, with each site handling 11.5K TPS and ASM disabled
This test run benchmarks the performance and capacity of PCRF data call model that is deployed in converged mode on a two-site georedundant setup. Each site in the setup handles an incoming traffic of 11.5K Transaction Per Second (TPS). Aspen Service Mesh (ASM) is disabled.
The cnDBTier database and PCRF application is replicated on both the sites using Multi-channel replication. The database replication is used to perform data synchronization between databases over the replication channels.
3.1.3.1 Test Case and Setup Details
Table 3-22 Test Case Parmeters
Parameters | Values |
---|---|
Call Rate | 23K TPS (11.5K TPS on each site) |
Execution Time | 60 Hours |
ASM | Disable |
Table 3-23 Call Model Data
Messages | Total TPS |
---|---|
CCR-I | 2320 |
CCR-U | 1220 |
CCR-T | 2320 |
SNR | 450 |
RAR | 450 |
Sy | 2440 |
LDAP | 2320 |
Total Messages | 11520 |
Table 3-24 PCRF Configurations
Service Name | Status |
---|---|
Binding Service | Enable |
Policy Event Record (PER) | Disable |
Subscriber Activity Log (SAL) | Enable |
LDAP | Enable |
Online Charging System (OCS) | Enable |
PDS and Binding Compression | Enable |
Audit Service | Enable |
Replication | Enable |
Bulwark Service | Disable |
Alternate Route Service | Disable |
Table 3-25 PCF Interfaces
Feature Name | Status |
---|---|
N36 UDR query (N7/N15-Nudr) | Disable |
N36 UDR subscription (N7/N15-Nudr) | Disable |
UDR on-demand nrf discovery | Disable |
CHF (SM-Nchf) | Disable |
BSF (N7-Nbsf) | Disable |
AMF on demand nrf discovery | Disable |
LDAP (Gx-LDAP) | Enable |
Sy (PCF N7-Sy) | Enable |
Table 3-26 PCRF Interfaces
Feature Name | Status |
---|---|
Sy (PCRF Gx-Sy) | Enable |
Sd (Gx-Sd) | Disable |
Gx UDR query (Gx-Nudr) | Disable |
Gx UDR subscription (Gx-Nudr | Disable |
CHF enabled (AM) | Disable |
Usage Monitoring (Gx) | Disable |
Subscriber HTTP Notifier (Gx) | Disable |
Table 3-27 Configuring cnDBTier Helm Parameters
Helm Parameter | New Value |
---|---|
ndb_batch_size | 2G |
TimeBetweenEpochs | 100 |
NoOfFragmentLogFiles | 50 |
FragmentLogFileSize | 256M |
RedoBuffer | 1024M |
ndbappmysqld Pods Memory | 19/20 Gi |
ndbmtd pods CPU | 8/8 |
ndb_report_thresh_binlog_epoch_slip | 50 |
ndb_eventbuffer_max_alloc | 19G |
ndb_log_update_minimal | 1 |
ndbmysqld Pods Memory | 25/25 Gi |
replicationskiperrors | enable: true |
replica_skip_errors | '1007,1008,1050,1051,1022' |
numOfEmptyApiSlots | 4 |
Table 3-28 Policy Microservices Resource
Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replica |
---|---|---|---|---|---|
Appinfo Service | 1 | 1 | 0.5 | 1 | 1 |
Binding Service | 5 | 6 | 1 | 8 | 15 |
Diameter Connector Service | 3 | 4 | 1 | 2 | 8 |
Diameter Gateway Service | 3 | 4 | 2 | 2 | 7 |
Config Server | 2 | 4 | 0.5 | 2 | 2 |
Egress Gateway Service | 3 | 4 | 4 | 6 | 1 |
LDAP Gateway Service | 3 | 4 | 1 | 2 | 10 |
Ingress Gateway | 3 | 4 | 4 | 6 | 1 |
Nrf-client-Nfdiscovery Service | 3 | 4 | 0.5 | 2 | 1 |
Nrf-client-Nfmanagement Service | 1 | 1 | 1 | 1 | 1 |
Audit Service | 1 | 2 | 1 | 1 | 1 |
CM Service | 2 | 4 | 0.5 | 2 | 2 |
PolicyDS Service | 5 | 6 | 1 | 2 | 25 |
PRE Service | 5 | 5 | 2 | 4 | 25 |
Query Service | 1 | 2 | 1 | 1 | 1 |
PCRF Core Service | 7 | 8 | 8 | 8 | 30 |
Performance | 1 | 1 | 0.5 | 1 | 2 |
Note:
Min Replica = Max ReplicaTable 3-29 cnDBTier Services Resources:
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replica |
---|---|---|---|---|---|
ndbappmysqld | 8 | 8 | 19 | 20 | 5 |
ndbmgmd | 2 | 2 | 9 | 11 | 2 |
ndbmtd | 10 | 10 | 73 | 83 | 8 |
ndbmysqld | 8 | 8 | 25 | 25 | 4 |
Note:
Min Replica = Max Replica3.1.3.2 CPU Utilization
This section lists the CPU utilization for Policy and cnDBTier microservices. The CPU utilization is the ratio between the (total CPU utilization against total CPU request (X)) versus (target CPU Utilization (Y) configured for the Pod).
Table 3-30 Policy Microservices Resource Utilization
Service | CPU (X/Y) - Site1 | CPU (X/Y)- Site2 |
---|---|---|
ocpcf-appinfo | 3%/80% | 3%/80% |
ocpcf-occnp-config-server | 10%/80% | 15%/80% |
ocpcf-oc-diam-connector | 23%/40% | 17%/40% |
ocpcf-occnp-egress-gateway | 0%/80% | 0%/80% |
ocpcf-occnp-ingress-gateway | 1%/80% | 1%/80% |
ocpcf-ocpm-ldap-gateway | 10%/60% | 8%/60% |
ocpcf-occnp-nrf-client-nfdiscovery | 0%/80% | 0%/80% |
ocpcf-occnp-nrf-client-nfmanagement | 0%/80% | 0%/80% |
ocpcf-oc-binding | 16%/60% | 13%/60% |
ocpcf-ocpm-audit-service | 0%/60% | 0%/60% |
ocpcf-ocpm-policyds | 25%/60% | 25%/60% |
ocpcf-ocpm-pre | 15%/80% | 15%/80% |
ocpcf-pcrf-core | 19%/40% | 18%/40% |
ocpcf-ocpm-queryservice | 0%/80% | 0%/80% |
Observed CPU utilization Values of cnDBTier Services
The following table provides information about observed values of cnDBTier services.
Table 3-31 cnDBTier Microservices Resource Utilization
Service | CPU (X/Y)- Site1 | CPU (X/Y)- Site2 |
---|---|---|
ndbappmysqld | 51%/80% | 51%/80% |
ndbmgmd | 0%/80% | 0%/80% |
ndbmtd | 23%/80% | 23%/80% |
ndbmysqld | 5%/80% | 4%/80% |
3.1.4 Test Scenario: PCRF Voice Call Model on Two-Site GeoRedundant setup, with 15K TPS on each site and ASM disabled
This test run benchmarks the performance and capacity of PCRF voice call model that is deployed in converged mode on a two-site georedundant setup. Each site in the setup handles an incoming traffic of 15K TPS. Aspen Service Mesh (ASM) is disabled.
The cnDBTier database and PCRF application is replicated on both the sites using Single-channel replication. The database replication is used to perform data synchronization between databases over the replication channels.
3.1.4.1 Test Case and Setup Details
Table 3-33 Test Case Parmeters
Parameters | Values |
---|---|
Call Rate | 30K TPS (15K TPS on each site) |
Execution Time | 110 Hours |
Traffic Ratio | CCRI-I, AARI –1, CCRU-2, AARU - 1, RAR-Gx-1, RAR-Rx-1, STR –1, CCRT-1 |
ASM | Disable |
Table 3-34 PCRF Configurations
Service Name | Status |
---|---|
Binding Service | Enable |
Policy Event Record (PER) | Enable |
Subscriber Activity Log (SAL) | Enable |
LDAP | Disable |
Online Charging System (OCS) | Disable |
Audit Service | Enable |
Replication | Enable |
Bulwark Service | Disable |
Alternate Route Service | Disable |
Table 3-35 PCF Interfaces
Feature Name | Status |
---|---|
N36 UDR query (N7/N15-Nudr) | Disable |
N36 UDR subscription (N7/N15-Nudr) | Disable |
UDR on-demand nrf discovery | Disable |
CHF (SM-Nchf) | Disable |
BSF (N7-Nbsf) | Disable |
AMF on demand nrf discovery | Disable |
LDAP (Gx-LDAP) | Disable |
Sy (PCF N7-Sy) | Enable |
Table 3-36 PCRF Interfaces
Feature Name | Status |
---|---|
Sy (PCRF Gx-Sy) | Enable |
Sd (Gx-Sd) | Disable |
Gx UDR query (Gx-Nudr) | Disable |
Gx UDR subscription (Gx-Nudr | Disable |
CHF enabled (AM) | Disable |
Usage Monitoring (Gx) | Disable |
Subscriber HTTP Notifier (Gx) | Disable |
Table 3-37 Configuring cnDBTier Helm Parameters
Helm Parameter | New Value |
---|---|
ndb_batch_size | 2G |
TimeBetweenEpochs | 100 |
NoOfFragmentLogFiles | 50 |
FragmentLogFileSize | 256M |
RedoBuffer | 1024M |
ndbappmysqld Pods Memory | 19/20 Gi |
ndbmtd pods CPU | 8/8 |
ndb_report_thresh_binlog_epoch_slip | 50 |
ndb_eventbuffer_max_alloc | 19G |
ndb_log_update_minimal | 1 |
ndbmysqld Pods Memory | 25/25 Gi |
replicationskiperrors | enable: true |
replica_skip_errors | '1007,1008,1050,1051,1022' |
numOfEmptyApiSlots | 4 |
Table 3-38 Policy Microservices Resource
Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replica |
---|---|---|---|---|---|
Appinfo Service | 1 | 1 | 0.5 | 1 | 1 |
Binding Service | 5 | 6 | 1 | 8 | 18 |
Diameter Connector Service | 3 | 4 | 1 | 2 | 5 |
Diameter Gateway Service | 3 | 4 | 1 | 2 | 9 |
Config Server | 2 | 4 | 0.5 | 2 | 2 |
Egress Gateway Service | 3 | 4 | 4 | 6 | 1 |
Ingress Gateway Service | 3 | 4 | 4 | 6 | 1 |
Nrf-client-Nfdiscovery Service | 3 | 4 | 0.5 | 2 | 1 |
Nrf-client-Nfmanagement Service | 1 | 1 | 1 | 1 | 1 |
Audit Service | 1 | 2 | 1 | 1 | 1 |
CM Service | 2 | 4 | 0.5 | 2 | 2 |
PolicyDS Service | 5 | 6 | 1 | 4 | 5 |
PRE Service | 3 | 8 | 0.5 | 4 | 15 |
Query Service | 1 | 2 | 1 | 1 | 1 |
PCRF Core Service | 7 | 8 | 8 | 8 | 24 |
Performance | 1 | 1 | 0.5 | 1 | 2 |
Note:
Min Replica = Max ReplicaTable 3-39 cnDBTier Services Resources:
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replica |
---|---|---|---|---|---|
ndbappmysqld | 8 | 8 | 19 | 20 | 5 |
ndbmgmd | 4 | 4 | 9 | 11 | 2 |
ndbmtd | 10 | 10 | 73 | 83 | 8 |
ndbmysqld | 10 | 10 | 25 | 25 | 2 |
Note:
Min Replica = Max Replica3.1.4.2 CPU Utilization
This section lists the CPU utilization for Policy and cnDBTier microservices. The CPU utilization is the ratio between the (total CPU utilization against total CPU request (X)) versus (target CPU Utilization (Y) configured for the Pod).
Table 3-40 Policy Microservices Resource Utilization
Service | CPU (X/Y) - Site 1 | CPU (X/Y)- Site 2 |
---|---|---|
ocpcf-appinfo | 2%/80% | 1%/80% |
ocpcf-occnp-config-server | 7%/80% | 6%/80% |
ocpcf-oc-diam-connector | 0%/40% | 0%/40% |
ocpcf-occnp-egress-gateway | 0%/80% | 0%/80% |
ocpcf-occnp-ingress-gateway | 0%/80% | 0%/80% |
ocpcf-occnp-nrf-client-nfdiscovery | 0%/80% | 0%/80% |
ocpcf-occnp-nrf-client-nfmanagement | 0%/80% | 0%/80% |
ocpcf-oc-binding | 0%/60% | 0%/60% |
ocpcf-ocpm-audit-service | 0%/60% | 0%/60% |
ocpcf-ocpm-policyds | 0%/60% | 0%/60% |
ocpcf-ocpm-pre | 0%/80% | 0%/80% |
ocpcf-pcrf-core | 0%/40% | 0%/40% |
ocpcf-ocpm-queryservice | 0%/80% | 0%/80% |
Observed CPU utilization Values of cnDBTier Services
The following table provides information about observed values of cnDBTier services.
Table 3-41 cnDBTier Microservices Resource Utilization
Service | CPU (X/Y)- Site1 | CPU (X/Y)- Site2 |
---|---|---|
ndbappmysqld | 78%/80% | 78%/80% |
ndbmgmd | 0%/80% | 0%/80% |
ndbmtd | 1%/80% | 1%/80% |
ndbmysqld | 0%/80% | 0%/80% |
3.1.5 46.5K TPS Single Site with Replication Enabled with UDR Interworking
This test run benchmarks the performance and capacity of Policy data call model that is deployed in PCF mode. The PCF application's total traffic (Ingress + Egress) of 46.5K TPS on single site Non-ASM PCF Setup with UDR interworking.
3.1.5.1 Test Case and Setup Details
Policy Infrastructure Details
Infrastructure used for benchmarking Policy performance run is described in this section.
Table 3-43 Hardware Details
Hardware | Details |
---|---|
Environment | BareMetal |
Server | ORACLE SERVER X9-2 |
Model | Intel(R) Xeon(R) Platinum 8358 CPU |
Clock Speed | 2.600 GHz |
Total Cores | 128 |
Memory Size | 1024 GB |
Type | DDR4 SDRAM |
Installed DIMMs | 16 |
Maximum DIMMs | 32 |
Installed Memory | 1024 GB |
Table 3-44 Software Details
Aplications | Version |
---|---|
Policy | 25.1.200 |
cnDBTier | 25.1.200 |
OSO | NA |
CNE | 23.3.5 |
For more information about Policy Installation, see Oracle Communications Cloud Native Core, Converged Policy Installation, Upgrade, and Fault Recovery Guide.
The following table describes the testcase parameters and their values:
Table 3-45 Testcase Parameters
Parameter | Value |
---|---|
Call Rate (Ingress + Egress) | 46.5K TPS on a single site Non-ASM PCF Setup with UDR interworking |
ASM | Disable |
Traffic Ratio | 46.5K TPS on a single site |
Active User Count | NA |
Policy Project Details:
This test case shall pump traffic Call Rate: 46.5K TPS on a single site Non-ASM PCF Setup with UDR interworking.
The Policy Design editor based on the Blockly interface was used to set the Policy project for each of the Policy services. The complexity level of Policy Project configured for this run was High.
Complexity Level Definition:
- Low– No Usage of Loops in Blockly logic, No JSON operations, No complex Java Script code in Object Expression /Statement Expression.
- Medium - Usage of Loops in Blockly logic, Policy Table Wildcard match <= 3 fields, MatchList < 3, 3 < RegEx match < 6
- High - JSON Operations – Custom, complex Java Script code in Object Expression /Statement Expression, Policy Table Wildcard match > 3 fields, MatchLists >= 3, RegEx mat >= 6
Call Model Data:
Following PCF configurations were either enabled or disabled for running this call flow:
Table 3-46 Policy Configurations
Feature Name | Configuration |
---|---|
SAL | Enabled |
Binding Service | Disabled |
Congestion and Overload | Disabled |
PDS Single UEID | Enabled (GPSI) |
PRIMARYKEY_LOOKUP_ENABLED | Enabled (true) |
PER | Disabled |
OCS | Enabled |
Audit | Enabled |
PDS Compression scheme | Disabled |
Table 3-47 Call Model Data
Service Name | Traffic at Site1 | Traffic at Site2 |
---|---|---|
Pcrf-Total-Tps ( | 46500 | - |
Resource Footprint (per site):
Policy microservices Resource allocation at Site1:
Table 3-48 PCRF
Service Name | Replicas | CPU Limit per Container (#) | CPU Request per Container (#) | Memory Limit per Container | Memory Request per Container |
---|---|---|---|---|---|
NRFsim | 2 | NA | NA | NA | NA |
Appinfo | 1 | 2 | 1 | 2Gi | 1Gi |
Bulwark Service | 2 | 8 | 8 | 6Gi | 6Gi |
Binding Service | 1 | 6 | 6 | 8Gi | 8Gi |
Diameter Connector | 4 | 4 | 4 | 2Gi | 1Gi |
CHF Connector User Service | 2 | 6 | 6 | 4Gi | 4Gi |
Config-server | 2 | 4 | 4 | 2Gi | 512Mi |
Egress Gateway | 6 | 4 | 4 | 6Gi | 6Gi |
Ingress Gateway | 2 | 5 | 5 | 6Gi | 6Gi |
NRF Client NF Discovery | 2 | 4 | 4 | 4Gi | 4Gi |
NRF Client Management | 2 | 1 | 1 | 1Gi | 1Gi |
UDR connector User Service | 11 | 6 | 6 | 4Gi | 4Gi |
Audit Service | 2 | 2 | 2 | 4Gi | 4Gi |
CM service | 2 | 4 | 2 | 2Gi | 512Mi |
PolicyDS | 28 | 7 | 7 | 8Gi | 8Gi |
PRE Service | 20 | 4 | 4 | 4Gi | 4Gi |
Query Service | 1 | 2 | 1 | 1Gi | 1Gi |
AM Service | 2 | 8 | 8 | 8Gi | 8Gi |
SM Service | 2 | 2 | 2 | 2Gi | 2Gi |
UE Policy Service | 2 | 8 | 8 | 6Gi | 6Gi |
PCRF Core | 32 | 8 | 8 | 8Gi | 8Gi |
Perf-info | 2 | 2 | 1 | 2Gi | 1Gi |
UDMsim | 2 | NA | NA | NA | NA |
Diameter Gateway | 2 | 4 | 4 | 2Gi | 1Gi |
Table 3-49 UDR
Service Name | Replicas | CPU Limit per Container (#) | CPU Request per Container (#) | Memory Limit per Container | Memory Request per Container |
---|---|---|---|---|---|
UDR-Site1-ocudr-alternate-route/istio-proxy | 2 | 1000m | 1000m | 1Gi | 1Gi |
UDR-Site1-ocudr-alternate-route/alternate-route | 2 | 2 | 2 | 2Gi | 2Gi |
UDR-Site1-ocudr-appinfo/istio-proxy | 2 | 1000m | 1000m | 1Gi | 1Gi |
UDR-Site1-ocudr-appinfo/appinfo | 2 | 1 | 1 | 1Gi | 1Gi |
UDR-Site1-ocudr-egressgateway/istio-proxy | 2 | 1000m | 1000m | 1Gi | 1Gi |
UDR-Site1-ocudr-egressgateway/egressgateway | 2 | 6 | 6 | 4Gi | 4Gi |
UDR-Site1-ocudr-ingressgateway-prov/istio-proxy | 2 | 2000m | 2000m | 1Gi | 1Gi |
UDR-Site1-ocudr-ingressgateway-prov/ingressgateway-prov | 2 | 4 | 4 | 4Gi | 4Gi |
UDR-Site1-ocudr-ingressgateway-sig/istio-proxy | 9 | 4000m | 4000m | 1Gi | 1Gi |
UDR-Site1-ocudr-ingressgateway-sig/ingressgateway-sig | 9 | 6 | 6 | 4Gi | 4Gi |
UDR-Site1-ocudr-nudr-config/istio-proxy | 2 | 1000m | 1000m | 1Gi | 1Gi |
UDR-Site1-ocudr-nudr-config/nudr-config | 2 | 2 | 2 | 2Gi | 2Gi |
UDR-Site1-ocudr-nudr-config-server/istio-proxy | 2 | 1000m | 1000m | 1Gi | 1Gi |
UDR-Site1-ocudr-nudr-config-server/config-server | 2 | 2 | 2 | 2Gi | 512Mi |
UDR-Site1-ocudr-nudr-dbcr-auditor-service/istio-proxy | 1 | 1000m | 1000m | 1Gi | 1Gi |
UDR-Site1-ocudr-nudr-dbcr-auditor-service/nudr-dbcr-auditor-service | 1 | 2 | 2 | 2Gi | 2Gi |
UDR-Site1-ocudr-nudr-diameterproxy/nudr-diameterproxy | 2 | 6 | 6 | 4Gi | 4Gi |
UDR-Site1-ocudr-nudr-dr-provservice/istio-proxy | 2 | 2000m | 2000m | 1Gi | 1Gi |
UDR-Site1-ocudr-nudr-dr-provservice/nudr-dr-provservice | 2 | 4 | 4 | 4Gi | 4Gi |
UDR-Site1-ocudr-nudr-drservice/istio-proxy | 12 | 3000m | 3000m | 1Gi | 1Gi |
UDR-Site1-ocudr-nudr-drservice/nudr-drservice | 12 | 6 | 6 | 4Gi | 4Gi |
UDR-Site1-ocudr-nudr-notify-service/nudr-notify-service | 3 | 6 | 6 | 5Gi | 5Gi |
UDR-Site1-ocudr-nudr-nrf-client-nfmanagement/istio-proxy | 2 | 1000m | 1000m | 1Gi | 1Gi |
UDR-Site1-ocudr-nudr-nrf-client-nfmanagement/nrf-client-nfmanagement | 2 | 1 | 1 | 1Gi | 1Gi |
UDR-Site1-ocudr-nudr-ondemand-migration/nudr-ondemand-migration | 2 | 2 | 2 | 2Gi | 2Gi |
UDR-Site1-ocudr-performance/istio-proxy | 2 | 1000m | 1000m | 1Gi | 1Gi |
UDR-Site1-ocudr-performance/perf-info | 2 | 1 | 1 | 1Gi | 1Gi |
UDR-Site1-ocudr-nudr-diam-gateway/nudr-diam-gateway | 2 | 6 | 6 | 5Gi | 5Gi |
Table 3-50 cnDBTier (for Policy) resource allocation at Site1:
Service Name | Replicas | CPU Limit per Container (#) | CPU Request per Container (#) | Memory Limit per Container | Memory Request per Container |
---|---|---|---|---|---|
Site1-mysql-cluster-chio-inde-replication-svc/chio-inde-replication-svc | 1 | 3 | 2 | 12Gi | 12Gi |
Site1-mysql-cluster-chio-inde-replication-svc/db-infra-monitor-svc | 1 | 100m | 100m | 256Mi | 256Mi |
Site1-mysql-cluster-chio-inde-replication-svc-2/chio-inde-replication-svc-2 | 1 | 2 | 2 | 12Gi | 12Gi |
Site1-mysql-cluster-db-backup-manager-svc/db-backup-manager-svc | 1 | 100m | 100m | 128Mi | 128Mi |
Site1-mysql-cluster-db-monitor-svc/db-monitor-svc | 1 | 5 | 4 | 4Gi | 4Gi |
Site1-ndbappmysqld/mysqlndbcluster | 10 | 9 | 9 | 20Gi | 20Gi |
Site1-ndbappmysqld/db-infra-monitor-svc | 10 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbappmysqld/init-sidecar | 10 | 300m | 300m | 512Mi | 512Mi |
Site1-ndbmgmd/mysqlndbcluster | 2 | 5 | 4 | 10Gi | 8Gi |
Site1-ndbmgmd/db-infra-monitor-svc | 2 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbmtd/mysqlndbcluster | 6 | 12 | 12 | 125Gi | 125Gi |
Site1-ndbmtd/db-backup-executor-svc | 6 | 1200m | 1200m | 2560Mi | 2560Mi |
Site1-ndbmtd/db-infra-monitor-svc | 6 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbmysqld/mysqlndbcluster | 4 | 5 | 4 | 21Gi | 21Gi |
Site1-ndbmysqld/init-sidecar | 4 | 300m | 300m | 512Mi | 512Mi |
Site1-ndbmysqld/db-infra-monitor-svc | 4 | 100m | 100m | 256Mi | 256Mi |
Table 3-51 cnDBTier (for Policy) resource allocation at Site2:
Service Name | Replicas | CPU Limit per Container (#) | CPU Request per Container (#) | Memory Limit per Container | Memory Request per Container |
---|---|---|---|---|---|
Site2-mysql-cluster-db-backup-manager-svc/db-backup-manager-svc | 1 | 100m | 100m | 128Mi | 128Mi |
Site2-mysql-cluster-db-monitor-svc/db-monitor-svc | 1 | 5 | 4 | 4Gi | 4Gi |
Site2-mysql-cluster-inde-chio-replication-svc/inde-chio-replication-svc | 1 | 3 | 2 | 12Gi | 12Gi |
Site2-mysql-cluster-inde-chio-replication-svc/db-infra-monitor-svc | 1 | 100m | 100m | 256Mi | 256Mi |
Site2-mysql-cluster-inde-chio-replication-svc-2/inde-chio-replication-svc-2 | 1 | 2 | 2 | 12Gi | 12Gi |
Site2-ndbappmysqld/mysqlndbcluster | 10 | 9 | 9 | 20Gi | 20Gi |
Site2-ndbappmysqld/db-infra-monitor-svc | 10 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbappmysqld/init-sidecar | 10 | 300m | 300m | 512Mi | 512Mi |
Site2-ndbmgmd/mysqlndbcluster | 2 | 5 | 4 | 10Gi | 8Gi |
Site2-ndbmgmd/db-infra-monitor-svc | 2 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbmtd/mysqlndbcluster | 6 | 12 | 12 | 125Gi | 125Gi |
Site2-ndbmtd/db-backup-executor-svc | 6 | 1200m | 1200m | 2560Mi | 2560Mi |
Site2-ndbmtd/db-infra-monitor-svc | 6 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbmysqld/mysqlndbcluster | 4 | 5 | 4 | 21Gi | 21Gi |
Site2-ndbmysqld/init-sidecar | 4 | 300m | 300m | 512Mi | 512Mi |
Site2-ndbmysqld/db-infra-monitor-svc | 4 | 100m | 100m | 256Mi | 256Mi |
Table 3-52 cnDBTier (for UDR) resource allocation at Site1:
Service Name | Replicas | CPU Limit per Container (#) | CPU Request per Container (#) | Memory Limit per Container | Memory Request per Container |
---|---|---|---|---|---|
Site1-mysql-cluster-chio-inde-replication-svc/chio-inde-replication-svc | 1 | 2 | 2 | 12Gi | 12Gi |
Site1-mysql-cluster-chio-inde-replication-svc/db-infra-monitor-svc | 1 | 100m | 100m | 256Mi | 256Mi |
Site1-mysql-cluster-db-backup-manager-svc/db-backup-manager-svc | 1 | 100m | 100m | 128Mi | 128Mi |
Site1-mysql-cluster-db-monitor-svc/db-monitor-svc | 1 | 4 | 4 | 4Gi | 4Gi |
Site1-ndbappmysqld/mysqlndbcluster | 10 | 6 | 6 | 4Gi | 4Gi |
Site1-ndbappmysqld/db-infra-monitor-svc | 10 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbappmysqld/init-sidecar | 10 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbmgmd/mysqlndbcluster | 2 | 3 | 3 | 10Gi | 10Gi |
Site1-ndbmgmd/db-infra-monitor-svc | 2 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbmtd/mysqlndbcluster | 4 | 4 | 4 | 120Gi | 120Gi |
Site1-ndbmtd/db-backup-executor-svc | 4 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbmtd/db-infra-monitor-svc | 4 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbmysqld/mysqlndbcluster | 2 | 4 | 4 | 10Gi | 10Gi |
Site1-ndbmysqld/init-sidecar | 2 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbmysqld/db-infra-monitor-svc | 2 | 100m | 100m | 256Mi | 256Mi |
Table 3-53 cnDBTier (for UDR) resource allocation at Site2:
Service Name | Replicas | CPU Limit per Container (#) | CPU Request per Container (#) | Memory Limit per Container | Memory Request per Container |
---|---|---|---|---|---|
Site2-mysql-cluster-chio-inde-replication-svc/chio-inde-replication-svc | 1 | 2 | 2 | 12Gi | 12Gi |
Site2-mysql-cluster-chio-inde-replication-svc/db-infra-monitor-svc | 1 | 100m | 100m | 256Mi | 256Mi |
Site2-mysql-cluster-db-backup-manager-svc/db-backup-manager-svc | 1 | 100m | 100m | 128Mi | 128Mi |
Site2-mysql-cluster-db-monitor-svc/db-monitor-svc | 1 | 4 | 4 | 4Gi | 4Gi |
Site2-ndbappmysqld/mysqlndbcluster | 10 | 6 | 6 | 4Gi | 4Gi |
Site2-ndbappmysqld/db-infra-monitor-svc | 10 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbappmysqld/init-sidecar | 10 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbmgmd/mysqlndbcluster | 2 | 3 | 3 | 10Gi | 10Gi |
Site2-ndbmgmd/db-infra-monitor-svc | 2 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbmtd/mysqlndbcluster | 4 | 4 | 4 | 120Gi | 120Gi |
Site2-ndbmtd/db-backup-executor-svc | 4 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbmtd/db-infra-monitor-svc | 4 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbmysqld/mysqlndbcluster | 2 | 4 | 4 | 10Gi | 10Gi |
Site2-ndbmysqld/init-sidecar | 2 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbmysqld/db-infra-monitor-svc | 2 | 100m | 100m | 256Mi | 256Mi |
3.1.5.2 CPU Utilization
The following table describes the bench mark number as per the system maximum capacity utilization for Policy microservices.
The average CPU utilization is the ratio between the current usage of resource to the requested resources of the pod i.e., total sum of CPU utilized for service pods / total CPU requested for service pods.
Table 3-54 Policy Microservices and their Resource Utilization
Service Name | CPU at Site1 | Memory at Site1 | CPU at Site2 | Memory at Site2 |
---|---|---|---|---|
NRFsim | ['NA'] | ['NA'] | None | None |
Appinfo | 2.05% | 12.99% | None | None |
Bulwark service | 0.04% | 10.09% | None | None |
Binding service | 0.03% | 7.71% | None | None |
Diameter Connector | 23.41% | 49.26% | None | None |
CHF Connector | 0.05% | 14.72% | None | None |
Config Service | 5.22% | 47.71% | None | None |
Egress Gateway | 35.83% | 34.24% | None | None |
Ingress Gateway | 0.19% | 15.71% | None | None |
NRF Client NF Discovery | 0.09% | 24.73% | None | None |
NRF Client NF Management | 0.35% | 49.02% | None | None |
UDR Connector | 14.02% | 41.10% | None | None |
Audit Service | 1.12% | 29.38% | None | None |
CM Service | 0.24% | 35.28% | None | None |
PDS | 34.78% | 51.91% | None | None |
PRE | 28.38% | 60.54% | None | None |
Query Service | 0.05% | 31.54% | None | None |
AM Service | 0.04% | 8.26% | None | None |
SM Service | 0.10% | 38.28% | None | None |
UE Service | 0.04% | 10.66% | None | None |
PCRF Core | 34.23% | 52.03% | None | None |
PerfInfo | 0.10% | 6.45% | None | None |
UDMsim | ['NA'] | ['NA'] | None | None |
Diameter Gateway | 76.15% | 48.80% | None | None |
The following table provides information about observed values of cnDBTier services.
Table 3-55 Observed CPU utilization values of cnDBTier services
Service Name | CPU at Site1 | Memory at Site1 | CPU at Site2 | Memory at Site2 |
---|---|---|---|---|
mysql-cluster-chio-inde-replication-svc/chio-inde-replication-svc | 0.20% | 2.38% | None | None |
mysql-cluster-chio-inde-replication-svc/db-infra-monitor-svc | 2.00% | 19.92% | None | None |
mysql-cluster-chio-inde-replication-svc-2/chio-inde-replication-svc-2 | 0.30% | 2.24% | None | None |
mysql-cluster-db-backup-manager-svc/db-backup-manager-svc | 4.00% | 69.53% | None | None |
mysql-cluster-db-monitor-svc/db-monitor-svc | 0.10% | 12.92% | None | None |
ndbappmysqld/mysqlndbcluster | 57.55% | 28.25% | None | None |
ndbappmysqld/db-infra-monitor-svc | 1.90% | 21.68% | None | None |
ndbappmysqld/init-sidecar | 0.67% | 0.20% | None | None |
ndbmgmd/mysqlndbcluster | 0.12% | 20.21% | None | None |
ndbmgmd/db-infra-monitor-svc | 1.00% | 20.70% | None | None |
ndbmtd/mysqlndbcluster | 37.85% | 90.47% | None | None |
ndbmtd/db-backup-executor-svc | 0.08% | 2.17% | None | None |
ndbmtd/db-infra-monitor-svc | 3.00% | 21.22% | None | None |
ndbmysqld/mysqlndbcluster | 10.77% | 21.37% | None | None |
ndbmysqld/init-sidecar | 0.67% | 0.20% | None | None |
ndbmysqld/db-infra-monitor-svc | 3.00% | 23.05% | None | None |
3.1.5.3 Results
Table 3-56 Average Latency Observations for PCRF In Milliseconds:
Service Name | Latency at Site1 | Latency at Site2 |
---|---|---|
PCRF_Policyds | 12.7 | - |
PCRF_Binding | 0.00 | - |
PCRF_Diam_connector | 1.17 | - |
PCRF_Core_JDBC_Latency | 1.00 | - |
Table 3-57 Average Latency Observations for UDR In Milliseconds:
Service Name | Latency at Site1 | Latency at Site2 |
---|---|---|
UDR_DB_Latency | 0.02 | - |
UDR_Req_Latency | 1.51 | - |
Diam_Db_Latency | 0.00 | - |
Diam_Backend_Latency | 0.00 | - |
Table 3-58 Average Latency Observations for PCRF for current percentile In Milliseconds:
Methods | 50th Percentile at Site1 | 99th Percentile at Site1 | 50th Percentile at Site2 | 99th Percentile at Site2 |
---|---|---|---|---|
DIAM | 0.00 | 0.02 | - | - |
Table 3-59 Average Latency Observations for UDR for current percentile In MilliSeconds:
Methods | 50th Percentile at Site1 | 99th Percentile at Site1 | 50th Percentile at Site2 | 99th Percentile at Site2 |
---|---|---|---|---|
IGW_GET | 0.00 | 0.01 | - | - |
IGW_DELETE | 0.00 | 0.01 | - | - |
IGW_PUT | 0.00 | 0.00 | - | - |
EGW_GET | 0.00 | 0.00 | - | - |
EGW_DELETE | 0.00 | 0.00 | - | - |
EGW_PUT | 0.00 | 0.01 | - | - |
Table 3-60 Latency obervations for cnDBTier services
Site-Slave Node | cnDBTier Replication Slave Delay (seconds) |
---|---|
Site1-ndbmysqld | 0-1 |
Site2-ndbmysqld | 0-1 |
3.2 PCF Call Model 2
Following are the cnDBTier Helm Parameters that needs to be configured for all the test scenarios for AM/UE (15K, 25K, 30K, 60K, and 75K).
Table 3-61 Configuring cnDBTier Helm Parameters
Helm Parameter | Value |
---|---|
db-monitor-svc.restartSQLNodesIfBinlogThreadStalled | true |
global.additionalndbconfigurations.mysqld.binlog_cache_size | 10485760 |
global.additionalndbconfigurations.ndb.NoOfFragmentLogFiles | 64 |
global.additionalndbconfigurations.mysqld.ndb_allow_copying_alter_table | 1 |
global.additionalndbconfigurations.ndb.ConnectCheckIntervalDelay | 500 |
global.additionalndbconfigurations.ndb.NoOfFragmentLogParts | 6 |
global.additionalndbconfigurations.ndb.MaxNoOfExecutionThreads | 10 |
global.additionalndbconfigurations.ndb.FragmentLogFileSize | 32M |
db-monitor-svc.binlogthreadstore.capacity | 5 |
global.additionalndbconfigurations.mysqld.ndb_allow_copying_alter_table | ON |
global.additionalndbconfigurations.ndb.MaxNoOfOrderedIndexes | 4096 |
global.additionalndbconfigurations.ndb.binlog_expire_logs_seconds | 259200 |
global.additionalndbconfigurations.ndb.MaxBufferedEpochBytes | 536870912 |
global.additionalndbconfigurations.ndb.MaxBufferedEpochs | 1000 |
global.additionalndbconfigurations.ndb.MaxNoOfUniqueHashIndexes | 4096 |
global.additionalndbconfigurations.ndb.HeartbeatIntervalDbDb | 500 |
global.additionalndbconfigurations.ndb.SchedulerExecutionTimer | 100 |
global.additionalndbconfigurations.ndb.RedoBuffer | 32M |
global.additionalndbconfigurations.ndb.TotalSendBufferMemory | 3072M |
3.2.1 Test Scenario: PCF Call Model on Two-Site GeoRedundant setup, with 15K TPS each for AM/UE and ASM enabled.
This test run benchmarks the performance and capacity of Policy data call model that is deployed in PCF mode. The PCF application handles an incoming traffic of 30K TPS, with 15K TPS each for AM and UE services. For this setup Aspen Service Mesh (ASM) was enabled.
3.2.1.1 Test Case and Setup Details
Table 3-62 Test Case Parmeters
Parameters | Values |
---|---|
Call Rate | 30K TPS on Single site |
Execution Time | 17 Hours |
ASM | Enable |
Traffic Ratio | 1:0:1 (AM/UE Create: AM/UE Update: AM/UE delete) |
Active Subscribers | ~10000000 |
Table 3-63 Call Model
Service Name | AM Service | UE Service | Total MPS | Total TPS | ||||
---|---|---|---|---|---|---|---|---|
Ingress | Egress | Total MPS | Ingress | Egress | Total MPS | |||
Ingress | 3600 | 3600 | 7200 | 3600 | 3600 | 7200 | 14400 | 7200 |
PRE | 3600 | 0 | 3600 | 3600 | 0 | 3600 | 7200 | 3600 |
PDS | 9000 | 9000 | 18000 | 8100 | 6300 | 14400 | 34200 | 17100 |
Egress | 9900 | 9900 | 19800 | 13500 | 13500 | 27000 | 46800 | 23,400 |
Nrf Discovery | 1800 | 1800 | 3600 | 1800 | 1800 | 3600 | 7200 | 3600 |
UDR Connector | 6300 | 8100 | 14400 | 6300 | 6300 | 12600 | 27000 | 13500 |
CHF Connector | 3600 | 3600 | 7200 | 0 | 0 | 0 | 7200 | 3600 |
AM | 3600 | 18900 | 22500 | 0 | 0 | 0 | 22500 | 11250 |
UE | 0 | 0 | 0 | 3600 | 20700 | 24300 | 24300 | 12150 |
Bulwark | 7200 | 0 | 7200 | 7200 | 0 | 7200 | 14400 | 7200 |
Table 3-64 PCF Configuration
Service Name | Status |
---|---|
Bulwark Service | Enable |
Binding Service | Disable |
Subscriber State Variable (SSV) | Enable |
Validate_user | Disable |
Alternate Route Service | Disable |
Audit Service | Enable |
Binlog | Enable |
Table 3-65 PCF Interfaces
Feature Name | Status |
---|---|
N36 UDR query (N7/N15-Nudr) | Enable |
N36 UDR subscription (N7/N15-Nudr) | Enable |
UDR on-demand nrf discovery | Disable |
CHF (SM-Nchf) | Disable |
BSF (N7-Nbsf) | Disable |
AMF on demand nrf discovery | Disable |
LDAP (Gx-LDAP) | Disable |
Sy (PCF N7-Sy) | Enable |
Table 3-66 PCRF Interfaces
Feature Name | Status |
---|---|
Sy (PCRF Gx-Sy) | Disable |
Sd (Gx-Sd) | Disable |
Gx UDR query (Gx-Nudr) | Disable |
Gx UDR subscription (Gx-Nudr | Disable |
CHF enabled (AM) | Disable |
Usage Monitoring (Gx) | Disable |
Subscriber HTTP Notifier (Gx) | Disable |
Table 3-67 Configuring cnDBTier Helm Parameters
Helm Parameter | Value |
---|---|
restartSQLNodesIfBinlogThreadStalled | true |
binlog_cache_size | 65536 |
ndbsqld node memory | 54Gi |
NoOfFragmentLogFiles | 96 |
ndb_allow_copying_alter_table | 1 |
Table 3-68 Policy Microservices Resources
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replica |
---|---|---|---|---|---|
Appinfo | 1 | 1 | 0.5 | 1 | 2 |
Audit Service | 1 | 2 | 1 | 1 | 2 |
CM Service | 2 | 4 | 0.5 | 2 | 2 |
Config Service | 2 | 4 | 0.5 | 2 | 2 |
Egress Gateway | 4 | 4 | 4 | 6 | 13 |
Ingress Gateway | 4 | 4 | 4 | 6 | 4 |
Nrf Client Management | 1 | 1 | 1 | 1 | 2 |
Diameter Gateway | 4 | 4 | 1 | 2 | 0 |
Diameter Connector | 4 | 4 | 1 | 2 | 0 |
AM Service | 8 | 8 | 1 | 4 | 9 |
UE Service | 8 | 8 | 1 | 4 | 11 |
Nrf Client Discovery | 4 | 4 | 0.5 | 2 | 4 |
Query Service | 1 | 2 | 1 | 1 | 2 |
PCRF Core Service | 8 | 8 | 8 | 8 | 0 |
Performance | 1 | 1 | 0.5 | 1 | 2 |
PRE Service | 4 | 4 | 0.5 | 2 | 6 |
SM Service | 8 | 8 | 1 | 4 | 0 |
PDS | 6 | 6 | 1 | 4 | 17 |
UDR Connector | 6 | 6 | 1 | 4 | 7 |
CHF Connector | 6 | 6 | 1 | 4 | 2 |
LDAP Gateway Service | 3 | 4 | 1 | 2 | 0 |
Binding Service | 5 | 6 | 1 | 8 | 0 |
SOAP Connector | 2 | 4 | 4 | 4 | 0 |
Alternate Route Service | 2 | 2 | 2 | 4 | 4 |
Bulwark Service | 8 | 8 | 1 | 4 | 3 |
Note:
Min Replica = Max ReplicaTable 3-69 cnDBTier Microservices Resources:
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replica |
---|---|---|---|---|---|
ndbappmysqld | 15 | 15 | 18 | 18 | 6 |
ndbmgmd | 3 | 3 | 10 | 10 | 2 |
ndbmtd | 12 | 12 | 96 | 96 | 12 |
ndbmysqld | 4 | 4 | 54 | 54 | 2 |
Note:
Min Replica = Max Replica3.2.1.2 CPU Utilization
This section lists the CPU utilization for Policy and cnDBTier microservices. The CPU utilization is the ratio between the (total CPU utilization against total CPU request (X)) versus (target CPU Utilization (Y) configured for the pod).
Table 3-70 Policy Microservices Resource Utilization
Service | CPU (X/Y) - Site1 |
---|---|
ocpcf-alternate-route | 0%/80% |
ocpcf-appinfo | 0%/80% |
ocpcf-bulwark | 0%/60% |
ocpcf-occnp-config-server | 9%/80% |
ocpcf-occnp-egress-gateway | 46%/80% |
ocpcf-occnp-ingress-gateway | 38%/80% |
ocpcf-occnp-nrf-client-nfdiscovery | 38%/80% |
ocpcf-occnp-nrf-client-nfmanagement | 15%/80% |
ocpcf-oc-binding | 0%/60% |
ocpcf-occnp-chf-connector | 0%/50% |
ocpcf-occnp-udr-connector | 46%/50% |
ocpcf-ocpm-audit-service | 0%/60% |
ocpcf-ocpm-policyds | 32%/60% |
ocpcf-ocpm-pre | 18%/80% |
ocpcf-pcf-amservice | 21%/30% |
ocpcf-pcf-ueservice | 33%30% |
ocpcf-ocpm-queryservice | 0%80% |
Table 3-71 cnDBTier Services Resource Utilization
Name | CPU (X/Y) - Site1 |
---|---|
ndbappmysqld | 31%/80% |
ndbmgmd | 0%/80% |
ndbmtd | 43%/80% |
ndbmysqld | 9%/80% |
3.2.1.3 Results
Table 3-72 Latency Observations
NF | Procedure | NF Processing Time - (Average/50%) ms | NF Processing Time - (99%) ms |
---|---|---|---|
AM-PCF | AM-Create (simulator) | 56.2 | 47.6 |
AM-Delete (simulator) | 50.2 | 44.6 | |
UE-PCF | AM-Create (simulator) | 78.6 | 63.3 |
AM-Delete (simulator) | 7.6 | 6.3 |
Table 3-73 Latency Observations for Policy Services:
Services | Average Latency (ms) |
---|---|
Ingress | 45.6 |
PDS | 26.9 |
UDR | 7.60 |
NrfClient Discovery - OnDemand | 6.39 |
Egress | 0.914 |
- Able to achieve 30K TPS with AM (15K) and UE (15K) with constant approximate run of 17 Hours.
- Latency was constant through out the call model run, with
- approximate of 46ms for Ingress, and
- approximate of <=20ms for rest of the PCF services
3.2.2 Test Scenario: PCF AM/UE Call Model on Two-Site GeoRedundant setup, with each site handling 25K TPS traffic and ASM enabled
This test run benchmarks the performance and capacity of Policy AM/UE data call model that is deployed in PCF mode. The PCF application handles a total (Ingress + Egress) traffic of 50K TPS, with each site handling a traffic of 25K TPS. For this setup Aspen Service Mesh (ASM) was enabled.
In this test setup, the Georedundant (GR) mode was enabled in cnDBTier and it was configured for 3 channel replication.
3.2.2.1 Test Case and Setup Details
Table 3-74 Test Case Parmeters
Parameters | Values |
---|---|
Call Rate (Ingress + Egress) | 50K TPS on Single site |
Execution Time | 94 Hours |
ASM | Enable |
Traffic Ratio | 1:0:1 (AM/UE Create: AM/UE Update: AM/UE delete) |
Active Subscribers | 12591141 |
Table 3-75 TPS Distribution
TPS Distribution | Site1 | Site2 |
---|---|---|
AM Ingress | 6.12K | 0 |
AM Egress | 18.88K | 0 |
UE Ingress | 6.12K | 0 |
UE Egress | 18.88K | 0 |
Total TPS | 50K | 0 |
Table 3-76 Call Model
Service Name | AM Service | UE Service | Total MPS | Total TPS | ||||
---|---|---|---|---|---|---|---|---|
Ingress | Egress | Total MPS | Ingress | Egress | Total MPS | |||
Ingress | 6250 | 6250 | 12500 | 6250 | 6250 | 12500 | 25000 | 12500 |
PRE | 6250 | 0 | 6250 | 6250 | 0 | 6250 | 12500 | 6250 |
PDS | 9375 | 9375 | 18750 | 9375 | 9375 | 18750 | 37500 | 18750 |
Egress | 12500 | 12500 | 25000 | 25000 | 25000 | 50000 | 75000 | 37500 |
Nrf Discovery | 3125 | 3125 | 6250 | 6250 | 6250 | 12500 | 18750 | 9375 |
UDR Connector | 9375 | 12500 | 21875 | 9375 | 12500 | 21875 | 43750 | 21875 |
CHF Connector | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
AM | 6250 | 15625 | 21875 | 0 | 0 | 0 | 21875 | 10937.5 |
UE | 0 | 0 | 0 | 6250 | 28125 | 34375 | 34375 | 17187.5 |
Bulwark | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Table 3-77 PCF Configuration
Service Name | Status |
---|---|
Bulwark Service | Disable |
Binding Service | NA |
Subscriber State Variable (SSV) | Enable |
Validate_user | Disable |
Alternate Route Service | Disable |
Audit Service | Enable |
Binlog | Enable |
Table 3-78 PCF Interfaces
Feature Name | Status |
---|---|
N36 UDR query (N7/N15-Nudr) | Enable |
N36 UDR subscription (N7/N15-Nudr) | Enable |
UDR on-demand nrf discovery | Enable |
CHF (SM-Nchf) | Disable |
BSF (N7-Nbsf) | NA |
AMF on demand nrf discovery | Enable |
LDAP (Gx-LDAP) | Disable |
Sy (PCF N7-Sy) | Disable |
Table 3-79 PCRF Interfaces
Feature Name | Status |
---|---|
Sy (PCRF Gx-Sy) | NA |
Sd (Gx-Sd) | NA |
Gx UDR query (Gx-Nudr) | NA |
Gx UDR subscription (Gx-Nudr | NA |
CHF enabled (AM) | Enable |
Usage Monitoring (Gx) | NA |
Subscriber HTTP Notifier (Gx) | NA |
Table 3-80 Configuring cnDBTier Helm Parameters
Helm Parameter | Value | cnDBTier Helm Configuration |
---|---|---|
restartSQLNodesIfBinlogThreadStalled | true |
|
binlog_cache_size | 10485760 |
|
ConnectCheckIntervalDelay | 500 |
|
NoOfFragmentLogFiles | 32 |
|
NoOfFragmentLogParts | 6 |
|
MaxNoOfExecutionThreads | 14 |
|
FragmentLogFileSize | 128M |
|
binlogthreadstore.capacity | 5 |
|
ndb_allow_copying_alter_table | ON |
|
Note:
The cnDBTier customized parameters values remains same for both site1 and site2.Table 3-81 Policy Microservices Resources
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Min Replicas | Max Replicas | Request/Limit Isito CPU | Request/Limit Isito Memory |
---|---|---|---|---|---|---|---|---|
Appinfo | 1 | 1 | 0.5 | 1 | 2 | 2 | 2 | 2 |
Audit Service | 2 | 2 | 4 | 4 | 2 | 2 | 2 | 2 |
CM Service | 2 | 4 | 0.5 | 2 | 2 | 2 | 2 | 2 |
Config Service | 4 | 4 | 0.5 | 2 | 2 | 2 | 2 | 2 |
Egress Gateway | 4 | 4 | 6 | 6 | 2 | 27 | 2 | 2 |
Ingress Gateway | 5 | 5 | 6 | 6 | 2 | 8 | 2.5 | 2 |
Nrf Client Management | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
Diameter Gateway | 4 | 4 | 1 | 2 | 0 | 0 | 2 | 2 |
Diameter Connector | 4 | 4 | 1 | 2 | 0 | 0 | 2 | 2 |
AM Service | 8 | 8 | 1 | 4 | 2 | 6 | 2 | 2 |
UE Service | 8 | 8 | 1 | 4 | 2 | 16 | 2 | 2 |
Nrf Client Discovery | 4 | 4 | 0.5 | 2 | 2 | 7 | 2 | 2 |
Query Service | 1 | 2 | 1 | 1 | 2 | 2 | 2 | 2 |
PCRF Core Service | 8 | 8 | 8 | 8 | 0 | 0 | 2 | 2 |
Performance | 1 | 1 | 0.5 | 1 | 2 | 2 | 2 | 2 |
PRE Service | 4 | 4 | 4 | 4 | 2 | 4 | 1.5 | 2 |
SM Service | 7 | 7 | 10 | 10 | 0 | 0 | 2.5 | 2 |
PDS | 7 | 7 | 8 | 8 | 2 | 22 | 2.5 | 4 |
UDR Connector | 6 | 6 | 4 | 4 | 2 | 14 | 2 | 2 |
CHF Connector | 6 | 6 | 4 | 4 | 0 | 0 | 2 | 2 |
LDAP Gateway Service | 3 | 4 | 1 | 2 | 0 | 0 | 2 | 2 |
Binding Service | 6 | 6 | 8 | 8 | 2 | 0 | 2.5 | 2 |
SOAP Connector | 2 | 4 | 4 | 4 | 0 | 0 | 2 | 2 |
Alternate Route Service | 2 | 2 | 2 | 4 | 2 | 5 | 2 | 2 |
Bulwark Service | 8 | 8 | 6 | 6 | 0 | 0 | 2.5 | 2 |
Table 3-82 cnDBTier Microservices Resources:
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replicas | Request/Limit Istio CPU | Request/Limit Istio Memory |
---|---|---|---|---|---|---|---|
ndbappmysqld | 12 | 20 | 12 | 5 | 5 | ||
ndbmgmd | 3 | 10 | 2 | 2 | 2 | ||
ndbmtd | 12 | 129 | 10 | 6 | 6 | ||
ndbmysqld | 4 | 54 | 6 | 4 | 4 |
3.2.2.2 CPU Utilization
This section lists the CPU utilization for Policy and cnDBTier microservices. The average CPU utilization is the ratio between the (total CPU utilization against total CPU request (X)) versus (target CPU Utilization (Y) configured for the pod).
Table 3-83 Policy Microservices Resource Utilization
Service | CPU (X/Y) - Site1 |
---|---|
ocpcf-alternate-route | 0%/80% |
ocpcf-appinfo | 0%/80% |
ocpcf-bulwark | 0%/60% |
ocpcf-occnp-config-server | 16%/80% |
ocpcf-occnp-egress-gateway | 60%/80% |
ocpcf-occnp-ingress-gateway | 55%/80% |
ocpcf-occnp-nrf-client-nfdiscovery | 43%/80% |
ocpcf-occnp-nrf-client-nfmanagement | 0%/80% |
ocpcf-oc-binding | 0%/60% |
ocpcf-occnp-chf-connector | 0%/50% |
ocpcf-occnp-udr-connector | 48%/50% |
ocpcf-ocpm-audit-service | 0%/60% |
ocpcf-ocpm-policyds | 49%/60% |
ocpcf-ocpm-pre | 25%/80% |
ocpcf-pcf-amservice | 32%/30% |
ocpcf-pcf-ueservice | 54%30% |
ocpcf-ocpm-queryservice | 0%80% |
Table 3-84 cnDBTier Services Resource Utilization
Name | CPU (X/Y) - Site1 | CPU (X/Y) - Site2 |
---|---|---|
ndbappmysqld | 26%/80% | 20%/80% |
ndbmgmd | 0%/80% | 0%/80% |
ndbmtd | 63%/80% | 60%/80% |
ndbmysqld | 6%/80% | 1%/80% |
3.2.3 Test Scenario: PCF SM Call Model on Two-Site GeoRedundant setup, with each site handling 43K TPS traffic and ASM Enabled
This test run benchmarks the performance and capacity of Policy SM data call model that is deployed in PCF mode on a two-site georedundant setup. The PCF application handles a total (Ingress + Egress) traffic of 60K TPS, with each site handling a traffic of 21.5K TPS. For this setup Aspen Service Mesh (ASM) was enabled.
In this test setup, the Georedundant (GR) mode was enabled in cnDBTier and it was configured for 3 channel replication.
3.2.3.1 Test Case and Setup Details
Table 3-86 Test Case Parmeters
Parameters | Values |
---|---|
Call Rate (Ingress + Egress) | 21.5K TPS on Site1, 21.5K TPS on Site2 |
ASM | Enable |
Traffic Ratio | Internet:- 1 SM Create : 74 SM Updates : 1 SM DeleteIMS:- 1 SM Create : 8 SM Updates : 1 SM DeleteAPP:- 1 SM Create : 0 SM Updates : 1 SM DeleteADMIN:- 1 SM Create : 0 SM Updates : 1 SM DeleteIMS Rx:- 1 Create : 1 STR |
Active Subscribers | 10000000 subscribers and 20000000 sessions |
Policy Project Details:
The Policy design editor based on the Blockly interface was used to set the Policy project for each of the Policy services. The complexity level of Policy Project configured for this run was High.
- Low– No Usage of Loops in Blockly logic, No JSON operations, No complex Java Script code in Object Expression /Statement Expression.
- Medium - Usage of Loops in Blockly logic, Policy Table Wildcard match <= 3 fields, MatchList < 3, 3 < RegEx match < 6
- High - JSON Operations – Custom, complex Java Script code in Object Expression /Statement Expression, Policy Table Wildcard match > 3 fields, MatchLists >= 3, RegEx mat >= 6
Table 3-87 PCF Configuration
Name | Status |
---|---|
Bulwark Service | Enable |
Binding Service | Enable |
Subscriber State Variable (SSV) | Enable |
Validate_user | Disable |
Alternate Route | Disable |
Audit Service | Enable |
Enable Custom JSON | Enable |
Table 3-88 PCF Interfaces
Feature Name | Status |
---|---|
N36 UDR query (N7/N15-Nudr) | Enable |
N36 UDR subscription (N7/N15-Nudr) | Enable |
UDR on-demand nrf discovery | Disable |
CHF (SM-Nchf) | Enable |
BSF (N7-Nbsf) | Enable |
AMF on demand nrf discovery | NA |
LDAP (Gx-LDAP) | NA |
Sy (PCF N7-Sy) | NA |
Table 3-89 PCRF Interfaces
Feature Name | Status |
---|---|
Sy (PCRF Gx-Sy) | NA |
Sd (Gx-Sd) | NA |
Gx UDR query (Gx-Nudr) | NA |
Gx UDR subscription (Gx-Nudr | NA |
CHF enabled (AM) | NA |
Usage Monitoring (Gx) | NA |
Subscriber HTTP Notifier (Gx) | NA |
Table 3-90 Configuring Policy Helm Parameters
Service Name | Policy Helm Configuration |
---|---|
Ingress Gateway |
|
Egress Gateway |
|
Note:
The Policy customized parameters values remains same for both site1 and site2.Table 3-91 Configuring cnDBTier Helm Parameters
Helm Parameter | Value | cnDBTier Helm Configuration |
---|---|---|
binlog_cache_size | 10485760 |
|
ConnectCheckIntervalDelay | 500 |
|
NoOfFragmentLogFiles | 32 |
|
NoOfFragmentLogParts | 4 |
|
MaxNoOfExecutionThreads | 11 |
|
FragmentLogFileSize | 128M |
|
binlogthreadstore.capacity | 5 |
|
ndb_allow_copying_alter_table | ON |
|
Note:
The cnDBTier customized parameters values remains same for both site1 and site2.Table 3-92 Policy Microservices Resources
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Min Replicas | Max Replicas | Request/Limit Isito CPU | Request/Limit Isito Memory |
---|---|---|---|---|---|---|---|---|
Appinfo | 1 | 1 | 0.5 | 1 | 2 | 2 | 2 | 2 |
Audit Service | 2 | 2 | 4 | 4 | 2 | 2 | 2 | 2 |
CM Service | 2 | 4 | 0.5 | 2 | 2 | 2 | 2 | 2 |
Config Service | 4 | 4 | 0.5 | 2 | 2 | 2 | 2 | 2 |
Egress Gateway | 4 | 4 | 6 | 6 | 2 | 6 | 2 | 2 |
Ingress Gateway | 5 | 5 | 6 | 6 | 2 | 27 | 2.5 | 2 |
NRF Client Management | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
Diameter Gateway | 4 | 4 | 1 | 2 | 2 | 2 | 2 | 2 |
Diameter Connector | 4 | 4 | 1 | 2 | 2 | 2 | 2 | 2 |
AM Service | 8 | 8 | 1 | 4 | 0 | 0 | 2 | 2 |
UE Service | 8 | 8 | 1 | 4 | 0 | 0 | 2 | 2 |
NRF Client Discovery | 4 | 4 | 2 | 2 | 2 | 2 | 2 | 2 |
Query Service | 1 | 2 | 1 | 1 | 2 | 2 | 2 | 2 |
PCRF Core Service | 8 | 8 | 8 | 8 | 0 | 0 | 2 | 2 |
Performance | 1 | 1 | 0.5 | 1 | 2 | 2 | 2 | 2 |
PRE Service | 4 | 4 | 4 | 4 | 2 | 55 | 1.5 | 2 |
SM Service | 7 | 7 | 10 | 10 | 2 | 76 | 2 | 2 |
PDS Service | 7 | 7 | 8 | 8 | 2 | 21 | 2.5 | 4 |
UDR Connector | 6 | 6 | 4 | 2 | 2 | 2 | 2 | 2 |
CHF Connector | 6 | 6 | 4 | 4 | 2 | 2 | 2 | 2 |
LDAP Gateway Service | 3 | 4 | 1 | 2 | 0 | 0 | 2 | 2 |
Binding Service | 6 | 6 | 8 | 8 | 2 | 3 | 2.5 | 2 |
SOAP Connector | 2 | 4 | 4 | 4 | 0 | 0 | 2 | 2 |
Alternate Route Service | 2 | 2 | 2 | 4 | 2 | 2 | 2 | 2 |
Bulwark Service | 8 | 8 | 6 | 6 | 2 | 19 | 2.5 | 2 |
Table 3-93 cnDBTier Microservices Resources:
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replicas |
---|---|---|---|---|---|
ndbappmysqld | 12 | 12 | 18 | 18 | 18 |
ndbmgmd | 3 | 3 | 8 | 8 | 2 |
ndbmtd | 10 | 10 | 132 | 132 | 10 |
ndbmysqld | 4 | 4 | 54 | 54 | 12 |
Note:
Min Replica = Max Replica3.2.3.2 CPU Utilization
Table 3-94 Policy Microservices Resource Utilization
Service | CPU (X/Y) - Site 1 | CPU (X/Y) - Site 2 |
---|---|---|
ocpcf-occnp-alternate route | 0.10%%/9.56% | 0.10%%/9.97% |
ocpcf-appinfo | 4.40%/25.78% | 4.50%/25.34% |
ocpcf-bulwark | 17.55%/17.13% | 0.04%/14.53% |
ocpcf-occnp-config-server | 6.17%/42.65% | 3.70%/40.19% |
ocpcf-occnp-egress-gateway | 19.48%/21.97% | 0.04%/20.34% |
ocpcf-occnp-ingress-gateway | 16.50%/32.03% | 0.54%/25.63% |
ocpcf-occnp-nrf-client-nfdiscovery | 7.94%/51.84% | 0.07%/38.38% |
ocpcf-occnp-nrf-client-nfmanagement | 1.75%/50.29% | 0.35%/48.73% |
ocpcf-oc-binding | 12.36%/17.44% | 0.05%/12.41% |
ocpcf-occnp-chf-connector | 11.87%/22.10% | 0.05%/18.97% |
ocpcf-occnp-udr-connector | 14.83%/23.34% | 0.06%/17.67% |
ocpcf-ocpm-audit-service | 0.22%/16.35% | 0.10%/12.41% |
ocpcf-ocpm-policyds | 21.13%/22.16% | 0.03%/18.47% |
ocpcf-ocpm-pre | 21.64%/47.43% | 0.21%/12.82% |
ocpcf-pcf-smservice | 22.38%/25.81% | 0.04%/18.15% |
ocpcf-ocpm-queryservice | 0.05%/23.54% | 0.05%/24.12% |
Table 3-95 cnDBTier Services Resource Utilization
Name | CPU (X/Y) - Site1 | CPU (X/Y) - Site2 |
---|---|---|
ndbappmysqld | 28.57%/41.04% | 0.31%/32.17% |
ndbmgmd | 0.22%/25.38% | 0.22%/25.41% |
ndbmtd | 55.88%/46.89% | 9.32%/46.90% |
3.2.4 Test Scenario: PCF SM Call Model on Two-Site GeoRedundant setup, with each site handling 30K TPS traffic and ASM Enabled
This test run benchmarks the performance and capacity of Policy SM data call model that is deployed in PCF mode on a two-site georedundant setup. The PCF application handles a total (Ingress + Egress) traffic of 60K TPS, with each site handling a traffic of 30K TPS. For this setup Aspen Service Mesh (ASM) was enabled.
In this test setup, the Georedundant (GR) mode was enabled in cnDBTier and it was configured for 3 channel replication.
3.2.4.1 Test Case and Setup Details
Table 3-97 Test Case Parmeters
Parameters | Values |
---|---|
Call Rate (Ingress + Egress) | 30K TPS on Site1, 30K TPS on Site2 |
ASM | Enable |
Traffic Ratio |
Internet:- 1 SM Create : 74 SM Updates : 1 SM Delete IMS Rx:- 1 Create : 1 Update : 1 STR |
Active Subscribers | 393590 (Site1) + 393589 (Site2) = 787179 |
Policy Project Details:
The Policy design editor based on the Blockly interface was used to set the Policy project for each of the Policy services. The complexity level of Policy Project configured for this run was High.
- Low– No Usage of Loops in Blockly logic, No JSON operations, No complex Java Script code in Object Expression /Statement Expression.
- Medium - Usage of Loops in Blockly logic, Policy Table Wildcard match <= 3 fields, MatchList < 3, 3 < RegEx match < 6
- High - JSON Operations – Custom, complex Java Script code in Object Expression /Statement Expression, Policy Table Wildcard match > 3 fields, MatchLists >= 3, RegEx mat >= 6
Table 3-98 Call Model
Service Name | DNN1 SM Service (MPS) | DNN2 SM Service and Rx Interface (MPS) | Total MPS | ||||
---|---|---|---|---|---|---|---|
Inbound Message | Outbound Message | Inbound Message | Outbound Message | Inbound Message | Outbound Message | ||
Ingress Gateway | 49000 | 49000 | 1520 | 1520 | 0 | 0 | 101040 |
SM Service | 49654 | 209036 | 1526 | 10739 | 2533 | 7094 | 280590 |
PRE Service | 49000 | 0 | 1520 | 0 | 1520 | 0 | 52040 |
PDS Service | 58114 | 3924 | 3623 | 525 | 3040 | 0 | 69230 |
Egress Gateway | 4578 | 4578 | 1545 | 1545 | 1520 | 1520 | 15290 |
NRF Discovery | 654 | 654 | 6 | 6 | 0 | 0 | 1320 |
UDR Connector | 1962 | 2616 | 513 | 519 | 0 | 0 | 5610 |
CHF Connector | 1308 | 1308 | 6 | 6 | 0 | 0 | 2630 |
Binding Service | 1307 | 0 | 2027 | 1014 | 0 | 0 | 4350 |
Diameter Connector | 0 | 0 | 507 | 507 | 1520 | 2533 | 5070 |
Diameter Gateway | 0 | 0 | 507 | 507 | 1520 | 1520 | 4060 |
Bulwark Service | 99308 | 0 | 3052 | 0 | 1013 | 0 | 103380 |
Table 3-99 PCF Configuration
Name | Status |
---|---|
Bulwark Service | Enable |
Binding Service | Enable |
Subscriber State Variable (SSV) | Enable |
Validate_user | Disable |
Alternate Route | Disable |
Audit Service | Enable |
Enable Custom JSON | Enable |
Table 3-100 PCF Interfaces
Feature Name | Status |
---|---|
N36 UDR query (N7/N15-Nudr) | Enable |
N36 UDR subscription (N7/N15-Nudr) | Enable |
UDR on-demand nrf discovery | Disable |
CHF (SM-Nchf) | Enable |
BSF (N7-Nbsf) | Enable |
AMF on demand nrf discovery | NA |
LDAP (Gx-LDAP) | NA |
Sy (PCF N7-Sy) | NA |
Table 3-101 PCRF Interfaces
Feature Name | Status |
---|---|
Sy (PCRF Gx-Sy) | NA |
Sd (Gx-Sd) | NA |
Gx UDR query (Gx-Nudr) | NA |
Gx UDR subscription (Gx-Nudr | NA |
CHF enabled (AM) | NA |
Usage Monitoring (Gx) | NA |
Subscriber HTTP Notifier (Gx) | NA |
Table 3-102 Configuring Policy Helm Parameters
Service Name | Policy Helm Configuration |
---|---|
Ingress Gateway |
|
Egress Gateway |
|
Note:
The Policy customized parameters values remains same for both site1 and site2.Table 3-103 Configuring cnDBTier Helm Parameters
Helm Parameter | Value | cnDBTier Helm Configuration |
---|---|---|
binlog_cache_size | 10485760 |
|
ConnectCheckIntervalDelay | 500 |
|
NoOfFragmentLogFiles | 32 |
|
NoOfFragmentLogParts | 4 |
|
MaxNoOfExecutionThreads | 11 |
|
FragmentLogFileSize | 128M |
|
binlogthreadstore.capacity | 5 |
|
ndb_allow_copying_alter_table | ON |
|
Note:
The cnDBTier customized parameters values remains same for both site1 and site2.Table 3-104 Policy Microservices Resources
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Min Replicas | Max Replicas | Request/Limit Isito CPU | Request/Limit Isito Memory |
---|---|---|---|---|---|---|---|---|
Appinfo | 1 | 1 | 0.5 | 1 | 2 | 2 | 2 | 2 |
Audit Service | 2 | 2 | 4 | 4 | 2 | 2 | 2 | 2 |
CM Service | 2 | 4 | 0.5 | 2 | 2 | 2 | 2 | 2 |
Config Service | 4 | 4 | 0.5 | 2 | 2 | 2 | 2 | 2 |
Egress Gateway | 4 | 4 | 6 | 6 | 2 | 6 | 2 | 2 |
Ingress Gateway | 5 | 5 | 6 | 6 | 2 | 27 | 2.5 | 2 |
NRF Client Management | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
Diameter Gateway | 4 | 4 | 1 | 2 | 2 | 2 | 2 | 2 |
Diameter Connector | 4 | 4 | 1 | 2 | 2 | 2 | 2 | 2 |
AM Service | 8 | 8 | 1 | 4 | 0 | 0 | 2 | 2 |
UE Service | 8 | 8 | 1 | 4 | 0 | 0 | 2 | 2 |
NRF Client Discovery | 4 | 4 | 2 | 2 | 2 | 2 | 2 | 2 |
Query Service | 1 | 2 | 1 | 1 | 2 | 2 | 2 | 2 |
PCRF Core Service | 8 | 8 | 8 | 8 | 0 | 0 | 2 | 2 |
Performance | 1 | 1 | 0.5 | 1 | 2 | 2 | 2 | 2 |
PRE Service | 4 | 4 | 4 | 4 | 2 | 55 | 1.5 | 2 |
SM Service | 7 | 7 | 10 | 10 | 2 | 76 | 2.5 | 2 |
PDS Service | 7 | 7 | 8 | 8 | 2 | 21 | 2.5 | 4 |
UDR Connector | 6 | 6 | 4 | 2 | 2 | 2 | 2 | 2 |
CHF Connector | 6 | 6 | 4 | 4 | 2 | 2 | 2 | 2 |
LDAP Gateway Service | 3 | 4 | 1 | 2 | 0 | 0 | 2 | 2 |
Binding Service | 6 | 6 | 8 | 8 | 2 | 3 | 2.5 | 2 |
SOAP Connector | 2 | 4 | 4 | 4 | 0 | 0 | 2 | 2 |
Alternate Route Service | 2 | 2 | 2 | 4 | 2 | 2 | 2 | 2 |
Bulwark Service | 8 | 8 | 6 | 6 | 2 | 19 | 2.5 | 2 |
Table 3-105 cnDBTier Microservices Resources:
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replicas |
---|---|---|---|---|---|
ndbappmysqld | 12 | 12 | 18 | 18 | 18 |
ndbmgmd | 3 | 3 | 8 | 8 | 2 |
ndbmtd | 10 | 10 | 132 | 132 | 10 |
ndbmysqld | 4 | 4 | 54 | 54 | 12 |
Note:
Min Replica = Max Replica3.2.4.2 CPU Utilization
Table 3-106 Policy Microservices Resource Utilization
Service | CPU (X/Y) - Site1 | CPU (X/Y) - Site2 |
---|---|---|
ocpcf-alternate-route | 0%/80% | 0%/80% |
ocpcf-appinfo | 1%/80% | 1%/80% |
ocpcf-bulwark | 22%/60% | 23%/60% |
ocpcf-occnp-config-server | 9%/80% | 10%/80% |
ocpcf-oc-diam-connector | 8%/40% | 8%/40% |
ocpcf-occnp-egress-gateway | 11%/80% | 10%/80% |
ocpcf-occnp-ingress-gateway | 19%/80% | 24%/80% |
ocpcf-occnp-nrf-client-nfdiscovery | 5%/80% | 5%/80% |
ocpcf-occnp-nrf-client-nfmanagement | 0%/80% | 0%/80% |
ocpcf-oc-binding | 17%/60% | 17%/60% |
ocpcf-occnp-chf-connector | 7%/50% | 7%/50% |
ocpcf-occnp-udr-connector | 15%/50% | 14%/50% |
ocpcf-ocpm-audit-service | 0%/50% | 0%/50% |
ocpcf-ocpm-policyds | 19%/60% | 19%/60% |
ocpcf-ocpm-pre | 26%/80% | 27%/80% |
ocpcf-pcf-amservice | 0%/30% | 0%/30% |
ocpcf-pcf-ueservice | 0%/30% | 0%/30% |
ocpcf-pcf-smservice | 25%/50% | 25%/50% |
ocpcf-ocpm-queryservice | 0%80% | 0%80% |
Table 3-107 cnDBTier Services Resource Utilization
Name | CPU (X/Y) - Site1 | CPU (X/Y) - Site2 |
---|---|---|
ndbappmysqld | 42%/80% | 37%/80% |
ndbmgmd | 0%/80% | 0%/80% |
ndbmtd | 32%/80% | 31%/80% |
ndbmysqld | 4%/80% | 4%/80% |
3.2.5 Test Scenario: PCF AM/UE Call Model on Two-Site Georedundant Setup, with Each Site Handling 30K TPS Traffic and ASM Enabled
This test run benchmarks the performance and capacity of Policy AM/UE data call model that is deployed in PCF mode. The PCF application handles a total (Ingress + Egress) traffic of 60K TPS, with each site handling a traffic of 30K TPS. For this setup, Aspen Service Mesh (ASM) was enabled between Policy services and it was disabled between Policy services and cnDBTier data services. Application data compression was enabled at AM, UE, and PDS services. The Multithreaded Applier (MTA) feature that helps in peak replication throughput was enabled at cnDBTier.
3.2.5.1 Test Case and Setup Details
Testcase Parameters
The following table describes the testcase parameters and their values:
Parameters | Values |
---|---|
Call Rate (Ingress + Egress) | 60K TPS (30K on site-1 and 30K on SITE-2) |
ASM | Enable |
Traffic Ratio | AM 1-Create 0-update 1-delete UE 1-Create 0-update 1-delete |
Active User Count | 12000000 |
Project Details
The Policy Design editor based on the Blockly interface was used to set the Policy project for each of the Policy services. The complexity level of Policy Project configured for this run was High.
Complexity Level Definition:
- Low – No usage of loops in Blockly logic, no JSON operations, and no complex Java Script code in object expression/statement expression.
- Medium – Usage of loops in Blockly logic, Policy table wildcard match <= 3 fields, MatchList < 3, and 3 < RegEx match < 6
- High – JSON Operations – Custom, complex Java script code in object Expression/statement expression, Policy table wildcard match > 3 fields, MatchLists >= 3, and RegEx mat >= 6
Call Model Data
Table 3-109 Traffic distribution
Ingress Gateway | Egress Gateway | Total Ingress/Egress Traffic | Ingress Gateway | Egress Gateway | Total Ingress/Egress Traffic | |
---|---|---|---|---|---|---|
UE service | Site 1 | Site 2 | ||||
3157 | 10953 | 14109 | 3036 | 10579 | 13615 | |
AM service | 3158 | 10953 | 14111 | 3078 | 10579 | 13657 |
Total | 28220 | 27271 |
Policy Configurations
Following Policy configurations were either enabled or disabled for running this call flow:
Table 3-110 Policy microservices configuration
Name | Status |
---|---|
Bulwark | Enabled |
Binding | Disabled |
Subscriber State Variable (SSV) | Enabled |
Validate_user | Disabled |
Alternate Route | Disabled |
Audit | Enabled |
Compression (Binding & SM Service) | Enabled |
SYSTEM.COLLISION.DETECTION | Enabled |
Following Policy interfaces were either enabled or disabled for running this call flow:
Table 3-111 Policy interfaces
Feature Name | Status |
---|---|
N36 UDR query (N7/N15-Nudr) | Enabled |
N36 UDR subscription (N7/N15-Nudr) | Enabled |
UDR on-demand nrf discovery | Disabled |
CHF (Nchf) | Enabled |
BSF (N7-Nbsf) | Enabled |
AMF on demand nrf discovery | NA |
LDAP (Gx-LDAP) | NA |
Subscriber HTTP Notifier (Gx) | NA |
Table 3-112 PCRF interfaces
Feature Name | Status |
---|---|
Sy (PCRF Gx-Sy) | NA |
Sd (Gx-Sd) | NA |
Gx UDR query (Gx-Nudr) | NA |
Gx UDR subscription (Gx-Nudr | NA |
CHF enabled (AM) | NA |
Usage Monitoring (Gx) | NA |
Subscriber HTTP Notifier (Gx) | NA |
Configuring Policy Helm Parameters
The following Policy optimization parameters were configured for this run:
Table 3-113 Optimization parameters for Policy services
Service | Policy Helm Configurations |
---|---|
policyds |
|
UE |
|
INGRESS |
|
EGRESS |
|
Configuring cnDbTier Helm Parameters
The following cnDBTier optimization parameters were configured for this run:
Table 3-114 Optimization paramters for CnDBTier services
Helm Parameter | Value | CnDBTier Helm Configuration |
---|---|---|
ConnectCheckIntervalDelay | 500 |
|
NoOfFragmentLogParts | 4 |
|
MaxNoOfExecutionThreads | 11 |
|
FragmentLogFileSize | 128M |
|
NoOfFragmentLogFiles | 32 |
|
binlogthreadstore.capacity | 5 |
|
ndb_allow_copying_alter_table | ON |
|
binlog_cache_size | 10485760 |
|
Policy Microservices Resources
Table 3-115 Policy microservices Resource allocation for Site1
Service Name | CPU Resource per Container (Limit) | CPU Resource per Container (Request) | Memory Resource per Container (Limit) | Memory Resource per Container (Request) | Replica Count | Request/Limit Istio CPU | Request/Limit Istio Memory (Gi) |
---|---|---|---|---|---|---|---|
Appinfo | 1 | 1 | 1 Gi | 512Mi | 2 | 2 | 2 Gi |
Audit Service | 2 | 2 | 4 Gi | 4 Gi | 2 | 2 | 2 Gi |
CM Service | 4 | 4 | 2 Gi | 2 Gi | 2 | 2 | 2 Gi |
Config Service | 4 | 2 | 2Gi | 2Gi | 2 | 2 | 2 Gi |
Egress Gateway | 2 | 2 | 6Gi | 6Gi | 27 | 4 | 2 Gi |
Ingress Gateway | 5 | 5 | 6Gi | 6Gi | 8 | 2500m | 2Gi |
NRF Client NF Discovry | 6 | 6 | 10Gi | 10Gi | 9 | 2 | 2Gi |
NRF Client Management | 1 | 1 | 1Gi | 1Gi | 1 | 2 | 2Gi |
AM Service | 6 | 6 | 10Gi | 12 | 3 | 2Gi | |
UE Service | 8 | 8 | 2Gi | 2Gi | 20 | 3 | 1Gi |
Query Service | 2 | 1 | 1Gi | 1Gi | 2 | ||
Performance | 1 | 1 | 1Gi | 512Mi | 2 | ||
PRE | 4 | 4 | 4Gi | 4Gi | 7 | 1500m | 2Gi |
SM Service | 1 | 1 | 1Gi | 1Gi | 1 | 3 | 2Gi |
PDS | 7 | 7 | 8Gi | 8Gi | 24 | 3 | 4 Gi |
UDR Connector | 4 | 4 | 4Gi | 4Gi | 20 | 2 | 2Gi |
CHF Connector/ User Service | 6 | 6 | 4Gi | 4Gi | 8 | 2 | 2Gi |
Alternate Route Service | 2 | 2 | 4Gi | 2Gi | 1 | 2 | 2Gi |
Bulwark Service | 8 | 8 | 4Gi | 4Gi | 7 | 3 | 4Gi |
Table 3-116 Policy microservices Resource allocation for site2
Service Name | CPU Resource per Container (Limit) | CPU Resource per Container (Request) | Memory Resource per Container (Limit) | Memory Resource per Container (Request) | Replica Count | Request/Limit Istio CPU | Request/Limit Istio Memory (Gi) |
---|---|---|---|---|---|---|---|
Appinfo | 1 | 1 | 1 Gi | 512Mi | 2 | 2 | 2 Gi |
Audit Service | 2 | 2 | 4 Gi | 4 Gi | 2 | 2 | 2 Gi |
CM Service | 4 | 4 | 2 Gi | 2 Gi | 2 | 2 | 2 Gi |
Config Service | 4 | 2 | 2Gi | 500m | 2 | 2 | 2 Gi |
Egress Gateway | 4 | 4 | 6Gi | 6Gi | 20 | 2 | 2 Gi |
Ingress Gateway | 5 | 5 | 6Gi | 6Gi | 8 | 2.5 | 2Gi |
NRF Client NF Discovery | 6 | 6 | 10Gi | 10Gi | 9 | 2 | 2Gi |
NRF Client Management | 1 | 1 | 1Gi | 1Gi | 1 | 2 | 2Gi |
AM Service | 6 | 6 | 10Gi | 10Gi | 9 | 3 | 2Gi |
UE Service | 8 | 8 | 4Gi | 4Gi | 18 | 2 | 2Gi |
Query Service | 2 | 1 | 1Gi | 1Gi | 2 | ||
Performance | 1 | 1 | 1Gi | 512Mi | 2 | ||
PRE | 4 | 4 | 4Gi | 4Gi | 7 | 1.5 | 2Gi |
SM Service | 1 | 1 | 1Gi | 1Gi | 1 | 0.5 | 2Gi |
PDS | 7 | 7 | 8Gi | 8Gi | 22 | 2.5 | 4Gi |
UDR Connector | 4 | 4 | 4Gi | 4Gi | 20 | 2 | 2Gi |
CHF Connector/ User Service | 6 | 6 | 4Gi | 4Gi | 3 | 2 | 2Gi |
Alternate Route Service | 0.5 | 0.5 | 4Gi | 2Gi | 1 | 0.5 | 2Gi |
Bulwark Service | 8 | 8 | 4Gi | 4Gi | 5 | 2 | 4Gi |
Table 3-117 CnDBTier Resource allocation for site1
Service Name | CPU Resource per Container (Limit) | CPU Resource per Container (Request) | Memory Resource per Container (Limit) | Memory Resource per Container (Request) | Replica Count | Request/Limit Istio CPU | Request/Limit Istio Memory (Gi) |
---|---|---|---|---|---|---|---|
ndbappmysqld | 12 | 12 | 20Gi | 20Gi | 12 | 5 | 5Gi |
ndbmgmd | 3 | 3 | 8Gi | 8Gi | 2 | 3 | 1Gi |
ndbmtd | 12 | 12 | 129Gi | 129Gi | 10 | 6 | 6Gi |
ndbmysqld | 4 | 4 | 16Gi | 16Gi | 6 | 5 | 5Gi |
Table 3-118 CnDBTier resource allocation for site2
Service Name | CPU Resource per Container (Limit) | CPU Resource per Container (Request) | Memory Resource per Container (Limit) | Memory Resource per Container (Request) | Replica Count | Request/Limit Istio CPU | Request/Limit Istio Memory (Gi) |
---|---|---|---|---|---|---|---|
ndbappmysqld | 12 | 12 | 20Gi | 20Gi | 12 | 5 | 5Gi |
ndbmgmd | 3 | 3 | 8Gi | 8Gi | 2 | 3 | 1Gi |
ndbmtd | 12 | 12 | 129Gi | 129Gi | 10 | 6 | 6Gi |
ndbmysqld | 4 | 4 | 16Gi | 16Gi | 6 | 5 | 5Gi |
3.2.5.2 CPU Utilization
This section lists the CPU utilization for Policy and cnDBTier microservices. The CPU utilization is the ratio between the (total CPU utilization against total CPU request (X)) versus (target CPU Utilization (Y) configured for the pod).
Policy Microservices Resource Utilization
The following table describes the bench mark number as per the system maximum capacity utilization for Policy microservices.
The average CPU utilization is the ratio between the current usage of resource to the requested resources of the pod i.e., total sum of CPU utilized for service pods / total CPU requested for service pods.
Table 3-119 CPU/Memory Utilization by Policy Microservices
Service | CPU (Site 1) | Memory (Site 1) | CPU (Site 2) | Memory (Site 2) |
---|---|---|---|---|
ocpcf-occnp-alternate route/istio | 0.10% | 4.88% | 0.60% | 4.44% |
ocpcf-occnp-alternate route | 0.15% | 9.38% | 0.60% | 6.76% |
ocpcf-appinfo/istio | '0.18% | 5.35% | 0.20% | 5.18% |
ocpcf-appinfo | 2.65% | 23.78% | '4.40% | 23.58% |
ocpcf-bulwark/istio | 25.27% | 2.30% | 59.09% | 2.88% |
ocpcf-bulwark | 17.78%' | 17.36% | 29.15% | 20.51% |
ocpcf-occnp-config-server/istio | 11.30% | 5.42%' | 14.03% | 6.42% |
ocpcf-occnp-config-server | 7.51% | 29.98% | 9.46% | 30.44% |
ocpcf-occnp-egress-gateway/istio | 5.90% | 5.18% | 13.11% | 5.89% |
ocpcf-occnp-egress-gateway | 23.25% | 19.32% | 38.80% | 20.48% |
ocpcf-occnp-ingress-gateway/istio | 21.98% | 6.99% | 18.80% | 7.64% |
ocpcf-occnp-ingress-gateway | 19.87% | 24.11% | 23.62% | 23.45% |
ocpcf-occnp-nrf-client-nfdiscovery/istio | 17.95% | 5.21% | 27.92% | 5.83% |
ocpcf-occnp-nrf-client-nfdiscovery | 9.81% | 9.91% | 13.84% | 9.48% |
ocpcf-occnp-nrf-client-nfmanagement/istio | 0.15% | 4.79% | 0.20% | 5.22% |
ocpcf-occnp-nrf-client-nfmanagement | 0.40% | 44.92% | 0.40% | 47.17% |
ocpcf-performance/perf-info | 1.90% | 11.82% | 1.00% | 12.40% |
ocpcf-occnp-chf-connector/istio | 14.88% | 5.22% | 47.70% | 6.23% |
ocpcf-occnp-chf-connector | 7.78% | 14.96% | 24.25% | 14.87% |
ocpcf-occnp-udr-connector/istio | 20.30% | 5.52% | 29.43% | 6.24% |
ocpcf-occnp-udr-connector | 18.32% | 15.26% | 23.51% | 15.08% |
ocpcf-ocpm-audit-service/istio | 0.18% | 4.61% | 0.25% | 5.10% |
ocpcf-ocpm-audit-service | 0.22% | 13.00% | 0.83% | 12.59% |
ocpcf-ocpm-cm-service/istio | 0.80% | 4.96% | 0.92% | 5.20% |
ocpcf-ocpm-cm-service/cm-service | 0.76% | 28.34% | 0.83% | 30.76% |
ocpcf-ocpm-policyds/istio | 21.30% | 2.84% | 35.80% | 3.03% |
ocpcf-ocpm-policyds | 24.84% | 30.74% | 33.41% | 31.08% |
ocpcf-occnp-amservice/istio | 24.62% | 5.72% | 43.19% | 6.43% |
ocpcf-occnp-amservice | 26.90% | 9.40% | 44.37% | 10.71% |
ocpcf-ocpm-pre/istio | 24.99% | 5.81% | 45.51% | 5.82% |
ocpcf-ocpm-pre | '18.59% | 32.53% | 30.70% | 30.35% |
ocpcf-pcf-smservice/istio | 0.17% | 4.83% | .60% | 6.01% |
ocpcf-pcf-smservice | 0.40% | 37.11% | 0.40% | 37.40% |
ocpcf-pcf-ueservice/istio | 15.49% | 5.64% | 35.09% | 6.01% |
ocpcf-pcf-ueservice | 22.16% | 34.16% | 29.61% | 38.23% |
ocpcf-ocpm-queryservice | 0.05% | 23.39% | 0.50% | 23.68% |
Observed CPU utilization Values of cnDBTier Services
The following table provides information about observed values of cnDBTier services.
Table 3-120 CPU/Memory Utilization by CnDBTier services
Service | CPU (Site 1) | Memory CPU (Site 1) | CPU (Site 2) | Memory (Site 2) |
---|---|---|---|---|
ndbappmysqld/istio | 23.14% | 2.48% | 22.78% | 2.50% |
ndbappmysqld/mysqlndbcluster | 21.31% | 50.17% | 26.48% | 35.47% |
ndbappmysqld/init-sidecar | 2.25% | 0.39% | 3.00% | 0.39% |
ndbmgmd/istio-proxy | 0.33% | 10.74% | 0.43% | 11.38% |
ndbmgmd/mysqlndbcluster | 0.25% | 25.21% | 0.35% | 25.16% |
ndbmtd/istio-proxy | 47.02% | 2.06% | 31.61% | 1.96% |
ndbmtd/mysqlndbcluster | 44.95% | 81.17% | 42.45% | 79.71% |
ndbmysqld/istio-proxy | 0.00% | 0.00% | 0.00% | 0.00% |
ndbmysqld/mysqlndbcluster | 4.23% | 30.30% | 7.72% | 28.85% |
ndbmysqld/init-sidecar | 2.00% | 0.39% | 2.83% | 0.59% |
3.2.6 Test Scenario: PCF AM/UE Call Model on Two-Site Georedundant Setup, with Single-Site Handling 60K TPS Traffic and ASM Enabled
This test run benchmarks the performance and capacity of Policy AM/UE data call model that is deployed in PCF mode.. The PCF application handles a total traffic (Ingress + Egress) of 60K TPS on one site and there is no traffic on the other site. APP Compression was enabled. The test was run for 1.0 hour duration. For this setup, Aspen Service Mesh (ASM) was enabled between Policy services and it was disabled between Policy service pods and DB data pods.
In this test setup, the Georedundant (GR) mode was enabled in cnDBTier. It was configured for 2 channel replication and the Application Data compression was enabled at AM, UE, and PDS services on Site 2.
3.2.6.1 Test Case and Setup Details
Testcase Parameters
The following table describes the testcase parameters and their values:
Parameters | Values |
---|---|
Call Rate (Ingress + Egress) | 60k on site-1 and no traffic on site-2 |
ASM | Enable |
Traffic Ratio |
AM 1-Create 0-update 1-delete UE 1-Create 0-update 1-delete |
Active User Count | 12000000 |
Project Details
The Policy Design editor based on the Blockly interface was used to set the Policy project for each of the Policy services. The complexity level of Policy Project configured for this run was High.
Complexity Level Definition:
- Low – No usage of loops in Blockly logic, no JSON operations, and no complex Java Script code in object expression/statement expression.
- Medium – Usage of loops in Blockly logic, Policy table wildcard match <= 3 fields, MatchList < 3, and 3 < RegEx match < 6
- High – JSON Operations – Custom, complex Java script code in object Expression/statement expression, Policy table wildcard match > 3 fields, MatchLists >= 3, and RegEx mat >= 6
Call Model Data
Table 3-121 Traffic distribution
Ingress Gateway | Egress Gateway | Total Ingress/Egress Traffic | Ingress Gateway | Egress Gateway | Total Ingress/Egress Traffic | |
---|---|---|---|---|---|---|
UE service | Site 1 | Site 2 | ||||
6672 | 30024 | 36696 | - | - | - | |
AM service | 6672 | 16680 | 23352 | - | - | - |
Total | 60048 | - | - | - |
Policy Configurations
Following Policy microservices were either enabled or disabled for running this call flow:
Table 3-122 Policy microservices configuration
Name | Status |
---|---|
Bulwark | Enabled |
Binding | Disabled |
Subscriber State Variable (SSV) | Dnabled |
Validate_user | Disabled |
Alternate Route | Disabled |
Audit | Enabled |
Compression (Binding & SM Service) | Enabled |
SYSTEM.COLLISION.DETECTION | Enabled |
Following Policy interfaces were either enabled or disabled for running this call flow:
Table 3-123 Policy interfaces
Feature Name | Status |
---|---|
N36 UDR query (N7/N15-Nudr) | Enable |
N36 UDR subscription (N7/N15-Nudr) | Enable |
UDR on-demand nrf discovery | Disable |
CHF (SM-Nchf) | Enable |
BSF (N7-Nbsf) | Enable |
AMF on demand nrf discovery | NA |
LDAP (Gx-LDAP) | NA |
Subscriber HTTP Notifier (Gx) | NA |
The following PCRF interfaces that were either enabled or disabled to run this call flow:
Table 3-124 PCRF interfaces
Feature Name | Status |
---|---|
Sy (PCRF Gx-Sy) | NA |
Sd (Gx-Sd) | NA |
Gx UDR query (Gx-Nudr) | NA |
Gx UDR subscription (Gx-Nudr | NA |
CHF enabled (AM) | NA |
Usage Monitoring (Gx) | NA |
Subscriber HTTP Notifier (Gx) | NA |
Configuring Policy Helm Parameters
The following Policy optimization parameters were configured for this run:
Table 3-125 Optimization parameters for Policy services
Service | Policy Helm Configurations |
---|---|
policyds |
|
UE |
|
INGRESS |
|
EGRESS |
|
Configuring cnDbTier Helm Parameters
The following cnDBTier optimization parameters were configured for this run:
Table 3-126 Optimization paramters for CnDBTier services
Helm Parameter | Value | CnDBTier Helm Configuration |
---|---|---|
ConnectCheckIntervalDelay | 500 |
|
NoOfFragmentLogParts | 4 |
|
MaxNoOfExecutionThreads | 11 |
|
FragmentLogFileSize | 128M |
|
NoOfFragmentLogFiles | 32 |
|
binlogthreadstore.capacity | 5 |
|
ndb_allow_copying_alter_table | ON |
|
binlog_cache_size | 10485760 |
|
Policy Microservices Resources
Table 3-127 Policy microservices resource allocation for site1
Service Name | CPU Resource per Container (Limit) | CPU Resource per Container (Request) | Memory Resource per Container (Limit) | Memory Resource per Container (Request) | Replica Count | Request/Limit Istio CPU | Request/Limit Istio Memory (Gi) |
---|---|---|---|---|---|---|---|
Appinfo | 1 | 1 | 1 Gi | 512Mi | 2 | 2 | 2 Gi |
Audit Service | 2 | 2 | 4 Gi | 4 Gi | 2 | 2 | 2 Gi |
CM Service | 4 | 4 | 2 Gi | 2 Gi | 2 | 2 | 2 Gi |
Config Service | 4 | 2 | 2Gi | 2Gi | 2 | 2 | 2 Gi |
Egress Gateway | 2 | 2 | 6Gi | 6Gi | 27 | 4 | 2 Gi |
Ingress Gateway | 5 | 5 | 6Gi | 6Gi | 8 | 2.5 | 2 Gi |
NRF Client NF Discovry | 6 | 6 | 10Gi | 10Gi | 9 | 2 | 2 Gi |
NRF Client Management | 1 | 1 | 1Gi | 1Gi | 1 | 2 | 2 Gi |
AM Service | 6 | 6 | 10Gi | 10Gi | 12 | 3 | 2 Gi |
UE Service | 8 | 8 | 2Gi | 2Gi | 20 | 2 | 1 Gi |
Query Service | 2 | 1 | 1Gi | 1Gi | 2 | ||
Performance | 1 | 1 | 1Gi | 512Mi | 2 | 2 | 1 Gi |
PRE | 4 | 4 | 4Gi | 4Gi | 7 | 1.5 | 2 Gi |
SM Service | 1 | 1 | 1Gi | 1Gi | 1 | 3 | 2 Gi |
PDS | 7 | 7 | 8Gi | 8Gi | 24 | 3 | 4 Gi |
UDR Connector | 4 | 4 | 4Gi | 4Gi | 20 | 2 | 2 Gi |
CHF Connector/ User Service | 6 | 6 | 4Gi | 4Gi | 8 | 2 | 2 Gi |
Alternate Route Service | 2 | 2 | 4Gi | 2Gi | 1 | 2 | 2 Gi |
Bulwark Service | 8 | 8 | 4Gi | 4Gi | 7 | 3 | 4 Gi |
Table 3-128 Policy microservices resource allocation for site2
Service Name | CPU Resource per Container (Limit) | CPU Resource per Container (Request) | Memory Resource per Container (Limit) | Memory Resource per Container (Request) | Replica Count | Request/Limit Istio CPU | Request/Limit Istio Memory |
---|---|---|---|---|---|---|---|
Appinfo | 1 | 1 | 1 Gi | 512Mi | 2 | 2 | 2 Gi |
Audit Service | 2 | 2 | 4 Gi | 4 Gi | 2 | 2 | 2 Gi |
CM Service | 4 | 4 | 2 Gi | 2 Gi | 2 | 2 | 2 Gi |
Config Service | 4 | 2 | 2Gi | 500m | 2 | 2 | 2 Gi |
Egress Gateway | 4 | 4 | 6Gi | 6Gi | 20 | 2 | 2 Gi |
Ingress Gateway | 5 | 5 | 6Gi | 6Gi | 8 | 2.5 | 2Gi |
NRF Client NF Discovery | 6 | 6 | 10Gi | 10Gi | 9 | 2 | 2 Gi |
NRF Client Management | 1 | 1 | 1Gi | 1Gi | 1 | 2 | 2 Gi |
AM Service | 6 | 6 | 10Gi | 10Gi | 9 | 3 | 2 Gi |
UE Service | 8 | 8 | 4Gi | 4Gi | 18 | 2 | 2 Gi |
Query Service | 2 | 1 | 1Gi | 1Gi | 2 | ||
Performance | 1 | 1 | 1Gi | 512Mi | 2 | ||
PRE | 4 | 4 | 4Gi | 4Gi | 7 | 1.5 | 2 Gi |
SM Service | 1 | 1 | 1Gi | 1Gi | 1 | 0.5 | 2 Gi |
PDS | 7 | 7 | 8Gi | 8Gi | 22 | 2.5 | 4 Gi |
UDR Connector | 4 | 4 | 4Gi | 4Gi | 20 | 2 | 2 Gi |
CHF Connector/ User Service | 6 | 6 | 4Gi | 4Gi | 3 | 2 | 2 Gi |
Alternate Route Service | 0.5 | 0.5 | 4Gi | 2Gi | 1 | 0.5 | 2 Gi |
Bulwark Service | 8 | 8 | 4Gi | 4Gi | 5 | 2 | 4 Gi |
Table 3-129 CnDBTier resource allocation for site1
Service Name | CPU Resource per Container (Limit) | CPU Resource per Container (Request) | Memory Resource per Container (Limit) | Memory Resource per Container (Request) | Replica Count | Request/Limit Istio CPU | Request/Limit Istio Memory |
---|---|---|---|---|---|---|---|
ndbappmysqld/mysqlndbcluster | 12 | 12 | 20Gi | 20Gi | 12 | 5 | 5Gi |
ndbappmysqld/init-sidecar | 0.1 | 0.1 | 256Mi | 256Mi | 12 | ||
ndbmgmd/mysqlndbcluster | 3 | 3 | 8Gi | 8Gi | 2 | 3 | 1Gi |
ndbmtd/mysqlndbcluster | 12 | 12 | 129Gi | 129Gi | 10 | 6 | 6Gi |
ndbmysqld/mysqlndbcluster | 4 | 4 | 16Gi | 16Gi | 6 | 5 | 5Gi |
ndbmysqld/init-sidecar | 0.1 | 0.1 | 256Mi | 256Mi | 6 |
Table 3-130 CnDBTier resource allocation for site2
Service Name | CPU Resource per Container (Limit) | CPU Resource per Container (Request) | Memory Resource per Container (Limit) | Memory Resource per Container (Request) | Replica Count | Request/Limit Istio CPU | Request/Limit Istio Memory |
---|---|---|---|---|---|---|---|
ndbappmysqld/mysqlndbcluster | 12 | 12 | 20Gi | 20Gi | 12 | 5 | 5Gi |
ndbappmysqld/init-sidecar | 0.1 | 0.1 | 256Mi | 256Mi | 12 | ||
ndbmgmd/mysqlndbcluster | 3 | 3 | 8Gi | 8Gi | 2 | 3 | 1Gi |
ndbmtd/mysqlndbcluster | 12 | 12 | 129Gi | 129Gi | 10 | 6 | 6Gi |
ndbmysqld/mysqlndbcluster | 4 | 4 | 16Gi | 16Gi | 6 | 5 | 5Gi |
ndbmysqld/init-sidecar | 0.1 | 0.1 | 256Mi | 256Mi | 6 |
3.2.6.2 CPU Utilization
This section lists the CPU utilization for Policy and cnDBTier microservices. The CPU utilization is the ratio between the (total CPU utilization against total CPU request (X)) versus (target CPU Utilization (Y) configured for the pod).
Policy Microservices Resource Utilization
The following table describes the bench mark number as per the system maximum capacity utilization for Policy microservices.
The average CPU utilization is the ratio between the current usage of resource to the requested resources of the pod i.e., total sum of CPU utilized for service pods / total CPU requested for service pods.
Table 3-131 CPU/Memory Utilization by Policy Microservices
Service | CPU (Site 1) | Memory (Site 1) | CPU (Site 2) | Memory (Site 2) |
---|---|---|---|---|
ocpcf-appinfo/istio | 0.25% | 7.18% | 0.22% | 5.59% |
ocpcf-appinfo | 4.20 | 32.97% | 2.50% | 23.24% |
ocpcf-bulwark/istio | 0.10% | 2.91% | 0.15% | 2.78% |
ocpcf-bulwark | 0.04% | 37.21% | 0.05% | 12.23% |
ocpcf-oc-binding/istio | 0.20% | 5.57% | 0.30% | 6.01% |
ocpcf-oc-binding/binding | 0.03% | 7.73% | 0.03% | 7.46% |
ocpcf-occnp-alternate route/istio | 0.15% | 5.27% | 0.25% | 5.42% |
ocpcf-occnp-alternate route/istio | 0.10% | 9.59% | 0.10% | 9.35% |
ocpcf-occnp-chf-connector/istio | 11.60% | 5.03% | 0.50% | 5.76% |
ocpcf-occnp-chf-connector | 12.10% | 10.72% | 0.08% | 10.94% |
ocpcf-occnp-config-server/istio | 13.85% | 6.13% | 5.80% | 6.23% |
ocpcf-occnp-config-server | 9.50% | 43.14% | 3.50% | 36.67% |
ocpcf-occnp-egress-gateway/istio | 10.13% | 5.40% | 0.19% | 5.92% |
ocpcf-occnp-egress-gateway | 49.76% | 19.64% | 0.07% | 9.69% |
ocpcf-occnp-ingress-gateway/istio | 36.23% | 10.00% | 0.20% | 5.85% |
ocpcf-occnp-ingress-gateway | 45.73% | 32.97% | 0.24% | 19.07% |
ocpcf-occnp-nrf-client-nfdiscovery/istio | 59.12% | 8.17% | 0.26% | 5.82% |
ocpcf-occnp-nrf-client-nfdiscovery | 51.44% | 59.33% | 0.08% | 33.86% |
ocpcf-occnp-nrf-client-nfmanagement/istio | 0.70% | 5.42% | 0.20% | 5.57% |
ocpcf-occnp-nrf-client-nfmanagement | 0.40% | 44.82% | 0.40% | 46.39% |
ocpcf-occnp-udr-connector/istio | 69.88% | 8.00% | 0.47% | 5.69% |
ocpcf-occnp-udr-connector | 35.60% | 32.06% | 0.08% | 11.15% |
ocpcf-ocpm-audit-service/istio | 0.25% | 5.59% | 0.25% | 5.47% |
ocpcf-ocpm-audit-service | 0.57% | 23.69% | 0.38% | 13.01% |
ocpcf-ocpm-cm-service/istio | 0.85% | 5.27% | 0.55% | 6.05% |
ocpcf-ocpm-cm-service/cm-service | 0.71% | 37.21% | 0.33% | 33.81% |
ocpcf-ocpm-policyds/istio | 49.69% | 3.91% | 0.17% | 2.86% |
ocpcf-ocpm-policyds | 40.46% | 32.78% | 0.03% | 14.43% |
ocpcf-ocpm-pre/istio | 33.67% | 7.14% | 0.35% | 6.24% |
ocpcf-ocpm-pre | 37.21% | 49.02% | 0.31% | 8.65% |
ocpcf-ocpm-queryservice | 0.05% | 28.22% | 0.08% | 24.41% |
ocpcf-occnp-amservice/istio | 32.87% | 8.59% | 0.39% | 5.86% |
ocpcf-occnp-amservice | 29.83% | 23.16% | 0.04% | 12.90% |
ocpcf-pcf-ueservice/istio | 56.27% | 9.83% | 0.35% | 5.65% |
ocpcf-pcf-ueservice | 44.94% | 45.22% | 0.05% | 14.07% |
ocpcf-performance/perf-info | 3.10% | 10.84% | 1.40% | 11.04% |
Observed CPU utilization Values of cnDBTier Services
The following table provides information about observed values of cnDBTier services.
Table 3-132 CPU/Memory Utilization by CnDBTier services
App/Container | CPU (Site1) | Memory (Site1) | CPU (Site2) | Memory (Site2) |
---|---|---|---|---|
ndbappmysqld/istio-proxy | 0.40% | 2.00% | 0.33% | 2.22% |
ndbappmysqld/mysqlndbcluster | 0.19% | 20.91% | 0.20% | 20.88% |
ndbappmysqld/init-sidecar | 2.08% | 0.39% | 2.17% | 0.39% |
ndbmgmd/istio-proxy | 0.55% | 9.96% | 0.68% | 10.79% |
ndbmgmd/mysqlndbcluster | 0.37% | 25.12% | 0.40% | 25.12% |
ndbmtd/istio-proxy | 0.66% | 1.75% | 0.53% | 1.39% |
ndbmtd/mysqlndbcluster | 0.69% | 81.13% | 5110.41% | 71.33% |
ndbmysqld/istio-proxy | 0.00% | 0.00% | 0.00% | 0.00% |
ndbmysqld/mysqlndbcluster | 0.52% | 26.07% | 0.57% | 26.07% |
ndbmysqld/init-sidecar | 2.33% | 0.39% | 2.17% | 0.39% |
3.2.7 Test Scenario: PCF AM/UE Call Model on Two-Site Georedundant Setup, with Single-Site Handling 75K TPS Traffic and ASM Enabled
This test run benchmarks the performance and capacity of Policy AM/UE data call model that is deployed in PCF mode. The PCF application handles a total traffic (Ingress + Egress) of 75K TPS on one site and there is no traffic on the other site. Application compression was enabled. For this setup, Aspen Service Mesh (ASM) was enabled between Policy services and it was disabled between Policy service pods and Database data pods.
In this test setup, the Georedundant (GR) mode was enabled in cnDBTier. It was configured for 3 channel replication and the Application Data compression was enabled at AM, UE, and PDS services on Site 2.
3.2.7.1 Test Case and Setup Details
Table 3-133 Testcase Parameters
Parameters | Values |
---|---|
Call Rate (Ingress + Egress) | 75k on site-1 and no traffic on site-2 |
ASM | Enable |
Traffic Ratio |
AM 1-Create 0-update 1-delete UE 1-Create 0-update 1-delete |
Active User Count | 12000000 |
Project Details
The Policy Design editor based on the Blockly interface was used to set the Policy project for each of the Policy services. The complexity level of Policy Project configured for this run was High.
Complexity Level Definition:
- Low – No usage of loops in Blockly logic, no JSON operations, and no complex Java Script code in object expression/statement expression.
- Medium – Usage of loops in Blockly logic, Policy table wildcard match <= 3 fields, MatchList < 3, and 3 < RegEx match < 6
- High – JSON Operations – Custom, complex Java script code in object Expression/statement expression, Policy table wildcard match > 3 fields, MatchLists >= 3, and RegEx mat >= 6
Call Model Data
Table 3-134 Traffic distribution on Site1
Services | Ingress Gateway | Egress Gateway | Total Ingress/Egress Traffic |
---|---|---|---|
UE service | 8340 | 37530 | 45870 |
AM service | 8340 | 20850 | 29190 |
Total | 75060 |
Policy Configurations
Following Policy microservices or features were either enabled or disabled for running this call flow:
Table 3-135 Policy microservices or features configuration
Name | Status |
---|---|
Bulwark | Enabled |
Binding | Disabled |
Local Subscriber State Variable (SSV) | Enabled |
Validate_user | Disabled |
Alternate Route | Disabled |
Audit | Enabled |
Compression (AM, SM, and PDS Service) | Enabled |
SYSTEM.COLLISION.DETECTION | Enabled |
CHF Async | Enabled |
Session Limiting | Enabled |
Collision Detection | Enabled |
Pending Transaction for Bulwark | Enabled |
Preferntial Search | SUPI |
Following Policy interfaces were either enabled or disabled for running this call flow:
Table 3-136 Policy interfaces
Feature Name | Status |
---|---|
N36 UDR query (N7/N15-Nudr) | Enabled |
N36 UDR subscription (N7/N15-Nudr) | Enabled |
UDR on-demand nrf discovery | Enabled |
CHF (SM-Nchf) | Enabled |
BSF (N7-Nbsf) | Disabled |
AMF on demand nrf discovery | NA |
LDAP (Gx-LDAP) | NA |
Subscriber HTTP Notifier (Gx) | NA |
The following PCRF interfaces that were either enabled or disabled to run this call flow:
Table 3-137 PCRF interfaces
Feature Name | Status |
---|---|
Sy (PCRF Gx-Sy) | NA |
Sd (Gx-Sd) | NA |
Gx UDR query (Gx-Nudr) | NA |
Gx UDR subscription (Gx-Nudr | NA |
CHF enabled (AM) | NA |
Usage Monitoring (Gx) | NA |
Subscriber HTTP Notifier (Gx) | NA |
Configuring Policy Helm Parameters
The following Policy optimization parameters were configured for this run:
Table 3-138 Optimization parameters for Policy services
Service | Policy Helm Configurations |
---|---|
policyds |
|
UE |
|
INGRESS |
|
EGRESS |
|
Configuring cnDbTier Helm Parameters
The following cnDBTier optimization parameters were configured for this run:
Table 3-139 Optimization paramters for CnDBTier services
Helm Parameter | Value | CnDBTier Helm Configuration |
---|---|---|
ConnectCheckIntervalDelay | 0 |
|
NoOfFragmentLogParts | 6 |
|
MaxNoOfExecutionThreads | 14 |
|
FragmentLogFileSize | 128M |
|
NoOfFragmentLogFiles | 96 |
|
binlogthreadstore.capacity | 5 |
|
ndb_allow_copying_alter_table | 1 |
|
binlog_cache_size | 10485760 |
|
maxnumberofconcurrentscans | 495 |
|
db_eventbuffer_max_alloc | 12G |
|
HeartbeatIntervalDbDb | 1250 |
|
Policy Microservices Resources
Note:
Changes in the resource requirements are highlighted in bold.Table 3-140 Policy microservices resource allocation for site1
Service Name | CPU Resource per Container (Limit) | CPU Resource per Container (Request) | Memory Resource per Container (Limit) | Memory Resource per Container (Request) | Replica Count | Request/Limit Istio CPU | Request/Limit Istio Memory (Gi) |
---|---|---|---|---|---|---|---|
Appinfo | 1 | 1 | 1 Gi | 512Mi | 2 | 2 | 2 Gi |
Audit Service | 2 | 2 | 4 Gi | 4 Gi | 2 | 2 | 2 Gi |
CM Service | 4 | 4 | 2 Gi | 2 Gi | 2 | 2 | 2 Gi |
Config Service | 2 | 2 | 2Gi | 2Gi | 2 | 2 | 2 Gi |
Egress Gateway | 27 | 27 | 6Gi | 6Gi | 27 | 4 | 2 Gi |
Ingress Gateway | 8 | 8 | 6Gi | 6Gi | 8 | 2.5 | 2 Gi |
NRF Client NF Discovry | 9 | 9 | 10Gi | 10Gi | 9 | 2 | 2 Gi |
NRF Client Management | 2 | 2 | 1Gi | 1Gi | 2 | 2 | 2 Gi |
AM Service | 12 | 12 | 8Gi | 8Gi | 12 | 3 | 2 Gi |
UE Service | 20 | 20 | 6Gi | 6Gi | 20 | 2 | 1 Gi |
Query Service | 2 | 2 | 1Gi | 1Gi | 2 | ||
Performance | 1 | 1 | 1Gi | 512Mi | 2 | 2 | 1 Gi |
PRE | 7 | 7 | 4Gi | 4Gi | 7 | 1.5 | 2 Gi |
SM Service | 1 | 1 | 1Gi | 1Gi | 1 | 3 | 2 Gi |
PDS | 24 | 24 | 8Gi | 8Gi | 24 | 3 | 4 Gi |
UDR Connector | 20 | 20 | 4Gi | 4Gi | 20 | 2 | 2 Gi |
CHF Connector/ User Service | 8 | 8 | 4Gi | 4Gi | 8 | 2 | 2 Gi |
Alternate Route Service | 1 | 1 | 4Gi | 2Gi | 1 | 2 | 2 Gi |
Bulwark Service | 8 | 8 | 4Gi | 4Gi | 7 | 3 | 4 Gi |
Table 3-141 CnDBTier resource allocation on Site-2
Service Name | CPU Resource per Container (Limit) | CPU Resource per Container (Request) | Memory Resource per Container (Limit) | Memory Resource per Container (Request) | Replica Count | Request/Limit Istio CPU | Request/Limit Istio Memory |
---|---|---|---|---|---|---|---|
ndbappmysqld | 12 | 12 | 20Gi | 20Gi | 12 | 5 | 5Gi |
ndbmgmd | 2 | 2 | 8Gi | 8Gi | 2 | 3 | 1Gi |
ndbmtd | 10 | 10 | 129Gi | 129Gi | 10 | 6 | 6Gi |
ndbmysqld | 6 | 6 | 16Gi | 16Gi | 6 | 5 | 5Gi |
3.2.7.2 CPU Utilization
This section lists the CPU utilization for Policy and cnDBTier microservices. The CPU utilization is the ratio between the (total CPU utilization against total CPU request (X)) versus (target CPU Utilization (Y) configured for the pod).
Policy Microservices Resource Utilization
The following table describes the bench mark number as per the system maximum capacity utilization for Policy microservices.
The average CPU utilization is the ratio between the current usage of resource to the requested resources of the pod i.e., total sum of CPU utilized for service pods / total CPU requested for service pods.
Table 3-142 Utilization by Policy Microservices
Service | CPU (X/Y) - Site1 |
---|---|
ocpcf-occnp-alternate route | 0%/80% |
ocpcf-appinfo | 1%/80% |
ocpcf-bulwark | 46%/60% |
ocpcf-config-server | 12%/80% |
ocpcf-ingress-gateway | 48%/80% |
ocpcf-egress-gateway | 45%/80% |
ocpcf-nrf-client-nfdiscovery | 31%/80% |
ocpcf-nrf-client-nfmanagament | 0%/80% |
ocpcf-occnp-chf-connector | 17%/50% |
ocpcf-occnp-udr-connector | 35%/50% |
ocpcf-occpm-audit-service | 0%/60% |
ocpcf-occpm-policyds | 43%/60% |
ocpcf-amservice | 26%/30% |
ocpcf-pcf-pre | 26%/80% |
ocpcf-pcf-smservice | 0%/50% |
ocpcf-pcf-ueservice | 58%/30% |
ocpcf-ocpm-queryservice | 0%/80% |
Observed CPU utilization Values of cnDBTier Services
The following table provides information about observed values of cnDBTier services.
Table 3-143 Utilization by CnDBTier services
App/Container | CPU (X/Y) - Site2 |
---|---|
ndbappmysqld | 31%/80% |
ndbmgmd | 0%/80% |
ndbmtd | 58%/80% |
mdbmysqld | 5%/80% |
3.2.8 Test Scenario: PCF SM Call Model on Two-Site GeoRedundant setup, with Single-Site Handling 43K TPS traffic and ASM Enabled
This test run benchmarks the performance and capacity of Policy PCF SM call model that is deployed in PCF mode on a two-site georedundant setup. The PCF application handles a total traffic (Ingress + Egress) of 43K TPS on one site and there is no traffic on the other site
In this test setup, the Georedundant (GR) mode was enabled in cnDBTier. It was configured for multi channel replication.
3.2.8.1 Test Case and Setup Details
Table 3-145 Testcase Parameters
Parameters | Values |
---|---|
Call Rate (Ingress + Egress) | 43k on site-1 and no traffic on site-2 |
ASM | Enable |
Traffic Ratio |
Internet : SM 1-Create 15-update 1-delete IMS: SM 1-Create 8-update 1-delete Application: SM 1-Create 0-update 1-delete Administrator: SM 1-Create 0-update 1-delete |
Active User Count | 10000000 |
Project Details
The Policy Design editor based on the Blockly interface was used to set the Policy project for each of the Policy services. The complexity level of Policy Project configured for this run was High.
Complexity Level Definition:
- Low – No usage of loops in Blockly logic, no JSON operations, and no complex Java Script code in object expression/statement expression.
- Medium – Usage of loops in Blockly logic, Policy table wildcard match <= 3 fields, MatchList < 3, and 3 < RegEx match < 6
- High – JSON Operations – Custom, complex Java script code in object Expression/statement expression, Policy table wildcard match > 3 fields, MatchLists >= 3, and RegEx mat >= 6
Table 3-146 Call Model
TPS | Site 1 | Site2 |
---|---|---|
SM-IGW | 20722.23 | 0 |
SM-EGW | 16676.15 | 0 |
SM-DIAM-IGW | 3315.61 | 0 |
SM-DIAM-EGW | 2492.63 | 0 |
Total SM | 43206 | 0 |
Table 3-147 Policy microservices configuration
Name | Status |
---|---|
Bulwark | Enabled |
Binding | Disabled |
Subscriber State Variable (SSV) | Dnabled |
Validate_user | Disabled |
Alternate Route | Disabled |
Audit | Enabled |
Compression (Binding & SM Service) | Enabled |
SYSTEM.COLLISION.DETECTION | Enabled |
Table 3-148 Policy interfaces
Feature Name | Status |
---|---|
N36 UDR query (N7/N15-Nudr) | Enable |
N36 UDR subscription (N7/N15-Nudr) | Enable |
UDR on-demand nrf discovery | Disable |
CHF (SM-Nchf) | Enable |
BSF (N7-Nbsf) | Enable |
AMF on demand nrf discovery | NA |
LDAP (Gx-LDAP) | NA |
Subscriber HTTP Notifier (Gx) | NA |
Table 3-149 PCRF interfaces
Feature Name | Status |
---|---|
Sy (PCRF Gx-Sy) | NA |
Sd (Gx-Sd) | NA |
Gx UDR query (Gx-Nudr) | NA |
Gx UDR subscription (Gx-Nudr | NA |
CHF enabled (AM) | NA |
Usage Monitoring (Gx) | NA |
Subscriber HTTP Notifier (Gx) | NA |
Policy Microservices Resources
Table 3-150 Policy microservices resource allocation for site1
Service Name | CPU Resource per Container (Limit) | CPU Resource per Container (Request) | Memory Resource per Container (Limit) | Memory Resource per Container (Request) | Replica Count | Request/Limit Istio CPU | Request/Limit Istio Memory (Gi) |
---|---|---|---|---|---|---|---|
Appinfo | 2 | 2 | 1 Gi | 512Mi | 2 | 2 | 2Gi |
Bulwark | 8 | 8 | 6Gi | 2Gi | 15 | 2500m | 2500m |
Binding | 6 | 6 | 8Gi | 8Gi | 11 | 2500m | 2500m |
Diameter Connector | 4 | 4 | 2Gi | 1Gi | 6 | 2 | 2Gi |
Alternate Route | 2 | 2 | 4Gi | 2Gi | 2 | 2 | 2Gi |
CHF Connector | 6 | 6 | 4Gi | 4Gi | 4 | 2 | 2Gi |
Config Server | 4 | 4 | 2Gi | 512Mi | 2 | 2 | 2Gi |
Egress Gateway | 8 | 8 | 6Gi | 6Gi | 9 | 4 | 2Gi |
Ingress Gateway | 5 | 5 | 6Gi | 6Gi | 29 | 2500m | 2Gi |
Diameter Gateway | 4 | 4 | 2Gi | 1Gi | 4 | 2 | 2Gi |
NRF Client NF Discovery | 4 | 4 | 2Gi | 2Gi | 4 | 2 | 2Gi |
NRF Client Management | 1 | 1 | 1Gi | 1Gi | 2 | 2 | 2Gi |
UDR Connector | 6 | 6 | 4Gi | 4Gi | 8 | 2 | 2Gi |
Audit | 2 | 2 | 4Gi | 4Gi | 2 | 2 | 2Gi |
CM Service | 4 | 2 | 2Gi | 512Mi | 2 | 2 | 2Gi |
PolicyDS | 7 | 7 | 8Gi | 8Gi | 30 | 2500m | 4Gi |
PRE Service | 4 | 4 | 4Gi | 4Gi | 39 | 1500m | 2Gi |
Query Service | 2 | 1 | 1Gi | 1Gi | 2 | 2 | 2Gi |
SM Service | 7 | 7 | 10Gi | 10Gi | 64 | 2500m | 2Gi |
Performance | 2 | 1 | 1Gi | 512Mi | NA | NA | NA |
Table 3-151 CnDBTier resource allocation for site2
Service Name | CPU Resource per Container (Limit) | CPU Resource per Container (Request) | Memory Resource per Container (Limit) | Memory Resource per Container (Request) | Replica Count | Request/Limit Istio CPU | Request/Limit Istio Memory |
---|---|---|---|---|---|---|---|
ndbappmysqld | 12 | 12 | 18Gi | 18Gi | 18 | 5000m | 4Gi |
ndbmgmd | 3 | 3 | 8Gi | 8Gi | 2 | 3000m | 1Gi |
ndbmtd | 10 | 10 | 132Gi | 132Gi | 10 | 5000m | 4Gi |
ndbmysqld | 4 | 4 | 154Gi | 12 | 5000m | 4Gi |
3.2.8.2 CPU and Memory Utilization
Table 3-152 Policy Microservices Resource Utilization
Services | CPU - Site1 | Memory - Site1 |
---|---|---|
appinfo | ['0.100 (2.50%)'] | ['0.520 (25.98%)'] |
bulwark | ['20.899 (17.42%)'] | ['19.323 (21.47%)'] |
binding | ['7.875 (11.93%)'] | ['34.009 (38.65%)'] |
diam-connector | ['3.362 (14.01%)'] | ['4.147 (34.56%)'] |
occnp-alternate-route | ['0.004 (0.10%)'] | ['0.719 (8.98%)'] |
user-service | ['2.902 (12.09%)'] | ['3.445 (21.53%)'] |
config-server | ['0.582 (7.27%)'] | ['1.800 (45.00%)'] |
occnp-egress-gateway | ['13.399 (18.61%)'] | ['12.664 (23.45%)'] |
occnp-ingress-gateway | ['23.737 (16.37%)'] | ['60.212 (34.60%)'] |
nrf-client-nfdiscovery | ['1.493 (9.33%)'] | ['5.118 (63.98%)'] |
nrf-client-nfmanagement | ['0.008 (0.40%)'] | ['0.994 (49.71%)'] |
user-service | ['6.971 (14.52%)'] | ['9.528 (29.78%)'] |
audit-service | ['0.010 (0.25%)'] | ['0.996 (12.45%)'] |
cm-service | ['0.061 (0.76%)'] | ['1.662 (41.55%)'] |
policyds | ['44.964 (21.41%)'] | ['100.335 (41.81%)'] |
pre-service | ['34.096 (21.86%)'] | ['75.009 (48.08%)'] |
queryservice | ['0.002 (0.05%)'] | ['0.486 (24.32%)'] |
sm-service | ['96.699 (21.58%)'] | ['309.705 (48.39%)'] |
perf-info | ['0.481 (24.05%)'] | ['0.279 (13.96%)'] |
diam-gateway | ['1.579 (9.87%)'] | ['3.539 (44.24%)'] |
Table 3-153 cnDBTier Services Resource Utilization
Services | CPU - Site1 | Memory - Site1 |
---|---|---|
ndbappmysqld | ['52.806 (24.45%)'] | ['154.933 (47.82%)'] |
ndbmgmd | ['0.013 (0.22%)'] | ['4.058 (25.36%)'] |
ndbmtd | ['53.643 (53.64%)'] | ['767.512 (58.14%)'] |
ndbmysqld | ['2.729 (5.69%)'] | ['101.743 (5.51%)'] |
3.2.9 54K TPS from 1 Site-1 Without Profile
This test run benchmarks the performance and capacity of Policy data with 54K from site-1 without profile. Replication is on single-channel and Binding service and PRE are enabled.
3.2.9.1 Test Case and Setup Details
Policy Infrastructure Details
Infrastructure used for benchmarking Policy performance run is described in this section.
Table 3-155 Hardware Details
Hardware | Details |
---|---|
Environment | BareMetal |
Server | ORACLE SERVER X9-2 |
Model | Intel(R) Xeon(R) Platinum 8358 CPU |
Clock Speed | 2.600 GHz |
Total Cores | 128 |
Memory Size | 768 GB |
Type | DDR4 SDRAM |
Installed DIMMs | 24 |
Maximum DIMMs | 32 |
Installed Memory | 768 GB |
Table 3-156 Software Details
Aplications | Version |
---|---|
Policy | 25.1.200 |
cnDBTier | 25.1.200 |
ASM | 1.14.6 |
OSO | NA |
CNE | 23.3.3 |
For more information about Policy Installation, see Oracle Communications Cloud Native Core, Converged Policy Installation, Upgrade, and Fault Recovery Guide.
Testcase Parameters
The following table describes the testcase parameters and their values:
Table 3-157 Testcase Parameters
Parameter | Value |
---|---|
Call Rate (Ingress + Egress) | 54K from site-1 without profile |
ASM | Enable |
Traffic Ratio | AM- Create-1 , AM Delete-1 , UE Create-1 , UE Delete-1 , N1N2transfer-1, N1subscribe-1, N1Unsubscribe-1 |
Active Subscribers | 8M |
Policy Project Details:
The Policy Design editor based on the Blockly interface was used to set the Policy project for each of the Policy services. The complexity level of Policy Project configured for this run was High.
Complexity Level Definition:
- Low– No Usage of Loops in Blockly logic, No JSON operations, No complex Java Script code in Object Expression /Statement Expression.
- Medium - Usage of Loops in Blockly logic, Policy Table Wildcard match <= 3 fields, MatchList < 3, 3 < RegEx match < 6
- High - JSON Operations – Custom, complex Java Script code in Object Expression /Statement Expression, Policy Table Wildcard match > 3 fields, MatchLists >= 3, RegEx mat >= 6
Table 3-158 Call Model Data:
Call Flow | Traffic at Site1 (TPS) | Traffic at Site2 (TPS) |
---|---|---|
Ingress Service | 21204.32 | 0.00 |
Egress Service | 32539.66 | 0.23 |
Diameter Gateway In | 0.00 | 0.00 |
Diameter Gateway Out | 0.00 | 0.00 |
Total | 53743 | 0.00 |
Policy Configurations:
Following PCF features were either enabled or disabled for running this call flow:
Table 3-159 Policy Configurations:
Feature Name | Status |
---|---|
RAB | Enabled |
SAC | Enabled |
Single UE ID | Enabled |
Location Information Header | Enabled |
Overload Control | Enabled |
Congestion Control | Enabled |
PRIMARYKEY_LOOKUP_ENABLED | Enabled |
Configuring Policy Helm Parameters
There are no optimization parameters configured for this run:
Configuring cnDbTier Helm Parameters
There are no optimization parameters configured for this run:
Resource Footprint:
Table 3-160 Policy microservices Resource allocation for Site1:
Service Name | CPU Request per Container (#) | CPU Limit per Container (#) | Memory Request per Container | Memory Limit per Container | Replicas |
---|---|---|---|---|---|
Appinfo | 1 | 1 | 1 | 512 Mi | 2 |
Appinfo Istio | 2 | 2 | 2 | 2 | 2 |
Bulwark service | 8 | 8 | 6 | 6 | 9 |
Bulwark service Istio | 3 | 3 | 4 | 4 | 9 |
Alternate Route Service | 2 | 2 | 4 | 2 | 7 |
Alternate Route Service Istio | 2 | 2 | 2 | 2 | 7 |
CHF Connector | 6 | 6 | 4 | 4 | 1 |
CHF Connector Istio | 2 | 2 | 2 | 2 | 1 |
Config Service | 4 | 2 | 2 | 512 Mi | 2 |
Config Service Istio | 2 | 2 | 2 | 2 | 2 |
Egress Gateway | 4 | 4 | 6 | 6 | 48 |
Egress Gateway Istio | 2 | 2 | 2 | 2 | 48 |
Ingress Gateway | 5 | 5 | 6 | 6 | 15 |
Ingress Gateway Istio | 2500m | 2500m | 2 | 2 | 15 |
NRF Client NF Management | 1 | 1 | 1 | 1 | 2 |
NRF Client NF Management Istio | 2 | 2 | 2 | 2 | 2 |
NRF Client NF Discovery | 4 | 4 | 4 | 4 | 10 |
NRF Client NF Discovery Istio | 2 | 2 | 2 | 2 | 10 |
UDR Connector User Service | 6 | 6 | 4 | 4 | 25 |
UDR Connector Istio | 2 | 2 | 2 | 2 | 25 |
Audit Service | 2 | 2 | 4 | 4 | 2 |
Audit Service Istio | 2 | 2 | 2 | 2 | 2 |
CM Service | 4 | 4 | 2 | 2 | 2 |
CM Service Istio | 2 | 2 | 2 | 2 | 2 |
PDS | 7 | 7 | 8 | 8 | 25 |
PDS Istio | 2.5 | 2.5 | 4 | 4 | 25 |
PRE | 4 | 4 | 4 | 4 | 16 |
PRE Istio | 1500m | 1500m | 2 | 2 | 16 |
Query Service | 2 | 1 | 1 | 1 | 2 |
Query Service Istio | 2 | 2 | 2 | 2 | 2 |
AM Service | 8 | 8 | 8 | 8 | 20 |
AM Service Istio | 3 | 3 | 2 | 2 | 20 |
UE Policy Service | 8 | 8 | 6 | 6 | 25 |
UE Policy Service Istio | 2 | 2 | 2 | 2 | 25 |
PerfInfo | 1 | 1 | 1 | 512Mi | 2 |
Table 3-161 Policy microservices Resource allocation for Site2:
Service Name | CPU Request per Container (#) | CPU Limit per Container (#) | Memory Request per Container | Memory Limit per Container | Replicas |
---|---|---|---|---|---|
Appinfo | 1 | 1 | 1 | 512 Mi | 2 |
Appinfo Istio | 2 | 2 | 2 | 2 | 2 |
Bulwark service | 8 | 8 | 6 | 6 | 1 |
Bulwark service Istio | 3 | 3 | 4 | 4 | 1 |
Alternate Route Service | 2 | 2 | 4 | 2 | 1 |
Alternate Route Service Istio | 2 | 2 | 2 | 2 | 1 |
CHF Connector | 6 | 6 | 4 | 4 | 1 |
CHF Connector Istio | 2 | 2 | 2 | 2 | 1 |
Config Service | 4 | 2 | 2 | 512 Mi | 2 |
Config Service Istio | 2 | 2 | 2 | 2 | 2 |
Egress Gateway | 4 | 4 | 6 | 6 | 1 |
Egress Gateway Istio | 2 | 2 | 2 | 2 | 1 |
Ingress Gateway | 5 | 5 | 6 | 6 | 1 |
Ingress Gateway Istio | 2500m | 2500m | 2 | 2 | 1 |
NRF Client NF Management | 1 | 1 | 1 | 1 | 2 |
NRF Client NF Management Istio | 2 | 2 | 2 | 2 | 2 |
NRF Client NF Discovery | 4 | 4 | 4 | 4 | 1 |
NRF Client NF Discovery Istio | 2 | 2 | 2 | 2 | 1 |
UDR Connector User Service | 6 | 6 | 4 | 4 | 1 |
UDR Connector Istio | 2 | 2 | 2 | 2 | 1 |
Audit Service | 2 | 2 | 2 | 4 | 4 |
Audit Service Istio | 2 | 2 | 2 | 2 | 2 |
CM Service | 4 | 4 | 2 | 2 | 2 |
CM Service Istio | 2 | 2 | 2 | 2 | 2 |
PDS | 7 | 7 | 8 | 8 | 1 |
PDS Istio | 2.5 | 2.5 | 4 | 4 | 1 |
PRE | 4 | 4 | 4 | 4 | 1 |
PRE Istio | 1500m | 1500m | 2 | 2 | 1 |
Query Service | 2 | 1 | 1 | 1 | 2 |
Query Service Istio | 2 | 2 | 2 | 2 | 2 |
AM Service | 8 | 8 | 8 | 8 | 2 |
AM Service Istio | 3 | 3 | 2 | 2 | 1 |
UE Policy Service | 8 | 8 | 6 | 6 | 1 |
UE Policy Service Istio | 2 | 2 | 2 | 2 | 1 |
PerfInfo | 1 | 1 | 1 | 512 Mi | 2 |
Table 3-162 cnDBTier services resource allocation at Site1:
Service Name | Replicas | CPU Limit per Container (#) | CPU Request per Container (#) | Memory Limit per Container | Memory Request per Container |
---|---|---|---|---|---|
Site1-mysql-cluster-db-backup-manager-svc/istio-proxy | 1 | 1 | 1 | 2Gi | 2Gi |
Site1-mysql-cluster-db-backup-manager-svc/db-backup-manager-svc | 1 | 100m | 100m | 128Mi | 128Mi |
Site1-mysql-cluster-db-monitor-svc/istio-proxy | 1 | 1 | 1 | 2Gi | 2Gi |
Site1-mysql-cluster-db-monitor-svc/db-monitor-svc | 1 | 1 | 1 | 512Mi | 512Mi |
Site1-ndbappmysqld/istio-proxy | 16 | 4 | 4 | 2Gi | 2Gi |
Site1-ndbappmysqld/mysqlndbcluster | 16 | 12 | 12 | 20Gi | 20Gi |
Site1-ndbappmysqld/db-infra-monitor-svc | 16 | NA | NA | NA | 20Gi |
Site1-ndbappmysqld/init-sidecar | 16 | 300m | 300m | 512Mi | 512Mi |
Site1-ndbmgmd/istio-proxy | 2 | 1 | 1 | 2Gi | 2Gi |
Site1-ndbmgmd/mysqlndbcluster | 2 | 4 | 4 | 10Gi | 8Gi |
Site1-ndbmgmd/db-infra-monitor-svc | 2 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbmtd/istio-proxy | 10 | 5 | 5 | 2Gi | 2Gi |
Site1-ndbmtd/mysqlndbcluster | 10 | 12 | 12 | 75Gi | 75Gi |
Site1-ndbmtd/db-backup-executor-svc | 10 | 1 | 1 | 2Gi | 2Gi |
Site1-ndbmtd/db-infra-monitor-svc | 10 | 200m | 200m | 256Mi | 256Mi |
Site1-ndbmysqld/istio-proxy | 6 | 1 | 1 | 2Gi | 2Gi |
Site1-ndbmysqld/mysqlndbcluster | 6 | 4 | 4 | 16Gi | 16Gi |
Site1-ndbmysqld/init-sidecar | 6 | 300m | 300m | 512Mi | 512Mi |
Site1-ndbmysqld/db-infra-monitor-svc | 6 | 100m | 100m | 256Mi | 256Mi |
Table 3-163 cnDBTier services resource allocation at Site2:
Service Name | Replicas | CPU Limit per Container (#) | CPU Request per Container (#) | Memory Limit per Container | Memory Request per Container |
---|---|---|---|---|---|
Site2-mysql-cluster-db-backup-manager-svc/istio-proxy | 1 | 1 | 1 | 2Gi | 2Gi |
Site2-mysql-cluster-db-backup-manager-svc/db-backup-manager-svc | 1 | 100m | 100m | 128Mi | 128Mi |
Site2-mysql-cluster-db-monitor-svc/istio-proxy | 1 | 1 | 1 | 2Gi | 2Gi |
Site2-mysql-cluster-db-monitor-svc/db-monitor-svc | 1 | 1 | 1 | 512Mi | 512Mi |
Site2-ndbappmysqld/istio-proxy | 16 | 4 | 4 | 2Gi | 2Gi |
Site2-ndbappmysqld/mysqlndbcluster | 16 | 12 | 12 | 20Gi | 20Gi |
Site2-ndbmgmd/istio-proxy | 2 | 1 | 1 | 2Gi | 2Gi |
Site2-ndbmgmd/mysqlndbcluster | 2 | 4 | 4 | 10Gi | 8Gi |
Site2-ndbmgmd/db-infra-monitor-svc | 2 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbmtd/istio-proxy | 10 | 5 | 5 | 2Gi | 2Gi |
Site2-ndbmtd/mysqlndbcluster | 10 | 12 | 12 | 75Gi | 75Gi |
Site2-ndbmtd/db-backup-executor-svc | 10 | 1 | 1 | 2Gi | 2Gi |
Site2-ndbmtd/db-infra-monitor-svc | 10 | 200m | 200m | 256Mi | 256Mi |
Site2-ndbmysqld/istio-proxy | 6 | 1 | 1 | 2Gi | 2Gi |
ndbmysqld | 6 | 4 | 4 | 16Gi | 16Gi |
Site2-ndbmysqld/init-sidecar | 6 | 300m | 300m | 512Mi | 512Mi |
Site2-ndbmysqld/db-infra-monitor-svc | 6 | 100m | 100m | 256Mi | 256Mi |
Note:
Min Replica = Max Replica
3.2.9.2 CPU Utilization
The following table describes the bench mark number as per the system maximum capacity utilization for Policy microservices.
The average CPU utilization is the ratio between the current usage of resource to the requested resources of the pod i.e., total sum of CPU utilized for service pods / total CPU requested for service pods.
Table 3-164 Policy Microservices and their Resource Utilization
Service Name | CPU (Site1) | Memory (Site1) | CPU (Site2) | Memory (Site2) |
---|---|---|---|---|
AppInfo Istio | 0.27% | 13.99% | 0.27% | 19.85% |
AppInfo | 4.70% | 26.71% | 3.35% | 26.07% |
Bulwark service Istio | 37.78% | 8.08% | 0.10% | .28% |
Bulwark service | 34.28% | 24.34% | 0.05% | 17.19% |
Alternate Route service Istio | 25.84% | 42.63% | 0.20% | 18.85% |
Alternate Route service | 30.58% | 16.01% | 0.15% | 9.81% |
CHF Connector Istio | 0.40% | 13.43% | 0.40% | 18.36% |
CHF Connector | 0.07% | 16.09% | 0.05% | 12.55% |
Config-server Istio | 13.48% | 15.80% | 1.27% | 13.60% |
Config-server | 8.62% | 42.09% | 0.80% | 40.28% |
Egress Gateway Istio | 19.84% | 14.93% | 0.20% | 19.04% |
Egress Gateway | 16.28% | 18.85% | 0.10% | 16.16% |
Ingress Gateway Istio | 29.75% | 24.96% | 0.72% | 20.07% |
Ingress Gateway | 30.97% | 55.49% | 0.58% | 26.20% |
NRF Client NF Discovery Istio | 17.26% | 16.57% | 0.15% | 18.75% |
NRF Client NF Discovery | 18.54% | 63.53% | 0.05% | 19.34% |
NRF Client NF Management Istio | 0.20% | 14.60% | 0.20% | 18.85% |
NRF Client NF Management | 0.35% | 53.66% | 0.35% | 49.80% |
UDR Connector Istio | 51.14% | 21.62% | 0.40% | 18.55% |
UDR Connector | 31.42% | 52.54% | 0.08% | 22.14% |
Audit Service Istio | 0.20% | 12.99% | 0.18% | 17.68% |
Audit Service | 0.12% | 33.57% | 0.10% | 41.38% |
CM Service Istio | 0.85% | 13.99% | 0.22% | 18.19% |
CM Service | 0.84% | 44.97% | 0.16% | 48.51% |
The following table provides information about observed values of cnDBTier services.
Table 3-165 Observed CPU utilization values of cnDBTier services
Service Name | CPU (Site1) | Memory (Site1) | CPU (Site2) | Memory (Site2) |
---|---|---|---|---|
mysql-cluster-db-backup-manager-svc/istio-proxy | 0.30% | 17.38% | 0.40% | 17.29% |
mysql-cluster-db-backup-manager-svc/db-backup-manager-svc | 5.00% | 88.28% | 16.00% | 75.00% |
mysql-cluster-db-monitor-svc/istio-proxy | 0.50% | 17.58% | 0.60% | 17.53% |
mysql-cluster-db-monitor-svc/db-monitor-svc | 1.50% | 66.99% | 1.50% | 66.80% |
3.2.9.3 Results
Table 3-166 Average Latency Observations (in MilliSeconds) for the Call flow:
Call Flow | Average Latency Site1 | Average Latency at Site2 |
---|---|---|
PCF_IGW_Latency | 20.85 | 0.00 |
PCF_SM_Svc_Overall | 0.00 | 0.00 |
PCF_POLICYPDS_Overall | 13.78 | 0.00 |
PCF_UDRCONNECTOR_Overall | 10.15 | 0.00 |
PCF_CHFCONNECTOR_Overall | 0.00 | 0.00 |
PCF_NRFCLIENT_On_Demand | 0.26 | 0.00 |
PCF_UsrSvc_Overall | 0.00 | 0.00 |
PCF_EGRESS_Latency | 0.77 | 0.80 |
PCF_Binding_Svc_Latency | 0.00 | 0.00 |
PCF_Diam_Connector_Latency | 0.00 | 0.00 |
PCF_Diam_Gw_Latency | 0.00 | 0.00 |
PCF_Usage_Mon | 0.00 | 0.00 |
Pcrf_Core_Overall | 0.00 | 0.00 |
Table 3-167 Average Current Percentile Latency Observations
Methods | 50th Percentile (Site1) | 99th Percentile (Site1) | 50th Percentile (Site2) | 99th Percentile (Site2) |
---|---|---|---|---|
UE POST | 39.09 | 74.65 | 0.00 | 0.00 |
UE DELETE | 0.00 | 0.00 | 0.00 | 0.00 |
AM POST | 26.39 | 63.41 | 0.00 | 0.00 |
AM DELETE | 0.00 | 0.00 | 0.00 | 0.00 |
SM POST | 0.00 | 0.00 | 0.00 | 0.00 |
SM DELETE | 0.00 | 0.00 | 0.00 | 0.00 |
Table 3-168 Latency obervations for cnDBTier services
Site-Slave Node( In Seconds) | cnDBtier Replication Delay |
---|---|
Site-1-ndbmysqld-0 | 0 |
Site-1-ndbmysqld-2 | 0 |
Site-1-ndbmysqld-4 | 0 |
Site-2-ndbmysqld-0 | 0 |
Site-2-ndbmysqld-2 | 0 |
Site-2-ndbmysqld-4 | 0 |
3.2.10 41K TPS on Site-1 with NRF Caching and UDR group-id-list Based Discovery Enabled
This test run benchmarks the performance and capacity of Policy data call model that is deployed in PCF mode on a 2 sites setup. The test was run for 41K TPS on 2 sites with ASM disabled. The Policy application handles a total (Ingress + Egress) traffic of 41K TPS on two sites.
3.2.10.1 Test Case and Setup Details
Policy Infrastructure Details
Infrastructure used for benchmarking Policy performance run is described in this section.
Table 3-169 Hardware Details
Hardware | Details |
---|---|
Environment | BareMetal |
Server | ORACLE SERVER X9-2 |
Model | Intel(R) Xeon(R) Platinum 8358 CPU |
Clock Speed | 2.600 GHz |
Total Cores | 128 |
Memory Size | 768 GB |
Type | DDR4 SDRAM |
Installed DIMMs | 24 |
Maximum DIMMs | 32 |
Installed Memory | 768 GB |
Table 3-170 Software Details
Aplications | Version |
---|---|
Policy | 25.1.200 |
cnDBTier | 25.1.200 |
ASM | 1.14.6-am1 |
OSO | NA |
CNE | 23.3.3 |
For more information about Policy Installation, see Oracle Communications Cloud Native Core, Converged Policy Installation, Upgrade, and Fault Recovery Guide.
The following table describes the testcase parameters and their values:
Table 3-171 Testcase Parameters
Parameters | Values |
---|---|
Call Rate (Ingress + Egress) | 41K TPS on Site-1 (With NRF caching and UDR group-id-list based discovery Enabled) |
ASM | Enabled |
Traffic Ratio |
Internet : SM 1-Create 15-update 1-delete IMS: SM 1-Create 8-update 1-delete Application: SM 1-Create 0-update 1-delete Administrator: SM 1-Create 0-update 1-delete |
Active Subscribers | 10M |
Policy Project Details:
The Policy Design editor based on the Blockly interface was used to set the Policy project for each of the Policy services. The complexity level of Policy Project configured for this run was High.
Complexity Level Definition:
- Low– No Usage of Loops in Blockly logic, No JSON operations, No complex Java Script code in Object Expression /Statement Expression.
- Medium - Usage of Loops in Blockly logic, Policy Table Wildcard match <= 3 fields, MatchList < 3, 3 < RegEx match < 6
- High - JSON Operations – Custom, complex Java Script code in Object Expression /Statement Expression, Policy Table Wildcard match > 3 fields, MatchLists >= 3, RegEx mat >= 6
Call Model Data
Table 3-172 Traffic distribution per call flow
Call Flow | Traffic at Site1 | Traffic at Site2 |
---|---|---|
TOTAL-IGW | 21844.57 | 0.00 |
TOTAL-EGW | 13308.29 | 0.00 |
DIAM-GW-IN-TOTAL | 3427.82 | 0.00 |
DIAM-GW-OUT-TOTAL | 2700.02 | 0.00 |
TOTAL-TPS | 41280 | 0.00 |
Following PCF configurations were either enabled or disabled for running this call flow:
Table 3-173 Policy Configurations
Feature Name | Configuration |
---|---|
PDS- Application Compression | Enabled |
NRF cacheing and UDR group-id-list based discovery | Enabled |
PDS Single UE ID Configuration
|
Enabled |
PDS Location Information Header support
|
Enabled |
Congestion Control with Default Values:
|
Enabled |
Configuring Policy Helm Parameters
There were no optimized parameters configured for this run:
Configuring cnDbTier Helm Parameters
There were no optimized parameters configured for this run:
Resource Footprint:
Table 3-174 Policy microservices resource allocation
Service Name | Replicas | CPU Limit per Container (#) | CPU Limit per Container (#) | Memory Limit per Container | Memory Request per Container |
---|---|---|---|---|---|
Appinfo Istio | 2 | 2 | 2 | 2Gi | 2Gi |
Appinfo | 2 | 2 | 2 | 1Gi | 512Mi |
Bulwark service Istio | 15 | 2500m | 2500m | 2Gi | 2Gi |
Bulwark service | 15 | 8 | 8 | 6Gi | 6Gi |
Binding service Istio | 11 | 2500m | 2500m | 2Gi | 2Gi |
Binding service | 11 | 6 | 6 | 8Gi | 8Gi |
Diameter Connector Istio | 6 | 2 | 2 | 2Gi | 2Gi |
Diameter Connector | 6 | 4 | 4 | 2Gi | 1Gi |
Alternate Route Service Istio | 2 | 2 | 2 | 2Gi | 2Gi |
Alternate Route Service | 2 | 2 | 2 | 4Gi | 2Gi |
CHF Connector Istio | 4 | 2 | 2 | 2Gi | 2Gi |
CHF Connector | 4 | 6 | 6 | 4Gi | 4Gi |
Config Service Istio | 2 | 2 | 2 | 2Gi | 2Gi |
Config Service | 2 | 4 | 4 | 2Gi | 512Mi |
Egress Gateway Istio | 9 | 4 | 4 | 2Gi | 2Gi |
Egress Gateway | 9 | 8 | 8 | 6Gi | 6Gi |
Ingress Gateway Istio | 29 | 2500m | 2500m | 2Gi | 2Gi |
Ingress Gateway | 29 | 5 | 5 | 6Gi | 6Gi |
NRF Client NF Discovery Istio | 4 | 2 | 2 | 2Gi | 2Gi |
NRF Client NF Discovery | 4 | 4 | 4 | 2Gi | 2Gi |
NRF Client NF Management Istio | 2 | 2 | 2 | 2Gi | 2Gi |
NRF Client NF Management | 2 | 1 | 1 | 1Gi | 1Gi |
UDR Connector Istio | 8 | 2 | 2 | 2Gi | 2Gi |
UDR Connector | 8 | 6 | 6 | 4Gi | 4Gi |
Audit Service Istio | 2 | 2 | 2 | 2Gi | 2Gi |
Audit Service | 2 | 2 | 2 | 4Gi | 4Gi |
CM Service Istio | 2 | 2 | 2 | 2Gi | 2Gi |
CM Service | 2 | 4 | 2 | 2Gi | 512Mi |
PDS Istio | 30 | 2500m | 2500m | 4Gi | 4Gi |
PDs | 30 | 7 | 7 | 8Gi | 8Gi |
PRE Istio | 39 | 1500m | 1500m | 2Gi | 2Gi |
PRE | 39 | 4 | 4 | 4Gi | 4Gi |
Query Service Istio | 2 | 2 | 2 | 2Gi | 2Gi |
Query Service | 2 | 2 | 1 | 1Gi | 1Gi |
SM Service Istio | 64 | 2500m | 2500m | 2Gi | 2Gi |
SM Service | 64 | 7 | 7 | 10Gi | 10Gi |
PerfInfo | 2 | 1 | 1 | 1Gi | 512Mi |
Diameter Gateway Istio | 4 | 2 | 2 | 2Gi | 2Gi |
Diameter Gateway | 4 | 4 | 4 | 2Gi | 1Gi |
Table 3-175 cnDBTier services resource allocation at Site1:
Service Name | Replicas | CPU Limit per Container (#) | CPU Limit per Container (#) | Memory Limit per Container | Memory Request per Container |
---|---|---|---|---|---|
Site1-mysql-cluster-db-backup-manager-svc/db-backup-manager-svc | 1 | 100m | 100m | 128Mi | 128Mi |
Site1-mysql-cluster-db-monitor-svc/db-monitor-svc | 1 | 4 | 4 | 4Gi | 4Gi |
Site1-ndbappmysqld/istio-proxy | 18 | 3000m | 3000m | 2Gi | 2Gi |
Site1-ndbappmysqld/mysqlndbcluster | 18 | 12 | 12 | 18Gi | 18Gi |
Site1-ndbappmysqld/init-sidecar | 18 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbmgmd/istio-proxy | 2 | 1000m | 1000m | 2Gi | 2Gi |
Site1-ndbmgmd/mysqlndbcluster | 2 | 3 | 3 | 8Gi | 8Gi |
Site1-ndbmgmd/db-infra-monitor-svc | 2 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbmtd/istio-proxy | 10 | 4000m | 4000m | 2Gi | 2Gi |
Site1-ndbmtd/mysqlndbcluster | 10 | 10 | 10 | 132Gi | 132Gi |
Site1-ndbmtd/db-backup-executor-svc | 10 | 1 | 1 | 2Gi | 2Gi |
Site1-ndbmtd/db-infra-monitor-svc | 10 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbmysqld/istio-proxy | 12 | 5000m | 5000m | 4Gi | 4Gi |
Site1-ndbmysqld/mysqlndbcluster | 12 | 4 | 4 | 24Gi | 24Gi |
Site1-ndbmysqld/init-sidecar | 12 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbmysqld/db-infra-monitor-svc | 12 | 100m | 100m | 256Mi | 256Mi |
Table 3-176 cnDBTier services resource allocation at Site2
Service Name | Replicas | CPU Limit per Container (#) | CPU Limit per Container (#) | Memory Limit per Container | Memory Request per Container |
---|---|---|---|---|---|
Site2-mysql-cluster-db-backup-manager-svc/db-backup-manager-svc | 1 | 100m | 100m | 128Mi | 128Mi |
Site2-mysql-cluster-db-monitor-svc/db-monitor-svc | 1 | 4 | 4 | 4Gi | 4Gi |
Site2-ndbappmysqld/istio-proxy | 18 | 3000m | 3000m | 2Gi | 2Gi |
Site2-ndbappmysqld/mysqlndbcluster | 18 | 12 | 12 | 18Gi | 18Gi |
Site2-ndbappmysqld/init-sidecar | 18 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbmgmd/istio-proxy | 2 | 1000m | 1000m | 2Gi | 2Gi |
Site2-ndbmgmd/mysqlndbcluster | 2 | 3 | 3 | 8Gi | 8Gi |
Site2-ndbmgmd/db-infra-monitor-svc | 2 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbmtd/istio-proxy | 10 | 4000m | 4000m | 2Gi | 2Gi |
Site2-ndbmtd/mysqlndbcluster | 10 | 10 | 10 | 132Gi | 132Gi |
Site2-ndbmtd/db-backup-executor-svc | 10 | 1 | 1 | 2Gi | 2Gi |
Site2-ndbmtd/db-infra-monitor-svc | 10 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbmysqld/istio-proxy | 12 | 5000m | 5000m | 4Gi | 4Gi |
Site2-ndbmysqld/mysqlndbcluster | 12 | 4 | 4 | 24Gi | 24Gi |
Site2-ndbmysqld/init-sidecar | 12 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbmysqld/db-infra-monitor-svc | 12 | 100m | 100m | 256Mi | 256Mi |
Note: Min Replica = Max Replica
3.2.10.2 CPU Utilization
The following table describes the bench mark number as per the system maximum capacity utilization for Policy microservices.
The average CPU utilization is the ratio between the current usage of resource to the requested resources of the pod i.e., total sum of CPU utilized for service pods / total CPU requested for service pods.
Table 3-177 Policy Microservices and their Resource Utilization
Service Name | CPU per Container (Site1) | Memory per Container (Site1) | CPU per Container (Site 2) | Memory per container (Site2) |
---|---|---|---|---|
Appinfo Istio | 0.25% | 16.72% | None | None |
Appinfo | 2.75% | 27.34% | None | None |
Bulwark service Istio | 31.96% | 17.96% | None | None |
Bulwark service | 26.22% | 21.74% | None | None |
Binding service Istio | 16.87% | 19.28% | None | None |
Binding service | 14.28% | 36.59% | None | None |
Diameter Connector Istio | 18.69% | 18.43% | None | None |
Diameter Connector | 14.09% | 35.38% | None | None |
Alternate Route Service Istio | 30.50% | 45.61% | None | None |
Alternate Route Service | 33.02% | 12.81% | None | None |
CHF Connector Istio | 25.60% | 24.24% | None | None |
CHF Connector | 12.83% | 28.59% | None | None |
Config Service Istio | 10.72% | 19.04% | None | None |
Config Service | 7.17% | 40.94% | None | None |
Egress Gateway Istio | 14.51% | 20.76% | None | None |
Egress Gateway | 16.34% | 23.40% | None | None |
Ingress Gateway Istio | 17.10% | 25.30% | None | None |
Ingress Gateway | 19.58% | 40.88% | None | None |
NRF Client NF Discovery Istio | 1.01% | 16.32% | None | None |
NRF Client NF Discovery | 4.61% | 61.45% | None | None |
NRF Client NF Management | 0.18% | 16.48% | None | None |
NRF Client NF Management Istio | 0.40% | 47.51% | None | None |
UDR Connector Istio | 28.58% | 30.82% | None | None |
UDR Connector | 14.65% | 26.41% | None | None |
Audit Service Istio | 2.15% | 15.80% | None | None |
Audit Service | 2.55% | 38.61% | None | None |
CM Service Istio | 0.88% | 16.02% | None | None |
CM Service | 0.68% | 43.02% | None | None |
PDS Istio | 22.74% | 10.60% | None | None |
PDS | 23.33% | 49.58% | None | None |
PRE Istio | 13.22% | 17.43% | None | None |
PRE | 25.83% | 54.53% | None | None |
Query Service Istio | 1.88% | 16.11% | None | None |
Query Service | 8.48% | 37.26% | None | None |
SM Service Istio | 29.58% | 20.73% | None | None |
SM Service | 29.44% | 55.17% | None | None |
PerfInfo | 19.35% | 14.99% | None | None |
Diameter Gateway Istio | 6.10% | 16.94% | None | None |
Diameter Gateway | 11.38% | 37.26% | None | None |
The following table provides information about observed values of cnDBTier services.
Table 3-178 Observed CPU utilization Values of cnDBTier Services
Service Name | CPU per Container (Site1) | Memory per Container (Site1) | CPU per Container (Site 2) | Memory per container (Site2) |
---|---|---|---|---|
mysql-cluster-db-backup-manager-svc/db-backup-manager-svc | 5.00% | 64.84% | 1.00% | 67.97% |
mysql-cluster-db-monitor-svc/db-monitor-svc | 2.00% | 23.97% | 0.12% | 21.66% |
ndbappmysqld/istio-proxy | 44.07% | 19.01% | 0.44% | 18.07% |
ndbappmysqld/mysqlndbcluster | 30.41% | 27.76% | 0.11% | 24.20% |
ndbappmysqld/init-sidecar | 2.00% | 0.39% | 2.00% | 0.39% |
ndbmgmd/istio-proxy | 0.80% | 17.72% | 0.70% | 17.70% |
ndbmgmd/mysqlndbcluster | 0.18% | 25.40% | 0.20% | 25.40% |
ndbmgmd/db-infra-monitor-svc | 1.00% | 11.52% | 1.00% | 11.13% |
ndbmtd/istio-proxy | 57.58% | 18.24% | 6.10% | 18.46% |
ndbmtd/mysqlndbcluster | 45.76% | 66.75% | 8.10% | 66.78% |
ndbmtd/db-backup-executor-svc | 0.10% | 2.76% | 0.10% | 2.76% |
ndbmtd/db-infra-monitor-svc | 1.30% | 11.29% | 1.40% | 11.33% |
ndbmysqld/istio-proxy | 3.72% | 9.10% | 0.59% | 9.06% |
ndbmysqld/mysqlndbcluster | 6.49% | 21.62% | 2.71% | 18.27% |
ndbmysqld/init-sidecar | 2.00% | 0.39% | 2.00% | 0.39% |
ndbmysqld/db-infra-monitor-svc | 1.00% | 11.39% | 1.00% | 11.13% |
3.2.10.3 Results
Table 3-179 Average Latency Observations (In Milli Seconds) for the call flows:
Service Name | Observed Latency at Site1 | Observed Latency at Site2 |
---|---|---|
PCF_IGW_Latency | 37.32 | 0.00 |
PCF_SM_Svc_Overall | 33.88 | 0.00 |
PCF_POLICYPDS_Overall | 11.04 | 0.00 |
PCF_UDRCONNECTOR_Overall | 3.51 | 0.00 |
PCF_CHFCONNECTOR_Overall | 3.08 | 0.00 |
PCF_NRFCLIENT_On_Demand | 0.16 | 0.00 |
PCF_UsrSvc_Overall | 3.08 | 0.00 |
PCF_EGRESS_Latency | 0.52 | 0.00 |
PCF_Binding_Svc_Latency | 19.86 | 0.00 |
PCF_Diam_Connector_Latency | 1.53 | 0.00 |
PCF_Diam_Gw_Latency | 21.37 | 0.00 |
PCF_Usage_Mon | 0.00 | 0.00 |
Pcrf_Core_Overall | 0.00 | 0.00 |
Table 3-180 Average Current Percentile Latency Observations
METHODS | 50th Percentile (Site1) | 99th Percentile (Site1) | 50th Percentile (Site2) | 99th Percentile (Site2) |
---|---|---|---|---|
UE POST | 0.00 | 0.00 | 0.00 | 0.00 |
UE DELETE | 0.00 | 0.00 | 0.00 | 0.00 |
AM POST | 0.00 | 0.00 | 0.00 | 0.00 |
AM DELETE | 0.00 | 0.00 | 0.00 | 0.00 |
SM POST | 63.21 | 110.72 | 0.00 | 0.00 |
SM DELETE | 0.00 | 0.00 | 0.00 | 0.00 |
Table 3-181 Latency obervations for cnDBTier services
Site-Slave Node( In Seconds) | cnDBtier Replication Delay |
---|---|
Site-1-ndbmysqld-0 | 0 |
Site-1-ndbmysqld-2 | 0 |
Site-1-ndbmysqld-4 | 0 |
Site-1-ndbmysqld-6 | 0 |
Site-1-ndbmysqld-8 | 0 |
Site-1-ndbmysqld-10 | 0 |
Site-2-ndbmysqld-0 | 0 |
Site-2-ndbmysqld-2 | 0 |
Site-2-ndbmysqld-4 | 0 |
Site-2-ndbmysqld-6 | 0 |
Site-2-ndbmysqld-8 | 0 |
Site-2-ndbmysqld-10 | 0 |
3.3 Policy Call Model 3
3.3.1 Test Scenario: Policy Voice Call Model on Four-Site Georedundant Setup, with 7.5K TPS Traffic on Each Site and ASM Disabled
This test run benchmarks the performance and capacity of Policy voice call model that is deployed in converged mode on a four-site georedundant setup. Each of the sites handles a traffic of 7.5K TPS at Diameter Gateway. For this setup, Policy Event Record (PER) and Binding feature were enabled and Aspen Service Mesh (ASM) was disabled. This setup has single-channel replication.
3.3.1.1 Test Case and Setup Details
Test Case Parmeters
The following table describes the testcase parameters and their values:
Parameters | Values |
---|---|
Call Rate (Diameter Gateway) | 30K TPS (7.5KTPS on four site) |
ASM | Disable |
Traffic Ratio | CCRI-I, AARI –1, CCRU-2, AARU - 1, RAR-Gx-1, RAR-Rx-1, STR –1, CCRT-1. |
Active Subscribers | 10000000 |
Project Details
The Policy Design editor based on the Blockly interface was used to set the Policy project for each of the Policy services. The complexity level of Policy Project configured for this run was High.
Complexity Level Definition:
- Low – No usage of loops in Blockly logic, no JSON operations, and no complex Java Script code in object expression/statement expression.
- Medium – Usage of loops in Blockly logic, Policy table wildcard match <= 3 fields, MatchList < 3, and 3 < RegEx match < 6
- High – JSON Operations – Custom, complex Java script code in object Expression/statement expression, Policy table wildcard match > 3 fields, MatchLists >= 3, and RegEx mat >= 6
Call Model Data
Service Name | TPS |
---|---|
Ingress Service | NA |
Egress Service | NA |
Diameter Gateway | 7.5K TPS |
Diameter Connector | NA |
SM service | NA |
PDS Service | NA |
PRE Service | NA |
NRF Discovery | NA |
UDR Connector | NA |
CHF Connector | NA |
Binding Service | NA |
Bulwark Service | NA |
Policy Configurations
Following PCF configurations were either enabled or disabled for running this call flow:
Table 3-182 Policy Configurations
Service Name | Status |
---|---|
Binding | Enabled |
PRE | Enabled |
SAL | Enabled |
LDAP | Disabled |
OCS | Disabled |
Audit | Enabled |
Replication | Enabled |
Bulwark | Disabled |
Alternate routing | Disabled |
Following Policy Interfaces were either enabled or disabled for running this call flow:
Table 3-183 Policy Interfaces
Feature Name | Status |
---|---|
AMF on demand nrf discovery | NA |
BSF (N7-Nbsf) | NA |
CHF (SM-Nchf) | NA |
LDAP (Gx-LDAP) | NA |
N36 UDR query (N7/N15-Nudr) | NA |
N36 UDR subscription (N7/N15-Nudr) | NA |
Sy (PCF N7-Sy) | NA |
UDR on-demand nrf discovery | NA |
Following PCRF interfaces were either enabled or disabled for running this call flow:
Table 3-184 PCRF Interfaces
Feature Name | Status |
---|---|
Sy (PCRF Gx-Sy) | NA |
Sd (Gx-Sd) | NA |
Gx UDR query (Gx-Nudr) | NA |
Gx UDR subscription (Gx-Nudr) | NA |
CHF enabled (AM) | NA |
Usage Monitoring (Gx) | NA |
Subscriber HTTP Notifier (Gx) | NA |
Configuring Policy Helm Parameters
There are no optimization parameters configured for this run.
Configuring cnDbTier Helm Parameters
There are no optimization parameters configured for this run.
Policy Microservices Resources
Table 3-185 Policy microservices Resource allocation
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replicas |
---|---|---|---|---|---|
Appinfo | 1 | 2 | 1 | 2 | 1 |
Audit Service | 1 | 2 | 1 | 1 | 1 |
CM Service | 2 | 4 | 0.5 | 2 | 1 |
Config Service | 2 | 4 | 0.5 | 2 | 1 |
Egress Gateway | 5 | 5 | 6 | 6 | 2 |
Ingress Gateway | 3 | 4 | 4 | 6 | 2 |
Nrf Client Management | 1 | 1 | 1 | 1 | 2 |
Diameter Gateway | 3 | 4 | 1 | 2 | 9 |
Diameter Connector | 3 | 4 | 1 | 2 | 5 |
Nrf Client Discovery | 3 | 4 | 0.5 | 2 | 2 |
Query Service | 1 | 2 | 1 | 1 | 1 |
PCRF Core Service | 7 | 8 | 8 | 8 | 24 |
Performance | 1 | 1 | 0.5 | 1 | 2 |
PRE Service | 4 | 4 | 0.5 | 4 | 15 |
SM Service | 7 | 7 | 10 | 10 | 2 |
PDS | 7 | 7 | 8 | 8 | 5 |
Binding Service | 5 | 6 | 1 | 8 | 18 |
Table 3-186 cnDBTier services resource allocation
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replicas | Storage |
---|---|---|---|---|---|---|
ndbappmysqld | 8 | 8 | 19 | 20 | 5 | 32Gi |
ndbmgmd | 2 | 2 | 9 | 11 | 2 | 16Gi |
ndbmtd | 8 | 8 | 73 | 83 | 8 | 76Gi |
ndbmysqld | 4 | 4 | 25 | 25 | 6 | 131Gi |
Note: Min Replica = Max Replica
3.3.1.2 CPU Utilization
This section lists the CPU utilization for Policy and cnDBTier microservices. The CPU utilization is the ratio between the (total CPU utilization against total CPU request (X)) versus (target CPU Utilization (Y) configured for the pod).
Policy Microservices Resource Utilization
The following table describes the bench mark number as per the system maximum capacity utilization for Policy microservices.
The average CPU utilization is the ratio between the current usage of resource to the requested resources of the pod i.e., total sum of CPU utilized for service pods / total CPU requested for service pods.
Table 3-187 CPU/Memory Utilization by Policy Microservices
Service Name | Site 1 CPU (X/Y) | Site 2 CPU (X/Y) | Site 3 CPU (X/Y) | Site 4 CPU (X/Y) |
---|---|---|---|---|
ocpcf-appinfo-hpa-v2 | 3%/80% | 3%/80% | 3%/80% | 3%/80% |
ocpcf-config-server-hpa-v2 | 8%/80% | 9%/80% | 7%/80% | 7%/80% |
ocpcf-diam-connector-hpa | 0%/40% | 0%/40% | 0%/40% | 0%/40% |
ocpcf-egress-gateway-v2 | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-ingress-gateway-v2 | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-nrf-client-nfdiscovery-v2 | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-nrf-client-nfmanagement-v2 | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-oc-binding-hpa | 6%/60% | 6%/60% | 6%/60% | 6%/60% |
ocpcf-ocpm-audit-service-hpa-v2 | 4%/60% | 1%/60% | 1%/60% | 1%/60% |
ocpcf-ocpm-policyds-hpa | 0%/60% | 0%/60% | 0%/60% | 0%/60% |
ocpcf-pcf-pre-hpa | 17%/80% | 18%/80% | 17%/80% | 17%/80% |
ocpcf-pcrf-core-hpa | 12%/40% | 12%/40% | 12%/40% | 12%/40% |
ocpcf-query-service-hpa | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
Observed CPU utilization Values of cnDBTier Services
The following table provides information about observed values of cnDBTier services.
Table 3-188 CPU/Memory Utilization by CnDBTier services
Service Name | Site1 - CPU (X/Y) | Site2 - CPU (X/Y) | Site3 - CPU (X/Y) | Site4 - CPU (X/Y) |
---|---|---|---|---|
ndbappmysqld | 88%/80% | 87%/80% | 89%/80% | 88%/80% |
ndbmgmd | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ndbmtd | 16%/80% | 17%/80% | 17%/80% | 18%/80% |
ndbmysqld | 8%/80% | 9%/80% | 10%/80% | 8%/80% |
3.3.2 Test Scenario: Policy Voice Call Model on Four-Site Georedundant Setup, with 15K TPS Traffic on Two Sites and No Traffic on Other Two Sites
This test run benchmarks the performance and capacity of Policy voice call model that is deployed in converged mode on a four-site georedundant setup. Two of the sites (site1 and site3) handle a traffic of 15K TPS at Diameter Gateway and there is no traffic on the other two sites (site2 and site4). For this setup, Binding and Policy Event Record (PER) features were enabled and Aspen Service Mesh (ASM) was disabled. This setup has single-channel replication.
3.3.2.1 Test Case and Setup Details
Testcase Parameters
The following table describes the testcase parameters and their values:
Parameters | Values |
---|---|
Call Rate (Diameter Gateway) | 30KTPS (15KTPS on two sites) |
ASM | Disable |
Traffic Ratio | CCRI-I, AARI –1, CCRU-2, AARU - 1, RAR-Gx-1, RAR-Rx-1, STR –1, CCRT-1. |
Active Subscribers | 10000000 |
Project Details
The Policy Design editor based on the Blockly interface was used to set the Policy project for each of the Policy services. The complexity level of Policy Project configured for this run was High.
Complexity Level Definition:
- Low – No usage of loops in Blockly logic, no JSON operations, and no complex Java Script code in object expression/statement expression.
- Medium – Usage of loops in Blockly logic, Policy table wildcard match <= 3 fields, MatchList < 3, and 3 < RegEx match < 6
- High – JSON Operations – Custom, complex Java script code in object Expression/statement expression, Policy table wildcard match > 3 fields, MatchLists >= 3, and RegEx mat >= 6
Call Model Data
Services | TPS |
---|---|
Ingress Service | NA |
Egress Service | NA |
Diameter Gateway | 15K TPS |
Diameter Connector | NA |
SM service | NA |
PDS Service | NA |
PRE Service | NA |
NRF Discovery | NA |
UDR Connector | NA |
CHF Connector | NA |
Binding Service | NA |
Bulwark Service | NA |
Policy Configurations
Following Policy configurations were either enabled or disabled for running this call flow:
Table 3-190 Policy Microservices Configuration
Service Name | Status |
---|---|
Binding | Enabled |
PER | Enabled |
SAL | Enabled |
LDAP | Disabled |
OCS | Disabled |
Audit | Enabled |
Replication | Enabled |
Bulkwark | Disabled |
Alternate routing | Disabled |
Following Policy interfaces were either enabled or disabled for running this call flow:
Table 3-191 Policy Interfaces
Feature Name | Status |
---|---|
N36 UDR query (N7/N15-Nudr) | NA |
N36 UDR subscription (N7/N15-Nudr) | NA |
UDR on-demand nrf discovery | NA |
CHF (SM-Nchf) | NA |
BSF (N7-Nbsf) | NA |
AMF on demand nrf discovery | NA |
LDAP (Gx-LDAP) | NA |
Sy (PCF N7-Sy) | NA |
Following PCRF interfaces were either enabled or disabled for running this call flow:
Table 3-192 PCRF Interfaces
Feature Name | Status |
---|---|
Sy (PCRF Gx-Sy) | NA |
Sd (Gx-Sd) | NA |
Gx UDR query (Gx-Nudr) | NA |
Gx UDR subscription (Gx-Nudr) | NA |
CHF enabled (AM) | NA |
Usage Monitoring (Gx) | NA |
Subscriber HTTP Notifier (Gx) | NA |
Configuring Policy Helm Parameters
There were no optimized parameters configured for this run.
Configuring cnDbTier Helm Parameters
There were no optimized parameters configured for this run.
Policy Microservices Resources
Table 3-193 Policy microservices resource allocation
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replicas |
---|---|---|---|---|---|
Appinfo | 1 | 1 | 0.5 | 1 | 1 |
Audit Service | 1 | 2 | 1 | 1 | 1 |
CM Service | 2 | 4 | 0.5 | 2 | 1 |
Config Service | 2 | 4 | 0.5 | 2 | 1 |
Egress Gateway | 3 | 4 | 4 | 6 | 2 |
Ingress Gateway | 3 | 4 | 4 | 6 | 2 |
Nrf Client Management | 1 | 1 | 1 | 1 | 2 |
Diameter Gateway | 3 | 4 | 1 | 2 | 9 |
Diameter Connector | 3 | 4 | 1 | 2 | 5 |
Nrf Client Discovery | 3 | 4 | 0.5 | 2 | 2 |
Query Service | 1 | 2 | 1 | 1 | 1 |
PCRF Core Service | 7 | 8 | 8 | 8 | 24 |
Performance | 1 | 1 | 0.5 | 1 | 2 |
PRE Service | 5 | 5 | 0.5 | 4 | 15 |
SM Service | 7 | 8 | 1 | 4 | 2 |
PDS | 5 | 6 | 1 | 4 | 5 |
Binding Service | 5 | 6 | 1 | 8 | 18 |
Table 3-194 cnDBTier services resource allocation
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replicas | Storage |
---|---|---|---|---|---|---|
ndbappmysqld | 8 | 8 | 19 | 20 | 5 | 32Gi |
ndbmgmd | 2 | 2 | 9 | 11 | 2 | 16Gi |
ndbmtd | 8 | 8 | 73 | 83 | 8 | 76Gi |
ndbmysqld | 4 | 4 | 25 | 25 | 6 | 131Gi |
Min Replica = Max Replica
3.3.2.2 CPU Utilization
This section lists the CPU utilization for Policy and cnDBTier microservices. The CPU utilization is the ratio between the (total CPU utilization against total CPU request (X)) versus (target CPU Utilization (Y) configured for the pod).
Policy Microservices Resource Utilization
The following table describes the bench mark number as per the system maximum capacity utilization for Policy microservices.
The average CPU utilization is the ratio between the current usage of resource to the requested resources of the pod i.e., total sum of CPU utilized for service pods / total CPU requested for service pods.
Table 3-195 CPU/Memory Utilization by Policy Microservices
Service Name | Site1 - CPU (X/Y) | Site2 - CPU (X/Y) | Site3 - CPU (X/Y) | Site4 - CPU (X/Y) |
---|---|---|---|---|
ocpcf-appinfo-hpa-v2beta1 | 2%/80% | 2%/80% | 3%/80% | 2%/80% |
ocpcf-config-server-hpa-v2beta1 | 7%/80% | 9%/80% | 9%/80% | 8%/80% |
ocpcf-diam-connector-hpa-v2beta1 | 0%/40% | 0%/40% | 0%/40% | 0%/40% |
ocpcf-egress-gateway-v2beta1 | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-ingress-gateway-v2beta1 | 1%/80% | 0%/80% | 1%/80% | 0%/80% |
ocpcf-nrf-client-nfdiscovery-v2 | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-nrf-client-nfmanagement-v2 | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-oc-binding-hpa | 11%/60% | 0%/60% | 11%/60% | 0%/60% |
ocpcf-ocpm-audit-service-hpa-v2beta1 | 0%/60% | 0%/60% | 0%/60% | 0%/60% |
ocpcf-ocpm-policyds-hpa | 0%/60% | 0%/60% | 0%/60% | 0%/60% |
ocpcf-pcf-pre-hpa | 10%/80% | 0%/80% | 10%/80% | 0%/80% |
ocpcf-pcf-smservice-hpa | 0%/50% | 0%/50% | 0%/50% | 0%/50% |
ocpcf-pcrf-core-hpa | 25%/40% | 0%/80% | 24%/40% | 0%/40% |
ocpcf-query-service-hpa | 0%/80% | 0%/40% | 0%/80% | 0%/80% |
Observed CPU utilization Values of cnDBTier Services
The following table provides information about observed values of cnDBTier services.
Table 3-196 CPU/Memory Utilization by CnDBTier services
Service Name | Site1 - CPU (X/Y) | Site2 - CPU (X/Y) | Site3 - CPU (X/Y) | Site4 - CPU (X/Y) |
---|---|---|---|---|
ndbappmysqld | 73%/80% | 23%/80% | 89%/80% | 23%/80% |
ndbmgmd | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ndbmtd | 22530%/80% | 7280%/80% | 16%/80% | 7%/80% |
ndbmysqld | 8%/80% | 4%/80% | 8%/80% | 4%/80% |
3.4 Policy Call Model 4
3.4.1 Test Scenario: Policy Call Model on Four-Site Georedundant Setup, with 7.5K TPS Traffic on Each Site and ASM Disabled
This test run benchmarks the performance and capacity of Policy data call model that is deployed in converged mode on a four-site georedundant setup. Each of the sites handles a traffic of 7.5K TPS at Diameter Gateway. For this setup, Binding feature was enabled and Aspen Service Mesh (ASM) was disabled. This setup has single-channel replication.
3.4.1.1 Test Case and Setup Details
Testcase Parameters
The following table describes the testcase parameters and their values:
Parameters | Values |
Call Rate (Diameter Gateway) | 30KTPS (7.5KTPS on each site) |
ASM | Disable |
Traffic Ratio | CCRI (Single APN), CCRU (Single APN), CCRT (Single APN), AARU, RAR -rx, RAR-gx, STR. |
Active Subscribers | 10000000 |
Project Details
The Policy Design editor based on the Blockly interface was used to set the Policy project for each of the Policy services. The complexity level of Policy Project configured for this run was High.
Complexity Level Definition:
- Low – No usage of loops in Blockly logic, no JSON operations, and no complex Java Script code in object expression/statement expression.
- Medium – Usage of loops in Blockly logic, Policy table wildcard match <= 3 fields, MatchList < 3, and 3 < RegEx match < 6
- High – JSON Operations – Custom, complex Java script code in object Expression/statement expression, Policy table wildcard match > 3 fields, MatchLists >= 3, and RegEx mat >= 6
Call Model Data
Table 3-198 Traffic distribution
Service Name | TPS |
---|---|
Ingress Service | NA |
Egress Service | NA |
Diameter Gateway | 7.5K TPS |
Diameter Connector | NA |
SM service | NA |
PDS Service | NA |
PRE Service | NA |
NRF Discovery | NA |
UDR Connector | NA |
CHF Connector | NA |
Binding Service | NA |
Bulwark Service | NA |
Policy Configurations
Following Policy services were either enabled or disabled for running this call flow:
Table 3-199 Policy services configuration
Service Name | Status |
---|---|
Binding | Enabled |
PER | Disabled |
SAL | Enabled |
LDAP | Disabled |
OCS | Disabled |
Audit | Enabled |
Replication | Enabled |
Bulkwark | Disabled |
Alternate routing | Disabled |
Following Policy interfaces were either enabled or disabled for running this call flow:
Table 3-200 Policy interfaces
Feature Name | Status |
---|---|
N36 UDR query (N7/N15-Nudr) | NA |
N36 UDR subscription (N7/N15-Nudr) | NA |
UDR on-demand nrf discovery | NA |
CHF (SM-Nchf) | NA |
BSF (N7-Nbsf) | NA |
AMF on demand nrf discovery | NA |
LDAP (Gx-LDAP) | NA |
Sy (PCF N7-Sy) | NA |
Diameter GW (PGW to PCRF) | Active |
Following PCRF interfaces were either enabled or disabled for running this call flow:
Table 3-201 PCRF intefaces
Feature Name | Status |
---|---|
Sy (PCRF Gx-Sy) | NA |
Sd (Gx-Sd) | NA |
Gx UDR query (Gx-Nudr) | NA |
Gx UDR subscription (Gx-Nudr) | NA |
CHF enabled (AM) | NA |
Usage Monitoring (Gx) | NA |
Subscriber HTTP Notifier (Gx) | NA |
Configuring PCF Helm Parameters
There were no optimization parameters configured for this run.
Configuring cnDbTier Helm Parameters
There were no optimization parameters configured for this run.
Policy Microservices Resources
Table 3-202 Policy microservices resource allocation
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replicas |
---|---|---|---|---|---|
Appinfo | 1 | 1 | 0.5 | 1 | 1 |
Audit Service | 1 | 2 | 1 | 1 | 1 |
CM Service | 2 | 4 | 0.5 | 2 | 1 |
Config Service | 2 | 4 | 0.5 | 2 | 1 |
Egress Gateway | 3 | 4 | 4 | 6 | 2 |
Ingress Gateway | 3 | 4 | 4 | 6 | 2 |
Nrf Client Management | 1 | 1 | 1 | 1 | 2 |
Diameter Gateway | 3 | 4 | 1 | 2 | 9 |
Diameter Connector | 3 | 4 | 1 | 2 | 5 |
Nrf Client Discovery | 3 | 4 | 0.5 | 2 | 2 |
Query Service | 1 | 2 | 1 | 1 | 1 |
PCRF Core Service | 7 | 8 | 8 | 8 | 24 |
Performance | 1 | 1 | 0.5 | 1 | 2 |
PRE Service | 5 | 5 | 0.5 | 4 | 15 |
SM Service | 7 | 8 | 1 | 4 | 2 |
PDS | 5 | 6 | 1 | 4 | 5 |
Binding Service | 5 | 6 | 1 | 8 | 18 |
Table 3-203 cnDBTier services resource allocation
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replicas | Storage |
---|---|---|---|---|---|---|
ndbappmysqld | 8 | 8 | 19 | 20 | 5 | 32Gi |
ndbmgmd | 2 | 2 | 9 | 11 | 2 | 16Gi |
ndbmtd | 8 | 8 | 73 | 83 | 8 | 76Gi |
ndbmysqld | 4 | 4 | 25 | 25 | 6 | 131Gi |
Min Replica = Max Replica
3.4.1.2 CPU Utilization
This section lists the CPU utilization for Policy and cnDBTier microservices. The CPU utilization is the ratio between the (total CPU utilization against total CPU request (X)) versus (target CPU Utilization (Y) configured for the pod).
Policy Microservices Resource Utilization
The following table describes the bench mark number as per the system maximum capacity utilization for Policy microservices.
The average CPU utilization is the ratio between the current usage of resource to the requested resources of the pod i.e., total sum of CPU utilized for service pods / total CPU requested for service pods.
Table 3-204 CPU/Memory Utilization by Policy Microservices
Service Name | Site1 - CPU (X/Y) | Site2 - CPU (X/Y) | Site3 - CPU (X/Y) | Site4 - CPU (X/Y) |
---|---|---|---|---|
ocpcf-appinfo-hpa-v2beta1 | 1%/80% | 2%/80% | 2%/80% | 1%/80% |
ocpcf-config-server-hpa-v2beta1 | 8%/80% | 9%/80% | 8%/80% | 7%/80% |
ocpcf-diam-connector-hpa-v2beta1 | 0%/40% | 0%/40% | 0%/40% | 0%/40% |
ocpcf-egress-gateway-v2beta1 | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-ingress-gateway-v2beta1 | 1%/80% | 1%/80% | 1%/80% | 1%/80% |
ocpcf-nrf-client-nfdiscovery-v2 | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-nrf-client-nfmanagement-v2 | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-oc-binding-hpa | 6%/60% | 6%/60% | 6%/60% | 6%/60% |
ocpcf-ocpm-audit-service-hpa-v2beta1 | 0%/60% | 0%/60% | 0%/60% | 0%/60% |
ocpcf-ocpm-policyds-hpa | 0%/60% | 0%/60% | 0%/60% | 0%/60% |
ocpcf-pcf-pre-hpa | 6%/80% | 6%/80% | 6%/80% | 6%/80% |
ocpcf-pcf-smservice-hpa | 0%/50% | 0%/50% | 0%/50% | 0%/50% |
ocpcf-pcrf-core-hpa | 13%/40% | 0%/80% | 14%/40% | 14%/40% |
ocpcf-query-service-hpa | 0%/80% | 13%/40% | 0%/80% | 0%/80% |
Observed CPU utilization Values of cnDBTier Services
The following table provides information about observed values of cnDBTier services.
Table 3-205 CPU/Memory Utilization by CnDBTier services
Service Name | Site1 - CPU (X/Y) | Site2 - CPU (X/Y) | Site3 - CPU (X/Y) | Site4 - CPU (X/Y) |
---|---|---|---|---|
ndbappmysqld | 71%/80% | 84%/80% | 84%/80% | 85%/80% |
ndbmgmd | 0%/80% | 0%/80% | 0%/80% | 1%/80% |
ndbmtd | 14%/80% | 11%/80% | 16%/80% | 15%/80% |
ndbmysqld | 12%/80% | 12%/80% | 13%/80% | 12%/80% |
3.4.2 Test Scenario: Policy Call Model on Four-Site Georedundant Setup, with 15K TPS Traffic on Two Sites and No Traffic on Other Two Sites
This test run benchmarks the performance and capacity of Policy data call model that is deployed in converged mode on a four-site georedundant setup. Two of the sites (site1 and site3) handle a traffic of 15K TPS at Diameter Gateway and there is no traffic on the other two sites (site2 and site4). For this setup, Binding feature was enabled and Aspen Service Mesh (ASM) was disabled. This setup has single-channel replication.
3.4.2.1 Test Case and Setup Details
Testcase Parameters
The following table describes the testcase parameters and their values:
Parameters | Values |
---|---|
Call Rate (Diameter Gateway) | 30KTPS (15 KTPS on two site) |
ASM | Disable |
Traffic Ratio | CCRI (Single APN), CCRU (Single APN), CCRT (Single APN), AARU, RAR -rx, RAR-gx, STR. |
Active Subscribers | 10000000 |
Project Details
The Policy Design editor based on the Blockly interface was used to set the Policy project for each of the Policy services. The complexity level of Policy Project configured for this run was High.
Complexity Level Definition:
- Low – No usage of loops in Blockly logic, no JSON operations, and no complex Java Script code in object expression/statement expression.
- Medium – Usage of loops in Blockly logic, Policy table wildcard match <= 3 fields, MatchList < 3, and 3 < RegEx match < 6
- High – JSON Operations – Custom, complex Java script code in object Expression/statement expression, Policy table wildcard match > 3 fields, MatchLists >= 3, and RegEx mat >= 6
Call Model Data
Table 3-207 Traffic distribution
Service Name | TPS |
---|---|
Ingress Service | NA |
Egress Service | NA |
Diameter Gateway | 15K TPS |
Diameter Connector | NA |
SM service | NA |
PDS Service | NA |
PRE Service | NA |
NRF Discovery | NA |
UDR Connector | NA |
CHF Connector | NA |
Binding Service | NA |
Bulwark Service | NA |
Policy Configurations
Following Policy services were either enabled or disabled for running this call flow:
Table 3-208 Policy microservices configuration
Service Name | Status |
---|---|
Binding | Enabled |
PER | Disabled |
SAL | Enabled |
LDAP | Disabled |
OCS | Disabled |
Audit | Enabled |
Replication | Enabled |
Bulkwark | Disabled |
Alternate routing | Disabled |
Following Policy interfaces were either enabled or disabled for running this call flow:
Table 3-209 Policy interfaces
Feature Name | Status |
---|---|
N36 UDR query (N7/N15-Nudr) | NA |
N36 UDR subscription (N7/N15-Nudr) | NA |
UDR on-demand nrf discovery | NA |
CHF (SM-Nchf) | NA |
BSF (N7-Nbsf) | NA |
AMF on demand nrf discovery | NA |
LDAP (Gx-LDAP) | NA |
Sy (PCF N7-Sy) | NA |
Diameter (PGW to PCRF) | Active |
Following PCRF interfaces were either enabled or disabled for running this call flow:
Table 3-210 PCRF interfaces
Feature Name | Status |
---|---|
Sy (PCRF Gx-Sy) | NA |
Sd (Gx-Sd) | NA |
Gx UDR query (Gx-Nudr) | NA |
Gx UDR subscription (Gx-Nudr) | NA |
CHF enabled (AM) | NA |
Usage Monitoring (Gx) | NA |
Subscriber HTTP Notifier (Gx) | NA |
Diameter (PGW to PCRF) | Active |
Configuring cnDbTier Helm Parameters
There were no optimization parameters configured for this run.
Configuring cnDbTier Helm Parameters
There were no optimization parameters configured for this run.
Policy Microservices Resources
Table 3-211 Policy microservices resource allocation
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replicas |
---|---|---|---|---|---|
Appinfo | 1 | 1 | 0.5 | 1 | 1 |
Audit Service | 1 | 2 | 1 | 1 | 1 |
CM Service | 2 | 4 | 0.5 | 2 | 1 |
Config Service | 2 | 4 | 0.5 | 2 | 1 |
Egress Gateway | 3 | 4 | 4 | 6 | 2 |
Ingress Gateway | 3 | 4 | 4 | 6 | 2 |
Nrf Client Management | 1 | 1 | 1 | 1 | 2 |
Diameter Gateway | 3 | 4 | 1 | 2 | 9 |
Diameter Connector | 3 | 4 | 1 | 2 | 5 |
Nrf Client Discovery | 3 | 4 | 0.5 | 2 | 2 |
Query Service | 1 | 2 | 1 | 1 | 1 |
PCRF Core Service | 7 | 8 | 8 | 8 | 24 |
Performance | 1 | 1 | 0.5 | 1 | 2 |
PRE Service | 5 | 5 | 0.5 | 4 | 15 |
SM Service | 7 | 8 | 1 | 4 | 2 |
PDS | 5 | 6 | 1 | 4 | 5 |
Binding Service | 5 | 6 | 1 | 8 | 18 |
Table 3-212 cnDBTier services resource allocation
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replicas | Storage |
---|---|---|---|---|---|---|
ndbappmysqld | 8 | 8 | 19 | 20 | 5 | 32Gi |
ndbmgmd | 2 | 2 | 9 | 11 | 2 | 16Gi |
ndbmtd | 8 | 8 | 73 | 83 | 8 | 76Gi |
ndbmysqld | 4 | 4 | 25 | 25 | 6 | 131Gi |
Min Replica = Max Replica
3.4.2.2 CPU Utilization
This section lists the CPU utilization for Policy and cnDBTier microservices. The CPU utilization is the ratio between the (total CPU utilization against total CPU request (X)) versus (target CPU Utilization (Y) configured for the pod).
Policy Microservices Resource Utilization
The following table describes the bench mark number as per the system maximum capacity utilization for Policy microservices.
The average CPU utilization is the ratio between the current usage of resource to the requested resources of the pod i.e., total sum of CPU utilized for service pods / total CPU requested for service pods.
Table 3-213 CPU/Memory Utilization by Policy Microservices
Service Name | Site1 - CPU (X/Y) | Site2 - CPU (X/Y) | Site3 - CPU (X/Y) | Site4 - CPU (X/Y) |
---|---|---|---|---|
ocpcf-appinfo-hpa-v2 | 3%/80% | 3%/80% | 4%/80% | 3%/80% |
ocpcf-config-server-hpa-v2 | 8%/80% | 8%/80% | 7%/80% | 7%/80% |
ocpcf-diam-connector-hpa | 0%/40% | 0%/40% | 0%/40% | 0%/40% |
ocpcf-egress-gateway-v2 | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-ingress-gateway-v2 | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-nrf-client-nfdiscovery-v2 | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-nrf-client-nfmanagement-v2 | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ocpcf-oc-binding-hpa | 11%/60% | 0%/60% | 12%/60% | 0%/60% |
ocpcf-ocpm-audit-service-hpa-v2 | 4%/60% | 4%/60% | 3%/60% | 4%/60% |
ocpcf-ocpm-policyds-hpa | 0%/60% | 0%/60% | 0%/60% | 0%/60% |
ocpcf-pcf-pre-hpa | 37%/80% | 0%/80% | 37%/80% | 0%/80% |
ocpcf-pcrf-core-hpa | 24%/40% | 0%/40% | 24%/40% | 0%/40% |
ocpcf-query-service-hpa | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
Observed CPU utilization Values of cnDBTier Services
The following table provides information about observed values of cnDBTier services.
Table 3-214 CPU/Memory Utilization by CnDBTier services
Service Name | Site1 - CPU (X/Y) | Site2 - CPU (X/Y) | Site3 - CPU (X/Y) | Site4 - CPU (X/Y) |
---|---|---|---|---|
ndbappmysqld | 91%/80% | 87%/80% | 92%/80% | 88%/80% |
ndbmgmd | 0%/80% | 0%/80% | 0%/80% | 0%/80% |
ndbmtd | 23%/80% | 8%/80% | 20%/80% | 11%/80% |
ndbmysqld | 12%/80% | 6%/80% | 12%/80% | 6%/80% |
3.4.3 Test Scenario: Policy Call Model on Two-Site Georedundant Setup, with 15K TPS Traffic on Two Sites
This test run benchmarks the performance and capacity of Policy data call model that is deployed in PCF mode on a two-site of a two-site non-ASM GR Setup. Replication is on single-channel and Binding and PRE Enabled. The Policy application handles a total Ingress and Egress traffic of 15K TPS on two sites.
3.4.3.1 Test Case and Setup Details
Testcase Parameters
The following table describes the testcase parameters and their values:
Parameters | Values |
---|---|
Call Rate (Diameter Gateway) | 30KTPS (15K TPS on two site) |
ASM | Disable |
Traffic Ratio | CCRI-I, AARI –1, CCRU-2, AARU - 1, RAR-Gx-1, RAR-Rx-1, STR –1, CCRT-1 |
Active Subscribers | 10000000 |
Project Details
The Policy Design editor based on the Blockly interface was used to set the Policy project for each of the Policy services. The complexity level of Policy Project configured for this run was High.
Complexity Level Definition:
- Low – No usage of loops in Blockly logic, no JSON operations, and no complex Java Script code in object expression/statement expression.
- Medium – Usage of loops in Blockly logic, Policy table wildcard match <= 3 fields, MatchList < 3, and 3 < RegEx match < 6
- High – JSON Operations – Custom, complex Java script code in object Expression/statement expression, Policy table wildcard match > 3 fields, MatchLists >= 3, and RegEx mat >= 6
Call Model Data
Table 3-216 Traffic distribution
Service Name | TPS |
---|---|
Ingress Service | NA |
Egress Service | NA |
Diameter Gateway Ingress | 8.33K TPS |
Diameter Gateway Egress | 6.31K TPS |
Diameter Connector | NA |
SM service | NA |
PDS Service | NA |
PRE Service | NA |
NRF Discovery | NA |
UDR Connector | NA |
CHF Connector | NA |
Binding Service | NA |
Bulwark Service | NA |
Policy Configurations
Following Policy services were either enabled or disabled for running this call flow:
Table 3-217 Policy microservices configuration
Service Name | Status |
---|---|
Binding | Enabled |
PER | Enabled |
SAL | Enabled |
LDAP | Disabled |
OCS | Disabled |
Audit | Enabled |
Replication | Enabled |
Bulwark | Disabled |
Alternate routing | Disabled |
Following Policy interfaces were either enabled or disabled for running this call flow:
Table 3-218 Policy interfaces
Feature Name | Status |
---|---|
N36 UDR query (N7/N15-Nudr) | NA |
N36 UDR subscription (N7/N15-Nudr) | NA |
UDR on-demand nrf discovery | NA |
CHF (SM-Nchf) | NA |
BSF (N7-Nbsf) | NA |
AMF on demand nrf discovery | NA |
LDAP (Gx-LDAP) | NA |
Sy (PCF N7-Sy) | NA |
Following PCRF interfaces were either enabled or disabled for running this call flow:
Table 3-219 PCRF interfaces
Feature Name | Status |
---|---|
Sy (PCRF Gx-Sy) | NA |
Sd (Gx-Sd) | NA |
Gx UDR query (Gx-Nudr) | NA |
Gx UDR subscription (Gx-Nudr) | NA |
CHF enabled (AM) | NA |
Usage Monitoring (Gx) | NA |
Subscriber HTTP Notifier (Gx) | NA |
Configuring cnDbTier Helm Parameters
There were no optimization parameters configured for this run.
Configuring cnDbTier Helm Parameters
There were no optimization parameters configured for this run.
Policy Microservices Resources
Table 3-220 Policy microservices resource allocation
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replicas |
---|---|---|---|---|---|
Appinfo | 1 | 1 | 0.5 | 1 | 1 |
Audit Service | 1 | 2 | 1 | 1 | 1 |
CM Service | 2 | 4 | 0.5 | 2 | 1 |
Config Service | 2 | 4 | 0.5 | 2 | 1 |
Egress Gateway | 3 | 4 | 4 | 6 | 2 |
Ingress Gateway | 3 | 4 | 4 | 6 | 2 |
Nrf Client Management | 1 | 1 | 1 | 1 | 2 |
Diameter Gateway | 3 | 4 | 1 | 2 | 9 |
Diameter Connector | 3 | 4 | 1 | 2 | 5 |
Nrf Client Discovery | 3 | 4 | 0.5 | 2 | 2 |
Query Service | 1 | 2 | 1 | 1 | 1 |
PCRF Core Service | 7 | 8 | 8 | 8 | 24 |
Performance | 1 | 1 | 0.5 | 1 | 2 |
PRE Service | 5 | 5 | 0.5 | 4 | 15 |
SM Service | 7 | 8 | 1 | 4 | 2 |
PDS | 5 | 6 | 1 | 4 | 5 |
Binding Service | 5 | 6 | 1 | 8 | 18 |
Table 3-221 cnDBTier services resource allocation
Service Name | CPU Request Per Pod | CPU Limit Per Pod | Memory Request Per Pod (Gi) | Memory Limit Per Pod (Gi) | Replicas | Storage |
---|---|---|---|---|---|---|
ndbappmysqld | 8 | 8 | 19 | 20 | 5 | 32Gi |
ndbmgmd | 2 | 2 | 9 | 11 | 2 | 16Gi |
ndbmtd | 8 | 8 | 73 | 83 | 8 | 76Gi |
ndbmysqld | 4 | 4 | 25 | 25 | 6 | 131Gi |
Min Replica = Max Replica
3.4.3.2 CPU Utilization
This section lists the CPU utilization for Policy and cnDBTier microservices. The CPU utilization is the ratio between the (total CPU utilization against total CPU request (X)) versus (target CPU Utilization (Y) configured for the pod).
Policy Microservices Resource Utilization
The following table describes the bench mark number as per the system maximum capacity utilization for Policy microservices.
The average CPU utilization is the ratio between the current usage of resource to the requested resources of the pod i.e., total sum of CPU utilized for service pods / total CPU requested for service pods.
Table 3-222 CPU/Memory Utilization by Policy Microservices
Service Name | Site1 - CPU (X/Y) | Site2 - CPU (X/Y) |
---|---|---|
ocpcf-appinfo-hpa-v2 | 4%/80% | 5%/80% |
ocpcf-config-server-hpa-v2 | 8%/80% | 8%/80% |
ocpcf-diam-connector-hpa | 0%/40% | 0%/40% |
ocpcf-egress-gateway-v2 | 0%/80% | 0%/80% |
ocpcf-ingress-gateway-v2 | 0%/80% | 0%/80% |
ocpcf-nrf-client-nfdiscovery-v2 | 0%/80% | 0%/80% |
ocpcf-nrf-client-nfmanagement-v2 | 0%/80% | 0%/80% |
ocpcf-oc-binding-hpa | 8%/60% | 8%/60% |
Diam-Gw (from dashboard) | 2.5%/80% | 2.5%/80% |
ocpcf-ocpm-audit-service-hpa-v2 | 4%/60% | 4%/60% |
ocpcf-ocpm-policyds-hpa | 0%/60% | 0%/60% |
ocpcf-pcf-pre-hpa | 40%/80% | 42%/80% |
ocpcf-pcrf-core-hpa | 25%/40% | 24%/40% |
ocpcf-query-service-hpa | 0%/80% | 0%/40% |
Observed CPU utilization Values of cnDBTier Services
The following table provides information about observed values of cnDBTier services.
Table 3-223 CPU/Memory Utilization by CnDBTier services
Service Name | Site1 - CPU (X/Y) | Site2 - CPU (X/Y) |
---|---|---|
ndbappmysqld | 85%/80% | 92%/80% |
ndbmgmd | 0%/80% | 0%/80% |
ndbmtd | 15%/80% | 15%/80% |
ndbmysqld | 6%/80% | 6%/80% |
3.4.4 PCF 15K TPS on two Non ASM Sites
3.4.4.1 Test Case and Setup Details
Policy Infrastructure Details
Infrastructure used for benchmarking Policy performance run is described in this section.
Table 3-225 Hardware Details
Hardware | Details |
---|---|
Environment | Hypervisor |
Server | ORACLE SERVER X8-2 |
Model | Intel(R) Xeon(R) Platinum 8260 CPU |
Clock Speed | 2.400 GHz |
Total Cores | 96 |
Memory Size | 576 GB |
Type | DDR4 SDRAM |
Installed DIMMs | 18 |
Maximum DIMMs | 24 |
Installed Memory | 576 GB |
Table 3-226 Software Details
Aplications | Version |
---|---|
Policy | 25.1.200 |
cnDBTier | 25.1.200 |
OSO | NA |
CNE | 24.2.0 |
For more information about Policy Installation, see Oracle Communications Cloud Native Core, Converged Policy Installation, Upgrade, and Fault Recovery Guide.
Testcase Parameters
The following table describes the testcase parameters and their values:
Table 3-227 Testcase Parameters
Parameters | Values |
---|---|
Call Rate (Ingress + Egress) | (15 ktps each sites) with 2 non ASM sites |
ASM | Disabled |
Traffic Ratio | 15ktps on two sites |
Deployment Model | Site1/2 PCRF deployed in same cluster thrust1 |
Policy Project Details:
This test case shall pump traffic Call Rate: 15K TPS on two sites Non ASM PCF with duration=128.0 hours.
The Policy Design editor based on the Blockly interface was used to set the Policy project for each of the Policy services. The complexity level of Policy Project configured for this run was High.
Complexity Level Definition:
- Low– No Usage of Loops in Blockly logic, No JSON operations, No complex Java Script code in Object Expression /Statement Expression.
- Medium - Usage of Loops in Blockly logic, Policy Table Wildcard match <= 3 fields, MatchList < 3, 3 < RegEx match < 6
- High - JSON Operations – Custom, complex Java Script code in Object Expression /Statement Expression, Policy Table Wildcard match > 3 fields, MatchLists >= 3, RegEx mat >= 6
Table 3-228 Model Data
Traffic (TPS) | Site1 | Site2 |
---|---|---|
Pcrf-Total-Tps | 15107.29 | 15119.52 |
Policy Configurations:
Following PCF configurations were either enabled or disabled for running this call flow:
Table 3-229 Policy Configurations
Service Name | Status |
---|---|
Bulwark service | Disabled |
Binding service | Enabled |
Alternate Route service | Disabled |
Audit service | Enabled |
PER | Enabled |
SAL | Disabled |
LDAP | Disabled |
OCS | Disabled |
Replication | Enabled |
Configuring Policy Helm Parameters
There are no optimization parameters configured for this run:
Configuring cnDbTier Helm Parameters
There are no optimization parameters configured for this run:
Resource Footprint (per site):
Table 3-230 Policy microservices resource allocation Site1:
Service Name | Replicas | CPU Limit per Container (#) | CPU Request per Container (#) | Memory Limit per Container | Memory Resources per Container |
---|---|---|---|---|---|
Appinfo | 1 | 1 | 1 | 1Gi | 512Mi |
Binding Service | 18 | 6 | 5 | 8Gi | 1Gi |
Diameter Connector | 1 | 4 | 3 | 2Gi | 1Gi |
Config-server | 2 | 4 | 2 | 2Gi | 512Mi |
Egress Gateway | 1 | 4 | 3 | 6Gi | 4Gi |
Ingress Gateway | 1 | 4 | 3 | 6Gi | 4Gi |
NRF Client NF Discovery | 1 | 4 | 3 | 2Gi | 512Mi |
NRF Client Management | 1 | 1 | 1 | 1Gi | 1Gi |
Audit Service | 1 | 2 | 1 | 1Gi | 1Gi |
CM Service | 2 | 4 | 2 | 2Gi | 512Mi |
PRE Service | 24 | 8 | 8 | 4Gi | 4Gi |
Query Service | 1 | 2 | 1 | 1Gi | 1Gi |
PCRF Core | 24 | 8 | 7 | 8Gi | 8Gi |
Perfinfo | 2 | 1 | 1 | 1Gi | 512Mi |
Diameter Gateway | 9 | 4 | 3 | 2Gi | 1Gi |
Table 3-231 Policy microservices resource allocation Site2:
Service Name | Replicas | CPU Limit per Container (#) | CPU Request per Container (#) | Memory Limit per Container | Memory Resources per Container |
---|---|---|---|---|---|
Appinfo | 1 | 1 | 1 | 1Gi | 512Mi |
Binding Service | 18 | 6 | 5 | 8Gi | 1Gi |
Diameter Connector | 1 | 4 | 3 | 2Gi | 1Gi |
Config-server | 2 | 4 | 2 | 2Gi | 512Mi |
Egress Gateway | 1 | 4 | 3 | 6Gi | 4Gi |
Ingress Gateway | 1 | 4 | 3 | 6Gi | 4Gi |
NRF Client NF Discovery | 1 | 4 | 3 | 2Gi | 512Mi |
NRF Client Management | 1 | 1 | 1 | 1Gi | 1Gi |
Audit Service | 1 | 2 | 1 | 1Gi | 1Gi |
CM Service | 2 | 4 | 2 | 2Gi | 512Mi |
PRE Service | 24 | 3 | 3 | 4Gi | 4Gi |
Query Service | 1 | 2 | 1 | 1Gi | 1Gi |
PCRF Core | 24 | 8 | 7 | 8Gi | 8Gi |
Perf-info | 2 | 1 | 1 | 1Gi | 512Mi |
Diameter Gateway | 9 | 4 | 3 | 2Gi | 1Gi |
Table 3-232 CnDBTier Resource allocation at Site1:
Service Name | Replicas | CPU Limit per Container (#) | CPU Request per Container (#) | Memory Limit per Container | Memory Resources per Container |
---|---|---|---|---|---|
Site1-mysql-cluster-db-backup-manager-svc/db-backup-manager-svc | 1 | 1 | 1 | 1Gi | 1Gi |
Site1-mysql-cluster-db-monitor-svc/db-monitor-svc | 1 | 4 | 4 | 4Gi | 4Gi |
Site1-mysql-cluster-site1-site2-replication-svc/site1-site2-replication-svc | 1 | 2 | 2 | 12Gi | 12Gi |
Site1-mysql-cluster-site1-site2-replication-svc/db-infra-monitor-svc | 1 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbappmysqld/mysqlndbcluster | 5 | 8 | 8 | 20Gi | 19Gi |
Site1-ndbappmysqld/db-infra-monitor-svc | 5 | NA | NA | NA | 19Gi |
Site1-ndbappmysqld/init-sidecar | 5 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbmgmd/mysqlndbcluster | 2 | 4 | 4 | 11520Mi | 9Gi |
Site1-ndbmgmd/db-infra-monitor-svc | 2 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbmtd/mysqlndbcluster | 8 | 10 | 10 | 83Gi | 73Gi |
Site1-ndbmtd/db-backup-executor-svc | 8 | 1 | 1 | 2Gi | 2Gi |
Site1-ndbmtd/db-infra-monitor-svc | 8 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbmysqld/mysqlndbcluster | 2 | 10 | 10 | 25Gi | 25Gi |
Site1-ndbmysqld/init-sidecar | 2 | 100m | 100m | 256Mi | 256Mi |
Site1-ndbmysqld/db-infra-monitor-svc | 2 | 100m | 100m | 256Mi | 256Mi |
Table 3-233 CnDBTier Resource allocation at Site2:
Service Name | Replicas | CPU Limit per Container (#) | CPU Request per Container (#) | Memory Limit per Container | Memory Resources per Container |
---|---|---|---|---|---|
Site2-mysql-cluster-db-backup-manager-svc/db-backup-manager-svc | 1 | 1 | 1 | 1Gi | 1Gi |
Site2-mysql-cluster-db-monitor-svc/db-monitor-svc | 1 | 4 | 4 | 4Gi | 4Gi |
Site2-mysql-cluster-site2-site1-replication-svc/site2-site1-replication-svc | 1 | 2 | 2 | 12Gi | 12Gi |
Site2-mysql-cluster-site2-site1-replication-svc/db-infra-monitor-svc | 1 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbappmysqld/mysqlndbcluster | 5 | 8 | 8 | 20Gi | 19Gi |
Site2-ndbappmysqld/db-infra-monitor-svc | 5 | NA | NA | NA | 19Gi |
Site2-ndbappmysqld/init-sidecar | 5 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbmgmd/mysqlndbcluster | 2 | 4 | 4 | 11520Mi | 9Gi |
Site2-ndbmgmd/db-infra-monitor-svc | 2 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbmtd/mysqlndbcluster | 8 | 10 | 10 | 83Gi | 73Gi |
Site2-ndbmtd/db-backup-executor-svc | 8 | 1 | 1 | 2Gi | 2Gi |
Site2-ndbmtd/db-infra-monitor-svc | 8 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbmysqld/mysqlndbcluster | 2 | 10 | 10 | 25Gi | 25Gi |
Site2-ndbmysqld/init-sidecar | 2 | 100m | 100m | 256Mi | 256Mi |
Site2-ndbmysqld/db-infra-monitor-svc | 2 | 100m | 100m | 256Mi | 256Mi |
3.4.4.2 CPU Utilization
This section lists the CPU utilization for Policy and cnDBTier microservices. The CPU utilization is the ratio between the (total CPU utilization against total CPU request (X)) versus (target CPU Utilization (Y) configured for the Pod).
The following table describes the bench mark number as per the system maximum capacity utilization for Policy microservices.
The average CPU utilization is the ratio between the current usage of resource to the requested resources of the pod i.e., total sum of CPU utilized for service pods / total CPU requested for service pods.
Table 3-234 Policy microservices and their Resource Utilization
Application/Contrainer | CPU (Site1) | Memory (Site1) | CPU (Site2) | Memory (Site2) |
---|---|---|---|---|
Appinfo | 2.90% | 25.49% | 2.80% | 25.98% |
Binding Service | 7.78% | 35.65% | 7.54% | 35.46% |
Diameter Connector | 0.12% | 20.80% | 0.10% | 22.07% |
Config-server | 4.04% | 46.58% | 5.17% | 48.58% |
Egress Gateway | 0.10% | 13.20% | 0.10% | 11.10% |
Ingress Gateway | 0.47% | 16.46% | 0.53% | 16.28% |
NRF Client NF Discovery | 0.10% | 47.90% | 0.10% | 33.98% |
NRF Client Management | 0.30% | 47.85% | 0.30% | 43.75% |
Audit Service | 0.20% | 39.94% | 0.15% | 40.14% |
Cm-service | 0.29% | 38.55% | 0.34% | 34.38% |
PRE Service | 10.89% | 56.65% | 34.16% | 60.69% |
Query Service | 0.05% | 30.57% | 0.05% | 30.57% |
PCRF Core | 30.45% | 50.98% | 29.86% | 50.79% |
Perf-info | 6.95% | 13.48% | 6.05% | 13.72% |
Diameter Gateway | 18.46% | 49.63% | 17.61% | 48.55% |
The following table provides information about observed values of cnDBTier services.
Table 3-235 Observed CPU utilization values of cnDBTier services
Application/Contrainer | CPU (Site1) | Memory (Site1) | CPU (Site2) | Memory (Site2) |
---|---|---|---|---|
mysql-cluster-db-backup-manager-svc/db-backup-manager-svc | 0.60% | 9.38% | 2.00% | 9.38% |
mysql-cluster-db-monitor-svc/db-monitor-svc | 0.18% | 12.89% | 0.73% | 12.48% |
mysql-cluster-site1-site2-replication-svc/site1-site2-replication-svc | 0.40% | 2.22% | None | None |
mysql-cluster-site1-site2-replication-svc/db-infra-monitor-svc | 2.00% | 20.31% | None | None |
ndbappmysqld/mysqlndbcluster | 50.11% | 30.29% | 52.91% | 28.18% |
ndbappmysqld/db-infra-monitor-svc | ['NA'] | ['NA'] | ['NA'] | ['NA'] |
ndbappmysqld/init-sidecar | 3.00% | 0.39% | 3.20% | 0.39% |
ndbmgmd/mysqlndbcluster | 0.27% | 17.99% | 0.24% | 18.02% |
ndbmgmd/db-infra-monitor-svc | 1.50% | 21.29% | 1.50% | 21.09% |
ndbmtd/mysqlndbcluster | 18.70% | 93.10% | 19.21% | 93.08% |
ndbmtd/db-backup-executor-svc | 0.10% | 2.73% | 0.10% | 2.73% |
ndbmtd/db-infra-monitor-svc | 8.25% | 21.78% | 6.50% | 21.58% |
ndbmysqld/mysqlndbcluster | 6.02% | 18.46% | 5.66% | 20.31% |
ndbmysqld/init-sidecar | 3.00% | 0.78% | 3.00% | 0.78% |
ndbmysqld/db-infra-monitor-svc | 3.50% | 30.08% | 3.50% | 28.32% |
mysql-cluster-site2-site1-replication-svc/site2-site1-replication-svc | None | None | 0.40% | 2.58% |
mysql-cluster-site2-site1-replication-svc/db-infra-monitor-svc | None | None | 2.00% | 19.53% |
3.4.4.3 Results
The following table provides observation data for the performance test that can be used for benchmark testing:
Table 3-236 Latency observations for the call flows
NF Service | Latency at Site1 (Milliseconds) | Latency at Site2 (Milliseconds) |
---|---|---|
PCRF_Policyds | 0.00 | 0.00 |
PCRF_Binding | 16.2 | 18.7 |
PCRF_Diam_connector | 0.00 | 0.00 |
PCRF_Core_JDBC_Latency | 3.71 | 4.42 |
Table 3-237 Latency observations in percentile for Diameter call flow
50th Percentile (at Site1) | 99th Percentile (at Site1) | 50th Percentile (at Site2) | 99th Percentile (at Site2) |
---|---|---|---|
0.00 | 0.04 | 0.00 | 0.08 |
Table 3-238 Latency obervations for cnDBTier services
Site-Slave Node | cnDBTier Replication Slave Delay (seconds) |
---|---|
Site1-ndbmysqld | 0-1 |
Site2-ndbmysqld | 0-1 |
3.5 PCF Call Model 5
3.5.1 Test Scenario: PCF Call Model on Single-Site Setup, Handling 30K TPS Traffic with Binding Feature Enabled
This test was run to benchmark the performance and capacity of PCF call model with 30K traffic on a single site. For this setup, Aspen Service Mesh (ASM) was disabled, Binding feature was enabled. User Connecttor microservice restart with a duration of 4.0 hours.
3.5.1.1 Test Case and Setup Details
Testcase Parameters
The following table describes the testcase parameters and their values:
Parameters | Values |
---|---|
Call Rate (Ingress + Egress) | 30K TPS on a single site Non ASM PCF Setup |
ASM | Disable |
Traffic Ratio | IGW-11,EGW-26,Diam-in 9,Diam-Out 3IGW-11 ,EGW-26,Diam-in=9,Diam-out - 3 |
Deployment Model | PCF 1 at Site1 |
Project Details
The Policy Design editor based on the Blockly interface was used to set the Policy project for each of the Policy services. The complexity level of Policy Project configured for this run was High.
Complexity Level Definition:
- Low – No usage of loops in Blockly logic, no JSON operations, and no complex Java Script code in object expression/statement expression.
- Medium – Usage of loops in Blockly logic, Policy table wildcard match <= 3 fields, MatchList < 3, and 3 < RegEx match < 6
- High – JSON Operations – Custom, complex Java script code in object Expression/statement expression, Policy table wildcard match > 3 fields, MatchLists >= 3, and RegEx mat >= 6
Call Model
Table 3-239 Traffic distribution
Traffic | TPS |
---|---|
Ingress Gateway | 6637 |
Egress Gateway | 15988 |
Diam In | 5279 |
Diam out | 1844 |
Total | 29747 |
Table 3-240 Traffic distribution to Policy databases
Number of Entries | TPS |
---|---|
occnp_pcf_sm.AppSession | 132704 |
occnp_pcf_sm.SmPolicyAssociation | 434302 |
occnp_pcf_sm.SmPolicyAssociation$EX | 0 |
occnp_policyds.pdssubscriber | 434475 |
occnp_policyds.pdssubscriber$EX | 0 |
occnp_policyds.pdsprofile | 324110 |
occnp_policyds.pdsprofile$EX | 0 |
occnp_binding.contextbinding | 434668 |
ooccnp_binding.contextbinding$EX | 0 |
occnp_binding.dependentcontextbinding | 77294 |
occnp_binding.dependentcontextbinding$EX | 0 |
Table 3-241 Traffic distribution at Policy services
Policy Service | Avg TPS/MPS |
---|---|
Ingress Gateway(MPS) | 12075.40103 |
Egress Gateway(MPS) | 28537.36981 |
SM Service(MPS) | 44669.88753 |
AM Service(MPS) | 0.00000 |
UE Service(MPS) | 0.00000 |
PDS(MPS) | 12643.96131 |
Pre Service(MPS) | 0.00000 |
Nrf Discovery(MPS) | 0.00000 |
CHF Connector(MPS) | 6591.08083 |
UDR Connector(MPS) | 0.00000 |
Binding(MPS) | 12064.61603 |
Policy Configurations
Following PCF configurations were either enabled or disabled for running this call flow:
Table 3-242 Policy configurations
Name | Status |
---|---|
Bulwark | Disabled |
Binding | Enabled |
Subscriber State Variable (SSV) | Disabled |
Validate_user | Enabled |
Alternate Route | Enabled |
Audit | Enabled |
Compression (Binding & SM Service) | Disabled |
SYSTEM.COLLISION.DETECTION | Disabled |
Policy Interfaces
Following Policy interfaces were either enabled or disabled for running this call flow:
Table 3-243 Policy interfaces
Feature Name | Status |
---|---|
Subscriber Tracing[For 100 subscriber] | Enabled |
N36 UDR subscription (N7/N15-Nudr) | Enabled |
UDR on-demand nrf discovery | NA |
CHF (SM-Nchf) | Enabled |
BSF (N7-Nbsf) | NA |
AMF on demand nrf discovery | NA |
LDAP (Gx-LDAP) | NA |
Binding Feature | Enabled |
Policy Microservices Resources
Table 3-244 Policy microservices Resource allocation
Service Name | Replicas | CPU Request per Pod (#) | CPU Limit per Pod (#) | Memory Request per Pod (Gi) | Memory Limit per Pod (Gi) |
---|---|---|---|---|---|
Appinfo | 2 | 1 | 1 | 0.5 | 1 |
Binding Service | 2 | 6 | 6 | 1 | 8 |
Diameter Connector | 4 | 4 | 4 | 1 | 2 |
Diameter Gateway | 2 | 4 | 4 | 1 | 2 |
Audit Service | 1 | 1 | 2 | 1 | 1 |
CM Service | 1 | 4 | 4 | 0.5 | 2 |
Config Service | 1 | 4 | 4 | 0.5 | 2 |
Egress Gateway | 8 | 4 | 4 | 4 | 6 |
Ingress Gateway | 8 | 4 | 4 | 4 | 6 |
NRF Client NF Discovery | 1 | 4 | 4 | 0.5 | 2 |
NRF Client Management | 1 | 1 | 1 | 1 | 1 |
Query Service | 1 | 1 | 2 | 1 | 1 |
PRE | 13 | 4 | 4 | 0.5 | 2 |
SM Service | 9 | 8 | 8 | 1 | 4 |
PDS | 8 | 6 | 6 | 1 | 4 |
UDR Connector | 2 | 6 | 6 | 1 | 4 |
CHF Connector/ User Service | 2 | 1 | 4 | 6 | 6 |
cnDBTier Microservices Resources
Table 3-245 CnDBTier Resource allocation
Service Name | Replicas | CPU Request per Pod (#) | CPU Limit per Pod (#) | Memory Request per Pod (Gi) | Memory Limit per Pod (Gi) |
---|---|---|---|---|---|
ndbappmysqld | 4 | 12 | 12 | 24 | 24 |
ndbmgmd | 2 | 4 | 4 | 10 | 10 |
ndbmtd | 8 | 8 | 8 | 42 | 42 |
db-infra-monitor-svc | 1 | 200 | 200 | 500 | 500 |
db-backup-manager-svc | 1 | 100 | 100 | 128 | 128 |
3.5.1.2 CPU Utilization
This section lists the CPU utilization for Policy and cnDBTier microservices. The CPU utilization is the ratio between the (total CPU utilization against total CPU request (X)) versus (target CPU Utilization (Y) configured for the pod).
Policy Microservices Resource Utilization
The following table describes the bench mark number as per the system maximum capacity utilization for Policy microservices.
The average CPU utilization is the ratio between the current usage of resource to the requested resources of the pod i.e., total sum of CPU utilized for service pods / total CPU requested for service pods.
Table 3-246 CPU/Memory Utilization by Policy Microservices
App/ Container | CPU | Memory |
---|---|---|
AppInfo | 3.80% | 24.71% |
Binding Service | 24.36% | 23.96% |
Diameter Connector | 29.76% | 49.39% |
CHF Connector | 33.37% | 39.40% |
Config Service | 3.14% | 42.07% |
Egress Gateway | 46.77% | 28.76% |
Ingress Gateway | 53.61% | 55.54% |
NRF Client NF Discovery | 0.07% | 31.45% |
NRF Client NF Management | 0.30% | 46.00% |
UDR Connector | 19.05% | 22.53% |
Audit Service | 0.15% | 46.29% |
CM Service | 0.47% | 34.08% |
PDS | 39.39% | 45.96% |
PRE Service | 19.81% | 85.36% |
Query Service | 0.05% | 25.83% |
AM Service | 0.05% | 13.18% |
SM Service | 57.00% | 89.29% |
UE Service | 0.40% | 34.96% |
Performance | 1.00% | 13.18% |
Observed CPU utilization Values of cnDBTier Services
The following table provides information about observed values of cnDBTier services.
Table 3-247 CPU/Memory Utilization by CnDBTier services
Service | CPU | Memory |
---|---|---|
ndbappmysqld/mysqlndbcluster | 60.41% | 38.09% |
ndbappmysqld/init-sidecar | 2.00% | 0.39% |
ndbmgmd/mysqlndbcluster | 0.18% | 20.12% |
ndbmgmd/db-infra-monitor-svc | 2.00% | 9.38% |
ndbmtd/mysqlndbcluster | 36.65% | 82.12% |
ndbmtd/db-backup-executor-svc | 0.10% | 2.31% |
ndbmtd/db-infra-monitor-svc | 2.37% | 9.08% |
ocpcf-oc-diam-gateway/diam-gateway | 18.56% | 35.06% |
3.5.1.3 Results
Table 3-248 Average latency observations
Scenario | Average Latency (ms) | Peak Latency (ms) |
---|---|---|
create-dnn_ims | 28.631 | 28.733 |
N7-dnn_internet_1st | 1527.421 | 2239.414 |
N7-dnn_internet_2nd | 1518.459 | 1990.823 |
N7-dnn_internet_3rd | 1567.876 | 1967.632 |
delete-dnn_ims | 14.595 | 14.666 |
Overall | 931.397 | 2239.414 |
Table 3-249 Average NF service latency
NF Service Latency ( In Seconds) | Avg |
---|---|
PCF_IGW_Latency | 0.01588 |
PCF_POLICYPDS_Latency | 0.01112 |
PCF_UDRCONNECTOR_Latency | 0.00237 |
PCF_NRFCLIENT_Latency | 0.00000 |
PCF_EGRESS_Latency | 0.00060 |
3.5.2 Test Scenario: PCF Call Model on Single-Site Setup, Handling 30K TPS Traffic with Binding Feature Disabled
This test was run to benchmark the performance and capacity of PCF call model with 30K traffic on a single site. For this setup, Aspen Service Mesh (ASM) was disabled, Binding feature was disabled.
3.5.2.1 Test Case and Setup Details
Testcase Parameters
The following table describes the testcase parameters and their values:
Parameters | Values |
---|---|
Call Rate (Ingress + Egress) | 30K TPS on a single site Non ASM PCF Setup |
ASM | Disable |
Traffic Ratio | IGW-11,EGW-26,Diam-in 9,Diam-Out 3IGW-11 ,EGW-26,Diam-in=9,Diam-out - 3 |
Deployment Model | PCF 1 at Site1 |
Project Details
The Policy Design editor based on the Blockly interface was used to set the Policy project for each of the Policy services. The complexity level of Policy Project configured for this run was High.
Complexity Level Definition:
- Low – No usage of loops in Blockly logic, no JSON operations, and no complex Java Script code in object expression/statement expression.
- Medium – Usage of loops in Blockly logic, Policy table wildcard match <= 3 fields, MatchList < 3, and 3 < RegEx match < 6
- High – JSON Operations – Custom, complex Java script code in object Expression/statement expression, Policy table wildcard match > 3 fields, MatchLists >= 3, and RegEx mat >= 6
Call Model
Table 3-250 Traffic distribution
Traffic | TPS |
---|---|
Ingress Gateway | 6637 |
Egress Gateway | 15988 |
Diam In | 5279 |
Diam out | 1844 |
Total | 29747 |
Table 3-251 Traffic distribution to Policy databases
Number of Entries | TPS |
---|---|
occnp_pcf_sm.AppSession | 132704 |
occnp_pcf_sm.SmPolicyAssociation | 434302 |
occnp_pcf_sm.SmPolicyAssociation$EX | 0 |
occnp_policyds.pdssubscriber | 434475 |
occnp_policyds.pdssubscriber$EX | 0 |
occnp_policyds.pdsprofile | 324110 |
occnp_policyds.pdsprofile$EX | 0 |
occnp_binding.contextbinding | 434668 |
ooccnp_binding.contextbinding$EX | 0 |
occnp_binding.dependentcontextbinding | 77294 |
occnp_binding.dependentcontextbinding$EX | 0 |
Table 3-252 Traffic distribution at Policy services
Policy Service | Avg TPS/MPS |
---|---|
Ingress Gateway(MPS) | 13294.09 |
Egress Gateway(MPS) | 30644.41 |
SM Service(MPS) | 46777.97 |
AM Service(MPS) | 0.00 |
UE Service(MPS) | 0.00 |
PDS(MPS) | 13115.32 |
CHF Connector(MPS) | 6452.53 |
UDR Connector(MPS) | 3638.04 |
Binding(MPS) | 0.00 |
Policy Configurations
Following PCF configurations were either enabled or disabled for running this call flow:
Table 3-253 Policy configurations
Name | Status |
---|---|
Bulwark | Disabled |
Binding | Disabled |
Subscriber State Variable (SSV) | Enabled |
Validate_user | Enabled |
Alternate Route | Enabled |
Audit | Enabled |
Compression (Binding & SM Service) | Disabled |
SYSTEM.COLLISION.DETECTION | Disabled |
Policy Interfaces
Following Policy interfaces were either enabled or disabled for running this call flow:
Table 3-254 Policy interfaces
Feature Name | Status |
---|---|
Subscriber Tracing[For 100 subscriber] | Enabled |
N36 UDR subscription (N7/N15-Nudr) | Enabled |
UDR on-demand nrf discovery | NA |
CHF (SM-Nchf) | Enabled |
BSF (N7-Nbsf) | NA |
AMF on demand nrf discovery | NA |
LDAP (Gx-LDAP) | NA |
Binding Feature | Disabled |
Policy Microservices Resources
Table 3-255 Policy microservices Resource allocation
Service Name | Replicas | CPU Request per Pod (#) | CPU Limit per Pod (#) | Memory Request per Pod (Gi) | Memory Limit per Pod (Gi) |
---|---|---|---|---|---|
Appinfo | 2 | 1 | 1 | 0.5 | 1 |
Binding Service | 2 | 6 | 6 | 8 | 8 |
Diameter Connector | 4 | 4 | 4 | 1 | 2 |
Diameter Gateway | 4 | 4 | 4 | 1 | 2 |
Audit Service | 1 | 2 | 2 | 4 | 4 |
CM Service | 1 | 4 | 4 | 0.5 | 2 |
Config Service | 1 | 4 | 4 | 0.5 | 2 |
Egress Gateway | 8 | 4 | 4 | 6 | 6 |
Ingress Gateway | 8 | 4 | 4 | 6 | 6 |
NRF Client NF Discovery | 1 | 4 | 4 | 0.5 | 2 |
NRF Client Management | 1 | 1 | 1 | 1 | 1 |
Query Service | 1 | 2 | 2 | 1 | 1 |
PRE | 13 | 4 | 4 | 4 | 4 |
SM Service | 9 | 8 | 8 | 6 | 6 |
PDS | 8 | 6 | 6 | 6 | 6 |
UDR Connector | 2 | 6 | 6 | 4 | 4 |
CHF Connector/ User Service | 2 | 6 | 6 | 4 | 4 |
cnDBTier Microservices Resources
Table 3-256 CnDBTier Resource allocation
Service Name | Replicas | CPU Request per Pod (#) | CPU Limit per Pod (#) | Memory Request per Pod (Gi) | Memory Limit per Pod (Gi) |
---|---|---|---|---|---|
ndbappmysqld | 4 | 12 | 12 | 28 | 28 |
ndbmgmd | 2 | 4 | 4 | 9 | 12 |
ndbmtd | 8 | 8 | 8 | 42 | 42 |
db-infra-monitor-svc | 1 | 200 | 200 | 500 | 500 |
db-backup-manager-svc | 1 | 100 | 100 | 128 | 128 |
3.5.2.2 CPU Utilization
This section lists the CPU utilization for Policy and cnDBTier microservices. The CPU utilization is the ratio between the (total CPU utilization against total CPU request (X)) versus (target CPU Utilization (Y) configured for the pod).
Policy Microservices Resource Utilization
The following table describes the bench mark number as per the system maximum capacity utilization for Policy microservices.
The average CPU utilization is the ratio between the current usage of resource to the requested resources of the pod i.e., total sum of CPU utilized for service pods / total CPU requested for service pods.
Table 3-257 CPU/Memory Utilization by Policy Microservices
App/ Container | CPU | Memory |
---|---|---|
AppInfo | 4.00% | 25.40% |
Diameter Connector | 39.80% | 75.70% |
CHF Connector | 57.30% | 58.90% |
Config Service | 2.78% | 3.60% |
Egress Gateway | 47.50% | 26.90% |
Ingress Gateway | 53.60% | 42.42% |
NRF Client NF Discovery | 0.102% | 33.59% |
NRF Client NF Management | 0.214% | 41.6% |
UDR Connector | 25.50% | 71.90% |
Audit Service | 0.669% | 46.3% |
CM Service | 0.38% | 34.16% |
PDS | 48.67% | 64.20% |
PRE Service | 15.9% | 49.6% |
Query Service | 0.0357% | 25.12% |
AM Service | 0.02% | 14.96% |
SM Service | 64.60% | 76.23% |
UE Service | 0.387% | 34.57% |
Observed CPU utilization Values of cnDBTier Services
The following table provides information about observed values of cnDBTier services.
Table 3-258 CPU/Memory Utilization by CnDBTier services
Service | CPU | Memory |
---|---|---|
ndbappmysqld/mysqlndbcluster | 51.50% | 44.70% |
ndbmgmd/db-infra-monitor-svc | 10.30% | 16.90% |
ndbmtd/mysqlndbcluster | 35.1% | 72.60% |
ndbmtd/db-backup-executor-svc | 35.1% | 2.32% |
ndbmtd/db-infra-monitor-svc | 35.1% | 13.60% |
3.5.2.3 Results
Table 3-259 Average latency observations
Scenario | Average Latency (ms) | Peak Latency (ms) |
---|---|---|
create-dnn_ims | 54.142 | 66.775 |
N7-dnn_internet_1st | 20.316 | 22.226 |
N7-dnn_internet_2nd | 23.517 | 26.133 |
N7-dnn_internet_3rd | 20.071 | 21.323 |
delete-dnn_ims | 29.722 | 47.689 |
Overall | 29.554 | 66.775 |
Table 3-260 Average NF service latency
NF Service Latency ( In Seconds) | Avg |
---|---|
PCF_IGW_Latency | 17.45 |
PCF_POLICYPDS_Latency | 16.85 |
PCF_UDRCONNECTOR_Latency | 2.19 |
PCF_NRFCLIENT_Latency | 0.00 |
PCF_EGRESS_Latency | 0.51 |
3.6 PCF Call Model 6
3.6.1 Test Scenario: 10K TPS Diameter Ingress Gateway and 17K TPS Egress Gateway TPS Traffic with Usage Monitoring Enabled
Figure 3-2 Policy Deployment in a single site Setup:

3.6.1.1 Test Case and Setup Details
Testcase Parameters
The following table describes the testcase parameters and their values:
Parameters | Values |
---|---|
Call Rate (Ingress + Egress) | 27K TPS on a single site Non ASM PCF Setup |
ASM | Disable |
Traffic Ratio | PCF 10K Diameter Ingress Gateway TPS and 17K Egress Gateway TPS |
Deployment Model | PCF as a standalone |
Project Details
The Policy Design editor based on the Blockly interface was used to set the Policy project for each of the Policy services. The complexity level of Policy Project configured for this run was High.
Complexity Level Definition:
- Low – No usage of loops in Blockly logic, no JSON operations, and no complex Java Script code in object expression/statement expression.
- Medium – Usage of loops in Blockly logic, Policy table wildcard match <= 3 fields, MatchList < 3, and 3 < RegEx match < 6
- High – JSON Operations – Custom, complex Java script code in object Expression/statement expression, Policy table wildcard match > 3 fields, MatchLists >= 3, and RegEx mat >= 6
Call Model
Table 3-261 Traffic distribution
Traffic | TPS |
---|---|
Ingress Gateway | 1000 |
Egress Gateway | 17000 |
Diam In | 10000 |
Diam out | 0 |
Total | 29747 |
Table 3-262 Traffic distribution to Policy databases
Number of Entries | TPS |
---|---|
occnp_policyds.pdssubscriber | 3084338 |
occnp_policyds.pdssubscriber$EX | 0 |
occnp_policyds.pdsprofile | 2278801 |
occnp_policyds.pdsprofile$EX | 0 |
occnp_binding.contextbinding | 82382 |
ooccnp_binding.contextbinding$EX | 0 |
occnp_binding.dependentcontextbinding | 0 |
occnp_binding.dependentcontextbinding$EX | 0 |
occnp_pcrf_core.gxsession | 82351 |
occnp_pcrf_core.gxsession$EX | 0 |
occnp_usagemon.UmContext | 737281 |
occnp_usagemon.UmContext$EX | 0 |
Policy Configurations
Following PCF configurations were either enabled or disabled for running this call flow:
Table 3-263 Policy configurations
Name | Status |
---|---|
Binding | Disabled |
Validate_user | Enabled |
Usage Monitoring | Enabled |
PRE | Enabled |
Policy Interfaces
Following Policy interfaces were either enabled or disabled for running this call flow:
Table 3-264 Policy interfaces
Feature Name | Status |
---|---|
N36 UDR subscription (N7/N15-Nudr) | Enabled |
UDR on-demand nrf discovery | Disabled |
LDAP (Gx-LDAP) | NA |
Binding Feature | Disabled |
Policy Microservices Resources
Table 3-265 Policy microservices Resource allocation
Service Name | Replicas | CPU Request per Pod (#) | CPU Limit per Pod (#) | Memory Request per Pod (Gi) | Memory Limit per Pod (Gi) |
---|---|---|---|---|---|
Appinfo | 2 | 1 | 1 | 1 | 1 |
Binding Service | 10 | 1 | 1 | 1 | 1 |
Diameter Connector | 4 | 4 | 4 | 2 | 2 |
Diameter Gateway | 2 | 4 | 4 | 2 | 2 |
Config Service | 1 | 4 | 4 | 2 | 2 |
Egress Gateway | 8 | 4 | 4 | 6 | 6 |
LDAP Gateway | 0 | 3 | 4 | 1 | 2 |
Ingress Gateway | 8 | 1 | 1 | 1 | 1 |
NRF Client NF Discovery | 1 | 1 | 1 | 1 | 1 |
NRF Client Management | 1 | 1 | 1 | 1 | 1 |
Audit Service | 1 | 2 | 2 | 4 | 4 |
CM Service | 1 | 4 | 4 | 0.5 | 2 |
PDS | 8 | 6 | 6 | 6 | 6 |
PRE | 13 | 4 | 4 | 4 | 4 |
Query Service | 1 | 2 | 2 | 1 | 1 |
SM Service | 9 | 8 | 8 | 6 | 6 |
PCRF-Core | 10 | 8 | 8 | 8 | 8 |
Usage Monitoring | 16 | 8 | 8 | 4 | 4 |
Performance | 2 | 1 | 1 | 0.5 | 1 |
UDR Connector | 10 | 6 | 6 | 4 | 4 |
cnDBTier Microservices Resources
Table 3-266 CnDBTier Resource allocation
Service Name | Replicas | CPU Request per Pod (#) | CPU Limit per Pod (#) | Memory Request per Pod (Gi) | Memory Limit per Pod (Gi) |
---|---|---|---|---|---|
ndbappmysqld | 6 | 12 | 12 | 20 | 20 |
ndbmgmd | 2 | 4 | 4 | 8 | 10 |
ndbmtd | 6 | 12 | 12 | 75 | 75 |
ndbmysqld | 2 | 4 | 4 | 16 | 16 |
db-infra-monitor-svc | 1 | 4 | 4 | 4 | 4 |
db-backup-manager-svc | 1 | 0.1 | 0.1 | 0.128 | 0.128 |
3.6.1.2 CPU Utilization
This section lists the CPU utilization for Policy and cnDBTier microservices. The CPU utilization is the ratio between the (total CPU utilization against total CPU request (X)) versus (target CPU Utilization (Y) configured for the pod).
Policy Microservices Resource Utilization
The following table describes the bench mark number as per the system maximum capacity utilization for Policy microservices.
The average CPU utilization is the ratio between the current usage of resource to the requested resources of the pod i.e., total sum of CPU utilized for service pods / total CPU requested for service pods.
Table 3-267 CPU/Memory Utilization by Policy Microservices
App/ Container | CPU | Memory |
---|---|---|
AppInfo | 3.00% | 25.00% |
Diameter Connector | 1.00% | 12.00% |
Diameter Gateway | 18.60% | 18.00% |
Config Service | 5.00% | 19.00% |
Egress Gateway | 7.00% | 18.00% |
Ingress Gateway | 0.00% | 10.00% |
NRF Client NF Discovery | 0.00% | 33.59% |
NRF Client NF Management | 0.00% | 45.00% |
UDR Connector | 5.00% | 24.00% |
Audit Service | 0.00% | 28.70% |
CM Service | 3.50% | 38.00% |
PDS | 6.00% | 28.00% |
PRE Service | 8.00% | 48.00% |
Query Service | 0.00% | 23.00% |
SM Service | 0.00% | 14.00% |
Usage Monitoring | 5.00% | 67.00% |
Observed CPU utilization Values of cnDBTier Services
The following table provides information about observed values of cnDBTier services.
Table 3-268 CPU/Memory Utilization by CnDBTier services
Service | CPU | Memory |
---|---|---|
ndbappmysqld/mysqlndbcluster | 51.50% | 44.70% |
ndbmgmd/db-infra-monitor-svc | 10.30% | 16.90% |
ndbmtd/mysqlndbcluster | 35.1% | 72.60% |
ndbmtd/db-backup-executor-svc | 35.1% | 2.32% |
ndbmtd/db-infra-monitor-svc | 35.1% | 13.60% |
3.6.1.3 Results
Table 3-269 Average latency observations
Scenario | Average Latency (ms) | Peak Latency (ms) |
---|---|---|
Gx-init | 130 | 260 |
Gx-Update_1st | 103 | 207 |
Gx-Update_2nd | 104 | 209 |
Gx-Update_3rd | 104 | 208 |
Gx-Terminate | 86 | 172 |
Overall | 105 | 211 |
Table 3-270 Average NF service latency
NF Service Latency( In Seconds) | Avg (ms) |
---|---|
Ingress Gateway | 31.8 |
PDS | 83.8 |
UDR | 22.4 |
Binding | 51.8 |
Egress Gateway | 20.4 |
Usage-Mon | 94.4 |
PCRF-Core | 3.84 |
Diameter Gateway | 124 |
PRE | 123 |
