2 Installing NRF

This chapter provides information about installing Oracle Communications Cloud Native Core, Network Repository Function (NRF) in a cloud native environment using Command Line Interface (CLI) procedures.

CLI provides an interface to run various commands required for NRF deployment processes.

The NRF installation is supported over the following platforms:

• Oracle Communications Cloud Native Core, Cloud Native Environment (CNE) - For more information about CNE, see Oracle Communications Cloud Native Core, Cloud Native Environment Installation, Upgrade, and Fault Recovery Guide.
• Oracle Cloud Infrastructure (OCI) - For more information about OCI, see Oracle Communications Cloud Native Core OCI Adaptor, NF Deployment on OCI Guide.

Note:

NRF supports fresh installation, and it can also be upgraded from 25.1.2xx, 25.1.1xx to 25.2.201. For more information on how to upgrade NRF, see the Upgrading NRF section.

NRF installation comprises of prerequisites, preinstallation, installation, and postinstallation tasks. You must perform NRF installation tasks in the same sequence as outlined in the following table:

Table 2-1 NRF Installation Sequence

Installation Sequence	Applicable for CNE Deployment (CLI)	Applicable for OCI Deployment
Prerequisites	Yes	Yes
Software Requirements	Yes	Yes
Environment Setup Requirements	Yes	Yes
Resource Requirements	Yes	Yes
Preinstallation Tasks	Yes	Yes
Downloading the NRF package	Yes	Yes
Pushing the Images to Customer Docker Registry	Yes	No
Pushing the NRF Images to OCI Docker Registry	No	Yes
Verifying and Creating Namespace	Yes	Yes
Creating Service Account, Role, and RoleBinding	Yes	Yes
Configuring Database, Creating Users, and Granting Permissions	Yes	Yes
Configuring Kubernetes Secret for Accessing NRF Database	Yes	Yes
Configuring Secrets for Enabling HTTPS	Yes	Yes
Configuring Secret for Enabling CCA Header	Yes	Yes
Configuring Secret to Enable Access Token Service	Yes	Yes
Configuring NRF to Support ASM	Yes	Yes
Creating Secrets for DNS NAPTR - Alternate route service	Yes	Yes
Configuring Network Policies	Yes	Yes
Installation Tasks	Yes	Yes
Postinstallation Tasks	Yes	Yes

2.1 Prerequisites

Before installing and configuring NRF, ensure that the following prerequisites are met.

2.1.1 Software Requirements

This section lists the software that must be installed before installing NRF:

Note:

Tables Table 2-2 and Table 2-4 in this section offer a comprehensive list of software necessary for the proper functioning of NRF during deployment. However, these tables are indicative, and the software used can vary based on the customer's specific requirements and solution.

The Software Requirement column in Table 2-2 and Table 2-4 tables indicates one of the following:

• Mandatory: Absolutely essential; the software cannot function without it.
• Recommended: Suggested for optimal performance or best practices but not strictly necessary.
• Conditional: Required only under specific conditions or configurations.
• Optional: Not essential; can be included based on specific use cases or preferences.

Table 2-2 Preinstalled Software Versions

Software	25.2.2xx	25.1.2xx	25.1.1xx	Software Requirement	Usage Description
Helm	3.19.1	3.17.1	3.16.2	Mandatory	Helm, a package manager, simplifies deploying and managing NFs on Kubernetes with reusable, versioned charts for easy automation and scaling. Impact: Preinstallation is required. Without this capability, management of NF versions and configurations becomes time-consuming and error-prone, impacting deployment consistency.
Kubernetes	1.34.1	1.32.0	1.31.0	Mandatory	Kubernetes orchestrates scalable, automated NF deployments for high availability and efficient resource utilization. Impact: Preinstallation is required. Without orchestration capabilities, deploying and managing network functions (NFs) can become complex, leading to inefficient resource utilization and potential downtime.
Podman	5.6.0	5.2.2	5.2.2	Recommended	Podman is a part of Oracle Linux. It manages and runs containerized NFs without requiring a daemon, offering flexibility and compatibility with Kubernetes. Impact: Preinstallation is required. Without efficient container management, the development and deployment of NFs could become cumbersome, impacting agility.

Table 2-3 Preinstalled Software

Software	Version
OKE (on OCI)	1.27.x

Note:

NRF 25.2.201 supports OKE managed clusters on OCI.

To check the versions for the preinstalled software in the cloud native environment, run the following commands:

kubectl version

helm version

podman version

Note:

This guide covers the installation instructions for NRF when Podman is the container platform with Helm as the Packaging Manager. For non-CNE, the operator can use commands based on their deployed Container Runtime Environment, see Oracle Communications Cloud Native Core, Cloud Native Core Installation, Upgrade, and Fault Recovery Guide.

If you are deploying NRF in a cloud native environment, these following additional software are to be installed before installing NRF.

Table 2-4 Additional Software Versions

Software	25.2.2xx	25.1.2xx	25.1.1xx	Software Requirement	Usage Description
AlertManager	0.28.0	0.28.0	0.27.0	Recommended	Alertmanager is a component that works in conjunction with Prometheus to manage and dispatch alerts. It handles the routing and notification of alerts to various receivers. Impact: Not implementing alerting mechanisms can lead to delayed responses to critical issues, potentially resulting in service outages or degraded performance.
Calico	3.30.3	3.29.1	3.28.1	Recommended	Calico provides networking and security for NFs in Kubernetes, ensuring scalable, policy-driven connectivity. Impact: Calico is a popular Container Network Interface (CNI) and CNI is mandatory for the functioning of 5G NFs. Without a CNI plugin, the network could witness security vulnerabilities and inadequate traffic management, impacting the reliability of NF communications.
cinder-csi-plugin	1.33.0	1.32.0	1.31.1	Mandatory	Cinder CSI (Container Storage Interface) plugin is used for provisioning and managing block storage in Kubernetes. It is often used in OpenStack environments to provide persistent storage for containerized applications. Impact: Without the CSI plugin, provisioning block storage for NFs would be manual and inefficient, complicating storage management.
containerd	2.0.5	1.7.24	1.7.22	Recommended	Containerd manages container lifecycles to run NFs efficiently in Kubernetes. Impact: A lack of a reliable container runtime could lead to performance issues and instability in NF operations.
CoreDNS	1.12.0	1.11.13	1.11.1	Recommended	CoreDNS is the DNS server in Kubernetes, which provides DNS resolution services within the cluster. Impact: DNS is an essential part of deployment. Without proper service discovery, NFs would struggle to communicate with each other, leading to connectivity issues and operational failures.
Fluentd	1.17.1	1.17.1	1.17.1	Recommended	Fluentd is an open source data collector that streamlines data collection and consumption, ensuring improved data utilization and comprehension. Impact: Not utilizing centralized logging can hinder the ability to track NF activity and troubleshoot issues effectively, complicating maintenance and support.
Grafana	7.5.17	9.5.3	9.5.3	Recommended	Grafana is a popular open source platform for monitoring and observability. It provides a user-friendly interface for creating and viewing dashboards based on various data sources. Impact: Without visualization tools, interpreting complex metrics and gaining insights into NF performance would be cumbersome, affecting effective management.
Jaeger	1.72.0	1.65.0	1.60.0	Recommended	Jaeger provides distributed tracing for 5G NFs, enabling performance monitoring and troubleshooting across microservices. Impact: Not utilizing distributed tracing may hinder the ability to diagnose performance bottlenecks, making it challenging to optimize NF interactions and user experience.
Kyverno	1.15.0	1.13.4	1.12.5	Recommended	Kyverno is a Kubernetes policy engine that allows to manage and enforce policies for resource configurations within a Kubernetes cluster. Impact: Without the policy enforcement, there could be misconfigurations, resulting in security risks and instability in NF operations, affecting reliability.
MetalLB	0.15.2	0.14.4	0.14.4	Recommended	MetalLB is used as a load balancing solution in CNE, which is mandatory for the solution to work. MetalLB provides load balancing and external IP management for 5G NFs in Kubernetes environments. Impact: Without load balancing, traffic distribution among NFs may be inefficient, leading to potential bottlenecks and service degradation.
metrics-server	0.7.2	0.7.2	0.7.2	Recommended	Metrics server is used in Kubernetes for collecting resource usage data from pods and nodes. Impact: Without resource metrics, auto-scaling and resource optimization would be limited, potentially leading to resource contention or underutilization.
Multus	4.2.1-thick	4.1.3	3.8.0	Recommended	Multus enables multiple network interfaces in Kubernetes pods, allowing custom configurations and isolated paths for advanced use cases such as NF deployments, ultimately supporting traffic segregation. Impact: Without this capability, connecting NFs to multiple networks could be limited, impacting network performance and isolation.
OpenSearch	2.18.0	2.15.0	2.11.0	Recommended	OpenSearch provides scalable search and analytics for 5G NFs, enabling efficient data exploration and visualization. Impact: Without a robust analytics solution, there would be difficulties in identifying performance issues and optimizing NF operations, affecting overall service quality.
OpenSearch Dashboard	2.18.0	2.15.0	2.11.0	Recommended	OpenSearch dashboard visualizes and analyzes data for 5G NFs, offering interactive insights and custom reporting. Impact: Without visualization capabilities, understanding NF performance metrics and trends would be difficult, limiting informed decision making.
Prometheus	3.6.0	3.2.0	2.52.0	Mandatory	Prometheus is a popular open source monitoring and alerting toolkit. It collects and stores metrics from various sources and allows for alerting and querying. Impact: Not employing this monitoring solution could result in a lack of visibility into NF performance, making it difficult to troubleshoot issues and optimize resource usage.
prometheus-kube-state-metric	2.16.0	2.15.0	2.13.0	Recommended	Kube-state-metrics is a service that generates metrics about the state of various resources in a Kubernetes cluster. It's commonly used for monitoring and alerting purposes. Impact: Without these metrics, monitoring the health and performance of NFs could be challenging, making it harder to proactively address issues.
prometheus-node-exporter	1.9.1	1.8.2	1.8.2	Recommended	Prometheus Node Exporter collects hardware and OS-level metrics from Linux hosts. Impact: Without node-level metrics, visibility into infrastructure performance would be limited, complicating the identification of resource bottlenecks.
Prometheus Operator	0.83.0	0.80.1	0.76.0	Recommended	The Prometheus Operator is used for managing Prometheus monitoring systems in Kubernetes. Prometheus Operator simplifies the configuration and management of Prometheus instances. Impact: Not using this operator could complicate the setup and management of monitoring solutions, increasing the risk of missed performance insights.
rook	1.16.7	1.16.6	1.15.2	Mandatory	rook is the ceph orchestrator for Kubernetes, which provides storage solutions. It is used in BareMetal CNE solution. Impact: Not utilizing rook could increase the complexity of deploying and managing ceph, making it difficult to scale storage solutions in a Kubernetes environment.
snmp-notifier	2.0.0	1.6.1	1.5.0	Recommended	snmp-notifier sends SNMP alerts for 5G NFs, providing real-time notifications for network events. Impact: Without SNMP notifications, proactive monitoring of NF health and performance could be compromised, delaying response to critical issues.
Velero	1.13.2	1.13.2	1.13.2	Recommended	Velero backs up and restores Kubernetes clusters for 5G NFs, ensuring data protection and disaster recovery. Impact: Without backup and recovery capabilities, customers would witness a risk of data loss and extended downtime, requiring a full cluster reinstall in case of failure or upgrade.

Note:

On OCI, the Prometheus Operator is not required. Metrics and alerts will be managed using OCI monitoring and alarm services. For more information, see Oracle Communications Cloud Native Core OCI Adaptor, NF Deployment in OCI.

2.1.2 Environment Setup Requirements

This section describes the environment setup requirements for installing NRF.

2.1.2.1 Client Machine Requirement

This section describes the requirements for client machine, that is, the machine used by the user to run deployment commands.

The client machine should have:

• Helm repository configured.
• network access to the Helm repository and Docker image repository.
• network access to the Kubernetes cluster.
• required environment settings to run the docker or podman, and kubectl, commands. The environment must have the privileges to create a namespace in the Kubernetes cluster.
• Helm client installed with the push plugin. Configure the environment in such a manner that the helm install command deploys the software in the Kubernetes cluster.

2.1.2.2 Network Access Requirement

The Kubernetes cluster hosts must have network access to the following:

• Local Helm repository: It contains the NRF Helm charts.
  To check if the Kubernetes cluster hosts can access the local Helm repository, run the following command:

  helm repo update

• Local Docker image repository: It contains the NRF Docker images.
  To check if the Kubernetes cluster hosts can access the local Docker image repository, pull any image with an image-tag using either of the following commands:

  podman pull <podman-repo>/<image-name>:<image-tag>

  docker pull <docker-repo>/<image-name>:<image-tag>

  Where:
  • <podman-repo> is the IP address or host name of the Podman repository.
  • <docker-repo> is the IP address or host name of the Docker repository.
  • <image-name> is the Docker image name.
  • <image-tag> is the tag assigned to the Docker image used for the NRF pod.
  For example:

  podman pull bumblebee-bastion-1:5000/occne/ocnrf/ocnrf-nfaccesstoken:25.2.201

  docker pull bumblebee-bastion-1:5000/occne/ocnrf/ocnrf-nfaccesstoken:25.2.201

Note:

Run the kubectl and helm commands on a system based on the deployment infrastructure. For instance, they can be run on a client machine such as VM, server, local desktop, and so on.

2.1.2.3 Server or Space Requirement

For information about the server or space requirements, see Oracle Communications Cloud Native Core, Cloud Native Environment Installation, Upgrade, and Fault Recovery Guide.

2.1.2.4 CNE Requirement

This section is applicable only if you are installing NRF on Cloud Native Environment (CNE). NRF supports CNE 25.2.2xx, 25.1.2xx, 25.1.1xx.

To check the CNE version, run the following command:

echo $OCCNE_VERSION

For more information about CNE, see Oracle Communications Cloud Native Core, Cloud Native Environment Installation, Upgrade, and Fault Recovery Guide.

2.1.2.5 cnDBTier Requirement

NRF supports cnDBTier 25.2.2xx, 25.1.2xx. cnDBTier must be configured and running before installing NRF. For more information about cnDBTier installation procedure, see Oracle Communications Cloud Native Core, cnDBTier Installation, Upgrade, and Fault Recovery Guide.

For more information about the cnDBTier customizations required for NRF, see the ocnrf_dbtier_CNDBTIER_VERSION_custom_values_NRF_VERSION.yaml file.

For more information about the resource requirement, see cnDBTier Resource Requirement.

Note:

In georedundant deployment, each site must have a dedicated cnDBTier.

Recommended cnDBTier Configurations

Following are the modified or additional parameters for cnDBTier:

Table 2-5 cnDBTier Parameters

Parameter	Modified or Added	Default Value	Recommended Value
global.additionalndbconfigurations.ndb.NoOfFragmentLogFiles	Modified	128	32
global.ndb.datamemory	Modified	12G	2G
global.additionalndbconfigurations.ndb.MaxNoOfExecutionThreads	Modified	8	6
global.additionalndbconfigurations.mysqld.ndb_batch_size	Modified	2000000	2147483648
global.additionalndbconfigurations.mysqld.ndb_blob_write_batch_bytes	Modified	2000000	1073741824
global.additionalndbconfigurations.replmysqld.ndb_eventbuffer_max_alloc	Modified	0	1610612736
global.api.binlogpurgetimer	Modified	600s	20000
global.api.binlogpurgesizecheckpercentage	Added	NA	10
global.api.binlogretentionsizepercentage	Added	NA	90
global.api.max_binlog_size	Modified	1073741824	1717986918
api.logrotate.rotateSize	Added	NA	50
api.logrotate.rotateQueryLogSize	Added	NA	200
api.logrotate.checkInterval	Added	NA	100
api.logrotate.maxRotateCounter	Added	NA	2
api.logrotate.maxRotateQueryLogCounter	Added	NA	5
global.additionalndbconfigurations.ndb.MaxNoOfOrderedIndexes	Modified	1024	5120
global.additionalndbconfigurations.mysqld.ndb_eventbuffer_max_alloc	Modified	0	1610612736
global.additionalndbconfigurations.mysqld.ndb_allow_copying_alter_table	Modified	OFF	ON
global.additionalndbconfigurations.ndb.MaxNoOfConcurrentScans	Modified	256	495
global.storageClassName	Modified	occne-dbtier-sc	standard
db-replication-svc.useClusterIpForReplication	Modified	false	true
db-backup-manager-svc.scheduler.cronjobExpression	Modified	0 0 */7 * *	0 0 * * *
global.geoReplicationRecovery.backupFailedSite.enable	Modified	false	true
global.additionalndbconfigurations.ndb.MaxNoOfAttributes	Modified	5000	14336
global.additionalndbconfigurations.mgm.TotalSendBufferMemory	Modified	16M	208M
global.additionalndbconfigurations.ndb.TotalSendBufferMemory	Modified	32M	24M
global.additionalndbconfigurations.ndb.MaxNoOfTables	Modified	1024	3072
global.additionalndbconfigurations.api.TotalSendBufferMemory	Modified	32M	16M
global.additionalndbconfigurations.tcpemptyapi.TotalSendBufferMemory	Modified	32M	400M
global.additionalndbconfigurations.tcpemptyapi.SendBufferMemory	Modified	2M	84M
global.additionalndbconfigurations.ndb.ndbdisksize	Modified	60Gi	4Gi
global.additionalndbconfigurations.ndb.ndbbackupdisksize	Modified	60Gi	5Gi
global.additionalndbconfigurations.ndb.datamemory	Modified	12G	2G
global.additionalndbconfigurations.ndb.retainbackupno	Modified	3	2
global.additionalndbconfigurations.api.ndbdisksize	Modified	100Gi	90Gi
global.additionalndbconfigurations.ndb.MaxNoOfUniqueHashIndexes	Added	NA	16K
global.ndb.delayPerDataPod	Added	NA	60

Note:

The values for certain attributes which are mentioned above cannot be changed as part of cnDBTier software upgrade. This has to be performed as separate upgrades. For more information, see "Rolling Back cnDBTier" section in Oracle Communications Cloud Native Core, cnDBTier Installation, Upgrade, and Fault Recovery Guide.

2.1.2.6 OCCM Requirements

NRF supports OCCM 25.2.2xx. To support automated certificate lifecycle management, NRF integrates with Oracle Communications Cloud Native Core, Certificate Management (OCCM) in compliance with 3GPP security recommendations. For more information about OCCM in NRF, see the "Support for Automated Certificate Lifecycle Management" section in Oracle Communications Cloud Native Core, Network Repository Function User Guide.

For more information about OCCM, see the following guides:

• Oracle Communications Cloud Native Core, Certificate Manager Installation, Upgrade, and Fault Recovery Guide
• Oracle Communications Cloud Native Core, Certificate Manager User Guide

2.1.2.7 OCI Requirements

NRF can be deployed in OCI.

While deploying NRF in OCI, the user must use the Operator instance/VM instead of Bastion Host.

For more information about OCI deployment, see Oracle Communications Cloud Native Core, OCI Deployment Guide.

2.1.2.8 OSO Requirement

NRF supports Operations Services Overlay (OSO) 25.2.2xx, 25.1.2xx for common operation services (Prometheus and components such as alertmanager, pushgateway) on a Kubernetes cluster, which does not have these common services. For more information about OSO installation, see Oracle Communications Cloud Native Core, Operations Services Overlay Installation and Upgrade Guide.

2.1.2.9 CNC Console Requirements

NRF supports CNC Console 25.2.2xx to configure and manage Network Functions.

For more information, see Oracle Communications Cloud Native Configuration Console Installation, Upgrade, and Fault Recovery Guide .

Note:

Before starting the CNC Console installation or upgrade, ensure that the cnDBTier across all sites is updated with the latest maximum limit values. The ocnrf_dbtier_CNDBTIER_VERSION_custom_values_NRF_VERSION.yaml file is populated with the updated values and hence can be used as such for the same. For cnDBTier limit references, see the values of the following parameters in Table 2-5:

• MaxNoOfAttributes
• MaxNoOfOrderedIndexes
• MaxNoOfTables
• MaxNoOfUniqueHashIndexes

If your deployment shares a cnDBTier between NRF and the CNC Console, the NRF DB profile sizing should incorporate the CNC Console DB profile requirements, along with the new cnDBTier maximum limit values.

2.1.3 Resource Requirements

This section lists the resource requirements to install and run NRF.

Note:

The performance and capacity of the NRF system may vary based on the call model, Feature or Interface configuration, and underlying CNE and hardware environment.

2.1.3.1 NRF Resource Requirement

This section provides the resource requirement for NRF deployment.

2.1.3.1.1 NRF Services

Table 2-6 NRF Services Resource Requirements

Service Name	Min Pod Replica	Min CPU/Pod	Max CPU/Pod	Min Memory/Pod (in Gi)	Max Memory/Pod (in Gi)	Min (Mi) Ephemeral Storage	Max (Gi) Ephemeral Storage
Helm test	1	1	2	1	2	78.1	1
<helm-release-name>-nfregistration	2	4	4	3	3	78.1	1
<helm-release-name>-nfdiscovery	2	8	8	5	5	78.1	2
<helm-release-name>-nfsubscription	2	2	2	3	3	78.1	1
<helm-release-name>-nrfauditor	2	2	2	3	3	78.1	1
<helm-release-name>-nrfconfiguration	1	2	2	2	2	78.1	1
<helm-release-name>-nfaccesstoken	2	2	2	2	2	78.1	1
<helm-release-name>-nrfartisan	1	2	2	2	2	78.1	1
<helm-release-name>-nrfcachedata	2	4	4	4	4	78.1	1
<helm-release-name>-ingressgateway	2	4	4	5	5	78.1	1
<helm-release-name>-egressgateway	2	4	4	4	4	78.1	1
<helm-release-name>-alternate-route	2	2	2	4	4	78.1	1
<helm-release-name>-appinfo	2	1	1	1	1	78.1	1
<helm-release-name>-perfinfo	2	1	1	1	1	78.1	1

Where, <helm-release-name> is prefixed in each microservice name. For example, if helm-release-name is "ocnrf", then nfregistration microservice name is "ocnrf-nfregistration".

2.1.3.1.2 Upgrade

Table 2-7 Upgrade Resource Requirements

Service Name	Pod replica		CPU/Pod		Memory/Pod (in Gi)
	Min	Max	Min	Max	Min	Max
Helm test	0	0	0	0	0	0
<helm-release-name>-nfregistration	1	1	2	2	3	3
<helm-release-name>-nfdiscovery	1	11	4	4	3	3
<helm-release-name>-nfsubscription	1	1	2	2	3	3
<helm-release-name>-nrfauditor	1	1	2	2	3	3
<helm-release-name>-nrfconfiguration	1	1	2	2	2	2
<helm-release-name>-nfaccesstoken	1	1	2	2	2	2
<helm-release-name>-nrfartisan	1	1	2	2	2	2
<helm-release-name>-nrfcachedata	1	1	4	4	3	3
<helm-release-name>-ingressgateway	1	5	4	4	4	4
<helm-release-name>-egressgateway	1	3	4	4	4	4
<helm-release-name>-alternate-route	1	1	2	2	4	4
<helm-release-name>-appinfo	1	1	1	1	1	1
<helm-release-name>-perfinfo	1	1	1	1	1	1

2.1.3.1.3 Common Services Container

Ingress or Egress Gateway services use Init Container service to get private keys, CA Root Certificate for TLS during start up, and other certificates for NRF.

Table 2-8 Resources for Containers

Container Name	CPU Request and Limit Per Container	Memory Request and Limit Per Container	Kubernetes Init Container (Job)
init-service	1 cpu	1 gb	Yes

2.1.3.1.4 Service Mesh Sidecar

NRF leverages the Platform Service Mesh (for example, Aspen Service Mesh) for all internal and external TLS communication. If ASM Sidecar injection is enabled during NRF deployment or upgrade, this container is injected to each pod (or selected pod, depending on the option chosen during deployment or upgrade). These containers stay till pod or deployment exist.

Table 2-9 Service Mesh Sidecar Resource Requirements

Service Name	CPU/Pod		Memory/Pod (in G)		Concurrency
	Min	Max	Min	Max
Helm test	0	0	0	0	NA
<helm-release-name>-nfregistration	2	2	3	3	2
<helm-release-name>-nfdiscovery	2	2	3	3	4
<helm-release-name>-nfsubscription	2	2	3	3	2
<helm-release-name>-nrfauditor	2	2	3	3	2
<helm-release-name>-nrfconfiguration	2	2	3	3	2
<helm-release-name>-nfaccesstoken	2	2	3	3	2
<helm-release-name>-nrfartisan	2	2	3	3	2
<helm-release-name>-nrfcachedata	2	2	3	3	2
<helm-release-name>-ingressgateway	4	4	3	3	8
<helm-release-name>-egressgateway	4	4	3	3	8
<helm-release-name>-alternate-route	2	2	3	3	2
<helm-release-name>-appinfo	2	2	3	3	2
<helm-release-name>-perfinfo	2	2	3	3	2

2.1.3.1.5 Debug Tool Container

The Debug Tools Container provides third-party troubleshooting tools for debugging the runtime issues in a lab environment. If Debug Tool Container injection is enabled during NRF deployment or upgrade, this container is injected to each NRF pod (or selected pod, depending on the option chosen during deployment or upgrade). These containers stay till pod or deployment exist. For more information about Debug Tool, see Oracle Communications Cloud Native Core, Network Repository Function Troubleshooting Guide.

Table 2-10 Debug Tool Container Resource Requirements

Service Name	CPU/Pod		Memory/Pod (in G)		Ephemeral Storage
	Min	Max	Min	Max	Min (Mi)	Max (Gi)
Helm test	0	0	0	0	512	0.5
<helm-release-name>-nfregistration	0.5	0.5	1	2	512	0.5
<helm-release-name>-nfdiscovery	0.5	0.5	1	2	512	0.5
<helm-release-name>-nfsubscription	0.5	0.5	1	2	512	0.5
<helm-release-name>-nrfauditor	0.5	0.5	1	2	512	0.5
<helm-release-name>-nrfconfiguration	0.5	0.5	1	2	512	0.5
<helm-release-name>-nfaccesstoken	0.5	0.5	1	2	512	0.5
<helm-release-name>-nrfartisan	0.5	0.5	1	2	512	0.5
<helm-release-name>-nrfcachedata	0.5	0.5	1	2	512	0.5
<helm-release-name>-ingressgateway	0.5	0.5	1	2	512	0.5
<helm-release-name>-egressgateway	0.5	0.5	1	2	512	0.5
<helm-release-name>-alternate-route	0.5	0.5	1	2	512	0.5
<helm-release-name>-appinfo	0.5	0.5	1	2	512	0.5
<helm-release-name>-perfinfo	0.5	0.5	1	2	512	0.5

Note:

<helm-release-name> is the Helm release name. For example, if helm-release-name is "ocnrf", then nfsubscription microservice name will be "ocnrf-nfsubscription".

2.1.3.1.6 NRF Hooks

Table 2-11 NRF Hooks Resource Requirements

Service Name	CPU/Pod		Memory/Pod (in G)		Ephemeral Storage
	Min	Max	Min	Max	Min (Mi)	Max (Gi)
<helm-release-name>-nfregistration-pre-install	1	1	1	2	78.1	1
<helm-release-name>-nfregistration-post-install	1	1	1	2	78.1	1
<helm-release-name>-nfregistration-pre-upgrade	1	1	1	2	78.1	1
<helm-release-name>-nfregistration-post-upgrade	1	1	1	2	78.1	1
<helm-release-name>-nfregistration-pre-rollback	1	1	1	2	78.1	1
<helm-release-name>-nfregistration-post-rollback	1	1	1	2	78.1	1
<helm-release-name>-nfregistration-pre-delete	1	1	1	2	78.1	1
<helm-release-name>-nfregistration-post-delete	1	1	1	2	78.1	1
<helm-release-name>-nfsubscription-pre-install	1	1	1	2	78.1	1
<helm-release-name>-nfsubscription-post-install	1	1	1	2	78.1	1
<helm-release-name>-nfsubscription-pre-upgrade	1	1	1	2	78.1	1
<helm-release-name>-nfsubscription-post-upgrade	1	1	1	2	78.1	1
<helm-release-name>-nfsubscription-pre-rollback	1	1	1	2	78.1	1
<helm-release-name>-nfsubscription-post-rollback	1	1	1	2	78.1	1
<helm-release-name>-nfsubscription-pre-delete	1	1	1	2	78.1	1
<helm-release-name>-nfsubscription-post-delete	1	1	1	2	78.1	1
<helm-release-name>-nrfAuditor-pre-install	1	1	1	2	78.1	1
<helm-release-name>-nrfAuditor-post-install	1	1	1	2	78.1	1
<helm-release-name>-nrfAuditor-pre-upgrade	1	1	1	2	78.1	1
<helm-release-name>-nrfAuditor-post-upgrade	1	1	1	2	78.1	1
<helm-release-name>-nrfAuditor-pre-rollback	1	1	1	2	78.1	1
<helm-release-name>-nrfAuditor-post-rollback	1	1	1	2	78.1	1
<helm-release-name>-nrfAuditor-pre-delete	1	1	1	2	78.1	1
<helm-release-name>-nrfAuditor-post-delete	1	1	1	2	78.1	1
<helm-release-name>-nrfconfiguration-pre-install	1	1	1	2	78.1	1
<helm-release-name>-nrfconfiguration-post-install	1	1	1	2	78.1	1
<helm-release-name>-nrfconfiguration-pre-upgrade	1	1	1	2	78.1	1
<helm-release-name>-nrfconfiguration-post-upgrade	1	1	1	2	78.1	1
<helm-release-name>-nrfconfiguration-pre-rollback	1	1	1	2	78.1	1
<helm-release-name>-nrfconfiguration-post-rollback	1	1	1	2	78.1	1
<helm-release-name>-nrfconfiguration-pre-delete	1	1	1	2	78.1	1
<helm-release-name>-nrfconfiguration-post-delete	1	1	1	2	78.1	1
<helm-release-name>-ingressgateway-pre-install	1	1	1	2	78.1	1
<helm-release-name>-ingressgateway-post-install	1	1	1	2	78.1	1
<helm-release-name>-ingressgateway-pre-upgrade	1	1	1	2	78.1	1
<helm-release-name>-ingressgateway-post-upgrade	1	1	1	2	78.1	1
<helm-release-name>-ingressgateway-pre-rollback	1	1	1	2	78.1	1
<helm-release-name>-ingressgateway-post-rollback	1	1	1	2	78.1	1
<helm-release-name>-ingressgateway-pre-delete	1	1	1	2	78.1	1
<helm-release-name>-ingressgateway-post-delete	1	1	1	2	78.1	1
<helm-release-name>-egressgateway-pre-install	1	1	1	2	78.1	1
<helm-release-name>-egressgateway-post-install	1	1	1	2	78.1	1
<helm-release-name>-egressgateway-pre-upgrade	1	1	1	2	78.1	1
<helm-release-name>-egressgateway-post-upgrade	1	1	1	2	78.1	1
<helm-release-name>-egressgateway-pre-rollback	1	1	1	2	78.1	1
<helm-release-name>-egressgateway-post-rollback	1	1	1	2	78.1	1
<helm-release-name>-egressgateway-pre-delete	1	1	1	2	78.1	1
<helm-release-name>-egressgateway-post-delete	1	1	1	2	78.1	1
<helm-release-name>-alternate-route-pre-install	1	1	1	2	78.1	1
<helm-release-name>-alternate-route-post-install	1	1	1	2	78.1	1
<helm-release-name>-alternate-route-pre-upgrade	1	1	1	2	78.1	1
<helm-release-name>-alternate-route-post-upgrade	1	1	1	2	78.1	1
<helm-release-name>-alternate-route-pre-rollback	1	1	1	2	78.1	1
<helm-release-name>-alternate-route-post-rollback	1	1	1	2	78.1	1
<helm-release-name>-alternate-route-pre-delete	1	1	1	2	78.1	1
<helm-release-name>-alternate-route-post-delete	1	1	1	2	78.1	1
<helm-release-name>-appinfo-pre-install	1	1	1	2	78.1	1
<helm-release-name>-appinfo-post-install	1	1	1	2	78.1	1
<helm-release-name>-appinfo-pre-upgrade	1	1	1	2	78.1	1
<helm-release-name>-appinfo-post-upgrade	1	1	1	2	78.1	1
<helm-release-name>-appinfo-pre-rollback	1	1	1	2	78.1	1
<helm-release-name>-appinfo-post-rollback	1	1	1	2	78.1	1
<helm-release-name>-appinfo-pre-delete	1	1	1	2	78.1	1
<helm-release-name>-appinfo-post-delete	1	1	1	2	78.1	1
<helm-release-name>-perfinfo-pre-install	1	1	1	2	78.1	1
<helm-release-name>-perfinfo-post-install	1	1	1	2	78.1	1
<helm-release-name>-perfinfo-pre-upgrade	1	1	1	2	78.1	1
<helm-release-name>-perfinfo-post-upgrade	1	1	1	2	78.1	1
<helm-release-name>-perfinfo-pre-rollback	1	1	1	2	78.1	1
<helm-release-name>-perfinfo-post-rollback	1	1	1	2	78.1	1
<helm-release-name>-perfinfo-pre-delete	1	1	1	2	78.1	1
<helm-release-name>-perfinfo-post-delete	1	1	1	2	78.1	1

Where,

<helm-release-name> is prefixed in each microservice name. For example, if helm-release-name is "ocnrf", then nfregistration microservice name is "ocnrf-nfregistration".

2.1.3.1.7 Total Ephemeral Resources

Table 2-12 Total Ephemeral Resources

Service Name	Ephemeral Storage
	Min (Mi)	Max (Gi)
Helm test	590.1	1.5
<helm-release-name>-nfregistration	1770.3	4.5
<helm-release-name>-nfdiscovery	1770.3	205
<helm-release-name>-nfsubscription	1770.3	4.5
<helm-release-name>-nrfauditor	1770.3	4.5
<helm-release-name>-nrfconfiguration	1180.2	3
<helm-release-name>-nfaccesstoken	1770.3	4.5
<helm-release-name>-nrfartisan	1180.2	3
<helm-release-name>-nrfcachedata	1770.3	4.5
<helm-release-name>-ingressgateway	1770.3	51
<helm-release-name>-egressgateway	1770.3	28.5
<helm-release-name>-alternate-route	1770.3	4.5
<helm-release-name>-appinfo	1770.3	4.5
<helm-release-name>-perfinfo	1770.3	4.5

Where: <helm-release-name> is prefixed in each microservice name. For example, if helm-release-name is "ocnrf", then nfregistration microservice name is "ocnrf-nfregistration".

2.1.3.2 cnDBTier Resource Requirement

This section provides the cnDBTier resource requirement for NRF deployment.

2.1.3.2.1 cnDBTier Services

Table 2-13 cnDBTier Services Resource Requirements

Service Name	Pod Replica #	CPU/Pod		Memory/Pod (in Gi)		PVC Size (in Gi)		Ephemeral Storage
	Min	Min	Max	Min	Max	PVC1	PVC2	Min (Mi)	Max (Gi)
MGMT (ndbmgmd)	2	4	4	10	10	15	NA	200	1
DB (ndbmtd)	4	4	4	5	5	4	5	200	1
SQL (ndbmysqld)	2	4	4	20	20	90	NA	200	1
SQL (ndbappmysqld)	2	8	8	3	3	1	NA	200	1
Monitor Service (db-monitor-svc)	1	4	4	4	4	NA	NA	200	1
Backup Manager Service (db-backup-manager-svc)	1	1.1	1.1	1	1	NA	NA	200	1
Replication Service - Leader	1	2	2	12	12	4	NA	200	1
Replication Service - Other	0	1.1	1.1	1	2	NA	NA	200	1

Note:

• Node profiles in the above tables are for two-site replication cnDBTier clusters. Modify the ndbmysqld and Replication Service pods based on the number of georeplication sites.
• In case, any of the service requires a vertical scaling of any of their PVC, see the respective sub-section in "Vertical Scaling" section in Oracle Communications Cloud Native Core, cnDBTier User Guide.
• PVC shrinking (downsizing) is not supported. It is recommended to retain the existing vertically scaled up PVC sizes, eventhough cnDBTier is rolledback to previous releases.

2.1.3.2.2 cnDBTier Sidecars

The following table indicates the sidecars for cnDBTier services.

Table 2-14 Sidecars per cnDBTier Service

Service Name	init-sidecar	db-executor-svc	init-discover-sql-ips	db-infra-monitor-svc
MGMT (ndbmgmd)	No	No	No	Yes
DB (ndbmtd)	No	Yes	No	Yes
SQL (ndbmysqld)	Yes	No	No	Yes
SQL (ndbappmysqld)	Yes	No	No	Yes
Monitor Service (db-monitor-svc)	No	No	No	No
Backup Manager Service (db-backup-manager-svc)	No	No	No	No
Replication Service - Leader	No	No	Yes	Yes
Replication Service - Other	No	No	Yes	No

Table 2-15 cnDBTier Additional Containers

Sidecar	CPU/Pod		Memory/Pod (in Gi)		PVC Size (in Gi)		Ephemeral Storage
	Min	Max	Min	Max	PVC1	PVC2	Min (Mi)	Max(Gi)
db-executor-svc	1	1	2	2	NA	NA	200	2
init-sidecar	0.1	0.1	0.25	0.25	NA	NA	200	1
init-discover-sql-ips	0.2	0.2	0.5	0.5	NA	NA	200	1
db-infra-monitor-svc	0.2	0.2	0.25	0.25	NA	NA	200	1

2.1.3.2.3 Service Mesh Sidecar

Table 2-16 Service Mesh Sidecar

Service Name	CPU		Memory (in Gi)		Concurrency
	Min	Max	Min	Max
MGMT (ndbmgmd)	2	2	1	1	8
DB (ndbmtd)	2	2	1	1	8
SQL (ndbmysqld)	2	2	1	1	8
SQL (ndbappmysqld)	4	4	1	1	8
Monitor Service (db-monitor-svc)	2	2	1	1	2
Backup Manager Service (db-backup-manager-svc)	2	2	1	1	2
Replication Service-Leader	2	2	1	1	2
Replication Service-Other	2	2	1	1	2

The following default values are added for the service mesh specific annotations in the ocnrf_dbtier_CNDBTIER_VERSION_custom_values_NRF_VERSION.yaml file.

Note: If the value of istioSidecarInject parameter is set as all in the ocnrf_dbtier_CNDBTIER_VERSION_custom_values_NRF_VERSION.yaml file, the system will automatically add the following annotations: traffic.sidecar.istio.io/excludeInboundPorts: <> and sidecar.istio.io/inject: "true". Manual configuration of these annotations is not required.

Table 2-17 Default Values for Service Mesh Specific Annotations

Parameter Name	Annotations
mgm.annotations	sidecar.istio.io/inject: "true" sidecar.istio.io/proxyCPU: "2" sidecar.istio.io/proxyCPULimit: "2" sidecar.istio.io/proxyMemory: "1Gi" sidecar.istio.io/proxyMemoryLimit: "1Gi" proxy.istio.io/config: '{concurrency: 8}' traffic.sidecar.istio.io/excludeInboundPorts: "8081"
ndb.annotations	sidecar.istio.io/inject: "true" sidecar.istio.io/proxyCPU: "2" sidecar.istio.io/proxyCPULimit: "2" sidecar.istio.io/proxyMemory: "1Gi" sidecar.istio.io/proxyMemoryLimit: "1Gi" proxy.istio.io/config: '{concurrency: 8}' traffic.sidecar.istio.io/excludeInboundPorts: "8081"
api.annotations	sidecar.istio.io/inject: "true" sidecar.istio.io/proxyCPU: "2" sidecar.istio.io/proxyCPULimit: "2" sidecar.istio.io/proxyMemory: "1Gi" sidecar.istio.io/proxyMemoryLimit: "1Gi" proxy.istio.io/config: '{concurrency: 8}' traffic.sidecar.istio.io/excludeInboundPorts: "8081"
ndbapp.annotations	sidecar.istio.io/inject: "true" sidecar.istio.io/proxyCPU: "4" sidecar.istio.io/proxyCPULimit: "4" sidecar.istio.io/proxyMemory: "1Gi" sidecar.istio.io/proxyMemoryLimit: "1Gi" proxy.istio.io/config: '{concurrency: 8}' traffic.sidecar.istio.io/excludeInboundPorts: "8081"
db-replication-svc.podAnnotations	sidecar.istio.io/inject: "true" sidecar.istio.io/proxyCPU: "2" sidecar.istio.io/proxyCPULimit: "2" sidecar.istio.io/proxyMemory: "1Gi" sidecar.istio.io/proxyMemoryLimit: "1Gi" proxy.istio.io/config: '{concurrency: 2}' Note: The annotations for db-replication-svc.podAnnotations varies depending on the replication cardinality. podAnnotations should be added for each such replication deployment section in the ocnrf_dbtier_CNDBTIER_VERSION_custom_values_NRF_VERSION.yaml file.
db-replication-svc.podAnnotations	traffic.sidecar.istio.io/excludeInboundPorts: "8081" The inbound ports are added only to the db-replication-svc (leader pod).
db-monitor-svc.podAnnotations	sidecar.istio.io/inject: "true" sidecar.istio.io/proxyCPU: "2" sidecar.istio.io/proxyCPULimit: "2" sidecar.istio.io/proxyMemory: "1Gi" sidecar.istio.io/proxyMemoryLimit: "1Gi" proxy.istio.io/config: '{concurrency: 2}' traffic.sidecar.istio.io/excludeInboundPorts: "8081"
db-backup-manager-svc.pod.annotations	sidecar.istio.io/inject: "true" sidecar.istio.io/proxyCPU: "2" sidecar.istio.io/proxyCPULimit: "2" sidecar.istio.io/proxyMemory: "1Gi" sidecar.istio.io/proxyMemoryLimit: "1Gi" proxy.istio.io/config: '{concurrency: 2}'

2.1.3.2.4 Total Ephemeral Resources

Table 2-18 Total Ephemeral Resources

Service Name	Ephemeral Storage
	Min(Mi)	Max(Gi)
MGMT (ndbmgmd)	1204	3
DB (ndbmtd)	2408	6
SQL (ndbmysqld)	1204	3
SQL (ndbappmysqld)	1204	3
Monitor Service (db-monitor-svc)	602	1.5
Backup Manager Service (db-backup-manager-svc)	602	1.5
Replication Service-Leader	602	1.5
Replication Service-Other	0	0

Note:

Node profiles in the above tables are for two-site replication cnDBTier clusters. Modify the ndbmysqld and Replication Service pods based on the number of georeplication sites.

2.2 Installation Sequence

This section describes preinstallation, installation, and postinstallation tasks for NRF.

You must perform these tasks after completing Prerequisites and in the same sequence as outlined in the following table for CLI installation methods as applicable.

Table 2-19 NRF Installation Sequence

Installation Sequence	Applicable for CLI
Preinstallation Tasks	Yes
Installation Tasks	Yes
Postinstallation Tasks	Yes

2.2.1 Preinstallation Tasks

To install NRF through CLI methods, perform the tasks described in this section.

2.2.1.1 Downloading the NRF package

To download the NRF package from My Oracle Support, perform the following procedure:

1. Log in to My Oracle Support using your login credentials.
2. Click the Patches & Updates tab to locate the patch.
3. In the Patch Search console, click the Product or Family (Advanced) option.
4. In the Product field, enter Oracle Communications Cloud Native Core - 5G and select the product from the Product drop-down list.
5. From the Release drop-down list, select Oracle Communications Cloud Native Core Network Repository Function <release_number>.

   Where, <release_number> indicates the required release number of NRF.

6. Click Search.

   The Patch Advanced Search Results list appears.

7. Select the required patch from the list.

   The Patch Details window appears.

8. Click Download.

   The File Download window appears.

9. Click the <p********_<release_number>_Tekelec>.zip file to download the release package.

   Where, <p********> is the MOS patch number and <release_number> is the release number of NRF.

2.2.1.2 Pushing the Images to Customer Docker Registry

NRF deployment package includes ready-to-use images and Helm charts to orchestrate containers in Kubernetes in the customer docker registry.

Following table lists the Docker images of NRF.

Table 2-20 NRF Images

Services	Image	Tag
<helm-release-name>-nfregistration	ocnrf-nfregistration	25.2.201
<helm-release-name>-nfsubscription	ocnrf-nfsubscription	25.2.201
<helm-release-name>-nfdiscovery	ocnrf-nfdiscovery	25.2.201
<helm-release-name>-nrfauditor	ocnrf-nrfauditor	25.2.201
<helm-release-name>-nrfconfiguration	ocnrf-nrfconfiguration	25.2.201
<helm-release-name>-nrfcachedata	ocnrf-nrfcachedata	25.2.201
<helm-release-name>-appinfo	oc-app-info	25.2.208
<helm-release-name>-nfaccesstoken	ocnrf-nfaccesstoken	25.2.201
<helm-release-name>-nrfartisan	ocnrf-nrfartisan	25.2.201
<helm-release-name>-alternate-route	alternate_route	25.2.110
<helm-release-name>-performance	oc-perf-info	25.2.208
<helm-release-name>-egressgateway	configurationinit	25.2.110
	ocegress_gateway	25.2.110
<helm-release-name>-ingressgateway	configurationinit	25.2.110
	ocingress_gateway	25.2.110

Note:

Ingress Gateway and Egress Gateway use the same configurationinit images.

Apart from above images, the following additional images are available in ocnrf-images-<release_number>.tar.

Table 2-21 Additional Images

Image	Tag
ocdebug-tools	25.2.204
helm-test	25.2.205
common_config_hook	25.2.110

To push the images to the registry:

1. Navigate to the location where you want to install NRF. Unzip the NRF release package (<p********>_<release_number>_Tekelec.zip) to retrieve the following CSAR package.

   The NRF package is as follows:

   <ReleaseName>_csar_<Releasenumber>.zip

   Where,

   ReleaseName is a name that is used to track this installation instance.

   Releasenumber is the release number.

   For example, ocnrf_csar_25_2_201_0_0.zip
2. Untar the NRF CSAR package to retrieve NRF image tar file:

   tar -xvzf <ReleaseName>_csar_<Releasenumber>.zip

   For example:

   tar -xvzf ocnrf_csar_25_2_201_0_0.zip

   The directory consists of the following:

   .
   ├── Definitions
   │   ├── ocnrf_cne_compatibility.yaml
   │   └── ocnrf.yaml
   ├── Files
   │   ├── alternate_route-25.2.110.tar
   │   ├── ChangeLog.txt
   │   ├── common_config_hook-25.2.110.tar
   │   ├── configurationinit-25.2.110.tar
   │   ├── Helm
   │   │   ├── ocnrf-25.2.201.tgz
   │   │   ├── ocnrf-network-policy-25.2.201.tgz
   │   │   └── ocnrf-servicemesh-config-25.2.200.tgz
   │   ├── helm-test-25.2.205.tar
   │   ├── Licenses
   │   ├── oc-app-info-25.2.208.tar
   │   ├── ocdebug-tools-25.2.204.tar
   │   ├── ocegress_gateway-25.2.110.tar
   │   ├── ocingress_gateway-25.2.110.tar
   │   ├── ocnrf-nfaccesstoken-25.2.201.tar
   │   ├── ocnrf-nfdiscovery-25.2.201.tar
   │   ├── ocnrf-nfregistration-25.2.201.tar
   │   ├── ocnrf-nfsubscription-25.2.201.tar
   │   ├── ocnrf-nrfartisan-25.2.201.tar
   │   ├── ocnrf-nrfauditor-25.2.201.tar
   │   ├── ocnrf-nrfconfiguration-25.2.201.tar
   │   ├── ocnrf-nrfcachedata-25.2.201.tar
   │   ├── oc-perf-info-25.2.208.tar
   │   ├── Oracle.cert
   │   └── Tests
   ├── ocnrf.mf
   ├── Scripts
   │   ├── ocnrf_alertrules_25.2.201.yaml
   │   ├── ocnrf_alertrules_promha_25.2.201.yaml
   │   ├── ocnrf_configuration_openapi_25.2.201.json
   │   ├── ocnrf_custom_values_25.2.201.yaml
   │   ├── ocnrf_dashboard_25.2.201.json
   │   ├── ocnrf_dbresource_2site.sql
   │   ├── ocnrf_dbresource_3site.sql
   │   ├── ocnrf_dbresource_4site.sql
   │   ├── ocnrf_dbresource_standalone.sql
   │   ├── ocnrf_dbtier_25.2.201_custom_values_25.2.201.yaml
   │   ├── ocnrf_mib_25.2.201.mib
   │   ├── ocnrf_mib_tc_25.2.201.mib
   │   ├── ocnrf_network_policy_custom_values_25.2.201.yaml
   │   ├── ocnrf_servicemesh_config_custom_values_25.2.200.yaml
   │   └── toplevel_25.2.201.mib
   │   └── ocnrf_oci_alertrules_25.2.201.zip
   │   └── ocnrf_oci_metric_dashboard_25.2.201.json
   └── TOSCA-Metadata
       └── TOSCA.meta


3. Open the Files folder and run one of the following commands to load the NRF images:

   podman load --input /IMAGE_PATH/<microservicename-releasenumber>.tar

   docker load --input /IMAGE_PATH/<microservicename-releasenumber>.tar

   Where,

   IMAGE_PATH is the location where the NRF docker image tar file is archived.

   Sample command:

   podman load --input /IMAGE_PATH/ocnrf-nfregistration-25.2.201.tar

4. Run one of the following commands to verify that the images are loaded:

   podman images

   docker images

   Verify the list of images shown in the output with the list of images shown in the table Table 2-20. If the list does not match, reload the image tar file.
   Sample output:

   podman images
   docker.io/ocnrf/ocnrf-nrfartisan        25.2.201  8518be6dad6e  8m42s ago  703 MB
   docker.io/ocnrf/ocnrf-nfaccesstoken     25.2.201 5e8d766476ec  8m42s ago    650 MB
   docker.io/ocnrf/ocnrf-nrfconfiguration  25.2.201 d6a39a514897  8m42s ago    653 MB
   docker.io/ocnrf/ocnrf-nrfauditor        25.2.201 5bbde830092e  8m42s ago    650 MB
   docker.io/ocnrf/ocnrf-nfdiscovery       25.2.201 0df8d9401674  8m42s ago    650 MB
   docker.io/ocnrf/ocnrf-nfsubscription    25.2.201 a4b04fe9a0b0  8m42s ago    650 MB
   docker.io/ocnrf/ocnrf-nfregistration    25.2.201 6ea2ccd0f568  8m42s ago    650 MB
   docker.io/ocnrf/oc-app-info             25.2.208 9d03147abf17  8m42s ago   486 MB
   docker.io/ocnrf/ocingress_gateway       25.2.110 879743d2a454  8m42s ago   605 MB
   docker.io/ocnrf/ocegress_gateway        25.2.110 b580eb8ded9b  8m42s ago   596 MB
   docker.io/ocnrf/common_config_hook      25.2.110 85a04360b8aa  8m42s ago   561 MB
   docker.io/ocnrf/alternate_route         25.2.110 3684cf6bc379  8m42s ago    546 MB
   docker.io/ocnrf/configurationinit       25.2.110 e791e48c4e7d  8m42s ago  559 MB
   docker.io/ocnrf/ocdebug-tools           25.2.204   ab0fd4202122  8m42s ago  592 MB
   docker.io/ocnrf/helm-test               25.2.205  d9b90fe68848  8m42s ago  549 MB
   docker.io/ocnrf/oc-perf-info            25.2.208  f8c4e7d18928  8m42s ago  600 MB


5. Run one of the following commands to tag the docker images to docker registry:

   podman tag <image-name>:<image-tag> <docker-repo>/ <image-name>:<image-tag>

   docker tag <image-name>:<image-tag> <docker-repo>/ <image-name>:<image-tag>

   Where,

   image-name is the NRF docker image name in the tar file.

   image-tag is the release number.

   docker-repo is the docker registry address with Port Number, if registry has port attached. This is a repository to store the images.

   Sample command:

   docker tag ocnrf/ocnrf-nfaccesstoken:25.2.201 bumblebee-bastion-1:5000/occne/ocnrf/ocnrf-nfaccesstoken:25.2.201

   Note:

   Perform this step for all the docker images.
6. Run the following command to push the image to docker registry:

   docker push <docker-repo>/<image-name>:<image-tag>

   Sample command:

   docker push bumblebee-bastion-1:5000/occne/ocnrf/ocnrf-nfaccesstoken:25.2.201

   Note:

   • Perform this step for all the docker images.
   • It is recommended to configure the Docker certificate before running the push command to access customer registry through HTTPS, otherwise docker push command may fail.

2.2.1.3 Pushing the NRF Images to OCI Docker Registry

NRF deployment package includes ready-to-use images and Helm charts to orchestrate containers in Kubernetes in the OCI docker registry.

Note:

The following steps must be run at the operator instance/VM.

Following table lists the Docker images of NRF.

Table 2-22 NRF Images

Services	Image	Tag
<helm-release-name>-nfregistration	ocnrf-nfregistration	25.2.201
<helm-release-name>-nfsubscription	ocnrf-nfsubscription	25.2.201
<helm-release-name>-nfdiscovery	ocnrf-nfdiscovery	25.2.201
<helm-release-name>-nrfauditor	ocnrf-nrfauditor	25.2.201
<helm-release-name>-nrfconfiguration	ocnrf-nrfconfiguration	25.2.201
<helm-release-name>-nrfcachedata	ocnrf-nrfcachedata	25.2.201
<helm-release-name>-appinfo	oc-app-info	25.2.208
<helm-release-name>-nfaccesstoken	ocnrf-nfaccesstoken	25.2.201
<helm-release-name>-nrfartisan	ocnrf-nrfartisan	25.2.201
<helm-release-name>-alternate-route	alternate_route	25.2.110
<helm-release-name>-performance	oc-perf-info	25.2.208
<helm-release-name>-egressgateway	configurationinit	25.2.110
	ocegress_gateway	25.2.110
<helm-release-name>-ingressgateway	configurationinit	25.2.110
	ocingress_gateway	25.2.110

Note:

Ingress Gateway and Egress Gateway use the same configurationinit images.

Apart from above images, the following additional images are available in ocnrf-images-<release_number>.tar.

Table 2-23 Additional Images

Image	Tag
ocdebug-tools	25.2.204
helm-test	25.2.205
common_config_hook	25.2.110

To push the images to the registry:

1. Navigate to the location where you want to install NRF. Unzip the NRF release package (<p********>_<release_number>_Tekelec.zip) to retrieve the following CSAR package.

   The NRF package is as follows:

   <ReleaseName>_csar_<Releasenumber>.zip

   Where,

   ReleaseName is a name that is used to track this installation instance.

   Releasenumber is the release number.

   For example, ocnrf_csar_25_2_201_0_0.zip
2. Untar the NRF CSAR package to retrieve NRF image tar file:

   tar -xvzf <ReleaseName>_csar_<Releasenumber>.zip

   For example:

   tar -xvzf ocnrf_csar_25_2_201_0_0.zip

   The directory consists of the following:

   .
   ├── Definitions
   │   ├── ocnrf_cne_compatibility.yaml
   │   └── ocnrf.yaml
   ├── Files
   │   ├── alternate_route-25.2.110.tar
   │   ├── ChangeLog.txt
   │   ├── common_config_hook-25.2.110.tar
   │   ├── configurationinit-25.2.110.tar
   │   ├── Helm
   │   │   ├── ocnrf-25.2.201.tgz
   │   │   ├── ocnrf-network-policy-25.2.201.tgz
   │   │   └── ocnrf-servicemesh-config-25.2.200.tgz
   │   ├── helm-test-25.2.205.tar
   │   ├── Licenses
   │   ├── oc-app-info-25.2.208.tar
   │   ├── ocdebug-tools-25.2.204.tar
   │   ├── ocegress_gateway-25.2.110.tar
   │   ├── ocingress_gateway-25.2.110.tar
   │   ├── ocnrf-nfaccesstoken-25.2.201.tar
   │   ├── ocnrf-nfdiscovery-25.2.201.tar
   │   ├── ocnrf-nfregistration-25.2.201.tar
   │   ├── ocnrf-nfsubscription-25.2.201.tar
   │   ├── ocnrf-nrfartisan-25.2.201.tar
   │   ├── ocnrf-nrfauditor-25.2.201.tar
   │   ├── ocnrf-nrfconfiguration-25.2.201.tar
   │   ├── ocnrf-nrfcachedata-25.2.201.tar
   │   ├── oc-perf-info-25.2.208.tar
   │   ├── Oracle.cert
   │   └── Tests
   ├── ocnrf.mf
   ├── Scripts
   │   ├── ocnrf_alertrules_25.2.201.yaml
   │   ├── ocnrf_alertrules_promha_25.2.201.yaml
   │   ├── ocnrf_configuration_openapi_25.2.201.json
   │   ├── ocnrf_custom_values_25.2.201.yaml
   │   ├── ocnrf_dashboard_25.2.201.json
   │   ├── ocnrf_dbresource_2site.sql
   │   ├── ocnrf_dbresource_3site.sql
   │   ├── ocnrf_dbresource_4site.sql
   │   ├── ocnrf_dbresource_standalone.sql
   │   ├── ocnrf_dbtier_25.2.201_custom_values_25.2.201.yaml
   │   ├── ocnrf_mib_25.2.201.mib
   │   ├── ocnrf_mib_tc_25.2.201.mib
   │   ├── ocnrf_network_policy_custom_values_25.2.201.yaml
   │   ├── ocnrf_servicemesh_config_custom_values_25.2.200.yaml
   │   └── toplevel_25.2.201.mib
   │   └── ocnrf_oci_alertrules_25.2.201.zip
   │   └── ocnrf_oci_metric_dashboard_25.2.201.json
   └── TOSCA-Metadata
       └── TOSCA.meta


3. Open the Files folder and run one of the following commands to load the NRF images:

   podman load --input /IMAGE_PATH/<microservicename-releasenumber>.tar

   docker load --input /IMAGE_PATH/<microservicename-releasenumber>.tar

   Where,

   IMAGE_PATH is the location where the NRF docker image tar file is archived.

   Sample command:

   podman load --input /IMAGE_PATH/ocnrf-nfregistration-25.2.201.tar

4. Run one of the following commands to verify that the images are loaded:

   podman images

   docker images

5. Verify the list of images shown in the output with the list of images shown in the table Table 2-20. If the list does not match, reload the image tar file.
   Sample output:

   podman images
   docker.io/ocnrf/ocnrf-nrfartisan        25.2.201  8518be6dad6e  8m42s ago  703 MB
   docker.io/ocnrf/ocnrf-nfaccesstoken     25.2.201 5e8d766476ec  8m42s ago    650 MB
   docker.io/ocnrf/ocnrf-nrfconfiguration  25.2.201 d6a39a514897  8m42s ago    653 MB
   docker.io/ocnrf/ocnrf-nrfauditor        25.2.201 5bbde830092e  8m42s ago    650 MB
   docker.io/ocnrf/ocnrf-nfdiscovery       25.2.201 0df8d9401674  8m42s ago    650 MB
   docker.io/ocnrf/ocnrf-nfsubscription    25.2.201 a4b04fe9a0b0  8m42s ago    650 MB
   docker.io/ocnrf/ocnrf-nfregistration    25.2.201 6ea2ccd0f568  8m42s ago    650 MB
   docker.io/ocnrf/oc-app-info             25.2.208 9d03147abf17  8m42s ago   486 MB
   docker.io/ocnrf/ocingress_gateway       25.2.110 879743d2a454  8m42s ago   605 MB
   docker.io/ocnrf/ocegress_gateway        25.2.110 b580eb8ded9b  8m42s ago   596 MB
   docker.io/ocnrf/common_config_hook      25.2.110 85a04360b8aa  8m42s ago   561 MB
   docker.io/ocnrf/alternate_route         25.2.110 3684cf6bc379  8m42s ago    546 MB
   docker.io/ocnrf/configurationinit       25.2.110 e791e48c4e7d  8m42s ago  559 MB
   docker.io/ocnrf/ocdebug-tools           25.2.204   ab0fd4202122  8m42s ago  592 MB
   docker.io/ocnrf/helm-test               25.2.205  d9b90fe68848  8m42s ago  549 MB
   docker.io/ocnrf/oc-perf-info            25.2.208  f8c4e7d18928  8m42s ago  600 MB


6. Run the following commands to log in to the OCI Docker registry:

   podman login -u <REGISTRY_USERNAME> -p <REGISTRY_PASSWORD> <REGISTRY_NAME>

   docker login -u <REGISTRY_USERNAME> -p <REGISTRY_PASSWORD> <REGISTRY_NAME>

   where,
   • REGISTRY_NAME is <Region_Key>.ocir.io
   • REGISTRY_USERNAME is <Object Storage Namespace>/<identity_domain>/email_id
   • REGISTRY_PASSWORD is the Auth token generated by the user.
   For more information about OCIR configuration and creating auth token, see Cloud Native Core OCI Adaptor, NF Deployment in OCI Guide.
   • <Object Storage Namespace> is configured in OCI Console. To access it, navigate to OCI Console> Governanace & Administration> Account Management> Tenancy Details> Object Storage Namespace.
   • <Identity Domain> is the domain where the user currently is present.
   • In OCI, each region is associated with a key. For the details about the <Region_Key>, see the Regions and Availability Domains.
7. Run one of the following commands to tag the images to the registry:

   podman tag <image-name>:<image-tag> <REGISTRY_NAME>/<Object Storage Namespace>/<image-name>:<image-tag>

   docker tag <image-name>:<image-tag> <REGISTRY_NAME>/<Object Storage Namespace>/<image-name>:<image-tag>

   Where,
   • image-name is the NRF docker image name in the tar file.
   • image-tag is the release number.
   • REGISTRY_NAME is <Region_Key>.ocir.io
   • REGISTRY_USERNAME is <Object Storage Namespace>/<identity_domain>/email_id
8. Run the following command to push the image to the registry:

   docker push <REGISTRY_NAME>/<Object Storage Namespace>/<image-name>:<image-tag>

   podman push <REGISTRY_NAME>/<Object Storage Namespace>/<image-name>:<image-tag

9. All the image repositories must be public. Run the following steps to make all image repositories public:
   1. Log in to OCI Console. Navigate to OCI Console> Developer Services > Containers & Artifacts> Container Registry.
   2. Select the root Compartment.
   3. In the Repositories and Images Search option, the images will be listed. Select each image and click Change to Public. This step must be performed for all the images sequentially.

2.2.1.4 Verifying and Creating Namespace

This section explains how to verify and create a namespace in the system.

Note:

This is a mandatory procedure, run this before proceeding further with the installation procedure. The namespace created or verified in this procedure is an input for the next procedures.

1. Run the following command to verify if the required namespace already exists in the system:

   kubectl get namespace

   In the output of the above command, if the namespace exists, continue with the Creating Service Account, Role, and RoleBinding section.

2. If the required namespace is unavailable, create the namespace using the following command:

   kubectl create namespace <required namespace>

   Where,

   <required namespace> is the name of the namespace.

   For example:

   kubectl create namespace ocnrf

   Sample output:

   namespace/ocnrf created

3. Update the database.nameSpace parameter in the ocnrf-custom-values-25.2.201.yaml file with the namespace that is created in the previous step.
   Here is the sample configuration snippet from the ocnrf-custom-values-25.2.201.yaml file:

     database:
       # Namespace where the Secret is created
       nameSpace: "ocnrf"

Naming Convention for Namespaces

The namespace should:

• start and end with an alphanumeric character.
• contain 63 characters or less.
• contain only alphanumeric characters or '-'.

Note:

It is recommended to avoid using the prefix kube- when creating a namespace. The prefix is reserved for Kubernetes system namespaces.

2.2.1.5 Creating Service Account, Role, and RoleBinding

This section is optional and it describes how to manually create a service account, role, and rolebinding. It is required only when customer needs to create a role, rolebinding, and service account manually before installing NRF.

Note:

• The secret(s) should exist in the same namespace where NRF is getting deployed. This helps to bind the Kubernetes role with the given service account.
• This procedure is a sample. In case the service account with role and role binding is already configured or the user has any in-house procedure to create a service account, skip this procedure. In case the deployment has Service Mesh, see Configuring NRF with ASM for the details and skip this procedure.

To create service account, role, and rolebinding:

1. Run the following command to create an NRF resource file:

   vi <ocnrf-resource-file>

   Where, <ocnrf-resource-file> is the file name for service account resource.

   Example:

   vi ocnrf-resource-template.yaml

2. Update the ocnrf-resource-template.yaml with release specific information:

   Note:

   Copy and paste the following sample in the ocnrf-resource-template.yaml file and replace <helm-release> with your own release name and <namespace> with your own namespace value throughout the file. Save it.

   ## Sample template start#
   apiVersion: v1
   kind: ServiceAccount
   metadata:
     name: <helm-release>-ocnrf-serviceaccount
     namespace: <namespace>
   ---

   apiVersion: rbac.authorization.k8s.io/v1
   kind: Role
   metadata:
     name: <helm-release>-ocnrf-role
     namespace: <namespace>
   rules:
   - apiGroups:
     - autoscaling
     resources:
     - horizontalpodautoscalers
     verbs:
     - get
     - watch
     - list
   - apiGroups:
     - apps
     resources:
     - deployments
     - replicasets
     - statefulsets
     verbs:
     - get
     - watch
     - list
   - apiGroups:
     - "" # "" indicates the core API group
     resources:
     - services
     - configmaps
     - pods
     - secrets
     - endpoints
     - deployments
     - persistentvolumeclaims
     verbs:
     - get
     - watch
     - list
   ---

   apiVersion: rbac.authorization.k8s.io/v1
   kind: RoleBinding
   metadata:
     name: <helm-release>-ocnrf-rolebinding
     namespace: <namespace>
   roleRef:
     apiGroup: rbac.authorization.k8s.io
     kind: Role
     name: <helm-release>-ocnrf-role
   subjects:
   - kind: ServiceAccount
     name: <helm-release>-ocnrf-serviceaccount
     namespace: <namespace>


   Where,
   • <helm-release> is a name provided by the user to identify the Helm deployment.
   • <namespace> is a name provided by the user to identify the Kubernetes namespace of NRF. All the NRF microservices are deployed in this Kubernetes namespace.

   Note:

   • autoscaling and apps apiGroups are required for Overload Control feature.
   • PodSecurityPolicy kind is required for Pod Security Policy service account. For more information, see Oracle Communications Cloud Native Core, Network Repository Function Troubleshooting Guide.
3. Run the following command to create service account, role, and role binding:

   kubectl -n <ocnrf-namespace> create -f <ocnrf-resource-file>.yaml

   Where,

   • <ocnrf-namespace> is the name of the namespace.
   • <ocnrf-resource-file> is the file name for service account resource.

   For example:

   kubectl -n ocnrf create -f ocnrf-resource-template.yaml

4. Update the serviceAccountName parameter in the ocnrf_custom_values_25.2.201.yaml file with the value updated in name field under kind: ServiceAccount. For more information about serviceAccountName parameter, see the Global Parameters section.

2.2.1.6 Configuring Database, Creating Users, and Granting Permissions

This section explains how database administrators can create users and database in a single and multisite deployment.

Note:

• Before running the procedure for georedundant sites, ensure that the cnDBTier for georedundant sites is already up and replication channels are enabled.
• While performing a fresh installation, if NRF is already deployed, purge the deployment and remove the database and users that were used for the previous deployment. For uninstallation procedure, see Uninstalling NRF.

NRF Databases

For NRF application, four types of databases are required:

1. NRF application database: This database consists of tables used by application to perform functionality of NRF network function.
2. NRF network database: This database consists of tables used by NRF to store the network details such as system details and database backups.
3. common configuration database: This database consists of tables used by common configuration. In case of georedundant deployments, each site must have a unique common configuration database.
4. leaderElectionDB database: This database is used by the microservices such as perf-info, appInfo, and auditor to detect the leader pod of the respective microservices in case of multipod deployment. A unique table is created for each of the microservice to monitor the leader pod of that microservice. For georedundant deployments, each site must have a unique leaderElectionDB database.

   For example:

   • For Site 1: ocnrf_leaderElectionDB_site1
   • For Site 2: ocnrf_leaderElectionDB_site2
   • For Site 3: ocnrf_leaderElectionDB_site3
   • For Site 4: ocnrf_leaderElectionDB_site4

NRF Users

There are two types of NRF database users with different set of permissions:

1. NRF privileged user: This user has complete set of permissions. This user can perform create, alter, drop operations on tables to perform install, upgrade, rollback, delete operations.
2. NRF application user: This user has limited set of permissions and is used by NRF application during service operations handling. This user can insert, update, get, and remove the records. This user cannot create, alter, and drop the database and the tables.

2.2.1.6.1 Single Site

This section explains how database administrator can create the database, users and grant permissions to the users for single NRF site.

1. Log in to the machine where ssh keys are stored. The machine must have permission to access the SQL nodes of NDB cluster.
2. Copy ocnrf-db-resource-standalone.sql file to the current directory. This file is available in NRF CSAR package, see NRF Customization for more information.

   Note:

   This MySQL script needs to be run only on one of the MySQL nodes of only one site.
3. Update the user name and password in the ocnrf-db-resource-standalone.sql file.
4. Update the names of NRF application database, network database, and common configuration database in the ocnrf-db-resource-standalone.sql file.
5. Log in to the MySQL prompt using root permission or user.
6. Check if NRF privileged user already exists by running the following query in the MySQL prompt:

   mysql> select user from mysql.user where user='<OCNRF-Privileged-User-Name>';

   Note:

   If the result is not an empty set, comment out the line which is creating the NRF privileged user in the script.
7. Check if NRF application user already exists by running the following query in the MySQL prompt:

   mysql> select user from mysql.user where user='<OCNRF-Application-User-Name>';

   Note:

   If the result is not an empty set, comment out the line which is creating the NRF application user in the script.
8. Copy the updated MySQL script to only one of the MySQL nodes of the site where you want to run:

   $ kubectl cp <sitename> ndbappmysqld-0:/home/mysql -n <cnDBTier namespace> -c mysqlndbcluster

   For example:

   $ kubectl cp ocnrf-db-resource-2-site.sql ndbappmysqld-0:/home/mysql -n chicago -c mysqlndbcluster

9. Connect to the MySQL node to which the script was copied.
10. Assuming that this MySQL script is in the present working directory, it needs to be run (as root MySQL User) as shown below:

    $ ls -lrt

    total 4

    -rw-------. 1 mysql mysql 1695 Jun 10 04:12 ocnrf-db-resource-2-site.sql

    $

    $ mysql -h 127.0.0.1 -uroot -p < ocnrf-db-resource-2-site.sql

    Enter password:

    $

11. After successful running, the script returns to shell-prompt.

2.2.1.6.2 Multisite

This section explains how database administrators can create the database and users for a multisite deployment.

Note:

For georedundant scenarios, change the parameter values of the unique databases in ocnrf_custom_values_25.2.201.yaml file.

1. Log in to the machine where ssh keys are stored. The machine must have permission to access the SQL nodes of NDB cluster.
2. Copy ocnrf-db-resource-<site_number>-site.sql file to the current directory. This file is available in NRF CSAR package, see NRF Customization for more information.

   Where,

   <site_number> is the number of sites deployed. Copy the corresponding file based on the number of sites deployed:

   • In case of two sites, use ocnrf-db-resource-2-site.sql file.
   • In case of three sites, use ocnrf-db-resource-3-site.sql file.
   • In case of four sites, use ocnrf-db-resource-4-site.sql file.

   Note:

   Run this MySQL script before the deployment of a georedundant NRF. The database replication must be up between the sites. This MySQL script must be run only on one of the MySQL nodes of only one site.
3. Update the user name and password in the ocnrf-db-resource-<site_number>-site.sql file.
4. Update the names of NRF application database, network database, leaderElectionDB database, and common configuration database in the ocnrf-db-resource-<site_number>-site.sql file.

   Caution:

   For each georedundant site, the common configuration database and leaderElectionDB name must be different.
5. Log in to the MySQL prompt using root permission or user.
6. Check if NRF privileged user already exists by running the following query in the MySQL prompt:

   mysql> select user from mysql.user where user='<OCNRF-Privileged-User-Name>';

   Note:

   If output of the command displays the privileged user, comment the line in the ocnrf-db-resource-<site_number>-site.sql script which is creating the NRF privileged user.
7. Check if NRF application user already exists by running the following query in the MySQL prompt:

   mysql> select user from mysql.user where user='<NRF-Application-User-Name>';

   Note:

   If output of the command displays the application user, comment the line in the ocnrf-db-resource-<site_number>-site.sql script which is creating the NRF application user.
8. Copy the updated MySQL script to only one of the MySQL nodes of the site where you want to run:

   For example:

   $ kubectl cp ocnrf-db-resource-<site_number>-site.sql ndbmysqld-0:/home/mysql -n chicago -c mysqlndbcluster

9. Connect to the MySQL node to which the script was copied.
10. Assuming that this MySQL script is in the present working directory, run the script (as root MySQL User) as shown follows:

    $ ls -lrt

    total 4

    -rw-------. 1 mysql mysql 1695 Jun 10 04:12 ocnrf-db-resource-<site_number>-site.sql

    $

    $ mysql -h 127.0.0.1 -uroot -p < ocnrf-db-resource-<site_number>-site.sql

    Enter password:

    $

11. After successful running, the script returns to shell-prompt.

2.2.1.7 Configuring Kubernetes Secret for Accessing NRF Database

This section explains how to configure Kubernetes secrets for accessing NRF database.

2.2.1.7.1 Creating and Updating Secret for Privileged Database User

This section explains how to create and update Kubernetes secret for privileged user to access the database.

1. Run the following command to create Kubernetes secret:

   $ kubectl create secret generic <privileged user secret name> --from-literal=dbUsername=<NRF Privileged Mysql database username> --from-literal=dbPassword=<NRF Privileged Mysql User database passsword> --from-literal=appDbName=<NRF Mysql database name> --from-literal=networkScopedDbName=<NRF Mysql Network database name> --from-literal=commonConfigDbName=<NRF Mysql Common Configuration DB> --from-literal=leaderElectionDbName=<leaderElectionDB for multipod service> -n <Namespace of NRF deployment>

   Where,

   <privileged user secret name> is the secret name of the Privileged User.

   <NRF Privileged Mysql database username> is the username of the Privileged User.

   <NRF Privileged Mysql User database passsword> is the password of the Privileged User.

   <NRF Mysql database name> is the database name.

   <NRF Mysql Network database name> is the MySQL network database name.

   <leaderElectionDB for multipod service> is the MySQL database name for multipod service.

   <Namespace of NRF deployment> is the namespace of NRF deployment.

   Note:

   Note down the command used during the creation of Kubernetes secret, this command will be used for updating the secrets in future.
   For example:

   $ kubectl create secret generic privilegeduser-secret --from-literal=dbUsername=nrfPrivilegedUsr --from-literal=dbPassword=nrfPrivilegedPasswd --from-literal=appDbName=nrfApplicationDB --from-literal=networkScopedDbName=nrfNetworkDB --from-literal=commonConfigDbName=commonConfigurationDB --from-literal=leaderElectionDbName=leaderElectionDB -n ocnrf

   Note:

   • The value of commonConfigDbName and leaderElectionDbName must have the same value as configured in database.commonConfigDbName and database.leaderElectionDbName under Global Parameters section respectively.
   • It is recommended to use the same secret name as mentioned in the example. In case you change <privileged user secret name>, then update the privilegedUserSecretName parameter in the ocnrf-custom-values-25.2.201.yaml file. For more information about privilegedUserSecretName parameter, see the Global Parameters section.
2. Run the following command to verify the secret created:

   $ kubectl describe secret <database secret name> -n <Namespace of NRF deployment>

   Where,

   <database secret name> is the secret name of the database.

   <Namespace of NRF deployment> is the namespace of NRF deployment.

   For example:

   $ kubectl describe secret privilegeduser-secret -n ocnrf

   Sample output:

   Name:         privilegeduser-secret
   Namespace:    ocnrf
   Labels:       <none>
   Annotations:  <none>

   Type:  Opaque

   Data
   ====
   mysql-password:  10 bytes
   mysql-username:  17 bytes


3. To update the Kubernetes secret, update the command used in step 1 with string "--dry-run -o yaml" and "kubectl replace -f - -n <Namespace of NRF deployment>". After the update is performed, use the following command:

   $ kubectl create secret generic <privileged user secret name> --from-literal=dbUsername=<NRF Privileged Mysql database username> --from-literal=dbPassword=<NRF Privileged Mysql database password> --from-literal=appDbName=<NRF Mysql database name> --from-literal=networkScopedDbName=<NRF Mysql Network database name> --from-literal=commonConfigDbName=<NRF Mysql Common Configuration DB> --dry-run -o yaml -n <Namespace of NRF deployment> | kubectl replace -f - -n <Namespace of NRF deployment>

   Where,

   <privileged user secret name> is the secret name of the Privileged User.

   <NRF Privileged Mysql database username> is the username of the Privileged User.

   <NRF Privileged Mysql User database passsword> is the password of the Privileged User.

   <NRF Mysql database name> is the database name.

   <NRF Mysql Network database name> is the MySQL network database name.

   <NRF Mysql Common Configuration DB> is the MySQL common configuration database name.

   <leaderElectionDB for multipod service> is the MySQL database name for multipod service.

   <Namespace of NRF deployment> is the namespace of NRF deployment.

4. Run the updated command.

   After the secret update is complete, the following message appears:

   secret/<database secret name> replaced

   Where,

   <database secret name> is the updated secret name of the Privileged User.

2.2.1.7.2 Creating and Updating Secret for Application Database User

This section explains how to create and update Kubernetes secret for application user to access the database.

1. Run the following command to create Kubernetes secret:

   $ kubectl create secret generic <appuser-secret name> --from-literal=dbUsername=<NRF Application User Name> --from-literal=dbPassword=<Password for NRF Application User> --from-literal=appDbName=<NRF Application Database> -n <Namespace of NRF deployment>

   Where,

   <appuser-secret name> is the secret name of the Application User.

   <NRF Application User Name> is the username of the Application User.

   <Password for NRF Application User> is the password of the Application User.

   <NRF Application Database> is the database name.

   <Namespace of NRF deployment> is the namespace of NRF deployment.

   Note:

   Note down the command used during the creation of Kubernetes secret, this command will be used for updating the secrets in future.
   For example:

   $ kubectl create secret generic appuser-secret --from-literal=dbUsername=nrfApplicationUsr --from-literal=dbPassword=nrfApplicationPasswd --from-literal=appDbName=nrfApplicationDB -n ocnrf

   Note:

   It is recommended to use the same secret name as mentioned in the example. In case you change <appuser-secret name>, then update the appUserSecretName parameter in the ocnrf-custom-values-25.2.201.yaml file. For more information about appUserSecretName parameter, see the Global Parameters section.
2. Run the following command to verify the secret created:

   $ kubectl describe secret <appuser-secret name> -n <Namespace of NRF deployment>

   Where,

   <appuser-secret name> is the secret name of the Application User.

   <Namespace of NRF deployment> is the namespace of NRF deployment.

   For example:

   $ kubectl describe secret appuser-secret -n ocnrf

   Sample output:

   Name:         appuser-secret
   Namespace:    ocnrf
   Labels:       <none>
   Annotations:  <none>

   Type:  Opaque

   Data
   ====
   mysql-password:  10 bytes
   mysql-username:  7 bytes

3. To update the Kubernetes secret, update the command used in step 1 with string "--dry-run -o yaml" and "kubectl replace -f - -n <Namespace of NRF deployment>". After the update is performed, use the following command:

   $ kubectl create secret generic <appuser-secret name> --from-literal=dbUsername=<NRF Application User Name> --from-literal=dbPassword=<Password for NRF Application User> --from-literal=appDbName=<NRF Application Database> -n <Namespace of NRF deployment>

   Where,

   <appuser-secret name> is the secret name of the Application User.

   <NRF Application User Name> is the username of the Application User.

   <Password for NRF Application User> is the password of the Application User.

   <NRF Application Database> is the database name.

   <Namespace of NRF deployment> is the namespace of NRF deployment.

4. Run the updated command.

   After the secret update is complete, the following message appears:

   secret/<database secret name> replaced

   Where,

   <database secret name> is the updated secret name of the Application User.

2.2.1.8 Configuring Secrets for Enabling HTTPS

This section explains the steps to configure HTTPS at Ingress and Egress Gateways.

2.2.1.8.1 Managing HTTPS at Ingress Gateway

This section explains the steps to create and update the Kubernetes secret, and enable HTTPS at Ingress Gateway.

Note:

Creation process for private keys, certificates and passwords is based on discretion of user or operator.

Creating and Updating Secrets at Ingress Gateway

To create Kubernetes secret for HTTPS, the following files are required:

• ECDSA private key and CA signed certificate of NRF, if the value of ingressgateway.service.ssl.initialAlgorithm is ES256 or RSA private key and CA signed certificate of NRF, if the value of ingressgateway.service.ssl.initialAlgorithm is RS256.
• TrustStore password file
• KeyStore password file
• CA Root File

Note:

• The passwords for TrustStore and KeyStore are stored in respective password files.
• The process to create private keys, certificates, and passwords is at the discretion of the user or operator.

You can manage Kubernetes secrets for enabling HTTPS in NRF using one of the following methods:

• Managing secrets through OCCM
• Managing secrets manually

Managing Secrets Through OCCM

To create the secrets using OCCM, see "Managing Certificates" in Oracle Communications Cloud Native Core, Certificate Management User Guide.

The secrets created by OCCM are then patched to add keyStore password and trustStore password files by running the following commands:

1. To patch the secrets created with the keyStore password file:

   TLS_CRT=$(base64 < "key.txt" | tr -d '\n')
   kubectl patch secret server-primary-ocnrf-secret-occm -n nrfsvc -p "{\"data\":{\"key.txt\":\"${TLS_CRT}\"}}"

   Where,
   • key.txt is the password file that contains KeyStore password.
   • server-primary-ocnrf-secret-occm is the secret created by OCCM.
2. To patch the secrets created with the trustStore password file:

   TLS_CRT=$(base64 < "trust.txt" | tr -d '\n')
   kubectl patch secret server-primary-ocnrf-secret-occm -n nrfsvc -p "{\"data\":{\"trust.txt\":\"${TLS_CRT}\"}}"

   Where,
   • trust.txt is the password file that contains TrustStore password.
   • server-primary-ocnrf-secret-occm is the secret created by OCCM.

Note:

To monitor the lifecycle management of the certificates through OCCM, do not patch the Kubernetes secrets manually to update the TLS certificate or keys. It must be done through the OCCM GUI.

Managing Secrets Manually

1. Run the following command to create secret:

   $ kubectl create secret generic <ocingress-secret-name> --from-file=<ssl_ecdsa_private_key.pem> --from-file=<rsa_private_key_pkcs1.pem> --from-file=<ssl_truststore.txt> --from-file=<ssl_keystore.txt> --from-file=<caroot.cer> --from-file=<ssl_rsa_certificate.crt> --from-file=<ssl_ecdsa_certificate.crt> -n <Namespace of NRF deployment>

   Where,

   <ocingress-secret-name> is the secret name for Ingress Gateway.

   <ssl_ecdsa_private_key.pem> is the ECDSA private key.

   <rsa_private_key_pkcs1.pem> is the RSA private key.

   <ssl_truststore.txt> is the SSL truststore file.

   <ssl_keystore.txt> is the SSL keystore file.

   <ssl_cabundle.crt> is the CA bundle certificate.

   <caroot.cer> is the CA Root file.

   <ssl_rsa_certificate.crt> is the SSL RSA certificate.

   <ssl_ecdsa_certificate.crt> is the SSL ECDSA certificate.

   <Namespace of NRF deployment> is the namespace of NRF deployment.

   Note:

   Note down the command used during the creation of the secret. Use the command for updating the secrets in future.
   For example:

   $ kubectl create secret generic ocingress-secret --from-file=ssl_ecdsa_private_key.pem --from-file=rsa_private_key_pkcs1.pem --from-file=ssl_truststore.txt --from-file=ssl_keystore.txt --from-file=caroot.cer --from-file=ssl_rsa_certificate.crt --from-file=ssl_ecdsa_certificate.crt -n ocnrf

   Note:

   It is recommended to use the same secret name as mentioned in the example. In case you change <ocingress-secret-name>, then update the k8SecretName parameter under ingress-gateway attributes section in the ocnrf-custom-values-25.2.201.yaml file. For more information about ingress-gateway attributes, see the Ingress Gateway Microservice section.
2. Run the following command to verify the secret created:

   $ kubectl describe secret <ocingress-secret-name> -n <Namespace of NRF deployment>

   Where,

   <ocingress-secret-name> is the secret name for Ingress Gateway.

   <Namespace of NRF deployment> is the namespace of NRF deployment.

   For example:

   $ kubectl describe secret ocingress-secret -n ocnrf

   Sample output:

   Name:         ocingress-secret
   Namespace:    ocnrf
   Labels:       <none>
   Annotations:  <none>

   Type:  Opaque


3. (Optional) Perform the following tasks to add, delete, or modify TLS or SSL certificates in the secret:
   • To add a certificate, run the following command:

     TLS_CRT=$(base64 < "<certificate-name>" | tr -d '\n')
     kubectl patch secret <secret-name> -p "{\"data\":{\"<certificate-name>\":\"${TLS_CRT}\"}}"

     Where,

     • <certificate-name> is the certificate file name.
     • <secret-name> is the name of the secret, for example, ocnrf-secret.

     Example:

     If you want to add a Certificate Authority (CA) Root from the caroot.cer file to the ocnrf-secret, run the following command:

     TLS_CRT=$(base64 < "caroot.cer" | tr -d '\n')
     kubectl patch secret ocnrf-secret  -p "{\"data\":{\"caroot.cer\":\"${TLS_CRT}\"}}" -n scpsvc

     Similarly, you can also add other certificates and keys to the ocnrf-secret.

   • To update an existing certificate, run the following command:

     TLS_CRT=$(base64 < "<updated-certificate-name>" | tr -d '\n')
     kubectl patch secret <secret-name> -p "{\"data\":{\"<certificate-name>\":\"${TLS_CRT}\"}}"

     Where, <updated-certificate-name> is the certificate file that contains the updated content.

     Example:

     If you want to update the privatekey present in the rsa_private_key_pkcs1.pem file to the ocnrf-secret, run the following command:

     TLS_CRT=$(base64 < "rsa_private_key_pkcs1.pem" | tr -d '\n')
     kubectl patch secret ocnrf-secret -p "{\"data\":{\"rsa_private_key_pkcs1.pem\":\"${TLS_CRT}\"}}" -n scpsvc

     Similarly, you can also update other certificates and keys to the ocnrf-secret.

   • To remove an existing certificate, run the following command:

     kubectl patch secret <secret-name> -p "{\"data\":{\"<certificate-name>\":null}}"

     Where, <certificate-name> is the name of the certificate to be removed.

     The certificate must be removed when it expires or needs to be revoked.

     Example:

     To remove the CA Root from the ocnrf-secret, run the following command:

     kubectl patch secret ocnrf-secret  -p "{\"data\":{\"caroot.cer\":null}}" -n scpsvc


     Similarly, you can also remove other certificates and keys from the ocnrf-secret.

4. To update the secret, update the command used in step 1 with string "--dry-run -o yaml" and "kubectl replace -f - -n <Namespace of NRF deployment>".
   After the update is performed, use the following command:

   $ kubectl create secret generic <ocingress-secret-name> --from-file=<ssl_ecdsa_private_key.pem> --from-file=<rsa_private_key_pkcs1.pem> --from-file=<ssl_truststore.txt> --from-file=<ssl_keystore.txt> --from-file=<caroot.cer> --from-file=<ssl_rsa_certificate.crt> --from-file=<ssl_ecdsa_certificate.crt> --dry-run -o yaml -n <Namespace of NRF deployment> | kubectl replace -f - -n <Namespace of NRF deployment>

   For example:

   $ kubectl create secret generic ocingress-secret --from-file=ssl_ecdsa_private_key.pem --from-file=rsa_private_key_pkcs1.pem --from-file=ssl_truststore.txt --from-file=ssl_keystore.txt --from-file=caroot.cer --from-file=ssl_rsa_certificate.crt --from-file=ssl_ecdsa_certificate.crt --dry-run -o yaml -n ocnrf | kubectl replace -f - -n ocnrf

   Note:

   The names used in the aforementioned command must be as same as the names provided in the custom_values.yaml in NRF deployment.
5. Run the updated command.
   After the secret update is complete, the following message appears:

   secret/<ocingress-secret> replaced

Enabling HTTPS at Ingress Gateway

This step is required only when SSL settings need to be enabled on Ingress Gateway microservice of NRF.

1. Enable enableIncomingHttps parameter in the ocnrf-custom-values-25.2.201.yaml file. For more information about enableIncomingHttps parameter, see the Ingress Gateway Microservice section.

   Note:

   Enable enablePodSecurityContext parameter in the ocnrf-custom-values-25.2.201.yaml file. For more information about enablePodSecurityContext parameter, see the Ingress Gateway Microservice section.
2. Configure the following details in the ssl section under ingress-gateway attributes, in case you have changed the attributes while creating secret:
   • Kubernetes namespace
   • Kubernetes secret name holding the certificate details
   • Certificate information

   service:
       # configuration under ssl section is mandatory if enableIncomingHttps is configured as "true"
       ssl:
         # comma-separated-values to specifies TLS version
         tlsVersion: TLSv1.2
         # OCNRF private key details for HTTPS
         # Secret Name, Namespace, Keydetails
         privateKey:
           k8SecretName: ocingress-secret
           k8NameSpace: ocnrf
           rsa:
             fileName: rsa_private_key_pkcs1.pem
           ecdsa:
             fileName: ssl_ecdsa_private_key.pem

         # OCNRF certificate details for HTTPS
         # Secret Name, Namespace, Keydetails
         certificate:
           k8SecretName: ocingress-secret
           k8NameSpace: ocnrf
           rsa:
             fileName: ssl_rsa_certificate.crt
           ecdsa:
             fileName: ssl_ecdsa_certificate.crt

         # OCNRF CA details for HTTPS
         caBundle:
           k8SecretName: ocingress-secret
           k8NameSpace: ocnrf
           fileName: caroot.cer

         # OCNRF KeyStore password for HTTPS
         # Secret Name, Namespace, Keydetails
         keyStorePassword:
           k8SecretName: ocingress-secret
           k8NameSpace: ocnrf
           fileName: ssl_keystore.txt

         # OCNRF TrustStore password for HTTPS
         # Secret Name, Namespace, Keydetails
         trustStorePassword:
           k8SecretName: ocingress-secret
           k8NameSpace: ocnrf
           fileName: ssl_truststore.txt

         # Initial Algorithm for HTTPS
         # Supported Values: ES256, RS256
         initialAlgorithm: ES256

   Note:

   If the certificates are not available, then create them following the instructions given in the Creating Private Keys and Certificate.
3. Save the ocnrf-custom-values-25.2.201.yaml file.

2.2.1.8.2 Managing HTTPS at Egress Gateway

This section explains the steps to create and update the Kubernetes secret and enable HTTPS at Egress Gateway.

Creating and Updating Secrets at Egress Gateway

To create Kubernetes secret for HTTPS, the following files are required:

• ECDSA private key and CA signed certificate of NRF, if the value of egressgateway.service.ssl.initialAlgorithm is ES256 or RSA private key and CA signed certificate of NRF, if the value of egressgateway.service.ssl.initialAlgorithm is RS256.
• TrustStore password file
• KeyStore password file
• CA Root File

Note:

• The passwords for TrustStore and KeyStore are stored in respective password files.
• The process to create private keys, certificates, and passwords is at the discretion of the user or operator.

You can manage Kubernetes secrets for enabling HTTPS in NRF using one of the following methods:

• Managing secrets through OCCM
• Managing secrets manually

Managing Secrets Through OCCM

To create the secrets using OCCM, see "Managing Certificates" in Oracle Communications Cloud Native Core, Certificate Management User Guide.

The secrets created by OCCM are then patched to add keyStore password and trustStore password files by running the following commands:

1. To patch the secrets created with the keyStore password file:

   TLS_CRT=$(base64 < "key.txt" | tr -d '\n')
   kubectl patch secret server-primary-ocnrf-secret-occm -n nrfsvc -p "{\"data\":{\"key.txt\":\"${TLS_CRT}\"}}"

   Where,
   • key.txt is the password file that contains KeyStore password.
   • server-primary-ocnrf-secret-occm is the secret created by OCCM.
2. To patch the secrets created with the trustStore password file:

   TLS_CRT=$(base64 < "trust.txt" | tr -d '\n')
   kubectl patch secret server-primary-ocnrf-secret-occm -n nrfsvc -p "{\"data\":{\"trust.txt\":\"${TLS_CRT}\"}}"

   Where,
   • trust.txt is the password file that contains TrustStore password.
   • server-primary-ocnrf-secret-occm is the secret created by OCCM.

Note:

To monitor the lifecycle management of the certificates through OCCM, do not patch the Kubernetes secrets manually to update the TLS certificate or keys. It must be done through the OCCM GUI.

Managing Secrets Manually

1. Run the following command to create secret.

   $ kubectl create secret generic <ocegress-secret-name> --from-file=<ssl_ecdsa_private_key.pem>  --from-file=<ssl_rsa_private_key.pem> --from-file=<ssl_truststore.txt> --from-file=<ssl_keystore.txt> --from-file=<ssl_cabundle.crt> --from-file=<ssl_rsa_certificate.crt> --from-file=<ssl_ecdsa_certificate.crt> -n <Namespace of NRF deployment>

   Where,

   <ocegress-secret-name> is the secret name for Egress Gateway.

   <ssl_ecdsa_private_key.pem> is the ECDSA private key.

   <rsa_private_key_pkcs1.pem> is the RSA private key.

   <ssl_truststore.txt> is the SSL truststore file.

   <ssl_keystore.txt> is the SSL keystore file.

   <ssl_cabundle.crt> is the CA bundle certificate.

   <caroot.cer> is the CA Root file.

   <ssl_rsa_certificate.crt> is the SSL RSA certificate.

   <ssl_ecdsa_certificate.crt> is the SSL ECDSA certificate.

   <Namespace of NRF deployment> is the namespace of NRF deployment.

   Note:

   Note down the command used during the creation of the secret. Use the command for updating the secrets in future.

   For example:

   $ kubectl create secret generic ocegress-secret --from-file=ssl_ecdsa_private_key.pem --from-file=ssl_rsa_private_key.pem --from-file=ssl_truststore.txt --from-file=ssl_keystore.txt --from-file=ssl_cabundle.crt --from-file=ssl_rsa_certificate.crt --from-file=ssl_ecdsa_certificate.crt -n ocnrf

   Note:

   It is recommended to use the same secret name as mentioned in the example. In case you change <ocegress-secret-name>, then update the k8SecretName parameter under egressgateway attributes section in the ocnrf-custom-values-25.2.201.yaml file. For more information about egressgateway attributes, see the Egress Gateway Microservice section.
2. Run the following command to verify the details of the secret created:

   $ kubectl describe secret <ocegress-secret-name> -n <Namespace of NRF deployment>

   Where,

   <ocegress-secret-name> is the secret name for Egress Gateway.

   <Namespace of NRF deployment> is the namespace of NRF deployment.

   For example:

   $ kubectl describe secret ocegress-secret -n ocnrf

3. To update the secret, update the command used in step 1 with string "--dry-run -o yaml" and "kubectl replace -f - -n <Namespace of NRF deployment>".
   After the update is performed, use the following command:

   kubectl create secret generic <ocegress-secret-name> --from-file=<ssl_ecdsa_private_key.pem> --from-file=<ssl_rsa_private_key.pem> --from-file=<ssl_truststore.txt> --from-file=<ssl_keystore.txt> --from-file=<ssl_cabundle.crt> --from-file=<ssl_rsa_certificate.crt> --from-file=<ssl_ecdsa_certificate.crt> --dry-run -o yaml -n <Namespace of NRF Egress Gateway secret> | kubectl replace -f - -n <Namespace of NRF deployment>

   For example:

   $ kubectl create secret generic egress-secret --from-file=ssl_ecdsa_private_key.pem --from-file=rsa_private_key_pkcs1.pem --from-file=ssl_truststore.txt --from-file=ssl_keystore.txt --from-file=caroot.cer --from-file=ssl_rsa_certificate.crt --from-file=ssl_ecdsa_certificate.crt --dry-run -o yaml -n ocnrf | kubectl replace -f - -n ocnrf

   Note:

   The names used in the aforementioned command must be as same as the names provided in the custom_values.yaml in NRF deployment.
4. Run the updated command.
   After the secret update is complete, the following message appears:

   secret/<ocingress-secret> replaced

Enabling HTTPS at Egress Gateway

This step is required only when SSL settings need to be enabled on Egress Gateway microservice of NRF.

1. Enable enableOutgoingHttps parameter in the ocnrf-custom-values-25.2.201.yaml file. For more information about enableOutgoingHttps parameter, see the Egress Gateway Microservice section.

   Note:

   Enable enablePodSecurityContext parameter in the ocnrf-custom-values-25.2.201.yaml file. For more information about enablePodSecurityContext parameter, see the Egress Gateway Microservice section.
2. Configure the following details in the ssl section under egressgateway attributes, in case you have changed the attributes while creating secret:
   • Kubernetes namespace
   • Kubernetes secret name holding the certificate details
   • Certificate information

     service:
       # configuration under ssl section is mandatory if enableOutgoingHttps is configured as "true"
       ssl:
         # comma-separated-values to specifies TLS version
         tlsVersion: TLSv1.2
         # OCNRF private key details for HTTPS
         # Secret Name, Namespace, Keydetails
         privateKey:
           k8SecretName: ocegress-secret
           k8NameSpace: ocnrf
           rsa:
             fileName: ssl_rsa_private_key.pem
           ecdsa:
             fileName: ssl_ecdsa_private_key.pem

         # OCNRF certificate details for HTTPS
         # Secret Name, Namespace, Keydetails
         certificate:
           k8SecretName: ocegress-secret
           k8NameSpace: ocnrf
           rsa:
             fileName: ssl_rsa_certificate.crt
           ecdsa:
             fileName: ssl_ecdsa_certificate.crt

         # OCNRF CA details for HTTPS
         caBundle:
           k8SecretName: ocegress-secret
           k8NameSpace: ocnrf
           fileName: ssl_cabundle.crt

         # OCNRF KeyStore password for HTTPS
         # Secret Name, Namespace, Keydetails
         keyStorePassword:
           k8SecretName: ocegress-secret
           k8NameSpace: ocnrf
           fileName: ssl_keystore.txt

         # OCNRF TrustStore password for HTTPS
         # Secret Name, Namespace, Keydetails
         trustStorePassword:
           k8SecretName: ocegress-secret
           k8NameSpace: ocnrf
           fileName: ssl_truststore.txt

         # Initial algorithm for HTTPS
         # Support Values: ES256, RS256
         initialAlgorithm: ES256

   Note:

   If the certificates are not available, then create them following the instructions given in the Creating Private Keys and Certificate.
3. Save the ocnrf-custom-values-25.2.201.yaml file.

2.2.1.9 Configuring Secret for Enabling CCA Header

This section explains the steps to create and update the Kubernetes secret, and enable CCA at Ingress Gateway.

Creating a secret to enable CCA

Perform the following command to create secrets for enabling CCA header in NRF Ingress Gateway microservice.

$ kubectl create secret generic <ocingress-secret-name> --from-file=<caroot.cer> -n <Namespace of NRF deployment>

Where,

• <ocingress-secret-name> is the secret name for Ingress Gateway.
• <caroot.cer> is the CA Root file.
• <Namespace of NRF deployment> is the namespace of NRF deployment.

For example:

$ kubectl create secret generic ocingress-secret --from-file=caroot.cer -n ocnrf

Updating a secret

To update the secret, update the command used in step 1 with string --dry-run -o yaml and kubectl replace -f - -n <Namespace of NRF deployment>. After the update is performed, use the following command:

$ kubectl create secret generic <ocingress-secret-name> --from-file=<caroot.cer> --dry-run -o yaml -n <Namespace of NRF deployment> | kubectl replace -f - -n <Namespace of NRF deployment>

For example:

$ kubectl create secret generic ocingress-secret --from-file=caroot.cer --dry-run -o yaml -n ocnrf | kubectl replace -f - -n ocnrf

Note:

• In case you want to combine the certificates, see Combining Multiple Certificates.
• Configure the secret using ingressgateway.ccaHeaderValidation.k8SecretName, ingressgateway.ccaHeaderValidation.k8NameSpace, ingressgateway.ccaHeaderValidation.fileName in the REST API.

2.2.1.10 Configuring Secret to Enable Access Token Service

This section explains how to configure a secret for enabling access token service (Nnrf_AccessToken Service).

Creating Secret for Enabling Access Token Service

This section explains the steps to create and update a secret for the access token service of NRF.

To create a Kubernetes secret for an access token, following files are required:

• ECDSA private keys for algorithm ES256 and corresponding valid public certificates for NRF
• RSA private keys for algorithm RS256 and corresponding valid public certificates for NRF

Note:

• Creation process for private keys and signed certificates are at the discretion of user or operator.
• Unencrypted keys and certificates are only supported.
• For RSA, the supported versions are PKCS1 and PKCS8.
• For ECDSA, the supported version is PKCS8.

1. Run the following command to create a secret. This is just an example of two keys and certificates. Multiple files can be loaded into secret according to various key usage for access token:

   $ kubectl create secret generic <ocnrfaccesstoken-secret> --from-file=<ecdsa_private_key.pem> --from-file=<rsa_private_key.pem> --from-file=<rsa_private_key_pkcs1.pem> --from-file=<ecdsa_private_key_pkcs8.pem> --from-file=<rsa_certificate.crt> --from-file=<ecdsa_certificate.crt>
   -n <Namespace of NRF deployment>

   Where,

   <ocnrfaccesstoken-secret> is the secret name for access token service.

   <ecdsa_private_key.pem> is the ECDSA private key.

   <rsa_private_key.pem> is the RSA private key.

   <rsa_private_key_pkcs1.pem> is the RSA private key with pkcs1.

   <ecdsa_private_key_pkcs8.pem> is the ECDSA private key with pkcs8.

   <rsa_certificate.crt> is the RSA certificate.

   <ecdsa_certificate.crt> is the ECDSA certificate.

   <Namespace of NRF deployment> is the namespace of NRF deployment.

   Note:

   Note down the command used during the creation of the secret. Use the command for updating the secrets in future.
   For example:

   $ kubectl create secret generic ocnrfaccesstoken-secret --from-file=ecdsa_private_key.pem --from-file=rsa_private_key.pem --from-file=rsa_certificate.crt --from-file=ecdsa_certificate.crt -n ocnrf

2. Run the following command to verify secret created:

   $ kubectl describe secret <ocnrfaccesstoken-secret> -n <Namespace of NRF deployment>

   Where,

   <ocnrfaccesstoken-secret> is the secret name for access token service.

   <Namespace of NRF deployment> is the namespace of NRF deployment.

   For example:

   $ kubectl describe secret ocnrfaccesstoken-secret -n ocnrf

3. To update the secret, update the command used in step 1 with "--dry-run -o yaml" and "kubectl replace -f - -n <Namespace of NRF deployment>".

   After the update is performed, use the following command:

   $ kubectl create secret generic <ocnrfaccesstoken-secret> --from-file=<ecdsa_private_key.pem> --from-file=<rsa_private_key.pem> --from-file=<rsa_certificate.crt> --from-file=<ecdsa_certificate.crt> --dry-run -o yaml -n <Namespace of NRF deployment> | kubectl replace -f - -n <Namespace of NRF deployment>

   For example:

   $ kubectl create secret generic ocnrfaccesstoken-secret --from-file=ecdsa_private_key.pem --from-file=rsa_private_key.pem --from-file=rsa_certificate.crt --from-file=ecdsa_certificate.crt --dry-run -o yaml -n ocnrf | kubectl replace -f - -n ocnrf

   Note:

   The names used in the aforementioned command must be as same as the names provided in the custom_values.yaml in NRF deployment.
4. Run the updated command.
   After the secret update is complete, the following message appears:

   secret/<ocnrfaccesstoken-secret> replaced

2.2.1.11 Configuring NRF to Support ASM

NRF leverages the Platform Service Mesh (for example, Aspen Service Mesh) for all internal and external TLS communication. The service mesh integration provides inter-NF communication and allows API gateway co-working with service mesh. The service mesh integration supports the services by deploying a special sidecar proxy in each pod to intercept all network communication between microservices.

Supported ASM version: 1.21.6 and 1.14.6

Note:

NRF 25.1.201 supports ASM 1.21.6 version on Kubernetes 1.27.x version.

For ASM installation and configuration, refer to official Aspen Service Mesh website for details.

Aspen Service Mesh (ASM) configurations are categorized as follows:

• Control Plane: It involves adding labels or annotations to inject sidecar. The control plane configurations are part of the NF Helm chart.
• Data Plane: It helps in traffic management, such as handling NF call flows by adding Service Entries (SE), Destination Rules (DR), Envoy Filters (EF), and other resource changes such as apiVersion change between different versions. This configuration is done using ocnrf-servicemesh-config-custom-values-25.2.200.yaml file.

Configuring ASM Data Plane

Data Plane configuration consists of the following Custom Resource Definitions (CRDs):

• Service Entry (SE)
• Destination Rule (DR)
• Envoy Filter (EF)
• Peer Authentication (PA)
• Virtual Service (VS)
• Request Authentication (RA)
• Policy Authorization (PA)

Note:

Use ocnrf-servicemesh-config-custom-values-25.2.200.yaml to add or remove CRDs that you may require due to ASM upgrades to configure features across different releases.

The data plane configuration is applicable in the following scenarios:

• Service Entry: Enables adding additional entries into Sidecar's internal service registry, so that auto-discovered services in the mesh can access or route to these manually specified services. A service entry describes the properties of a service (DNS name, VIPs, ports, protocols, endpoints).
• Destination Rule: Defines policies that apply to traffic intended for service after routing has occurred. These rules specify configuration for load balancing, connection pool size from the sidecar, and outlier detection settings to detect and evict unhealthy hosts from the load balancing pool.
• Envoy Filters: Provides a mechanism to customize the Envoy configuration generated by Istio Pilot. Use Envoy Filter to modify values for certain fields, add specific filters, or even add entirely new listeners, clusters, and so on.
• Peer Authentication: Used for service-to-service authentication to verify the client making the connection.
• Virtual Service: Defines a set of traffic routing rules to apply when a host is addressed. Each routing rule defines matching criteria for the traffic of a specific protocol. If the traffic is matched, then it is sent to a named destination service (or subset or version of it) defined in the registry.

  Note:

  The value for attempts is configured as 0, to disable retry in sidecar.
• Request Authentication: Used for end-user authentication to verify the credential attached to the request.
• Policy Authorization: Enables access control on workloads in the mesh. Policy Authorization supports CUSTOM, DENY, and ALLOW actions for access control. When CUSTOM, DENY, and ALLOW actions are used for a workload at the same time, the CUSTOM action is evaluated first, then the DENY action, and finally the ALLOW action.

Service Mesh Configuration File

A sample ocnrf-servicemesh-config-custom-values-25.2.200.yaml is available in NRF CSAR package. For downloading the file, see Customizing NRF.

Table 2-24 Supported Fields in CRD

CRD	Supported Fields
Service Entry	hosts
	exportTo
	addresses
	ports.name
	ports.number
	ports.protocol
	resolution
Destination Rule	host
	mode
	sbitimers
	tcpConnectTimeout
	tcpKeepAliveProbes
	tcpKeepAliveTime
	tcpKeepAliveInterval
Envoy Filters	labelselector
	applyTo
	filtername
	operation
	typeconfig
	configkey
	configvalue
	stream_idle_timeout
	max_stream_duration
	patchContext
	networkFilter_listener_port
	transport_socket_connect_timeout
	filterChain_listener_port
	route_idle_timeout
	route_max_stream_duration
	httpRoute_routeConfiguration_port
	vhostname
Peer Authentication	labelselector
	tlsmode
Virtual Service	host
	destinationhost
	port
	exportTo
	retryon
	attempts
	timeout
Request Authentication	labelselector
	issuer
	jwks/jwksUri
Policy Authorization	labelselector
	action
	hosts
	paths
	xfccvalues

For more information about the CRDs and the parameters, see Aspen Service Mesh.

2.2.1.11.1 Predeployment Configuration

This section explains the predeployment configuration procedure to install NRF with Service Mesh support.

Creating NRF namespace:

1. Verify required namespace already exists in system:

   $ kubectl get namespaces

2. In the output of the above command, check if required namespace is available. If not available, create the namespace using the following command:

   $ kubectl create namespace <ocnrf_namespace>

   Where,

   <ocnrf_namespace> is the namespace of NRF.

   For example:

   $ kubectl create namespace ocnrf

2.2.1.11.2 Installing Service Mesh Configuration Charts

Perform the below steps to configure Service Mesh CRs using the Service Mesh Configuration chart:

1. Download the service mesh chart ocnrf-servicemesh-config-25.2.200.tgz available in the Scripts folder of ocnrf_csar_.zip. For downloading the file, see Customizing NRF.
2. Unzip ocnrf_csar_.zip.:

   unzip ocnrf_csar_<release_number>.zip

   For example:

   unzip ocnrf_csar_.zip

3. Configure the ocnrf_servicemesh_config_custom_values_25.2.200.yaml file as follows:

   Modify only the "SERVICE-MESH Custom Resource Configuration" section for configuring the CRs as needed. For example, to add or modify a ServiceEntry CR, required attributes and its value must be configured under the "serviceEntries:" section of "SERVICE-MESH Custom Resource Configuration". You can also comment on the CRs that you do not need.

4. Install the Service Mesh Configuration Chart as below:
   • Run the below Helm install command on the namespace you want to apply the changes:

     helm install <helm-release-name> <charts> --namespace <namespace-name> -f <custom-values.yaml-filename>

     For example,

     helm install ocnrf ocnrf-servicemesh-config-25.2.200.tgz --namespace ocnrf -f ocnrf_servicemesh_config_custom_values_25.2.200.yaml
   • Run the below command to verify if all CRs are installed:

     kubectl get <CRD-Name> -n <Namespace>

     For example,

     kubectl get se,dr,peerauthentication,envoyfilter,vs -n ocnrf

     Note:

     Any modification to the existing CRs or adding CRs can be done by updating the ocnrf_servicemesh_config_custom_values_25.2.200.yaml file and running Helm upgrade.

2.2.1.11.3 Deploying NRF with Service Mesh

1. Run the following command to create namespace label for auto sidecar injection and to automatically add the sidecars in all pods spawned in NRF namespace:

   $ kubectl label ns <ocnrf_namespace> istio-injection=enabled

   Where,

   <ocnrf_namespace> is the namespace of NRF.

   For example:

   $ kubectl label ns ocnrf istio-injection=enabled

2. Update ocnrf_custom_values_25.2.201.yaml file with following annotations:
   1. Update the Global Parameters section by adding annotations for the following use cases:
      1. To scrape metrics from NRF pods, add oracle.com/cnc:"true" annotation.

         Note:

         This step is required only if OSO is deployed.
      2. To enable Prometheus to scrape metrics from NRF pods, add "9090" to traffic.sidecar.istio.io/excludeInboundPorts and traffic.sidecar.istio.io/excludeOutboundPorts annotations.
      3. To enable Coherence to form cluster, add "8095, 8096, 7, 53" to traffic.sidecar.istio.io/excludeInboundPorts and traffic.sidecar.istio.io/excludeOutboundPorts annotations.

         For example:

         global:
           customExtension:
             allResources:
                labels: {}
                annotations: {}
             lbDeployments:
               annotations:
                 oracle.com/cnc: "true"
                 traffic.sidecar.istio.io/excludeInboundPorts: "9090,8095,8096,7,53"
                 traffic.sidecar.istio.io/excludeOutboundPorts: "9090,8095,8096,7,53"
             nonlbDeployments:
               annotations:
                 oracle.com/cnc: "true"
                 traffic.sidecar.istio.io/excludeInboundPorts: "9090,8095,8096,7,53"
                 traffic.sidecar.istio.io/excludeOutboundPorts: "9090,8095,8096,7,53"

   2. Update the following attribute under the Ingress Gateway Global Parameters section to true, if NF authentication using the TLS certificate feature must be enabled.

        xfccHeaderValidation:
          extract:
            enabled: true

   3. Enable the Service Mesh Flag and check if the serviceMeshCheck parameter is set to true in the Global Parameters section.


       # Mandatory: This parameter must be set to "true" when NRF is deployed with the Service Mesh
      serviceMeshCheck: true
        # Mandatory: needs to be set with correct url format http://127.0.0.1:<istio management port>/quitquitquit" if NRF is deployed with the Service Mesh.
       istioSidecarQuitUrl: "http://127.0.0.1:15000/quitquitquit"
        # Mandatory: needs to be set with correct url format http://127.0.0.1:<istio management port>/ready" if NRF is deployed with the Service Mesh.
      istioSidecarReadyUrl: "http://127.0.0.1:15000/ready"

      Note:

      • The serviceMeshCheck parameter is mandatory and the other two parameters are read-only.
      • Retry has to be disabled at sidecar using the virtual service defined in ocnrf_servicemesh_config_custom_values_25.2.200.yaml file.
   4. Change the value of ingressgateway.global.type to ClusterIP in the Ingress Gateway Microservice section:

      global:
          # Service Type
          type: ClusterIP

   5. Update the value of nrfconfiguration.service.type to ClusterIP in the NRF Configuration Microservice (nrfconfiguration) section:

      nrfconfiguration:
        service:
          # Service Type
          type: ClusterIP

   6. Update the value of egressgateway.httpRuriOnly attribute to true in the Egress Gateway Microservice section to enforce Egress Gateway container to send non-TLS egress requests irrespective of the HTTP Scheme value of the message. Because, in a Service Mesh-based deployment, the sidecar container takes care of establishing a TLS connection with the peer.

      egress-gateway:
        # Mandatory: This flag needs to set it "true" if Service Mesh would be present where OCNRF will be deployed
        # This is to enable egress gateway to send http2 (and not https) even if the target scheme https
        httpRuriOnly: "true"

   7. Update the following sidecar configuration in the Perf Info Microservice (perf-info) section:

      deployment:
          customExtension:
            labels: {}
            annotations: {
      	  # Enable this section for service-mesh based installation
      		sidecar.istio.io/proxyCPU: "2",
      		sidecar.istio.io/proxyCPULimit: "2",
      		sidecar.istio.io/proxyMemory: "2Gi",
      		sidecar.istio.io/proxyMemoryLimit: "2Gi"
      	  }

3. Install NRF using updated ocnrf_custom_values_25.2.201.yaml file.

2.2.1.11.4 Post-deployment Configuration

This section explains the post-deployment configurations after installing NRF with support for service mesh.

Enable Inter-NF communication

For every new NF participating in call flows when NRF is a client, DestinationRule, and ServiceEntry must be created in NRF namespace to enable communication.

Following are the inter-NF communication with NRF:

• NRF to SLF or UDR communication
• NRF to other NRF communication (forwarding)
• NRF to SEPP communication (roaming)

Create CRs using the ocnrf_servicemesh_config_custom_values_25.2.200.yaml file in NRF CSAR package.

2.2.1.11.5 Deploying NRF without Service Mesh

This section describes the steps to redeploy NRF without Service Mesh resources.

1. To disable Service Mesh, run the following command:

   $ kubectl label ns <ocnrf_namespace> istio-injection=disabled

   Where,

   <ocnrf_namespace> is the namespace of NRF.

   For example:

   $ kubectl label ns ocnrf istio-injection=disabled

2. Remove the metrics scraping annotations from the ocnrf_custom_values_25.2.201.yaml file.
   1. To scrape metrics from NRF pods, add oracle.com/cnc: "true" annotation.

      Note:

      This step is required only if OSO is deployed.
      For example:

      global:
        customExtension:
          allResources:
             labels: {}
             annotations: {}
          lbDeployments:
            annotations:
              oracle.com/cnc: "true"

          nonlbDeployments:
            annotations:
              oracle.com/cnc: "true"

   2. Update the following attributes under the global ingress-gateway section, in case NF authentication using the TLS certificate feature should be enabled. Update the 'enabled' attribute to false as below.

        xfccHeaderValidation:
          extract:
            enabled: false

   3. Disable Service Mesh Flag and check if the serviceMeshCheck flag is set to false in the Global parameter section.

      Note:

      The serviceMeshCheck parameter is mandatory and the other two parameters are read-only.


       # Mandatory: This parameter must be set to "true" when NRF is deployed with the Service Mesh
      serviceMeshCheck: false
        # Mandatory: needs to be set with correct url format http://127.0.0.1:<istio management port>/quitquitquit" if NRF is deployed with the Service Mesh.
       istioSidecarQuitUrl: "http://127.0.0.1:15000/quitquitquit"
        # Mandatory: needs to be set with correct url format http://127.0.0.1:<istio management port>/ready" if NRF is deployed with the Service Mesh.
      istioSidecarReadyUrl: "http://127.0.0.1:15000/ready"

   4. Change Ingress-Gateway Service Type to LoadBalancer under ingress-gateway's global section:

      global:
          # Service Type
          type:LoadBalancer

   5. Update Service Type to LoadBalancer under NRF configuration microservice section:

      nrfconfiguration:
        service:
          # Service Type
          type: LoadBalancer

   6. Update Egress-Gateway section for the below attributes to enforce Egress-Gateway container for not to send non-TLS Egress requests irrespective of the HTTP Scheme value of the message. Because, in a Service Mesh-based deployment, the sidecar container takes care of establishing a TLS connection with the peer.

      egress-gateway:
        # Mandatory: This flag needs to set it "true" if Service Mesh would be present where OCNRF will be deployed
        # This is to enable egress gateway to send http2 (and not https) even if the target scheme https
        httpRuriOnly: "false"

   7. Remove the sidecar configuration in perf-info section:

      deployment:
          customExtension:
            labels: {}
            annotations: {}


3. Upgrade or Install NRF using updated ocnrf_custom_values_25.2.201.yaml.

2.2.1.11.6 Deleting Service Mesh Resources

This section describes the steps to delete Service Mesh resources.

To delete Service Mesh resources, run the following command:

helm delete <helm-release-name> -n <namespace-name>

Where,

• <helm-release-name> is the release name used by the helm command. This release name must be the same as the release name used for ServiceMesh.
• <namespace-name> is the deployment namespace used by Helm command.

To verify if Service Mesh resources are deleted, run the following command:

kubectl get se,dr,peerauthentication,envoyfilter,vs -n ocnrf

2.2.1.12 Creating Secrets for DNS NAPTR - Alternate route service

This section provides information about how to create secret DNS NAPTR alternate route service.

Note:

Perform this procedure only if DNS NAPTR feature must be implemented.

1. Run the following command to create secret:

   $ kubectl create secret generic <DNS NAPTR Secret> --from-literal=tsigKey=<tsig key generated of DNS Server> --from-literal=algorithm=<Algorithm used to generate key> --from-literal=keyName=<key-name used while generating key> -n <Namespace of NRF deployment>

   Where,

   <DNS NAPTR Secret> is the secret name for DNS NAPTR.

   <tsig key generated of DNS Server> is the TSIG key generated for DNS Server.

   <Algorithm used to generate key> is the algorithm used to generate key.

   <key-name used while generating key> is the key-name used while generating key.

   <Namespace of NRF deployment> is the namespace of NRF deployment.

   Note:

   Note down the command used during the creation of the secret. Use the command for updating the secrets in future.
   For example:

   $ kubectl create secret generic tsig-secret --from-literal=tsigKey=kUVdLp2SYshV/mkE985LEePLt3/K4vhM63suWJXA9T6DAl3hJFQQpKAcK5imcIKjI5IVyYk2AJBkq3qtQvRTGw== --from-literal=algorithm=hmac-sha256 --from-literal=keyName=ocnrf-tsig -n ocnrf

2. Run the following command to verify the secret created:

   $ kubectl describe secret <DNS NAPTR Secret> -n <Namespace of NRF deployment>

   For example:

   $ kubectl describe secret tsig-secret -n ocnrf

Note:

Creation process for DNS Server key is on discretion of the operator.

2.2.1.13 Configuring Network Policies

Kubernetes network policies allow you to define ingress or egress rules based on Kubernetes resources such as Pod, Namespace, IP, and Port. These rules are selected based on Kubernetes labels in the application.

These network policies enforce access restrictions for all the applicable data flows except the communication from Kubernetes node to pod for invoking container probe.

Note:

Configuring network policy is optional. Based on the security requirements, network policy can be configured.

For more information about the network policy, see https://kubernetes.io/docs/concepts/services-networking/network-policies/.

Note:

• If the traffic is blocked or unblocked between the pods even after applying network policies, check if any existing policy is impacting the same pod or set of pods that might alter the overall cumulative behavior.
• If changing default ports of services such as Prometheus, Database, Jaegar, or if Ingress or Egress Gateway names is overridden, update them in the corresponding network policies.

2.2.1.13.1 Installing Network Policies

Prerequisite

Network Policies are implemented by using the network plug-in. To use network policies, you must be using a networking solution that supports Network Policy.

Note:

For a fresh installation, it is recommended to install Network Policies before installing NRF. However, if NRF is already installed, you can still install the Network Policies.

Following is the procedure for installing network policy:

1. Open the ocnrf-network-policy-custom-values-25.2.201.yaml file provided in the release package. For downloading the file, see Downloading the NRF package.
2. The file is provided with the default network policies. If required, update the ocnrf-network-policy-custom-values-25.2.201.yaml file as per the requirement. For more information about the parameters, see Table 2-25.

   Note:

   Update the ocnrf-network-policy-custom-values-25.2.201.yaml as per the feature requirements. For more information, see the Configuring Network Policies for Specific Features section.
3. Run the following command to install the network policies:

   helm install <helm-release-name> <charts> -n <namepsace> -f <custom-value-file>

   Where,

   helm-release-name: Helm release name of the ocnrf-network-policy.

   charts: is the chart to deploy the network policy.

   custom-value-file: Custom value file of the ocnrf-network-policy.

   namespace: Namespace must be the NRF's namespace.

   Sample command:

   helm install ocnrf-network-policy ocnrf-network-policy -n ocnrf -f ocnrf-network-policy-custom-values-25.2.201.yaml

Note:

• The connections created before installing network policy are not impacted by the new network policy. Only the new connections are impacted.
• If you are using ATS suite along with network policies, it is required to install the NRF and ATS in the same namespace.
• While using the debug container, it is recommended to uninstall the network policies or update them as required to establish the connections.

Configuring Network Policies for Specific Features

For NRF Message Feed feature, add the network policy for allowing Ingress Gateway and Egress Gateway to send message feed to Data Director. See ocnrf-network-policy-custom-values-25.2.201.yaml file for sample network policy.

2.2.1.13.2 Upgrading Network Policies

To add, delete, or update network policy:

1. Modify the network-policy-custom-values-25.2.201.yaml file to update, add, and delete the network policy.
2. Run the following command to upgrade the network policies:

   helm upgrade <helm-release-name> <charts> -n <namespace> -f <values.yaml>

   Sample command:

   helm upgrade ocnrf-network-policy ocnrf-network-policy -n ocnrf -f ocnrf-network-policy-custom-values-25.2.201.yaml

Note:

While using the debug container, it is recommended to uninstall the network policies or update them as required to establish the connections.

2.2.1.13.3 Verifying Network Policies

Run the following command to verify that the network policies have been applied successfully:

kubectl get networkpolicy -n <namespace>

Where,

namespace: Namespace must be the NRF's namespace.

Sample command:

kubectl get networkpolicy -n ocnrf

Following the sample output:

NAME                          POD-SELECTOR                              AGE
allow-egress-database         app.kubernetes.io/part-of=ocnrf           21h
allow-egress-dns              app.kubernetes.io/part-of=ocnrf           21h
allow-egress-jaeger           app.kubernetes.io/part-of=ocnrf           21h
allow-egress-k8-api           app.kubernetes.io/part-of=ocnrf           21h
allow-egress-sbi              app.kubernetes.io/name=egressgateway      21h
allow-egress-to-nrf-pods      app.kubernetes.io/part-of=ocnrf           21h
allow-from-node-port          app=ocats-nrf                             21h
allow-ingress-from-console    app.kubernetes.io/name=nrfconfiguration   21h
allow-ingress-from-nrf-pods   app.kubernetes.io/part-of=ocnrf           21h
allow-ingress-prometheus      app.kubernetes.io/part-of=ocnrf           21h
allow-ingress-sbi             app.kubernetes.io/name=ingressgateway     21h
deny-egress-all               app.kubernetes.io/part-of=ocnrf           21h
deny-ingress-all              app.kubernetes.io/part-of=ocnrf           21h

2.2.1.13.4 Uninstalling Network Policies

Run the following command to uninstall the network policies:

helm uninstall <helm-release-name> -n <namespace>

Sample command:

helm uninstall ocnrf-network-policy -n ocnrf

Note:

While using the debug container, it is recommended to uninstall the network policies or update them as required to establish the connections.

2.2.1.13.5 Configuration Parameters for Network Policies

Table 2-25 Supported Kubernetes Resource for Configuring Network Policy

Parameter	Description	Default Value
apiVersion	This is a mandatory parameter. This indicates Kubernetes version for access control. Note: This is the supported api version for network policy. This is a read-only parameter.	networking.k8s.io/v1
kind	This is a mandatory parameter. This represents the REST resource this object represents. Note: This is a read-only parameter.	NetworkPolicy

Table 2-26 Configuration Parameters for Network Policy

Parameter	Description	Default Value
metadata.name	This is a mandatory parameter. This indicates unique name for the network policy.	{{ .metadata.name }}
spec.{}	This is a mandatory parameter. This consists of all the information needed to define a particular network policy in the given namespace. Note: NRF supports the spec parameters defined in Kubernetes Resource Category.

For more information about this functionality, see Network Policies in Oracle Communications Cloud Native Core, Network Repository Function User Guide.

2.2.1.14 Configuring Traffic Segregation

This section provides information on how to configure Traffic Segregation in NRF. For description of " Traffic Segregation" feature, see " Traffic Segregation" section in Oracle Communications Cloud Native Core, Network Repository Function User Guide.

To use one or multiple interfaces, you need to configure appropriate annotations in the ingress-gateway.deployment.customExtension.annotations and/or egress-gateway.deployment.customExtension.annotations parameter of the ocnrf_custom_values_25.1.0.yaml file.

Configuration at Ingress Gateway

Use the following annotation to configure traffic segregation at ingress-gateway.deployment.customExtension.annotations in ocnrf_custom_values_25.1.0.yaml file:

• Annotation for a single interface:

  k8s.v1.cni.cncf.io/networks: default/<network interface>@<network interface>
  oracle.com.cnc/cnlb: '[{"backendPortName": "<igw port name>", "cnlbIp": "<external IP>","cnlbPort":"<port number>"}]'

  Here,

  • k8s.v1.cni.cncf.io/networks: Contains all the network attachment information the pod uses for network segregation.
  • oracle.com.cnc/cnlb: To define service IP and port configurations that the deployment will employ for ingress load balancing.:

    Where,

    • cnlbIp is the front-end IP utilized by the application.
    • cnlbPort is the front-end port used in conjunction with the CNLB IP for load balancing.
    • backendPortName is the backend port name of the container that needs load balancing, retrievable from the deployment or pod spec of the application.

  Sample annotation for a single interface:

  k8s.v1.cni.cncf.io/networks: default/nf-sig1-int8@nf-sig1-int8
  oracle.com.cnc/cnlb: '[{"backendPortName": "igw-port", "cnlbIp": "<external IP>","cnlbPort":"80"}]'

• Annotation for multiple interfaces

  k8s.v1.cni.cncf.io/networks: default/<network interface1>@<network interface1>, default/<network interface2>@<network interface2>
  oracle.com.cnc/cnlb: '[{"backendPortName": "<igw port name>", "cnlbIp": "<external IP1>, <external IP2>","cnlbPort":"<port number>"}]'oracle.com.cnc/ingressMultiNetwork: "true"

  Sample annotation for multiple interfaces:

  k8s.v1.cni.cncf.io/networks: default/nf-sig1-int8@nf-sig1-int8,default/nf-sig2-int9@nf-sig2-int9
  oracle.com.cnc/cnlb: '[{"backendPortName": "igw-port", "cnlbIp": "nf-sig1-int8/<external IP>,nf-sig2-int9/<external IP>","cnlbPort":"80"}]'oracle.com.cnc/ingressMultiNetwork: "true"

• Sample annotation for multiport:

   k8s.v1.cni.cncf.io/networks: default/nf-sig2-int2@nf-sig2-int2
  oracle.com.cnc/cnlb: '[{"backendPortName": "igw-http", "cnlbIp": "<external IP>","cnlbPort": "80"}, {"backendPortName": "cnc-metrics","cnlbIp":"<external IP>","cnlbPort": "9090"}]'

  In the above example, each item in the list refers to a different backend port name with the same CNLB IP, but the ports for the front end are distinct.

  Ensure that the backend port name aligns with the container port name specified in the deployment's specification, which needs to be load balanced from the port list. The CNLB IP represents the external IP of the service, and cnlbPort is the external-facing port:

  ports:
  - containerPort: 9090
    name: cnc-metrics
    protocol: TCP
  - containerPort: 8081
    name: igw-http
    protocol: TCP

Configuration at Egress Gateway

Use the following annotation to configure traffic segregation at egress-gateway.deployment.customExtension.annotations in ocnrf_custom_values_25.1.0.yaml file:

• Annotation for a single interface

  k8s.v1.cni.cncf.io/networks: default/<network interface>@<network interface>

  Where,

  • k8s.v1.cni.cncf.io/networks: Contains all the network attachment information the pod uses for network segregation.

  Sample annotation for a single interface:

  k8s.v1.cni.cncf.io/networks: default/nf-sig-egr1@nf-sig-egr1

• Sample annotation for a multiple interface:

  k8s.v1.cni.cncf.io/networks: default/nf-sig1-egr2@nf-sig1-egr2,default/nf-sig2-egr1@nf-sig2-egr1,default/nf-sig4-egr1@nf-sig4-egr1

  Note:

  • The network attachments will be deployed as a part of cluster installation only.
  • The network attachment name should be unique for all the pods.

  For information about the above mentioned annotations, see "Configuring Cloud Native Load Balancer (CNLB)" in Oracle Communications Cloud Native Core, Cloud Native Environment Installation, Upgrade, and Fault Recovery Guide.

2.2.2 Installation Tasks

This section provides installation procedures to install Oracle Communications Cloud Native Core, Network Repository Function (NRF) using Command Line Interface (CLI).

This section explains how to install NRF.

Note:

• Before installing NRF, you must complete Prerequisites and Preinstallation Tasks.
• In a georedundant deployment, perform the steps explained in this section on all the georedundant sites.

2.2.2.1 Installing NRF Package

To install the NRF package, perform the following steps:

1. Run the following command to access the extracted package:

   cd <ReleaseName>_csar_<Releasenumber>

   For example:

   cd ocnrf_csar_25.2.201

2. Customize the ocnrf-custom-values-25.2.201.yaml file with the required deployment parameters. See Customizing NRF chapter to customize the file. For more information about predeployment parameter configurations, see Preinstallation Tasks.

   Note:

   • In case of georedundant deployments, configure nfInstanceId uniquely for each NRF site.
3. (Optional) Customize the ocnrf-servicemesh-config-custom-values-25.2.200.yaml with the required deployment parameters in case you are creating DestinationRule and service entry using the yaml file. See Configuring NRF to Support ASM chapter for the sample template.
4. (Optional) Run the following command to create DestinationRule and service entry using the yaml file:

   helm install <helm-release-name> <charts> --namespace <namespace-name> -f <custom-values.yaml-filename>

   Example:

   helm install ocnrf ocnrf --namespace ocnrf -f ocnrf-servicemesh-config-custom-values-25.2.200.yaml

5. Run the following command to install NRF:
   1. Using local helm chart:

      helm install <helm-release-name> <charts> --namespace <namespace-name> -f <custom-values.yaml-filename>

      Example:

      helm install ocnrf ocnrf --namespace ocnrf -f ocnrf-custom-values-25.2.201.yaml

   2. Using chart from helm repo:

      helm install <helm-release-name> <helm_repo/helm_chart> --version <chart_version> --namespace <namespace-name> -f ocnrf-custom-values-<release_number>.yaml

      Example:

      helm install ocnrf ocnrf-helm-repo/ocnrf --version 25.2.201 --namespace ocnrf -f ocnrf-custom-values-25.2.201.yaml

      Where,

      helm_repo is the location where helm charts are stored.

      helm_chart is the chart to deploy the NRF.

      helm-release-name is the release name used by helm command.

      Note:

      <helm-release-name> must not exceed 20 characters.

      namespace-name is the deployment namespace used by helm command.

      ocnrf-custom-values-<release_number>.yaml is the name of the custom values yaml file (including location).

   Note:

   timeout duration: The timeout duration is an optional parameter. It specifies the time to wait for any individual Kubernetes operation (like Jobs for hooks). The default value is 5m0s in Helm3. If the helm install command fails at any point to create a Kubernetes object, it will internally call the purge to delete after the timeout value (default: 300s). Here, timeout value is not applicable for the overall installation procedure but for automatic purge on installation failure.

Caution:

Do not exit from helm install command manually. After running the helm install command, it takes some time to install all the services. Do not press "ctrl+c" to exit from helm install command. It may lead to some anomalous behavior.

Note:

If you want to add a site in georedundant deployment, see Adding a Site in Georedundant Deployment.

2.2.3 Postinstallation Tasks

This section explains the postinstallation tasks for NRF.

2.2.3.1 Verifying Installation

To verify the installation:

1. Run the following command to check the installation status:

   helm status <helm-release> -n <namespace>

   Where,

   <helm-release> is the Helm release name of NRF.

   <namespace> is the namespace of NRF deployment.

   For example:

   helm status ocnrf -n ocnrf

   If the deployment is successful, then the STATUS is displayed as deployed.

   Sample output:

   NAME: ocnrf
   LAST DEPLOYED: Fri Aug 15 10:08:03 2023
   NAMESPACE: ocnrf
   STATUS: deployed
   REVISION: 1


2. Run the following command to verify if the pods are up and active:

   $ kubectl get pods -n <namespace>

   Where,

   <namespace> is the namespace of NRF deployment.

   The STATUS column of all the pods must be 'Running'.

   The READY column of all the pods must be n/n, where n is the number of containers in the pod.

   For example:

   $ kubectl get pods -n ocnrf

   NAME                                     READY   STATUS    RESTARTS   AGE
   ocnrf-alternate-route-7dcf9b9c5d-d8q75   1/1     Running   0          2m56s
   ocnrf-alternate-route-7dcf9b9c5d-x89gx   1/1     Running   0          2m1s
   ocnrf-appinfo-79b6c79746-dvvmp           1/1     Running   0          2m54s
   ocnrf-appinfo-79b6c79746-v698l           1/1     Running   0          2m54s
   ocnrf-egressgateway-84fbcd8748-klm8z     1/1     Running   0          2m1s
   ocnrf-egressgateway-84fbcd8748-zp4qk     1/1     Running   0          2m52s
   ocnrf-ingressgateway-bb6dfc8f9-6t6h8     1/1     Running   0          2m49s
   ocnrf-ingressgateway-bb6dfc8f9-zxgtq     1/1     Running   0          117s
   ocnrf-nfaccesstoken-55dc8f6745-flh4w     1/1     Running   0          2m1s
   ocnrf-nfaccesstoken-55dc8f6745-gq6gn     1/1     Running   0          2m45s
   ocnrf-nfdiscovery-68777b4556-gd6wf       1/1     Running   0          2m43s
   ocnrf-nfdiscovery-68777b4556-nqp5t       1/1     Running   0          2m1s
   ocnrf-nfregistration-5b8c8b7dd5-6qq8w    1/1     Running   0          2m41s
   ocnrf-nfregistration-5b8c8b7dd5-pvqtr    1/1     Running   0          2m
   ocnrf-nfsubscription-84c7d48b95-z6jlk    1/1     Running   0          2m39s
   ocnrf-nfsubscription-84c7d48b95-zq4bl    1/1     Running   0          2m1s
   ocnrf-nrfartisan-567c6dc8-bpz7t          1/1     Running   0          2m39s
   ocnrf-nrfauditor-6fdf4846c5-wjpfl        1/1     Running   0          2m37s
   ocnrf-nrfauditor-6fdf4846c5-zxyz         1/1     Running   0          2m37s
   ocnrf-nrfconfiguration-5f5c476d-rj6w6    1/1     Running   0          2m35s
   ocnrf-performance-65587f5d4f-b5cdf       1/1     Running   0          2m33s
   ocnrf-performance-65587f5d4f-fw8fc       1/1     Running   0          2m31s

3. Run the following command to verify if the services are deployed and active:

   kubectl -n <namespace> get services

   Where,

   <namespace> is the namespace of NRF deployment.

   For example:

   kubectl -n ocnrf get services

Note:

If an external load balancer is used, EXTERNAL-IP address is assigned to ocnrf-ingressgateway.

If the installation is unsuccessful or the status of all the pods is not in RUNNING state, perform the troubleshooting steps provided in Oracle Communications Cloud Native Core, Network Repository Function Troubleshooting Guide.

2.2.3.2 Performing Helm Test

This section describes how to perform sanity check for NRF installation through Helm test. The pods to be checked should be based on the namespace and label selector configured for the Helm test configurations.

Helm Test is a feature that validates successful installation of NRF and determines if the NF is ready to take traffic.

Note:

• Helm test can be performed only on Helm3.
• Helm test expects all of the pods of given microservice to be in READY state for a successful result.

To perform the Helm test:

1. Configure the Helm test configurations under the Helm Test Global Parameters section of the ocnrf-custom-values-25.2.201.yaml file.
2. Run the following command to perform the Helm test:

   helm test <helm-release_name> -n <namespace>

   Where,

   <helm-release-name> is the release name.

   <namespace> is the deployment namespace where NRF is installed.

   For example:

   helm test ocnrf -n ocnrf

   Sample output:

   NAME: ocnrf
   LAST DEPLOYED: Fri Aug 15 10:08:03 2023
   NAMESPACE: ocnrf
   STATUS: deployed
   REVISION: 1
   TEST SUITE:     ocnrf-test
   Last Started:   Fri Aug 15 10:41:25 2023
   Last Completed: Fri Aug 15 10:41:34 2023
   Phase:          Succeeded


If the Helm test fails, see Oracle Communications Cloud Native Core, Network Repository Function Troubleshooting Guide.

2.2.3.3 Taking a Backup

Take a backup of the following files, which are required during fault recovery:

• Updated ocnrf-custom-values-25.2.201.yaml file.
• Updated ocnrf-servicemesh-config-custom-values-25.2.200.yaml.
• Updated helm charts.
• Updated ocnrf_network_policy_custom_values_25.2.200.yaml.
• Secrets, certificates, CA root, and keys that are used during installation.

2.2.3.4 Alert Configuration

This section describes the measurement based alert rules configuration for NRF. The Alert Manager uses the Prometheus measurements values as reported by microservices in conditions under alert rules to trigger alerts.

Note:

• Alert file is packaged with NRF custom templates. The NRF CSAR package can be downloaded from MOS. Unzip the NRF CSAR package file to get the Alertrules.yaml file.
• Review the Alertrules.yaml file and edit the value of the parameters in the Alertrules.yaml file (if needed to be changed from default values) before configuring the alerts. See below table for details.
• kubernetes_namespace is configured as Kubernetes namespace in which NRF is deployed. Default value is NRF. Update the Alertrules.yaml file to reflect the correct NRF Kubernetes namespace.

Alert details which can be updated in Alertrules.yaml file before configuration

Table 2-27 Alerts

Alert Name	Details	Default Value	Notes
OcnrfTotalIngressTrafficRateAboveMinorThreshold	Traffic Rate is above 80 Percent of Max requests per second	Greater than/equal to 800 and Less than 900	Maximum Ingress rate considered is 1000 requests per second. So, here in default value 800 is 80% of 1000 and 900 is 90% of 1000. For example, if value need to be updated then depending upon maximum ingress request rate, set [ 90% of Max Ingress Request Rate] and [ 80% of Max Ingress Request Rate] for this alert
OcnrfTotalIngressTrafficRateAboveMajorThreshold	Traffic Rate is above 90 Percent of Max requests per second	Greater than/equal to 900 and Less than 950	Maximum Ingress rate considered is 1000 requests per second. So, here in default value 900 is 90% of 1000 and 950 is 95% of 1000. For example, if value need to be updated then depending upon maximum ingress request rate, set [ 90% of Max Ingress Request Rate] and [ 95% of Max Ingress Request Rate] for this alert
OcnrfTotalIngressTrafficRateAboveCriticalThreshold	Traffic Rate is above 95 Percent of Max requests per second	Greater than/equal to 950	Maximum Ingress rate considered is 1000 requests per second. So, here in default value 950 is 95% of 1000. For example, if value need to be updated then depending upon maximum ingress request rate, set [ 95% of Max Ingress Request Rate] for this alert

NRF Alert configuration in Prometheus

Update NRF alerts for CNE releases

This section describes the measurement based Alert rules configuration for NRF in Prometheus. Use the ocnrf_alerting_rules_promha_25.2.201.yaml file updated in NRF Alert configuration section.

1. Run the following command to apply the prometheusrules CRD:

   $ kubectl apply -f ocnrf_alerting_rules_promha_25.2.201.yaml --namespace <namespace>

   Example:

   $ kubectl apply -f ocnrf_alerting_rules_promha_25.2.201.yaml --namespace ocnrf
     prometheusrule.monitoring.coreos.com/ocnrf-alerting-rules created

2. Run the following command to check NRF alert file is added to prometheusrules:

   $ kubectl get prometheusrules --namespace <namespace>

   Example:

   $ kubectl get prometheusrules --namespace ocnrf


   Sample output:

   NAME                          AGE
   ocnrf-alerting-rules          1m

3. Log in to Prometheus GUI and verify the alerts.
   The following alert configuration file must be loaded as shown in the figure.

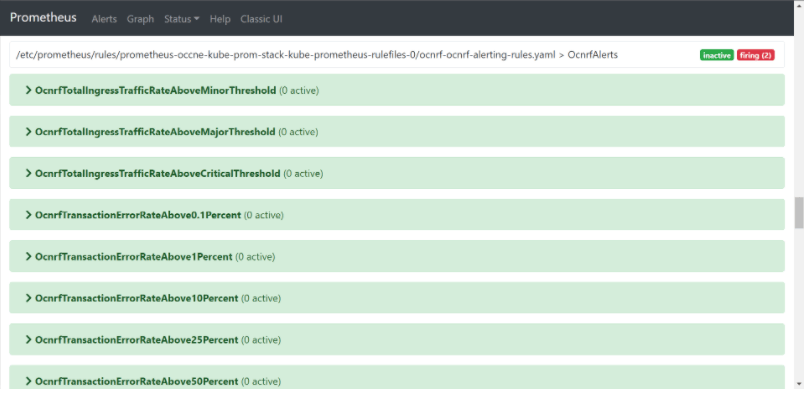

   Figure 2-1 Prometheus Alert Manager



Note:

The Prometheus server takes an updated configuration map that is automatically reloaded after approximately 60 seconds. Refresh the Prometheus GUI to confirm that the NRF Alerts have been reloaded.

Validating Alerts

After configuring the alerts in Prometheus server, a user can verify the same by following steps:

• Open the Prometheus server from your browser using the <IP>:<Port>
• Navigate to Status and then Rules.
• Search Ocnrf. OcnrfAlerts list will appear.

  Note:

  If you are unable to see the alerts, it means the alert file is not loaded in a format that Prometheus server accepts. Modify the file and try again.

Update NRF alerts for OSO releases

This section describes the configuration of alerts for NRF in OSO.

For configuring alerts in OSO, see Oracle Communications Cloud Native Core, Operations Services Overlay Installation and Upgrade Guide.

2.2.3.4.1 Disable Alerts

This section explains the procedure to disable the alerts in NRF.

1. Edit NrfAlertrules-25.2.201.yaml file to remove a specific alert.
2. Remove complete content of a specific alert from the NrfAlertrules-25.2.201.yaml file.
   For example: If you want to remove OcnrfTrafficRateAboveMinorThreshold alert, remove the complete content:

   ## ALERT SAMPLE START##

         - alert: OcnrfTrafficRateAboveMinorThreshold
           annotations:
             description: 'Ingress traffic Rate is above minor threshold i.e. 800 mps (current value is: {{ $value }})'
             summary: 'Traffic Rate is above 80 Percent of Max requests per second(1000)'
           expr: sum(rate(oc_ingressgateway_http_requests_total{app_kubernetes_io_name="ingressgateway",kubernetes_namespace="ocnrf"}[2m])) >= 800 < 900
           labels:
             severity: Minor
   ## ALERT SAMPLE END##

3. Perform Alert configuration. For more information about configuring alerts, see Alert Configuration section.

2.2.3.4.2 Configuring SNMP Notifier

This section describes the procedure to configure SNMP Notifier.

Configure the IP and port of the SNMP trap receiver in the SNMP Notifier using the following procedure:

1. Run the following command to edit the deployment:

   $ kubectl edit deploy <snmp_notifier_deployment_name> -n <namespace>

   Example:

   $ kubectl edit deploy occne-snmp-notifier -n occne-infra

   SNMP deployment yaml file is displayed.

2. Edit the SNMP destination in the deployment yaml file as follows:

   --snmp.destination=<destination_ip>:<destination_port>

   Example:

   --snmp.destination=10.75.203.94:162

3. Save the file.

Checking SNMP Traps

Following is an example on how to capture the logs of the trap receiver server to view the generated SNMP traps:

$ docker logs <trapd_container_id>

Sample output:

2020-04-29 15:34:24 10.75.203.103 [UDP: [10.75.203.103]:2747->[172.17.0.4]:162]:DISMAN-EVENT-MIB::sysUpTimeInstance = Timeticks: (158510800) 18 days, 8:18:28.00        SNMPv2-MIB::snmpTrapOID.0 = OID: SNMPv2-SMI::enterprises.323.5.3.36.1.2.7003    SNMPv2-SMI::enterprises.323.5.3.36.1.2.7003.1 = STRING: "1.3.6.1.4.1.323.5.3.36.1.2.7003[]"  SNMPv2-SMI::enterprises.323.5.3.36.1.2.7003.2 = STRING: "critical"      SNMPv2-SMI::enterprises.323.5.3.36.1.2.7003.3 = STRING: "Status: critical- Alert: OcnrfActiveSubscribersBelowCriticalThreshold  Summary: namespace: ocnrf, nftype:5G_EIR, nrflevel:6faf1bbc-6e4a-4454-a507-a14ef8e1bc5c, podname: ocnrf-nrfauditor-6b459f5db5-4kvt4,
        timestamp: 2020-04-29 15:33:24.408 +0000 UTC: Current number of registered NFs detected below critical threshold.  Description: The number of registered NFs detected below critical threshold (current value
          is: 0)

MIB Files for NRF

There are two MIB files which are used to generate the traps. The user need to update these files along with the Alert file in order to fetch the traps in their environment.

• ocnrf_mib_tc_25.2.201.mib

  This is considered as NRF top level mib file, where the objects and their data types are defined.

• ocnrf_mib_25.2.201.mib

  This file fetches the objects from the top level mib file and based on the alert notification, these objects can be selected for display.

• toplevel_25.2.201.mib: This defines the OIDs for all NFs.

Note:

MIB files are packaged along with the release package. Download the file from MOS. For more information on downloading the release package, see Downloading the NRF package.

2.2.3.5 Alert Configuration in OCI

The following procedure describes how to configure the NRF alerts for OCI. The OCI supports metric expressions written in MQL (Metric Query Language) and thus, requires a new NRF alert file for configuring alerts in OCI observability platform.

The following are the steps:

1. Run the following command to extract the .zip file:

   unzip ocnrf_oci_alertrules_<version>.zip

   The ocnrf_oci and ocnrf_oci_resources folders are available in the zip file.

   Note:

   The zip file is available in the Scripts folder of CSAR package.
2. Open the ocnrf_oci folder, in the notifications.tf file, update the parameter endpoint with the email id of the user.
3. Open the ocnrf_oci_resources folder, in the notifications.tf file, update the parameter endpoint with the email id of the user (replace [e-mail] with the email id of the user).
4. Log in to the OCI Console.

   Note:

   For more details about logging in to the OCI, refer to Signing In to the OCI Console.
5. Open the navigation menu and select Developer Services. The Developer Services window appears in the right pane.
6. Under the Developer Services, select Resource Manager.
7. Under Resource Manager, select Stacks. The Stacks window appears.
8. Click Create Stack.
9. Select the default My Configuration radio button.
10. Under Stack configuration, select the folder radio button and upload the ocnrf_oci folder.
11. Enter the Name and Description and select the compartment.
12. Select the latest Terraform version from the Terraform version drop-down.
13. Click Next. The Edit Stack screen appears.
14. Enter the required inputs to create the NRF alerts or alarms and click Save and Run Apply.
15. Verify that the alarms are created in the Alarm Definitions screen (OCI Console> Observability & Management> Monitoring>Alarm Definitions) provided.

    The required inputs are:

    • Alarms Configuration
      • Compartment Name - Choose name of compartment from the drop-down
      • Metric namespace - Metric namespace that the user provided while deploying OCI Adaptors.
      • Topic Name - Any user configurable name. Must contain fewer than 256 characters. Only alphanumeric characters plus hyphens (-) and underscores (_) are allowed.
      • Message Format - Keep it as ONS_OPTIMIZED. (This is pre-populated)
      • Alarm is_enabled - Keep it as True. (This is pre-populated)
16. The steps 6 to 16 must be repeated for uploading the ocnrf_oci_resources folder. Keep Metric namespace as mgmtagent_kubernetes_metrics (This is pre-populated).
